INTERIOR BOTTLE
HOLDERS
There are four bottle holders located
in the interior. One bottle holder is
molded into each front interior door
trim panels, and one bottle holder is
molded into each side sliding interior
door trim panel. Each holder accom-
modates up to a 20 oz (.6 L) plastic
bottle.WARNING!
If containers of hot liquid are placed
in the bottle holder, they can spill
when the door is closed, burning the
occupants. Be careful when closing
the doors to avoid injury.Two outboard mesh pockets are on
intermediate seating. The mesh pock-
ets are flexible enough to hold juice
boxes, toys, games or MP3 players,
etc.
SMOKER'S PACKAGE KIT
(for versions/markets,
where provided)
With the optional authorized dealer-
installed
Smoker's Package Kit, a r e-
movable ash receiver is inserted into
one of the two cupholders in the cen-
ter front instrument panel. To install
the ash receiver, align the receiver so
the thumb grip on the lid is facing
rearward. Press the ash receiver into
either of the cup wells to secure. Pull
upward on the ash receiver to remove
for cleaning and/or storage.
The left rear trim panel cupholder is
designed to accommodate a second
ash receiver, if desired.
STORAGE
GLOVE COMPARTMENTS
Upper and lower glove compartments
are located on the passenger side of
the instrument panel. Upper Glove Compartment
To open the upper compartment,
press in on the button, located on the
left side of the upper door. The door
will automatically open.
To close the compartment door, push
downward on the door’s surface to
latch the door closed.
Lower Glove Compartment
To open the lower compartment pull
out on the release handle.
Interior Bottle Holder
Upper CompartmentLower Compartment
145

DOOR TRIM PANEL
STORAGE
Front Door Storage
Both interior front door panels have
multiple pockets for storage.WARNING!
If containers of hot liquid are placed
in the bottle holder, they can spill
when the door is closed, burning the
occupants. Be careful when closing
the doors to avoid injury.
DRIVER SEATBACK
STORAGE (for
versions/markets, where
provided)
The drivers seatback has a primary
storage pocket on all models and an
optional secondary mesh pocket. UMBRELLA HOLDER
An umbrella holder has been conve-
niently molded into the left front door
entry scuff molding.SECOND ROW FLOOR
STORAGE BINS
The area below the floor covers, lo-
cated in front of the second row seats,
is available for storage.
Pull up on the storage bin latch to
open the cover. Slide the storage bin
locking mechanism to the "unlocked"
position to allow greater access to the
storage bin.
CAUTION!
The storage bin cover must lay flat
and be locked to avoid damage from
contact with the front seat tracks,
which have minimal clearance to the
cover.
Driver's Seatback Storage
1 — Bag Holder
2 — Standard Pocket
3 — Mesh Pocket
Umbrella Holder
Storage Bin Cover Lock Release
146

WARNING!
In a collision, serious injury could
result if the seat storage bin covers
are not properly latched.
 Do not drive the vehicle with thestorage bin covers open.
 Keep the storage bin covers closed
and latched while the vehicle is in
motion.
 Do not operate the storage bin
covers while the vehicle is in mo-
tion.
 Do not use a storage bin latch as a
tie down.

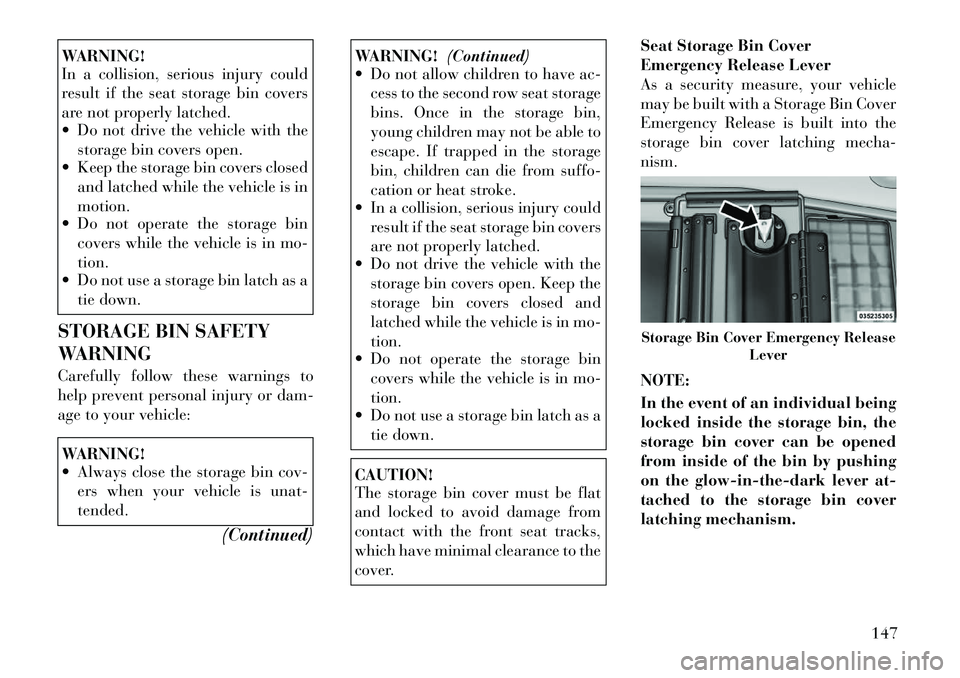

STORAGE BIN SAFETY
WARNING
Carefully follow these warnings to
help prevent personal injury or dam-
age to your vehicle:WARNING!
 Always close the storage bin cov- ers when your vehicle is unat-
tended.
(Continued)
WARNING!(Continued)
 Do not allow children to have ac-
cess to the second row seat storage
bins. Once in the storage bin,
young children may not be able to
escape. If trapped in the storage
bin, children can die from suffo-
cation or heat stroke.
 In a collision, serious injury could
result if the seat storage bin covers
are not properly latched.
 Do not drive the vehicle with the
storage bin covers open. Keep the
storage bin covers closed and
latched while the vehicle is in mo-
tion.
 Do not operate the storage bin
covers while the vehicle is in mo-
tion.
 Do not use a storage bin latch as a
tie down.CAUTION!
The storage bin cover must be flat
and locked to avoid damage from
contact with the front seat tracks,
which have minimal clearance to the
cover. Seat Storage Bin Cover
Emergency Release Lever
As a security measure, your vehicle
may be built with a Storage Bin Cover
Emergency Release is built into the
storage bin cover latching mecha-
nism.
NOTE:
In the event of an individual being
locked inside the storage bin, the
storage bin cover can be opened
from inside of the bin by pushing
on the glow-in-the-dark lever at-
tached to the storage bin cover
latching mechanism.
Storage Bin Cover Emergency Release
Lever
147

CENTER AND REAR
OVERHEAD CONSOLE
STORAGE (for
version/markets, where
provided)
The overhead storage system comes in
several options.COAT HOOKS
Coat hooks are located along the
headliner for the second and third row
seating positions. The coat hook load
limit is 4.5 kg . Exceeding the recom-
mended load limit can cause the coat
hooks to break or disengage from the
vehicle.
CARGO AREA STORAGE
The liftgate sill plate has a raised line
with the statement “Load To This
Line”. This line indicates how far
rearward cargo can be placed without
interfering with liftgate closing.
NOTE:
With all rear seats stowed or re-
moved, 4 x 8 foot sheets of building
material will fit on the vehicle
floor with the liftgate closed. Thefront seats must be moved slightly
forward of the rearmost position.
In addition to the rear cargo area, on
some models there are open storage
areas located in the rear trim panels.
CONSOLE FEATURES
There are three consoles available:
Basic, Premium and Super.
WARNING!
Do not operate this vehicle with a
console compartment lid in the open
position. Cellular phones, music
players, and other handheld elec-
tronic devices should be stowed
while driving. Use of these devices
while driving can cause an accident
due to distraction, resulting in death
or injury.
Overhead Console Features
1 — DVD
1
5 — Storage
2 — Rear HVAC 6 — DVD
1
3 — Courtesy
Lights 7 — Courtesy
Lights
4 — Storage 8 — Halo Light- ing1(for versions/markets, where pro-
vided)
Rear Cargo Area Loading Limit
Trim Panel Storage Area
148

BASIC CONSOLE
Basic Console features consist of the
following:
 The basic console profile allows ve-hicle occupants to easily pass
through the first row to the second.
 Four cupholders accept up to extra large size beverage cups or 20 oz
(.6 L) plastic bottles. Cupholders
are dishwasher safe for cleaning.
 The cupholders are removable to access a large storage bin.
 The basic console is removable from the vehicle for additional floor
space by removing the cap and clip
at the console base.
To Remove The Basic Floor
Console
1. Remove the front anchor cup plug
and clip.
2. Slide the console base forward
while lifting slightly to clear the rear
load floor hook.
3. Remove the console. To Reinstall The Basic Floor
Console
1. Position the console at a slight
angle (front slightly higher than the
rear).
2. Slide the console rearward into the
floor bracket/hook.
3. Align the console until the front
anchor cup plug hole is centered on
the winch hole.
4. Reinstall the clip first and then
while pushing downward on the con-
sole with slight pressure, reinstall the
cover plug.
5. Pull up on the console to be sure it
is firmly latched.
WARNING!
In an accident, serious injury could
result if the removable floor console
is not properly installed. Always be
sure the removable floor console is
fully latched.
PREMIUM CONSOLE (for
versions/markets, where
provided)
The three-compartment console with
sliding storage bin, sliding upper tray
with storage and large console storage
bin offers multiple configurations.
 Four cupholders with dishwasher
safe liners for cleaning. The cup-
holders can accept plastic bottles,
large cups or mugs with handles.
 Top tray storage
 Upper storage bin can hold nine regular or 18 thin CDs or other
items
 Large console center storage will store headphones for the available
rear DVD entertainment system or
other items
 12 Volt DC power outlet provides continuous power inside the con-
sole for cell phones or other elec-
tronics.
 Rear occupant accessible
 Multiple adjustments
149

 Removable from vehicle for addi-tional floor space.
The top and center console sections
slide forward and rearward to provide
added user comfort. A one-piece cup
holder insert for both cavities can eas-
ily be removed for cleaning. The cup-
holders will also accommodate large
size cups and 20 oz (.6 L) bottles.
Position 1 shows the console closed
with four cupholders and a conve-
nient storage tray.
Position 2 shows the raised storage
tray revealing a large storage area be-
low. Dual Storage Bins
Position 3 shows the top portion of the
console in a rearward position. This is
accomplished by lifting the upper
most latch at the front of the console.
This provides easy access to the stor-
age area below and provides two of
the four cupholders for the second
row passengers.Position 4 shows the complete console
in its rearmost position. Again, lifting
second latch handle at the front of the
console, allows complete access to a
lower storage bin and provides addi-
tional cupholders for rear passengers.
To Remove The Premium Floor
Console
1. Pull up on the bottom release
handle in the front of the console.
2. Lift the rear of the console up sev-
eral inches/centimeters.
3. Pull rearward to disengage from
floor and remove console.
To reinstall the console:
1. Position the console at a slight
angle (rear slightly higher than the
front).
Console Position 1
Console Position 2Console Position 3
Console Position 4
150

2. Slide the console forward into the
floor bracket.
3. Rotate the rear of the console down
until it is resting on the floor bracket.
4. Push down on the rear of the con-
sole until it is seated in the rear floor
bracket.
5. Pull up on the console to be sure it
is firmly latched.WARNING!
In an accident, serious injury could
result if the removable floor console
is not properly installed. Always be
sure the removable floor console is
fully latched.
SUPER CONSOLE (for
versions/markets, where
provided)
The Super Console contains multiple
storage areas, front lower pass
through, top forward bin, top rear-
ward bin and rear pull out drawer.
The super console contains a pass
through storage area accessible for
both the driver and front passenger. The super console tambour doors are
opened by pushing down on the finger
tabs and sliding the door. The front
tambour door slides forward, the rear
tambour door slides rearward.
NOTE:
The front cupholder light ring and
pass through lighting is controlled
by a dimming switch located on
the instrument panel, refer to
“Lights” in “Understanding The
Features Of Your Vehicle” for fur-
ther information.
Located in the back of the super con-
sole is a storage drawer and cuphold-
ers for the rear passengers.
Front Lower Pass Through
Super Console
1 — Front Sliding Tambour Door
2 — Cupholder Light Ring
3 — Rear Sliding Tambour Door
Rear Drawer Storage
151

CARGO AREA FEATURES
RECHARGEABLE
FLASHLIGHT (for
versions/markets, where
provided)
The rechargeable flashlight is
mounted on the right side of the cargo
area. The flashlight snaps out of the
bezel when needed. The flashlight
features two bright LED light bulbs
and is powered by a lithium battery
that recharges when snapped back
into place and the vehicle is either
running or the key is in the accessory
position.
Press in on the flashlight to release it.To operate the flashlight, press the
switch once for high, twice for low,
and a third time to return to off.
REAR WINDOW
FEATURES
REAR WINDOW
DEFROSTER
The rear window defroster
button is located on the climate
control (Mode) knob. Press
this button to turn on the rear window
defroster and the heated outside mir-
rors (for versions/markets, where
provided). An indicator in the button
will illuminate when the rear window
defroster is on. The rear window de-
froster automatically turns off after
approximately 10 minutes. For an ad- ditional five minutes of operation,
press the button a second time.
NOTE:
 You can turn off the heated mir-
ror feature at anytime by press-
ing the rear window defroster
switch a second time.
 To prevent excessive battery drain, use the rear window de-
froster only when the engine is
operating.
CAUTION!
Failure to follow these cautions can
cause damage to the heating ele-
ments:
 Use care when washing the insideof the rear window. Do not use
abrasive window cleaners on the
interior surface of the window.
Use a soft cloth and a mild wash-
ing solution, wiping parallel to the
heating elements. Labels can be
peeled off after soaking with
warm water.
(Continued)
Press And Release
Three-Press Switch
152

CAUTION!(Continued)
 Do not use scrapers, sharp instru-
ments, or abrasive window clean-
ers on the interior surface of the
window.
 Keep all objects a safe distance
from the window.
ROOF LUGGAGE RACK
(for versions/markets,
where provided)
The crossbars on your vehicle are de-
livered stowed within the roof rack
side rails. If adding cargo, deploy the
crossbars. Distribute cargo weight
evenly on the roof rack crossbars, to
maximum of 68 kg. The roof rack
does not increase the total load carry-
ing capacity of the vehicle. Be sure the
total load of cargo inside the vehicle
plus that on the external rack does not
exceed the maximum vehicle load ca-
pacity. The crossbars and side rails are de-
signed to carry weight on vehicles
equipped with a luggage rack. The
load must not exceed 68 kg, and
should be uniformly distributed over
the luggage rack crossbars.
NOTE:
 Crossbars are error-proofed and
cannot be deployed or stowed in
the incorrect positions.
 To help control wind noise, stow the crossbars in the side rails
when they are not in use. DEPLOYING THE
CROSSBARS
To deploy the crossbars, completely
loosen the thumb screws at both ends
of the crossbar and lift the crossbar
from its stowed position in the side
rail. Repeat with crossbar on the op-
posite side.
CAUTION!
Use care when removing and han-
dling the crossbars to prevent dam-
age to the vehicle.
Crossbar Stowed In Side Rail
Loosening Crossbars
153

Bend the crossbar supports at each
end, taking care to keep hand clear of
pivoting joint. Slide the thumb screw
down.Then, position the crossbars across
the roof.
NOTE:
The crossbars are identical and
can be placed in any two of the
three deploy positions.Make sure the directional arrows on
the crossbars align with the direc-
tional arrows on the side rails. Set the
crossbars into the deployed positions.
Once the crossbars are set into posi-
tion, tighten the thumb screws com-
pletely.
Stowed PositionDeployed Position
Deploy Positions – Choose Two Of
Three
Crossbar To Side Rail Installation
Tightening Crossbar
154
