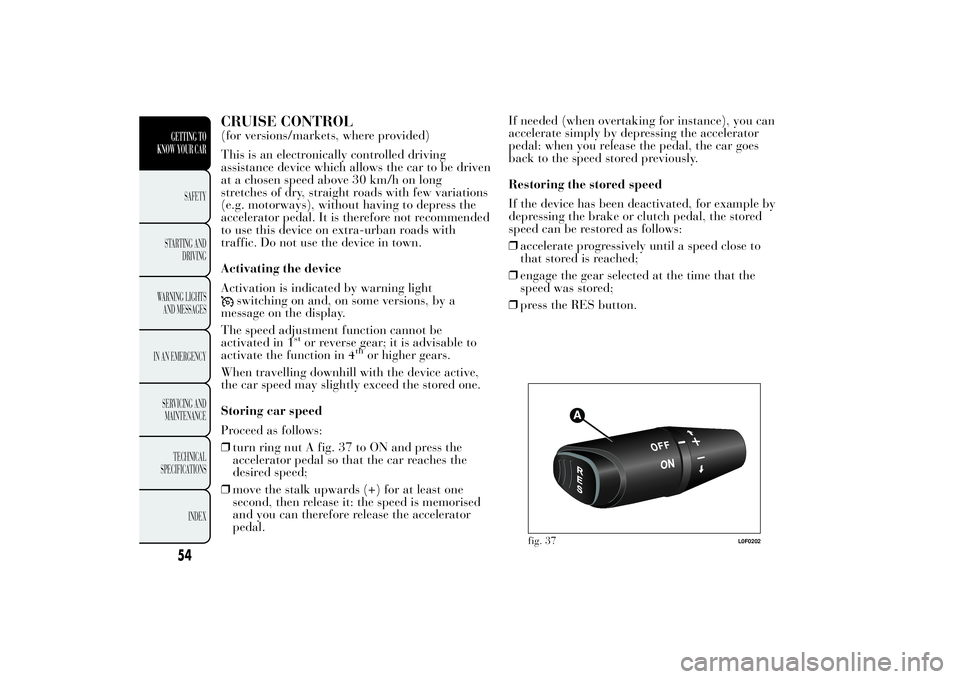

CRUISE CONTROL(for versions/markets, where provided)
This is an electronically controlled driving
assistance device which allows the car to be driven
at a chosen speed above 30 km/h on long
stretches of dry, straight roads with few variations
(e.g. motorways), without having to depress the
accelerator pedal. It is therefore not recommended
to use this device on extra-urban roads with
traffic. Do not use the device in town.
Activating the device
Activation is indicated by warning light
switching on and, on some versions, by a
message on the display.
The speed adjustment function cannot be
activated in 1
stor reverse gear; it is advisable to
activate the function in 4
th
or higher gears.
When travelling downhill with the device active,
the car speed may slightly exceed the stored one.
Storing car speed
Proceed as follows:
❒turn ring nut A fig. 37 to ON and press the
accelerator pedal so that the car reaches the
desired speed;
❒move the stalk upwards (+) for at least one
second, then release it: the speed is memorised
and you can therefore release the accelerator
pedal.If needed (when overtaking for instance), you can
accelerate simply by depressing the accelerator
pedal: when you release the pedal, the car goes
back to the speed stored previously.
Restoring the stored speed
If the device has been deactivated, for example by
depressing the brake or clutch pedal, the stored
speed can be restored as follows:
❒accelerate progressively until a speed close to
that stored is reached;
❒engage the gear selected at the time that the
speed was stored;
❒press the RES button.
fig. 37
L0F0202
54GETTING TO
KNOW YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Increasing the stored speed
This can be carried out in two ways:
❒by pressing the accelerator and storing the new
speed reached
or
❒by moving the stalk upwards (+).
Each movement of the stalk corresponds to an
increase in speed of about 1 km/h, while keeping
the stalk held upwards will continuously increase
the speed.
Decreasing the stored speed
This can be carried out in two ways:
❒by deactivating the device and then storing the
new speed;
or
❒by moving the stalk downwards (-) until the
new speed, which will be stored automatically, is
reached.
Each movement of the lever corresponds to a
reduction in speed of about 1 km/h, while keeping
the stalk held downwards will decrease the speed
continuously.
Deactivating the device
The device can be deactivated by the driver in the
following ways:
❒by turning ring nut A to the OFF position❒by stopping the engine
❒by pressing the brake pedal, the clutch or the
accelerator; in this last case the system is not
effectively deactivated but gives priority to the
acceleration request. The device still remains
active, without the need to press the RES button
to return to the previous condition once
acceleration is concluded.
Automatic deactivation
The device deactivates automatically in the
following cases:
❒if the ABS or ESC systems intervene
❒with the car speed below the set limit
❒in the event of system failure.
WARNING
When travelling with the device
active, never move
the gear lever to
neutral.
WARNING
In the event of device faults or
failures, turn knob
A to OFF and
contact a Lancia Dealership.
55GETTING TO
KNOW YOUR CARSAFETY
STARTING
AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

ROOF LIGHTSFRONT ROOF LIGHT
Switch A fig. 38 switches the courtesy lights
on/off.
A Switch positions:
❒central position (position 1): lights C and D
switch on/off when the doors are opened/closed;
❒pressed to the left (position 0): lights C and
D are always switched off;
❒pressed to the right (position 2): lights C and D
are always switched on;
The lights switch on/off gradually.
B switch positionsfig. 38:
❒central position (position 1): lights C and D are
always switched off;
❒pressed to the left (position 0): light C switches
on;
❒pressed to the right (position 2): light D
switches on.
IMPORTANT Before getting out of the car, make
sure that both switches are in the central position:
when the doors are closed the lights will switch
off to avoid draining the battery. In any case,
if the switch is left in the on position, the courtesy
light switches off automatically about 15 minutes
after the engine has been switched off.Diffused light on dashboard
If not differently set in the Setup menu of the
instrument panel (see paragraph "Menu items" in
this chapter), the diffused light on dashboard
switches on together with the front roof light.
This setting can be changed using the Setup menu
of the instrument panel as follows:
❒diffused light always off;
❒diffused light switching on combined with the
dipped headlight switching on (also adjusting
the brightness level).
ROOF LIGHT TIMING
On certain versions, to facilitate getting in/out of
the car at night or in poorly-lit areas, two timed
modes have been provided.
fig. 38
L0F0051
56GETTING TO
KNOW YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

The roof lights switch on according to the
following modes:
❒for about 10 seconds when the doors are
unlocked;
❒for about 3 minutes when one of the doors is
opened;
❒for about 10 seconds when the doors are closed.
The timing is interrupted when the ignition key
is turned to MAR.
Three modes are provided for switching off:
❒when all doors are closed, the 3-minute timer
will stop and a 10-second one will start. This
timer will stop when the key is turned to MAR;
❒when doors are locked (either with remote
control or with key on driver side door), the roof
light turns off.
❒the courtesy lights are turned off in any case
after 15 minutes to preserve battery duration
Timing when getting out of the car
After removing the key from the ignition switch,
the roof lights switch on as follows:
❒if the ignition key is removed within 3 minutes
from the engine stopping, the roof lights switch
on for 10 seconds;
❒for about 3 minutes when one of the doors is
opened;
❒for about 10 seconds when one of the doors is
closed.The timing stops automatically when the doors are
locked.
REAR ROOF LIGHT
Versions without sun roof
Press the cover A fig. 39 to switch the light on/off.
The light will stay on for a few seconds after the
doors are closed and will then go off
automatically. The light switches off also when the
ignition key is turned to the MAR.
If one door is left open, the light will switch off
automatically after a few minutes. To switch it on
again, open another door or close and reopen
the same door.
Versions with sun roof
In these versions two side roof lights A fig. 40 are
present (above the rear doors).
fig. 39
L0F0236
57GETTING TO
KNOW YOUR CARSAFETY
STARTING
AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Timing when getting into the car

Press the point indicated by the arrow to switch
the lights on/off (+ sign on the roof light lens
cover).
The rear roof light(s) also switch on in
conjunction with events that cause the front roof
light to switch on.
LUGGAGE COMPARTMENT ROOF LIGHT
The roof light A fig. 41 is located on the luggage
compartment left side. This light switch on
automatically when the luggage compartment is
opened and switches off when it is closed. The
light switches on/off regardless of the ignition key
position.GLOVE COMPARTMENT LIGHT
The light A fig. 42 switches on automatically
when the glove compartment is opened and
switches off when it is closed. The light switches
on/off regardless of the ignition key position.
A
fig. 40
L0F0227
fig. 41
L0F0218
fig. 42
L0F0217
58GETTING TO
KNOW YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

CONTROLSHAZARD WARNING LIGHTS
Press the buttonfig. 43 to switch the lights on/off.
Warning lights
and
on the instrument panel
switch on and switch A flashes when the lights are
on.
IMPORTANT The use of hazard warning lights is
governed by the highway code of the country
you are driving in: comply with legal
requirements.
Emergency braking
In the event of emergency braking the hazard
warning lights switch on automatically as well as
warning lights
and
in the instrument panel.
The lights switch off automatically when
emergency braking ceases.FOG LIGHTS
(for versions/markets, where provided)
Press button
fig. 44 to switch the lights on/off.
Press the button again to switch the lights off.
With lights on, warning light
on the instrument
panel will switch on.
REAR FOG LIGHTS
Press button
fig. 44 to switch the lights on/off.
The rear fog lights are only switched on with
the dipped headlights or front fog lights on. Press
the button again to switch the lights off, or switch
off the dipped headlights or the front fog lights
(for versions/markets, where provided).
With the lights on, warning light
in the
instrument panel switches on.
fig. 43
L0F0191
fig. 44
L0F0192
59GETTING TO
KNOW YOUR CARSAFETY
STARTING
AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

CENTRAL LOCKING
Press button
fig. 45 to lock all the doors
simultaneously (the LED on the button will light
up when the doors are locked). Locking takes
place irrespective of the position of the ignition
key.
DUALDRIVE ELECTRIC POWER STEERING
(for versions/markets, where provided)
Press the CITY button fig. 46 to activate the
function (see paragraph "Dualdrive electric power
steering" in this chapter). When this function is
active, the word CITY on the instrument panel
will light up. To deactivate the function press the
button again.ECO FUNCTION
(for versions/markets, where provided)
Press the ECO button fig. 47 for at least 5 seconds
to activate the function.
When the ECO function is activated, the car is set
for city driving, characterised by less effort on
the steering wheel (Dualdrive system on) and
reduced fuel consumption. When this function is
activated, the word ECO on the display will light
up on some versions.
This function stays in the memory and, when the
vehicle is started again, the system keeps the
setting it had before the engine was stopped. Press
the ECO button again to deactivate the function
and restore the normal driving setting.
fig. 45
L0F0081
fig. 46
L0F0043
60GETTING TO
KNOW YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

FUEL CUT-OFF SYSTEM
This intervenes in the case of an impact causing:
❒the interruption of the fuel supply with the
engine consequently cutting out
❒the automatic unlocking of the doors
❒the automatic switching on of the interior lights
❒the switching on of the hazard warning lights.
On some versions, the intervention of the system is
indicated by a message shown on the display.
IMPORTANT Carefully check the car for fuel
leaks, for instance in the engine compartment,
under the car or near the tank area. After a
collision, turn the ignition key to STOP to prevent
the battery from running down.
To restore the correct operation of the car, proceed
as follows:❒turn the ignition key to the MAR position;
❒activate the right direction indicator;
❒deactivate the right direction indicator;
❒activate the left direction indicator;
❒deactivate the left direction indicator;
❒activate the right direction indicator;
❒deactivate the right direction indicator;
❒activate the left direction indicator;
❒deactivate the left direction indicator;
❒turn the ignition key to the STOP position.
WARNING
If, after an impact, you smell fuel or
notice leaks from
the fuel system,
do not reactivate the system to avoid the risk
of fire.
fig. 47
L0F0039
61GETTING TO
KNOW YOUR CARSAFETY
STARTING
AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

INTERIOR FITTINGSPASSENGER SIDE GLOVE COMPARTMENT
Operate handle A fig. 48 to open the
compartment. When the compartment is opened a
courtesy light switches on.
WARNING
Never travel with the glove
compartment open: it
could injure
the passenger in the event of a crash.
POWER SOCKET
It is located on the centralfig. 49 near the
handbrake lever. It only operates with the ignition
key at MAR.IMPORTANT Do not damage the socket by using
unsuitable adaptors.
ASHTRAY
The ashtray is a removable spring-loaded plastic
box that must be fitted into the right cup/can
holder on the central tunnelfig. 50.
IMPORTANT Do not use the ashtray as a waste
paper basket: it may catch fire in contact with
cigarette stubs.
IMPORTANT Do not damage the socket by using
unsuitable adaptors.
SUN VISORS
These are located at the sides of the rear-view
mirror. They can be adjusted forwards and
sideways.
fig. 48
L0F0057
fig. 49
L0F0076
62GETTING TO
KNOW YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

The back of the driver's and passenger side visors
houses two courtesy mirrors. To use the driver's
side mirror, open the sliding cover A fig. 51.EXTINGUISHER
(for versions/markets, where provided)
It is located under the passenger side front seat or,
in some versions, at the right side of the luggage
compartment, inside a dedicated container.
fig. 50
L0F0056
fig. 51
L0F0055
63GETTING TO
KNOW YOUR CARSAFETY
STARTING
AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
