display Lexus CT200h 2011 (in English) Repair Manual

341
3-2. Using the audio system
3
Interior features
CT200h_EE (OM76041E)
When “ERROR” or “WAIT” is shown on the display
“ERROR”:This indicates a trouble either in the CD or inside the player. The
CD may be dirty, damaged, or inserted up-side down.
“WAIT”: This indicates that operation is stopped due to a high temperature
inside the player. Wait for a while and then press
(type A)
or
(type B). If the CD still cannot be played back, contact
your any authorized any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc fea-
tures, or due to scratches, dirt or deterioration.
CDs with copy-protection features may not be used.
Lens cleaners
Do not use lens cleaners. Doing so may damage the CD player.
If discs are left inside the CD player or in the ejected position for extended
periods of time
The discs may be damaged and may not play properly.

344
3-2. Using the audio system
CT200h_EE (OM76041E)

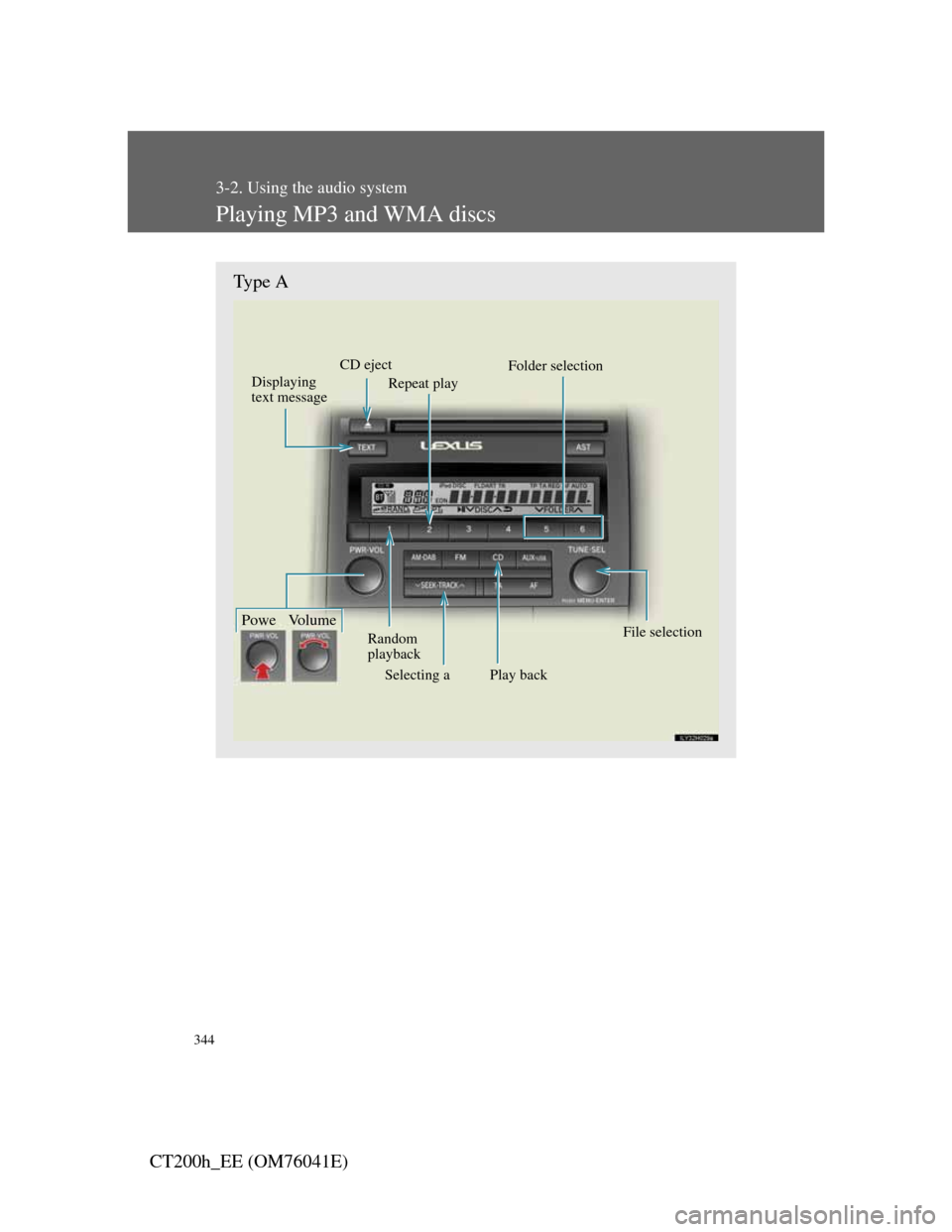

Playing MP3 and WMA discs
Type A
Displaying
text message
Selecting a Random
playback
Powe Volume
CD eject
Repeat playFolder selection
File selection
Play back

345
3-2. Using the audio system
3
Interior features
CT200h_EE (OM76041E)
Type B
CD insertDisplaying text mes-
Selecting a file Random
playback
Powe Volume
CD eject
Repeat playCD selection
Play back
Playback/pauseFile selection
Folder
selection

347
3-2. Using the audio system
3
Interior features
CT200h_EE (OM76041E)
Playing and pausing files (type B)
To play or pause a file, press .
Random playback
Playing files from a folder in random order
Press .
To cancel, press again.
Playing all the files from a disc in random order
Press and hold until you hear a beep.
To cancel, press again.
Repeat play
Repeating a file
Press .
To cancel, press again.
Repeating all the files in a folder
Press and hold until you hear a beep.
To cancel, press again.
Switching the display
Press .
Each time the button is pressed, the display changes in the following
order: Folder no./File no./Elapsed time  Folder name  File name
 Album title (MP3 only)  Track title  Artist name

348
3-2. Using the audio system
CT200h_EE (OM76041E)
CD player protection feature
P. 3 4 0
Display
P. 3 4 0
When “ERROR”, “WAIT” or “NO MUSIC” is shown on the display
“ERROR”:This indicates a problem either in the CD or inside the player.
The CD may be dirty, damaged, or inserted up-side down.
“WAIT”: This indicates that operation is stopped due to a high temperatures
inside the player. Wait for a while and then press (type A)
or (type B). If the CD still cannot be played back, contact
your any authorized any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
“NO MUSIC”: This indicates that an MP3/WMA file is not included in the
CD.
Discs that can be used
P. 3 4 1
Lens cleaners
P. 3 4 1
If discs are left inside the CD player or in the ejected position for extended
periods of time
P. 3 4 1

350
3-2. Using the audio system
CT200h_EE (OM76041E)
Compatible media
Media that can be used for MP3 and WMA playback are CD-Rs and CD-
RW s .
Playback in some instances may not be possible if the CD-R or CD-RW is
not finalized. Playback may not be possible or the audio may jump if the
disc is scratched or marked with fingerprints.
Compatible disc formats
The following disc formats can be used:
• Disc formats:CD-ROM Mode 1 and Mode 2
CD-ROM XA Mode 2, Form 1 and Form 2
• File formats: ISO9660 Level 1, Level 2, (Romeo, Joliet)
MP3 and WMA files written in any format other than those listed
above may not play correctly, and their file names and folder names
may not be displayed correctly.
Items related to standards and limitations are as follows:
• Maximum directory hierarchy: 8 levels (including the root)
• Maximum length of folder names/file names: 32 characters
• Maximum number of folders: 192 (including the root)
• Maximum number of files per disc: 255
File names
The only files that can be recognized as MP3/WMA and played are those
with the extension .mp3 or .wma.
Discs containing multi-session recordings
As the audio system is compatible with multi-sessions, it is possible to
play discs that contain MP3 and WMA files. However, only the first ses-
sion can be played.

354
3-2. Using the audio system
CT200h_EE (OM76041E)
Control panel
Type A
Displaying
text message
Song selection Shuffle
playback
Powe Volume
Repeat playPlayback/pause
PlaybackGo back
iPod menu/
Song selection

355
3-2. Using the audio system
3
Interior features
CT200h_EE (OM76041E)
Type B
Displaying text mes-
Song selection Shuffle
playback
Powe Volume
Repeat play
Playback/pause
Play back
Go back
iPod menu/
Song selection

358
3-2. Using the audio system
CT200h_EE (OM76041E)Selecting a list
Turn to display the first selection list.
Press to select the desired item.
Pressing the knob changes to the second selection list.
Repeat the same procedure to select the desired song name.
To return to the previous selection list, select “GO BACK” or
press (type A) or (type B).
STEP1
STEP2
STEP3

360
3-2. Using the audio system
CT200h_EE (OM76041E)
Repeat play
Press .
To cancel, press again.
Switching the display
Press .
Each time the button is pressed, the display changes in the following
order: Elapsed time  Album title  Track title  Artist name
Adjusting sound quality and volume balance
Press to enter iPod menu mode.
Pressing changes sound modes. (P. 374)
STEP1
STEP2
