Lexus CT200h 2013 (in English) Repair Manual
Manufacturer: LEXUS, Model Year: 2013, Model line: CT200h, Model: Lexus CT200h 2013Pages: 688
Page 61 of 688
611-1. For safe use
1
CT200h_OM_OM76102E_(EE)
For safety and security
Information provided in the table shows your child restraint system suit-
ability for various seating positions.
Child restraint system suitability for various seating positions
Front passenger seat Rear seat
Airbag manual
on-off switch
OutboardCenter
ONOFF
0
Up to 10 kg (22
lb.)
(0 - 9 months)X
Never putU
*1
L2U
L2L1
L2
0+
Up to 13 kg (28
lb.)
(0 - 2 years)X
Never putU
*1
L2U
L2L1
L2
I
9 to 18 kg
(20 to 39 lb.)
(9 months - 4
years)Rear-
facing —
X
Never put
U
*1UL3
Forward-
facing —
UF
*1
II, III
15 to 36 kg
(34 to 79 lb.)
(4 - 12 years)UF
*1 *2U*1 *2U
L5L4
L5
Seating posi-
Mass groups
Page 62 of 688
621-1. For safe use
CT200h_OM_OM76102E_(EE)
Key of letters inserted in the above table:
U: Suitable for “universal” category child restraint system approved for
the use in this mass group.
UF: Suitable for forward facing “universal” category child restraint sys-
tem approved for the use in this mass group.
L1: Suitable for “LEXUS G 0+, BABY SAFE PLUS” (0 to 13 kg [0 to
28 lb.]) approved for the use in this mass group.
L2: Suitable for “LEXUS G 0+, BABY SAFE PLUS with SEAT BELT
FIXATION, BASE PLATFORM” (0 to 13 kg [0 to 28 lb.]) approved
for the use in this mass group.
L3: Suitable for “LEXUS DUO+” (without ISOFIX, 9 to 18 kg [20 to
39 lb.]) approved for the use in this mass group.
L4: Suitable for “LEXUS KID” (15 to 36 kg [34 to 79 lb.]) approved for
the use in this mass group.
L5: Suitable for “LEXUS KIDFIX” (15 to 36 kg [34 to 79 lb.]) approved
for the use in this mass group.
X: Not suitable seat position for children in this mass group.
*1: When you use a child restraint system in this position, adjust the seat back and
fix it at the most upright lock position.
*2: When you use a child restraint system in this position, remove the head
restraint.
Other child restraint system which is different from the system mentioned
in the table can be used.
But the suitability of the systems must be carefully checked with the child
restraint system manufacturer concerned and the seller of those seats.
Page 63 of 688
631-1. For safe use
1
CT200h_OM_OM76102E_(EE)
For safety and security
Information provided in the table shows your child restraint system suit-
ability for various seating positions.
Child restraint system suitability for various seating positions
(with ISOFIX rigid anchors)
Mass groupsSize classFixture
Vehicle ISOFIX
Positions
Rear outside
CarrycotFISO/L1 X
GISO/L2 X
(1) X
Group 0
Up to 10 kg (22 lb.)EISO/R1 X
(1) X
Group 0+
Up to 13 kg (28 lb.)EISO/R1 X
DISO/R2 X
CISO/R3 X
(1) X
Group I
9 to 18 kg (20 to 39 lb.)DISO/R2 X
CISO/R3 X
BISO/F2 IUF
*1
B1 ISO/F2X IUF*1
AISO/F3 IUF*1
(1) X
Group II
15 to 25 kg (34 to 55 lb.)(1) X
Group III
22 to 36 kg (49 to 79 lb.)(1) X
Page 64 of 688
641-1. For safe use
CT200h_OM_OM76102E_(EE)
(1) For the CRS which do not carry the ISO/XX size class identification
(A to G), for the applicable mass group, the car manufacturer shall
indicate the vehicle specific ISOFIX child restraint system(s) rec-
ommended for each position.
Key of letters inserted in the above table:
IUF: Suitable for ISOFIX forward-facing child restraints systems of uni-
versal category approved for the use in this mass group.
X: ISOFIX position not suitable for ISOFIX child restraint systems in
this mass group and/or this size class.
*1: When you use a child restraint system in this position, remove the head
restraint.
The child restraint systems mentioned in the table may not be available
outside of the EU area.
Other child restraint systems different from the systems mentioned in the
table can be used, but the suitability of the systems must be carefully
checked with the child restraint system manufacturer and retailer.
When installing the child restraint system on the front passenger seat
When you have to use a child restraint system on the front passenger seat, adjust
the following:
Selecting an appropriate child restraint system
Use a child restraint system appropriate for the child until the child becomes
large enough to properly wear the vehicle’s seat belt.
If the child is too large for a child restraint system, sit the child on a rear seat
and use the vehicle’s seat belt. (P. 40)
The seatback to the most upright position
The seat cushion to the fully rearward
position
Page 65 of 688
651-1. For safe use
1
CT200h_OM_OM76102E_(EE)
For safety and security
WA R N I N G
Using a child restraint system
The use of a child restraint system not suitable for the vehicle may not properly
secure the infant or child. It may result in death or serious injury (in the event
of sudden braking, sudden swerving or an accident).
Child restraint precautions
For effective protection in automobile accidents and sudden stops, a child
must be properly restrained, using a seat belt or child restraint system depend-
ing on the age and size of the child. Holding a child in your arms is not a sub-
stitute for a child restraint system. In an accident, the child can be crushed
against the windshield, or between you and the vehicle’s interior.
Lexus strongly urges the use of a proper child restraint system that conforms
to the size of the child, installed on the rear seat. According to accident statis-
tics, the child is safer when properly restrained in the rear seat than in the
front seat.
Never install a rear-facing child restraint system on the front passenger seat
when the airbag manual on-off switch is on. (P. 5 6 )
In the event of an accident, the force of the rapid inflation of the front passen-
ger airbag can cause death or serious injury to the child.
A forward-facing child restraint system may be installed on the front passen-
ger seat only when it is unavoidable. A child restraint system that requires a
top strap should not be used in the front passenger seat since there is no top
strap anchor for the front passenger seat. Adjust the seatback as upright as
possible and always move the seat as far back as possible because the front
passenger airbag could inflate with considerable speed and force. Otherwise,
the child may be killed or seriously injured.
Do not allow the child to lean his/her head or any part of his/her body against
the door or the area of the seat, front and rear pillars or roof side rails from
which the SRS side airbags or SRS curtain shield airbags deploy even if the
child is seated in the child restraint system. It is dangerous if the SRS side and
curtain shield airbags inflate, and the impact could cause death or serious
injury to the child.
Make sure you have complied with all installation instructions provided by
the child restraint manufacturer and that the system is properly secured. If it is
not secured properly, it may cause death or serious injury to the child in the
event of a sudden stop, sudden swerve or accident.
Page 66 of 688
661-1. For safe use
CT200h_OM_OM76102E_(EE)
WA R N I N G
When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes twisted
around a child’s neck, it may lead to choking or other serious injuries that could
result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used to
cut the belt.
When the child restraint system is not in use
Keep the child restraint system properly secured on the seat even if it is not in
use. Do not store the child restraint system unsecured in the passenger com-
partment.
If it is necessary to detach the child restraint system, remove it from the vehi-
cle or store it securely in the luggage compartment. This will prevent it from
injuring passengers in the event of a sudden stop, sudden swerve or accident.
Page 67 of 688
671-1. For safe use
1
For safety and security
CT200h_OM_OM76102E_(EE)
Installing child restraints
Seat belts (An ELR belt requires a
locking clip.)
ISOFIX rigid anchors (ISOFIX
child restraint system)
Lower anchors are provided for the
outboard rear seats. (Buttons dis-
playing the location of the anchors
are attached to the seats.)
Anchor brackets (for top strap)
An anchor bracket is provided for
outboard rear seats.
Follow the child restraint system manufacturer’s instructions. Firmly
secure child restraints to the seats using a seat belt or ISOFIX rigid
anchors. Attach the top strap when installing a child restraint.
Page 68 of 688
681-1. For safe use
CT200h_OM_OM76102E_(EE)

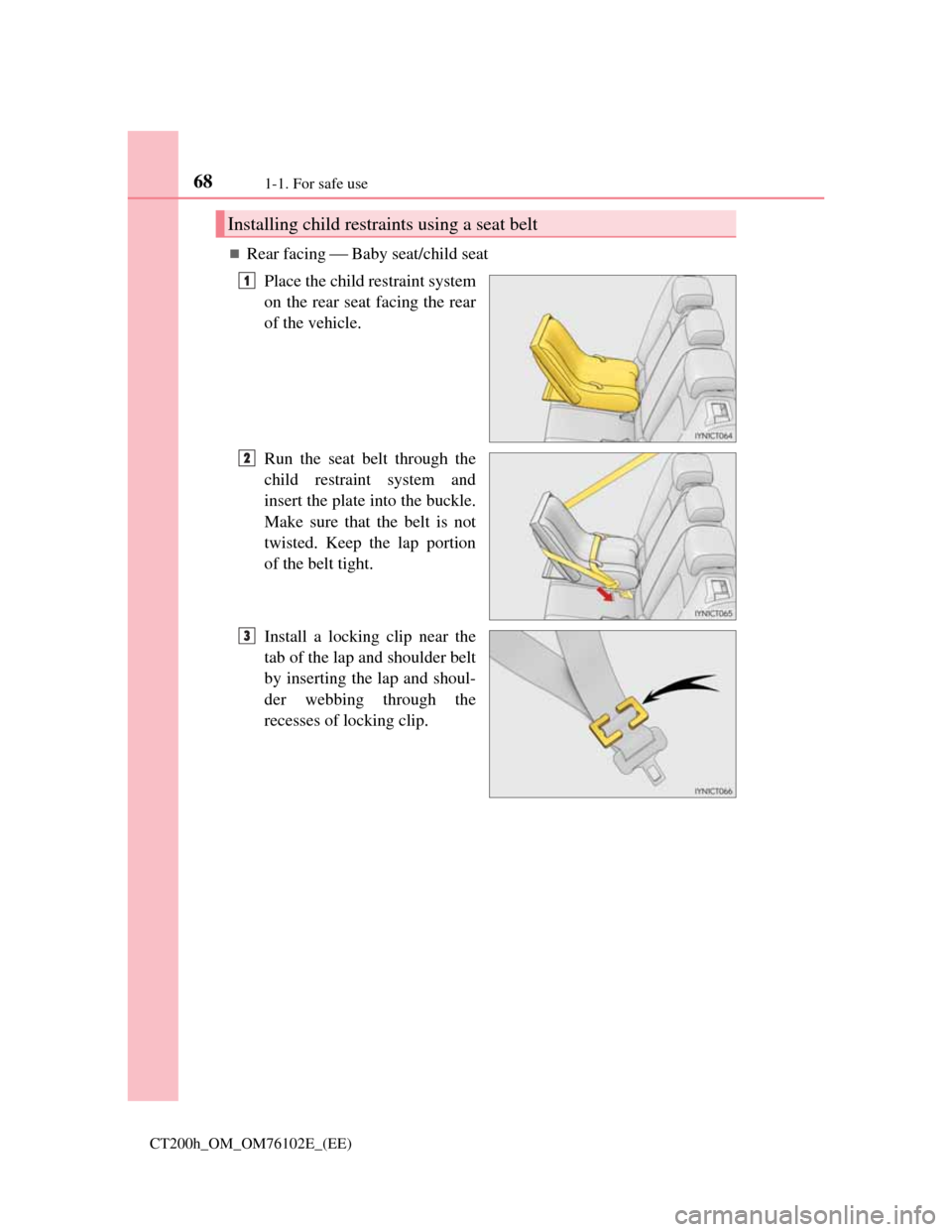

Rear facing Baby seat/child seat
Place the child restraint system
on the rear seat facing the rear
of the vehicle.
Run the seat belt through the
child restraint system and
insert the plate into the buckle.
Make sure that the belt is not
twisted. Keep the lap portion
of the belt tight.
Install a locking clip near the
tab of the lap and shoulder belt
by inserting the lap and shoul-
der webbing through the
recesses of locking clip.
Installing child restraints using a seat belt
1
2
3
Page 69 of 688
691-1. For safe use
1
CT200h_OM_OM76102E_(EE)
For safety and security

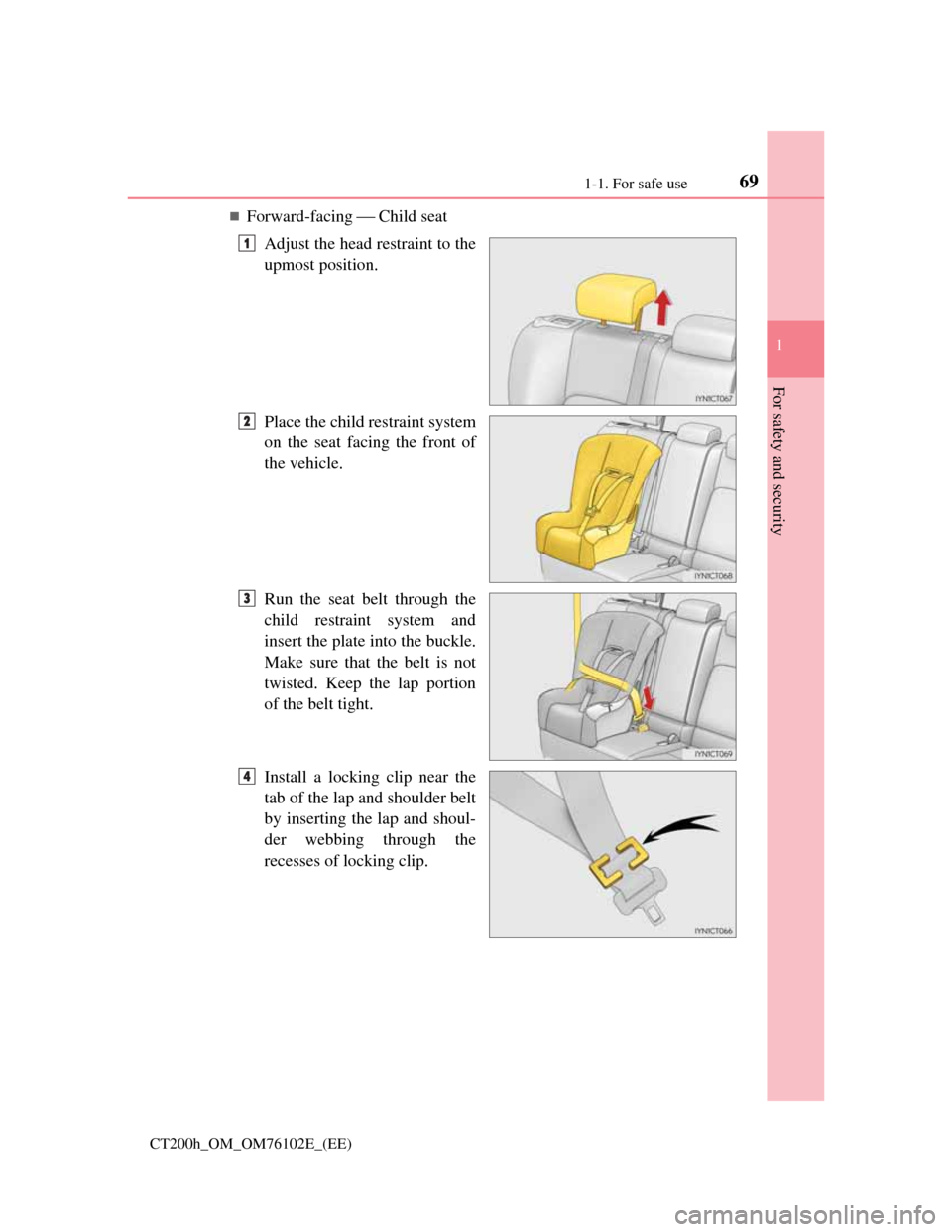

Forward-facing Child seat
Adjust the head restraint to the
upmost position.
Place the child restraint system
on the seat facing the front of
the vehicle.
Run the seat belt through the
child restraint system and
insert the plate into the buckle.
Make sure that the belt is not
twisted. Keep the lap portion
of the belt tight.
Install a locking clip near the
tab of the lap and shoulder belt
by inserting the lap and shoul-
der webbing through the
recesses of locking clip.
1
2
3
4
Page 70 of 688
701-1. For safe use
CT200h_OM_OM76102E_(EE)

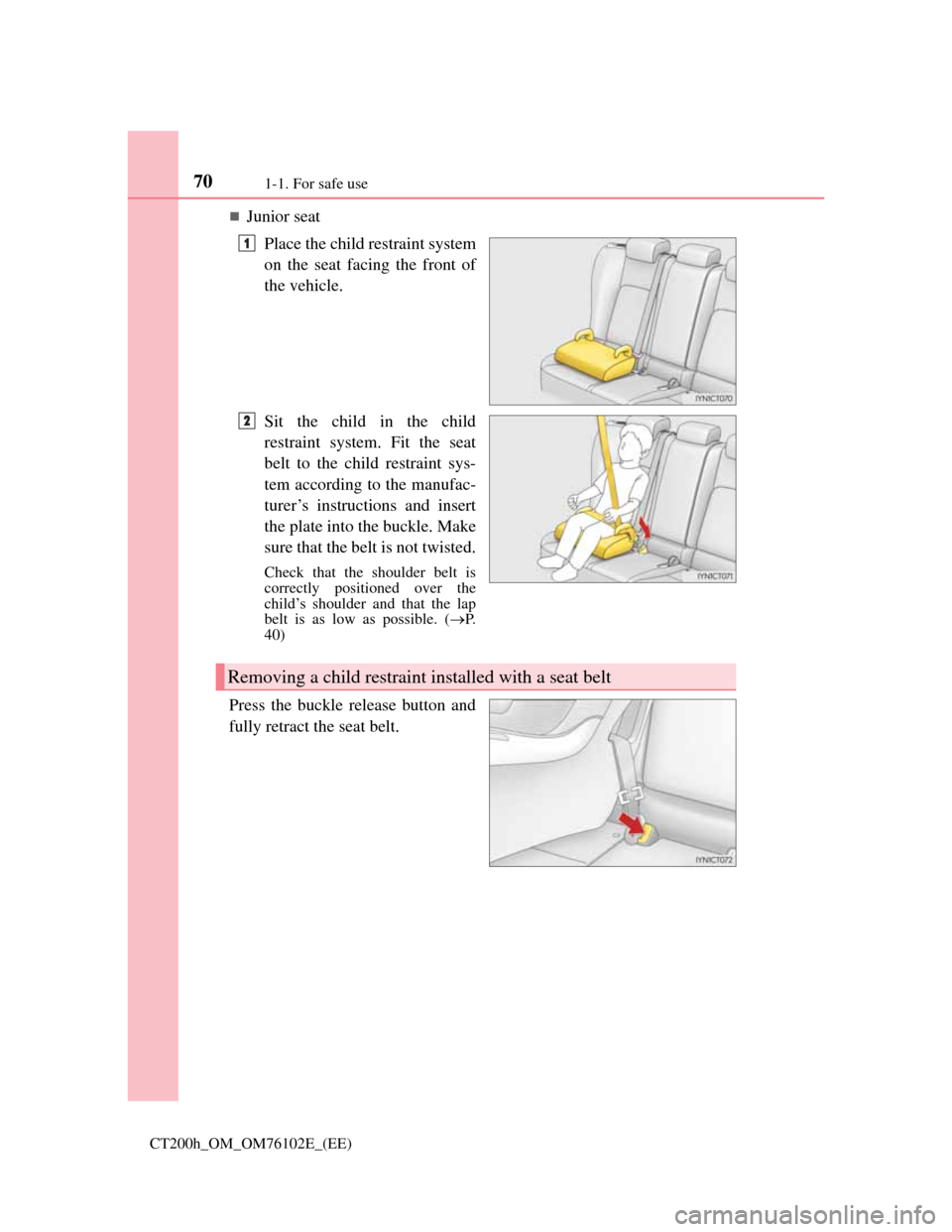

Junior seat
Place the child restraint system
on the seat facing the front of
the vehicle.
Sit the child in the child
restraint system. Fit the seat
belt to the child restraint sys-
tem according to the manufac-
turer’s instructions and insert
the plate into the buckle. Make
sure that the belt is not twisted.
Check that the shoulder belt is
correctly positioned over the
child’s shoulder and that the lap
belt is as low as possible. (P.
40)
Press the buckle release button and
fully retract the seat belt.
1
2
Removing a child restraint installed with a seat belt
