CD player Lexus CT200h 2014 (in English) User Guide

2735-4. Playing audio CDs and MP3/WMA discs
5
Audio system
CT200h_OM_OM76135E_(EE)
■When “ERROR”, “WAIT” or “NO MUSIC” is shown on the display
“ERROR”:
This indicates a trouble either in the CD or inside the player. The CD may be dirty, dam-
aged, or inserted up-side down.
“WAIT”:
This indicates that operation is stopped due to a high temperature inside the player. Wait
for a while and then press the “CD” button. If the CD still cannot be played back, contact
any authorized Lexus dealer or repairer, or another duly qualified and equipped profes-
sional.
“NO MUSIC”:
This indicates that an MP3/WMA fi le is not included in the CD.
■Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc features, or due to
scratches, dirt or deterioration.
CDs with copy-protection features may not be used.
■Lens cleaners
Do not use lens cleaners. Doing so may damage the CD player.
■If discs are left inside the CD player or in the ejected position for extended periods of
time
The discs may be damaged and may not play properly.
■MP3 and WMA files
MP3 (MPEG Audio LAYER 3) is a standard audio compression format.
Files can be compressed to approximately 1 /10 of their original size by using MP3 com-
pression.
WMA (Windows Media Audio) is a Microsoft audio compression format.
This format compresses audio data to a size smaller than that of the MP3 format.
There is a limit to the MP3 and WMA file st andards that can be used and to the media/
formats on which the files are recorded.
●MP3 file compatibility
• Compatible standards MP3 (MPEG1 LAYER3, MPEG2 LSF LAYER3)
• Compatible sampling frequencies MPEG1 LAYER3: 32, 44.1, 48 (kHz)
MPEG2 LSF LAYER3: 16, 22.05, 24 (kHz)
• Compatible bit rates (compatible with VBR) MPEG1 LAYER3: 64, 80, 96, 112, 128, 160, 192, 224, 256, 320 (kbps)
MPEG2 LSF LAYER3: 64, 80, 96, 112, 128, 144, 160 (kbps)
• Compatible channel modes: stereo, joint stereo, dual channel and monaural
CT200h_OM_OM76135E_(EE).book Page 273 Friday, May 30, 2014 1 1:14 AM

2755-4. Playing audio CDs and MP3/WMA discs
5
Audio system
CT200h_OM_OM76135E_(EE)
●Extensions
If the file extensions .mp3 and .wma are used for files other than MP3 and WMA files,
they will be mistakenly recognized and play ed as MP3 and WMA files. This may result
in large amounts of interference and damage to the speakers.
●Playback
• To play MP3 files with steady sound quality, we recommend a fixed bit rate of at least 128 kbps and a sampling frequency of 44.1 kHz.
• CD-R or CD-RW playback may not be po ssible in some instances, depending on
the characteristics of the disc.
• There is a wide variety of freeware and other encoding software for MP3 and WMA files on the market, and depending on the status of the encoding and the file format,
poor sound quality or noise at the start of playback may result. In some cases, play-
back may not be possible at all.
• When files other than MP3 or WMA files are recorded on a disc, it may take more time to recognize the disc and in some ca ses, playback may not be possible at all.
• Microsoft, Windows, and Windows Media are the registered trademarks of Microsoft Corporation in the U.S.A. and other countries.
NOTICE
■CDs and adapters that cannot be used
Do not use the following types of CDs.
Also, do not use 8 cm (3 in.) CD adapters, DualDiscs or printable discs.
Doing so may damage the CD player and/or the CD load/eject function.
●Discs that have a diameter that is not 12 cm (4.7 in.).
●Low-quality or deformed discs.
●Discs with a transparent or translucent recording area.
●Discs that have tape, stickers or CD-R labels attached to them, or that have had the
label peeled off.
CT200h_OM_OM76135E_(EE).book Page 275 Friday, May 30, 2014 1 1:14 AM

2765-4. Playing audio CDs and MP3/WMA discs
CT200h_OM_OM76135E_(EE)
NOTICE
■CD player precautions
Failure to follow the precautions below may result in serious damage to the CDs or the
player itself.
●Do not insert anything other than CDs into the CD slot.
●Do not apply oil to the CD player.
●Store CDs away from direct sunlight.
●Never try to disassemble any part of the CD player.
CT200h_OM_OM76135E_(EE).book Page 276 Friday, May 30, 2014 11:14 AM

2825-5. Using an external device
CT200h_OM_OM76135E_(EE)

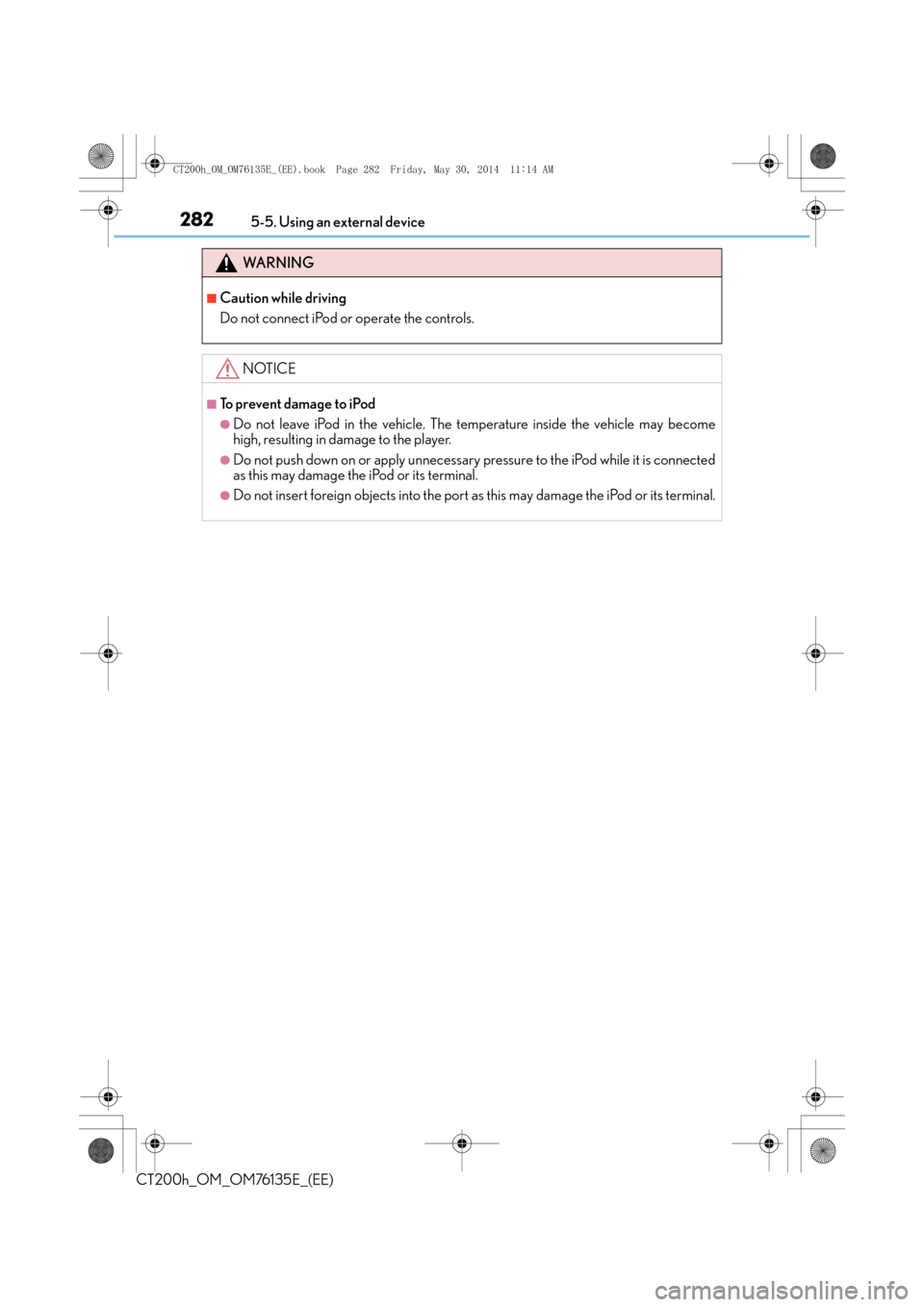

WA R N I N G
■Caution while driving
Do not connect iPod or operate the controls.
NOTICE
■To prevent damage to iPod
●Do not leave iPod in the vehicle. The temperature inside the vehicle may become
high, resulting in damage to the player.
●Do not push down on or apply unnecessary pressure to the iPod while it is connected
as this may damage the iPod or its terminal.
●Do not insert foreign objects into the port as this may damage the iPod or its terminal.
CT200h_OM_OM76135E_(EE).book Page 282 Friday, May 30, 2014 1 1:14 AM

2875-5. Using an external device
5
Audio system
CT200h_OM_OM76135E_(EE)
●Playback
• To play MP3 files with steady sound quality, we recommend a fixed bit rate of at least128 kbps and a sampling frequency of 44.1 kHz.
• There is a wide variety of freeware and other encoding software for MP3 and WMA files on the market, and depending on the status of the encoding and the file format,
poor sound quality or noise at the start of playback may result. In some cases, play-
back may not be possible at all.
• Microsoft, Windows, and Windows Media are registered trademarks of Microsoft Corporation in the U.S.A. and other countries.
WA R N I N G
■Caution while driving
Do not connect USB memory or operate the controls.
NOTICE
■To prevent damage to USB memory
●Do not leave USB memory in the vehicle. The temperature inside the vehicle may
become high, resulting in damage to the player.
●Do not push down on or apply unnecessary pressure to the USB memory while it is
connected as this may damage the USB memory or its terminal.
●Do not insert foreign objects into the port as this may damage the USB memory or its
terminal.
CT200h_OM_OM76135E_(EE).book Page 287 Friday, May 30, 2014 1 1:14 AM

2885-5. Using an external device
CT200h_OM_OM76135E_(EE)

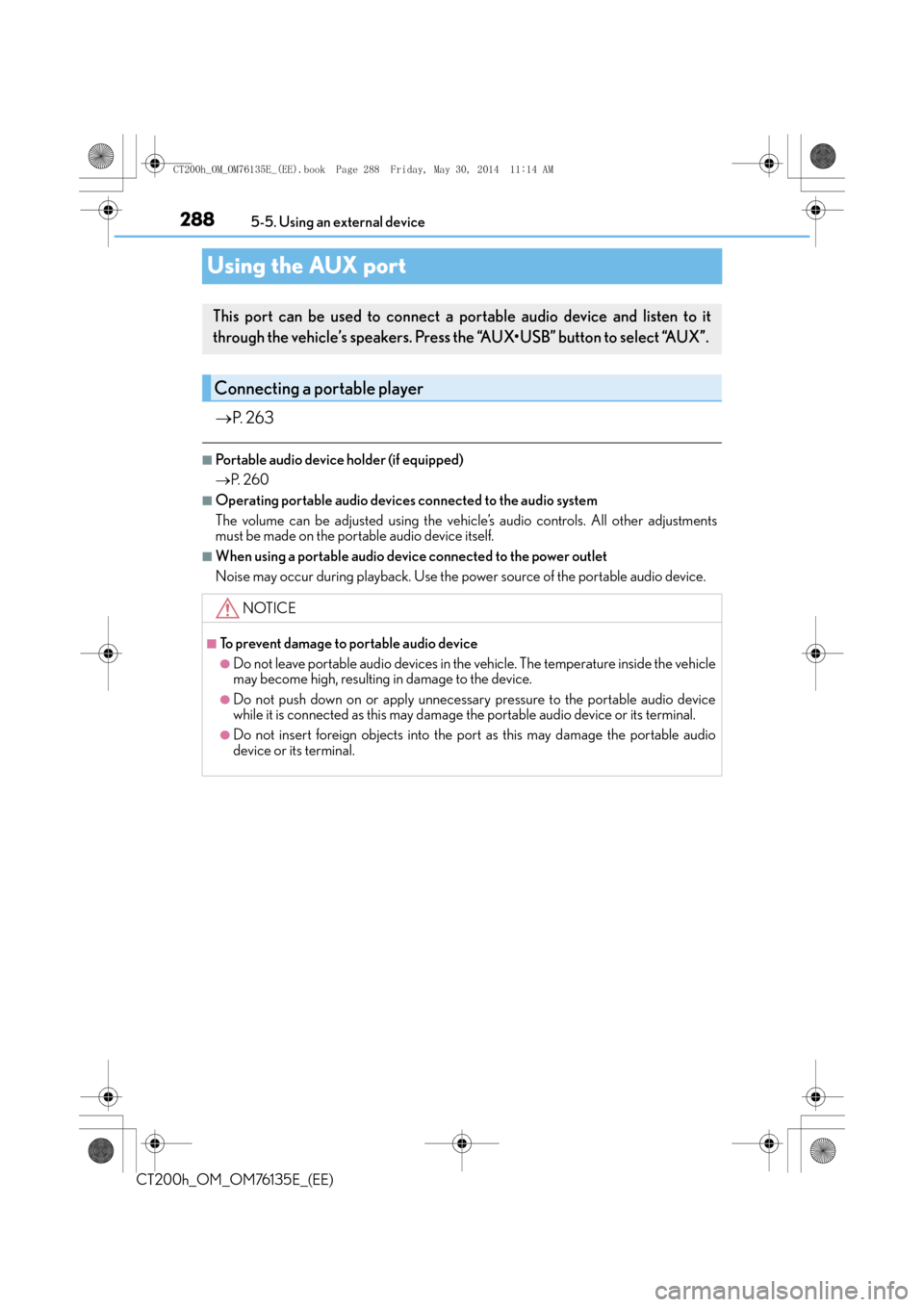

Using the AUX port
→ P. 2 6 3
■Portable audio device holder (if equipped)
→P. 2 6 0
■Operating portable audio devices connected to the audio system
The volume can be adjusted using the vehi cle’s audio controls. All other adjustments
must be made on the portable audio device itself.
■When using a portable audio device connected to the power outlet
Noise may occur during playback. Use the power source of the portable audio device.
This port can be used to connect a portable audio device and listen to it
through the vehicle’s speakers. Press the “AUX•USB” button to select “AUX”.
Connecting a portable player
NOTICE
■To prevent damage to portable audio device
●Do not leave portable audio devices in the vehicle. The temperature inside the vehicle
may become high, resulting in damage to the device.
●Do not push down on or apply unnecessary pressure to the portable audio device
while it is connected as this may damage the portable audio device or its terminal.
●Do not insert foreign objects into the port as this may damage the portable audio
device or its terminal.
CT200h_OM_OM76135E_(EE).book Page 288 Friday, May 30, 2014 1 1:14 AM

289
5
5-6. Using Bluetooth
® devices
Audio system
CT200h_OM_OM76135E_(EE)
Bluetooth® audio/phone
The following can be performed using Bluetooth® wireless communication:
■Bluetooth® audio
The Bluetooth
® audio system enables you to enjoy music played on a porta-
ble digital audio player (portable player) from the vehicle speakers via wire-
less communication.
This audio system supports Bluetooth
®, a wireless data system capable of
playing portable audio music without cables. If your portable player does
not support Bluetooth
®, the Bluetooth® audio system will not function.
■Bluetooth® phone (hands-free phone system)
This system supports Bluetooth
®, which allows you to make or receive calls
without using cables to connect a cellular phone and the system, and with-
out operating the cellular phone.
CT200h_OM_OM76135E_(EE).book Page 289 Friday, May 30, 2014 1 1:14 AM

2905-6. Using Bluetooth® devices
CT200h_OM_OM76135E_(EE)
Device registration/connection flow
3. Check connection status(→ P. 2 9 1 )3. Check connection status
(→ P. 2 9 1 )
4. Use Bluetooth® audio
( → P. 3 0 9 )4. Use Bluetooth® phone
( → P. 311)
1. Register the Bluetooth®
device to be used with
audio system ( →P. 2 9 5 )
1. Register the Bluetooth®
phone to be used with audio
system ( →P. 2 9 6 )
Audio
Hands-free phone
2. Selecting a portable player to be used ( →P. 2 9 8 )2. Selecting a cellular phone
to be used ( →P. 3 0 1 )
CT200h_OM_OM76135E_(EE).book Page 290 Friday, May 30, 2014 1 1:14 AM

2925-6. Using Bluetooth® devices
CT200h_OM_OM76135E_(EE)
■Audio (→P. 2 9 7 )
■Phone
Menu list of the Bluetooth® audio/phone
First menuSecond menuThird menuOperation detail
“BTA MENU”“BTA Setup”
“Pair Audio”Registering a portable audio
player
“Select Audio”Selecting a portable audio
player to be used
“Change Name”Changing the registered name
of a portable player
“List Audios”Listing the registered portable
players
“Set Passkey”Changing the passkey
“Delete Audio”Deleting a registered portable
player
First menuSecond menuThird menuOperation detail
“Callback”--Dialing a number stored in the
incoming call history memory
“Redial”--Dialing a number stored in the out-
going call history memory
“Phonebook”
(→ P. 3 0 6 )
“Add Entry”-Adding a new phone number
“Change
Name”-Changing the registered name in
the phone book
“Delete Entry”-Deleting the registered data
“Del Spd Dial”-Deleting speed dials
“List Names”-Listing the registered data
“Speed Dial”-Setting speed dials
CT200h_OM_OM76135E_(EE).book Page 292 Friday, May 30, 2014 1 1:14 AM

2935-6. Using Bluetooth® devices
5
Audio system
CT200h_OM_OM76135E_(EE)
■Automatic volume adjustment
When vehicle speed reaches 80 km/h (50 mph) or more, the volume automatically
increases. The volume returns to the previous volume setting when vehicle speed drops
to 70 km/h (43 mph) or less.
■Operations that cannot be performed while driving
●Operating the system with the “TUNE•SEL” knob
●Registering a portable player or cellular phone to the system
“Setup”
“Security”
( → P. 3 0 3 )
“Set PIN”Setting a PIN code
“Phbk Lock”Locking the phone book
“Phbk
Unlock”Unlocking the phone book
“Phone Setup”
(→ P. 3 0 1 )
“Pair Phone”Registering a cellular phone
“Select
Phone”Selecting a cellular phone to be
used
“Change
Name”Changing the registered name of a
cellular phone
“List Phones”Listing the registered cellular
phones
“Set Passkey”Changing the passkey
“Delete
Phone”Deleting a registered cellular
phone
“System
Setup”
(→ P. 3 0 3 )
“Guidance
Vo l ”Setting voice guidance volume
“Device
Name”Displaying the Bluetooth® device
address and name
“Initialize”Initializing the system
First menuSecond menuThird menuOperation detail
CT200h_OM_OM76135E_(EE).book Page 293 Friday, May 30, 2014 1 1:14 AM
