Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
The illustrations show the removal of a back-up light from a right-hand drive
vehicle.
■Outer foot lights
Press the upper part of the out-
side rear view mirror to tilt the
mirror face upward, and apply
protective tape to the lower part
of the mirror cover.
Insert 2 flathead screwdrivers
wrapped in protective tape, and
disconnect the tabs behind the
mirror.
Pry the mirror out toward you, dis-
connecting the tabs 2 at a time.
Work carefully, ensuring that you do
not drop the mirror.
2
3
4
1
2
CT200h_OM_OM76135E_(EE).book Page 500 Friday, May 30, 2014 1 1:14 AM

507
8When trouble arises
CT200h_OM_OM76135E_(EE)
8-1. Essential informationEmergency flashers ................. 508
If your vehicle has to be stopped in an
emergency.................................509
8-2. Steps to take in an emergency If your vehicle needs to be towed ............................................ 510
If you think something is wrong .............................................514
If a warning light turns on or a warning buzzer
sounds........................................... 515
If a warning message is displayed.......................................521
If you have a flat tire (vehicles with a spare tire) ...................... 539
If you have a flat tire (vehicles without a spare tire) ................ 551
If the hybrid system will not start ............................................... 563
If the electronic key does not operate properly .....................565
If the 12-volt battery is discharged ................................. 567
If your vehicle overheats ........... 571
If the vehicle becomes stuck ............................................. 575
CT200h_OM_OM76135E_(EE).book Page 507 Friday, May 30, 2014 1 1:14 AM

5108-2. Steps to take in an emergency
CT200h_OM_OM76135E_(EE)
If your vehicle needs to be towed
In the following situations, it is not possible to be towed by another vehicle using
cables or chains, as the front wheels m ay be locked due to the parking lock. Con-
tact any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional or commercial towing service.
●There is a malfunction in the shift control system. ( →P. 577)
●There is a malfunction in the immobilizer system. ( →P. 7 9 )
●There is a malfunction in the smart entry & start system. ( →P. 565)
●The 12-volt battery is discharged. ( →P. 5 6 7 )
The following may indicate a problem with your hybrid transmission. Contact any
authorized Lexus dealer or repairer, or another duly qualified and equipped pro-
fessional or commercial towing service before towing.
●The hybrid warning message shows on the multi-information display and the
vehicle does not move.
●The vehicle makes an abnormal sound.
Do not tow with a sling-type truck to
prevent body damage.
If towing is necessary, we recommend having your vehicle towed by any
authorized Lexus dealer or repairer, or another duly qualified and equipped
professional or commercial towing servic e, using a lift-type truck or flat bed
truck.
Use a safety chain system for all towing, and abide by all state/provincial and
local laws.
Situations when it is not possible to be towed by another vehicle
Situations needs to contact dealers before towing
Towing with a sling-type truck
CT200h_OM_OM76135E_(EE).book Page 510 Friday, May 30, 2014 1 1:14 AM

5118-2. Steps to take in an emergency
CT200h_OM_OM76135E_(EE)
8
When trouble arises

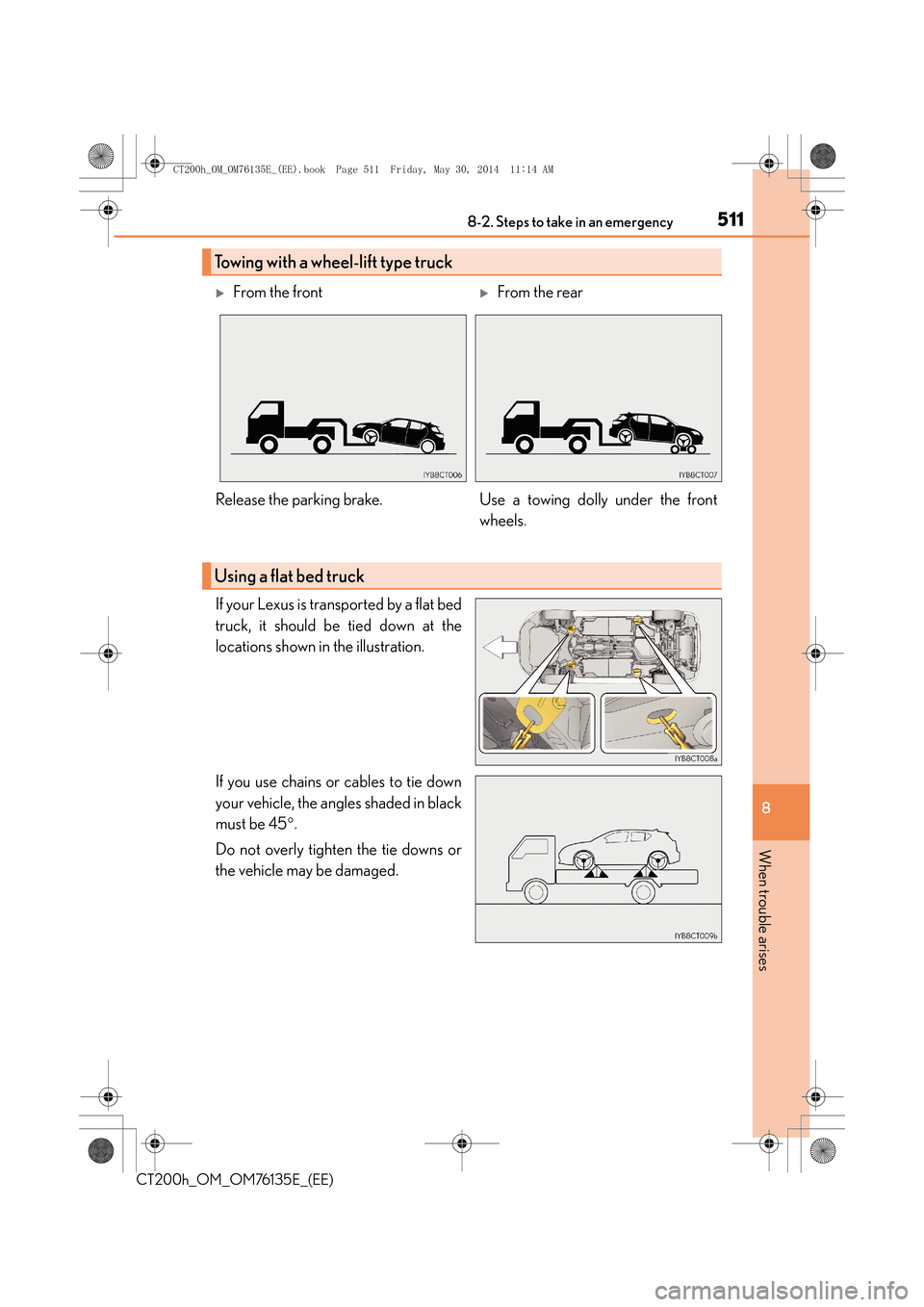

If your Lexus is transported by a flat bed
truck, it should be tied down at the
locations shown in the illustration.
If you use chains or cables to tie down
your vehicle, the angles shaded in black
must be 45 °.
Do not overly tighten the tie downs or
the vehicle may be damaged.
Towing with a wheel-lift type truck
XFrom the frontXFrom the rear
Release the parking brake. Use a towing dolly under the front wheels.
Using a flat bed truck
CT200h_OM_OM76135E_(EE).book Page 511 Friday, May 30, 2014 1 1:14 AM

5128-2. Steps to take in an emergency
CT200h_OM_OM76135E_(EE)
If a tow truck is not available in an emergency, your vehicle may be temporarily
towed using a cable or chain secured to the emergency towing eyelet. This
should only be attempted on hard surfaced roads for short distances at low
speeds.
A driver must be in the vehicle to steer and operate the brakes. The vehicle’s
wheels, drive train, axles, steering and brakes must be in good condition.Take out the towing eyelet. ( →P. 5 4 0 , 5 5 2 )
Remove the eyelet cover using a flat-
head screwdriver.
To protect the bodywork, place a rag
between the screwdriver and the vehi-
cle body as shown in the illustration.
Insert the towing eyelet into the hole
and tighten partially by hand.
Tighten down the towing eyelet
securely using a wheel nut wrench
or hard metal bar.
Securely attach a cable or chain to the towing eyelet.
Take care not to damage the vehicle body.
Emergency towing
Emergency towing procedure
1
2
3
4
5
CT200h_OM_OM76135E_(EE).book Page 512 Friday, May 30, 2014 1 1:14 AM

5138-2. Steps to take in an emergency
CT200h_OM_OM76135E_(EE)
8
When trouble arises
Enter the vehicle being towed and start the hybrid system.
If the hybrid system does not start, turn the power switch to ON mode.
Shift the shift position to N and release the parking brake.
■While towing
If the hybrid system is off, the power assist for the brakes and steering will not function,
making steering and braking more difficult.
■Wheel nut wrench
Wheel nut wrench is installed in luggage compartment. ( →P. 540, 552)

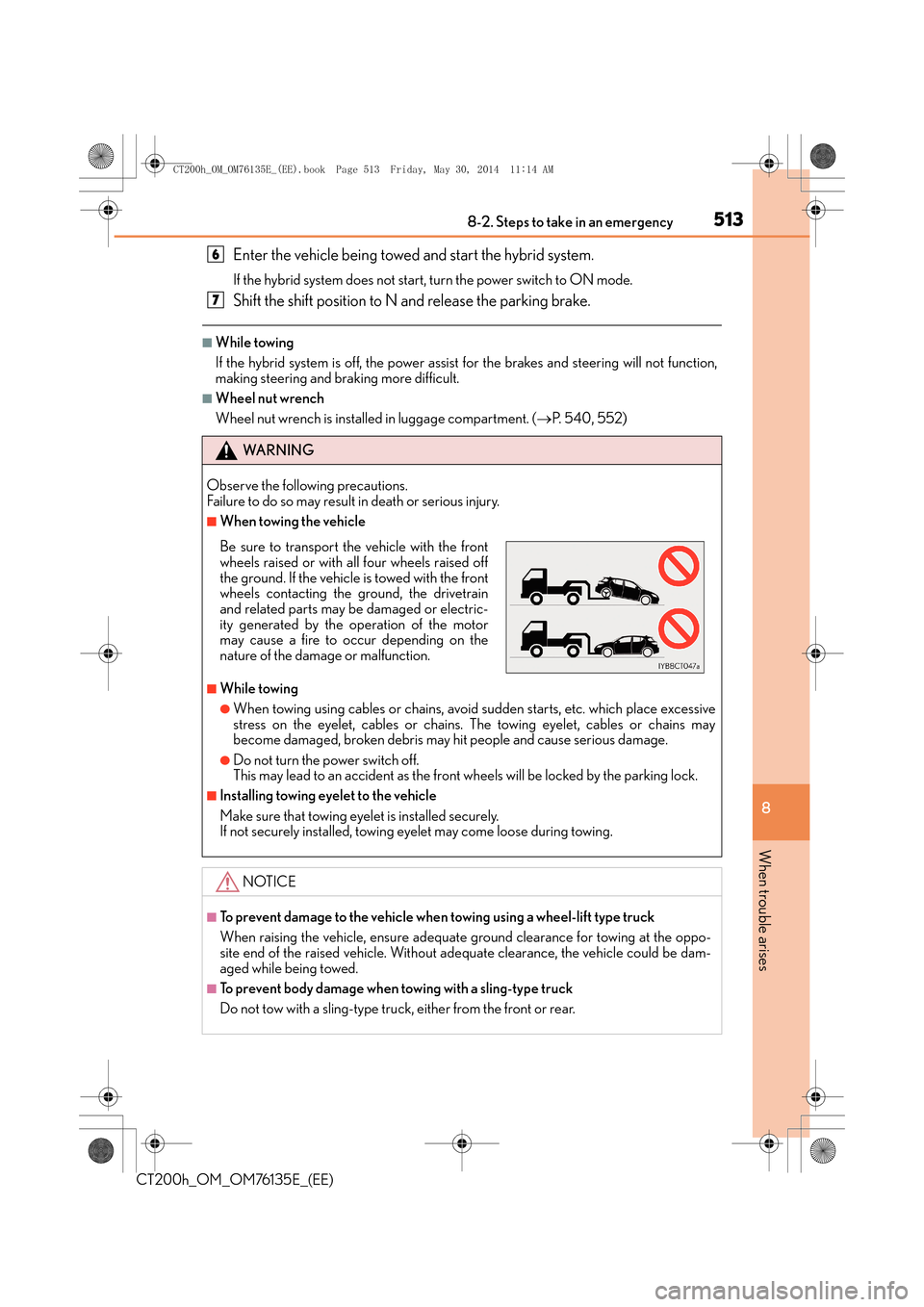

WA R N I N G
Observe the following precautions.
Failure to do so may result in death or serious injury.
■When towing the vehicle
■While towing
●When towing using cables or chains, avoid sudden starts, etc. which place excessive
stress on the eyelet, cables or chains. The towing eyelet, cables or chains may
become damaged, broken debris may hit people and cause serious damage.
●Do not turn the power switch off.
This may lead to an accident as the front wheels will be locked by the parking lock.
■Installing towing eyelet to the vehicle
Make sure that towing eyelet is installed securely.
If not securely installed, towing eyelet may come loose during towing.
NOTICE
■To prevent damage to the vehicle when towing using a wheel-lift type truck
When raising the vehicle, ensure adequate ground clearance for towing at the oppo-
site end of the raised vehicle. Without adequate clearance, the vehicle could be dam-
aged while being towed.
■To prevent body damage when towing with a sling-type truck
Do not tow with a sling-type truck, either from the front or rear.
6
7
Be sure to transport the vehicle with the front
wheels raised or with all four wheels raised off
the ground. If the vehicle is towed with the front
wheels contacting the ground, the drivetrain
and related parts may be damaged or electric-
ity generated by the operation of the motor
may cause a fire to occur depending on the
nature of the damage or malfunction.
CT200h_OM_OM76135E_(EE).book Page 513 Friday, May 30, 2014 1 1:14 AM

5408-2. Steps to take in an emergency
CT200h_OM_OM76135E_(EE)

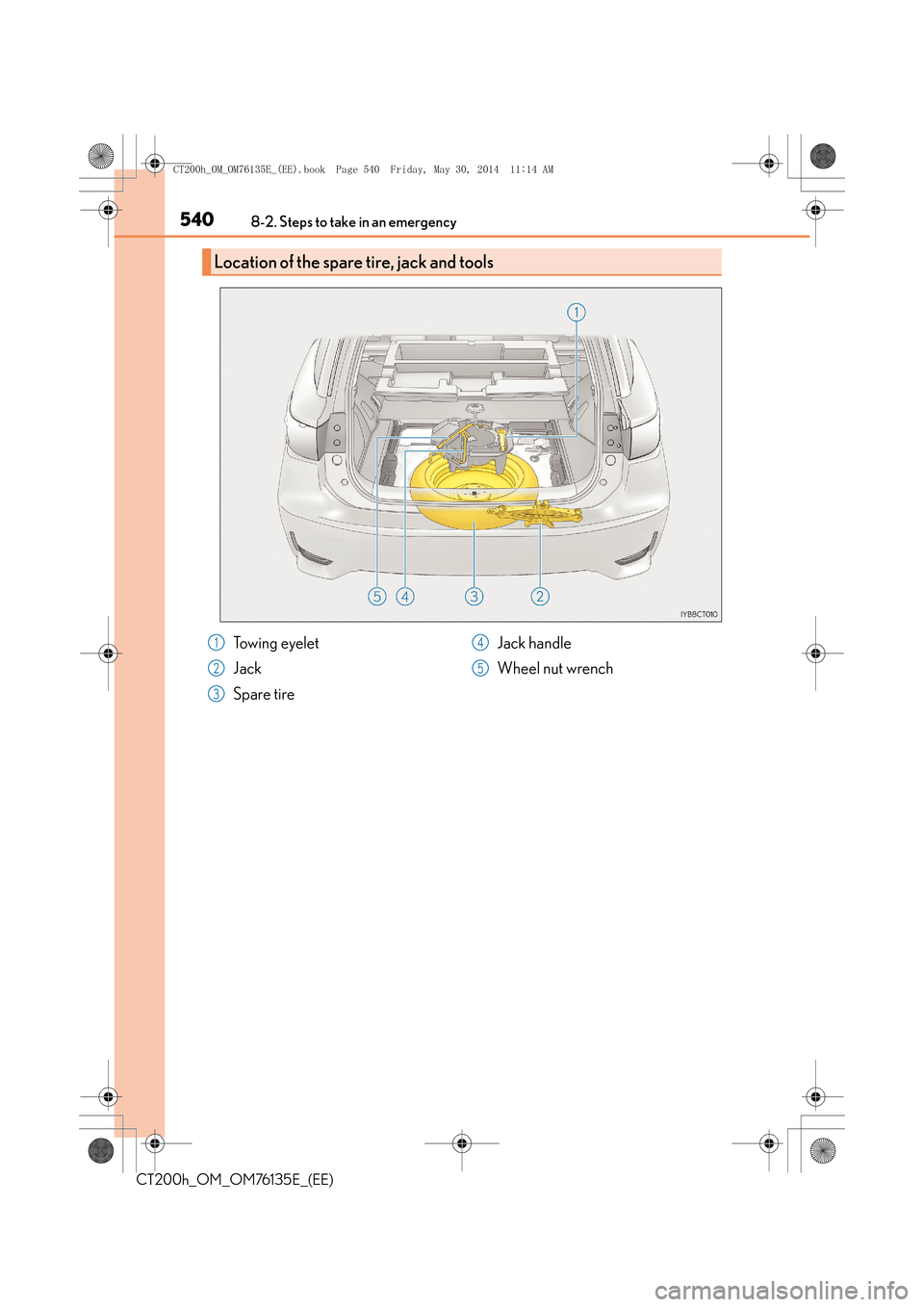

Location of the spare tire, jack and tools
Towing eyelet
Jack
Spare tireJack handle
Wheel nut wrench1
2
3
4
5
CT200h_OM_OM76135E_(EE).book Page 540 Friday, May 30, 2014 1
1:14 AM

5468-2. Steps to take in an emergency
CT200h_OM_OM76135E_(EE)
Lower the vehicle.
Firmly tighten each wheel nut two or
three times in the order shown in the
illustration.
Tightening torque:
103 N•m (10.5 kgf•m, 76 ft•lbf)
Stow the flat tire, tire jack and all tools.
Vehicles with a 16 or 17 inch wheel:
Before stowing the flat tire, remove
the center wheel ornament by push-
ing from the reverse side.
Place the flat tire on the deck board,
and pass the belt through the lower-
right cargo hook and then through
the hole in the center of the tire.
3
4
Stowing the flat tire
5
1
2
CT200h_OM_OM76135E_(EE).book Page 546 Friday, May 30, 2014 11:14 AM

5498-2. Steps to take in an emergency
CT200h_OM_OM76135E_(EE)
8
When trouble arises
WA R N I N G
■When using the compact spare tire
●Remember that the spare tire provided is specifically designed for use with your vehi-
cle. Do not use your spare tire on another vehicle.
●Do not use more than one spare tire simultaneously.
●Replace the spare tire with a standard tire as soon as possible.
●Avoid sudden acceleration, abrupt steeri ng, sudden braking and shifting operations
that cause sudden engine braking.
■When the compact spare tire is attached
The vehicle speed may not be correctly detected, and the following systems may not
operate correctly:
■Speed limit when using the compact spare tire
Do not drive at speeds in excess of 80 km/h (50 mph) when a compact spare tire is
installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failure to observe
this precaution may lead to an accid ent causing death or serious injury.
■After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in their storage
location to reduce the possibility of personal injury during a collision or sudden brak-
ing.
■When stowing the flat tire
●Make sure the rear seatbacks are in their original position.
●Secure it using a tire tie-down belt. Otherwise, the flat tire may fly out in case of sud-
den braking or an accident, resulting in death or serious injury.
• ABS & Brake assist
•VSC
•TRC
• Cruise control (if equipped)
• Dynamic radar cruise control (if equipped)
• PCS (Pre-Crash Safety system)
(if equipped) •EPS
• Rear view monitor system
(if equipped)
• Lexus parking assist monitor
(if equipped)
• Lexus parking assist-sensor (if equipped)
• Navigation system (if equipped)
CT200h_OM_OM76135E_(EE).book Page 549 Friday, May 30, 2014 1 1:14 AM

5528-2. Steps to take in an emergency
CT200h_OM_OM76135E_(EE)
*: Use of the jack (→P. 5 4 3 )

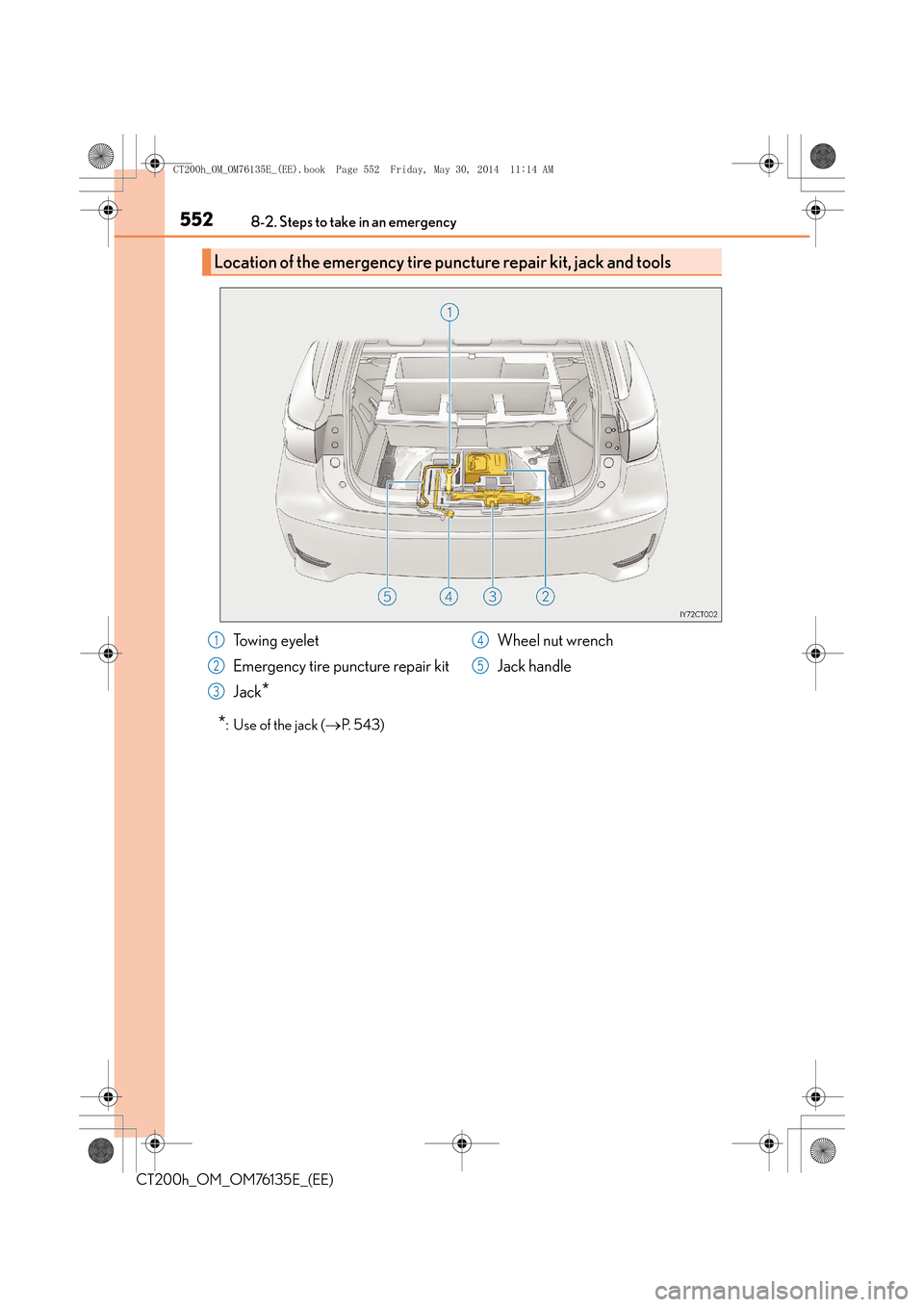

Location of the emergency tire puncture repair kit, jack and tools
Towing eyelet
Emergency tire puncture repair kit
Jack
*
Wheel nut wrench
Jack handle1
2
3
4
5
CT200h_OM_OM76135E_(EE).book Page 552 Friday, May 30, 2014 11:14 AM
