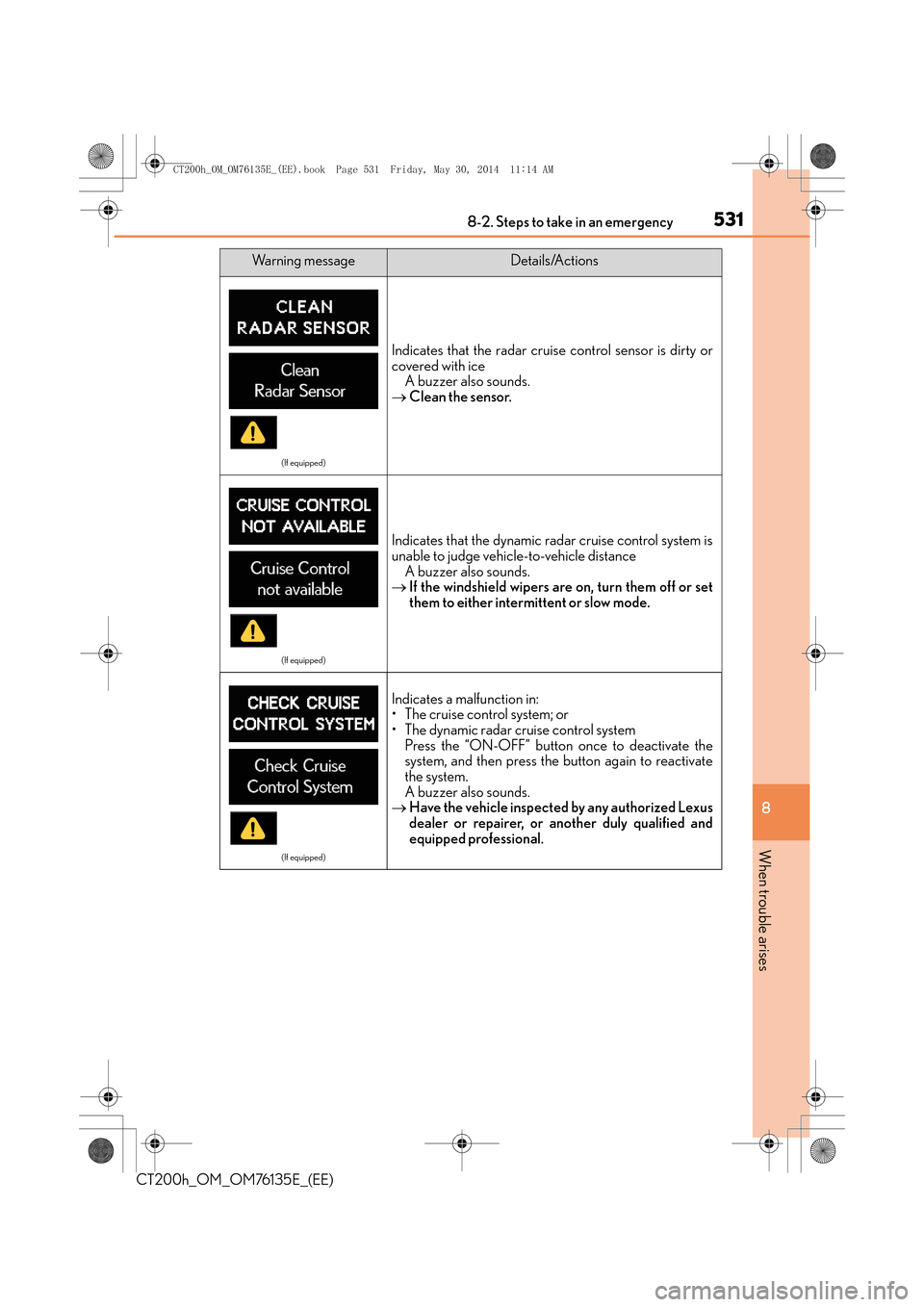

5318-2. Steps to take in an emergency
CT200h_OM_OM76135E_(EE)
8
When trouble arises
(If equipped)
Indicates that the radar cruise control sensor is dirty or
covered with ice A buzzer also sounds.
→ Clean the sensor.
(If equipped)
Indicates that the dynamic radar cruise control system is
unable to judge vehicle-to-vehicle distance
A buzzer also sounds.
→ If the windshield wipers are on, turn them off or set
them to either intermittent or slow mode.
(If equipped)
Indicates a malfunction in:
• The cruise control system; or
• The dynamic radar cruise control system
Press the “ON-OFF” button once to deactivate the
system, and then press the button again to reactivate
the system.
A buzzer also sounds.
→ Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and
equipped professional.
Wa r n i n g m e s s a g eDetails/Actions
CT200h_OM_OM76135E_(EE).book Page 531 Friday, May 30, 2014 1 1:14 AM

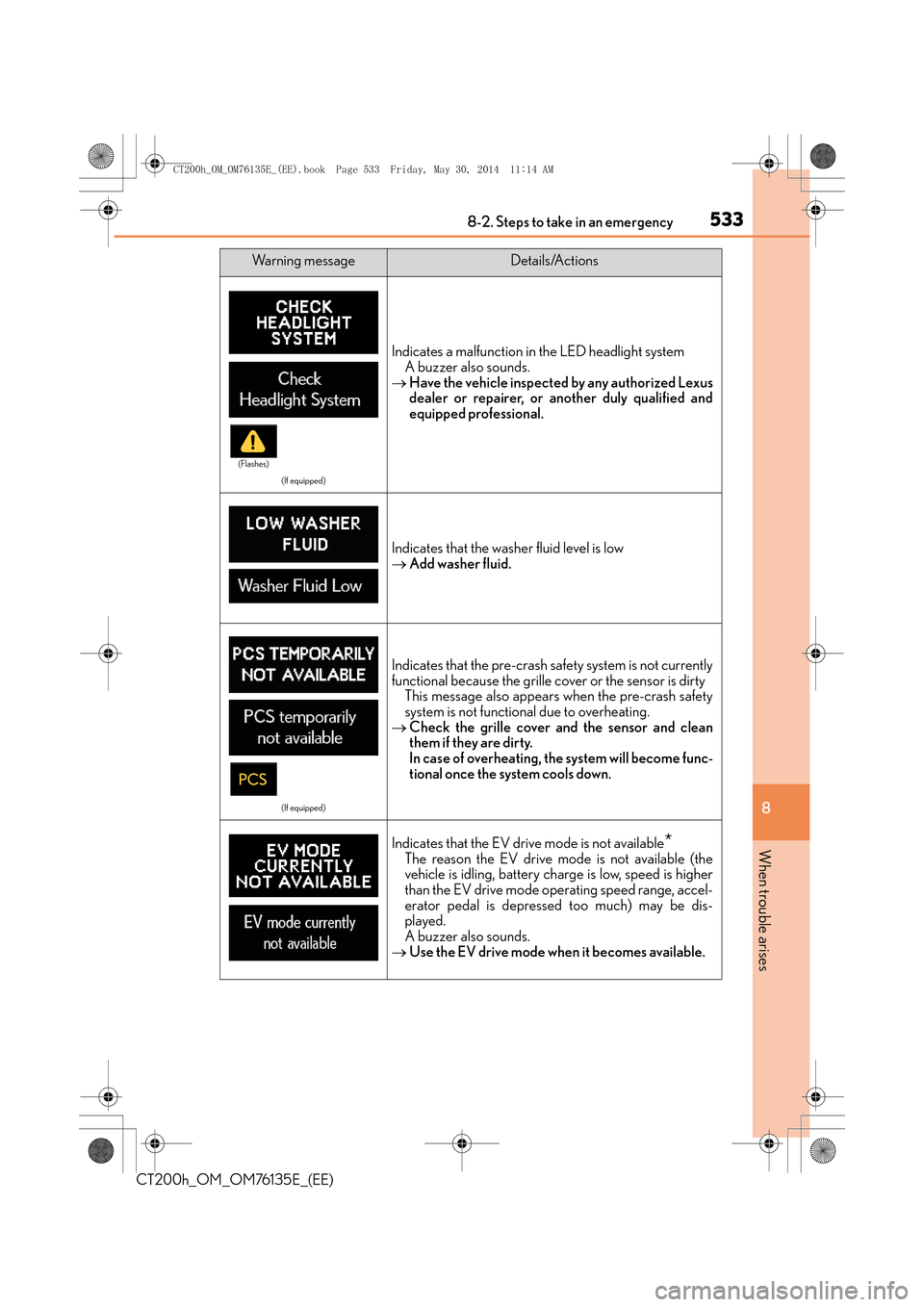

5338-2. Steps to take in an emergency
CT200h_OM_OM76135E_(EE)
8
When trouble arises
(If equipped)
Indicates a malfunction in the LED headlight system
A buzzer also sounds.
→ Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and
equipped professional.
Indicates that the washer fluid level is low
→Add washer fluid.
(If equipped)
Indicates that the pre-crash safety system is not currently
functional because the grille cover or the sensor is dirty
This message also appears when the pre-crash safety
system is not functional due to overheating.
→ Check the grille cover and the sensor and clean
them if they are dirty.
In case of overheating, the system will become func-
tional once the system cools down.
Indicates that the EV drive mode is not available*The reason the EV drive mode is not available (the
vehicle is idling, battery charge is low, speed is higher
than the EV drive mode operating speed range, accel-
erator pedal is depressed too much) may be dis-
played.
A buzzer also sounds.
→ Use the EV drive mode when it becomes available.
Wa r n i n g m e s s a g eDetails/Actions
(Flashes)
CT200h_OM_OM76135E_(EE).book Page 533 Friday, May 30, 2014 1 1:14 AM

5498-2. Steps to take in an emergency
CT200h_OM_OM76135E_(EE)
8
When trouble arises
WA R N I N G
■When using the compact spare tire
●Remember that the spare tire provided is specifically designed for use with your vehi-
cle. Do not use your spare tire on another vehicle.
●Do not use more than one spare tire simultaneously.
●Replace the spare tire with a standard tire as soon as possible.
●Avoid sudden acceleration, abrupt steeri ng, sudden braking and shifting operations
that cause sudden engine braking.
■When the compact spare tire is attached
The vehicle speed may not be correctly detected, and the following systems may not
operate correctly:
■Speed limit when using the compact spare tire
Do not drive at speeds in excess of 80 km/h (50 mph) when a compact spare tire is
installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failure to observe
this precaution may lead to an accid ent causing death or serious injury.
■After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in their storage
location to reduce the possibility of personal injury during a collision or sudden brak-
ing.
■When stowing the flat tire
●Make sure the rear seatbacks are in their original position.
●Secure it using a tire tie-down belt. Otherwise, the flat tire may fly out in case of sud-
den braking or an accident, resulting in death or serious injury.
• ABS & Brake assist
•VSC
•TRC
• Cruise control (if equipped)
• Dynamic radar cruise control (if equipped)
• PCS (Pre-Crash Safety system)
(if equipped) •EPS
• Rear view monitor system
(if equipped)
• Lexus parking assist monitor
(if equipped)
• Lexus parking assist-sensor (if equipped)
• Navigation system (if equipped)
CT200h_OM_OM76135E_(EE).book Page 549 Friday, May 30, 2014 1 1:14 AM

5939-2. Customization
CT200h_OM_OM76135E_(EE)
9
Vehicle specifications
■Tu r n s i g n a l l e v e r ( →P. 188)
■Automatic light control system ( →P. 1 9 0 )
■Illumination ( →P. 4 2 6 )
FunctionDefault
settingCustomized setting
Times of flashing of the lane
change signal flashers3
5
O––O
7
9
11
Off
1234
FunctionDefault settingCustomized setting
Light sensor sensitivityStandard-2 to 2O–OO
Welcome light
illumination control On Off – – – O
1234
FunctionDefault
settingCustomized setting
Time elapsed before the inte-
rior lights turn off 15 secondsOff
O–OO
7. 5 s e c o n d s
30 seconds
Time elapsed before the exte-
rior lights turn off15 seconds
Off
O–OO7. 5 s e c o n d s
30 seconds
Operation after the power
switch is turned offOnOff–––O
Operation when the doors
are unlocked with the Smart
entry & start system or the
wireless remote control func-
tion or the mechanical key
*
OnOff–––O
1234
CT200h_OM_OM76135E_(EE).book Page 593 Friday, May 30, 2014 1 1:14 AM

5959-2. Customization
CT200h_OM_OM76135E_(EE)
9
Vehicle specifications
*1: Settings that can be changed on vehicles with the tachometer
*2: The default setting varies according to countries.
*3: If equipped
*4: Some status screens cannot be registered (indicated on the multi-information display)
*5: 2 of the following items: current fuel consumption, average fuel economy (after reset),
average fuel economy (after refuel), average fuel economy (after start), average vehi-
cle speed (after reset), average vehicle speed (after start), distance (driving range),
distance (after start), elapsed time (after reset), elapsed time (after start), blank
Unitskm
(L/100km)km (km/L)–OOOmiles (MPG)*3
switch settings*3Drive
information 1Desired status screen
*4–OOO
Drive information 1*3
Current fuel
consumption
*5–OOOAverage fuel
consumption (after reset)
Drive information 2*3
Cruising range/
Distance
*5–OOOAverage speed (after reset)
Pop-up display*3OnOff–OOO
Accent color*3BlueBrownOOOO
Sensitivity of the ambient light
sensor used for dimming the
meter light etc.
*3Standard-2 to 2–––O
Sensitivity of the ambient light
sensor used for brightening
the meter light etc.
*3Standard-2 to 2–––O
FunctionDefault settingCustomized setting1234
CT200h_OM_OM76135E_(EE).book Page 595 Friday, May 30, 2014 1 1:14 AM

5979-2. Customization
CT200h_OM_OM76135E_(EE)
9
Vehicle specifications
■Lexus parking assist-sensor* ( → P. 2 1 9 )
*: If equipped
■Reverse buzzer ( →P. 1 8 5 )
■Outside rear view mirrors ( →P. 1 5 7 )
■Alarm* (→ P. 85)
*: If equipped
FunctionDefault
settingCustomized setting
Alert Volume
(Alert volume can be
adjusted)31 to 5O––O
Display
(Automatic display off the
LEXUS Park Assist graphic
can be enabled/disabled)
OnOffO––O
Distance
(Distance mode can be
selected)
LongShortO––O
1234
FunctionDefault settingCustomized setting
Signal (buzzer) when the shift
position is in RIntermittentSingle–––O
1234
FunctionDefault settingCustomized setting
Automatic folding/extending
operationLinked to lock-
ing/unlocking of the doorsOff
–––OLinked to power
switch operation
1234
FunctionDefault settingCustomized setting
Deactivates the alarm when
the doors are unlocked using
the mechanical keyOffOn–––O
1234
CT200h_OM_OM76135E_(EE).book Page 597 Friday, May 30, 2014 1 1:14 AM

604What to do if... (Troubleshooting)
CT200h_OM_OM76135E_(EE)
●The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts? ( →P. 5 1 7 )
●The parking brake indicator is on
Is the parking brake released? ( →P. 1 8 9 )
Depending on the situation, other types of warning buzzer may also sound.
( → P. 5 1 5 , 5 2 1 )
●Did anyone inside the vehicle open a door during setting the alarm?
The sensor detects it and the alarm sounds. ( →P. 8 5 )
To stop the alarm, turn the power switch to ON mode or start the hybrid system.
●Is the electronic key left inside the vehicle or the moon roof opened?
Check the message on the multi-information display. ( →P. 5 2 1 )
●When a warning light turns on or a warning message is displayed, refer to
P. 515, 521. A warning buzzer sounds during driving
An alarm is activated and the horn sounds
(vehicles with an alarm)
A warning buzzer sounds when leaving the vehicle
A warning light turns on or a warning message is displayed
CT200h_OM_OM76135E_(EE).book Page 604 Friday, May 30, 2014 1
1:14 AM

606Alphabetical index
CT200h_OM_OM76135E_(EE)
Alphabetical index
A/C ..................................................408, 417Air conditioning filter......................... 481
Automatic air conditioning system ....................................... 408, 417
Humidity sensor .........................414, 421
Pollen removal mode ............. 413, 419
ABS (Anti-lock Brake System) .......238
Function ..................................................238
Warning light ........................................ 516
Air conditioning filter ........................... 481
Air conditioning system ...........408, 417 Air conditioning filter......................... 481
Automatic air conditioning system ....................................... 408, 417
Humidity sensor .........................414, 421
Pollen removal mode ............. 413, 419
Airbag manual on-off system .............. 51
Airbags......................................................... 42 Airbag manual on-off system ...........51
Airbag operating conditions............47
Airbag precautions
for your child........................................ 44
Airbag warning light.......................... 516
Correct driving posture .................... 36
Curtain shield airbag
operating conditions ........................47
Curtain shield airbag
precautions........................................... 46 General airbag precautions ............44
Locations of airbags ............................42
Modification and disposal
of airbags ...............................................46
Side airbag operating conditions .............................................. 47
Side airbag precautions .................... 45
Side and curtain shield airbags operating conditions ........................ 47
Side and curtain shield airbags
precautions ...........................................46
SRS airbags ..............................................42
Alarm............................................................ 85 Alarm .......................................................... 85
Warning buzzer...................................515
Anchor brackets ........................................ 61
Antenna Radio................................ 269, 346, 442
Smart entry & start system ............. 129
Anti-lock brake system
(ABS) ..................................................... 238Function.................................................. 238
Warning light.........................................516
Approach warning.................................213
Assist grips .............................................. 439
A
CT200h_OM_OM76135E_(EE).book Page 606 Friday, May 30, 2014 1 1:14 AM

612Alphabetical index
CT200h_OM_OM76135E_(EE)
Front fog lightsReplacing light bulbs........... 495, 504
Switch ........................................................194
Wattage................................................. 586
Front passenger’s seat belt reminder light....................................... 517
Front position lights Light switch ............................................ 190
Replacing light bulbs....................... 504
Front seats
Adjustment ..............................................143
Cleaning................................................. 446
Correct driving posture .................... 36
Driving position memory ................. 147
Head restraints....................................... 151
Seat heaters .......................................... 424
Seat position memory ....................... 147
Front turn signal lights
Replacing light bulbs............ 497, 497
Turn signal lever .................................. 188
Wattage................................................. 586
Fuel
Capacity ................................................ 580
Fuel gauge................................................ 97
Gas station information .................. 622
Information ............................................587
Refueling ................................................ 202
Type ......................................................... 580
Fuel filler door ........................................ 202 Refueling ................................................ 202
When the fuel filler door cannot be opened .........................204
Fuses ..........................................................486 Gas station information ..................... 622
Gauges ........................................................ 96
Glove box................................................ 429
Hands-free system
(for cellular phone) ................289, 373
Head restraints ......................................... 151
Headlight cleaner...................................201
Headlights ................................................ 190 Automatic headlight
leveling .................................................. 192
Follow me home system....................191
Light switch.............................................190
Replacing light
bulbs ................ 492, 493, 494, 504
Wattage .................................................586
Heated steering wheel....................... 424
Heaters Automatic air conditioning system........................................408, 417
Outside rear view mirrors .........................................412, 419
Seat heaters...........................................424
High mounted stoplight
Replacing............................................... 504
Hill-start assist control........................ 242
Hood.......................................................... 452 Warning message ............................ 523
Hooks Cargo hooks ....................................... 433
Retaining hooks (floor mat) .............34
Horn .............................................................153
Humidity sensor ............................ 414, 421G
H
CT200h_OM_OM76135E_(EE).book Page 612 Friday, May 30, 2014 1 1:14 AM

613Alphabetical index
CT200h_OM_OM76135E_(EE)
Hybrid battery (traction battery)Location......................................................74
Specification ........................................ 580
Hybrid battery air vent .......................... 75
Hybrid system ........................................... 70 Emergency shut off system.............. 75
Energy monitor/consumption screen.................................................... 106
EV drive mode ...................................... 181
High voltage components ................74
Hybrid System Indicator ...................98
Hybrid system precautions...............74
Hybrid vehicle driving tips ..............251
If the hybrid system will not start................................................563
Overheating ...........................................571
Power switch ......................................... 177
Regenerative braking ........................... 71
Starting the hybrid system............... 177
Hybrid System Indicator .......................98
Hybrid transmission.............................. 183 Identification
Engine ..................................................... 579
Vehicle.................................................... 578
Ignition switch (Power switch) .......... 177 Auto power off function ................... 179
Changing the power switch modes.................................................... 178
If your vehicle has to be stopped in an emergency.............................509
Starting the hybrid system ...............177
Illuminated entry system.....................427
Immobilizer system..................................79
Indicators .................................................... 92
Initialization Item to initialize ................................... 599
Tire pressure warning system..... 469
Inside rear view mirror ........................ 155
Instrument panel light control ............ 98
Interior lights........................................... 426
Switch ...................................................... 426
Wattage .................................................586
Intrusion sensor ........................................ 87
ISOFIX rigid anchors .............................. 61
Jack Positioning a floor jack ................... 454
Vehicle-equipped jack ...................540
Jack handle ............................................. 540
Jam protection function Moon roof...............................................165
Power windows ................................... 162I
J
CT200h_OM_OM76135E_(EE).book Page 613 Friday, May 30, 2014 1 1:14 AM
