6-3. Using the storage features List of storage features ............ 433
• Glove box ............................... 434
• Console box .......................... 434
•Cup holders/ bottle holders/
door pockets.......................... 434
• Auxiliary boxes ..................... 436
Luggage compartment features ....................................... 438
6-4. Using the other interior features Other interior features ............ 443• Sun visors ................................ 443
• Vanity mirrors ........................ 443
• Clock ........................................ 444
• Power outlet ........................... 444
• Assist grips ............................. 446
Garage door opener ................447
Compass ....................................... 454
LEXUS Enform Safety Connect...................................... 460 7-1. Maintenance and care
Cleaning and protecting the vehicle exterior ........................ 466
Cleaning and protecting the vehicle interior ......................... 469
7-2. Maintenance Maintenance requirements ............................. 472
General maintenance............... 474
Emission inspection and maintenance (I/M)
programs ..................................... 477
7-3. Do-it-yourself maintenance Do-it-yourself service precautions.................................478
Hood ...............................................480
Positioning a floor jack............. 482
Engine compartment ............... 483
12-volt battery ...............................491
Tires.................................................. 495
Tire inflation pressure ............... 502
Wheels ...........................................505
Air conditio ning filter ............... 507
Electronic key battery..............509
Checking and replacing fuses................................................. 511
Light bulbs ......................................5147Maintenance and care

261
CT200h_OM_OM76215U_(U)5-2. Using the audio system
5
Audio system
Optimal use of the audio system
Displays the current mode
Changes the following settings:
• Sound quality and volume bal- ance
 P. 2 6 1
The sound quality and balance set-
ting can be changed to produce the
best sound.
• Automatic Sound Levelizer on/off
 P. 2 6 2
■Changing sound quality modes
Press the “TUNE•SEL” knob.
Pressing the knob changes sound modes in the following order:
“BAS”  “MID”  “TRE”  “FAD”  “BAL”  “A S L ”
■Adjusting sound quality
Turning the “TUNE•SEL” knob adjusts the level.
*: The sound quality level is adjusted individually in each audio mode.
The sound quality, volume balance and ASL settings can be adjusted.
1
2
Adjusting sound quality and volume balance
Mode
displayedSound
quality modeLevelTu r n c o u n t e r - clockwiseTu r n
clockwise
“BAS”Bass*-5 to 5
LowHigh“MID”Mid-range*-5 to 5
“TRE”Tr e b l e*-5 to 5
“FAD”Front/rear volume
balanceF7 to R7Shifts to rearShifts to front
“BAL”
Left/right volume
balance
L7 to R7Shifts to leftShifts to right

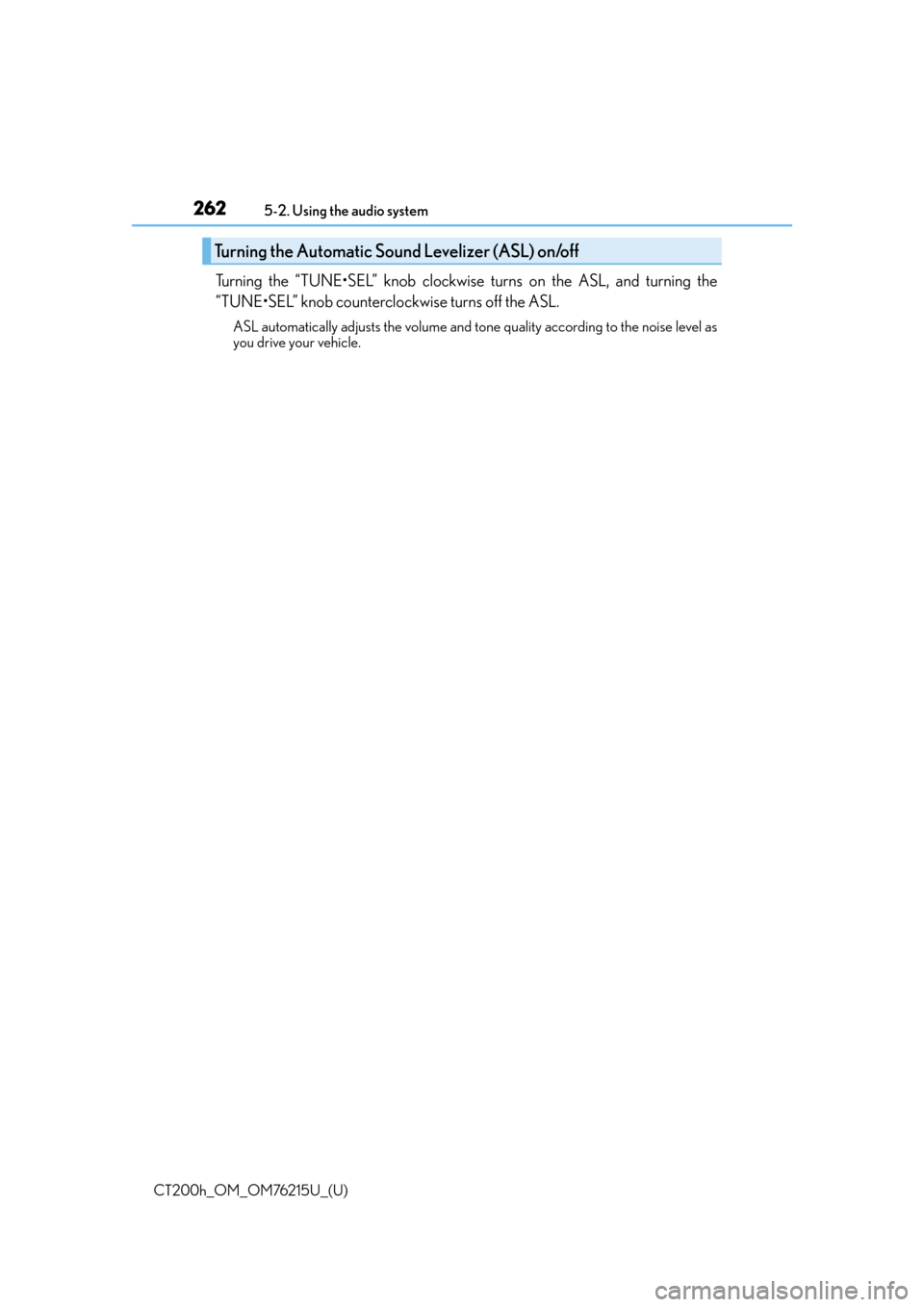

2625-2. Using the audio system
CT200h_OM_OM76215U_(U)
Turning the “TUNE•SEL” knob clockwis e turns on the ASL, and turning the
“TUNE•SEL” knob counterclockwise turns off the ASL.
ASL automatically adjusts the volume and tone quality according to the noise level as
you drive your vehicle.
Turning the Automatic Sound Levelizer (ASL) on/off

CT200h_OM_OM76215U_(U)
3075-7. Setup menu
5
Audio system
Select “Phonebook Lock (Phbk Lock)” or “Phonebook Unlock (Phbk
Unlock)” using a voice command or the “TUNE•SEL” knob.
Input the PIN by either of the following methods and select “Confirm” using a
voice command or the knob:
a. Press the talk switch and say the registered PIN.
b. Input a new PIN using the knob.
Select “Guidance Vol” using the “TUNE•SEL” knob.
Change the voice guidance volume.
To decrease the volume: Turn the knob counterclockwise.
To increase the volume: Turn the knob clockwise.
Select “Device Name” using the “TUNE•SEL” knob.
Turn the knob to display the Bluetooth
® device address and name.
Select “Go Back” using the knob to return to “System Setup”.
Select “Initialize” and then “Confirm” using the “TUNE•SEL” knob.
Select “Confirm” again using the knob.
Locking or unlocking the phone book
Setting voice guidance volume
Displaying the Bluetooth® device address and name
Initializing the system
1
2
1
2
1
2
3
1
2

337
CT200h_OM_OM76215U_(U)5-12. Setup (Lexus Display Audio System)
5
Audio system
Display settings
Go to “Display”: “MENU” button
 “Display”
Turn off screen.
Adjust screen quality.
Adjust screen quality of the rear
view monitor camera.
Change to day mode.
This setting turns the screen off. To turn it on, press any button such as the
“AUDIO” button or “MENU” button.
If a screen off image has been set, the set image will be displayed.
When the headlights are turned on, the screen dims.
However, the screen can be switched to day mode by selecting “Day Mode”.
The screen will stay in day mode when the headlights are turned on until “Day Mode”
is selected again.
Select “General” or “Camera” on the “Display” screen or select “Display” on
each audio menu screen. ( P. 3 4 2 )
Adjust the display as desired by turning the controller clockwise (+) or coun-
terclockwise (-).
To select “Contrast”, “Brightness”, “Color” or “Tone”, move the controller to the left.
(“Colour” and “Tone” are available when “D isplay” on the audio settings screen for
each audio source is selected.)
■Changing the sample image (when “General” is selected)
Move the controller to the right and select the desired sample image.
Settings are available for adjusting the contrast and brightness of the screen.
The display can also be turned off.
Screen for display settings
1
2
3
4
Screen off
Day mode
Adjusting the screen quality
1
2

413
CT200h_OM_OM76215U_(U)
6Interior features
6-1. Using the air conditioning system and defogger
Automatic air conditioning system (Vehicles with a
navigation system or Lexus
Display Audio System)........... 414
Automatic air conditioning system (Vehicles without a
navigation system or Lexus
Display Audio System).......... 422
Heated steering wheel/ seat heaters................................ 429
• Heated steering wheel...... 430
• Seat heaters........................... 430 6-2. Using the interior lights
Interior lights list .......................... 431• Personal/interior light main switch .............................. 431
•Front personal/ interior lights .......................... 432
• Rear interior light ................. 432
6-3. Using the storage features List of storage features ............ 433• Glove box ............................... 434
• Console box........................... 434
•Cup holders/ bottle holders/
door pockets .......................... 434
• Auxiliary boxes ..................... 436
Luggage compartment features........................................438
6-4. Using the other interior features Other interior features ............ 443• Sun visors ................................ 443
• Vanity mirrors ........................ 443
• Clock ........................................ 444
• Power outlet ........................... 444
• Assist grips.............................. 446
Garage door opener................ 447
Compass ....................................... 454
LEXUS Enform Safety Connect ......................................460

4306-1. Using the air conditioning system and defogger
CT200h_OM_OM76215U_(U)
Turns the heated steering wheel on/off
The indicator light comes on when the
heated steering wheel is operating.
●The heated steering wheel can be used when the power switch is in ON mode.
●The heated steering wheel will automati cally turn off after about 30 minutes.
Po p s t h e k n o b o u t
Turns the seat heater on
The indicator light comes on.
Adjusts the seat temperature
The further you turn the knob clockwise,
the warmer the seat becomes.
●The seat heaters can be used when the power switch is in ON mode.
●When not in use, turn the knob fully coun terclockwise. The indicator light goes off.
Press the knob into the recessed position.
Heated steering wheel
Seat heaters
1
2
3

444
CT200h_OM_OM76215U_(U)6-4. Using the other interior features
Vehicles with a navigation system
Refer to the “NAVIGATION SYSTEM OWNER’S MANUAL”.
Vehicles without navigation system
The clock can be adjusted by pressing the buttons.
Adjusts the hours
Adjusts the minutes
Rounds to the nearest hour
*
*
:e.g. 1:00 to 1:29 1:00
1:30 to 1:59 2:00
The clock is displayed when the power switch is in ACCESSORY or ON mode.
Please use a power supply for electronic goods that use less than 12 VDC /10 A
(power consumption of 120 W).
When using electronic goods, make sure that the power consumption of all the
connected power outlets is less than 120 W.
Center console
Press down and release the lid.
Clock
1
2
3
Power outlet
1

486
CT200h_OM_OM76215U_(U)7-3. Do-it-yourself maintenance
■Adding engine oil
If the oil level is below or near the
low level mark, add engine oil of the
same type as that already in the
engine.
Make sure to check the oil type and prepare the items needed before adding
oil.
Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.
■Engine oil consumption
A certain amount of engine oil will be consum ed while driving. In the following situations,
oil consumption may increase, and engine o il may need to be refilled in between oil
maintenance intervals.
●When the engine is new, for example directly after purchasing the vehicle or after
replacing the engine
●If low quality oil or oil of an inappropriate viscosity is used
●When driving at high engine speeds or with a heavy load, or when driving while accel-
erating or decelerating frequently
●When leaving the engi ne idling for a long time, or when driving frequently through
heavy traffic
Engine oil selection P. 5 8 0
Oil quantity (Low  Full)1.6 qt. (1.5 L, 1.3 Imp.qt.)
ItemsClean funnel
1
2
3

516
CT200h_OM_OM76215U_(U)7-3. Do-it-yourself maintenance
■Headlight low beams (halogen headlights)
Unplug the connector while
pressing the lock release.
Turn the bulb base counterclock-
wise.
Set the new light bulb.
Align the 3 tabs on the light bulb with
the mounting, and insert. Turn it
clockwise to set.
Set the connector.
After installing the connector, shake
the bulb base gently to check that it is
not loose, turn the headlight low
beams on once and visually confirm
that no light is leaking through the
mounting.
Replacing light bulbs
1
2
3
4
