Lexus ES300 2001 Owner's Manuals (in English)

STARTING AND DRIVING
314
Drum±in±disc type parking brake system
Your vehicle has a drum±in±disc type parking brake
system. This type of brake system needs
bedding±down of the brake shoes periodically or
whenever the parking brake shoes and/or drums are
replaced.
Have your Lexus dealer perform the bedding±down.
Brake assist system (Vehicles with
vehicle skid control system)
When you slam the brakes on, the brake assist
system judges as an emergency stop and provides
more powerful braking for a driver who cannot hold
down the brake pedal firmly.
When you slam the brakes on, more powerful braking
will be applied. At this time, you may hear a sound in the
engine compartment and feel the vibrations of the brake
pedal. This does not indicate a malfunction.
The brake assist system becomes operative after the
vehicle has accelerated to a speed in excess of
approximately 10 km/h (6 mph). It stops operating when
the vehicle decelerates to a speed below approximately
5 km/h (3 mph).
For an explanation of this system's warning light, see
ªABS warning lightº on page 65 and ªVehicle skid control
system warning lightsº on page 65.

STARTING AND DRIVING
315
BRAKE PAD WEAR LIMITINDICATORS
31E016
The brake pad wear limit indicators on your disc
brakes give a warning noise when the brake pads
are worn to the extent that replacement is required.
If you hear a squealing or scraping noise while driving,
have the brake pads checked and replaced by your
Lexus dealer as soon as possible. Expensive rotor
damage can result if the pads are not replaced when
needed.TYPES OF TIRES
Determine what kind of tires your vehicle is originally
equipped with.
1. Summer tires
Summer tires are high±speed capability tires best suited
to highway driving under dry conditions.
Since summer tires do not have the same traction
performance as snow tires, summer tires are
inadequate for driving on snow±covered or icy roads.
For driving on snow±covered or icy roads, we
recommend using snow tires. If installing snow tires, be
sure to replace all four tires.

STARTING AND DRIVING
316
2. All season tires
All season tires are designed to provide better traction
in snow and to be adequate for driving in most winter
conditions, as well as for use all year round.
All season tires, however, do not have adequate traction
performance compared with snow tires in heavy or loose
snow. Also, all season tires fall short in acceleration and
handling performance compared with summer tires in
highway driving.

STARTING AND DRIVING
317

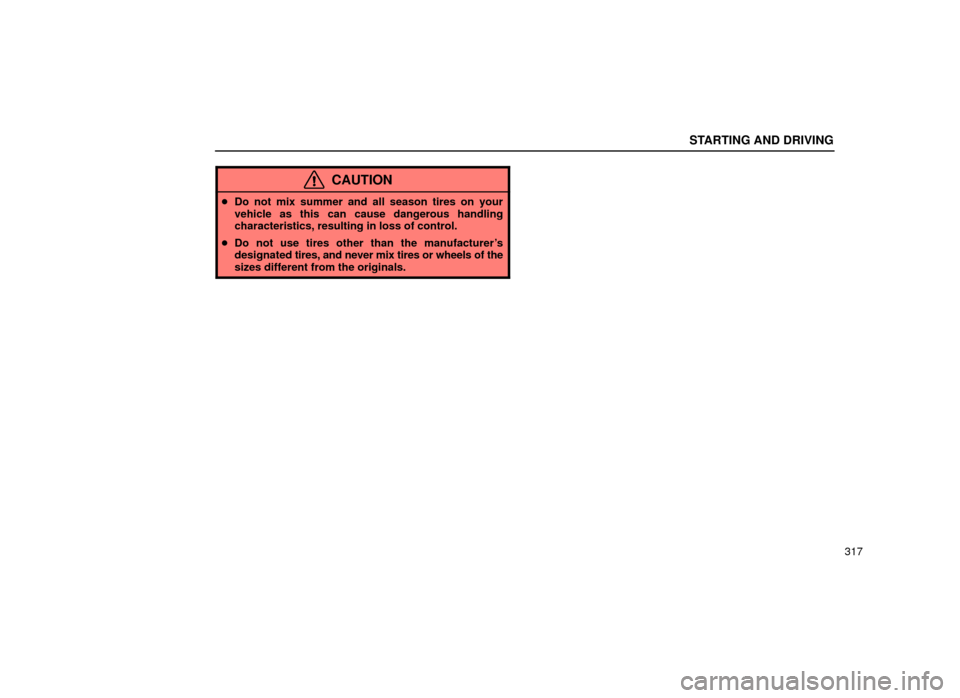

CAUTION
Do not mix summer and all season tires on your
vehicle as this can cause dangerous handling
characteristics, resulting in loss of control.
 Do not use tires other than the manufacturer's
designated tires, and never mix tires or wheels of the
sizes different from the originals.

SECTION 3 ± 2
318
STARTING AND DRIVING
Driving tips
Break±in period319
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operation in foreign countries 319
. . . . . . . . . . . . . . . . . .
Tips for driving in various conditionss 319
. . . . . . . . . . . .
Winter driving tips 321
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dinghy towing 324
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Trailer towing 327
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
How to save fuel and make your vehicle last longer 338

DRIVING TIPS
319
BREAK±IN PERIOD
Drive gently and avoid high speeds.
You need not follow a break±in schedule with your new
Lexus. But following a few simple tips for the first 1600
km (1000 miles) can add to the future economy and long
life of your vehicle:
Do not drive over 88 km/h (55 mph).
 Avoid overrevving. Maintain engine speed between
2000 and 4000 rpm.
 Avoid full±throttle starts.
 Try to avoid hard stops during the first 300 km (200
miles).
 Do not drive for a long time at any single speed, either
fast or slow.
 Do not tow a trailer during the first 800 km (500 miles).
OPERATION IN FOREIGN
COUNTRIES
If you plan to drive your Lexus in another country ...
First, comply with the vehicle registration laws.
Second, confirm the availability of the correct fuel
(unleaded and minimum octane rating).
TIPS FOR DRIVING IN VARIOUS CONDITIONS
Always slow down in gusty crosswinds. This will
allow you much better control.
 Drive slowly onto curbs and, if possible, at a right
angle. Avoid driving onto high, sharp±edged objects
and other road hazards. Failure to do so can lead to
severe tire damage resulting in tire bursts.
 When parking on a hill, turn the front wheels until they
touch the curb so that the vehicle will not roll. Apply
the parking brake, and place the transmission in ªPº.
If necessary, block the wheels.
 Washing your vehicle or driving through deep water
may get the brakes wet. To see whether they are wet,
check that there is no traffic near you and then press
the pedal lightly. If you do not feel a normal braking
force, the brakes are probably wet. To dry them, drive
the vehicle cautiously while lightly pressing the brake
pedal with the parking brake applied. If they still do
not work safely, pull to the side of the road and call a
Lexus dealer for assistance.

DRIVING TIPS
320

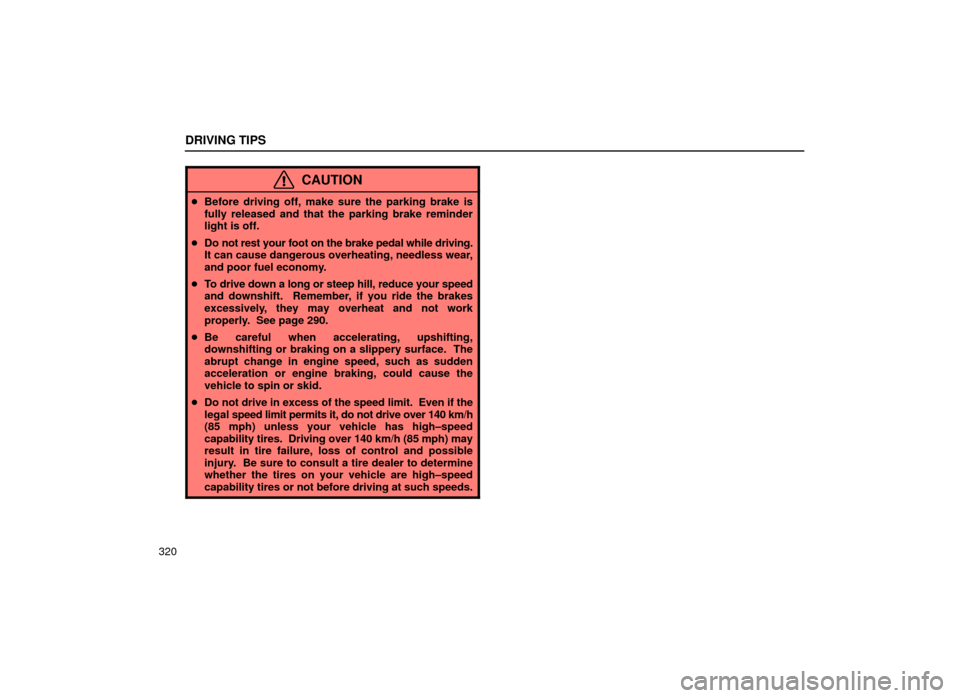

CAUTION
Before driving off, make sure the parking brake is
fully released and that the parking brake reminder
light is off.
 Do not rest your foot on the brake pedal while driving.
It can cause dangerous overheating, needless wear,
and poor fuel economy.
 To drive down a long or steep hill, reduce your speed
and downshift. Remember, if you ride the brakes
excessively, they may overheat and not work
properly. See page 290.
 Be careful when accelerating, upshifting,
downshifting or braking on a slippery surface. The
abrupt change in engine speed, such as sudden
acceleration or engine braking, could cause the
vehicle to spin or skid.
 Do not drive in excess of the speed limit. Even if the
legal speed limit permits it, do not drive over 140 km/h
(85 mph) unless your vehicle has high±speed
capability tires. Driving over 140 km/h (85 mph) may
result in tire failure, loss of control and possible
injury. Be sure to consult a tire dealer to determine
whether the tires on your vehicle are high±speed
capability tires or not before driving at such speeds.

DRIVING TIPS
321
Do not continue normal driving when the
brakes are wet. If they are wet, your vehicle will
require a longer stopping distance, and it may
pull to one side when the brakes are applied.
Also, the parking brake will not hold the vehicle
securely.WINTER DRIVING TIPS
Make sure you have a proper freeze protection of
engine coolant.
Your coolant must contain ethylene±glycol type coolant
for a proper corrosion protection of aluminum
components. Use ªToyota Long Life Coolantº or
equivalent. See ªChecking the engine coolant levelº on
page 415 for instructions.
NOTICE
Do not use alcohol type antifreeze or plain water alone.
When it is extremely cold, we recommend to use 60%
solution for your Lexus, to provide protection down to
about ±50 C (±58 F). Do not use more than 70%
solution for better coolant performance.
Check the condition of the battery and cables.
Cold temperatures reduce the capacity of any battery, so
it must be in top shape to provide enough power for
winter starting. Page 451 tells you how to visually
inspect the battery. Your Lexus dealer and most service
stations will be pleased to check the battery charge
level.
Make sure the engine oil viscosity is suitable for the
cold weather.

DRIVING TIPS
322See page 414 for recommended viscosity. Leaving a
heavy summer oil in your vehicle during winter months
may cause harder starting. If you are not sure about
which oil to use, call your Lexus dealer ± they will be
pleased to help.
Check the electronic ignition system for loose
connections or obvious damage.
Keep the door locks from freezing.
Squirt lock de±icer or glycerine into the locks to keep
them from freezing.
Use a washer fluid containing an antifreeze solution.
This product is available at your Lexus dealer and most
auto parts stores. Follow the manufacturer's directions
for how much to mix with water.
NOTICE
Do not use engine antifreeze or any other
substitute because it may damage your vehicle'spaint.
Do not use your parking brake when there is a
possibility it could freeze.
When parking, put the transmission into ªPº and block
the rear wheels. Do not use the parking brake, or snow
or water accumulated in and around the parking brake
mechanism may freeze the parking brake, making it hard to release.
Keep ice and snow from accumulating under the
fenders.
Ice and snow built up under your fenders can make
steering difficult. During bad winter driving, stop and
check under the fenders occasionally.

DRIVING TIPS
323
Depending on where you are driving, we
recommend
you carry some emergency equipment.
Some of the things you might put in the vehicle are tire
chains, window scraper, bag of sand or salt, flares, small
shovel, jumper cables, etc.
