Lexus ES300 2001 Owner's Manuals (in English)

IN CASE OF AN EMERGENCY
354
40E040

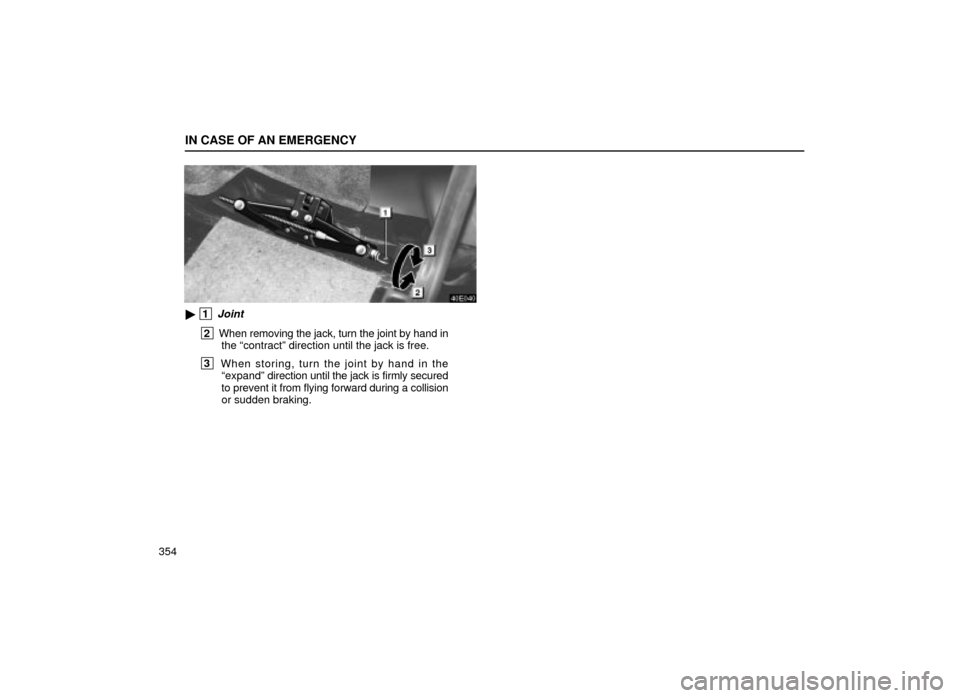

1 Joint
2 When removing the jack, turn the joint by hand in
the ªcontractº direction until the jack is free.
3 When storing, turn the joint by hand in the
ªexpandº direction until the jack is firmly secured
to prevent it from flying forward during a collision
or sudden braking.

IN CASE OF AN EMERGENCY
355
40E004±1

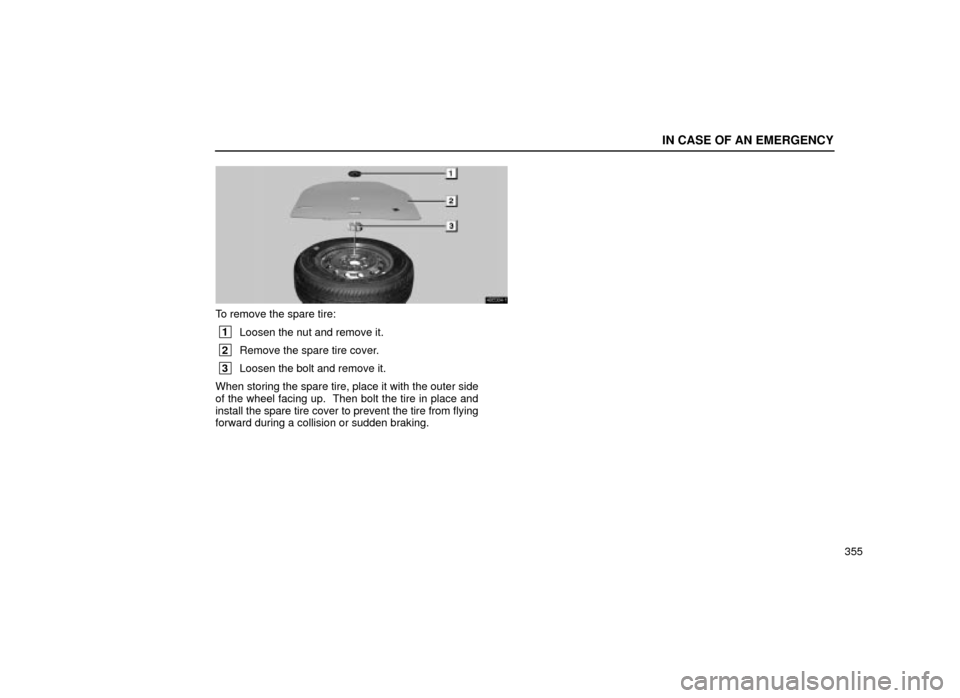

To remove the spare tire:
1Loosen the nut and remove it.
2Remove the spare tire cover.
3Loosen the bolt and remove it.
When storing the spare tire, place it with the outer side
of the wheel facing up. Then bolt the tire in place and
install the spare tire cover to prevent the tire from flying
forward during a collision or sudden braking.

IN CASE OF AN EMERGENCY
356
40E041

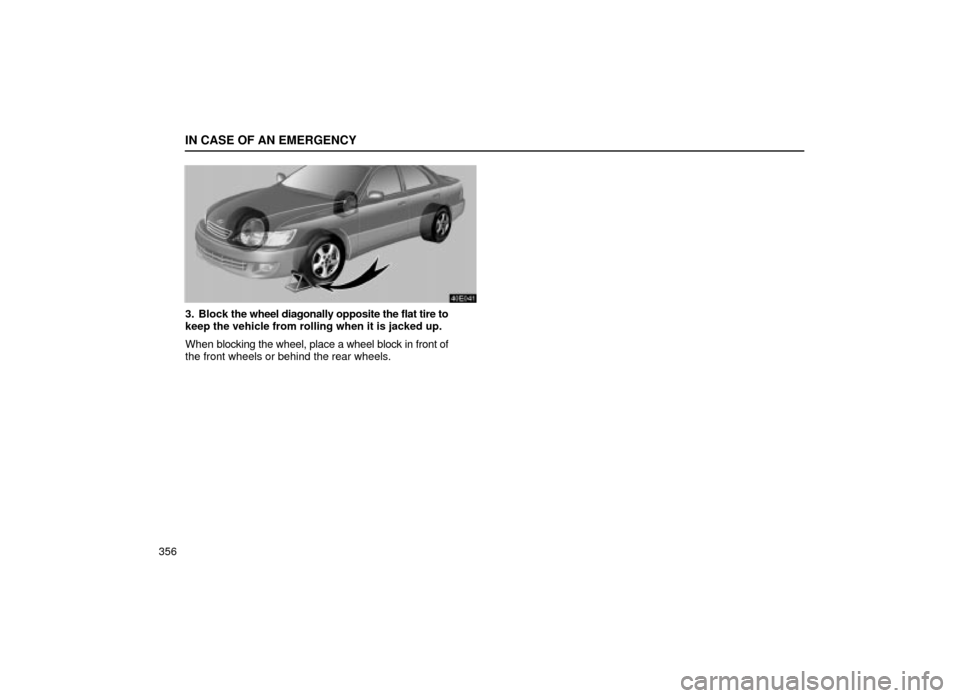

3. Block the wheel diagonally opposite the flat tire to
keep the vehicle from rolling when it is jacked up.
When blocking the wheel, place a wheel block in front of
the front wheels or behind the rear wheels.

IN CASE OF AN EMERGENCY
357
40E006

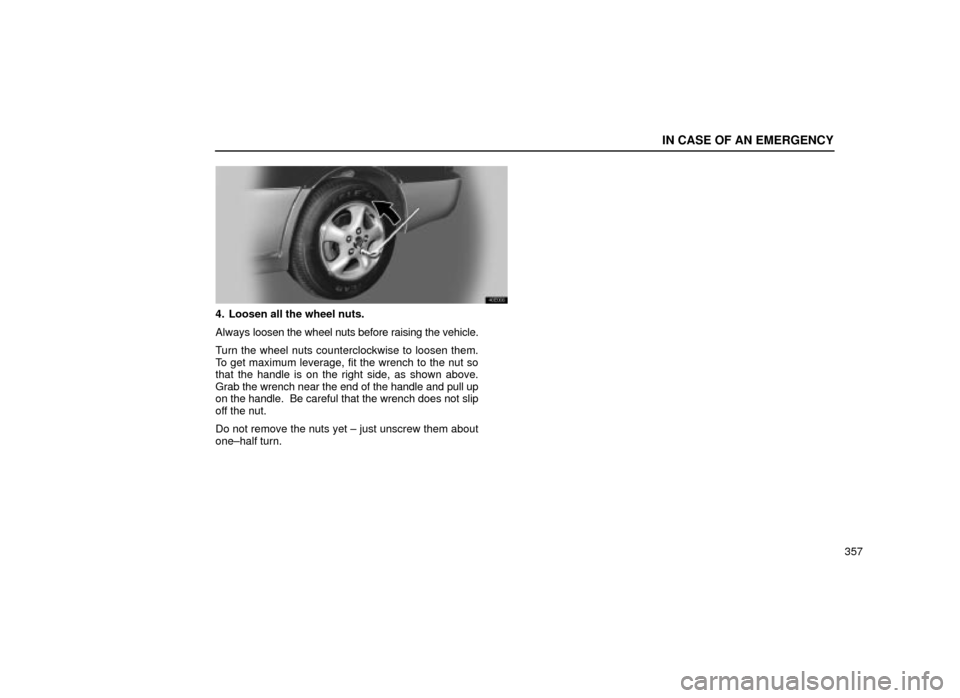

4. Loosen all the wheel nuts.
Always loosen the wheel nuts before raising the vehicle.
Turn the wheel nuts counterclockwise to loosen them.
To get maximum leverage, fit the wrench to the nut so
that the handle is on the right side, as shown above.
Grab the wrench near the end of the handle and pull up
on the handle. Be careful that the wrench does not slip
off the nut.
Do not remove the nuts yet ± just unscrew them about
one±half turn.

IN CASE OF AN EMERGENCY
358
40E007±1

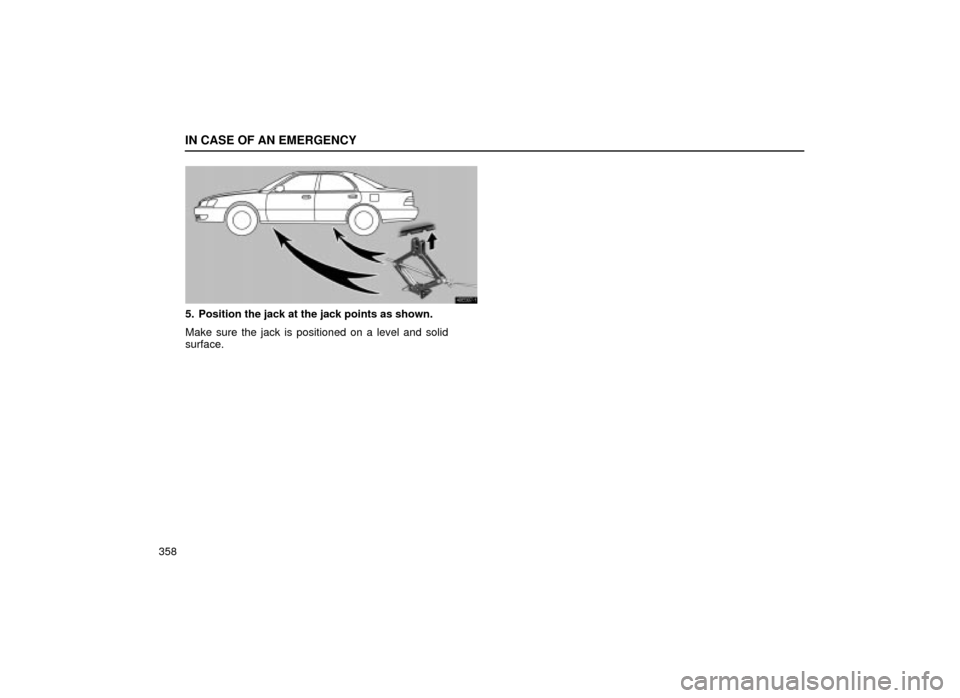

5. Position the jack at the jack points as shown.
Make sure the jack is positioned on a level and solid
surface.

IN CASE OF AN EMERGENCY
359
40E008±2

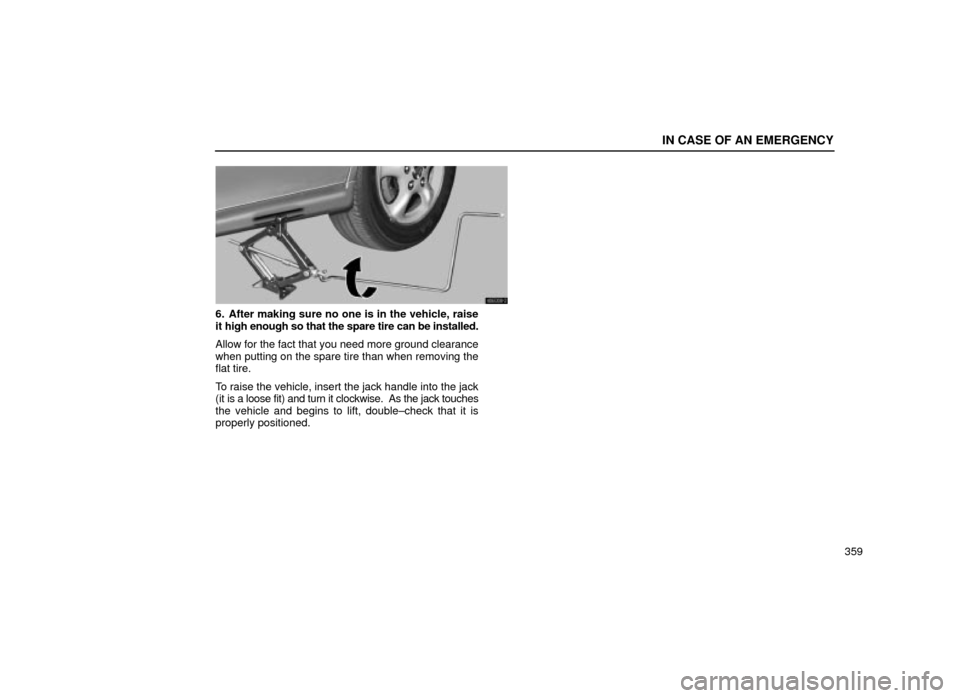

6. After making sure no one is in the vehicle, raise
it high enough so that the spare tire can be installed.
Allow for the fact that you need more ground clearance
when putting on the spare tire than when removing the
flat tire.
To raise the vehicle, insert the jack handle into the jack
(it is a loose fit) and turn it clockwise. As the jack touches
the vehicle and begins to lift, double±check that it is
properly positioned.

IN CASE OF AN EMERGENCY
360

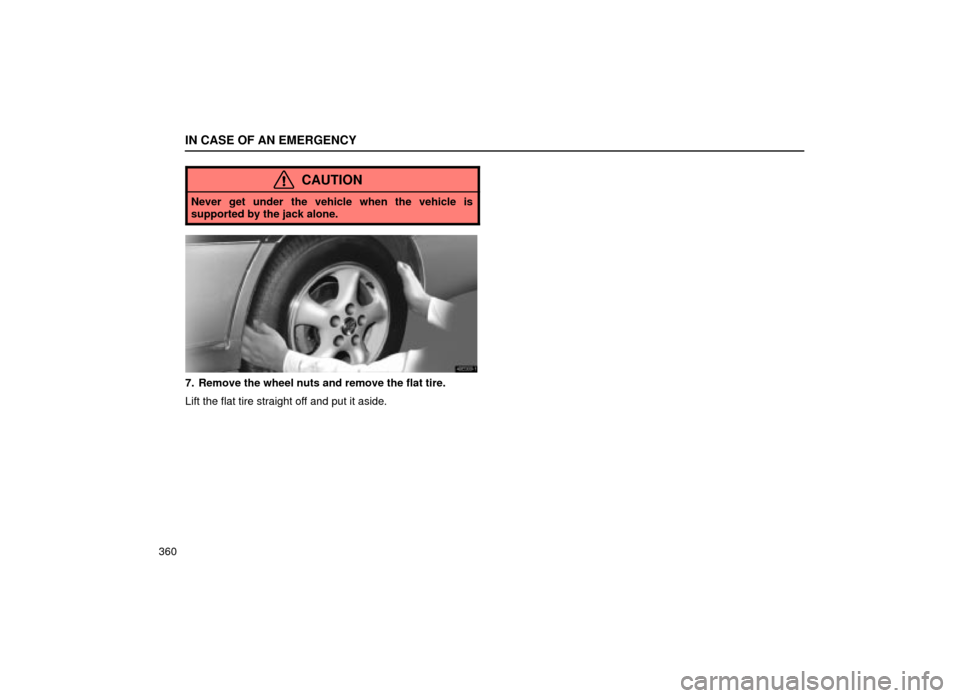

CAUTION
Never get under the vehicle when the vehicle is
supported by the jack alone.
40E009±1
7. Remove the wheel nuts and remove the flat tire.
Lift the flat tire straight off and put it aside.

IN CASE OF AN EMERGENCY
361
40E010

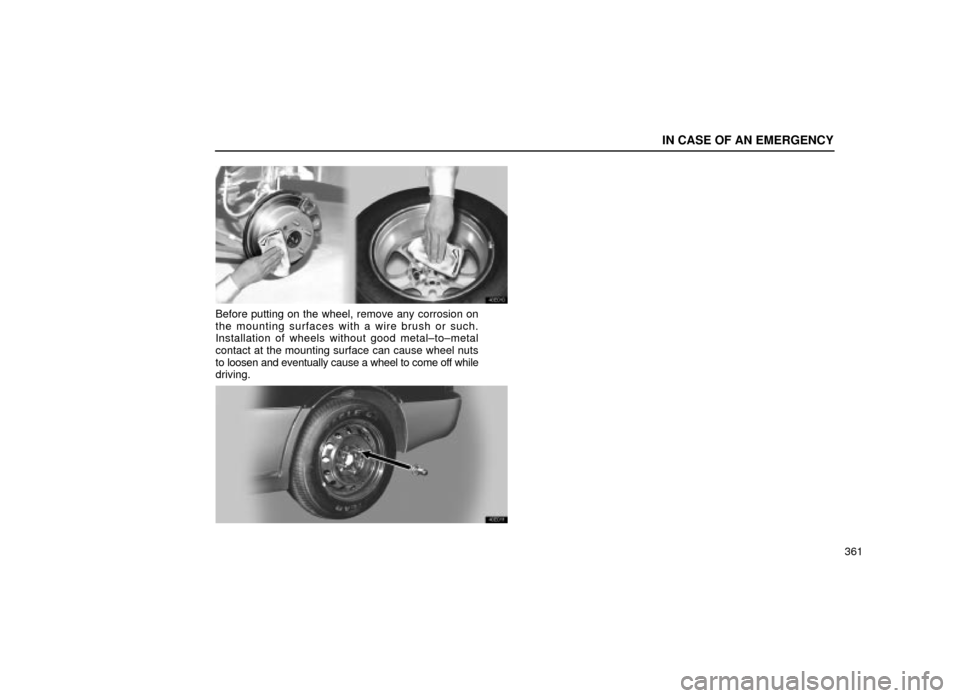

Before putting on the wheel, remove any corrosion on
the mounting surfaces with a wire brush or such.
Installation of wheels without good metal±to±metal
contact at the mounting surface can cause wheel nuts
to loosen and eventually cause a wheel to come off while
driving.
40E011

IN CASE OF AN EMERGENCY
3628. Reinstall all the wheel nuts finger tight.
Align the holes in the wheel with the bolts. Then lift up
the wheel and get at least the top bolt started through its
hole. Wiggle the tire and press it back over the other
bolts.
Reinstall the wheel nuts and tighten them as much as
you can by hand. Press the tire back and see if you can
tighten them more.

IN CASE OF AN EMERGENCY
363
40E012

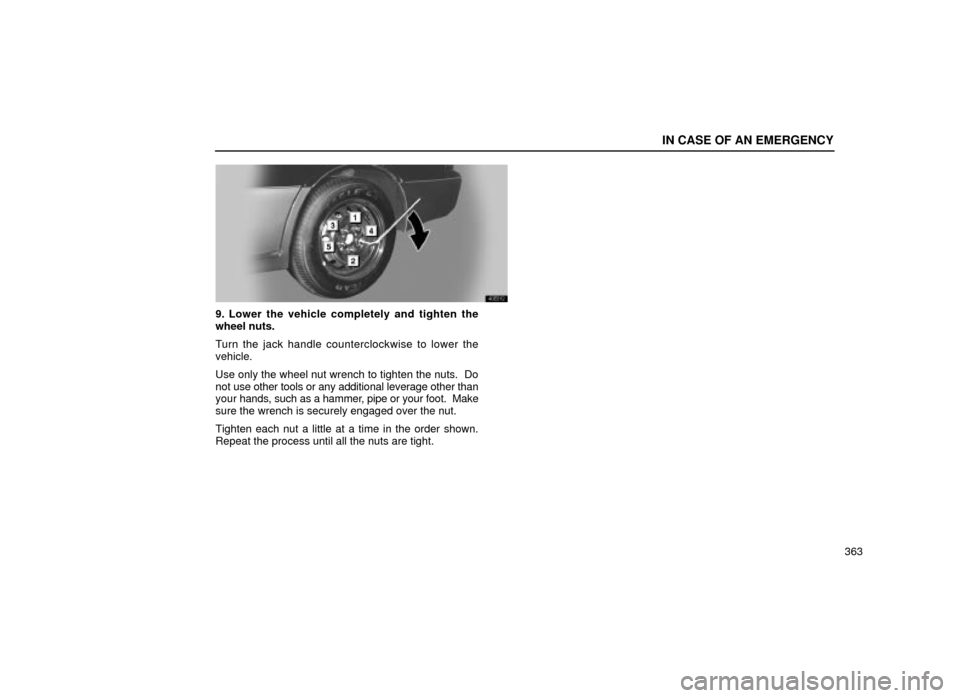

9. Lower the vehicle completely and tighten the
wheel nuts.
Turn the jack handle counterclockwise to lower the
vehicle.
Use only the wheel nut wrench to tighten the nuts. Do
not use other tools or any additional leverage other than
your hands, such as a hammer, pipe or your foot. Make
sure the wrench is securely engaged over the nut.
Tighten each nut a little at a time in the order shown.
Repeat the process until all the nuts are tight.
