Lexus ES300h 2014 Navigation Manual

160
1. PHONE OPERATION
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10
1Select “Call History” .
2Select the desired data from the list.
zThe list to be displayed can be changed by
selecting the “All”, “Missed” , “Incoming” or
“Outgoing” tab.
3Select or press the switch on
the steering wheel.BY CALL HISTORY
CALLS CAN BE MADE BY
CALL HISTORY WHICH HAS 4
FUNCTIONS
All : all calls (missed, incoming or outgo-
ing)
Up to 25 call history items can be select-
ed from the “A l l ” tab while driving.
Missed: calls that were missed
Incoming : calls that were received
Outgoing : calls that were made

161
1. PHONE OPERATION
4
PHONE
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10
1Press the “MENU” button on the
Remote Touch, then select “Phone”.
zThe “Phone” screen can be displayed by
pressing
on the steering wheel.
2Press the switch on the steering
wheel to display the “Call History”
screen.
3Press the switch on the steering
wheel to select the latest history item.
4Select or press the switch on
the steering wheel to call the latest his-
tory item.
zWhen making a call by phonebook, the
name (if registered) is displayed.
z When making a call to the same number
continuously, only the most recent call is
listed in call history.
z When a phone number registered in the
phonebook is received, the name and the
number are displayed.
z Number-withheld calls are also memorized
in the system.
z International phone calls may not be made
depending on the type of cellular phone
you have.
CALLS CAN BE MADE USING
THE LATEST CALL HISTORY
ITEMBY VOICE RECOGNITION
Calls can be made by giving a voice
command. (For the operation and com-
mand of voice recognition, see “VOICE
COMMAND SYSTEM” on page 308.)
This can be operated while driving.

162
1. PHONE OPERATION
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10
1Press the talk switch.
z“Call ” is displayed in the
“Shortcut Menu” screen.
z When “Call ” on the “Short-
cut Menu” screen is dimmed, the phone-
book’s voice command recognition cannot
be used. Check the Bluetooth
® connec-
tion and if the contacts have been trans-
ferred to the navigation system.
2Say the name, or the name and type of
phone, of a registered contact.
z In the same manner as it is displayed on the
screen, “Call ”, after saying
“Call” say the name, or the name and type
of phone, of a contact.
For example: “Call” , “John Smith” or “Call” ,
“Mary Davis” , “Mobile”
z There are 4 types of phones: Home,
Mobile, Office and Other.
z Short or abbreviated names in the phone-
book may not be recognized. Change
names in the phonebook to full names.
z Sometimes a voice recognition result con-
firmation screen will be displayed. After
confirming the result, say “Yes” or “No” .
z When the system recognizes multiple
names from the phoneb ook, a name candi-
date list will be displayed on the screen. If
the desired name is not displayed on the
top of the screen, say the number of the
name from the candidate list (number 1 and
number 2) to select a name from the candi-
date list. z
When a contact has multiple phone num-
bers registered in the phonebook, a candi-
date list will be displa yed. If the desired
phone number is not displayed on the top
of the screen, say the number of the desired
phone number from the candidate list
(number 1 and number 2) to select a phone
number from the candidate list.
3Say “Dial” to call the phone number.
1Press the talk switch.
z“Dial ” is displayed in the “Short-
cut Menu” screen.
z When “Dial ” on the “Shortcut
Menu” screen is dimmed, the phone num-
ber voice recognitio n cannot be used.
Check the Bluetooth
® phone connection.
2Say the phone number.
z In the same manner as it is displayed on the
screen, “Dial ”, after saying “Dial”
say the phone number.
z Say the phone number one digit at a time.
For example, if the phone number is
2345678:
Say “two three four five six seven eight”
Do not say “twenty three forty five sixty
seven eight”
VOICE COMMAND
EXAMPLE: CALL NAME
VOICE COMMAND
EXAMPLE: DIAL NUMBER

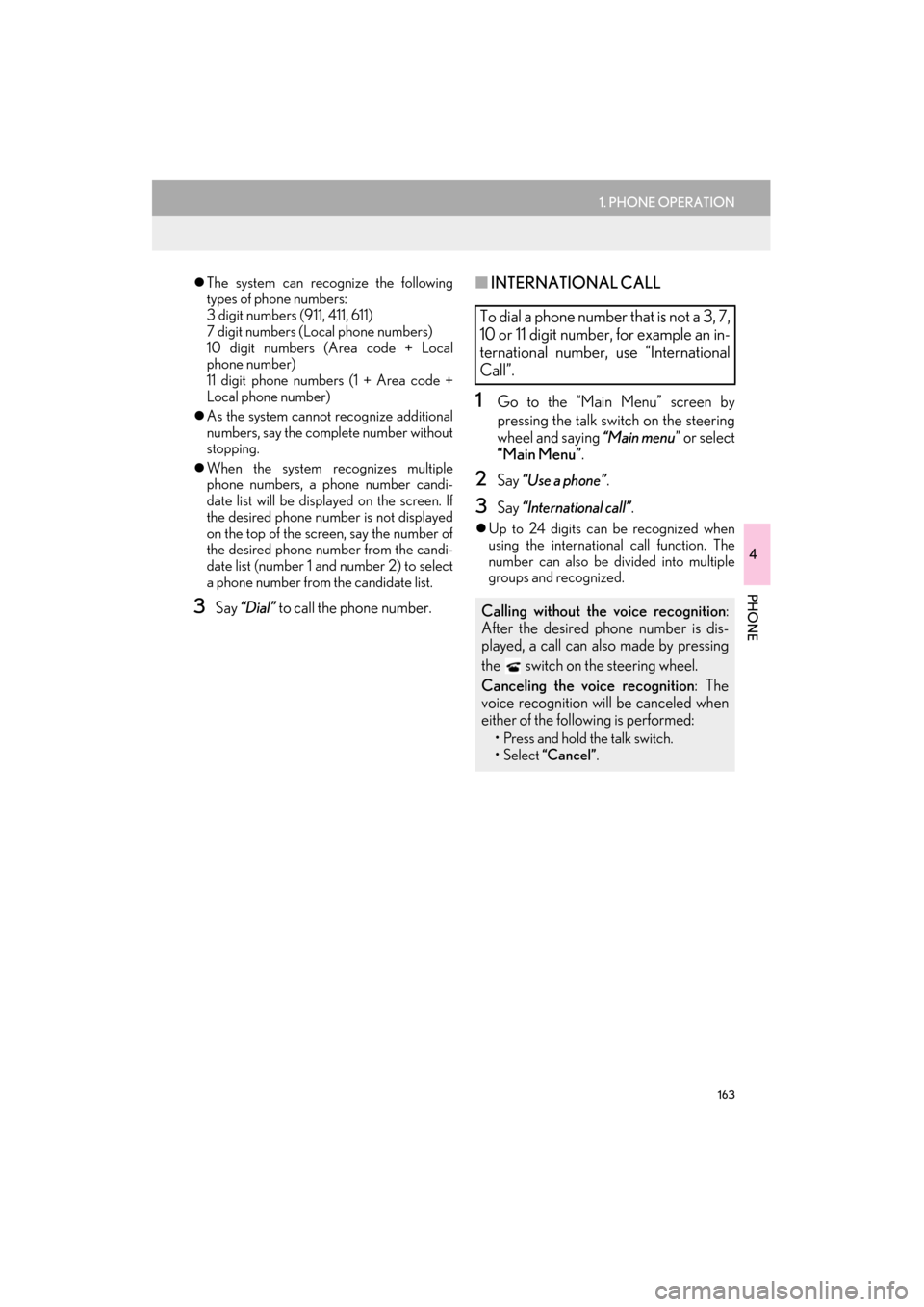

163
1. PHONE OPERATION
4
PHONE
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10
zThe system can recognize the following
types of phone numbers:
3 digit numbers (911, 411, 611)
7 digit numbers (Local phone numbers)
10 digit numbers (Area code + Local
phone number)
11 digit phone numbers (1 + Area code +
Local phone number)
z As the system cannot recognize additional
numbers, say the complete number without
stopping.
z When the system recognizes multiple
phone numbers, a phone number candi-
date list will be displayed on the screen. If
the desired phone number is not displayed
on the top of the screen, say the number of
the desired phone number from the candi-
date list (number 1 and number 2) to select
a phone number from the candidate list.
3Say “Dial” to call the phone number.
■INTERNATIONAL CALL
1Go to the “Main Menu” screen by
pressing the talk sw itch on the steering
wheel and saying “Main menu ” or select
“Main Menu” .
2Say “Use a phone” .
3Say “International call” .
zUp to 24 digits can be recognized when
using the internationa l call function. The
number can also be divided into multiple
groups and recognized.
To dial a phone number that is not a 3, 7,
10 or 11 digit number, for example an in-
ternational number, use “International
Call”.
Calling without the voice recognition :
After the desired ph one number is dis-
played, a call can also made by pressing
the switch on the steering wheel.
Canceling the voice recognition : The
voice recognition will be canceled when
either of the following is performed:
• Press and hold the talk switch.
• Select “Cancel” .

164
1. PHONE OPERATION
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10
1Select “Messages”.
zWhen “Message Transfer” is set to “Off”, a
confirmation screen will be displayed.
Select “Yes”. (See page 187.)
2Select the “SMS/MMS” tab and then
select the desired received message
from the list.
z The tab display may vary depending on the
type of cellular phone.
3Select or press the switch on
the steering wheel.
CALLING USING AN SMS/
MMS MESSAGE
Calls can be made to an SMS (Short
Message Service)/MMS (Multimedia
Messaging Service) message sender’s
phone number.
This can be operated while driving.
BY POI CALL
A call can be made by selecting
when it is displayed on the screen from
the navigation system. (See “TO SEE
INFORMATION ABOUT THE ICON
WHERE THE CURSOR IS SET” on
page 42 and “VIEW DETAILED FUEL
PRICE INFORMATION” on page
335.)

165
1. PHONE OPERATION
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10
4
PHONE
5. RECEIVE ON THE Bluetooth® PHONE
1Select or press the switch on
the steering wheel to talk on the phone.
When a call is received, this screen is
displayed with a sound.
To refuse to receive the call: Select
or press the switch on the
steering wheel.
To adjust the volume of a received call :
Select “-” or “+”, turn the “PWR·VOL”
knob, or use the volume switch on the
steering wheel.
INFORMATION
●
During international phone calls, the
other party’s name or number may not be
displayed correctly depending on the
type of cellular phone you have.
●The incoming call display mode can be
set. (See “INCOMING CALL DIS-
PLAY” on page 192.)

166
1. PHONE OPERATION
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10
6. TALK ON THE Bluetooth® PHONE
1Select the desired number to input the
key.
While talking on the phone, this screen is
displayed. The operations outlined be-
low can be performed on this screen.
To adjust the volume of the other party’s
voice: Select “-” or “+” , turn the
“PWR·VOL” knob, or use the volume
switch on the steering wheel.
To hang up the phone : Select or
press the switch on the steering
wheel.
To mute your voice : Select “Mute”.
To i n p u t a k e y : Select “0-9”.
To transfer the call : Select “Handset
Mode” to change from hands-free call to
cellular phone call. Select “Handsfree
Mode” to change from cellular phone call
to hands-free call.
INFORMATION
●
Changing from hands-free call to cellular
phone call is not possible while driving.
●When cellular phone call is changed to
hands-free call, the ha nds-free screen will
be displayed and its functions can be
operated on the screen.
●Changing between cellular phone call
and hands-free call can be performed by
operating the cellular phone directly.
●Transferring methods and operations will
be different depending on the type of cel-
lular phone you have.
●For the operation of the cellular phone,
see the manual that comes with it.
WHEN YOU SELECT “0-9”
INPUTTING A KEY
Inputting a key is not possible while driv-
ing.
To hang up the phone : Select or
press the switch on the steering
wheel.

167
1. PHONE OPERATION
4
PHONE
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10
1Confirm the number displayed on the
screen and select “Send”. The number
before marked sign will be sent.
z When “Clear ” is selected, this function is
finished and the normal tone screen
appears.
TONE SIGNAL
If a continuous tone signal is registered
in a phonebook, this screen appears. (If
not registered, “Send” and “Clear ” are
not displayed.) This can be operated
while driving.
To hang up the phone : Select or
press the switch on the steering
wheel.
INFORMATION
●
The continuous tone signal is the marked
sign (p or w) and the number that follows
the phone number. (e.g.
056133w0123p#1 ½)
●When the “p” pause tone is used, after
waiting 2 seconds the tone data up until
the next pause tone will be automatically
sent. When the “w” pause tone is used,
the tone data up until the next pause tone
will be automatically sent after user oper-
ation.
●This operation can be done when it is
desirable to operate an answering
machine or use a telephone service in a
bank for example. The phone number
and the code number in the phonebook
can be registered.
BY VOICE RECOGNITION
“Send Tones” can be operated by giving
a command during a call.
z The operating procedure is similar to
other voice recognition operations. (For
the operation of voice recognition, see
“VOICE COMMAND SYSTEM” on
page 308.)

168
1. PHONE OPERATION
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10
1Select or press the switch
on the steering wheel to start talking
with the other party.
INCOMING CALL WAITING
When a call is interrupted by a third par-
ty while talking, this screen is displayed.
zSelect or press the switch
on the steering wheel to refuse the call.
zEach time is selected or the
switch on the steering wheel is pressed
during an interrupted call, the party who
is on hold will be switched.
INFORMATION
●
If your cellular phone does not support
HFP Ver. 1.5, this function cannot be used.
●The ring tone that has been set in the
“Phone Sound Settings” screen sounds
when there is an incoming call. Depend-
ing on the type of Bluetooth
® phone,
both the navigation system and
Bluetooth
® phone may sound simulta-
neously when there is an incoming call.
(See “RING TONE SETTING” on page
173.)

169
1. PHONE OPERATION
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10
4
PHONE
7. Bluetooth® PHONE MESSAGE FUNCTION
1Press the “MENU” button on the
Remote Touch. (See “Remote Touch”
on page 10.)
2Select “Phone” on the “Menu” screen.
zThe “Phone” screen can be displayed by
pressing
on the steering wheel.
3Select “Messages” .
zDepending on the type of Bluetooth®
phone being connected, it may be neces-
sary to perform additional steps on the
phone.
z When “Message Transfer” is set to “Off ”, a
confirmation screen will be displayed.
Select “Yes”. (See page 187.)
4Select the screen button corresponding
to the desired message.
zMessages are displayed in the appropriate
connected Bluetooth® phone’s registered
mail address folder. Select the tab of the
desired folder to be displayed.
5Messages can be checked.
z Selecting “Previous” or “Next” displays the
previous or next message.
z Only received messages on the connected
Bluetooth
® phone can be displayed.
z The text of the message is not displayed
while driving.
Received messages can be forwarded
from the connected Bluetooth
® phone,
enabling checking and replying using
the navigation system (Quick reply).
CHECKING MESSAGES
