190
2. SETUP
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10
1Select “Message Readout Volume” .
2Select “-” or “+” to adjust the message
read out volume.
3Select “OK”.
1Select “Edit Quick Reply Messages” .
2Select the screen button corresponding
to the desired message.
3Use the software keyboard to edit the
message.
4Select “OK”.
MESSAGE READ OUT
VOLUME SETTINGS
Message read out volume can be ad-
justed.
INFORMATION
●
The system will automatically increase
the volume when the speed exceeds 50
mph (80 km/h).
EDIT QUICK REPLY
MESSAGES
Quick reply messages can be edited. 15
messages have already been stored.

191
2. SETUP
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10
4
PHONE
1Select “Default” .
2Select “Yes”.
1Press the “MENU” button on the
Remote Touch. (See “Remote Touch”
on page 10.)
2Select “Setup” on the “Menu” screen.
3Select “Phone” on the “Setup” screen.
4Select “Phone Display Settings” .
5Perform each setting according to the
procedures outlined on the following
pages.
6When each setting is completed, select
“Save”.
INITIALIZING THE SETTINGS
The settings can be initialized.PHONE DISPLAY SETTINGS
The phone display settings can be
changed.

192
2. SETUP
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10
zOn this screen, the following functions can
be operated: z
To reset all setup items, select “Default”.
1Select “Incoming Call Display Mode” .
SCREEN FOR “Phone Display
Settings”
No.Function
Select to change the incoming call
display. (See “INCOMING CALL
DISPLAY” on page 192.)
For PBAP compatible models, se-
lect to set the display of the automat-
ic phonebook transfer completion
message to “On” or “Off” .
For PBAP compatible models, se-
lect to set the display of the automat-
ic call history transfer completion
message to “On” or “Off” .
For PBAP compatible models, se-
lect to set the display of images dur-
ing calls to “On” or “Off ” .
For PBAP compatible models, se-
lect to set the orientation of images
displayed during calls. (See “RO-
TATING CONTACT IMAGES” on
page 193.)
INFORMATION
●
Depending on the phone, these functions
may not be available even if the phone is
PBAP compatible.
INCOMING CALL DISPLAY
The type of incoming call display can be
selected.

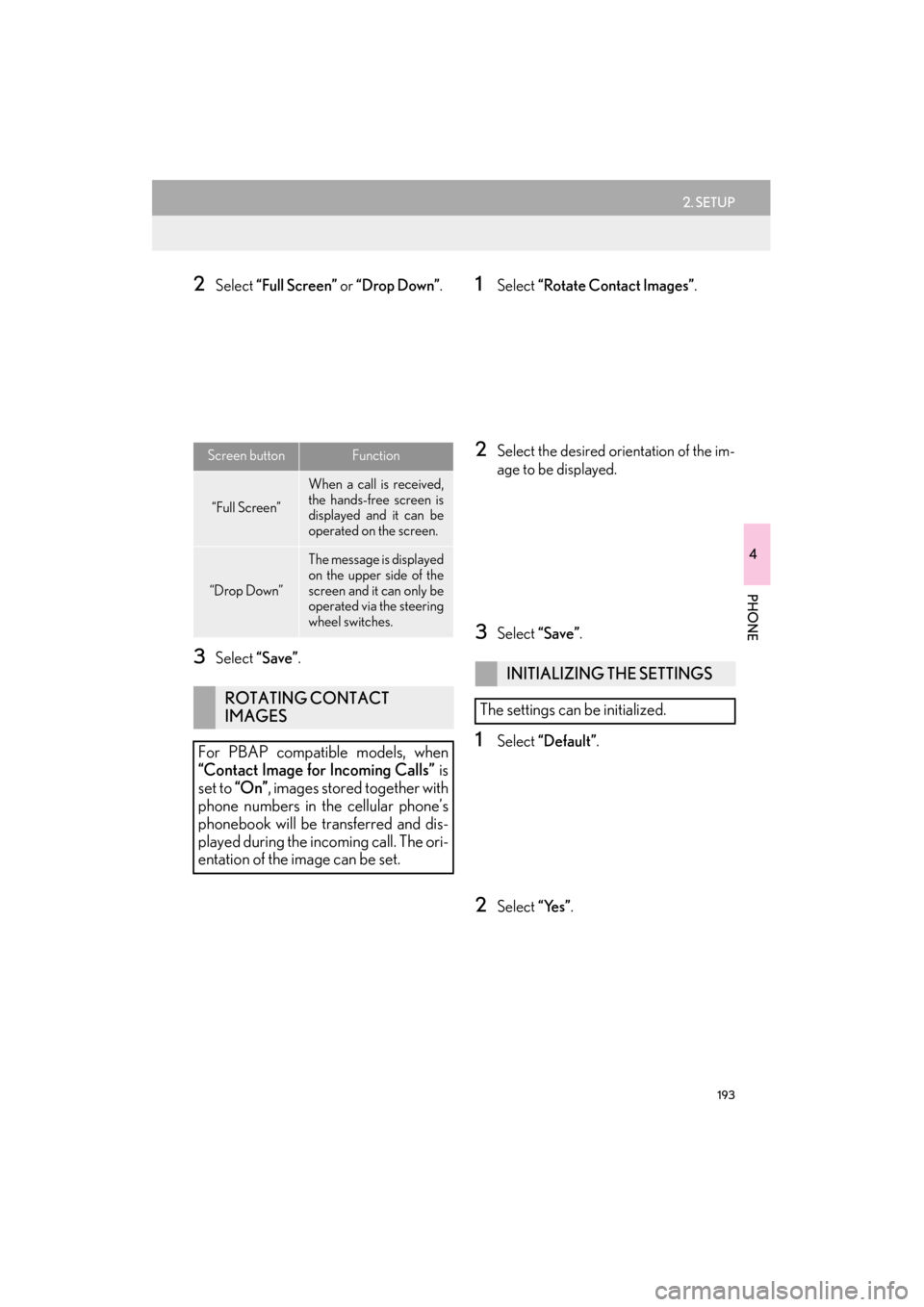

193
2. SETUP
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10
4
PHONE
2Select “Full Screen” or “Drop Down” .
3Select “Save”.
1Select “Rotate Contact Images” .
2Select the desired orientation of the im-
age to be displayed.
3Select “Save”.
1Select “Default” .
2Select “Yes”.
Screen buttonFunction
“Full Screen”
When a call is received,
the hands-free screen is
displayed and it can be
operated on the screen.
“Drop Down”
The message is displayed
on the upper side of the
screen and it can only be
operated via the steering
wheel switches.
ROTATING CONTACT
IMAGES
For PBAP compatible models, when
“Contact Image for Incoming Calls” is
set to “On”, images stored together with
phone numbers in the cellular phone’s
phonebook will be transferred and dis-
played during the incoming call. The ori-
entation of the image can be set.
INITIALIZING THE SETTINGS
The settings can be initialized.

194
2. SETUP
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10
2. Bluetooth® SETTINGS
1Press the “MENU” button on the
Remote Touch.
2Select “Setup” .
3Select “Bluetooth*” .
4Perform each setting according to the
procedures outlined on the following
pages.
1Press the “MENU” button on the
Remote Touch. (See “Remote Touch”
on page 10.)
2Select “Setup” on the “Menu” screen.
3Select “Bluetooth*” on the “Setup”
screen.
4Select “Registered Devices” .
5Perform each setting according to the
procedures outlined on the following
pages.
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
A Bluetooth® device can be set up.REGISTERED DEVICES
A Bluetooth® device can be registered,
deleted or set up.

195
2. SETUP
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10
4
PHONE
1Select “A d d N e w ” to register a
Bluetooth
® device to the system.
z If 5 Bluetooth® devices have already been
registered, a registered device needs to be
deleted. See “When 5 Bluetooth
® devices
have already been registered” on page
196.
2When this screen is displayed, operate
the Bluetooth
® device.
z Search for the navigation system displayed
on the system’s screen using your
Bluetooth
® device, and register the
Bluetooth® device.
For details about operating the Bluetooth®
device, see the manual that comes with it.
z A passcode is not required for SSP (Secure
Simple Pairing) compatible Bluetooth
®
devices. Depending on the type of
Bluetooth® phone being connected, a
message confirming registration may be
displayed on the Bluetooth
® phone’s
screen. Respond and operate the
Bluetooth
® phone according to the confir-
mation message.
z To cancel the registration, select “Cancel”.
3When the connection is completed, this
screen is displayed.
zWhen using the same device, it is not nec-
essary to register it again.
REGISTERING A Bluetooth®
DEVICE
Bluetooth
® devices compatible with
phones (HFP) and portable players
(AVP) can be registered simultaneous-
ly. Phones (HFP) and portable players
(AVP) (maximum of 5) can be regis-
tered.

196
2. SETUP
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10
zWhen this screen is displayed, follow the
guidance on the screen to try again.
z When another Bluetooth
® device is cur-
rently connected, this screen is displayed.
z To disconnect the Bluetooth
® device,
select “Yes”.
XWhen 5 Bluetooth® devices have al-
ready been registered
1When 5 Bluetooth® devices have al-
ready been registered, a registered de-
vice needs to be deleted. Select “Yes” to
delete 1 or more.
2Select the device to be deleted, then se-
lect “Remove” .
3Select “Yes”.
1Select “Remove” .
2Select the desired de vice, or to delete
all the devices select “Select All”, then
select “Remove” .
zMultiple devices can be selected and
deleted at the same time.
3Select “Yes”.
DELETING A Bluetooth®
DEVICE
INFORMATION
●
When deleting a Bluetooth® phone, the
phonebook data will be deleted at the
same time.

197
2. SETUP
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10
4
PHONE
“Device Name”: The name of the
Bluetooth® device which is displayed on
the screen. It can be changed to a desired
name.
• Even if the device name is changed, the
name registered in your Bluetooth®
device does not change.
“Device Address”: The device address is
unique to each device. It cannot be
changed.
• If 2 Bluetooth® devices have been regis-
tered with the same device name, the
devices can be distinguished referring to
the device’s address.
“My Phone Number”: The phone number of
the Bluetooth® phone is displayed on the
screen. Depending on the type of phone,
the phone number may not be displayed.
“Profiles”: The compatibility profile of the
Bluetooth
® device is displayed on the
screen.
“Connect Portable Player from” : There are
2 portable player connection settings avail-
able; “Vehicle” and “Portable Player” .
■CHANGING A DEVICE NAME
1Select “Details” .
2Select the device to be edited.
3Select “Device Name”.
4Use the software keyboard to input the
device name and select “OK”.
5Confirm the device name and select
“OK” .
EDITING THE Bluetooth®
DEVICE
The Bluetooth
® device’s information
can be displayed on the screen. The dis-
played information can also be edited.

198
2. SETUP
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10
■SETTING PORTABLE PLAYER
CONNECTION METHOD
1Select “Connect Portable Player
from” .
2Select the desired connection method.
“Vehicle” : Select to connect the audio sys-
tem to the portable player.
“Portable Player” : Select to connect the
portable player to the audio system.
z Depending on the portable player, the
“Vehicle” or “Portable Player” connection
method may be best. As such, refer to the
manual that comes with the portable player.
3Select “OK”.
1Press the “MENU” button on the
Remote Touch. (See “Remote Touch”
on page 10.)
2Select “Setup” on the “Menu” screen.
3Select “Bluetooth*” on the “Setup”
screen.
4Select “Connect Phone” .
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
SELECTING A Bluetooth®
PHONE
If more than 1 Bluetooth® phone has
been registered, it is necessary to select
which phone to connect to.
It is possible to select from up to 5 regis-
tered Bluetooth
® devices (Phones
(HFP) and portable players (AVP)
(maximum of 5) can be registered.)
Although up to 5 Bluetooth
® phones
can be registered in the system, only 1
Bluetooth
® phone can function at a
time.

199
2. SETUP
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10
4
PHONE
5Select the phone to be connected.
zThe indicator of the selected Bluetooth®
phone will turn on.
6This screen is displayed.
7When the result me ssage is displayed,
the Bluetooth
® phone can be used.
X When a phone is connected while
Bluetooth
® audio is playing
zThis screen is displayed, and the
Bluetooth® audio will stop temporarily.
X When another Bluetooth® device is con-
nected
z When another Bluetooth® device is cur-
rently connected, this screen is displayed.
To disconnect the Bluetooth
® device,
select “Yes”.
zIf the desired Bluetooth® phone is not on
the list, select “Add New” to register the
phone. (See page 195.)
z The currently connected Bluetooth
®
phone’s screen button will have a
Bluetooth® mark displayed on it. If the
currently connected Bluetooth® phone’s
screen button is selected, the
Bluetooth
® phone can be disconnected.
Select “Yes” to disconnect.
