Lexus GS450h 2014 Owner's Manual

540
GS450h_OM_OM30D52U_(U)
5-4. Using the hands-free phone system (for cellular phone)

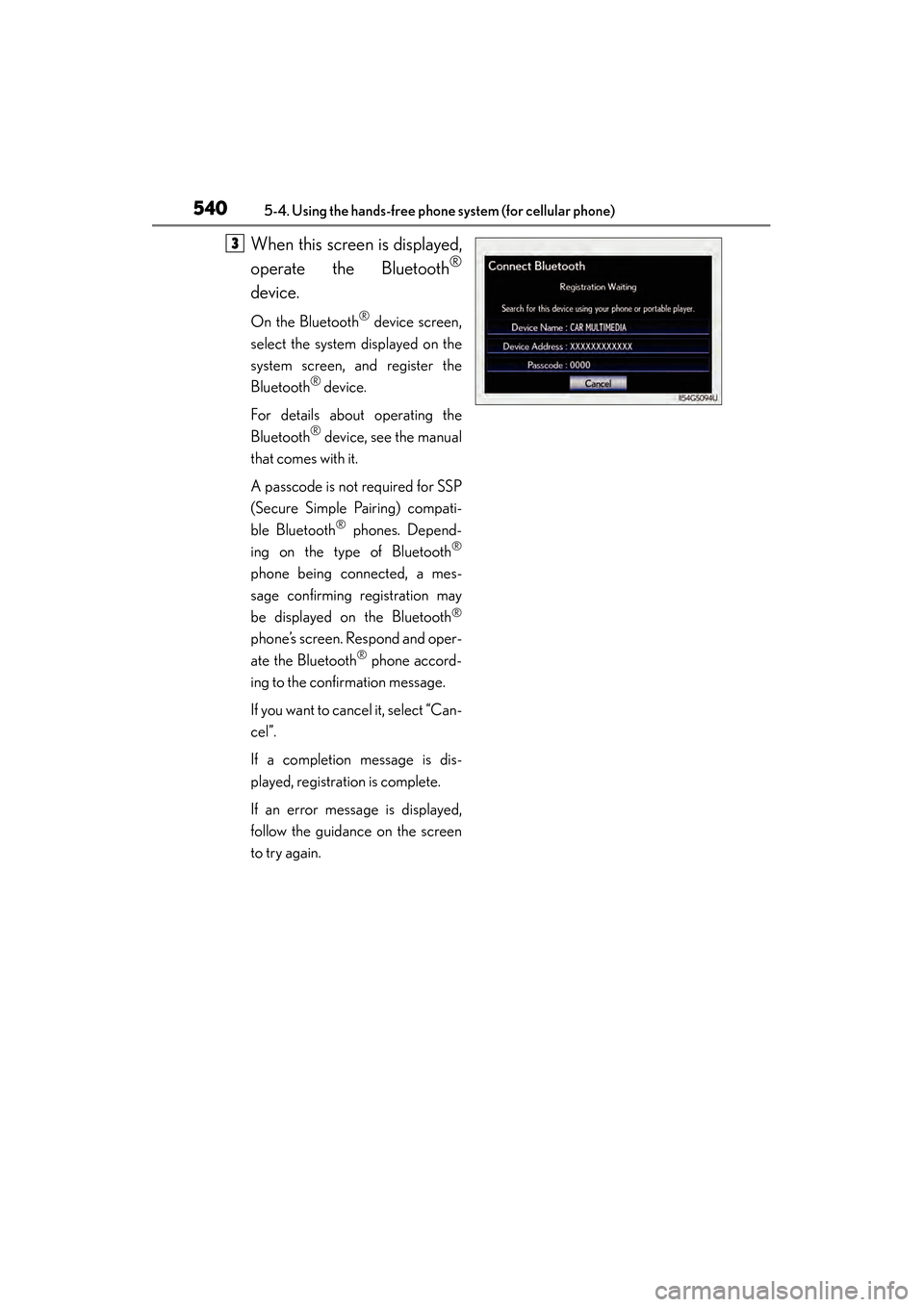

When this screen is displayed,
operate the Bluetooth
®
device.
On the Bluetooth® device screen,
select the system displayed on the
system screen, and register the
Bluetooth
® device.
For details about operating the
Bluetooth
® device, see the manual
that comes with it.
A passcode is not required for SSP
(Secure Simple Pairing) compati-
ble Bluetooth
® phones. Depend-
ing on the type of Bluetooth®
phone being connected, a mes-
sage confirming registration may
be displayed on the Bluetooth
®
phone’s screen. Respond and oper-
ate the Bluetooth
® phone accord-
ing to the confirmation message.
If you want to cancel it, select “Can-
cel”.
If a completion message is dis-
played, registration is complete.
If an error message is displayed,
follow the guidance on the screen
to try again.
3
GS450h_OM_OM30D52U_(U).book Page 540 Monday, July 29, 2013 12:07 PM

GS450h_OM_OM30D52U_(U)
5415-4. Using the hands-free phone system (for cellular phone)
5
Interior features

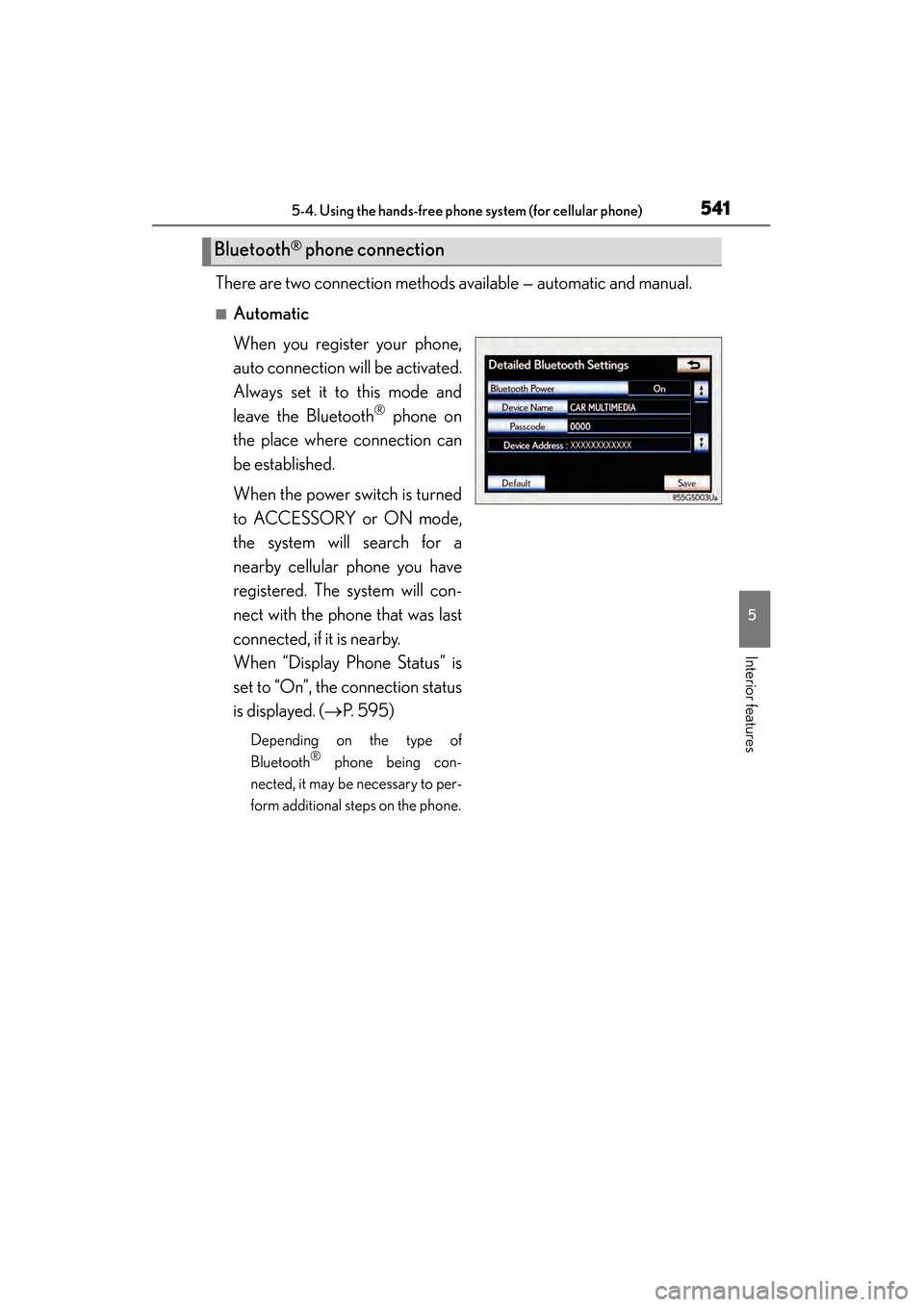

There are two connection methods available — automatic and manual.
■Automatic
When you register your phone,
auto connection will be activated.
Always set it to this mode and
leave the Bluetooth
® phone on
the place where connection can
be established.
When the power switch is turned
to ACCESSORY or ON mode,
the system will search for a
nearby cellular phone you have
registered. The system will con-
nect with the phone that was last
connected, if it is nearby.
When “Display Phone Status” is
set to “On”, the connection status
is displayed. (→ P. 595)
Depending on the type of
Bluetooth® phone being con-
nected, it may be necessary to per-
form additional steps on the phone.
Bluetooth® phone connection
GS450h_OM_OM30D52U_(U).book Page 541 Monday, July 29, 2013 12:07 PM

542
GS450h_OM_OM30D52U_(U)
5-4. Using the hands-free phone system (for cellular phone)

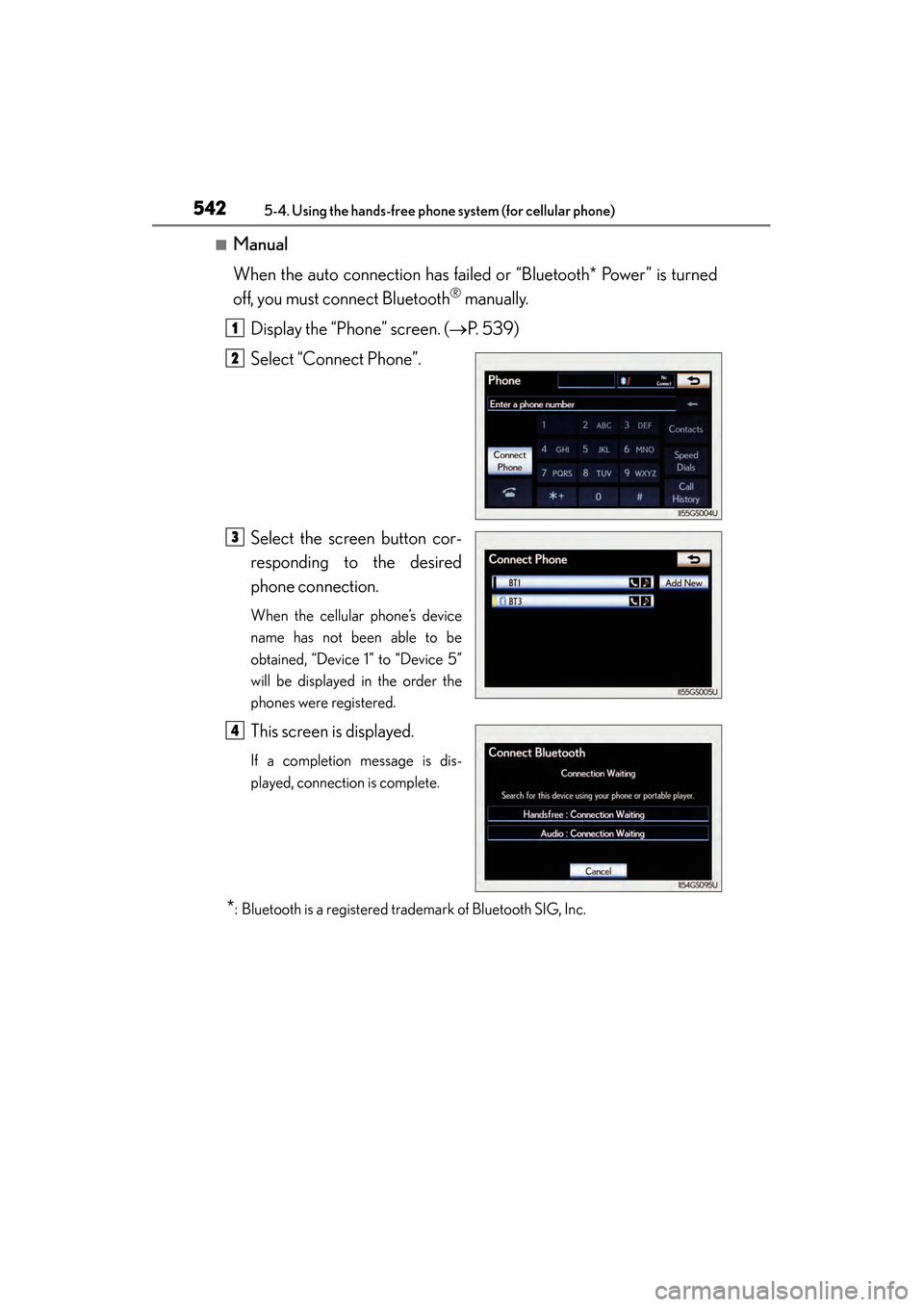

■Manual
When the auto connection has failed or “Bluetooth* Power” is turned
off, you must connect Bluetooth
® manually.
Display the “Phone” screen. ( →P. 5 3 9 )
Select “Connect Phone”.
Select the screen button cor-
responding to the desired
phone connection.
When the cellular phone’s device
name has not been able to be
obtained, “Device 1” to “Device 5”
will be displayed in the order the
phones were registered.
This screen is displayed.
If a completion message is dis-
played, connection is complete.
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
1
2
3
4
GS450h_OM_OM30D52U_(U).book Page 542 Monday, July 29, 2013 12:07 PM

GS450h_OM_OM30D52U_(U)
5435-4. Using the hands-free phone system (for cellular phone)
5
Interior features

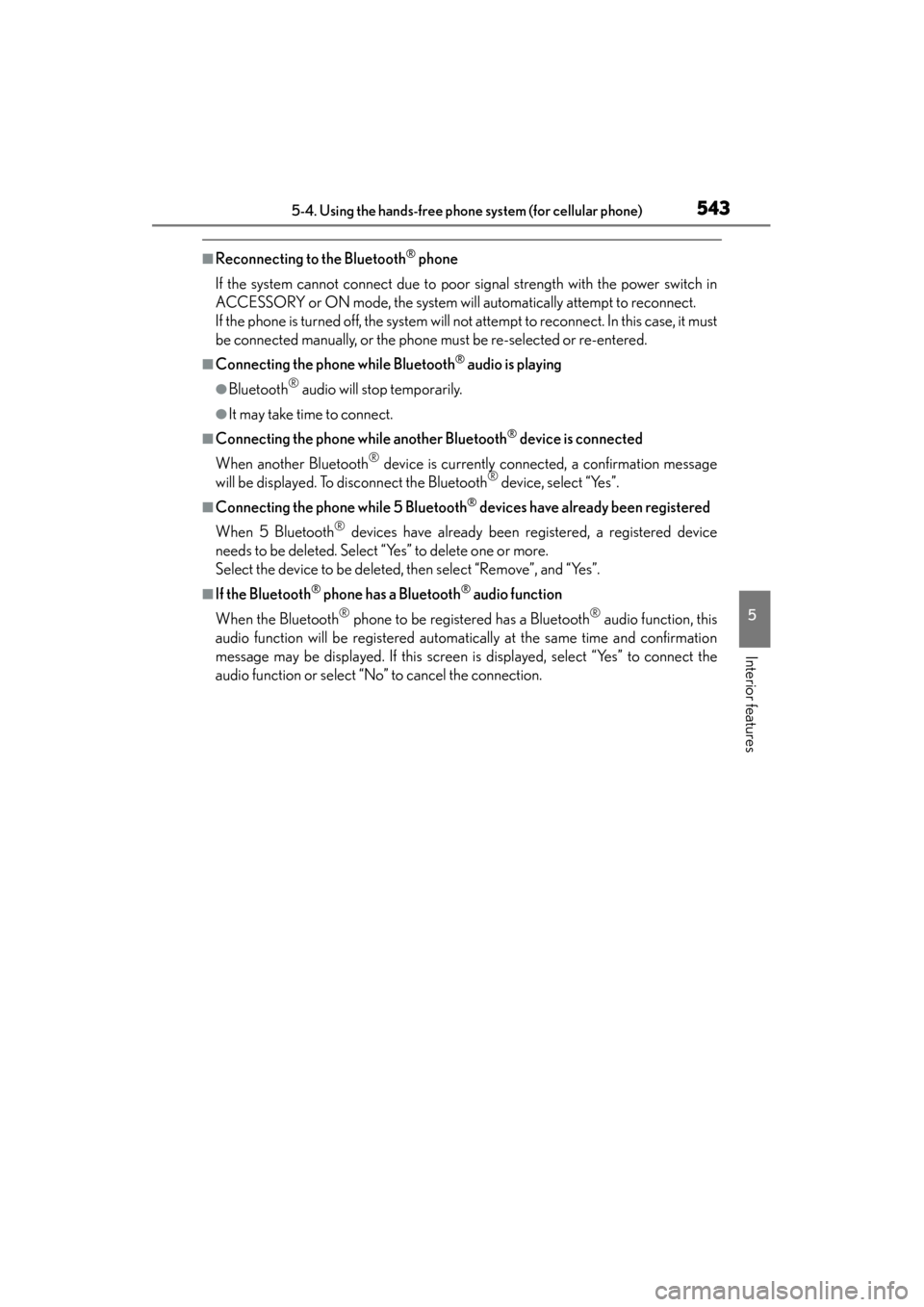

■Reconnecting to the Bluetooth® phone
If the system cannot connect due to poor signal strength with the power switch in
ACCESSORY or ON mode, the system will automatically attempt to reconnect.
If the phone is turned off, the system will not attempt to reconnect. In this case, it must
be connected manually, or the phone must be re-selected or re-entered.
■Connecting the phone while Bluetooth® audio is playing
●Bluetooth® audio will stop temporarily.
●It may take time to connect.
■Connecting the phone while another Bluetooth® device is connected
When another Bluetooth
® device is currently connected, a confirmation message
will be displayed. To disconnect the Bluetooth® device, select “Yes”.
■Connecting the phone while 5 Bluetooth® devices have already been registered
When 5 Bluetooth
® devices have already been registered, a registered device
needs to be deleted. Select “Yes” to delete one or more.
Select the device to be deleted, then select “Remove”, and “Yes”.
■If the Bluetooth® phone has a Bluetooth® audio function
When the Bluetooth
® phone to be registered has a Bluetooth® audio function, this
audio function will be registered automatically at the same time and confirmation
message may be displayed. If this screen is displayed, select “Yes” to connect the
audio function or select “No” to cancel the connection.
GS450h_OM_OM30D52U_(U).book Page 543 Monday, July 29, 2013 12:07 PM

544
GS450h_OM_OM30D52U_(U)
5-4. Using the hands-free phone system (for cellular phone)

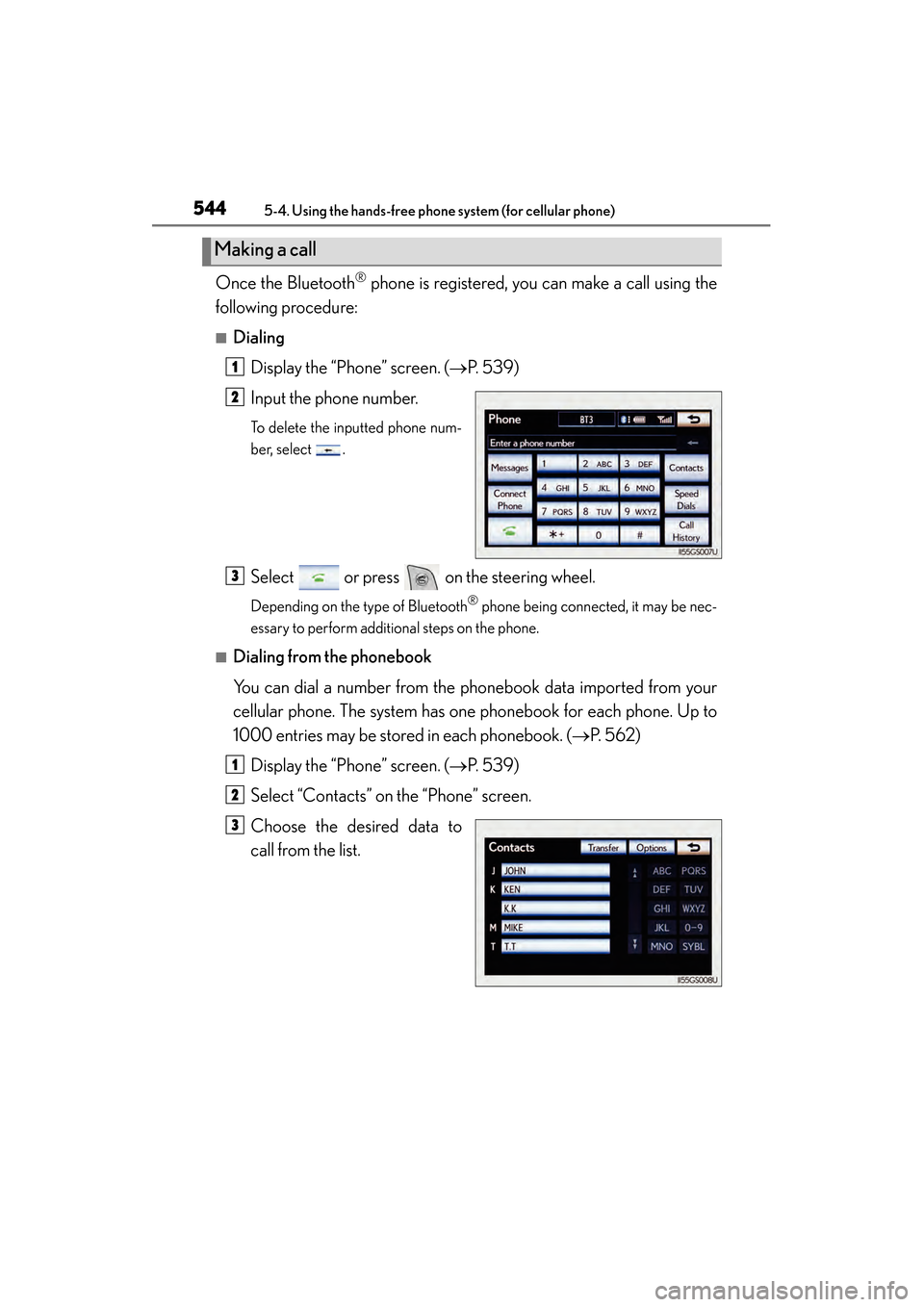

Once the Bluetooth® phone is registered, you can make a call using the
following procedure:
■Dialing
Display the “Phone” screen. ( →P. 5 3 9 )
Input the phone number.
To delete the inputted phone num-
ber, select .
Select or press on the steering wheel.
Depending on the type of Bluetooth® phone being connected, it may be nec-
essary to perform additional steps on the phone.
■Dialing from the phonebook
You can dial a number from the phonebook data imported from your
cellular phone. The system has one phonebook for each phone. Up to
1000 entries may be stored in each phonebook. ( →P. 562)
Display the “Phone” screen. ( →P. 5 3 9 )
Select “Contacts” on the “Phone” screen.
Choose the desired data to
call from the list.
Making a call
1
2
3
1
2
3
GS450h_OM_OM30D52U_(U).book Page 544 Monday, July 29, 2013 12:07 PM

GS450h_OM_OM30D52U_(U)
5455-4. Using the hands-free phone system (for cellular phone)
5
Interior features

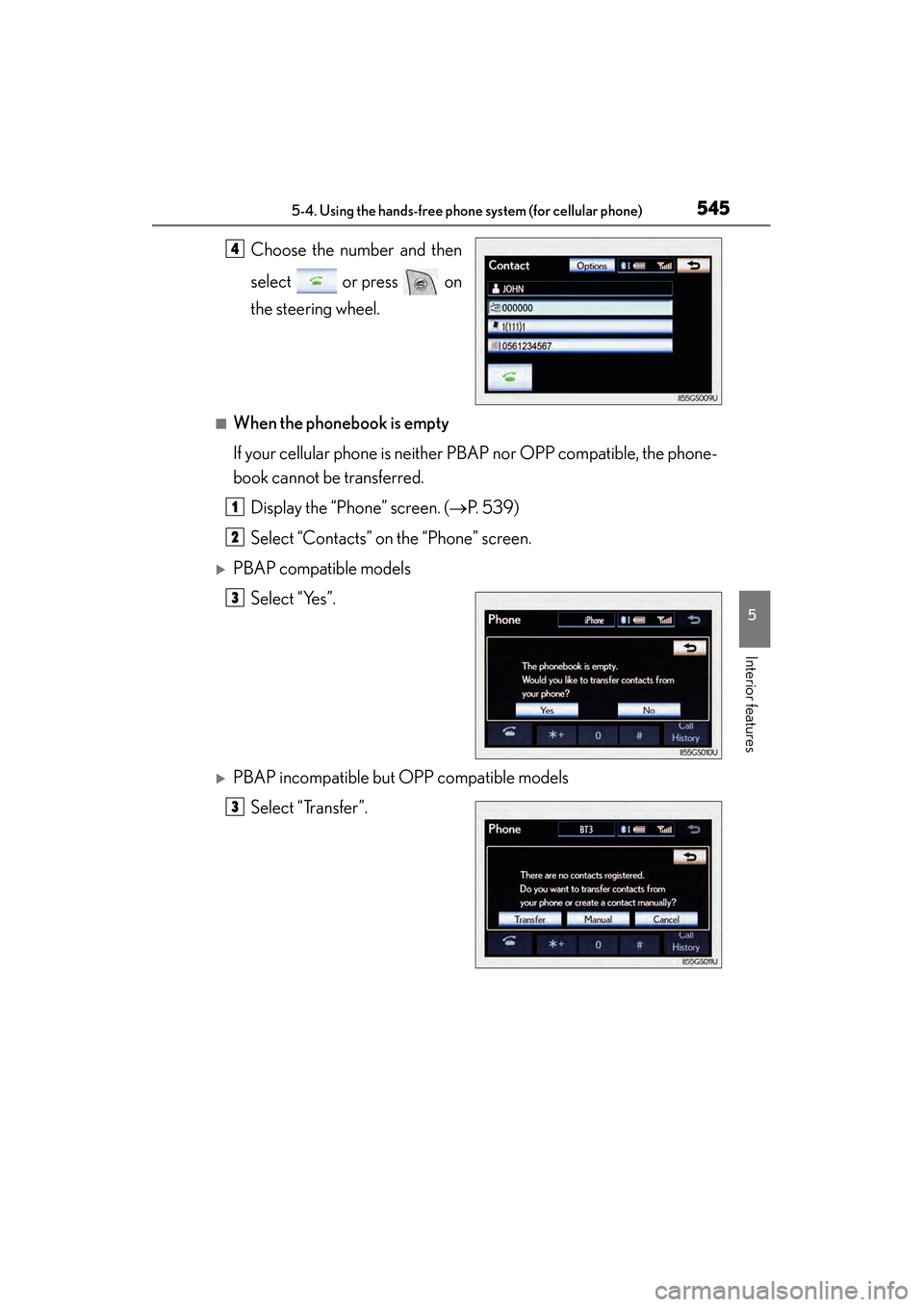

Choose the number and then
select or press on
the steering wheel.
■When the phonebook is empty
If your cellular phone is neither PBAP nor OPP compatible, the phone-
book cannot be transferred.Display the “Phone” screen. ( →P. 5 3 9 )
Select “Contacts” on the “Phone” screen.
XPBAP compatible models Select “Yes”.
XPBAP incompatible but OPP compatible modelsSelect “Transfer”.
4
1
2
3
3
GS450h_OM_OM30D52U_(U).book Page 545 Monday, July 29, 2013 12:07 PM

546
GS450h_OM_OM30D52U_(U)
5-4. Using the hands-free phone system (for cellular phone)

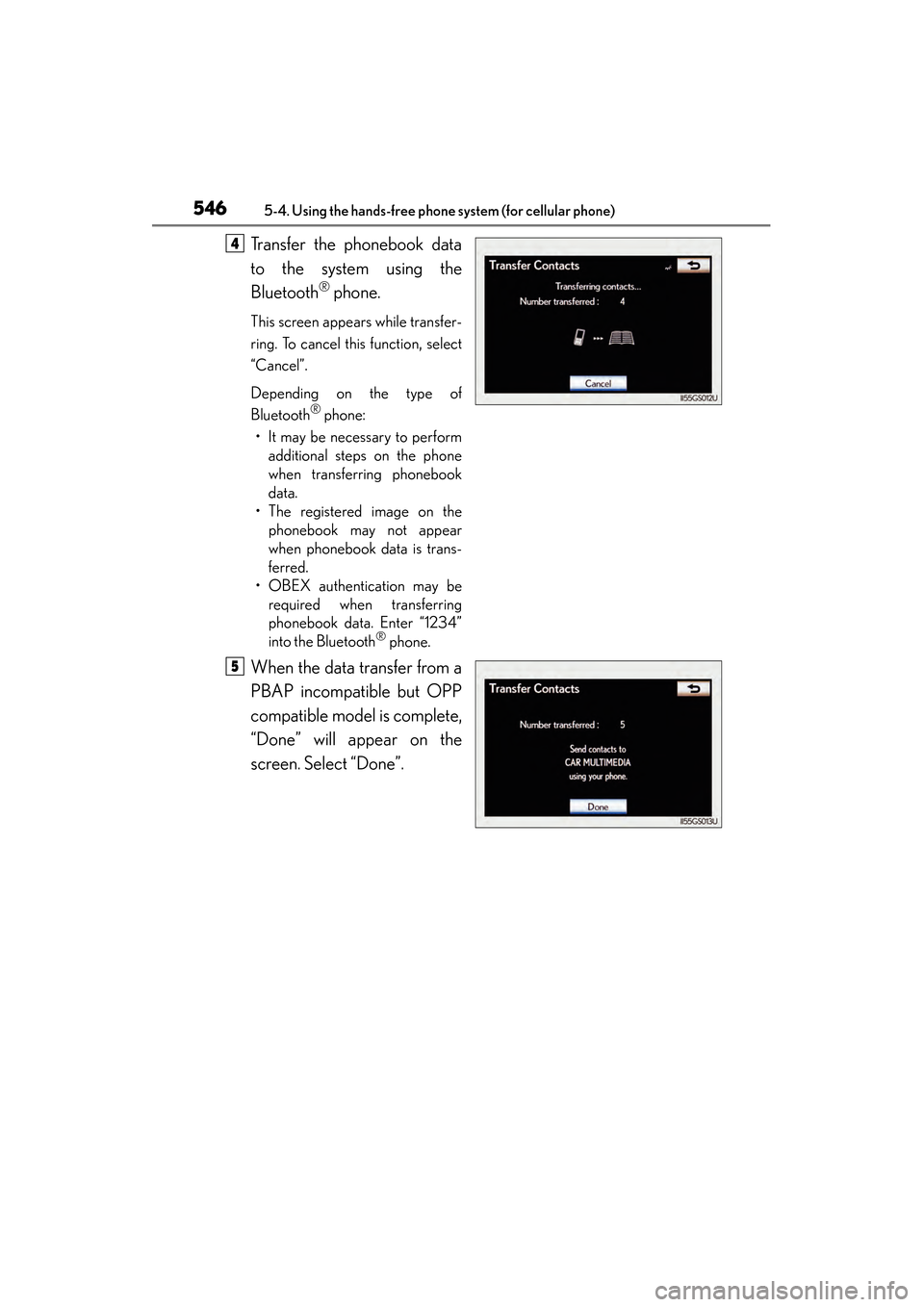

Transfer the phonebook data
to the system using the
Bluetooth
® phone.
This screen appears while transfer-
ring. To cancel this function, select
“Cancel”.
Depending on the type of
Bluetooth
® phone:
• It may be necessary to perform additional steps on the phone
when transferring phonebook
data.
• The registered image on the phonebook may not appear
when phonebook data is trans-
ferred.
• OBEX authentication may be required when transferring
phonebook data. Enter “1234”
into the Bluetooth
® phone.
When the data transfer from a
PBAP incompatible but OPP
compatible model is complete,
“Done” will appear on the
screen. Select “Done”.
4
5
GS450h_OM_OM30D52U_(U).book Page 546 Monday, July 29, 2013 12:07 PM

GS450h_OM_OM30D52U_(U)
5475-4. Using the hands-free phone system (for cellular phone)
5
Interior features

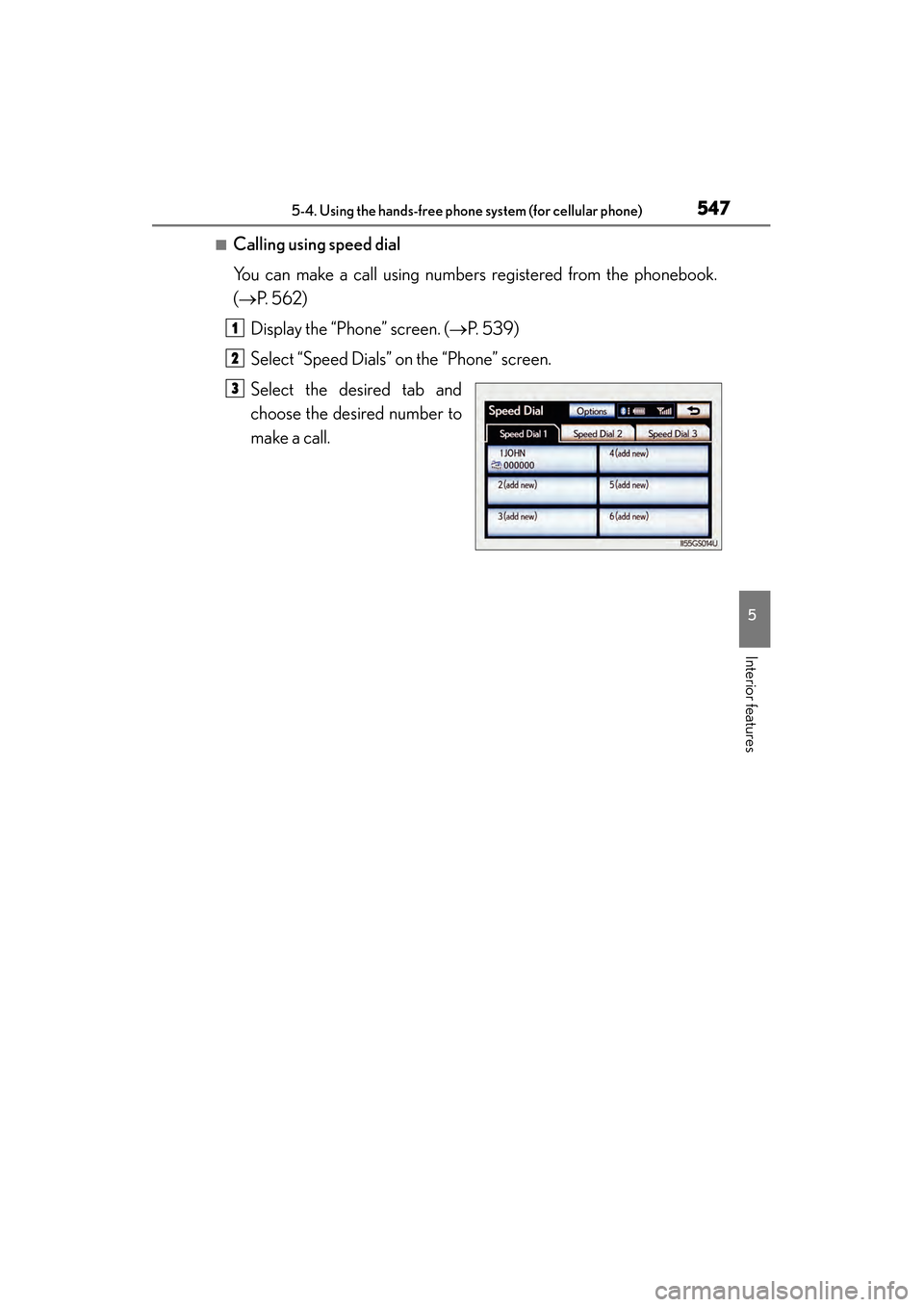

■Calling using speed dial
You can make a call using numbers registered from the phonebook.
(→P. 562)
Display the “Phone” screen. ( →P. 5 3 9 )
Select “Speed Dials” on the “Phone” screen.
Select the desired tab and
choose the desired number to
make a call.
1
2
3
GS450h_OM_OM30D52U_(U).book Page 547 Monday, July 29, 2013 12:07 PM

548
GS450h_OM_OM30D52U_(U)
5-4. Using the hands-free phone system (for cellular phone)

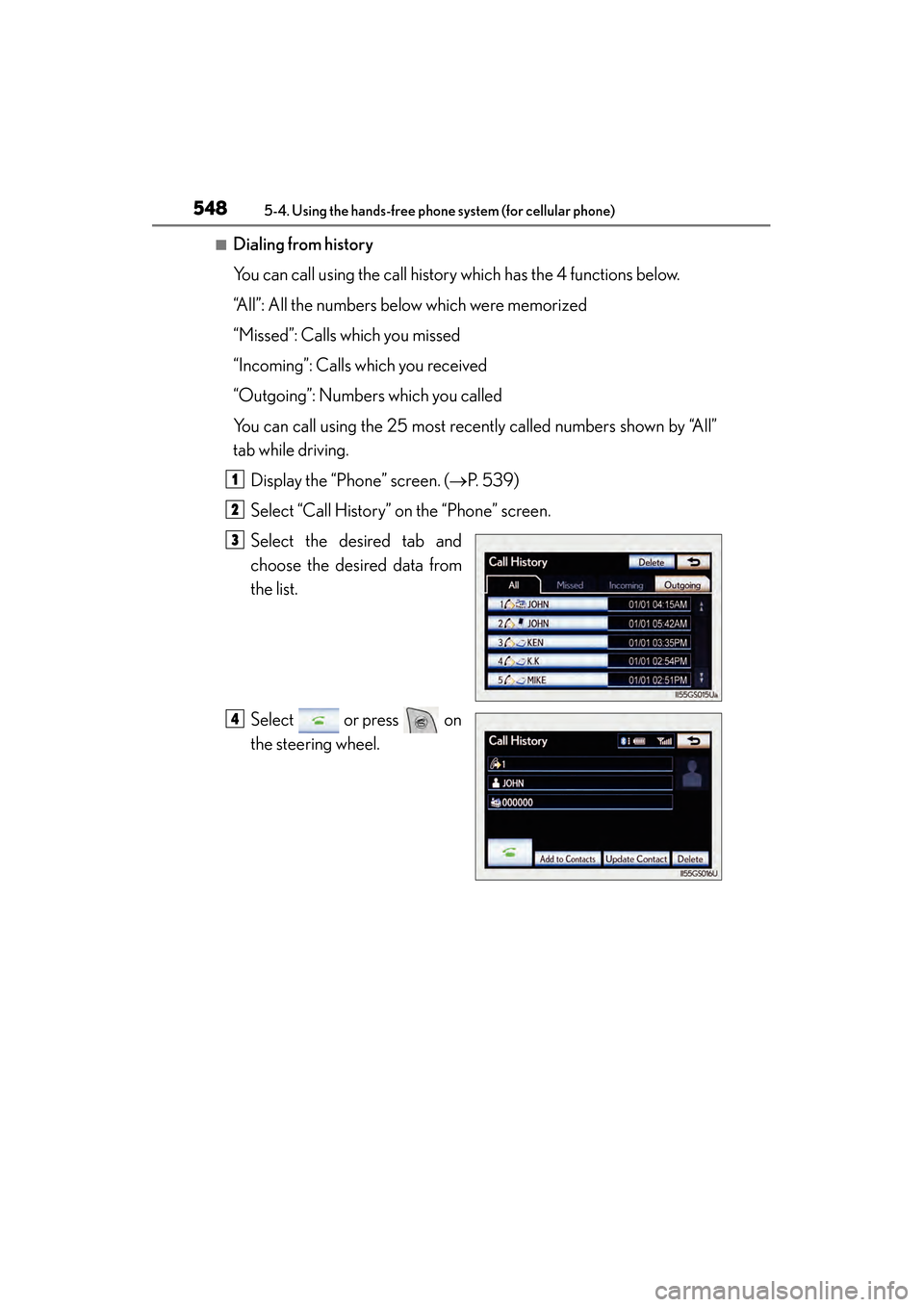

■Dialing from history
You can call using the call history which has the 4 functions below.
“All”: All the numbers below which were memorized
“Missed”: Calls which you missed
“Incoming”: Calls which you received
“Outgoing”: Numbers which you called
You can call using the 25 most recently called numbers shown by “All”
tab while driving.Display the “Phone” screen. ( →P. 5 3 9 )
Select “Call History” on the “Phone” screen.
Select the desired tab and
choose the desired data from
the list.
Select or press on
the steering wheel.
1
2
3
4
GS450h_OM_OM30D52U_(U).book Page 548 Monday, July 29, 2013 12:07 PM

GS450h_OM_OM30D52U_(U)
5495-4. Using the hands-free phone system (for cellular phone)
5
Interior features

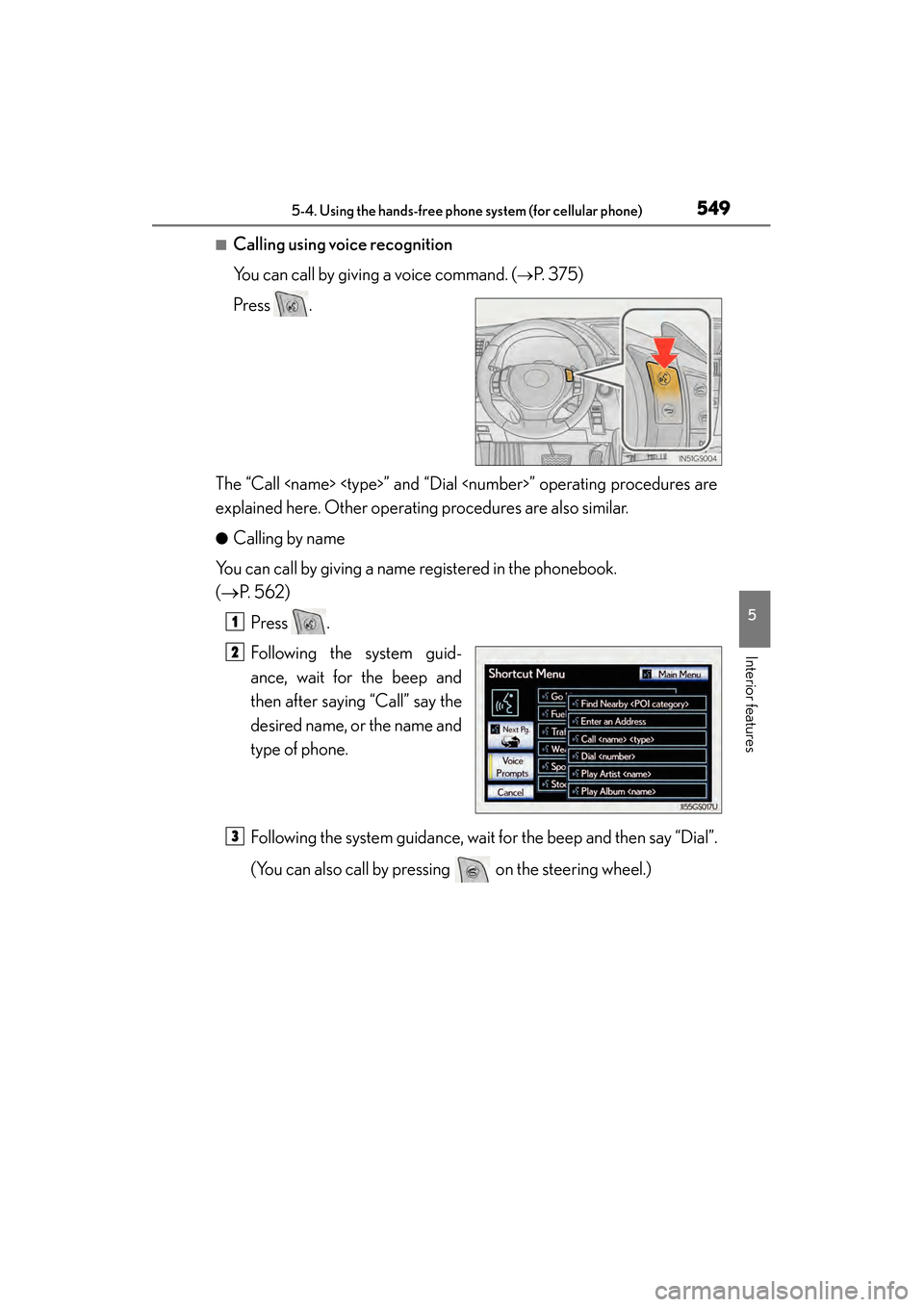

■Calling using voice recognition
You can call by giving a voice command. (
→P. 375)
Press .
The “Call ” and “Dial ” operating procedures are
explained here. Other operating procedures are also similar.
●Calling by name
You can call by giving a name registered in the phonebook.
(→ P. 562)
Press .
Following the system guid-
ance, wait for the beep and
then after saying “Call” say the
desired name, or the name and
type of phone.
Following the system guidance, wait for the beep and then say “Dial”.
(You can also call by pressing on the steering wheel.)
1
2
3
GS450h_OM_OM30D52U_(U).book Page 549 Monday, July 29, 2013 12:07 PM
