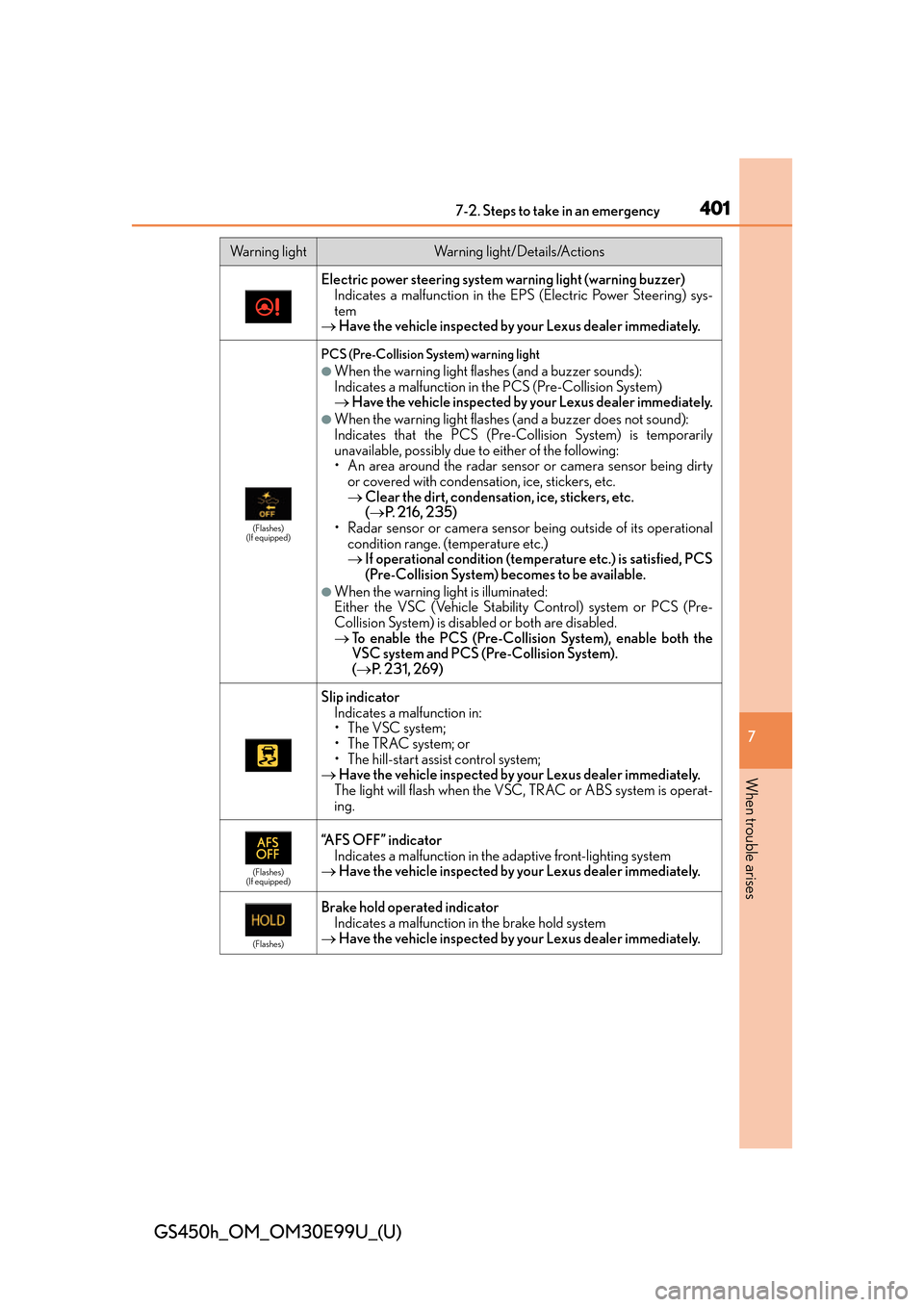

Lexus GS450h 2016 Owner's Manual / LEXUS 2016 GS450H OWNERS MANUAL (OM30E99U)

4017-2. Steps to take in an emergency
GS450h_OM_OM30E99U_(U)
7
When trouble arises
Electric power steering system warning light (warning buzzer)Indicates a malfunction in the EP S (Electric Power Steering) sys-
tem
 Have the vehicle inspected by your Lexus dealer immediately.
(Flashes)
(If equipped)
PCS (Pre-Collision System) warning light
●When the warning light flashes (and a buzzer sounds):
Indicates a malfunction in the PCS (Pre-Collision System)
 Have the vehicle inspected by your Lexus dealer immediately.
●When the warning light flashes (and a buzzer does not sound):
Indicates that the PCS (Pre-Collision System) is temporarily
unavailable, possibly due to either of the following:
• An area around the radar sensor or camera sensor being dirty
or covered with condensation, ice, stickers, etc.
 Clear the dirt, condensation, ice, stickers, etc.
( P. 216, 235)
• Radar sensor or camera sensor being outside of its operational
condition range. (temperature etc.)
 If operational condition (temperature etc.) is satisfied, PCS
(Pre-Collision System) becomes to be available.
●When the warning li ght is illuminated:
Either the VSC (Vehicle Stability Control) system or PCS (Pre-
Collision System) is disabled or both are disabled.
 To enable the PCS (Pre-Collisio n System), enable both the
VSC system and PCS (Pre-Collision System).
(  P. 2 3 1 , 2 6 9 )
Slip indicator
Indicates a malfunction in:
• The VSC system;
•The TRAC system; or
• The hill-start assist control system;
 Have the vehicle inspected by your Lexus dealer immediately.
The light will flash when the VSC, TRAC or ABS system is operat-
ing.
(Flashes)
(If equipped)
“A F S O F F ” i n d i c a t o r Indicates a malfunction in the adaptive front-lighting system
 Have the vehicle inspected by your Lexus dealer immediately.
(Flashes)
Brake hold operated indicator
Indicates a malfunction in the brake hold system
 Have the vehicle inspected by your Lexus dealer immediately.
Warning lightWarning light/Details/Actions

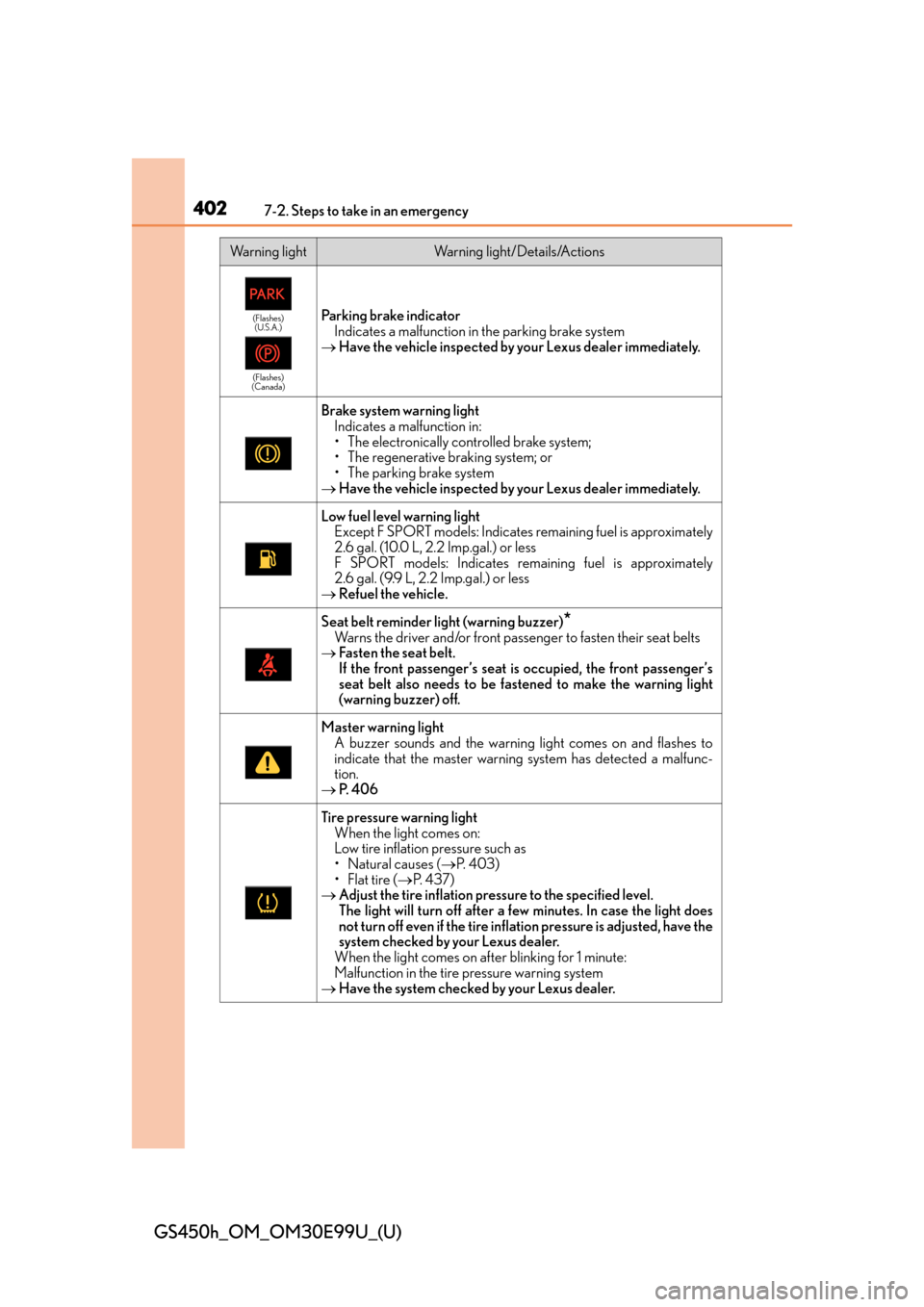

4027-2. Steps to take in an emergency
GS450h_OM_OM30E99U_(U)
(Flashes)(U.S.A.)
(Flashes)
(Canada)Parking brake indicator
Indicates a malfunction in the parking brake system
 Have the vehicle inspected by your Lexus dealer immediately.
Brake system warning light
Indicates a malfunction in:
• The electronically controlled brake system;
• The regenerative braking system; or
• The parking brake system
 Have the vehicle inspected by your Lexus dealer immediately.
Low fuel level warning light
Except F SPORT models: Indicates remaining fuel is approximately
2.6 gal. (10.0 L, 2.2 Imp.gal.) or less
F SPORT models: Indicates remaining fuel is approximately
2.6 gal. (9.9 L, 2.2 Imp.gal.) or less
 Refuel the vehicle.
Seat belt reminder light (warning buzzer)*
Warns the driver and/or front passenger to fasten their seat belts
 Fasten the seat belt.
If the front passenger’s seat is occupied, the front passenger’s
seat belt also needs to be fa stened to make the warning light
(warning buzzer) off.
Master warning light
A buzzer sounds and the warning light comes on and flashes to
indicate that the master warning system has detected a malfunc-
tion.
 P. 4 0 6
Tire pressure warning light
When the light comes on:
Low tire inflation pressure such as
• Natural causes ( P. 4 0 3 )
•Flat tire ( P. 4 3 7 )
 Adjust the tire inflation pressure to the specified level.
The light will turn off after a fe w minutes. In case the light does
not turn off even if the tire inflation pressure is adjusted, have the
system checked by your Lexus dealer.
When the light comes on after blinking for 1 minute:
Malfunction in the tire pressure warning system
 Have the system checked by your Lexus dealer.
Warning lightWarning light/Details/Actions

4037-2. Steps to take in an emergency
GS450h_OM_OM30E99U_(U)
7
When trouble arises
*: Driver’s seat belt buzzer:The driver’s seat belt buzzer sounds to alert the driver that his or her seat belt is not
fastened. Once the power switch is turned to ON mode, the buzzer sounds for 6 sec-
onds. If the vehicle reaches a speed of 12 mph (20 km/h), the buzzer sounds once. If
the seat belt is still unfastened after 24 seconds, the buzzer will sound intermittently
for 10 seconds. Then, if the seat belt is still unfastened, the buzzer will sound in a differ-
ent tone for 20 more seconds.
Front passenger’s seat belt buzzer:
The front passenger’s seat belt buzzer sounds to alert the front passenger that his or
her seat belt is not fastened. The buzzer sounds once if the vehicle reaches a speed of
12 mph (20 km/h). If the seat belt is still unfastened after 24 seconds, the buzzer will
sound intermittently for 10 seconds. Then, if the seat belt is still unfastened, the buzzer
will sound in a different tone for 20 more seconds.
■SRS warning light
This warning light system monitors the airbag sensor assembly, front impact sensors, side
impact sensors (front door), side impact sensors (front), side impact sensors (rear),
driver’s seat position sensor, driver’s seat belt buckle switch, front passenger occupant
classification system, “AIR BAG ON” indica tor light, “AIR BAG OFF” indicator light,
front passenger’s seat belt buckle switch, seat belt pretensioner assemblies, airbags,
interconnecting wiring and power sources. ( P. 3 7 )
■Front passenger detection sensor, seat belt reminder and warning buzzer
If luggage is placed on the front passenger seat, the front passenger detection sensor
may cause the warning light to flash and the wa rning buzzer to sound even if a passenger
is not sitting in the seat.
■If the malfunction indicator lamp comes on while driving
First check the following:
●Is the fuel tank empty?
If it is, fill the fuel tank immediately.
●Is the fuel tank cap loose?
If it is, tighten it securely.
The light will go off after several driving trips.
If the light does not go off even after severa l trips, contact your Lexus dealer as soon as
possible.
■Electric power steering system warning light (warning buzzer)
When the 12-volt battery charge becomes insu fficient or the voltage temporarily drops,
the electric power steering system warnin g light may come on and the warning buzzer
may sound.
■When the tire pressure warning light comes on
Check the tire inflation pressure and adjust to the appropriate level. Initializing the tire
pressure warning system will not turn off the tire pressure warning light.
■The tire pressure warning light may come on due to natural causes
The tire pressure warning light may come on due to natural causes such as natural air
leaks and tire inflation pressure changes caused by temperature. In this case, adjusting
the tire inflation pressure will turn off the warning light (after a few minutes).

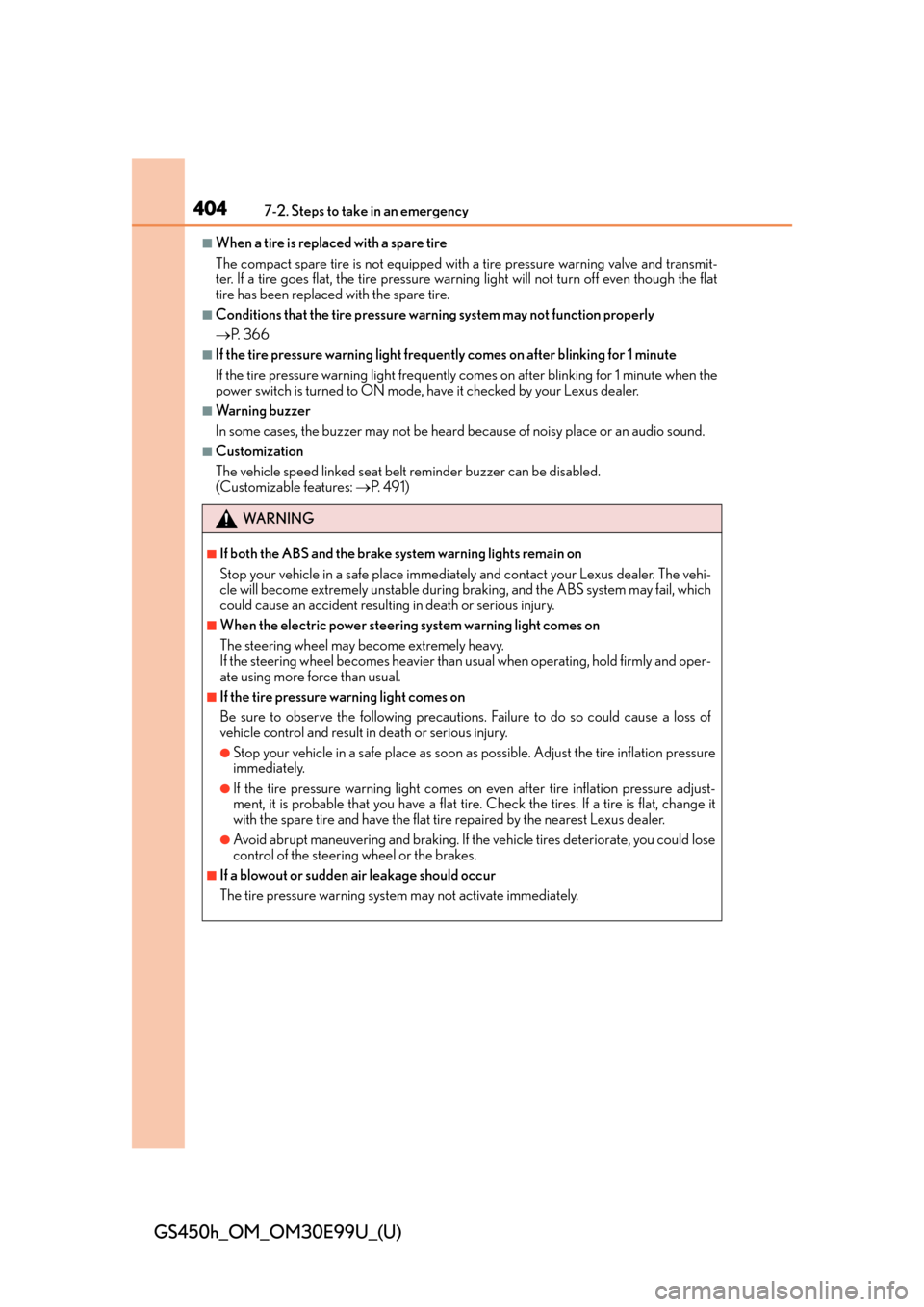

4047-2. Steps to take in an emergency
GS450h_OM_OM30E99U_(U)
■When a tire is replaced with a spare tire
The compact spare tire is not equipped with a tire pressure warning valve and transmit-
ter. If a tire goes flat, the tire pressure warning light will not turn off even though the flat
tire has been replaced with the spare tire.
■Conditions that the tire pressure warning system may not function properly
P. 3 6 6
■If the tire pressure warning light frequently comes on after blinking for 1 minute
If the tire pressure warning light frequently comes on after blinking for 1 minute when the
power switch is turned to ON mode, ha ve it checked by your Lexus dealer.
■Warning buzzer
In some cases, the buzzer may not be heard because of noisy place or an audio sound.
■Customization
The vehicle speed linked seat belt reminder buzzer can be disabled.
(Customizable features: P. 4 9 1 )
WA R N I N G
■If both the ABS and the brake system warning lights remain on
Stop your vehicle in a safe place immediat ely and contact your Lexus dealer. The vehi-
cle will become extremely unstable during braking, and the ABS system may fail, which
could cause an accident resulting in death or serious injury.
■When the electric power steering system warning light comes on
The steering wheel may become extremely heavy.
If the steering wheel becomes heavier than us ual when operating, hold firmly and oper-
ate using more force than usual.
■If the tire pressure warning light comes on
Be sure to observe the following precautions. Failure to do so could cause a loss of
vehicle control and result in death or serious injury.
●Stop your vehicle in a safe place as soon as possible. Adjust the tire inflation pressure
immediately.
●If the tire pressure warning light comes on even after tire inflation pressure adjust-
ment, it is probable that you have a flat tire. Check the tires. If a tire is flat, change it
with the spare tire and have the flat tire repaired by the nearest Lexus dealer.
●Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you could lose
control of the steering wheel or the brakes.
■If a blowout or sudden air leakage should occur
The tire pressure warning system may not activate immediately.

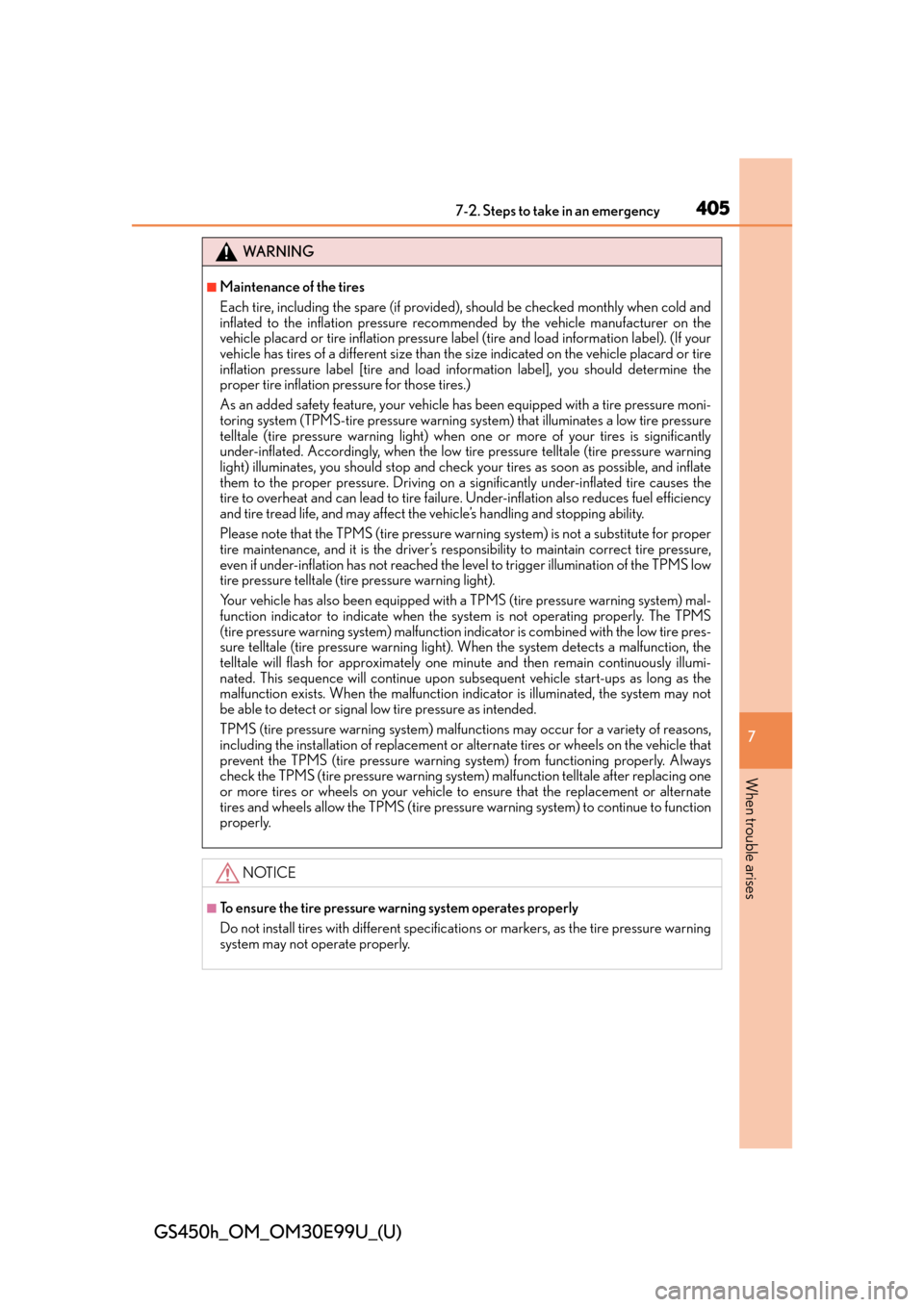

4057-2. Steps to take in an emergency
GS450h_OM_OM30E99U_(U)
7
When trouble arises
WA R N I N G
■Maintenance of the tires
Each tire, including the spare (if provided), should be checked monthly when cold and
inflated to the inflation pressure recomm ended by the vehicle manufacturer on the
vehicle placard or tire inflation pressure la bel (tire and load information label). (If your
vehicle has tires of a different size than the size indicated on the vehicle placard or tire
inflation pressure label [tire and load in formation label], you should determine the
proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has been equipped with a tire pressure moni-
toring system (TPMS-tire pressure warning system) that illuminates a low tire pressure
telltale (tire pressure warning light) when on e or more of your tires is significantly
under-inflated. Accordingly, when the low ti re pressure telltale (tire pressure warning
light) illuminates, you should stop and check your tires as soon as possible, and inflate
them to the proper pressure. Driving on a significantly under-inflated tire causes the
tire to overheat and can lead to tire failure. Under-inflation also reduces fuel efficiency
and tire tread life, and ma y affect the vehicle’s handling and stopping ability.
Please note that the TPMS (tire pressure wa rning system) is not a substitute for proper
tire maintenance, and it is the driver’s resp onsibility to maintain correct tire pressure,
even if under-inflation has no t reached the level to trigger illumination of the TPMS low
tire pressure telltale (tire pressure warning light).
Your vehicle has also been equipped with a TPMS (tire pressure warning system) mal-
function indicator to indicate when the system is not operating properly. The TPMS
(tire pressure warning system) malfunction indi cator is combined with the low tire pres-
sure telltale (tire pressure warning light). When the system detects a malfunction, the
telltale will flash for approximately one minu te and then remain continuously illumi-
nated. This sequence will cont inue upon subsequent vehicle start-ups as long as the
malfunction exists. When the malfunction indicator is illuminated, the system may not
be able to detect or signal low tire pressure as intended.
TPMS (tire pressure warning system) malfun ctions may occur for a variety of reasons,
including the installation of replacement or alternate tires or wheels on the vehicle that
prevent the TPMS (tire pressure warning system) from functioning properly. Always
check the TPMS (tire pressure warning syst em) malfunction telltale after replacing one
or more tires or wheels on your vehicle to ensure that the replacement or alternate
tires and wheels allow the TPMS (tire pressure warning system) to continue to function
properly.
NOTICE
■To ensure the tire pressure warning system operates properly
Do not install tires with different specificatio ns or markers, as the tire pressure warning
system may not operate properly.

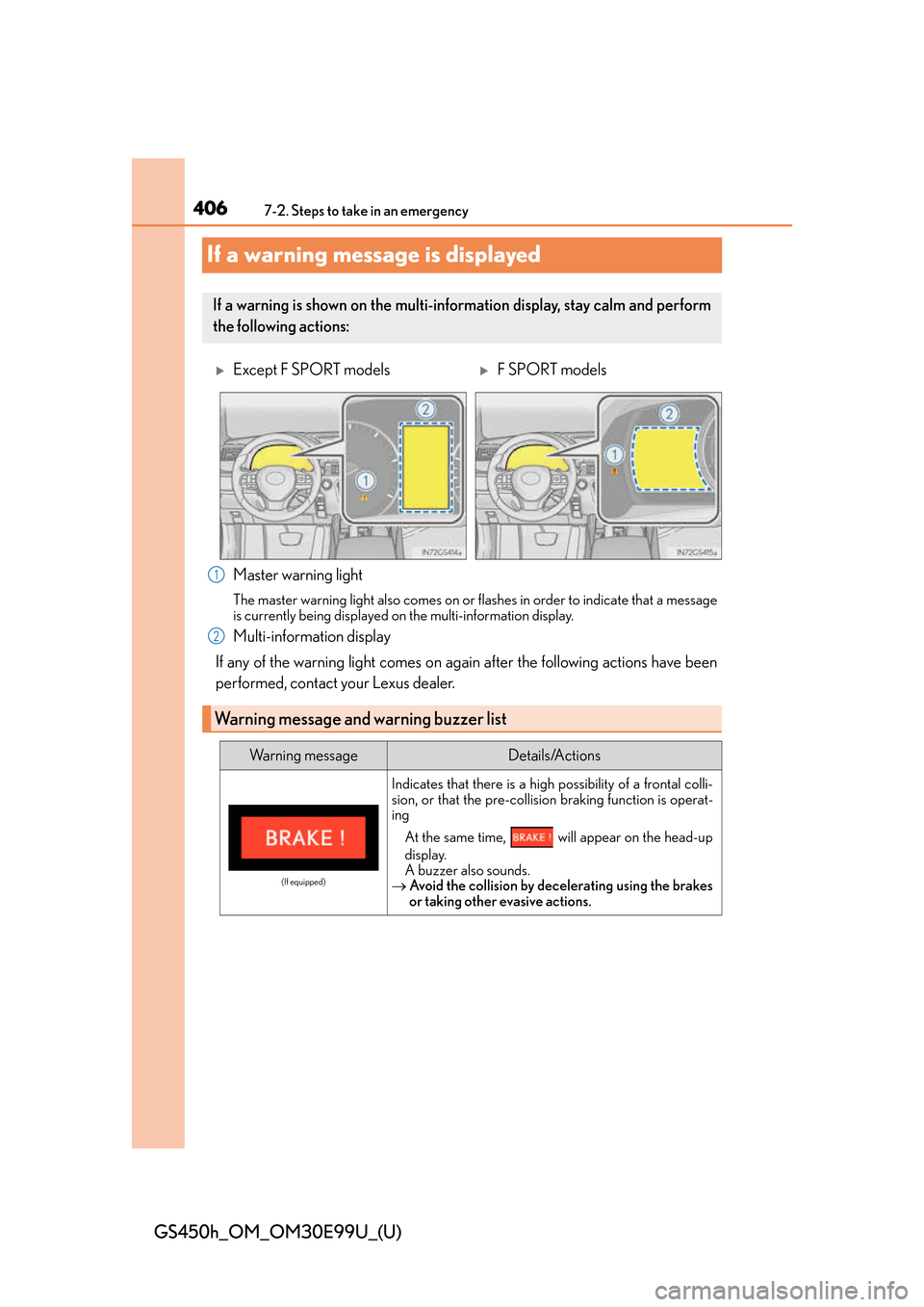

406
GS450h_OM_OM30E99U_(U)
7-2. Steps to take in an emergency
If a warning message is displayed
Master warning light
The master warning light also comes on or flashes in order to indicate that a message
is currently being displayed on the multi-information display.
Multi-information display
If any of the warning light comes on again after the following actions have been
performed, contact your Lexus dealer.
If a warning is shown on the multi-information display, stay calm and perform
the following actions:
Except F SPORT modelsF SPORT models
Warning message and warning buzzer list
1
2
Wa r n i n g m e s s a g eDetails/Actions
(If equipped)
Indicates that there is a high possibility of a frontal colli-
sion, or that the pre-collision braking function is operat-
ing At the same time, will appear on the head-up
display.
A buzzer also sounds.
 Avoid the collision by decelerating using the brakes
or taking other evasive actions.

4077-2. Steps to take in an emergency
GS450h_OM_OM30E99U_(U)
7
When trouble arises

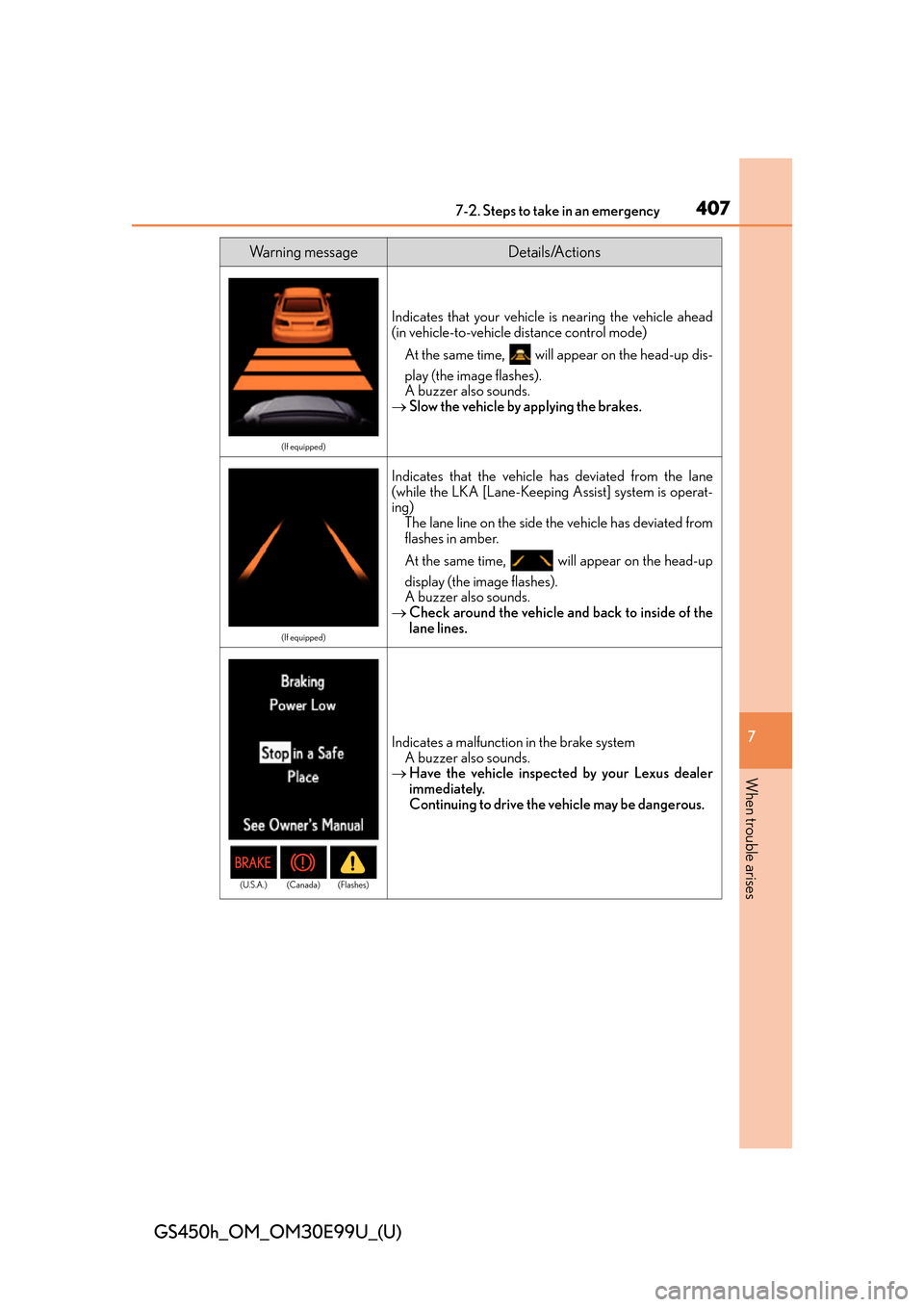

(If equipped)
Indicates that your vehicle is nearing the vehicle ahead
(in vehicle-to-vehicle distance control mode)At the same time, will appear on the head-up dis-
play (the image flashes).
A buzzer also sounds.
 Slow the vehicle by applying the brakes.
(If equipped)
Indicates that the vehicle has deviated from the lane
(while the LKA [Lane-Keeping Assist] system is operat-
ing)
The lane line on the side the vehicle has deviated from
flashes in amber.
At the same time, will appear on the head-up
display (the image flashes).
A buzzer also sounds.
 Check around the vehicle and back to inside of the
lane lines.
Indicates a malfunction in the brake system
A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer
immediately.
Continuing to drive the vehicle may be dangerous.
Wa r n i n g m e s s a g eDetails/Actions
(U.S.A.) (Canada) (Flashes)

4087-2. Steps to take in an emergency
GS450h_OM_OM30E99U_(U)

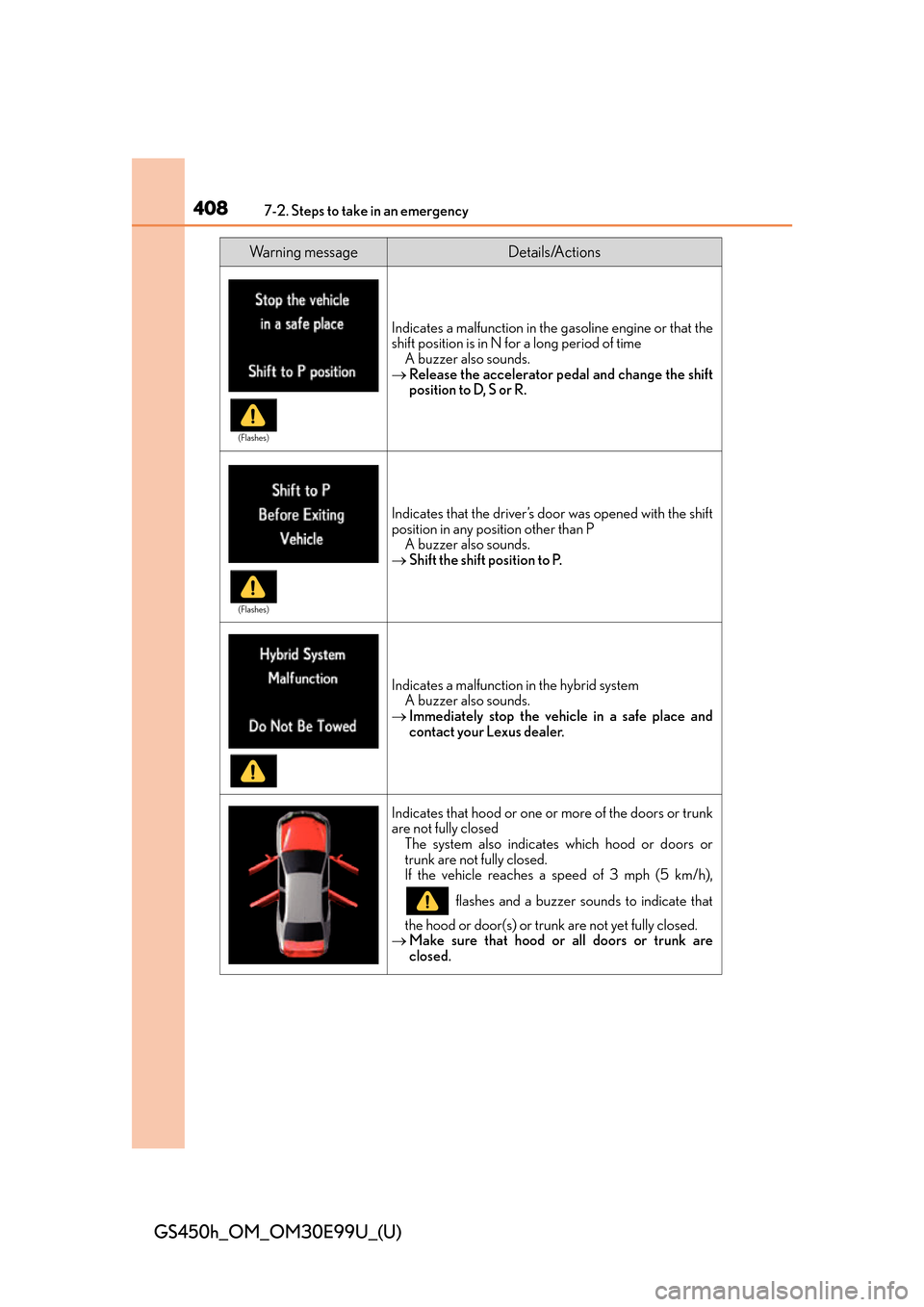

Indicates a malfunction in the gasoline engine or that the
shift position is in N for a long period of time
A buzzer also sounds.
 Release the accelerator pedal and change the shift
position to D, S or R.
Indicates that the driver’s door was opened with the shift
position in any position other than P
A buzzer also sounds.
 Shift the shift position to P.
Indicates a malfunction in the hybrid system
A buzzer also sounds.
 Immediately stop the vehicle in a safe place and
contact your Lexus dealer.
Indicates that hood or one or more of the doors or trunk
are not fully closed
The system also indicate s which hood or doors or
trunk are not fully closed.
If the vehicle reaches a speed of 3 mph (5 km/h),
flashes and a buzzer sounds to indicate that
the hood or door(s) or trunk are not yet fully closed.
 Make sure that hood or all doors or trunk are
closed.
Wa r n i n g m e s s a g eDetails/Actions
(Flashes)
(Flashes)

4097-2. Steps to take in an emergency
GS450h_OM_OM30E99U_(U)
7
When trouble arises
(If equipped)
Indicates a malfunction in the Lexus parking assistAll assist-sensors flash.
A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
(If equipped)
Indicates that Lexus parking assist-sensor is dirty or cov-
ered with ice
A buzzer also sounds.
 Clean the sensor.
Indicates an attempt was made to release the parking
brake with a door open or the front passenger’s seat belt
unfastened
A buzzer also sounds.
 Close all doors and fasten the front passenger’s seat
belt before releasing the parking brake.
Wa r n i n g m e s s a g eDetails/Actions
(Flashes)

4107-2. Steps to take in an emergency
GS450h_OM_OM30E99U_(U)

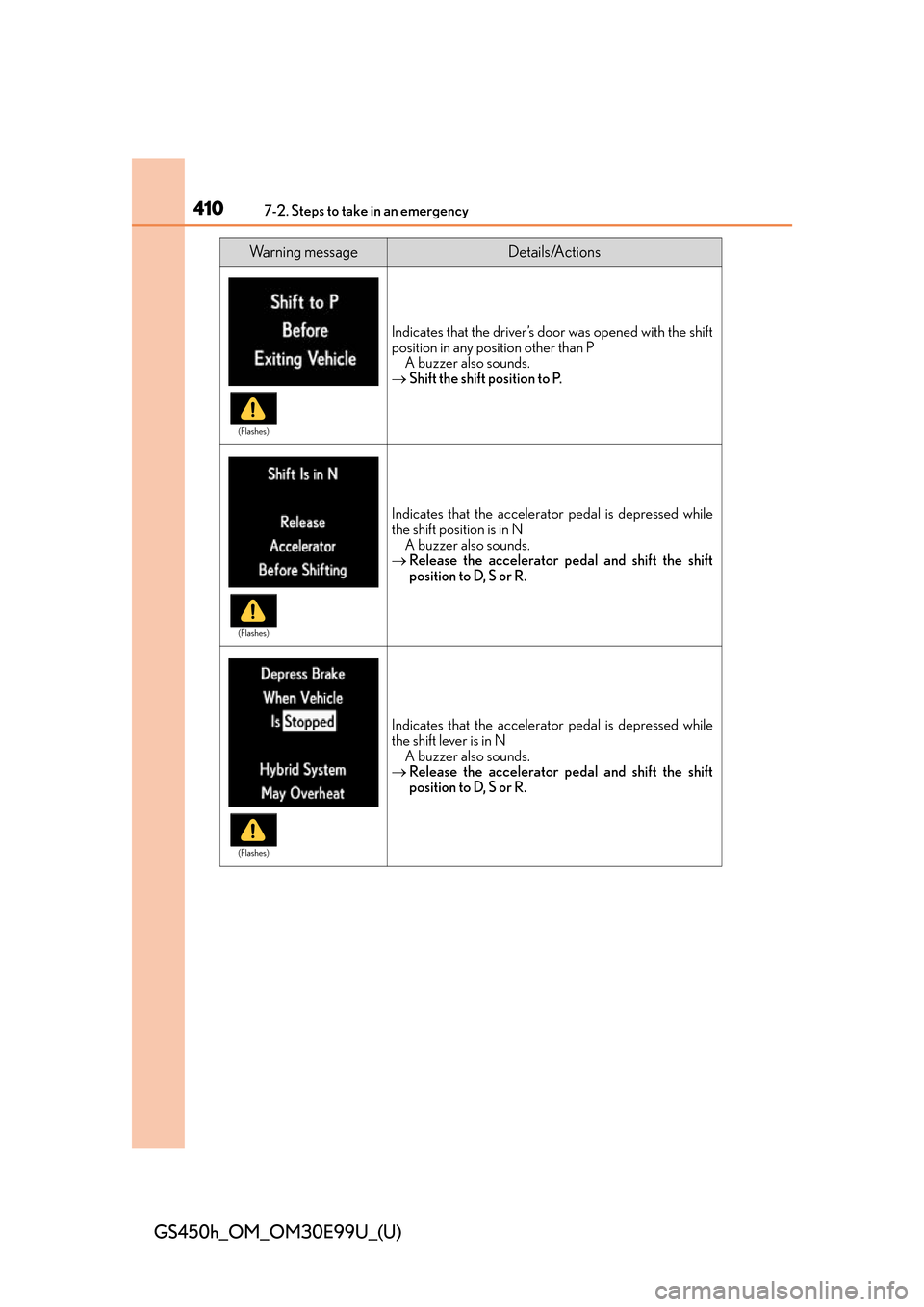

Indicates that the driver’s door was opened with the shift
position in any position other than PA buzzer also sounds.
 Shift the shift position to P.
Indicates that the accelerator pedal is depressed while
the shift position is in N
A buzzer also sounds.
 Release the accelerator pedal and shift the shift
position to D, S or R.
Indicates that the accelerator pedal is depressed while
the shift lever is in N
A buzzer also sounds.
 Release the accelerator pedal and shift the shift
position to D, S or R.
Wa r n i n g m e s s a g eDetails/Actions
(Flashes)
(Flashes)
(Flashes)
