Lexus GX460 2017 Quick Guide

20
GX460_QG_OM60P00U_(U)
Tu r n S i g n a l L e v e r
Right turn
Lane change to the right (push and
hold the lever partway)
The right hand signals will flash until
you release the lever.
Lane change to the left (push and hold
the lever partway)
The left hand signals will flash until you
release the lever.
Left turn1
2
3
4
GX460_QG_OM60P00U_(U).book Page 20 Friday, June 3, 2016 2:27 PM

21
GX460_QG_OM60P00U_(U)
Cruise Control (if equipped)
Indicators
Cruise control switch
■Setting the vehicle speed
Press the “ON-OFF” button to activate
the cruise control.
Cruise control indicator will come on.
Press the button again to deactivate
the cruise control.
Accelerate or decelerate the vehicle to
the desired speed, and push the lever
down to set the speed. “SET” indicator will come on.
The vehicle speed at the moment the
lever is released becomes the set
speed.
Use the cruise control to maintain a set speed without depressing the accelerator pedal.
1
2
1
2
GX460_QG_OM60P00U_(U).book Page 21 Friday, June 3, 2016 2:27 PM

22
GX460_QG_OM60P00U_(U)
■Adjusting the set speed
To change the set speed, operate the lever until the desired set speed is obtained.
Increases the speed
Decreases the speed
Fine adjustment: Momentarily move
the lever in the desired direction.
Large adjustment: Hold the lever in the
desired direction.
The set speed will be increased or decreased as follows:
Fine adjustment: By approximately 1 mph (1.6 km/h) each time the lever is operated.
Large adjustment: The set speed can be increase d or decreased continually until the lever is
released.
■ Canceling and resuming the constant speed control
Pulling the lever toward you cancels
the constant speed control.
The speed setting is also canceled
when the brakes are applied.
Pushing the lever up resumes the con-
stant speed control.
Resuming is available when the vehicle
speed is more than approximately
25 mph (40 km/h).
1
2
1
2
GX460_QG_OM60P00U_(U).book Page 22 Friday, June 3, 2016 2:27 PM

23
GX460_QG_OM60P00U_(U)

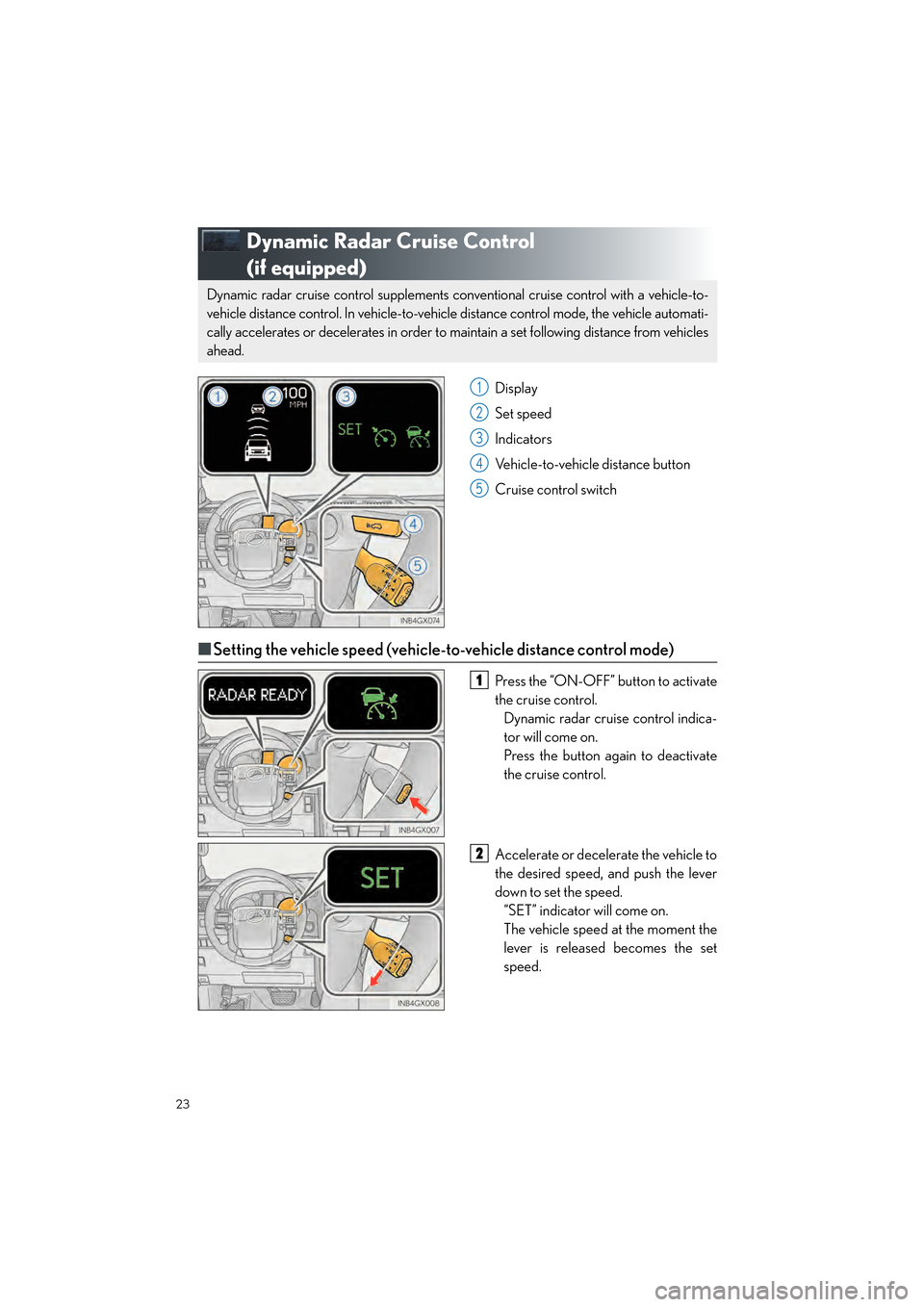

Dynamic Radar Cruise Control
(if equipped)
Display
Set speed
Indicators
Vehicle-to-vehicle distance button
Cruise control switch
■Setting the vehicle speed (vehicle-to-vehicle distance control mode)
Press the “ON-OFF” button to activate
the cruise control.
Dynamic radar cruise control indica-
tor will come on.
Press the button again to deactivate
the cruise control.
Accelerate or decelerate the vehicle to
the desired speed, and push the lever
down to set the speed. “SET” indicator will come on.
The vehicle speed at the moment the
lever is released becomes the set
speed.
Dynamic radar cruise control supplements conventional cruise control with a vehicle-to-
vehicle distance control. In vehicle-to-vehicle distance control mode, the vehicle automati-
cally accelerates or decelerates in order to maintain a set following distance from vehicles
ahead.
1
2
3
4
5
1
2
GX460_QG_OM60P00U_(U).book Page 23 Friday, June 3, 2016 2:27 PM

24
GX460_QG_OM60P00U_(U)
■Adjusting the set speed
To change the set speed, operate the lever until the desired set speed is displayed.
Increases the speed
Decreases the speed
Fine adjustment: Momentarily move
the lever in the desired direction.
Large adjustment: Hold the lever in the
desired direction.
In the vehicle-to-vehicle distance contro l mode, the set speed will be increased or
decreased as follows:
When the set speed is shown in “MPH”
Fine adjustment: By approximately 1 mph (1.6 km/h) each time the lever is operated
Large adjustment: By approximately 5 mph (8 km/h) for each 0.75 seconds the lever is held
When the set speed is shown in “km/h”
Fine adjustment: By approximately 0.6 mph (1 km/h) each time the lever is operated
Large adjustment: By approximately 3.1 mph (5 km/h) for each 0.75 seconds the lever is
held
In the constant speed control mode, the set sp eed will be increased or decreased as follows:
Fine adjustment: By approximately 1 mph (1.6 km/h) each time the lever is operated
Large adjustment: The set speed can be increase d or decreased continually until the lever is
released.
1
2
GX460_QG_OM60P00U_(U).book Page 24 Friday, June 3, 2016 2:27 PM

25
GX460_QG_OM60P00U_(U)
■Changing the vehicle-to-vehicle distance
Pressing the button changes the vehicle-to-
vehicle distance as follows:
Long
Medium
Short
The vehicle-to-vehicle distance is set
automatically to long mode when the
engine switch is turned to IGNITION
ON mode.
If a vehicle is running ahead of you, the
preceding vehicle mark will be also dis-
played.
■Vehicle-to-vehicle distance settings
Select a distance from the table below. Note that the distances shown correspond to a vehi-
cle speed of 50 mph (80 km/h). Vehicle- to-vehicle distance increases/decreases in accor-
dance with vehicle speed.
Preceding vehicle mark
1
2
3
Distance optionsVehicle-to-vehicle distance
LongApproximately 160 f t . (5 0 m)
MediumApproximately 130 f t. (40 m)
ShortApproximately 100 ft. (30 m)
GX460_QG_OM60P00U_(U).book Page 25 Friday, June 3, 2016 2:27 PM

26
GX460_QG_OM60P00U_(U)
■Canceling and resuming the speed control
Pulling the lever toward you cancels
the cruise control.
The speed setting is also canceled
when the brakes are applied.
Pushing the lever up resumes the
cruise control and returns vehicle
speed to the set speed.
Resuming is available when the vehicle
speed is more than approximately
25 mph (40 km/h).1
2
The vehicle-to-vehicle distance control mode maintains the preset cruising speed as long
as no vehicle is detected ahead.
GX460_QG_OM60P00U_(U).book Page 26 Friday, June 3, 2016 2:27 PM

27
GX460_QG_OM60P00U_(U)
LDA (Lane Departure Alert) (if equipped)
■Turning the LDA system on
Press the “LDA” switch to activate the sys-
tem.
“LDA” indicator and the lane lines will
come on.
Press the switch again to turn the LDA
system off.
■ Indication on the multi-information display
When the LDA system is on , the lane lines are shown.
When thin lines are shown:
Lane markers are not recognized by the
system, or the LDA system is temporarily
canceled.
When solid lane lines are shown:
The LDA system is active.If the vehicle deviates from the lane, the
lane line will flash.
While driving on a road that has lane markers, this system recognizes the white lane mark-
ers using a camera as a sensor to alert the driv er when the vehicle deviates from its lane.
If the system judges that the vehicle may deviate from its lane, it alerts the driver using beep-
ing and indications on the multi-information display.
GX460_QG_OM60P00U_(U).book Page 27 Friday, June 3, 2016 2:27 PM

28
GX460_QG_OM60P00U_(U)
Intuitive Parking Assist (if equipped)
Display the intuitive parking assist on/
off screen.
Press the menu switch.
The multi-information display will
change modes to electronic fea-
tures control mode.
Press the “ENTER” switch upwards
or downwards until the intuitive
parking assist mark appears in the
multi-information display.
Press the “ENTER” switch to change to
“ON”.
The intuitive parking assist indicator
will be displayed. Each pressing of the switch turns the
intuitive parking as sist on and off.
When on, the buzzer sounds to
inform the driver that the system is
operational.
Press the menu switch to change to
the normal display.
The distance from your vehicle to nearby obstacles when parallel parking or maneuver-
ing into a garage is measured by the sensors and communicated via the multi-informa-
tion display, the multimedia screen (if equipped), the navigation system screen (if
equipped), and a buzzer. Always check the surrounding area when using this system.
1
1
2
2
GX460_QG_OM60P00U_(U).book Page 28 Friday, June 3, 2016 2:27 PM

29
GX460_QG_OM60P00U_(U)
Wide View Front & Side Monitor (if equipped)
Pressing the wide view front & side monitor
switch turns the monitor on/off
The simultaneous display screen is dis-
played when the wide view front & side
monitor switch is pressed.
The wide view front & side monitor provides support when checking the areas to the left
and right side of the vehicle and the area in front of the vehicle during take-off at T-inter-
sections or other intersections with poor visibi lity. This system also helps the driver avoid
obstacles and when moving the vehicle to the side of the road.
The wide view front monitor camera displays the areas to the front left and right sides and
the area directly in front of the vehicle on the multimedia screen (if equipped) or naviga-
tion system screen (if equipped). The side monitor camera displays the area to the front
left of the vehicle on the screen.
This system can display the wide view front monitor and the side monitor separately or at
the same time.
GX460_QG_OM60P00U_(U).book Page 29 Friday, June 3, 2016 2:27 PM
