display Lexus GX460 2020 / LEXUS 2020 GX460 (OM60R27U) Owners Manual

324
GX460_OM_OM60R27U_(U)4-5. Using the driving support systems

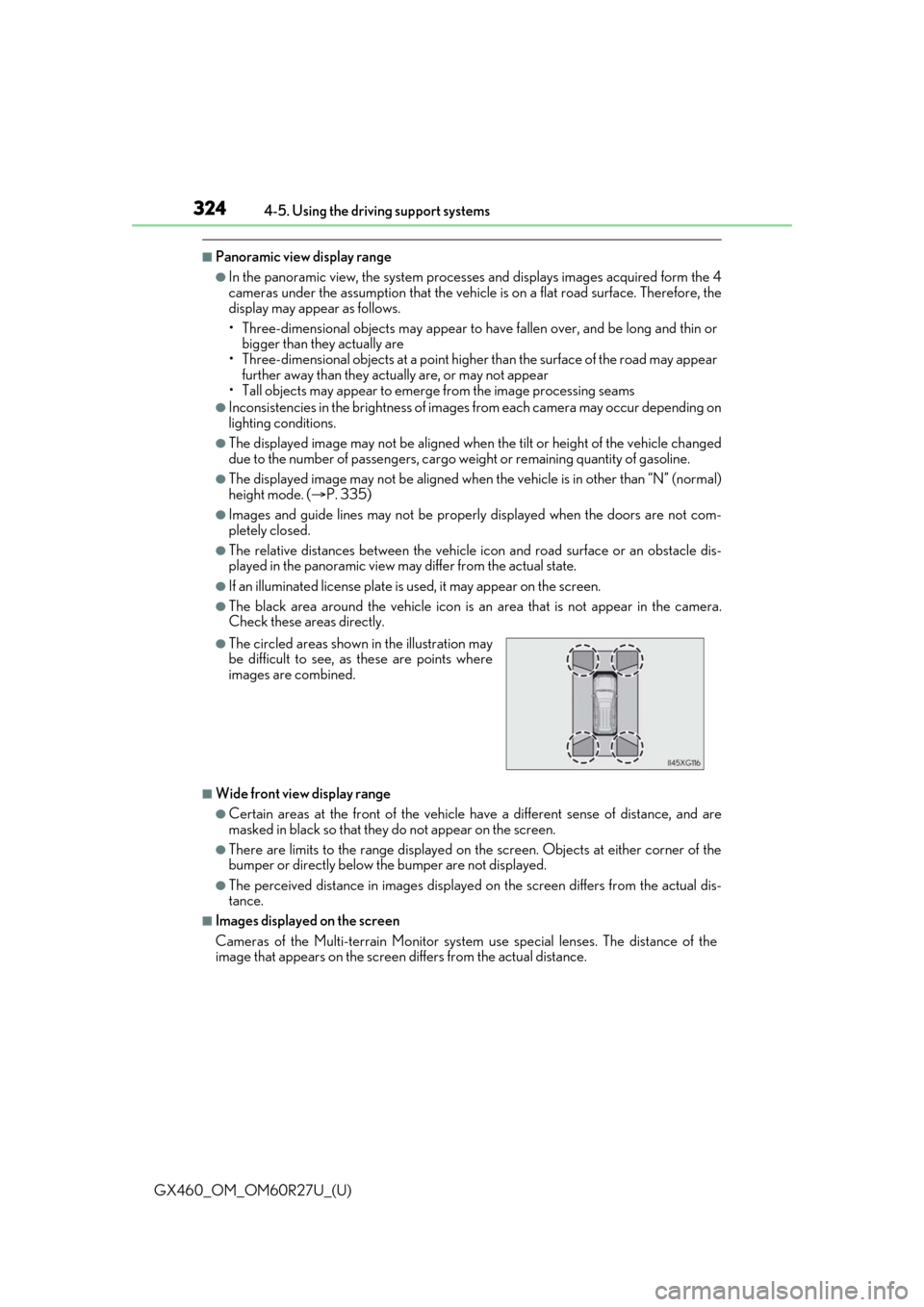

■Panoramic view display range
●In the panoramic view, the system processe
s and displays images acquired form the 4
cameras under the assumption that the vehicle is on a flat road surface. Therefore, the
display may appear as follows.
• Three-dimensional objects may appear to have fallen over, and be long and thin or bigger than they actually are
• Three-dimensional obje cts at a point higher than the surface of the road may appear
further away than they actually are, or may not appear
• Tall objects may appear to emerge from the image processing seams
●Inconsistencies in th e brightness of images from each camera may occur depending on
lighting conditions.
●The displayed image may not be aligned when the tilt or height of the vehicle changed
due to the number of passengers, cargo we ight or remaining quantity of gasoline.
●The displayed image may not be aligned when the vehicle is in other than “N” (normal)
height mode. (P. 335)
●Images and guide lines may not be properly displayed when the doors are not com-
pletely closed.
●The relative distances between the vehicle ic on and road surface or an obstacle dis-
played in the panoramic view may differ from the actual state.
●If an illuminated license plate is used, it may appear on the screen.
●The black area around the vehicle icon is an area that is not appear in the camera.
Check these areas directly.
■Wide front view display range
●Certain areas at the front of the vehicle ha ve a different sense of distance, and are
masked in black so that they do not appear on the screen.
●There are limits to the range displayed on the screen. Objects at either corner of the
bumper or directly below the bumper are not displayed.
●The perceived distance in images displayed on the screen differs from the actual dis-
tance.
■Images displayed on the screen
Cameras of the Multi-terrain Monitor system use special lenses. The distance of the
image that appears on the screen differs from the actual distance.
●The circled areas shown in the illustration may
be difficult to see, as these are points where
images are combined.

GX460_OM_OM60R27U_(U)
3274-5. Using the driving support systems
4
Driving

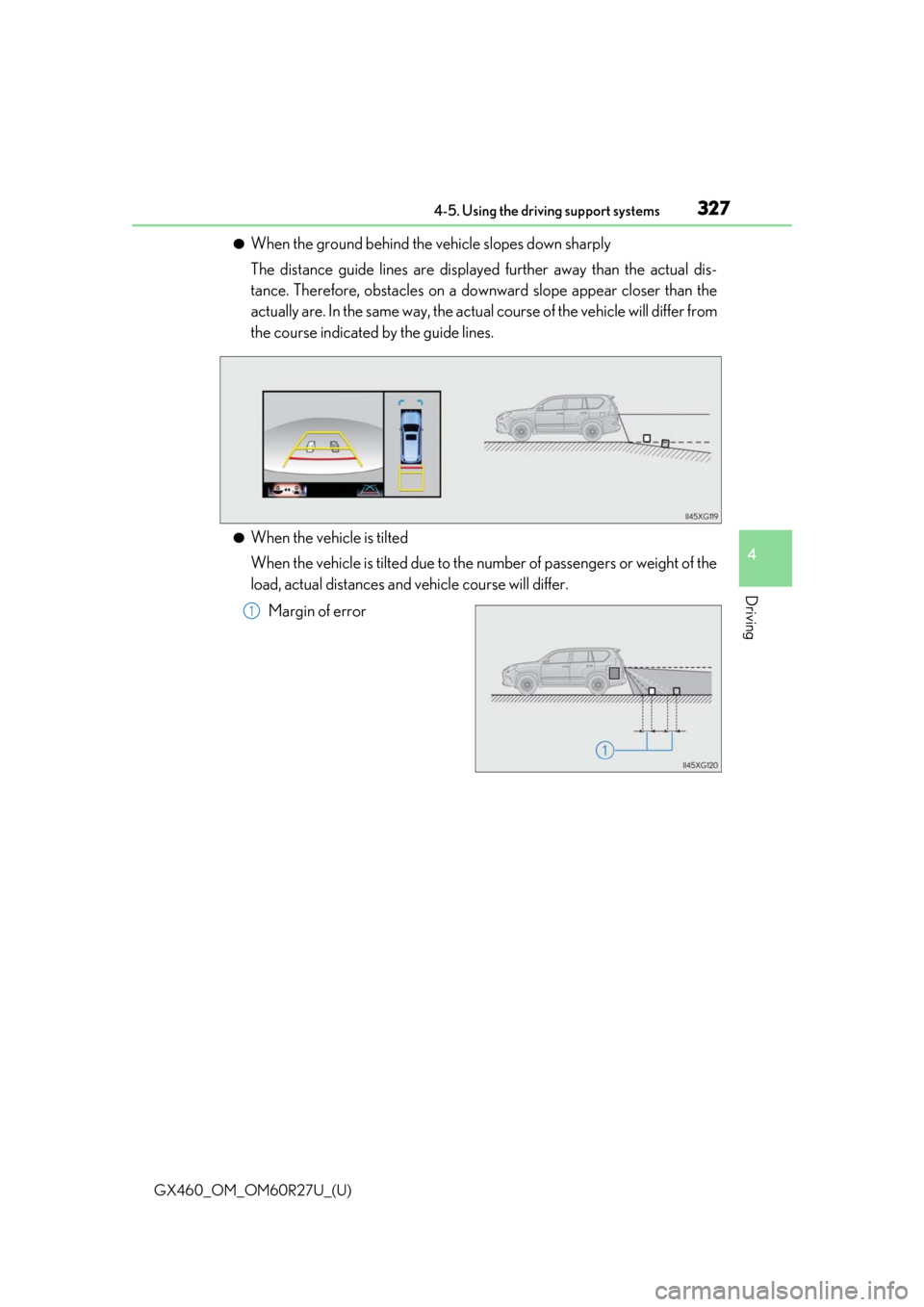

●When the ground behind the vehicle slopes down sharply
The distance guide lines are displayed further away than the actual dis-
tance. Therefore, obstacles on a downward slope appear closer than the
actually are. In the same way, the actua l course of the vehicle will differ from
the course indicated by the guide lines.
●When the vehicle is tilted
When the vehicle is tilted due to the number of passengers or weight of the
load, actual distances and vehicle course will differ.
Margin of error
1

328
GX460_OM_OM60R27U_(U)4-5. Using the driving support systems

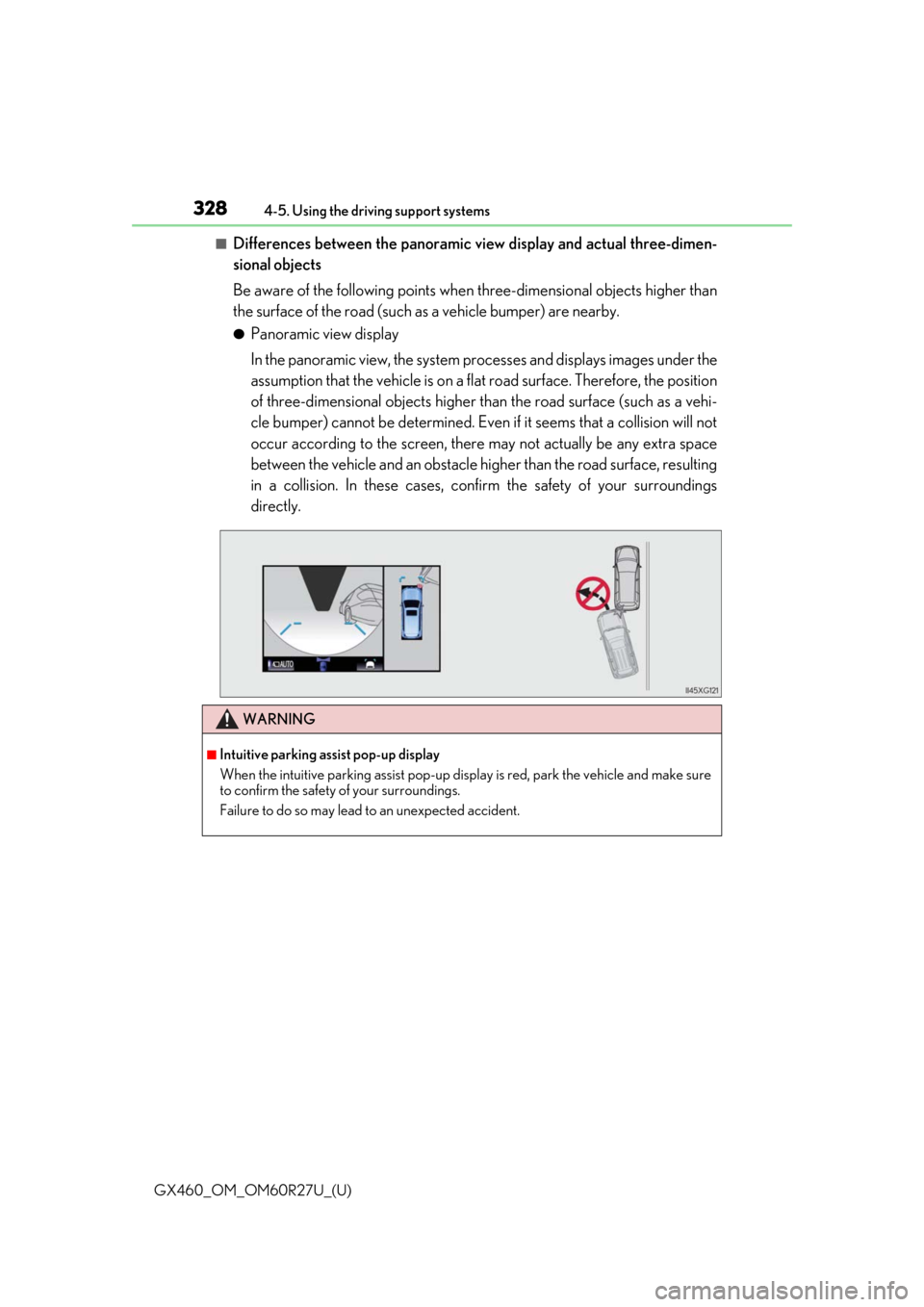

■Differences between the panoramic view display and actual three-dimen-
sional objects
Be aware of the following points when
three-dimensional objects higher than
the surface of the road (such as a vehicle bumper) are nearby.
●Panoramic view display
In the panoramic view, the system processes and displays images under the
assumption that the vehicle is on a fl at road surface. Therefore, the position
of three-dimensional objects higher th an the road surface (such as a vehi-
cle bumper) cannot be determined. Even if it seems that a collision will not
occur according to the screen, there may not actually be any extra space
between the vehicle and an obstacle higher than the road surface, resulting
in a collision. In these cases, confir m the safety of your surroundings
directly.
WARNING
■Intuitive parking assist pop-up display
When the intuitive parking assist pop-up disp lay is red, park the vehicle and make sure
to confirm the safety of your surroundings.
Failure to do so may lead to an unexpected accident.

GX460_OM_OM60R27U_(U)
3294-5. Using the driving support systems
4
Driving

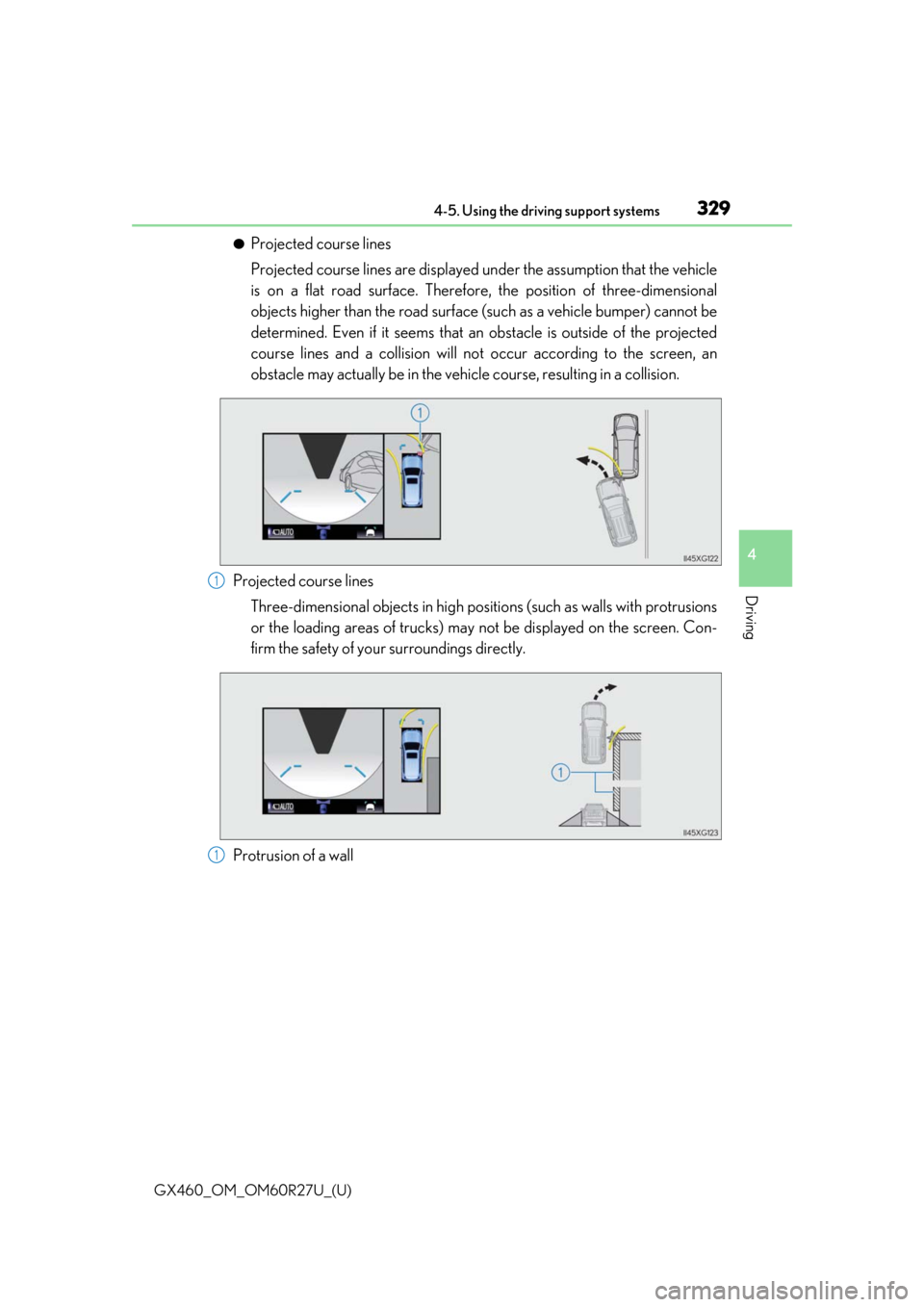

●Projected course lines
Projected course lines are displayed under the assumption that the vehicle
is on a flat road surface. Therefore, the position of three-dimensional
objects higher than the road surface (such as a vehicle bumper) cannot be
determined. Even if it seems that an obstacle is outside of the projected
course lines and a collision will no t occur according to the screen, an
obstacle may actually be in the vehicle course, resulting in a collision.
Projected course lines Three-dimensional objects in high positions (such as walls with protrusions
or the loading areas of trucks) may not be displayed on the screen. Con-
firm the safety of your surroundings directly.
Protrusion of a wall
1
1

330
GX460_OM_OM60R27U_(U)4-5. Using the driving support systems

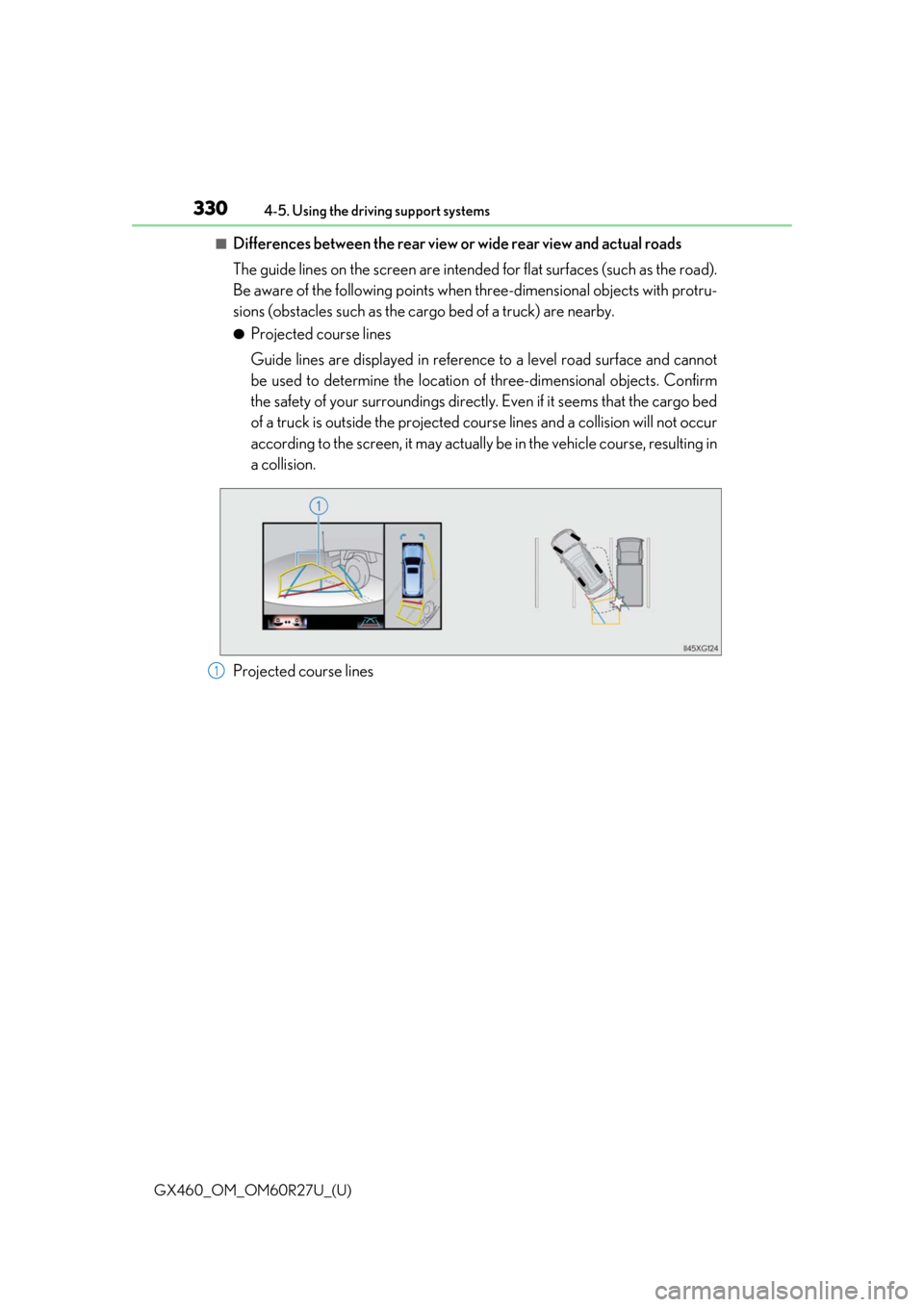

■Differences between the rear view or wide rear view and actual roads
The guide lines on the screen are intend
ed for flat surfaces (such as the road).
Be aware of the following points when three-dimensional objects with protru-
sions (obstacles such as the cargo bed of a truck) are nearby.
●Projected course lines
Guide lines are displayed in reference to a level road surface and cannot
be used to determine the location of three-dimensional objects. Confirm
the safety of your surroundings directly . Even if it seems that the cargo bed
of a truck is outside the projected co urse lines and a collision will not occur
according to the screen, it may actually be in the vehicle course, resulting in
a collision.
Projected course lines
1

GX460_OM_OM60R27U_(U)
3314-5. Using the driving support systems
4
Driving
■Differences between the panoramic view, rear view and wide rear view and
actual roads
●Distance guide lines
Guide lines are displayed in referenc e to the road surface and cannot be
used to determine the distance of three-dimensional objects from the vehi-
cle. Confirm the safety of your surr oundings directly. On the screen, it
appears that a truck is parking at po int according to the distance guide
lines. However, in reality if you back up to point , you will hit the truck.
On the screen, it appears that is closest and is farthest away. How-
ever, in reality, the distance to and is same, and is farther than
and .
●Under vehicle terrain view
The tire position indicator lines and ve hicle position indicator lines may dif-
fer from actual vehicle positions depending on the number of passengers,
weight of the load, road grade, road surface conditions, brightness of the
surrounding environment, etc. Always drive the vehicle while directly con-
firming the safety of your surroundings.
2
1
13
1321
3

332
GX460_OM_OM60R27U_(U)4-5. Using the driving support systems
■Using under vehicle terrain view
●The images displayed were prev
iously taken approximately 10 ft. (3 m) behind the cur-
rent vehicle position.
Therefore, actual conditions may differ from those shown on the screen in the following
situations.
• An obstacle has appeared after the image was taken
• Loose material like sand or snow has crumbled or shifted
• An obstacle has moved
• There is a puddle, tract of mud, etc., within the display range
• The vehicle slips
●In the following situations, actual tire posi tions and vehicle position may differ from
those indicated by the tire position indicator lines and vehicle position indicator lines.
• Tires have been replaced
• Optional equipment has been installed
WARNING
■Guide lines
The displayed guide lines are composed with the image that was previously taken and
may differ from the actual state.
Always drive the vehicle while confirming your surroundings.

334
GX460_OM_OM60R27U_(U)4-5. Using the driving support systems

The projected course lines move even though the steering wheel is straight (vehi-
cle width extension guide lines and projected course lines are not aligned)
There is a malfunction in the signals being
output by the steering sensorHave the vehicle inspected by your Lexus
dealer.
Guide lines are not displayed
The back door is open
Close the back door.
If this does not resolve the symptom, have
the vehicle inspected by your Lexus
dealer.
“!” is displayed
The battery is disconnected and recon-
nected
Turn the steering wheel fully to right and
left.
If this does not resolve the symptom, have
the vehicle inspected by your Lexus
dealer.
There is a malfunction in the Multi-terrain
MonitorHave the vehicle inspected by your Lexus
dealer.
NOTICE
■How to use the camera
●The Multi-terrain Monitor system may not operate properly in the following cases.
• If the front or the rear of the vehicle or the outside rear view mirror has been hit,
the camera’s position and mounting angle may have changed.
• As the camera has a water proof construction, do not detach, disassemble or modify it. This may ca use incorrect operation.
• When cleaning the camera lens, flush the camera with a large quantity of water
and wipe it with a soft and wet cloth. Strongly rubbing the camera lens may cause
the camera lens to be scratched and unable to transmit a clear image.
• Do not allow organic solvent, car wax, window cleaner or glass coat to adhere to
the camera. If this happens, wi pe it off as soon as possible.
• If the temperature changes rapidly, such as when hot water is poured on the vehi- cle in cold weather, the system may not operate normally.
• When washing the vehicle, do not apply intensive bursts of water to the camera or camera area. Doing so may result in the camera malfunctioning.
• When the camera is used under fluorescen t lights, sodium light or mercury light
etc., the lights and the illuminated areas may appear to flicker.
• The camera can be damaged by flying rocks and other debris.
●Do not expose the camera to strong impact as this could cause a malfunction. If this
happens, have the vehicle inspected by your Lexus dealer as soon as possible.
Likely causeSolution

335
GX460_OM_OM60R27U_(U)4-5. Using the driving support systems
4
Driving

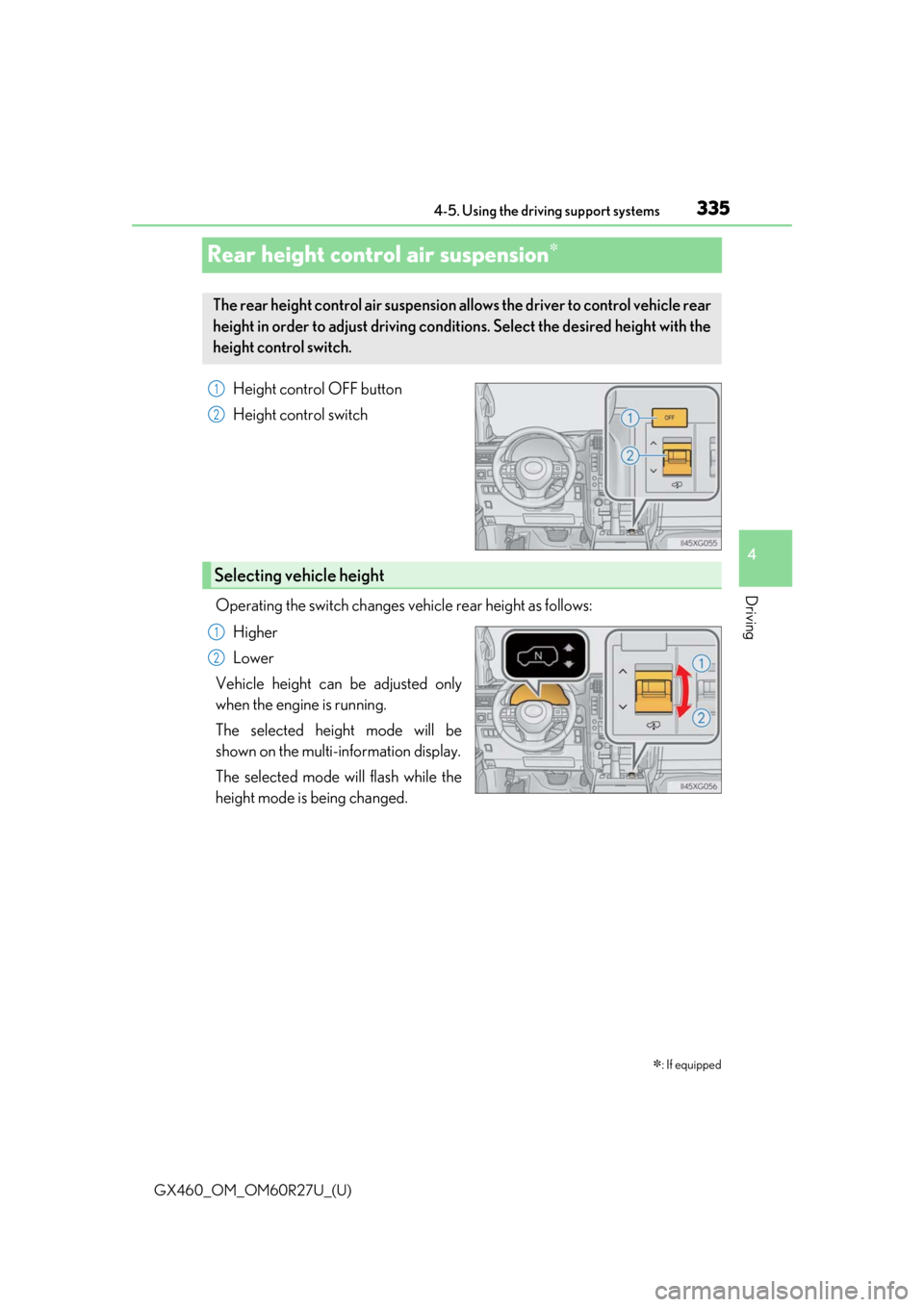

Rear height control air suspension
Height control OFF button
Height control switch
Operating the switch changes ve hicle rear height as follows:
Higher
Lower
Vehicle height can be adjusted only
when the engine is running.
The selected height mode will be
shown on the multi-information display.
The selected mode will flash while the
height mode is being changed.
: If equipped
The rear height control air suspension allows the driver to control vehicle rear
height in order to adjust driving condit ions. Select the desired height with the
height control switch.
1
2
Selecting vehicle height
1
2

GX460_OM_OM60R27U_(U)
3374-5. Using the driving support systems
4
Driving
■When HI mode is selected
The vehicle height will change to N mode when driving at the speeds of 18 mph (30 km/h).
Even if vehicle speed is then reduced to un der 18 mph (30 km/h), height will not return to
HI mode.
■When LO mode is selected
The vehicle height will change to N mode when vehicle speed exceeds 7 mph (12 km/h).
Even if vehicle speed is then reduced to un der 7 mph (12 km/h), height will not return to
LO mode.
■Automatic leveling function
Regardless of the number of occupants and the luggage load, vehicle height in any mode
is always adjusted to a fixed height by the automatic leveling function.
■The rear height control air suspension will not operate in the following cases:
●The underbody of the vehicle is touching the surface of the road.
●The area around the suspension is covered with ice.
■Even if you hear an operating noise
This does not indicate a problem in th e rear height control air suspension.
■Parking and stopping tips
●If you immediately stop the engine after off- road driving, or park the vehicle for a long
time, the vehicle height may gradually lower. When parking, make sure there is nothing
under the vehicle that may come in contact with the underbody. The vehicle will return
to the set height when the engine is started.
●The vehicle height may change as the temperature changes when the engine is
stopped. The vehicle will return to the set height when the engine is started.
■When lowering the vehicle
In order to prevent the vehicle height from rising as occupants leave the vehicle, lowering
control will occur for a short while after the engine has been stopped.
■The rear height control air suspension failure warning
●If a malfunction occurs in the rear height control air suspension, N mode is automati-
cally selected. However, the system may not switch to N mode depending on the loca-
tion of the malfunction.
●The “CHECK AIR SUSPENSION SYSTEM”/“C heck air suspension system” is dis-
played on the multi-information display, and the rear height control air suspension can-
not be activated until the malfunction is corrected.
Stop the engine and start it again. If the warning message turns off, the system is operat-
ing correctly. If the warning message continues to be displayed, have your vehicle
inspected by your Lexus dealer as soon as possible.
