display Lexus GX460 2020 Owner's Manual / LEXUS 2020 GX460 OWNER'S MANUAL (OM60R27U)

344
GX460_OM_OM60R27U_(U)4-5. Using the driving support systems
Crawl Control
Crawl Control ON/OFF switch
The indicator light on the switch comes
on when operating.
Crawl Control speed selector
switch
Crawl Control indicators
The Crawl Control indicator is lit and
the slip indicator flashes when operat-
ing.
Multi-information display
The selected multi-
terrain select mode
will be displayed on the multi-informa-
tion display.
: If equipped
Allows travel on extremely rough off-ro ad surfaces at a fixed low speed with-
out pressing the accelerator or brake pedal. Minimizes loss of traction or
vehicle slip when driving on slippery ro ad surfaces, helping for stable driving.
Crawl Control switch/indicators
1
2
3
4

346
GX460_OM_OM60R27U_(U)4-5. Using the driving support systems
■The Crawl Control can be operated when
●The shift lever is in any
gear other than P or N.
●The four-wheel drive control switch is in L4.
●The driver’s door is closed.
■Automatic system cancelation
In the following situations, the system is canceled automatically:
At that time, the buzzer will sound, the slip indicator turns off, and the Crawl Control indi-
cator flashes.
A notification will be displa yed on the multi-information display for several seconds.
(  P. 520)
●When the shift lever is moved to P or N.
●When the four-wheel drive control switch is in H4.
●When the driver’s door is opened.
When turning off Crawl Control while travelin g, stop the vehicle before the Crawl Con-
trol indicator turns off, or drive extremely carefully.
■Function limit
●In the following situations, you will be able to use brake control to drive downhill at a
fixed low speed, but you will be unable to use engine control to drive uphill at a fixed low
speed.
• When the driving mode is set to second start mode.
• When the vehicle speed is higher than 6 mph (10 km/h).
●When the vehicle speed is higher than 15 mph (25 km/h), engine control and brake
control will stop temporarily. At that time, the Crawl Control indicator flashes.

358
GX460_OM_OM60R27U_(U)4-5. Using the driving support systems
The Blind Spot Monitor on
/off screen and indicator
The Blind Spot Monitor system can be turned on/off on the multi-information display.
When the system is set to on, the indica tor illuminates in the meter and the buzzer
sounds. The Blind Spot Monitor function and the Rear Cross Traffic Alert function are
turned on/off simultaneously.
Outside rear view mirror indicator
The Blind Spot Monitor function:
When a vehicle is detected in the blind sp ot, the outside rear view mirror indicator
comes on while the turn signal lever is not operated. If the turn signal lever is operated
toward the detected side, the outsid e rear view mirror indicator flashes.
The Rear Cross Traffic Alert function:
When a vehicle approaching from the right or left rear of the vehicle is detected, the
outside rear view mi rror indicators flash.
The Rear Cross Traffic Alert buzzer (The Rear Cross Traffic Alert function
only)
When a vehicle approaching from the right or left rear of the vehicle is detected, a
buzzer sounds from behind the rear seat.
Press or of the meter control sw itches and select on the multi-
information display.
Press or of the meter control switches and select , and then
press .
Each pressing of the sw itch turns the Blind Spot Monitor on and off.
Turning the Blind Spot Monitor system on/off
1
2
3
1
2

GX460_OM_OM60R27U_(U)
3594-5. Using the driving support systems
4
Driving
■The outside rear view mirror indicators visibility
When under strong sunlight, the outside rear view mirror indicator may be difficult to
see.
■The Rear Cross Traffic Alert buzzer hearing
The Rear Cross Traffic Alert buzzer may be difficult to hear over loud noises such as high
audio volume.
■When “BSM NOT AVAILABLE”/“ BSM not available” is shown on the multi-informa-
tion display
The sensor voltage has become abnormal, water, snow mud, etc., may be built up in the
vicinity of the sensor area of bumper ( P. 360). Removing the water, snow, mud, etc.,
from the vicinity of the sensor area bumper should return it to normal. Also, the sensor
may not function normally when used in extremely hot or cold weather.
■When “CHECK BSM SYSTEM”/“Check BSM sy stem” is shown on the multi-informa-
tion display
There may be a sensor malfunction or misa ligned. Have the vehicle inspected by your
Lexus dealer.
■Certification for the Blind Spot Monitor
For vehicles sold in the U.S.A., Hawaii, Guam, Puerto Rico and Saipan
For vehicles sold in Canada

376
GX460_OM_OM60R27U_(U)5-1. Using the air conditio
ning system and defogger
Front automatic air conditioning system
◆Control panel
◆Control screen
Air outlets and fan speed are automati cally adjusted according to the tem-
perature setting.
Press the to display the air conditioning control screen.
Vehicles without navigation sys-
temVehicles with navigation system

GX460_OM_OM60R27U_(U)
3775-1. Using the air conditioning system and defogger
5
Interior features
■Adjusting the temperature setting
Press to increase the temperature and to decrease the tempera-
ture.
If the “A/C” indicator is turned off, the system will blow ambient temperature air or
heated air.
■Adjusting the fan speed setting
Press to increase the fan speed and to decrease the fan speed.
Press the “OFF” button to turn the fan off.
■Changing the air flow mode
Select an air outlet switch.
: Air flows to the upper body
: Air flows to the upper body and feet
: Air flows to the feet
■Option control screen
Touch on the climate screen to display the option control screen. The
functions can be switched on and off.Select to set cooling and dehu-
midification function on/off
Adjust the temperature for driver
and passenger seats separately
(“DUAL” mode)/driver, passen-
ger and rear seats separately (“3-
ZONE” mode) ( P. 378)
Prevent ice from building up on
the windshield and wiper blades
(if equipped) ( P. 381)
Remove pollen from the air ( P. 381)
1
2
3
4

GX460_OM_OM60R27U_(U)
3795-1. Using the air conditioning system and defogger
5
Interior features
Press or touch to display the re ar air conditioning control screen.
■Control screen
Adjust the fan speed setting
Adjust the rear seats temperature setting
Display the rear seat s temperature setting
Turn the fan off
Select to set automatic mode
■Using the automatic mode Touch “REAR AUTO”.
Touch to increase the temperature and to decrease the tem-
perature.
To stop the operatio n, touch “REAR OFF”.
■If the system is operated manually in automatic mode
If the fan speed setting is operated, the automatic mode indicator goes off.
However, automatic mode for functions other than that operated are main-
tained.
Changing the rear seat settings (veh icles with rear air conditioning sys-
tem)
Vehicles without navigation sys-
temVehicles with navigation system
1
2
3
4
5
1
2
3

GX460_OM_OM60R27U_(U)
3815-1. Using the air conditioning system and defogger
5
Interior features
■Defogging the rear window and outside rear view mirrors
Defoggers are used to defog the rear window, and to remove raindrops, dew
and frost from the outside rear view mirrors.
Press .
The defoggers will automatically turn off after a period of time.
■Micro dust and pollen filter mode
Pollen is removed from the air and the air flows to the upper part of the body.
Touch on the option control screen.
When the micro dust and pollen filter mo de is on, is displayed on the air
conditioning control screen.
In order to prevent the windshield from fo gging up when the outside air is cold, the
dehumidification function may operate.
The pollens are filtered out even if the mi cro dust and pollen filter mode is turned
off.
■Windshield wiper de-icer (if equipped)
This feature is used to prevent ice fr om building up on the windshield and
wiper blades.
Touch on the option control screen.
When the windshield wiper de-icer is on , is displayed on the air condition-
ing control screen.
The windshield wiper de-icer will automati cally turn off after a period of time.
■The windshield wiper de-icer can be operat ed when (vehicles with windshield wiper
de-icer)
The engine switch is in IGNITION ON mode.
■When the windshield wiper de-icer is on (vehicles with windshield wiper de-icer)
The windshield wiper de-icer will automatically turn off after approximately 15 minutes.
WARNING
■When the windshield wiper de-icer is on (vehicles with windshield wiper de-icer)
Do not touch the glass at the lower part of th e windshield or the side of the front pillars
as the surfaces can become very hot and burn you.

412
GX460_OM_OM60R27U_(U)5-4. Using the other interior features
The conversation mirror can provide the
driver and the front passenger with a
view of the rear seat area without the need to turn around.
Press in the button.
To use the overhead console when the conversation mirror is open, further extend the lid.
(  P. 400)
Vehicles with navigation system
Refer to the “NAVIGATION SYSTEM OWNER’S MANUAL”.
Vehicles without navigation system
The clock can be adjusted by pressing the buttons.
Adjusts the hours
Adjusts the minutes
■The clock is displayed when
The engine switch is in IGNITION ON mode.
■When disconnecting and reconnecting battery terminals
The clock data will be reset.
Conversation mirror
Clock
1
2

421
GX460_OM_OM60R27U_(U)5-4. Using the other interior features
5
Interior features

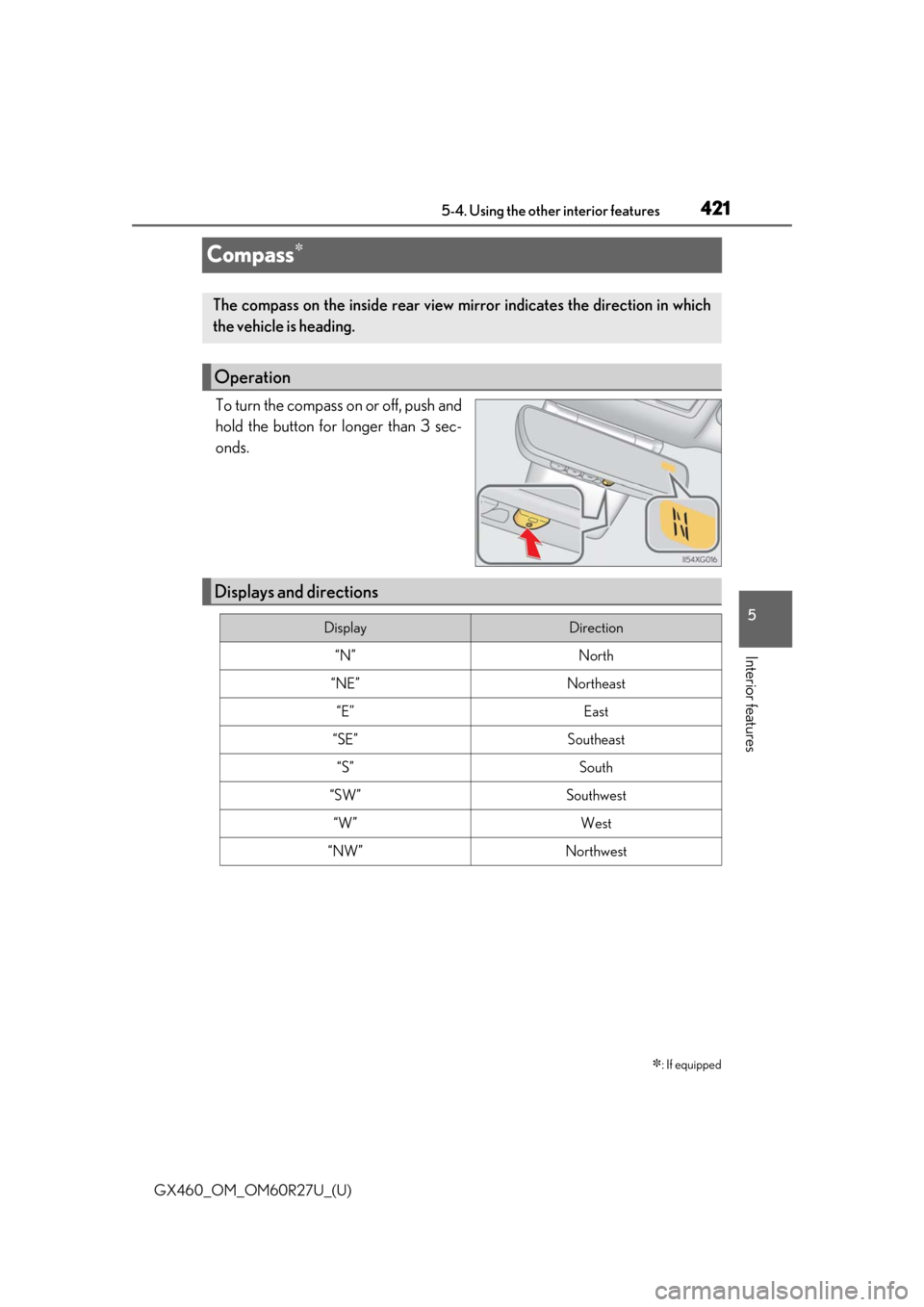

Compass
To turn the compass on or off, push and
hold the button for longer than 3 sec-
onds.
: If equipped
The compass on the inside rear view
mirror indicates the direction in which
the vehicle is heading.
Operation
Displays and directions
DisplayDirection
“N”North
“NE”Northeast
“E”East
“SE”Southeast
“S”South
“SW”Southwest
“W”West
“NW”Northwest
