4716-3. Do-it-yourself maintenance
6
Maintenance and care
■The initialization operation
●Make sure to carry out initialization after adjusting the tire inflation pressure.
Also, make sure the tires are cold before carryi ng out initialization or tire inflation pres-
sure adjustment.
●If you have accidentally turned the engine swit ch off during initialization, it is not neces-
sary to manually restart the in itialization again, as initialization will restart automatically
the next time the engine switch is turned to IGNITION ON mode.
●If you accidentally perform initialization when initialization is not necessary, adjust the
tire inflation pressure to the specified leve l when the tires are cold, and conduct initial-
ization again.
●While the position of each tire is being de termined and the inflation pressures are not
being displayed on the multi-info rmation display, if the inflation pressure of a tire drops,
the tire pressure warning light will come on.
■Warning performance of the tire pressure warning system
The warning of the tire pressu re warning system will change in accordance with the con-
ditions under which it was init ialized. For this reason, the system may give a warning even
if the tire pressure does not reach a low enough level, or if the pressure is higher than the
pressure that was adjusted to when the system was initialized.
■When initialization of the tire pressure warning system has failed
●Do not move the vehicle backward during in itialization. Initialization is started again
from the beginning and it ma y take longer than usual.
●Initialization may take longer to complete if the vehicle is driven on an unpaved road.
When performing initialization, drive on a paved road if possible. Depending on the
driving environment and cond ition of the tires, initialization will be completed in
approximately 10 to 30 minutes.
• If initialization is not comp lete after driving approximately 30 minutes, continue
driving for a while.
• If initialization is not complete after driv ing approximately 1 hour, park the vehicle in
a safe place for approximately 20 minutes. Then drive straight (with occasional left
and right turns) at approximat ely 25 mph (40 km/h) or more
* for approximately 10
to 30 minutes.
If initialization is still not complete, have the vehicle inspected by your Lexus dealer.
*: Except when making a left/right turn
●In the following situations, th e tire inflation pressure will not be recorded and the system
will not operate properly. Perform initialization again.
• If, when attempting to start initialization , the tire pressure warning light does not
blink 3 times.
• If, when the vehicle has been driven for ab out 20 minutes after performing initializa-
tion, the tire pressure warning light blinks for approximately 1 minute and then illumi-
nates.

476
GX460_OM_OM60R27U_(U)6-3. Do-it-yourself maintenance
Tire inflation pressure
The recommended cold tire inflation
pressure and tire size are displayed on
the tire and loading information label.
(
P. 560)
Tire inflation pressure

499
GX460_OM_OM60R27U_(U)
7When trouble arises
7-1. Essential informationEmergency flashers ................. 500
If your vehicle has to be stopped in
an emergency ........................... 501
If the vehicle is trapped in rising water ................................502
7-2. Steps to take in an emergency If your vehicle needs to be towed................................503
If you think something is wrong ...........................................509
Fuel pump shut off system ....... 510
If a warning light turns on or a warning buzzer
sounds............................................. 511
If a warning message is displayed.....................................520
If you have a flat tire .................. 524
If the engine will not start ........538
If the electronic key does not operate properly .............540
If the vehicle battery is discharged ................................. 543
If your vehicle overheats ......... 546
If the vehicle becomes stuck ............................................. 549

5127-2. Steps to take in an emergency
GX460_OM_OM60R27U_(U)
(U.S.A.)
(Canada)

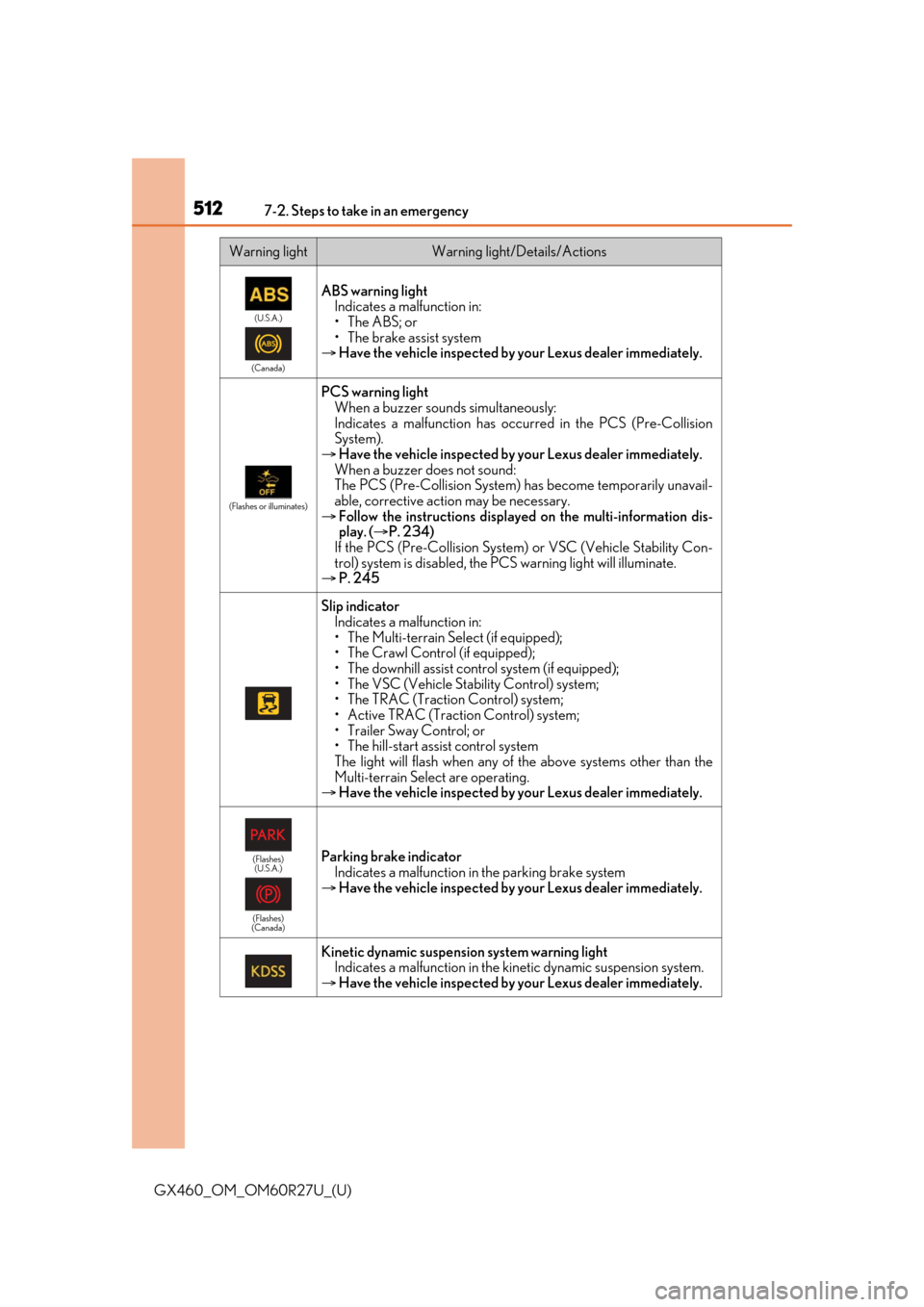

ABS warning light Indicates a malfunction in:
• The ABS; or
• The brake assist system
 Have the vehicle inspected by your Lexus dealer immediately.
(Flashes or illuminates)
PCS warning light
When a buzzer sounds simultaneously:
Indicates a malfunction has occu rred in the PCS (Pre-Collision
System).
 Have the vehicle inspected by your Lexus dealer immediately.
When a buzzer does not sound:
The PCS (Pre-Collision System) has become temporarily unavail-
able, corrective action may be necessary.
 Follow the instructions displayed on the multi-information dis-
play. ( P. 234)
If the PCS (Pre-Collision System ) or VSC (Vehicle Stability Con-
trol) system is disabled, the PC S warning light will illuminate.
 P. 245
Slip indicator
Indicates a malfunction in:
• The Multi-terrain Select (if equipped);
• The Crawl Control (if equipped);
• The downhill assist cont rol system (if equipped);
• The VSC (Vehicle Stability Control) system;
• The TRAC (Traction Control) system;
• Active TRAC (Traction Control) system;
• Trailer Sway Control; or
• The hill-start assist control system
The light will flash when any of the above systems other than the
Multi-terrain Select are operating.
 Have the vehicle inspected by your Lexus dealer immediately.
(Flashes)
(U.S.A.)
(Flashes)
(Canada)Parking brake indicator
Indicates a malfunction in the parking brake system
 Have the vehicle inspected by your Lexus dealer immediately.
Kinetic dynamic suspension system warning light
Indicates a malfunction in the kin etic dynamic suspension system.
 Have the vehicle inspected by your Lexus dealer immediately.
Warning lightWarning light/Details/Actions

5147-2. Steps to take in an emergency
GX460_OM_OM60R27U_(U)

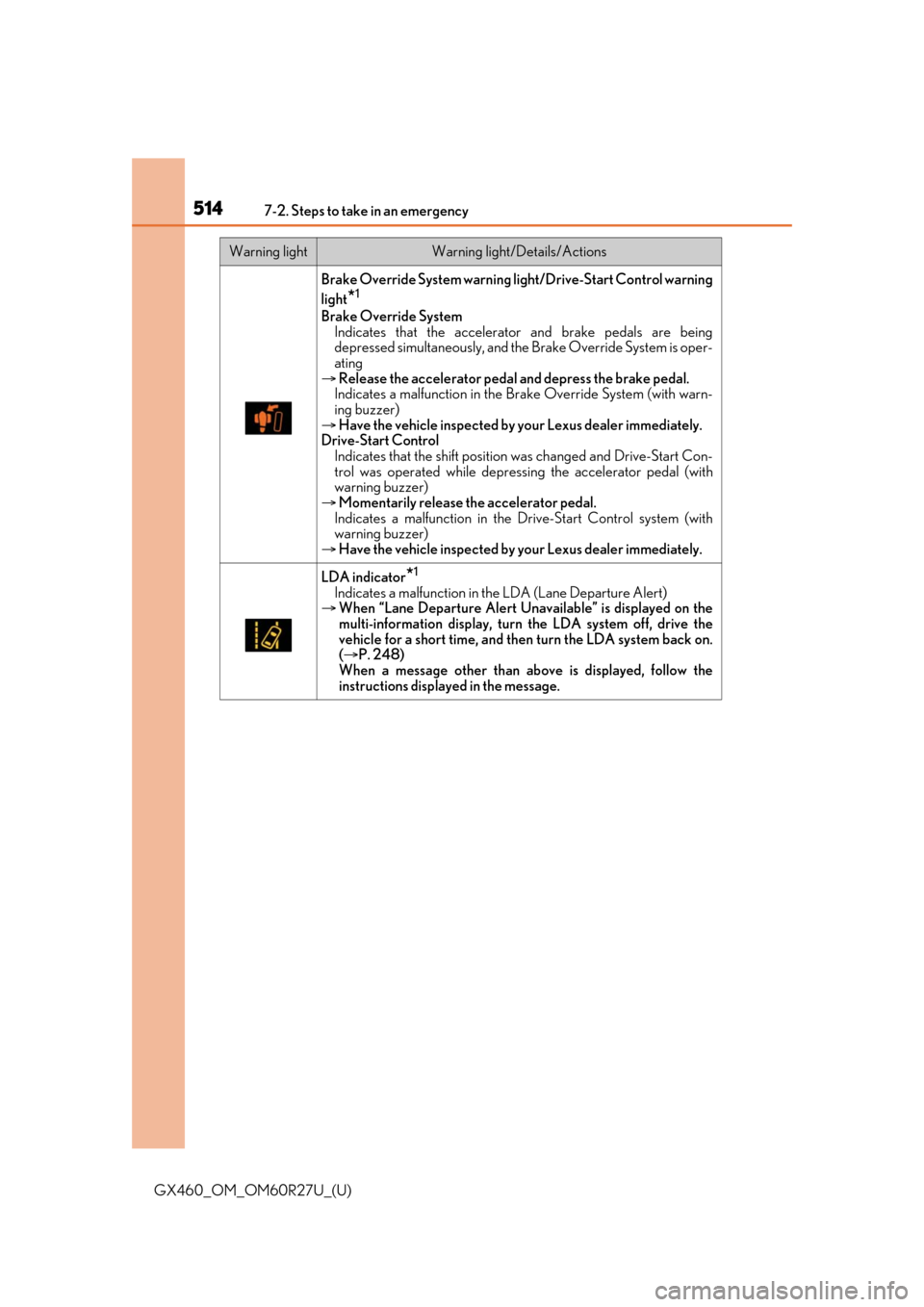

Brake Override System warning light/Drive-Start Control warning
light
*1
Brake Override System Indicates that the accelerator and brake pedals are being
depressed simultaneously, and the Brake Override System is oper-
ating
 Release the accelerator pedal and depress the brake pedal.
Indicates a malfunction in the Brake Override System (with warn-
ing buzzer)
 Have the vehicle inspected by your Lexus dealer immediately.
Drive-Start Control
Indicates that the shift position was changed and Drive-Start Con-
trol was operated while depressi ng the accelerator pedal (with
warning buzzer)
 Momentarily release the accelerator pedal.
Indicates a malfunction in the Dr ive-Start Control system (with
warning buzzer)
 Have the vehicle inspected by your Lexus dealer immediately.
LDA indicator*1
Indicates a malfunction in the LDA (Lane Departure Alert)
 When “Lane Departure Alert Unav ailable” is displayed on the
multi-information display, turn the LDA system off, drive the
vehicle for a short time, and then turn the LDA system back on.
(  P. 248)
When a message other than above is displayed, follow the
instructions displayed in the message.
Warning lightWarning light/Details/Actions

5157-2. Steps to take in an emergency
GX460_OM_OM60R27U_(U)
7
When trouble arises
*1: This light illuminates on the multi-information display.
*2: Open door warning buzzer: The open door warning buzzer sounds to al ert hood or one or more of the doors or
glass hatch are not fully closed (with the vehicle having reached a speed of 3 mph [5
km/h]).
*3: Driver’s seat belt warning buzzer:
The driver’s seat belt warning buzzer sounds to alert the driver that his or her seat belt
is not fastened. Once the engine switch is turned to ON, the buzzer sounds. If the seat
belt is still unfastened, the buzzer sounds intermittently for a certain period of time
after the vehicle reaches a certain speed.
Front passenger’s seat belt warning buzzer:
The front passenger’s seat belt warning buzzer sounds to alert the front passenger
that his or her seat belt is not fastened. If the seat belt is unfastened, the buzzer sounds
intermittently for a certain period of time after the vehicle reaches a certain speed.
■SRS warning light
This warning light system monitors the airbag sensor assembly, front airbag sensors, side
and curtain shield airbag sensors, rear side and curtain shield airbag sensors, floor sen-
sor, driver’s seat belt buc kle switch, front passenger occupant classification system (ECU
and sensors), “AIR BAG ON” indicator light, “AIR BAG OFF” indicator light, front pas-
senger’s seat belt buckle sw itch, seat belt pretensioner assemblies, airbags, intercon-
necting wiring and power sources. ( P. 36)
■Front passenger detection sensor, seat belt reminder and warning buzzer
●If luggage is placed on the front passenger seat, the front passenger detection sensor
may cause the warning light to flash and the warning buzzer to sound even if a passen-
ger is not sittin g in the seat.
●If a cushion is placed on the seat, the sens or may not detect a passenger, and the warn-
ing light may not operate properly.
■If the malfunction indicator lamp comes on while driving
First check the following:
●Is the fuel tank empty?
If it is, fill the fu el tank immediately.
●Is the fuel tank cap loose?
If it is, tighten it securely.
The light will go off after several driving trips.
If the light does not go off even after severa l trips, contact your Lexus dealer as soon as
possible.

520
GX460_OM_OM60R27U_(U)7-2. Steps to take in an emergency

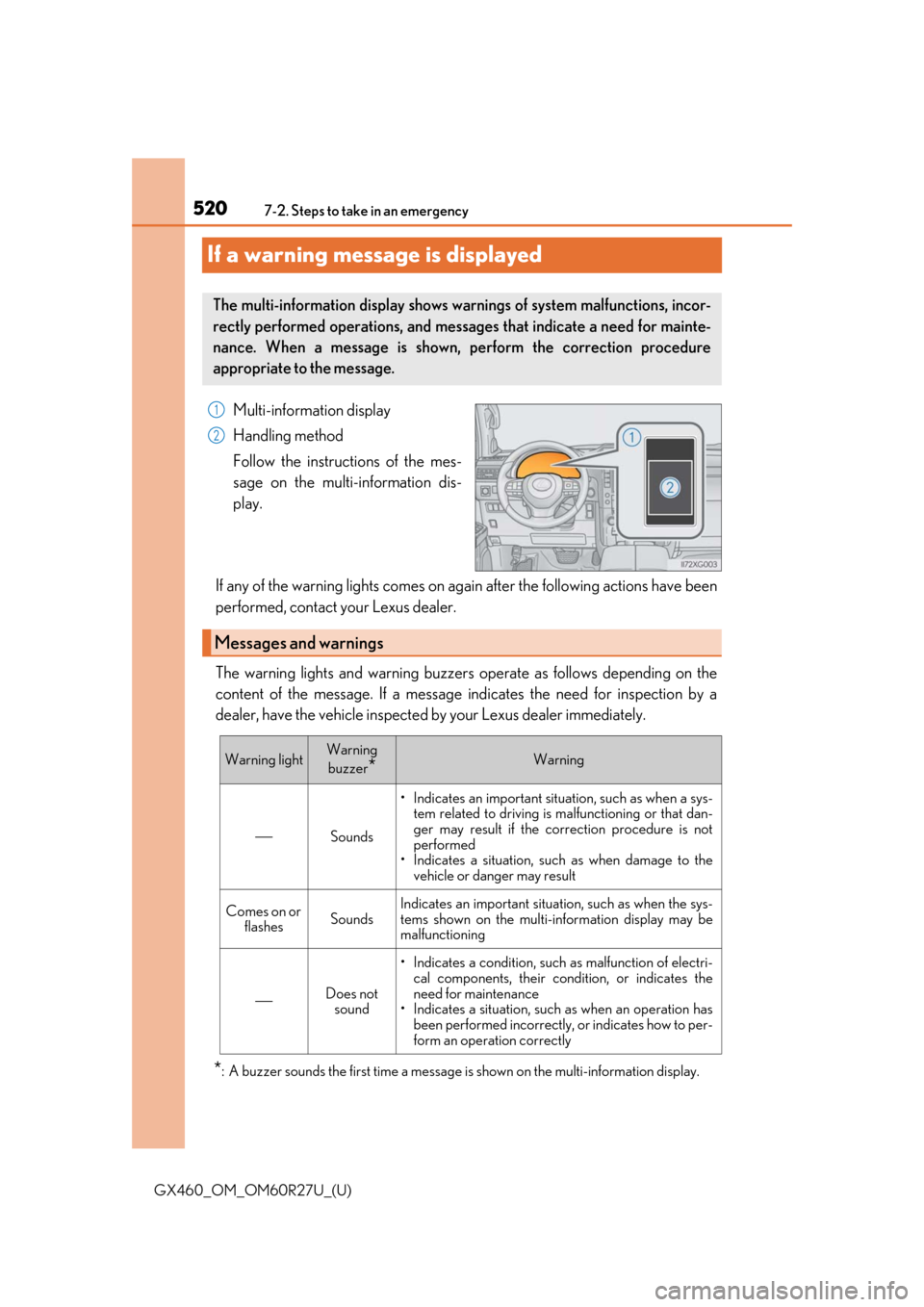

If a warning message is displayed
Multi-information display
Handling method
Follow the instructions of the mes-
sage on the multi-information dis-
play.
If any of the warning lights comes on ag ain after the following actions have been
performed, contact your Lexus dealer.
The warning lights and warning buzzers operate as follows depending on the
content of the message. If a message indicates the need for inspection by a
dealer, have the vehicle inspected by your Lexus dealer immediately.
*: A buzzer sounds the first time a message is shown on the multi-information display.
The multi-information display shows warn ings of system malfunctions, incor-
rectly performed operations, and messag es that indicate a need for mainte-
nance. When a message is shown, perform the correction procedure
appropriate to the message.
1
2
Messages and warnings
Warning lightWarning buzzer
*Warning
Sounds
• Indicates an important situation, such as when a sys- tem related to driving is malfunctioning or that dan-
ger may result if the correction procedure is not
performed
• Indicates a situation, such as when damage to the
vehicle or danger may result
Comes on or flashesSounds
Indicates an important situat ion, such as when the sys-
tems shown on the multi-information display may be
malfunctioning
Does not sound
• Indicates a condition, such as malfunction of electri-
cal components, their condition, or indicates the
need for maintenance
• Indicates a situation, such as when an operation has
been performed incorrectly, or indicates how to per-
form an operation correctly

5217-2. Steps to take in an emergency
GX460_OM_OM60R27U_(U)
7
When trouble arises
■Warning messages
The warning messages explained below may di ffer from the actual messages according
to operation conditions an d vehicle specifications.
■Warning buzzer
In some cases, the buzzer ma y not be heard due to being in a noisy location or audio
sound.
■If “ENGINE OIL LOW”/“Engine Oil Level Low Add or Replace” is shown
The engine oil level is low. Check the level of the engine oil, and add if necessary.
This message may appear if the vehicle is stopped on a slope. Move the vehicle to a level
surface and check to see if the message disappears.
■If “AUTO POWER OFF TO CONSERVE BATTE RY”/“Auto power off to conserve bat-
tery” is shown
Power was turned off due to the automatic power off function. Next time when starting
the engine, increase the engine speed slightly and maintain that level for approximately 5
minutes to recharge the battery.
■If “ENGINE OIL PRES SURE LOW”/“Oil Pressure Low Stop in a Safe Place See
Owner’s Manual” is shown
Indicates abnormal engine oil pressure.
Immediately stop the vehicle in a safe place and contact your Lexus dealer. Continuing to
drive the vehicle may be dangerous.
■If “HIGH TRANSMISSION FLUID TEMPERAT URE”/“High Transmission Fluid Temp
See Owner’s Manual” is shown.
It indicates that the automatic transmission fluid temperature is too high.
Immediately stop the vehicle in a safe place, shift the shift lever to P and wait until the
warning message disappear. If the warning message disappears, you may start the vehi-
cle again. If the warning message does not disappear, contact your Lexus dealer.
■If “Check Transmissi on System” is shown.
The automatic transmission system is malfunctioning.
Have the vehicle inspected by your Lexus dealer.
■If “ACCELERATOR AND BRAKE PEDA LS DEPRESSED SIMULTANEOUSLY”/
“Accelerator and Brake Pedals Pressed Simultaneously” is shown on the multi-informa-
tion display
The accelerator and brake pedal are being depressed simultaneously. ( P. 165)
Release the accelerator pedal and depress the brake pedal.
■If “HEADLIGHT SYSTEM MALFUNCTION VISIT YOUR DEALER”/“Headlight Sys-
tem Malfunction Visit Your Dealer” is displayed
The following systems may be malfunctioning. Have the vehicle inspected by your Lexus
dealer immediately.
●The LED headlight system
●The automatic headlight leveling system
●Automatic High Beam

5227-2. Steps to take in an emergency
GX460_OM_OM60R27U_(U)
■If “Front Camera Unavailable” or “Front Camera Unavailable See Owner’s Manual” is
displayed
The following systems may be suspended until the problem shown in the message is
resolved. (P. 234, 511)
●PCS (Pre-Collision System)
●LDA (Lane Departure Alert)
●Automatic High Beam
●Dynamic radar cruise control
■If “Radar Cruise Control Unavailable” is shown
The dynamic radar cruise control sy stem cannot be used temporarily.
Use the system when it becomes available again.
■If “Maintenance Required Soon” is shown (U.S.A. only)
Indicates that all maintenance according to the driven distance on the maintenance
schedule
* should be performed s oon. Comes on approximatel y 4500 miles (7200 km)
after the message has been reset. If necessary, perform main tenance. Please reset the
message after the maintenance is performed. ( P. 441)
*: Refer to the separate “Scheduled Maintena nce” or “Owner’s Manual Supplement” for
the maintenance interval applicable to your vehicle.
■If “Maintenance Required Visit Your Dealer” is shown (U.S.A. only)
Indicates that all maintenance is required to correspond to the driven distance on the
maintenance schedule
*.
Comes on approximately 5000 miles (8000 km) after the message has been reset.
(The indicator will not work properly unless the message has been reset.) Perform the
necessary maintenance. Please reset the message after the maintenance is performed.
(  P. 441)
*: Refer to the separate “Scheduled Maintena nce” or “Owner’s Manual Supplement” for
the maintenance interval applicable to your vehicle.
■If “Oil Maintenance Required Soon” is shown
Indicates that the engine oil should be scheduled to be changed.
Check the engine oil and change it if necessa ry. After changing the engine oil, make sure
to reset the message. ( P. 454)
■If “OIL MAINTENANCE REQU IRED” “Oil Maintenance Required Visit Your Dealer”
is shown
Indicates that the engine oil should be scheduled to be changed.
Check and change the engine o il, and oil filter by your Lexus dealer. After changing the
engine oil, make sure to reset the message. ( P. 454)
■If “Check Access System with Elec. Key” is shown
The smart access system with push-button star t may be malfunctioning. Have the vehicle
inspected by your Lexus dealer immediately.

5237-2. Steps to take in an emergency
GX460_OM_OM60R27U_(U)
7
When trouble arises
■If “SEE OWNER’S MANUAL”/“See Owner’s Manual” is shown
●If any of the following messages are shown on the multi-information display, follow the
instructions.
• “Engine Coolant Temp High” ( P. 546)
●If any of the following messages are shown on the multi-information display, it may indi-
cate a malfunction. Immediately stop the vehicle and contact your Lexus dealer.
• “BRAKING POWER LOW”/“Braking Power Low”
• “Charging System Malfunction”
■If a following message is shown, take appropriate action and confirm that the message
has disappeared. ( P. 344) (if equipped)
●“CRAWL NOT AVAILABLE SELECT L4 AND SHIFT TO D OR R POSITION”/
“Crawl Not Available Select L4 and Shift to D or R Position”
●“CRAWL NOT AVAILABLE CHECK SYSTEM OPERATION CONDITIONS”/
“Crawl Not Available Check System Operation Conditions”
■If “VISIT YOUR DEALER”/“Visit Your Dealer” or “CHECKED BY A DEALER”/
“checked by a dealer” is shown
The system or part shown on the multi-info rmation display is malfunctioning. Have the
vehicle inspected by your Lexus dealer immediately.
