1. Remote Touch ............................................... 12
2. “Menu” SCREEN ......................................... 14
STATUS DISPLAY...................................................... 16
1. “Setup” SCREEN ......................................... 18
2. “Information” SCREEN............................. 20
1. REGISTERING HOME............................ 22
2. REGISTERING QUICK ACCESS....... 23
3. OPERATION FLOW: GUIDING THE ROUTE ....................... 24
4. SETTING HOME AS THE DESTINATION ........................................ 25
1. FUNCTION INDEX .................................. 26
1BASIC FUNCTION
2QUICK REFERENCE
3NAVIGATION OPERATION
4FUNCTION INDEX
QUICK GUIDE
Page 12 of 342
12
IS_NAVI_EE
1. BASIC FUNCTION

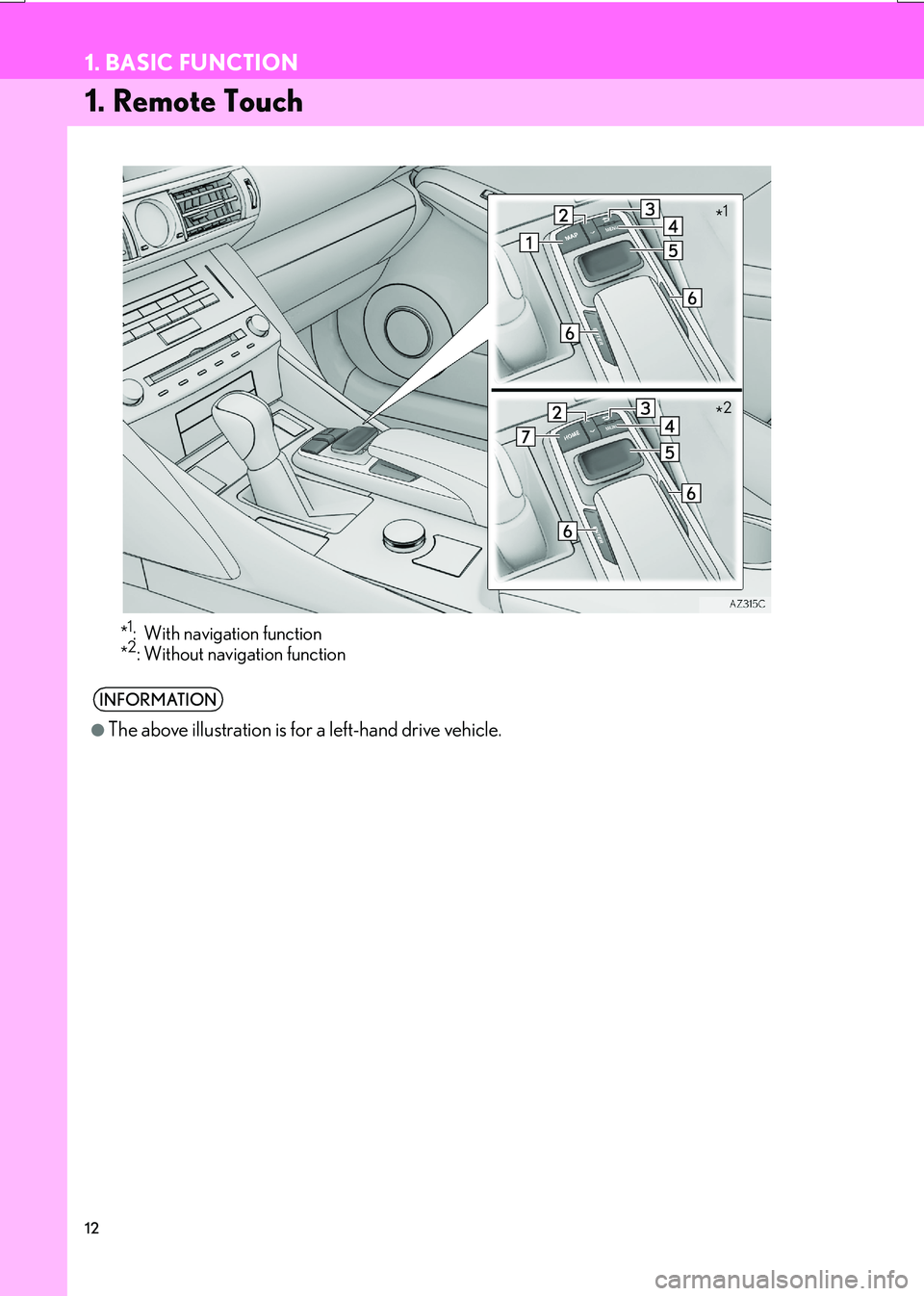

1. Remote Touch
*1: With navigation function
*2: Without navigation function
INFORMATION
●
The above illustration is for a left-hand drive vehicle.
*1
*2
Page 13 of 342
13
1. BASIC FUNCTION
IS_NAVI_EE
QUICK GUIDE
1No.NameFunctionPage
“MAP” button
Press to display the current position, cancel the
screen scroll, start guidance, and repeat a voice
guidance.
80, 84
“·” buttonPress to scroll the list screen and to change the
scale of the map*.32, 35, 84
Back buttonPress to display the previous screen.32
“MENU” buttonPress to display the “Menu” screen.14
Remote Touch
knobMove in the desired direction to select a function,
letter and screen button.
Press to enter the selected function, letter or
screen button.
32
“ENTER” buttonPress to enter the selected function, letter or
screen button.32
“HOME” buttonPress to display the compass mode screen.
*: With navigation function
Page 14 of 342
14
1. BASIC FUNCTION
IS_NAVI_EE
2. “Menu” SCREEN

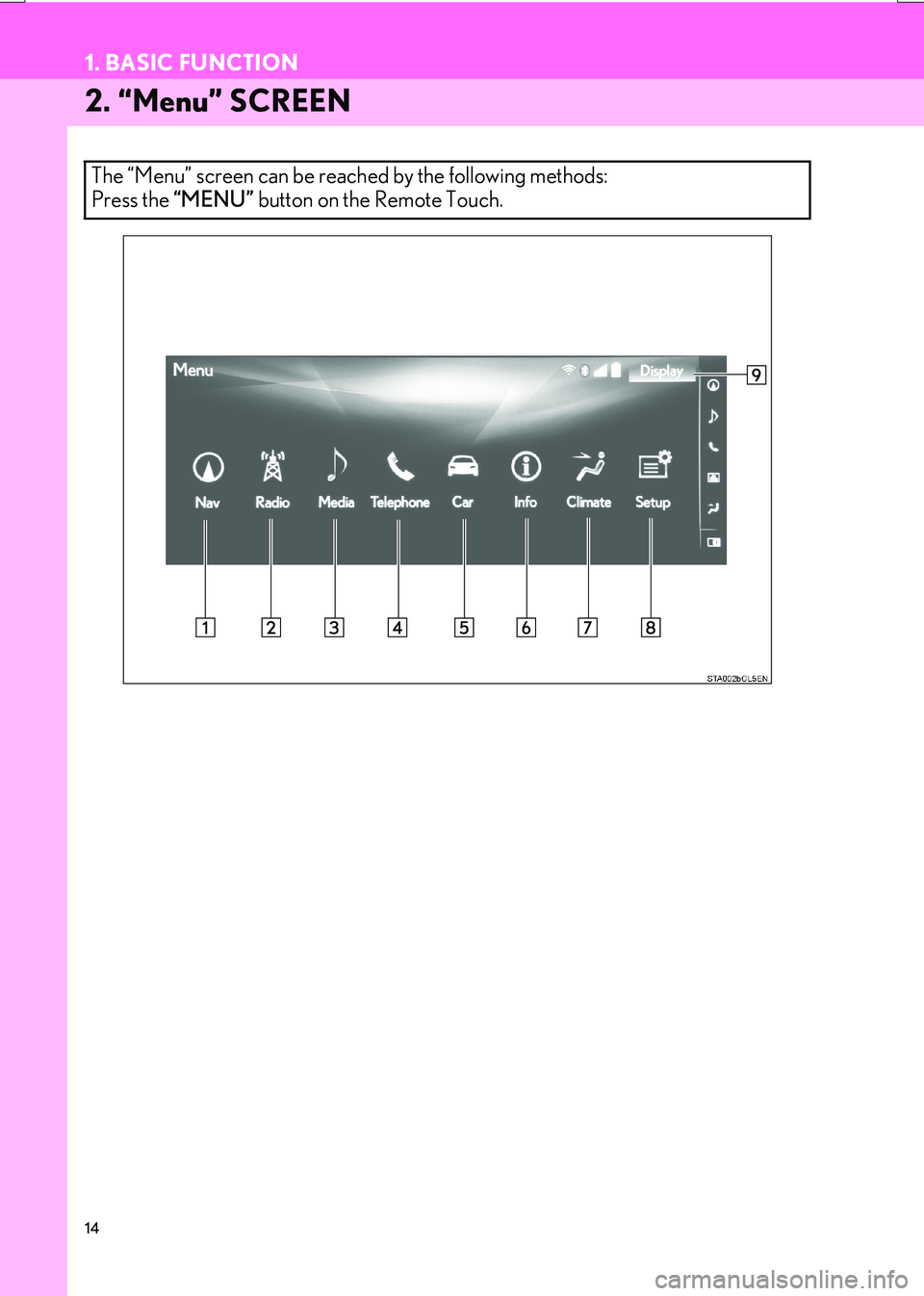

The “Menu” screen can be reached by the following methods:
Press the “MENU” button on the Remote Touch.
Page 15 of 342
15
1. BASIC FUNCTION
IS_NAVI_EE
QUICK GUIDE
1No.FunctionPage
*Select to display the map screen or the navigation menu screen.80, 82
Select to display the radio control screen.
156
Select to display the media control screen.
Select to display the hands-free operation screen.258
Select to display the energy monitor or fuel consumption screen.“Owner’s Manual”
Select to display the “Information” screen.20
Select to display the air conditioning control screen.“Owner’s Manual”
Select to display the “Setup” screen.18
Select to adjust the contrast and brightness of the screens, turn the
screen off, etc.38
*: With navigation function
INFORMATION
●
When the split-screen display is selected, the “Menu” screen will be displayed on the “Main
Display”. ( →P. 3 2 3 )
Page 16 of 342
16
1. BASIC FUNCTION
IS_NAVI_EE
STATUS DISPLAY
The condition of the Wi-Fi® and Bluetooth® connection, as well as the level of recep-
tion and the amount of cellular phone battery charge left, are displayed on the status
bar. This status bar is shown on all modes. (To turn the status bar off: →P.65)
No.IndicatorsConditions
The level of Wi-Fi®
receptionNo connection Poor Excellent
•When Wi-Fi® function is off, no item is displayed.
The condition of the
Bluetooth® connec-
tion
(Gray) (Blue)
No connection Poor Good
• An antenna for the Bluetooth® connection is built into the
instrument panel. The condition of the Bluetooth® connection
may deteriorate and the system may not function when a
Bluetooth
® phone is used in the following conditions and/or
places:
The cellular phone is obstructed by certain objects (such as
when it is behind the seat or in the glove box or console box).
The cellular phone is touching or is covered with metal materi-
als.
• Leave the Bluetooth
® phone in a place where the condition of
the Bluetooth® connection is good.
Page 17 of 342
17
1. BASIC FUNCTION
IS_NAVI_EE
QUICK GUIDE
1
The level of recep-
tion
Poor Excellent
•The level of reception does not always correspond with the
level displayed on the cellular phone. The level of reception
may not be displayed depending on the telephone you have.
When the cellular phone is out of the service area or in a place
inaccessible by radio waves, “No Service” is displayed.
• “Rm” is displayed when receiving in a roaming area. While
roaming, display “Rm” top-left on the icon.
• The receiving area may not be displayed depending on the
type of telephone you have.
The amount of bat-
tery charge left
Empty Full
•The amount displayed does not always correspond with the
amount displayed on the Bluetooth
® device.
The amount of battery charge left may not be displayed
depending on the type of the Bluetooth
® device connected.
This system does not have a charging function.
No.IndicatorsConditions
Page 18 of 342
18
IS_NAVI_EE
2. QUICK REFERENCE
1. “Setup” SCREEN

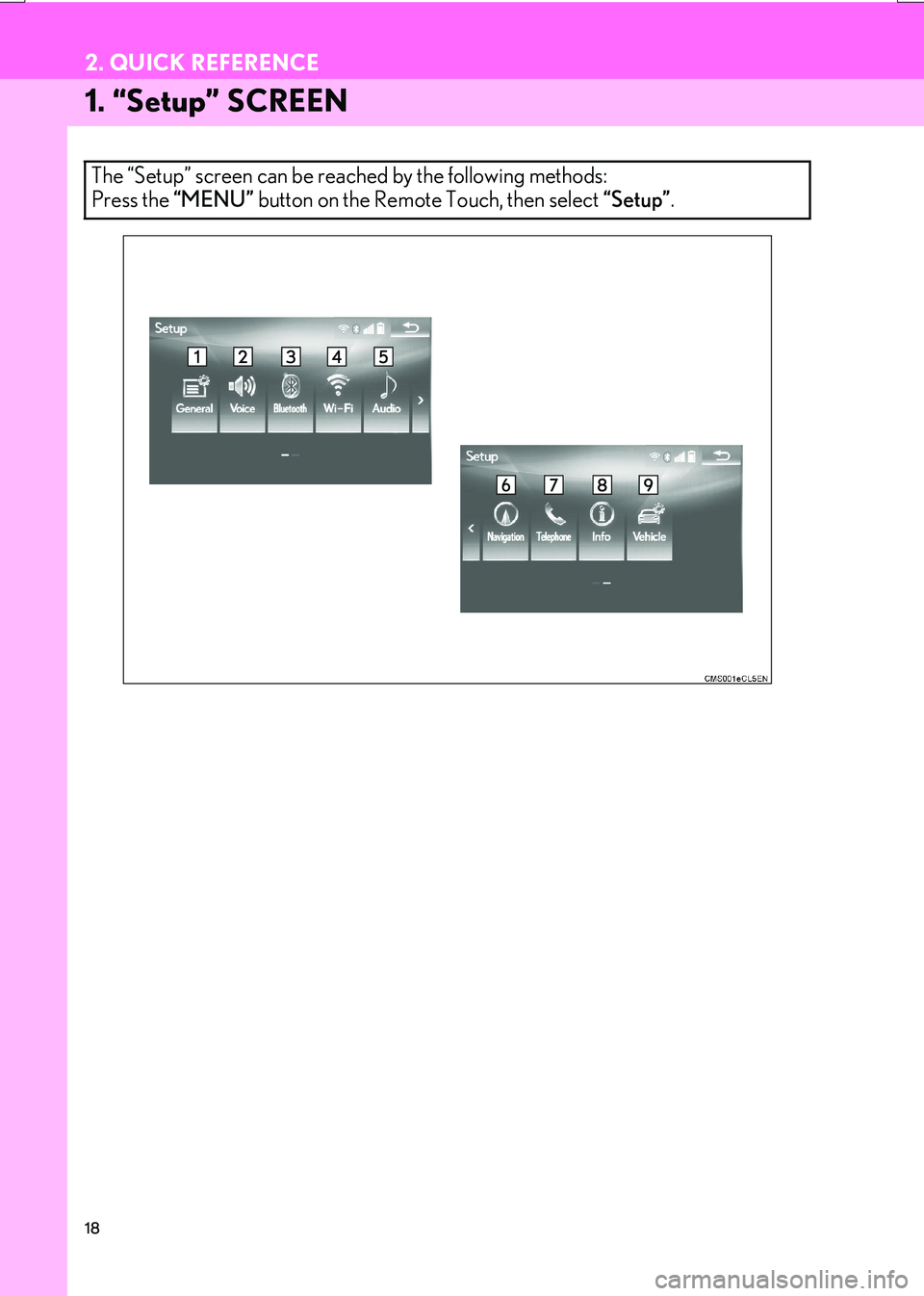

The “Setup” screen can be reached by the following methods:
Press the “MENU” button on the Remote Touch, then select “Setup”.
Page 19 of 342
19
2. QUICK REFERENCE
IS_NAVI_EE
QUICK GUIDE
1No.FunctionPage
Select to change the selected language, operation sound, automatic
screen change settings, etc.65
Select to set the voice guidance settings.72
Select to set Bluetooth® phones and Bluetooth® audio devices.46
*Select to set Wi-Fi® connection settings.60
Select to set radio and external media settings.199
*Select to access the page which enables the setting of the average
speed, displayed screen contents, POI categories, etc.138
Select to set the telephone sound, contacts, message settings, etc.279
*Select to set traffic information and parking information.142
Select to set vehicle information such as maintenance information.73
*: With navigation function
Page 20 of 342
20
2. QUICK REFERENCE
IS_NAVI_EE
2. “Information” SCREEN

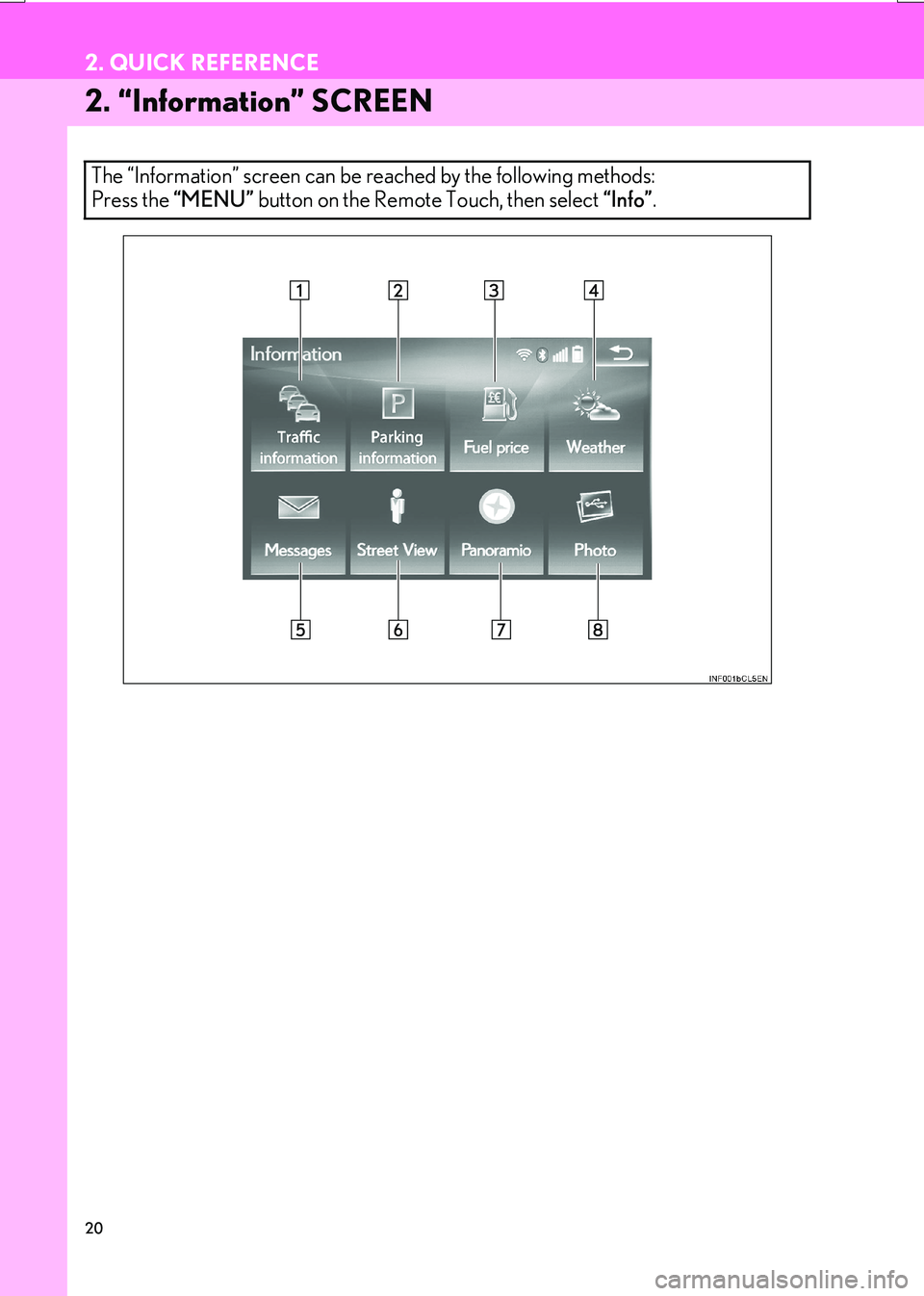

The “Information” screen can be reached by the following methods:
Press the “MENU” button on the Remote Touch, then select “Info”.
