4816-5. Using the other interior features
6
Interior features
IS200t_EE(OM53D77E)
■Emergency Assistance Button (“SOS”)
In the event of an emergency, push the “SOS” button to reach the Public
Safety Answering Point (PSAP). The answering agent will determine your
vehicle's location, assess the emergency, and dispatch the necessary assis-
tance required.
If you accidentally press the “SOS” button, tell the agent that you are not experiencing
an emergency.
When the engine switch is turned to IGNITION ON mode, the red indicator
light will illuminate for 10 seconds and then the green indicator light will illumi-
nate for 2 seconds, indicating that the system is enabled. The indicator lights indi-
cate the following:
●If the green indicator light illuminates and stays on, the system is enabled.
●If the green indicator light flashes, an emergency call is being made (either
automatically or manually).
●If no indicator lights illuminate, the system is not enabled.
●If the red indicator light illuminates any time other than immediately after the
engine switch is turned to IGNITION ON mode, the system may be malfunc-
tioning or the backup battery may be depleted. Contact any authorized Lexus
retailer or Lexus authorized repairer, or any reliable repairer.
The service life of the backup battery is 3 years or more.
Indicator lights

4826-5. Using the other interior features
IS200t_EE(OM53D77E)
WARNING
■When the Emergency Call may not be made
●Any of the followings may occur. In such cases, report to the Public Safety Answering
Point (PSAP) by other means such as nearby public phones.
• It may sometimes be difficult to connect to the public Safety Answering Point(PSAP) even in the reception area of the cellular phone due to the reception level,
or if the line is busy. In such cases, you may not be able to connect to the Public
Safety Answering Point (PSAP) and thus w ill not be able to make emergency calls
and report to the emergency departments even though the system tries to con-
nect to the Public Safety Answering Point (PSAP).
• When the vehicle is out of the cellular phone service area, the Emergency Call cannot be made.
• When any related equipment (such as th e “SOS” button panel, indicator lights,
microphone, speaker, DCM, antenna, or any wires connecting the equipment.)
has an abnormality, is damaged or broken, the Emergency Call cannot be made.
• During the Emergency Call, the system makes repeated attempts to connect to
the Public Safety Answering Point (PSAP). However, if it cannot connect to the
Public Safety Answering Point (PSAP) due to poor radio wave reception, the sys-
tem may not be able to connect to the cellular network and the call may finish with-
out connecting. The red indicator light will blink for approximately 30 seconds to
indicate this disconnection.
• This device may not function if a shock is applied to it.
●If the battery's voltage decreases or there is a disconnection, the system may not be
able to access the Public Safety Answering Point (PSAP).
■When replacing DCM to a new one
●ERA-GLONASS have to be activated. Contact any authorized Lexus retailer or
Lexus authorized repairer, or any reliable repairer.

4836-5. Using the other interior features
6
Interior features
IS200t_EE(OM53D77E)

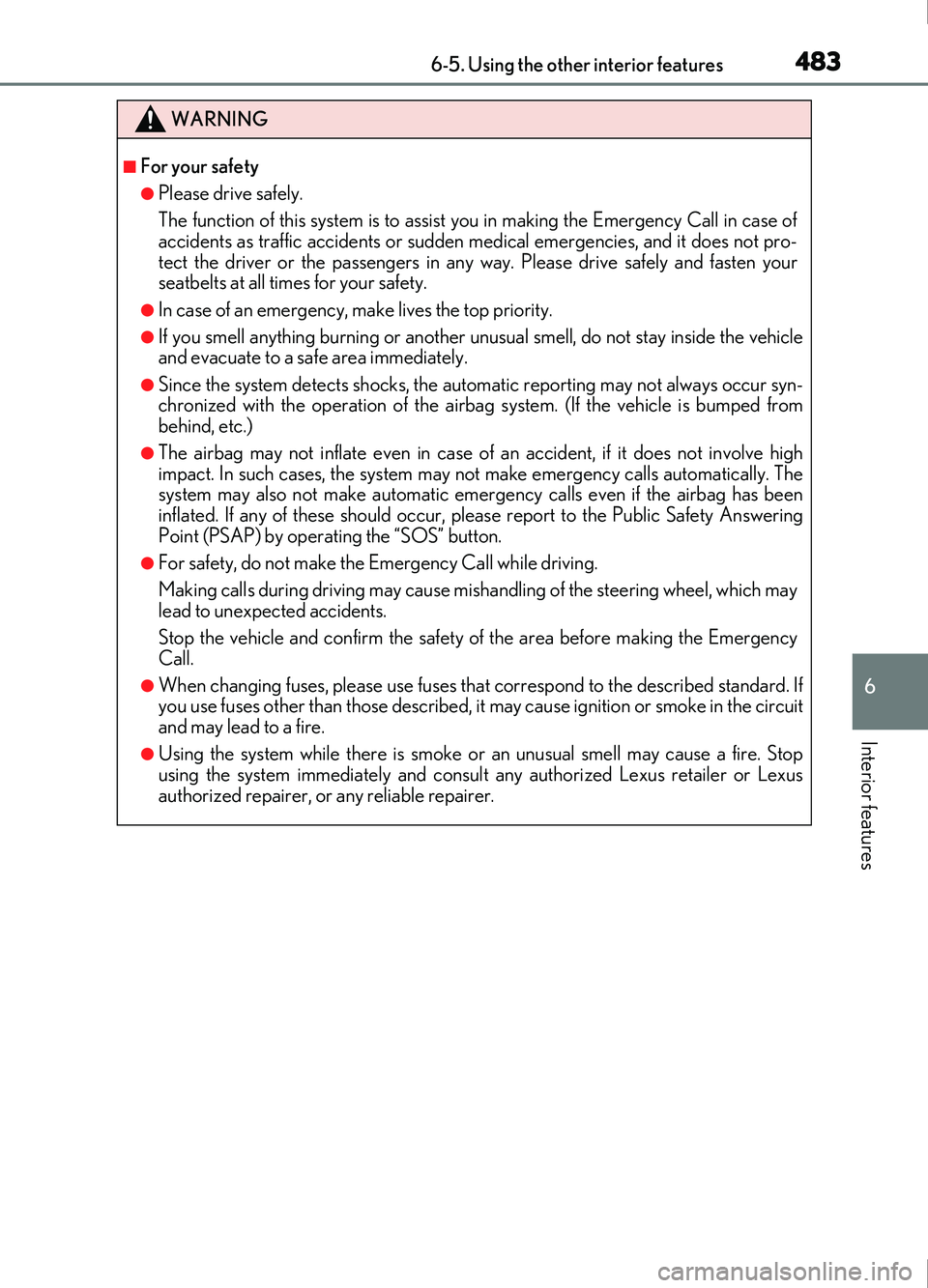

WARNING
■For your safety
●Please drive safely.
The function of this system is to assist you in making the Emergency Call in case of
accidents as traffic accidents or sudden medical emergencies, and it does not pro-
tect the driver or the passengers in any way. Please drive safely and fasten your
seatbelts at all times for your safety.
●In case of an emergency, make lives the top priority.
●If you smell anything burning or another unus ual smell, do not stay inside the vehicle
and evacuate to a safe area immediately.
●Since the system detects shocks, the automatic reporting may not always occur syn-
chronized with the operation of the airbag system. (If the vehicle is bumped from
behind, etc.)
●The airbag may not inflate even in case of an accident, if it does not involve high
impact. In such cases, the system may not make emergency calls automatically. The
system may also not make automatic emer gency calls even if the airbag has been
inflated. If any of these should occur, plea se report to the Public Safety Answering
Point (PSAP) by operating the “SOS” button.
●For safety, do not make the Emergency Call while driving.
Making calls during driving may cause mi shandling of the steering wheel, which may
lead to unexpected accidents.
Stop the vehicle and confirm the safety of the area before making the Emergency
Call.
●When changing fuses, please use fuses that correspond to the described standard. If
you use fuses other than those described, it may cause ignition or smoke in the circuit
and may lead to a fire.
●Using the system while there is smoke or an unusual smell may cause a fire. Stop
using the system immediately and consult any authorized Lexus retailer or Lexus
authorized repairer, or any reliable repairer.

4846-5. Using the other interior features
IS200t_EE(OM53D77E)

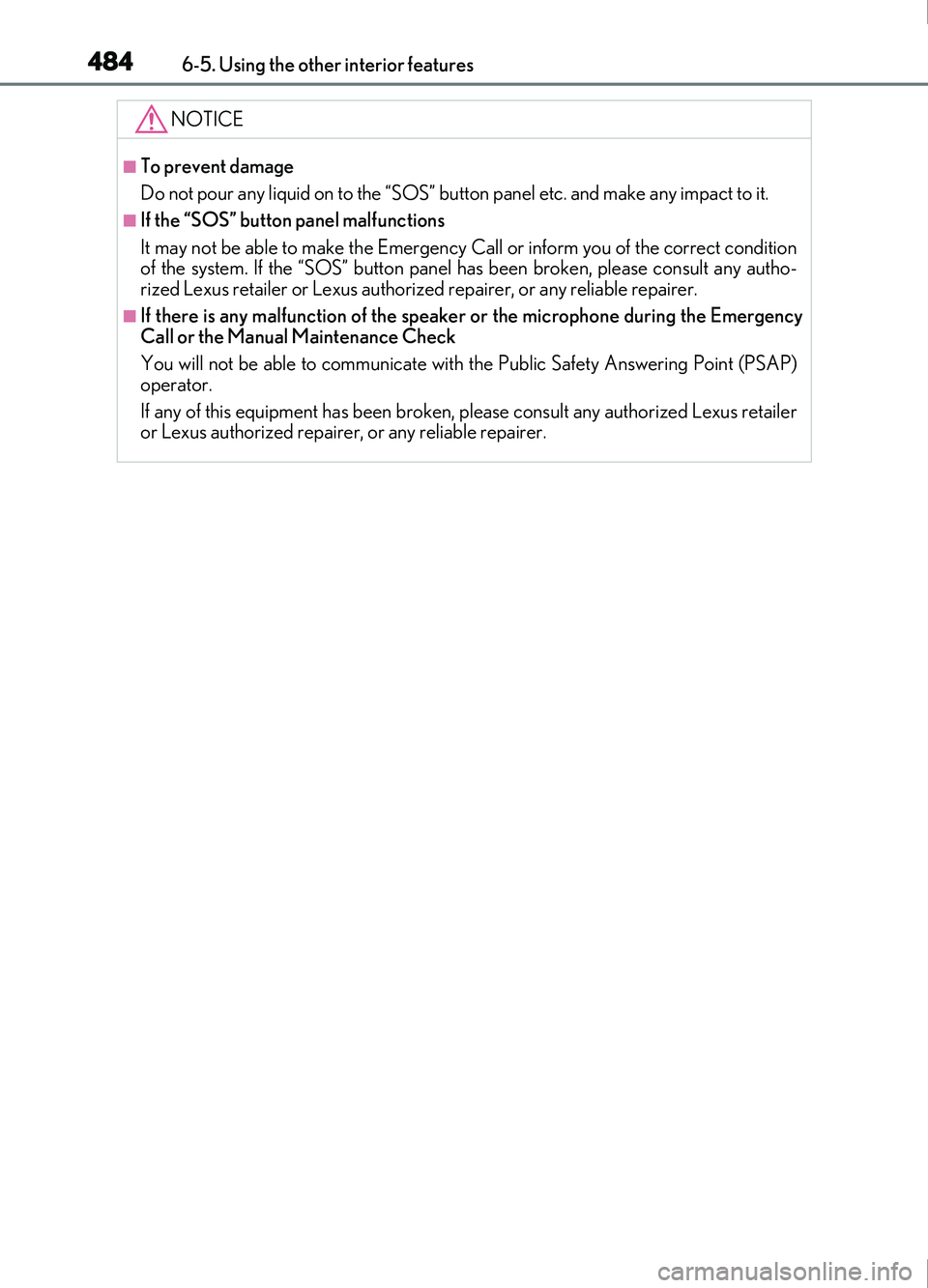

NOTICE
■To prevent damage
Do not pour any liquid on to the “SOS” button panel etc. and make any impact to it.
■If the “SOS” button panel malfunctions
It may not be able to make the Emergency Call or inform you of the correct condition
of the system. If the “SOS” button panel has been broken, please consult any autho-
rized Lexus retailer or Lexus authorized repairer, or any reliable repairer.
■If there is any malfunction of the speaker or the microphone during the Emergency
Call or the Manual Maintenance Check
You will not be able to communicate with the Public Safety Answering Point (PSAP)
operator.
If any of this equipment has been broken, please consult any authorized Lexus retailer
or Lexus authorized repairer, or any reliable repairer.

485
7Maintenance and care
IS200t_EE(OM53D77E)
7-1. Maintenance and careCleaning and protecting the vehicle exterior ................486
Cleaning and protecting the vehicle interior..................490
7-2. Maintenance Maintenance requirements ............................ 493
7-3. Do-it-yourself maintenance
Do-it-yourself service precautions................................ 495
Hood ............................................... 497
Positioning a floor jack ............498
Engine compartment ............... 499
Tires .................................................509
Tire inflation pressure ............... 521
Wheels ........................................... 523
Air conditioning filter ............... 525
Electronic key battery.............. 527
Checking and replacing fuses..............................................530
Light bulbs..................................... 534

486

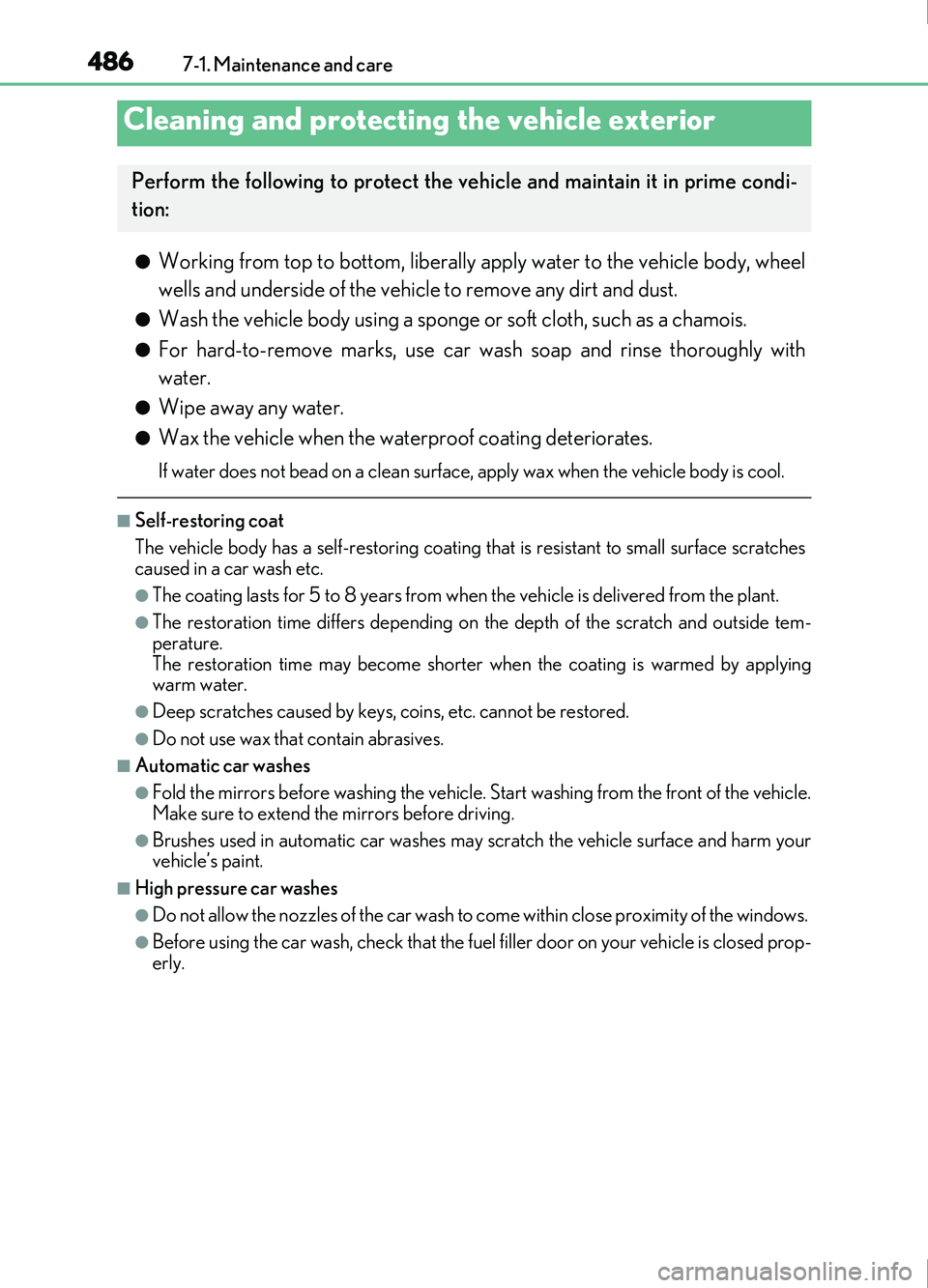

IS200t_EE(OM53D77E)7-1. Maintenance and care
●Working from top to bottom, liberally
apply water to the vehicle body, wheel
wells and underside of the vehicle to remove any dirt and dust.
●Wash the vehicle body using a sponge or soft cloth, such as a chamois.
●For hard-to-remove marks, use car wash soap and rinse thoroughly with
water.
●Wipe away any water.
●Wax the vehicle when the waterproof coating deteriorates.
If water does not bead on a clean surface, apply wax when the vehicle body is cool.
■Self-restoring coat
The vehicle body has a self-restoring coating that is resistant to small surface scratches
caused in a car wash etc.
●The coating lasts for 5 to 8 years from when the vehicle is delivered from the plant.
●The restoration time differs depending on the depth of the scratch and outside tem-
perature.
The restoration time may become shorter when the coating is warmed by applying
warm water.
●Deep scratches caused by keys, coins, etc. cannot be restored.
●Do not use wax that contain abrasives.
■Automatic car washes
●Fold the mirrors before washing the vehicle. Start washing from the front of the vehicle.
Make sure to extend th e mirrors before driving.
●Brushes used in automatic car washes may scratch the vehicle surface and harm your
vehicle’s paint.
■High pressure car washes
●Do not allow the nozzles of the car wash to come within close proximity of the windows.
●Before using the car wash, check that the fuel filler door on your vehicle is closed prop-
erly.
Cleaning and protecting the vehicle exterior
Perform the following to protect the vehicle and maintain it in prime condi-
tion:

4877-1. Maintenance and care
7
Maintenance and care
IS200t_EE(OM53D77E)

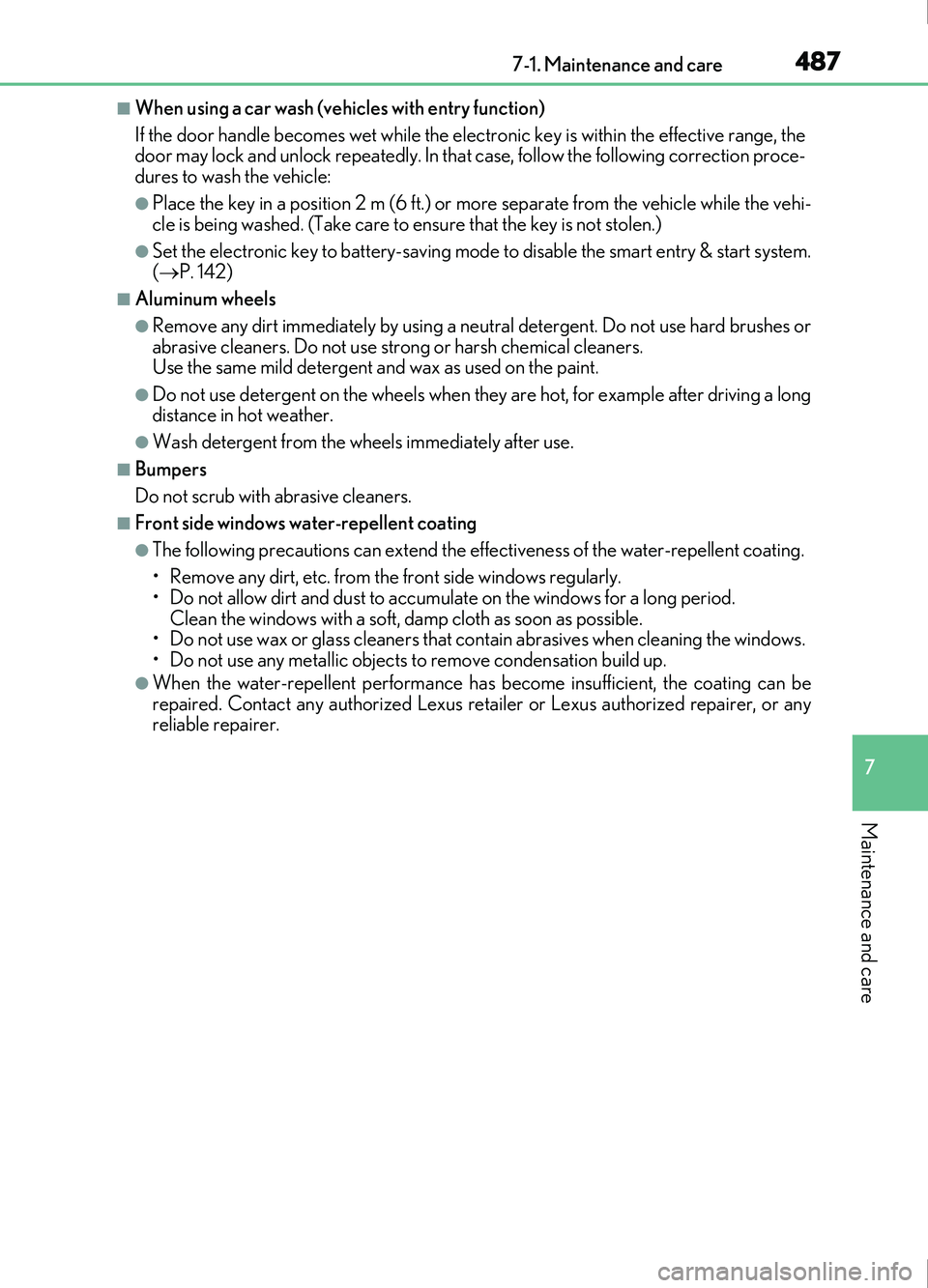

■When using a car wash (vehicles with entry function)
If the door handle becomes wet while the electronic key is within the effective range, the
door may lock and unlock repeatedly. In that case, follow the following correction proce-
dures to wash the vehicle:
●Place the key in a position 2 m (6 ft.) or more separate from the vehicle while the vehi-
cle is being washed. (Take care to ensure that the key is not stolen.)
●Set the electronic key to battery-saving mode to disable the smart entry & start system.
(  P. 142)
■Aluminum wheels
●Remove any dirt immediately by using a neutral detergent. Do not use hard brushes or
abrasive cleaners. Do not use strong or harsh chemical cleaners.
Use the same mild detergent and wax as used on the paint.
●Do not use detergent on the wheels when they are hot, for example after driving a long
distance in hot weather.
●Wash detergent from the wheels immediately after use.
■Bumpers
Do not scrub with abrasive cleaners.
■Front side windows water-repellent coating
●The following precautions can extend the effectiveness of the water-repellent coating.
• Remove any dirt, etc. from the front side windows regularly.
• Do not allow dirt and dust to accumulate on the windows for a long period.
Clean the windows with a soft, damp cloth as soon as possible.
• Do not use wax or glass cleaners that co ntain abrasives when cleaning the windows.
• Do not use any metallic objects to remove condensation build up.
●When the water-repellent performance has become insufficient, the coating can be
repaired. Contact any authorized Lexus reta iler or Lexus authorized repairer, or any
reliable repairer.

4887-1. Maintenance and care
IS200t_EE(OM53D77E)
WARNING
■When washing the vehicle
Do not apply water to the inside of the engine compartment. Doing so may cause the
electrical components etc. to catch fire.
■When cleaning the windshield (vehicles with rain-sensing windshield wipers)
●When the upper part of the windshield where the raindrop sensor is located is
touched by hand
●When a wet rag or similar is held close to the raindrop sensor
●If something bumps against the windshield
●If you directly touch the raindrop sensor body or if something bumps into the raindrop
sensor
■Precautions regarding the exhaust pipes
Exhaust gases cause the exhaust pipes to become quite hot.
When washing the vehicle, be careful not to touch the pipes until they have cooled suf-
ficiently, as touching hot exhaust pipes can cause burns.
■Precaution regarding the rear bumper with Blind Spot Monitor (if equipped)
If the paint of the rear bumper is chipped or scratched, the system may malfunction. If
this occurs, consult any authorized Lexus re tailer or Lexus authorized repairer, or any
reliable repairer.
Set the wipers to the intermittent windshield
wipers. ( P. 229)
If AUTO mode is selected, the wipers may
operate unexpectedly in the following situa-
tions, and may result in hands being caught or
other serious injuries and cause damage to the
wiper blades.

4897-1. Maintenance and care
7
Maintenance and care
IS200t_EE(OM53D77E)
NOTICE
■To prevent paint deterioration and corrosion on the body and components (aluminum
wheels etc.)
●Wash the vehicle immediately in the following cases:
• After driving near the sea coast
• After driving on salted roads
• If coal tar or tree sap is present on the paint surface
• If dead insects, insect droppings or bird droppings are present on the paint surface
• After driving in an area contaminated wi th soot, oily smoke, mine dust, iron pow-
der or chemical substances
• If the vehicle becomes heavily soiled with dust or mud
• If liquids such as benzene and gasoline are spilled on the paint surface
●If the paint is chipped or scratched, have it repaired immediately.
●To prevent the wheels from corroding, remove any dirt and store in a place with low
humidity when storing the wheels.
■Cleaning the exterior lights
●Wash carefully. Do not use organic subs tances or scrub with a hard brush.
This may damage the surfaces of the lights.
●Do not apply wax to the surfaces of the lights.
Wax may cause damage to the lenses.
■When using an automatic car wash (vehicle s with rain-sensing windshield wipers)
Set the wipers to the intermittent windshield wipers. ( P. 229)
If AUTO mode is selected, the wipers may operate and the wiper blades may be dam-
aged.
■When using a high pressure car wash
Do not bring the nozzle tip close to boots (rubber or resin manufactured cover), con-
nectors or the following parts. The parts ma y be damaged if they come into contact
with high-pressure water
• Traction related parts
• Steering parts •Suspension parts
• Brake parts

4907-1. Maintenance and care
IS200t_EE(OM53D77E)
●Remove dirt and dust using a vacuum cleaner. Wipe dirty surfaces with a cloth
dampened with lukewarm water.
●If dirt cannot be removed, wipe it off with a soft cloth dampened with neutral
detergent diluted to approximately 1%.
Wring out any excess water from the cloth and thoroughly wipe off remaining
traces of detergent and water.
●Remove dirt using a soft cloth or synthetic chamois dampened in a baking
soda (sodium bicarbonate) solution.
Use a solution of approximately 9% baking soda dissolved in water.
●Wipe the surface with a dry, soft cloth to remove any remaining moisture.
●Remove dirt and dust using a vacuum cleaner.
●Wipe off any excess dirt and dust with a soft cloth dampened with diluted
detergent.
Use a diluted water solution of approximately 5% neutral wool detergent.
●Wring out any excess water from the cloth and thoroughly wipe off all remain-
ing traces of detergent.
●Wipe the surface with a dry, soft cloth to remove any remaining moisture.
Allow the leather to dry in a shaded and ventilated area.
●Remove dirt and dust using a vacuum cleaner.
●Wipe it off with a soft cloth dampened with neutral detergent diluted to
approximately 1%.
●Wring out any excess water from the cloth and thoroughly wipe off remaining
traces of detergent and water.
Cleaning and protecting the vehicle interior
The following procedures will help prot ect your vehicle’s interior and keep it
in top condition:
Protecting the vehicle interior
Cleaning the areas with satin-finish metal accents
Cleaning the leather areas
Cleaning the synthetic leather areas
