4917-1. Maintenance and care
7
Maintenance and care
IS200t_EE(OM53D77E)

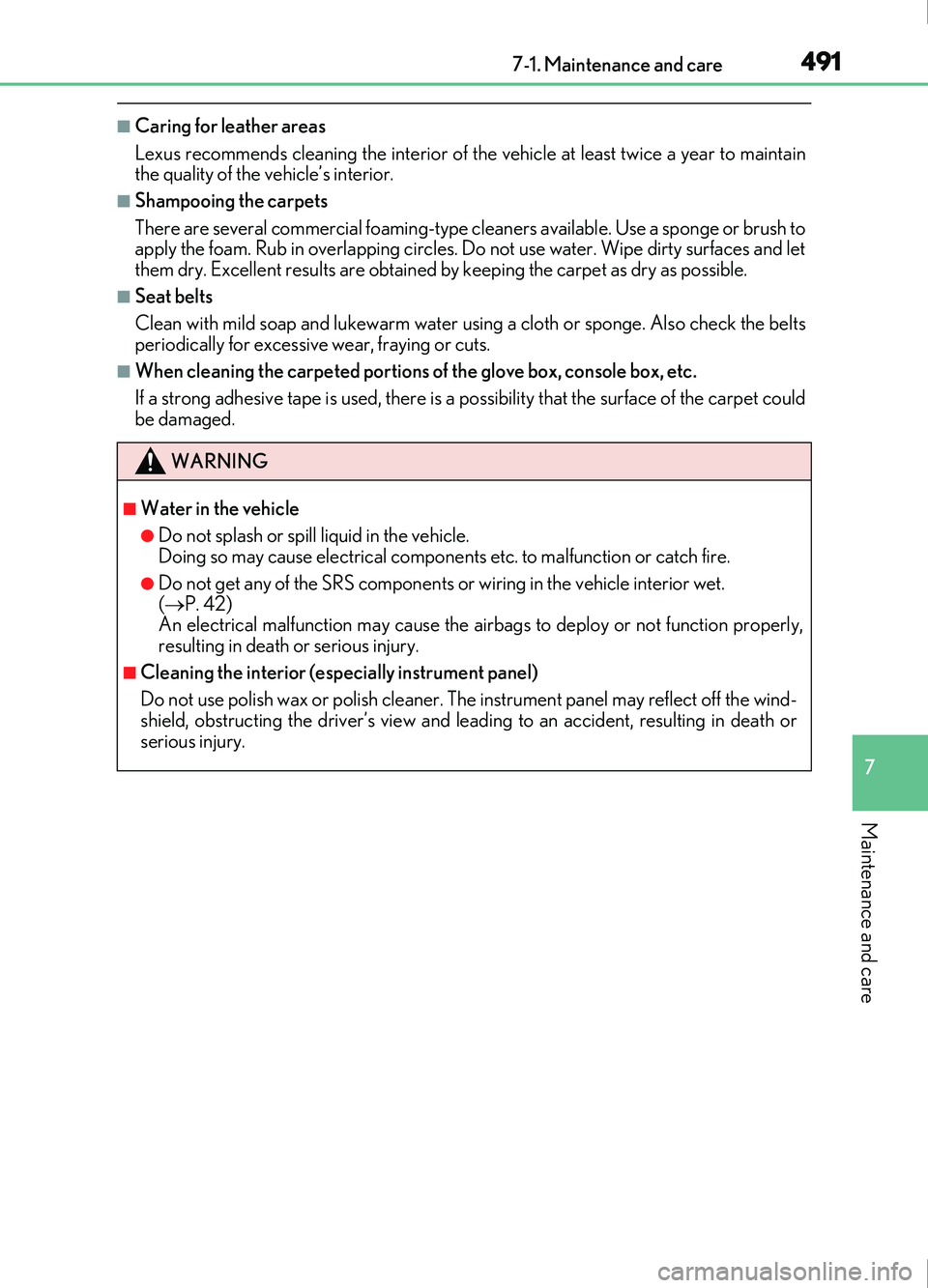

■Caring for leather areas
Lexus recommends cleaning the interior of the vehicle at least twice a year to maintain
the quality of the vehicle’s interior.
■Shampooing the carpets
There are several commercial foaming-type cleaners available. Use a sponge or brush to
apply the foam. Rub in overlapping circles. Do not use water. Wipe dirty surfaces and let
them dry. Excellent results are obtained by keeping the carpet as dry as possible.
■Seat belts
Clean with mild soap and lukewarm water us ing a cloth or sponge. Also check the belts
periodically for excessive wear, fraying or cuts.
■When cleaning the carpeted portions of the glove box, console box, etc.
If a strong adhesive tape is used, there is a possibility that the surface of the carpet could
be damaged.
WARNING
■Water in the vehicle
●Do not splash or spill liquid in the vehicle.
Doing so may cause electrical components etc. to malfunction or catch fire.
●Do not get any of the SRS components or wiring in the vehicle interior wet.
(  P. 42)
An electrical malfunction may cause the airbags to deploy or not function properly,
resulting in death or serious injury.
■Cleaning the interior (esp ecially instrument panel)
Do not use polish wax or polish cleaner. The instrument panel may reflect off the wind-
shield, obstructing the driver’s view and leading to an accident, resulting in death or
serious injury.

4927-1. Maintenance and care
IS200t_EE(OM53D77E)

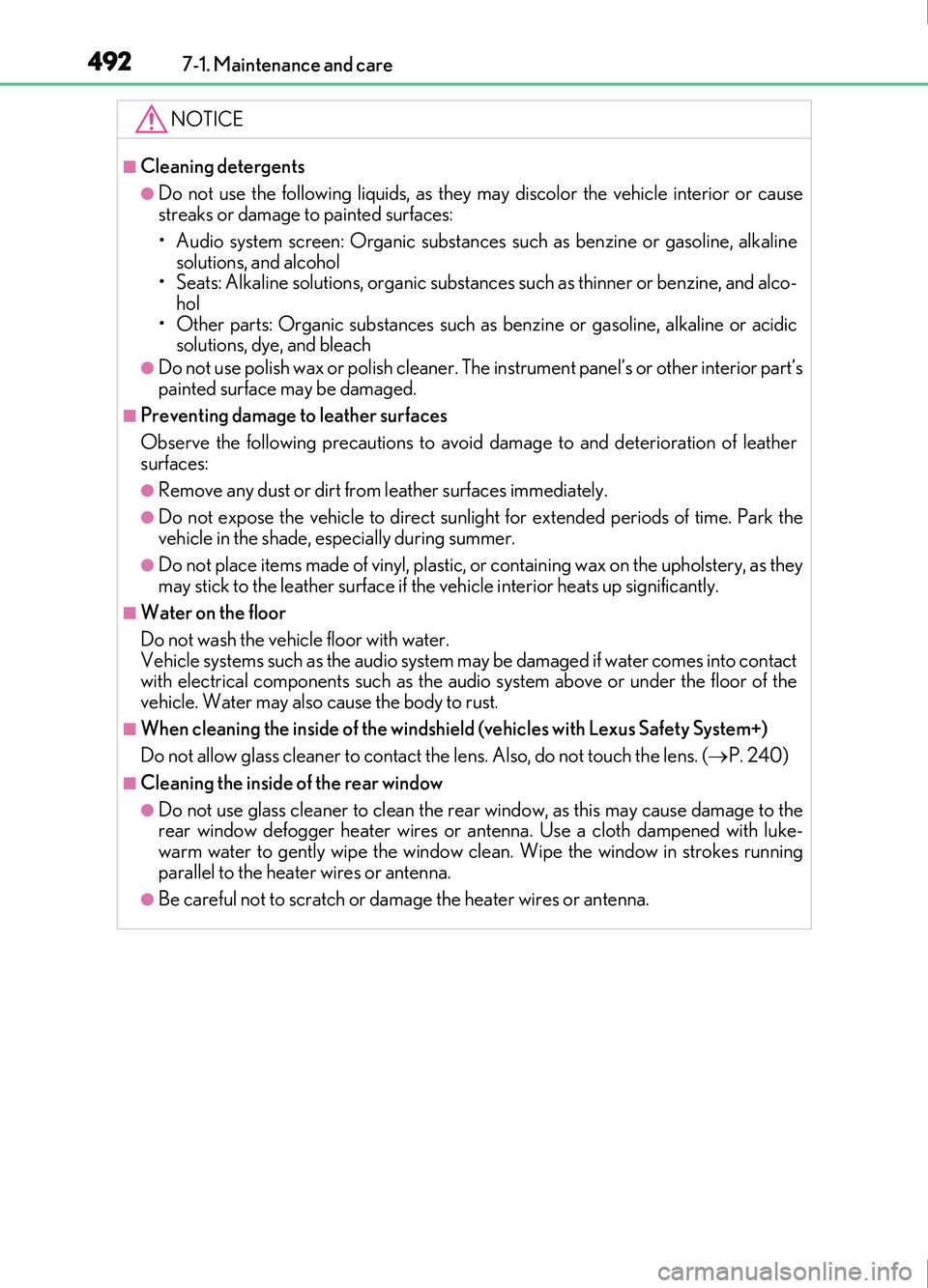

NOTICE
■Cleaning detergents
●Do not use the following liquids, as they may discolor the vehicle interior or cause
streaks or damage to painted surfaces:
• Audio system screen: Organic substances such as benzine or gasoline, alkaline
solutions, and alcohol
• Seats: Alkaline solutions, organic substances such as thinner or benzine, and alco-
hol
• Other parts: Organic substances such as benzine or gasoline, alkaline or acidic
solutions, dye, and bleach
●Do not use polish wax or polish cleaner. The instrument panel’s or other interior part’s
painted surface may be damaged.
■Preventing damage to leather surfaces
Observe the following precautions to avoid damage to and deterioration of leather
surfaces:
●Remove any dust or dirt from leather surfaces immediately.
●Do not expose the vehicle to direct sunlight for extended periods of time. Park the
vehicle in the shade, especially during summer.
●Do not place items made of vinyl, plastic, or containing wax on the upholstery, as they
may stick to the leather surface if the vehicle interior heats up significantly.
■Water on the floor
Do not wash the vehicle floor with water.
Vehicle systems such as the audio system may be damaged if water comes into contact
with electrical components such as the au dio system above or under the floor of the
vehicle. Water may also cause the body to rust.
■When cleaning the inside of the windshield (vehicles with Lexus Safety System+)
Do not allow glass cleaner to contact the lens. Also, do not touch the lens. ( P. 240)
■Cleaning the inside of the rear window
●Do not use glass cleaner to clean the rear window, as this may cause damage to the
rear window defogger heater wires or antenna. Use a cloth dampened with luke-
warm water to gently wipe the window clean. Wipe the window in strokes running
parallel to the heater wires or antenna.
●Be careful not to scratch or damage the heater wires or antenna.

493
7
Maintenance and care

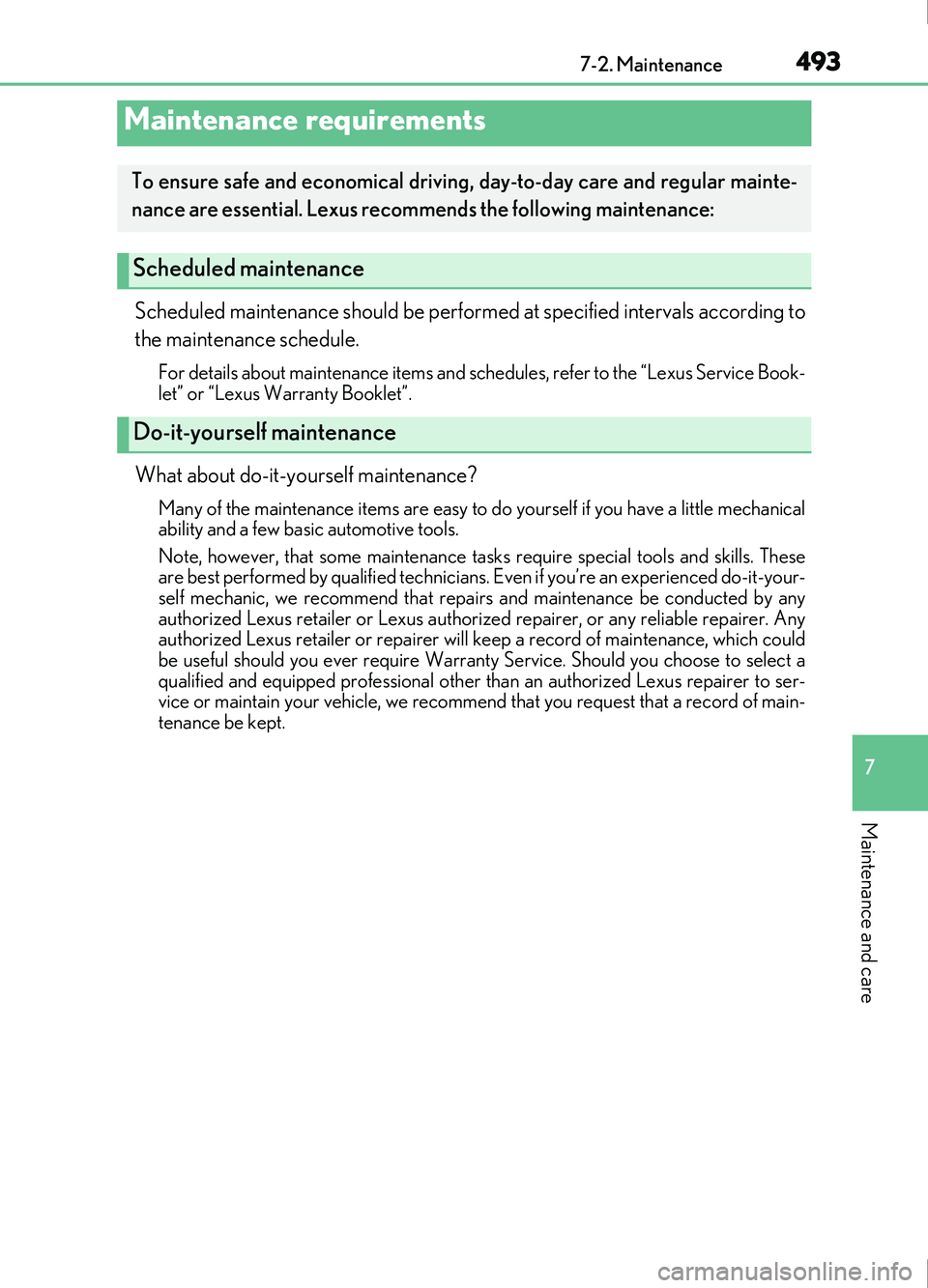

IS200t_EE(OM53D77E)7-2. Maintenance
Scheduled maintenance should be performed at specified intervals according to
the maintenance schedule.
For details about maintenance items and sche
dules, refer to the “Lexus Service Book-
let” or “Lexus Warranty Booklet”.
What about do-it-yourself maintenance?
Many of the maintenance items are easy to do yourself if you have a little mechanical
ability and a few basic automotive tools.
Note, however, that some maintenance task s require special tools and skills. These
are best performed by qualified technicians. Even if you’re an experienced do-it-your-
self mechanic, we recommend that repairs and maintenance be conducted by any
authorized Lexus retailer or Lexus authoriz ed repairer, or any reliable repairer. Any
authorized Lexus retailer or repairer will keep a record of maintenance, which could
be useful should you ever require Warranty Service. Should you choose to select a
qualified and equipped professional other than an authorized Lexus repairer to ser-
vice or maintain your vehicle, we recommend that you request that a record of main-
tenance be kept.
Maintenance requirements
To ensure safe and economical drivin g, day-to-day care and regular mainte-
nance are essential. Lexus recommends the following maintenance:
Scheduled maintenance
Do-it-yourself maintenance

4947-2. Maintenance
IS200t_EE(OM53D77E)
■Where to go for maintenance service?
In order to maintain your vehicle in the best possible condition, Lexus recommends that
maintenance service operations as well as ot her inspections and repairs be carried out
by authorized Lexus retailers or Lexus authoriz ed repairers, or any reliable repairers. For
repairs and services covered by your warranty, please visit an authorized Lexus retailer
or repairer, who will use genuine Lexus parts in repairing any difficulties you may
encounter. There can also be advantages in utilizing authorized Lexus retailer or repair-
ers for non-warranty repairs and services, as members of the Lexus network will be able
to expertly assist you with any difficulties you may encounter.
Your authorized Lexus retailer or Lexus author ized repairer, or any reliable repairer will
perform all of the scheduled maintenance on your vehicle reliably and economically due
to their experience with Lexus vehicles.
■Does your vehicle need repairs?
Be on the alert for changes in performance and sounds, and visual tip-offs that indicate
service is needed. Some important clues are:
●Engine missing, stumbling or pinging
●Appreciable loss of power
●Strange engine noises
●A fluid leak under the vehicle (However, water dripping from the air conditioning sys-
tem after use is normal.)
●Change in exhaust sound (This may indicate a dangerous carbon monoxide leak. Drive
with the windows open and have the exhaust system checked immediately.)
●Flat-looking tires, excessive tire squeal when cornering, uneven tire wear
●Vehicle pulls to one side when driven straight on a level road
●Strange noises related to suspension movement
●Loss of brake effectiveness, spongy feeling brake pedal, pedal almost touches the floor,
vehicle pulls to one side when braking
●Engine coolant temperature continually higher than normal ( P. 93)
If you notice any of these clues, take your vehicle to any authorized Lexus retailer or
Lexus authorized repairer, or any reliable repairer as soon as possible. Your vehicle may
need adjustment or repair.
WARNING
■If your vehicle is not properly maintained
Improper maintenance could result in serious damage to the vehicle and possible
death or serious injury.
■Handling of the battery
Battery posts, terminals and related accessories contain lead and lead compounds
which are known to cause brain damage. Wash your hands after handling. ( P. 505)

495
7
Maintenance and care
IS200t_EE(OM53D77E)7-3. Do-it-yourself maintenance
Do-it-yourself service precautions
If you perform maintenance by yourself, be sure to follow the correct proce-
dure as given in these sections.
ItemsParts and tools
Battery condition
(
 P. 505)•Warm water•Baking soda•Grease
• Conventional wrench (for terminal clamp bolts)
• Distilled water
Engine/intercooler
coolant level
( P. 503)
• “Toyota Super Long Life Coolant” or a similar high quality
ethylene glycol-based non-silicate, non-amine, non-nitrite
and non-borate coolant with long-life hybrid organic acid
technology
“Toyota Super Long Life Coolant” is pre-mixed with 50%
coolant and 50% deionized water.
• Funnel (used only for adding coolant)
Engine oil level
( P. 500)
• “Toyota Genuine Motor Oil” or equivalent
•Rag or paper towel
• Funnel (used only for adding engine oil)
Fuses
( P. 530)• Fuse with same amperage rating as original
Light bulbs
( P. 534)• Bulb with same number and wattage rating as original
• Phillips-head screwdriver• Flathead screwdriver
•Wrench
Radiator, condenser
and intercooler radi-
ator
( P. 504)

Tire inflation
pressure
( P. 521)• Tire pressure gauge• Compressed air source
Washer fluid
( P. 508)• Water or washer fluid containing antifreeze (for winter use)
• Funnel (used only for adding water or washer fluid)

4967-3. Do-it-yourself maintenance
IS200t_EE(OM53D77E)

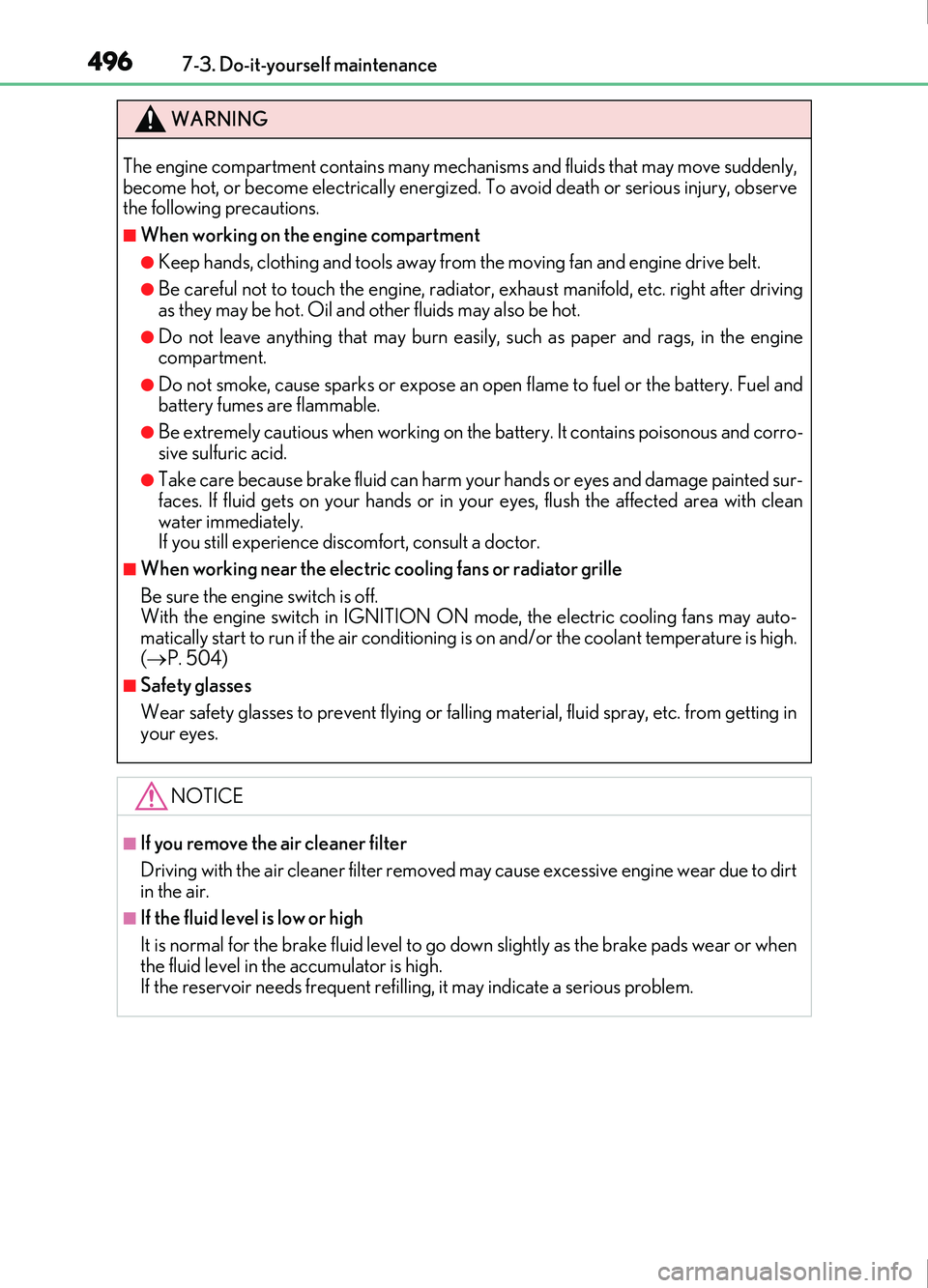

WARNING
The engine compartment contains many mechanisms and fluids that may move suddenly,
become hot, or become electrically energized. To avoid death or serious injury, observe
the following precautions.
■When working on the engine compartment
●Keep hands, clothing and tools away from the moving fan and engine drive belt.
●Be careful not to touch the engine, radiator, exhaust manifold, etc. right after driving
as they may be hot. Oil and other fluids may also be hot.
●Do not leave anything that may burn easily, such as paper and rags, in the engine
compartment.
●Do not smoke, cause sparks or expose an open flame to fuel or the battery. Fuel and
battery fumes are flammable.
●Be extremely cautious when working on the battery. It contains poisonous and corro-
sive sulfuric acid.
●Take care because brake fluid can harm your hands or eyes and damage painted sur-
faces. If fluid gets on your hands or in your eyes, flush the affected area with clean
water immediately.
If you still experience discomfort, consult a doctor.
■When working near the electric cooling fans or radiator grille
Be sure the engine switch is off.
With the engine switch in IGNITION ON mode, the electric cooling fans may auto-
matically start to run if the air conditioning is on and/or the coolant temperature is high.
(  P. 504)
■Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc. from getting in
your eyes.
NOTICE
■If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear due to dirt
in the air.
■If the fluid level is low or high
It is normal for the brake fluid level to go down slightly as the brake pads wear or when
the fluid level in the accumulator is high.
If the reservoir needs frequent refillin g, it may indicate a serious problem.

4977-3. Do-it-yourself maintenance
7
Maintenance and care
IS200t_EE(OM53D77E)

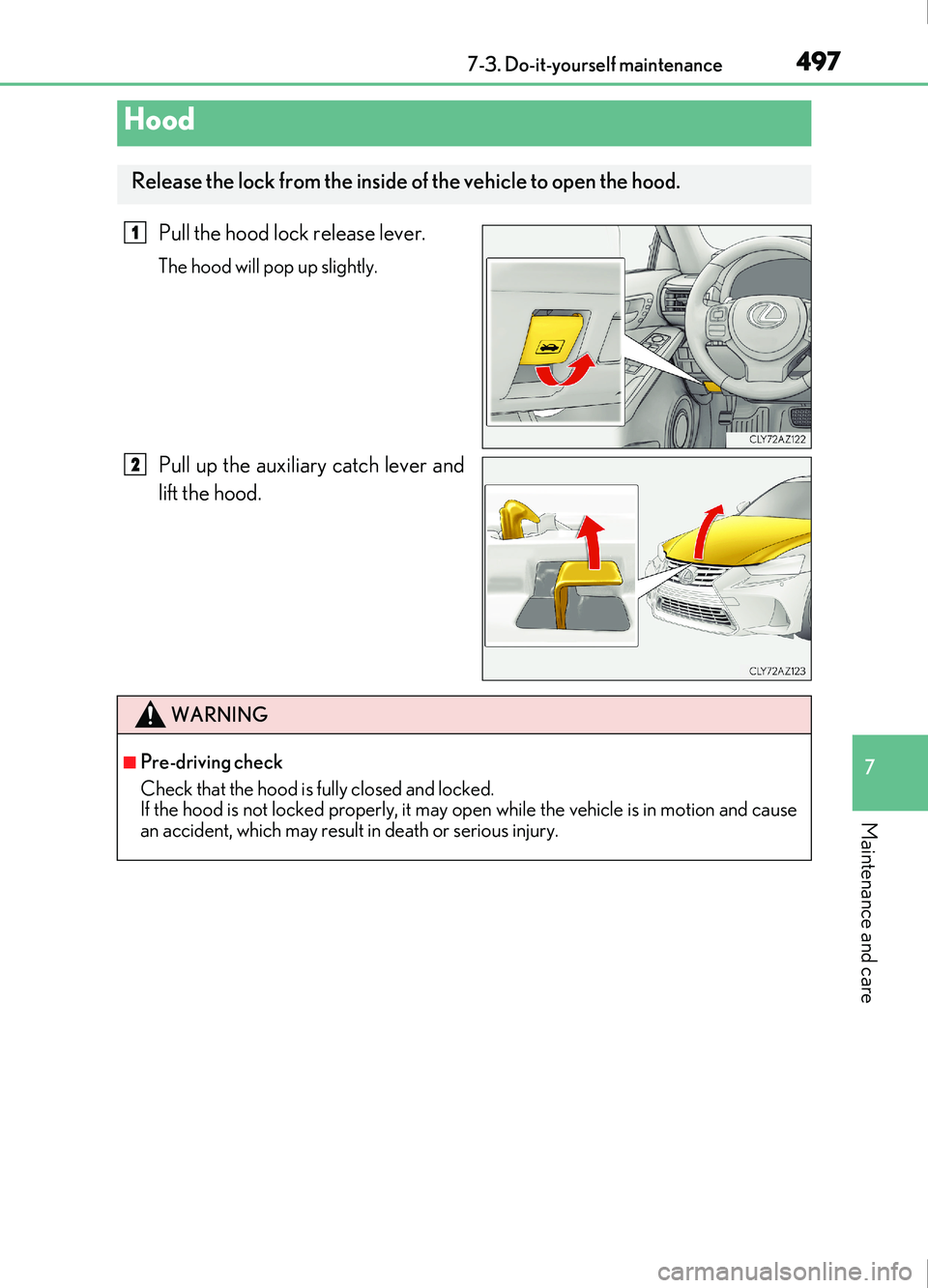

Pull the hood lock release lever.
The hood will pop up slightly.
Pull up the auxiliary catch lever and
lift the hood.
Hood
Release the lock from the inside of the vehicle to open the hood.
1
2
WARNING
■Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly, it may open while the vehicle is in motion and cause
an accident, which may result in death or serious injury.

4987-3. Do-it-yourself maintenance
IS200t_EE(OM53D77E)

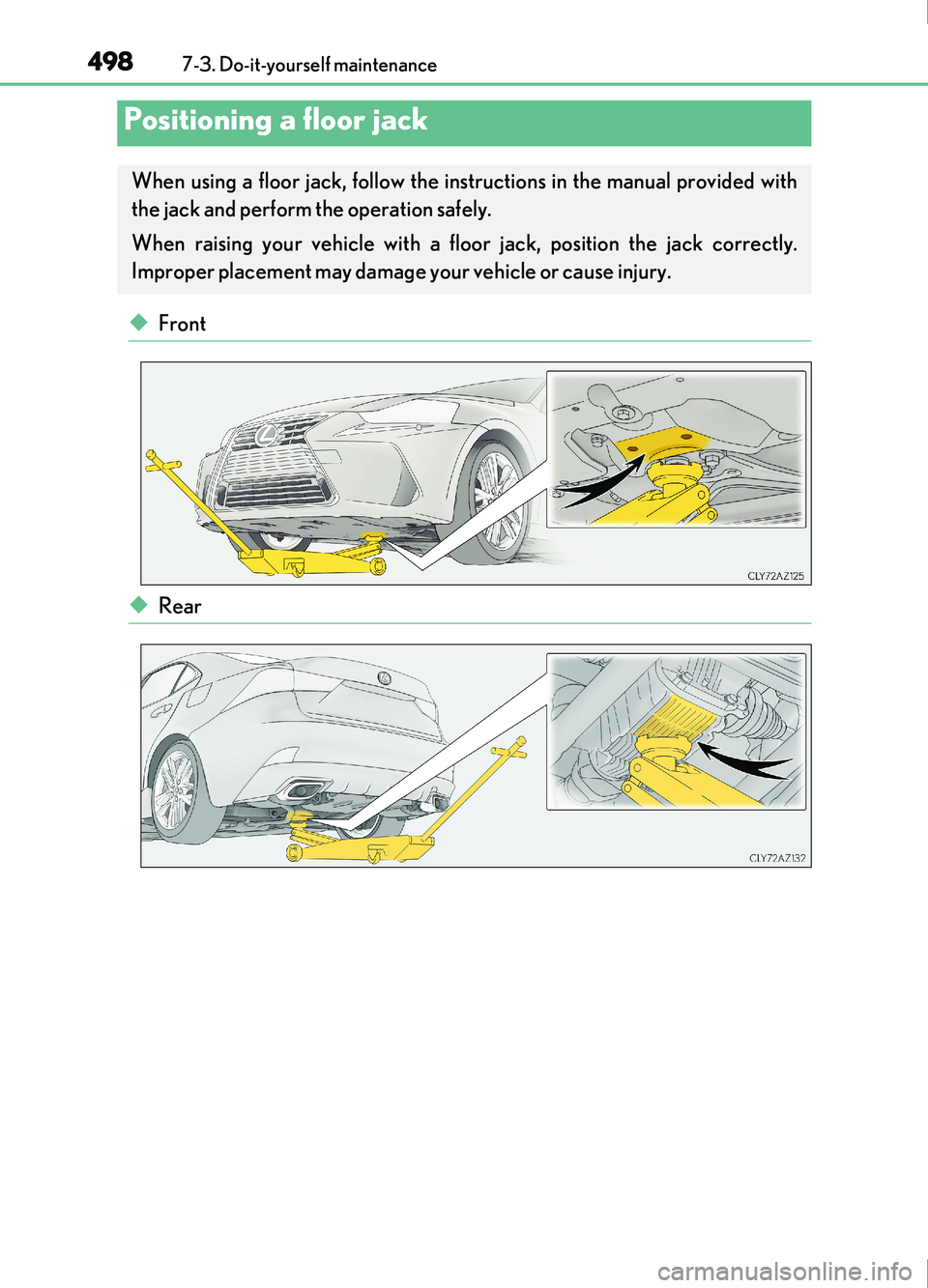

◆Front
◆Rear
Positioning a floor jack
When using a floor jack, follow the instructions in the manual provided with
the jack and perform the operation safely.
When raising your vehicle with a floor jack, position the jack correctly.
Improper placement may damage your vehicle or cause injury.

4997-3. Do-it-yourself maintenance
7
Maintenance and care
IS200t_EE(OM53D77E)For right-hand drive vehicles:
The battery and the fuse box in front of the battery are located on the opposite side of the
engine compartment.
Engine compartment
Fuse boxes (
P. 530)
Battery ( P. 505)
Intercooler
Engine oil level dipstick ( P. 500)
Engine oil filler cap ( P. 501)
Engine coolant reservoir ( P. 503) Washer fluid tank (
P. 508)
Electric cooling fans
Condenser ( P. 504)
Intercooler radiator ( P. 504)
Radiator ( P. 504)
Intercooler coolant reservoir ( P. 503)1
2
3
4
5
6
7
8
9
10
11
12

5007-3. Do-it-yourself maintenance
IS200t_EE(OM53D77E)
With the engine at operating temperature and turned off, check the oil level on
the dipstick.
■Checking the engine oilPark the vehicle on level ground. After warming up the engine and turning
off the engine, wait more than 5 minutes for the oil to drain back into the
bottom of the engine.
Holding a rag under the end, pull
the dipstick out.
Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end, pull
the dipstick out and check the oil
level.Low
Normal
Excessive
The shape of the dipstick may dif-
fer depending on the type of vehi-
cle or engine.
Wipe the dipstick and reinsert it fully.
Engine oil
1
2
3
4
5
1
2
3
6
