lexus LC500 2018 Navigation Manual

51
2
-$@-$I@/BWJ@0.&@ &&

2-2. Network settings
Basic function
device and cannot be changed.
Select to set the phone connection
status display on/off.
Select to set the connection status
display of the audio player on/off.
Compatibility profile of the system
Select to reset all setup items.
■Editing the system name
1 Select “System name”.
2 Enter a name and select “OK”.
■Editing the PIN code
1 Select “System PIN code”.
2 Enter a PIN code and select “OK”.
1 Press the “MENU” button on the
Remote Touch.
2 Select “Setup”.
3 Select “Wi-Fi*” on the sub menu.
4 Select the items to be set.
*:Wi-Fi® is a registered trademark of
Wi-Fi Alliance®.
D
E
F
G
Connecting to internet via
Wi-Fi®
Using the Wi-Fi® function, this sys-
tem can connect to the internet,
which allows the use of the con-
nected services, traffic information,
etc.
Displaying the Wi-Fi® settings
screen

52
-$@-$I@/BWJ@0.&@ &&

2-2. Network settings

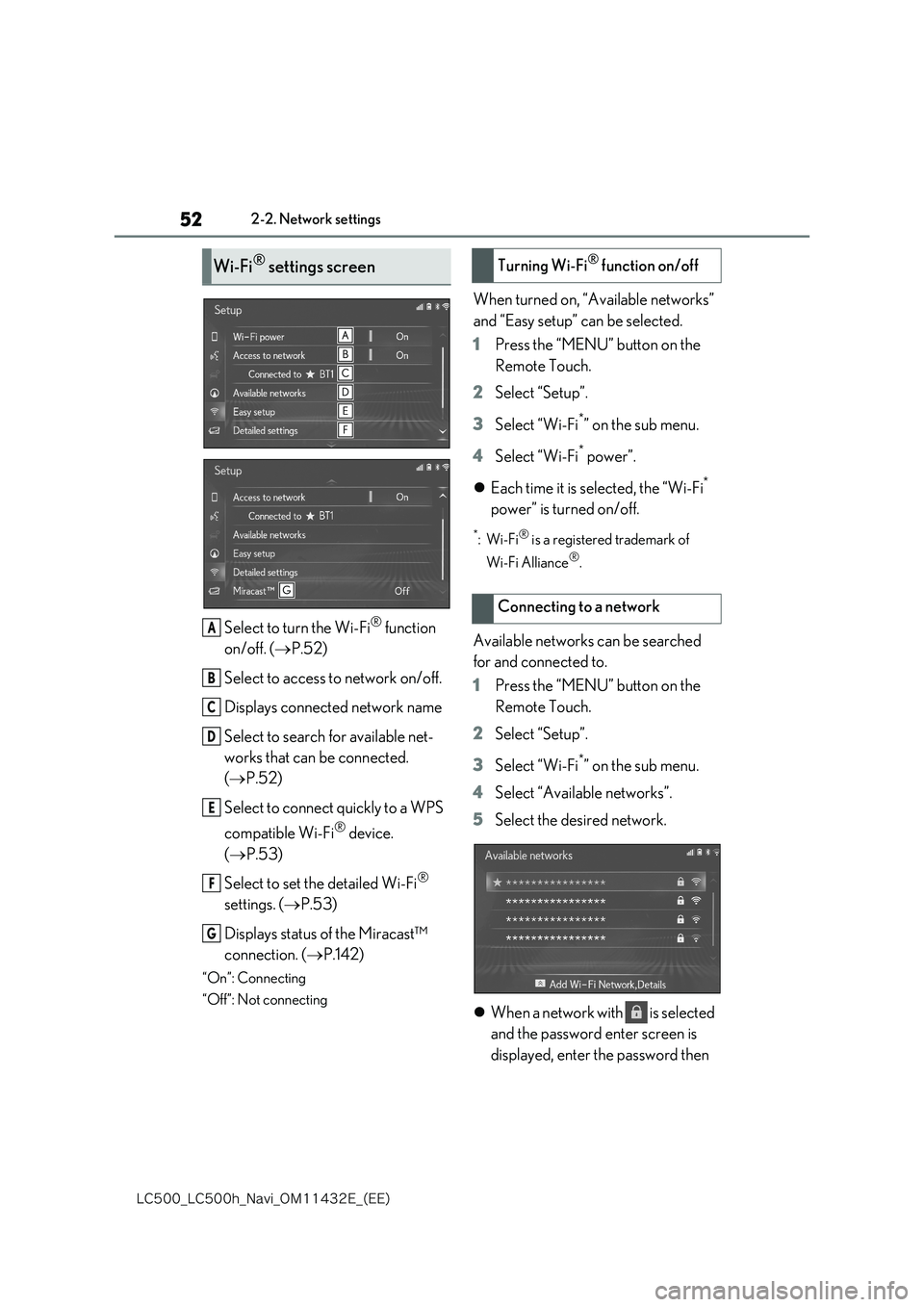

Select to turn the Wi-Fi® function
on/off. ( P.52)
Select to access to network on/off.
Displays connected network name
Select to search for available net-
works that can be connected.
( P.52)
Select to connect quickly to a WPS
compatible Wi-Fi® device.
( P.53)
Select to set the detailed Wi-Fi®
settings. ( P.53)
Displays status of the Miracast™
connection. ( P.142)
“On”: Connecting
“Off”: Not connecting
When turned on, “Available networks”
and “Easy setup” can be selected.
1 Press the “MENU” button on the
Remote Touch.
2 Select “Setup”.
3 Select “Wi-Fi*” on the sub menu.
4 Select “Wi-Fi* power”.
 Each time it is selected, the “Wi-Fi*
power” is turned on/off.
*:Wi-Fi® is a registered trademark of
Wi-Fi Alliance®.
Available networks can be searched
for and connected to.
1 Press the “MENU” button on the
Remote Touch.
2 Select “Setup”.
3 Select “Wi-Fi*” on the sub menu.
4 Select “Available networks”.
5 Select the desired network.
 When a network with is selected
and the password enter screen is
displayed, enter the password then
Wi-Fi® settings screen
A
B
C
D
E
F
G
Turning Wi-Fi® function on/off
Connecting to a network

53
2
-$@-$I@/BWJ@0.&@ &&

2-2. Network settings
Basic function
select “OK”.
 The network that was selected Pre-
ferred Network is marked with .
 If button is pressed on Remote
Touch during displaying this screen,
the following function can be set up.
“Details”: Select to display details about the
network.
“Add Wi-Fi* network”: Select to add a
Wi-Fi® network that is not currently dis-
played.
*:Wi-Fi® is a registered trademark of
Wi-Fi Alliance®.
■Adding a Wi-Fi® network
Available networks which are not dis-
played by searching can be added.
1 Press the button on the Remote
Touch.
2 Select “Add Wi-Fi* network”.
3 Enter the network name and select
“OK”.
4 Select the security type.
5 Enter the password and select
“OK”.
*:Wi-Fi® is a registered trademark of
Wi-Fi Alliance®.
If a Wi-Fi® device is Wi-Fi Protected
Setup™ compatible, it can be con-
nected to more quickly.
1 Press the “MENU” button on the
Remote Touch.
2 Select “Setup”.
3 Select “Wi-Fi*” on the sub menu.
4 Select “Easy setup”.
5 Select “PIN code” or “Push button”
as determined by the device.
6 Operate the Wi-Fi® device to con-
nect.
*:Wi-Fi® is a registered trademark of
Wi-Fi Alliance®.
1 Press the “MENU” button on the
Remote Touch.
2 Select “Setup”.
3 Select “Wi-Fi*” on the sub menu.
4 Select “Detailed settings”.
5 Select the items to be set.
Select to change the listing order of
your preferred networks and to
Connecting quickly
Detailed Wi-Fi® settings
A

54
-$@-$I@/BWJ@0.&@ &&

2-2. Network settings
delete networks from the list.
( P.54)
Select to set automatic connection
to network on/off. When set to on,
the system will automatically con-
nect to the preferred networks that
have been registered.
Select to set the automatic connec-
tion message notification display
on/off.
Select to reset all setup items.
*:Wi-Fi® is a registered trademark of
Wi-Fi Alliance®.
Any network connected to in the past
is set as a preferred network. The pri-
ority of the networks to connect to can
be changed.
1 Select “Reorder/Remove preferred
networks”.
2 Select the desired network and
select “Move up” or “Move down”
to change the connection priority
of the network.
“Remove”: Select to delete a network.
●If a network is being connected to, pre-
ferred network settings cannot be changed.
Reception level appears on the right
upper side of the screen. ( P.18)
●Communication standards
•802.11b •802.11g•802.11n
●Security•WEP
•WPA™*
Preferred network settings
B
C
D
Wi-Fi® function operating hints
WARNING
●Use Wi-Fi® devices only when safe
and legal to do so.
●Your audio unit is fitted with Wi-Fi® antennas. People with implantable car-
diac pacemakers, cardiac resynchro- nization therapy-pacemakers or implantable cardioverter defibrillators
should maintain a reasonable distance
between themselves and the Wi-Fi®
antennas. The radio waves may affect the opera-tion of such devices.
●Before using Wi-Fi® devices, users of
any electrical medical device other than implantable cardiac pacemakers, cardiac resynchronization therapy-
pacemakers or implantable cardio- verter defibrillators should consult the manufacturer of the device for infor-
mation about its operation under the influence of radio waves.Radio waves could have unexpected
effects on the operation of such medi- cal devices.
Conditions displayed with Wi-Fi®
icon
Specifications

55
2
-$@-$I@/BWJ@0.&@ &&

2-2. Network settings
Basic function

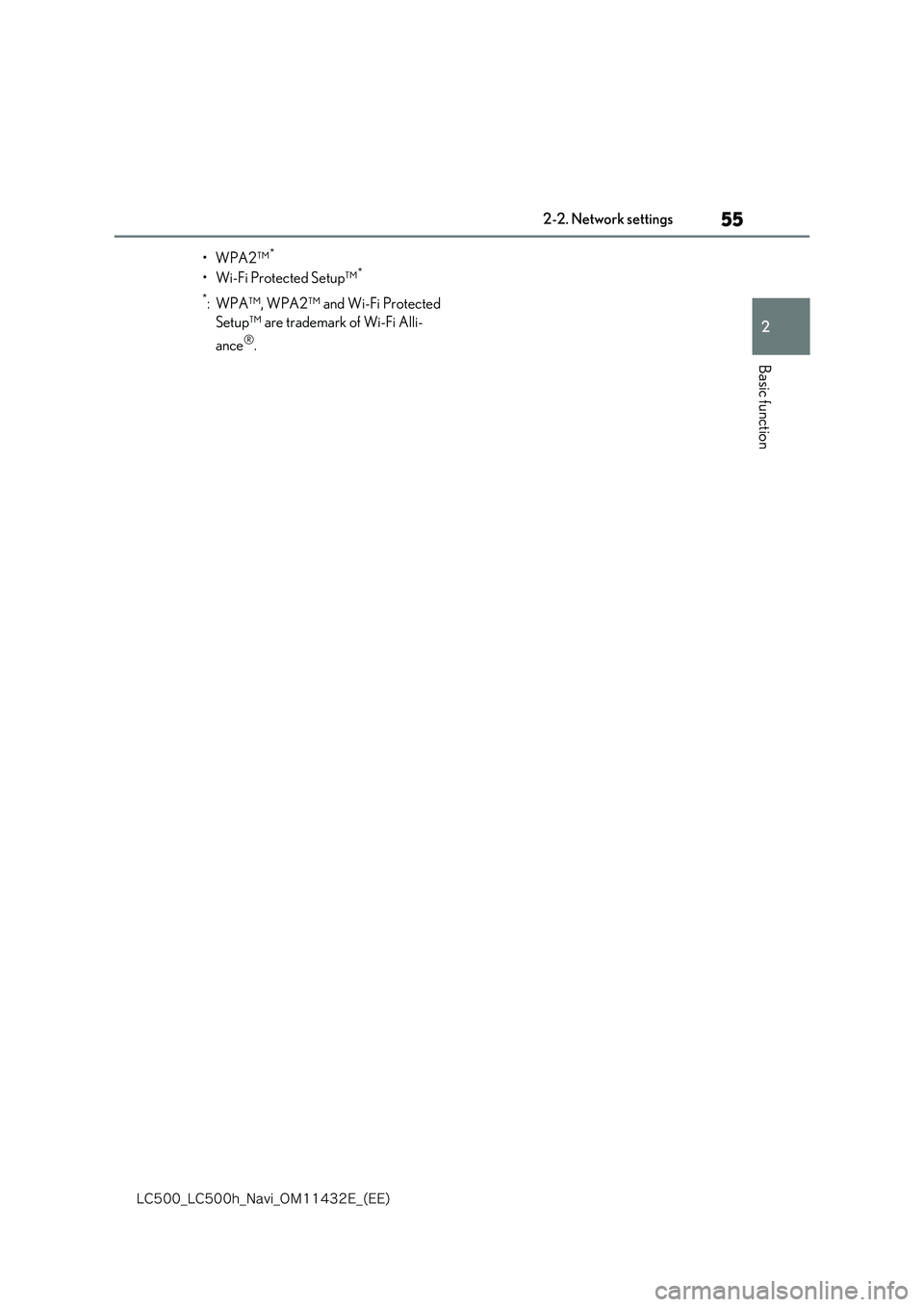

•WPA2™*
• Wi-Fi Protected Setup™*
*: WPA™, WPA2™ and Wi-Fi Protected
Setup™ are trademark of Wi-Fi Alli-
ance®.

56
-$@-$I@/BWJ@0.&@ &&

2-3. Other settings
2-3.Other settings
1Press the “MENU” button on the
Remote Touch.
2 Select “Setup”.
3 Select the items to be set.
 “Clock”
Select to change the time zone, set
the daylight saving time on/off and
set the automatic adjustment of the
clock on/off. ( P.57)
 “Language”
Select to change the language.
 “Display”
Select to adjust the contrast and
brightness of the screens, turn the
screen off, etc. ( P.58)
 “Voice recognition lang.”
Select to change the voice recogni-
tion language.
 “Theme setting”
Select to change the screen theme
setting.
 “Units of measurement”
Select to change the unit of measure
for distance/fuel consumption.
 “Auto change to screen”
Select to set automatic screen
changes from the audio/air condi-
tioning control screen to the previ-
ous screen to on/off. When set to
on, the screen will automatically
return to the previous screen from
the audio/air conditioning control
screen after 20 seconds.
 “Selection sound”
Select to set the selection sounds
on/off.
 “Pointer sound”
Select to set the pointer sounds
on/off.
 “Error sound”
Select to set the error sounds on/off.
 “Pointer sound volume”
Select to adjust the pointer sound
volume.
General settings
Settings are available for automatic
screen change, operation sounds,
etc.
Displaying the general settings
screen
General settings screen

57
2
-$@-$I@/BWJ@0.&@ &&

2-3. Other settings
Basic function
“Feedback force”
Select to adjust the level of the feed-
back force (vibration) to the
touchpad, when selecting a screen
button.
 “Cursor speed”
Select to adjust the pointer speed.
 “Multi-touch command”
Select to set the multi-touch com-
mand on/off.
 “Delete keyboard history”
Select to delete the keyboard his-
tory.
 “Memorise keyboard history”
Select to set the memorize key-
board history on/off.
 “Delete search history”
Select to delete the search history.
 “Delete personal data”
Select to delete personal data.
( P.59)
 “Software update”
Select to update software versions.
For details, contact any Lexus
retailer or Lexus authorized
repairer, or any reliable repairer.
 “Gracenote database update”
Select to update Gracenote data-
base versions. For details, contact
any Lexus retailer or Lexus autho-
rized repairer, or any reliable
repairer.
 “Software information”
Select to display the software infor-
mation. Notices related to third
party software used in this product
are enlisted. (This includes instruc-
tions for obtaining such software,
where applicable.)
Used for changing the time zone and
setting of daylight saving time and
automatic time adjustment on/off.
1 Press the “MENU” button on the
Remote Touch.
2 Select “Setup”.
3 Select “Clock”.
4 Select the items to be set.
Select to change the time zone.
( P.58)
Select to set daylight saving time
on/off.
Select to set automatic adjustment
of the clock by GPS on/off. When
set to on, the system will automati-
cally adjust the clock to the current
position’s time zone when the vehi-
cle moves to a different time zone.
When set to off, the clock can be
Clock settings
A
B
C

58
-$@-$I@/BWJ@0.&@ &&

2-3. Other settings
manually adjusted. (P.58)
1 Select “Time zone”.
2 Select the desired time zone.
 If “Other” is selected, the zone can
be adjusted manually. Select “+” or
“-” to adjust the time zone.
When “Auto adjust by GPS” is turned
“Off”, the clock can be manually
adjusted.
1 Select the desired item.
Select “+” to set the time forward
one hour and “-” to set the time
back one hour.
Select “+” to set the time forward
one minute and “-” to set the time
back one minute.
Select to round to the nearest hour.
e.g.
1:00 to 1:29  1:00
1:30 to 1:59  2:00
The contrast and brightness of the
screen display and the image of the
camera display can be adjusted. The
screen can also be turned off, and/or
changed to either day or night mode.
(For information regarding
audio/visual screen adjustment:
 P.124)
1 Press the “MENU” button on the
Remote Touch.
2 Select “Setup”.
3 Select “Display”.
4 Select the items to be set.
Select to turn the screen off. To turn
it on, press any button on the audio
control switch or on the Remote
Touch.
Select to turn day mode on/off.
Setting the time zone
Manual clock setting
A
B
C
Display settings (screen adjust-
ment)
A
B

59
2
-$@-$I@/BWJ@0.&@ &&

2-3. Other settings
Basic function
(P.59)
Select to adjust the screen display.
( P.59)
Select to adjust the camera display.
( P.59)
Depending on the position of the head-
light switch, the screen changes to day
or night mode. This feature is available
when the headlight is switched on.
1 Select “Day mode”.
●If the screen is set to day mode with the headlight switch turned on, this condition is memorized even with the engine
turned off.
The contrast and brightness of the
screen can be adjusted according to
the brightness of your surroundings.
1 Select “General” or “Camera”.
2 Select the desired item.
 “Display (General)” screen only:
Select or to select the
desired display.
•“Contrast”
“+”: Select to strengthen the contrast of the
screen.
“-”: Select to weaken the contrast of the
screen.
• “Brightness”
“+”: Select to brighten the screen.
“-”: Select to darken the screen.
Registered or changed personal set-
tings will be deleted or returned to
their default conditions.
1 Press the “MENU” button on the
Remote Touch.
2 Select “Setup”.
3 Select “Delete personal data”.
4 Select “Delete”.
5 Select “Yes” when the confirmation
screen appears.
Examples of settings that can be returned to their default conditions:
 General settings
 Navigation settings
 Audio settings
 Phone settings
 Connected service settings
etc.
Changing between day and night
mode
Adjusting the contrast/brightness
C
D
Deleting personal data

60
-$@-$I@/BWJ@0.&@ &&

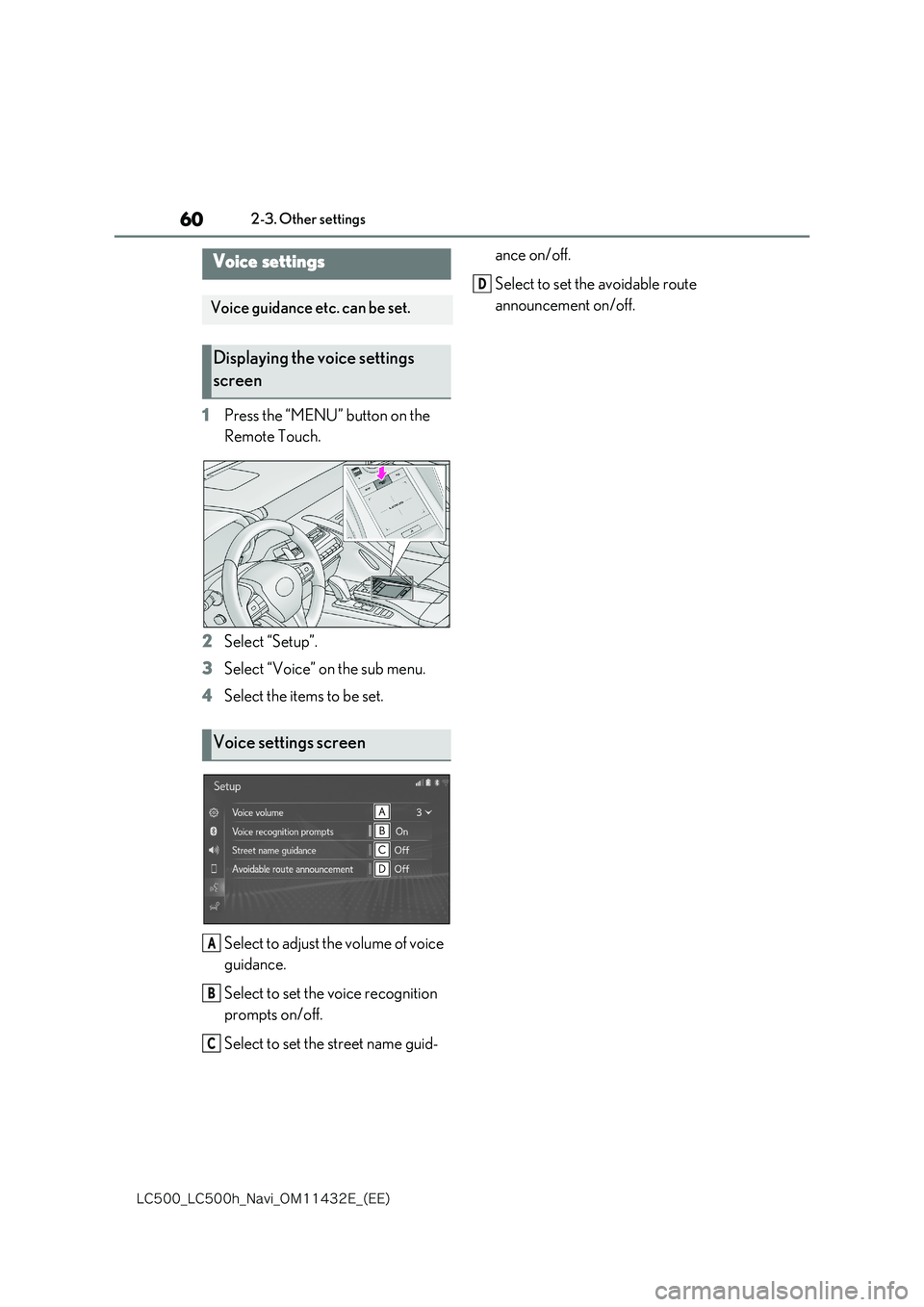

2-3. Other settings
1Press the “MENU” button on the
Remote Touch.
2 Select “Setup”.
3 Select “Voice” on the sub menu.
4 Select the items to be set.
Select to adjust the volume of voice
guidance.
Select to set the voice recognition
prompts on/off.
Select to set the street name guid-
ance on/off.
Select to set the avoidable route
announcement on/off.
Voice settings
Voice guidance etc. can be set.
Displaying the voice settings
screen
Voice settings screen
A
B
C
D
