1-1. For safe use
For safety and security
WARNING

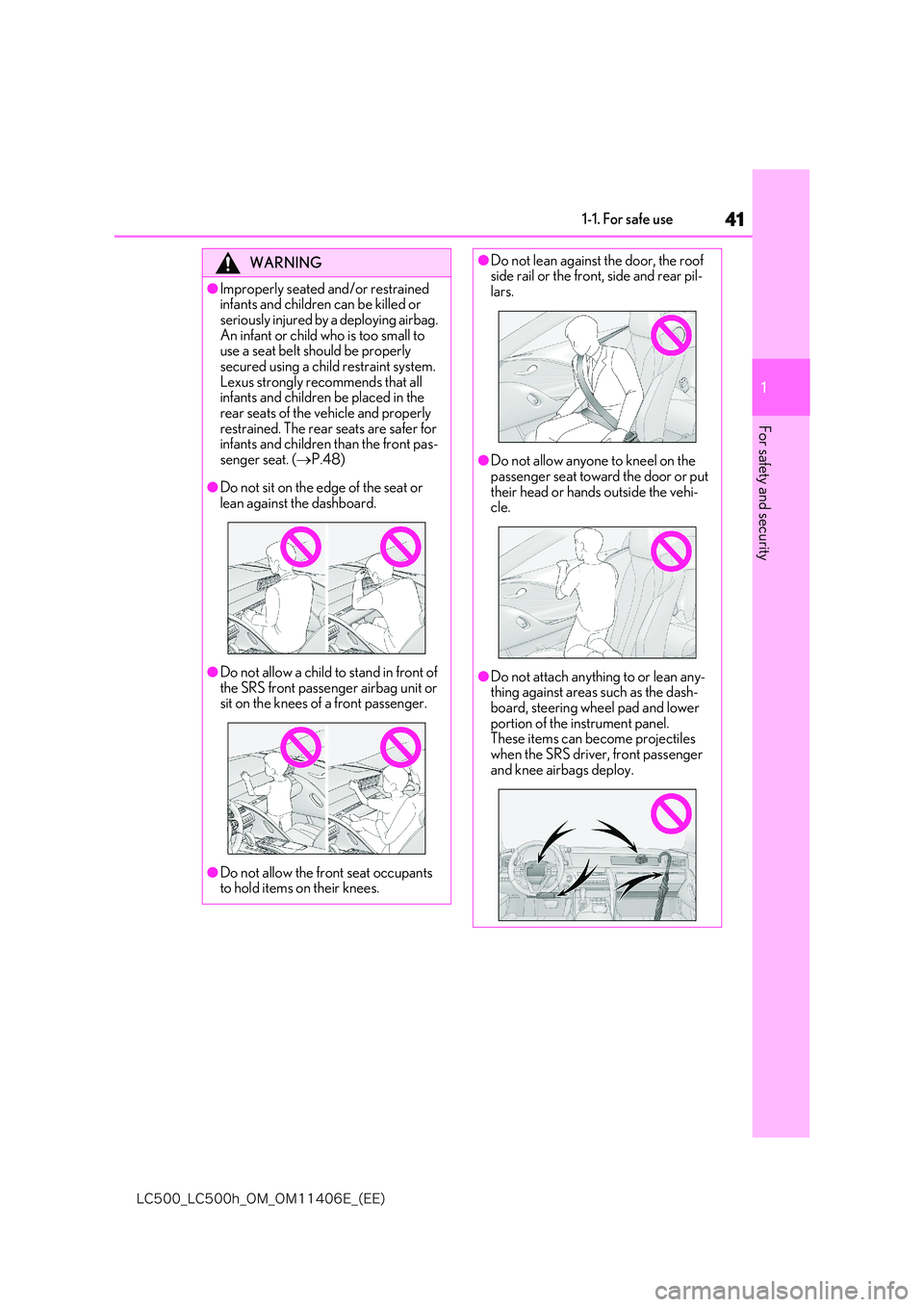

●Improperly seated and/or restrained infants and children can be killed or seriously injured by a deploying airbag.
An infant or child who is too small to use a seat belt should be properly secured using a child restraint system.
Lexus strongly recommends that all infants and children be placed in the rear seats of the vehicle and properly
restrained. The rear seats are safer for infants and children than the front pas-senger seat. ( P.48)
●Do not sit on the edge of the seat or
lean against the dashboard.
●Do not allow a child to stand in front of
the SRS front passenger airbag unit or sit on the knees of a front passenger.
●Do not allow the front seat occupants to hold items on their knees.
●Do not lean against the door, the roof side rail or the front, side and rear pil-
lars.
●Do not allow anyone to kneel on the
passenger seat toward the door or put their head or hands outside the vehi-cle.
●Do not attach anything to or lean any-thing against areas such as the dash-
board, steering wheel pad and lower portion of the instrument panel. These items can become projectiles
when the SRS driver, front passenger and knee airbags deploy.

42
-$@-$I@0.@0.&@ &&

1-1. For safe use
WARNING

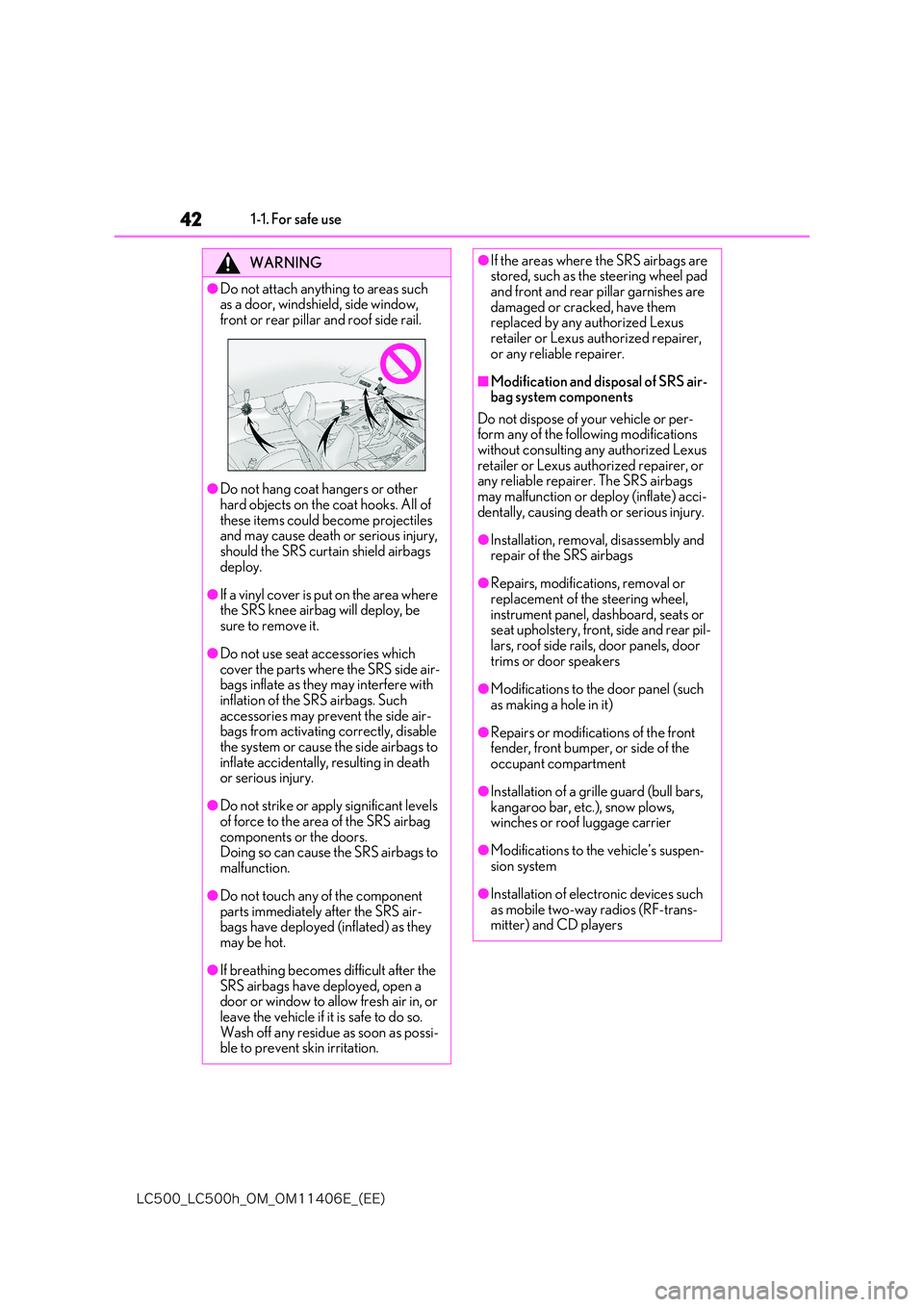

●Do not attach anything to areas such as a door, windshield, side window, front or rear pillar and roof side rail.
●Do not hang coat hangers or other hard objects on the coat hooks. All of
these items could become projectiles and may cause death or serious injury, should the SRS curt ain shield airbags
deploy.
●If a vinyl cover is put on the area where the SRS knee airbag will deploy, be sure to remove it.
●Do not use seat accessories which
cover the parts where the SRS side air- bags inflate as they may interfere with inflation of the SRS airbags. Such
accessories may prevent the side air- bags from activating correctly, disable the system or cause the side airbags to
inflate accidentally, resulting in death or serious injury.
●Do not strike or apply significant levels of force to the area of the SRS airbag
components or the doors. Doing so can cause the SRS airbags to malfunction.
●Do not touch any of the component
parts immediately after the SRS air- bags have deployed (inflated) as they may be hot.
●If breathing becomes difficult after the
SRS airbags have deployed, open a door or window to allow fresh air in, or leave the vehicle if it is safe to do so.
Wash off any residue as soon as possi- ble to prevent skin irritation.
●If the areas where the SRS airbags are stored, such as the steering wheel pad
and front and rear pillar garnishes are damaged or cracked, have them replaced by any authorized Lexus
retailer or Lexus authorized repairer, or any reliable repairer.
■Modification and disposal of SRS air-bag system components
Do not dispose of your vehicle or per- form any of the following modifications
without consulting any authorized Lexus retailer or Lexus authorized repairer, or any reliable repairer. The SRS airbags
may malfunction or deploy (inflate) acci- dentally, causing death or serious injury.
●Installation, removal, disassembly and repair of the SRS airbags
●Repairs, modifications, removal or
replacement of the steering wheel, instrument panel, dashboard, seats or seat upholstery, front, side and rear pil-
lars, roof side rails, door panels, door trims or door speakers
●Modifications to the door panel (such
as making a hole in it)
●Repairs or modifications of the front fender, front bumper, or side of the occupant compartment
●Installation of a grille guard (bull bars,
kangaroo bar, etc.), snow plows, winches or roof luggage carrier
●Modifications to the vehicle’s suspen-sion system
●Installation of electronic devices such
as mobile two-way radios (RF-trans- mitter) and CD players

43
1
-$@-$I@0.@0.&@ &&

1-1. For safe use
For safety and security
Sensors
Hood
Lifters
■Pop Up Hood precautions
●Before scrapping your vehicle, make sure
to contact any authorized Lexus retailer or Lexus authorized repairer, or any reli-able repairer.
●The Pop Up Hood system cannot be reused once it has operated. Have it replaced by any authorized Lexus retailer
or Lexus authorized repairer, or any reli- able repairer.
■Pop Up Hood operational conditions
The Pop Up Hood will operate when the vehicle detects an impact such as the fol-lowing:
●The front bumper detects a frontal impact equivalent to or greater than that of a
pedestrian while the vehicle being driven within the operational speed range of approximately 25 to 55 km/h (16 to 34
mph). (The system is operated by an impact of threshold le vel or greater, even in the case of a minor collision that may
not leave a trace on the front bumper. Also, depending on the impact condi-tions or vehicle speed, the system may
operate by a collision with a light or small object or a small animal.)
●In other situations, such as the following the system may operate when an impact is applied to the lower part of the vehicle
or front bumper: • Colliding with a curb
• Falling into a deep hole •Landing hard• Hitting the slope of a parking lot, an
undulating road, a protruding object or falling object
■Conditions under which the Pop Up Hood may not operate properly
●If a pedestrian collides with the right or left corner of the front bumper or the side
of the vehicle. As such impacts may be difficult to detect, the system may not operate.
●If the vehicle speed is not detected cor-rectly, such as if the vehicle is sliding side-
ways, the system may not operate properly.
■Conditions under which the Pop Up Hood will not operate
The Pop Up Hood will not operate in the following situations:
●Colliding with a lying person
Pop Up Hood
In the event of a frontal collision
with a body, such as a pedestrian,
the Pop Up Hood system raises the
hood to reduce the possibility of a
serious impact to the pedestrian’s
head area by adding clearance to
the engine compartment.
When the sensors located at the
back of the front bumper detect a
frontal impact with a body, such as a
pedestrian, which meets or
exceeds the threshold level while
the vehicle is being driven within
the operational speed range, the
system operates.
System components
A
B
C

44
-$@-$I@0.@0.&@ &&

1-1. For safe use
●A frontal impact applied to the front bumper while driving at speeds outside of the operational speed range
●A side impact or rear impact
●A vehicle rollover (In some accident situ-ations, the Pop Up Hood may operate.)
WARNING
■When the Pop Up Hood is operated
●Do not pull the hood lock release lever.
Doing so after the Pop Up Hood has operated will further raise the hood and may cause an injury. Do not drive
with the hood raised, as doing so may block the driver’s vision, possibly caus-ing an accident.
●Do not forcibly push down the hood.
As the popped up hood cannot be lowered by hand, doing so may deform the hood or cause an injury.
●If the Pop Up Hood has operated, have
it replaced by any authorized Lexus retailer or Lexus authorized repairer, or any reliable repairer. If the Pop Up
Hood has operated, stop the vehicle in a safe place and contact authorized Lexus retailer or Lexus authorized
repairer, or any reliable repairer.
●Do not touch the lifters immediately after the Pop Up Hood has operated, as the lifters may be hot and burn you.
NOTICE
■Pop Up Hood precautions
●Make sure to close the hood before driving, as the system may not operate
properly if the hood is not fully closed.
●Make sure that all 4 tires are of the specified size and inflated to the speci-fied tire pressure. If tires of a different
size are used, the system may not operate properly.
●If something has hit the area around the front bumper, the sensors may be
damaged even if the Pop Up Hood has not operated. Have the vehicle inspected by any authorized Lexus
retailer or Lexus authorized repairer, or any reliable repairer.
●Do not remove or repair the parts or wiring of the Pop Up Hood, as doing
so may cause accidental operation or prevent the system from operating properly. If repair or replacement is
necessary, contact any authorized Lexus retailer or Lexus authorized repairer, or any reliable repairer.
●Do not remove such components as
the front bumper, hood or suspension, or replace them with non-genuine parts, as doing so may prevent the sys-
tem from operating properly.
●Do not install anything to the front bumper or hood, as doing so may pre-vent the sensors from detecting an
impact correctly and prevent the sys- tem from operating properly.
●Do not close the hood with force or
apply load to the lifters, as doing so may damage the lifters and prevent the system from operating properly.
●Do not modify the suspension, as
changes made to the vehicle height may prevent the system from operat-ing properly.

45
1
-$@-$I@0.@0.&@ &&

1-1. For safe use
For safety and security

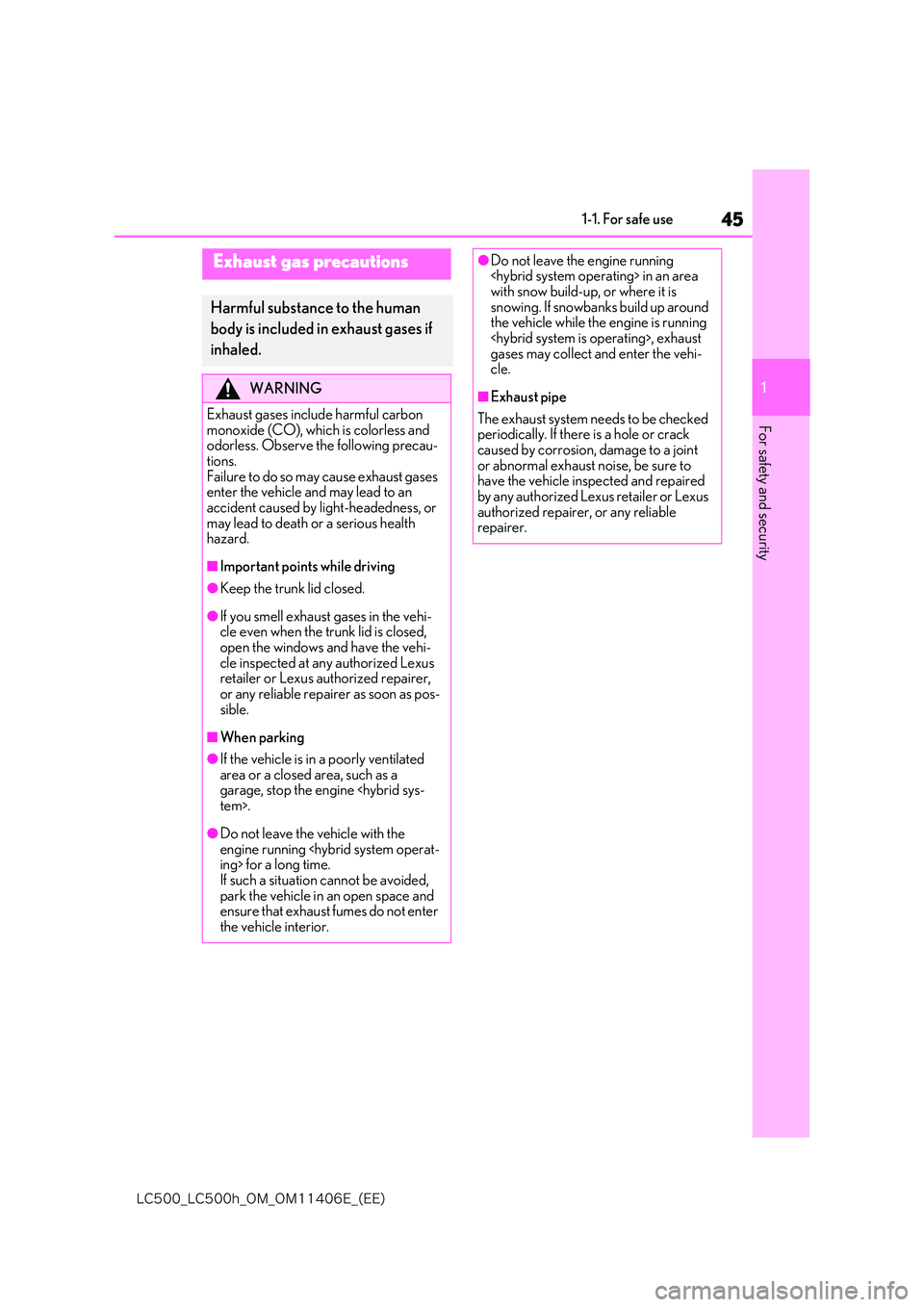

Exhaust gas precautions
Harmful substance to the human
body is included in exhaust gases if
inhaled.
WARNING
Exhaust gases include harmful carbon monoxide (CO), which is colorless and odorless. Observe the following precau-
tions. Failure to do so may cause exhaust gases enter the vehicle and may lead to an
accident caused by light-headedness, or may lead to death or a serious health hazard.
■Important points while driving
●Keep the trunk lid closed.
●If you smell exhaust gases in the vehi-cle even when the trunk lid is closed,
open the windows and have the vehi- cle inspected at any authorized Lexus retailer or Lexus authorized repairer,
or any reliable repairer as soon as pos- sible.
■When parking
●If the vehicle is in a poorly ventilated area or a closed area, such as a garage, stop the engine tem>.
●Do not leave the vehicle with the engine running for a long time.
If such a situation cannot be avoided, park the vehicle in an open space and ensure that exhaust fumes do not enter
the vehicle interior.
●Do not leave the engine running in an area
with snow build-up, or where it is snowing. If snowbanks build up around the vehicle while the engine is running
, exhaust gases may collect and enter the vehi-cle.
■Exhaust pipe
The exhaust system needs to be checked periodically. If there is a hole or crack
caused by corrosion, damage to a joint or abnormal exhaust noise, be sure to have the vehicle inspected and repaired
by any authorized Lexus retailer or Lexus authorized repairer, or any reliable repairer.

46
-$@-$I@0.@0.&@ &&

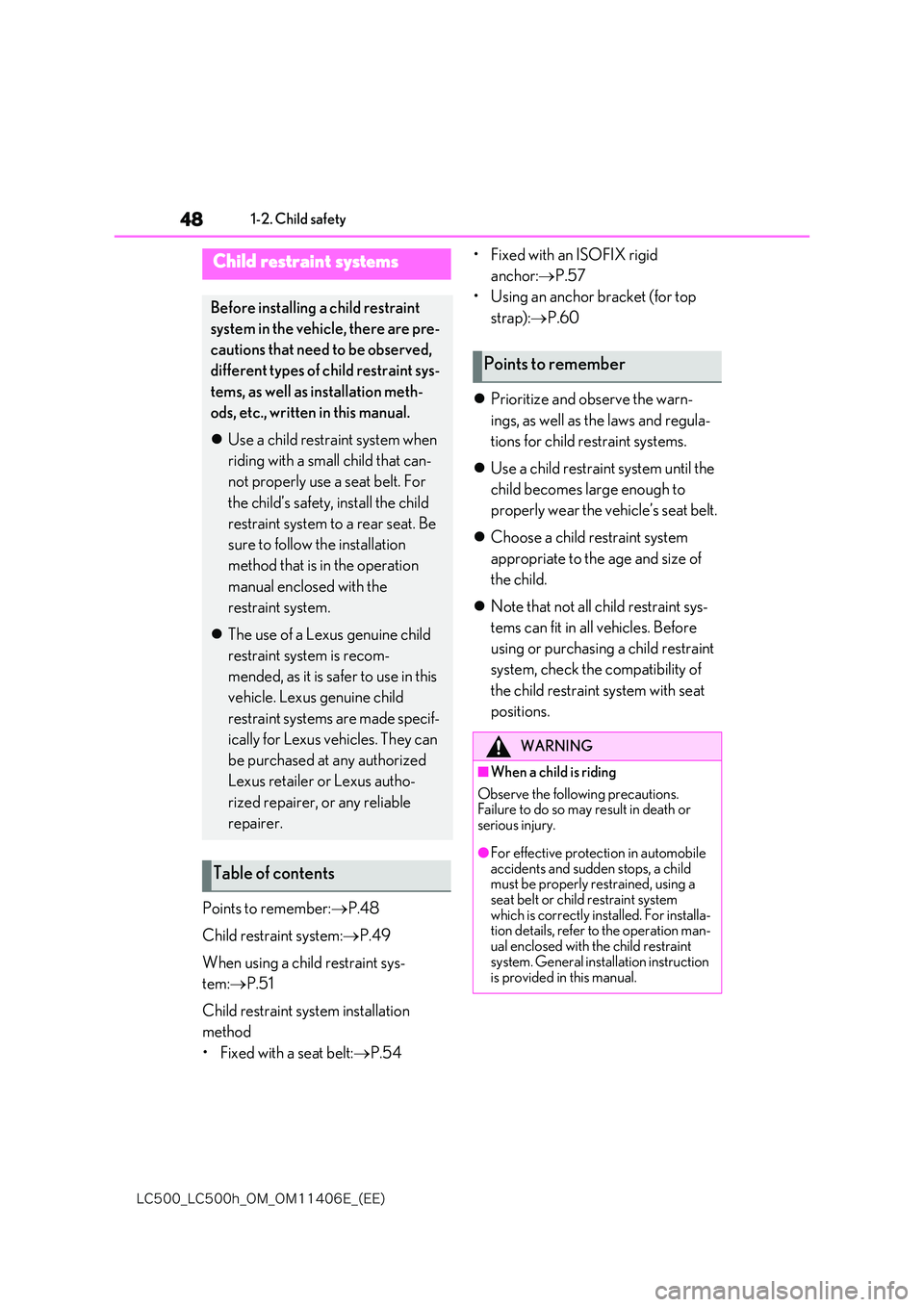

1-2. Child safety
1-2.Child safety
“PASSENGER AIR BAG” indica-
tor
“PASSENGER AIR BAG” and “ON” indi-
cator light turns on when the airbag system
is on, and about after 60 seconds they go
off. (only when the engine switch switch> is in IGNITION ON mode mode>).
Airbag manual on-off switch
■“PASSENGER AIR BAG” indicator information
If any of the following problems occur, it is possible that there is a malfunction in the system. Have the vehicle inspected by any
authorized Lexus retailer or Lexus autho- rized repairer, or any reliable repairer.
●The “OFF” indicator does not illuminate when the airbag manual on-off switch is set to “OFF”.
●The indicator light does not change when the airbag manual on-off switch is
switched to “ON” or “OFF”.
Insert the mechanical key into the cyl-
inder and rotate to the “OFF” position.
The “OFF” indicator light turns on (only
when the engine switch is
in IGNITION ON mode ).
Airbag manual on-off system
This system deactivates the front
passenger airbag and front passen-
ger knee airbag.
Only deactivate the airbags when
using a child restra int system on the
front passenger seat.
System components
A
B
Deactivating the airbags for the
front passenger

47
1
-$@-$I@0.@0.&@ &&

1-2. Child safety
For safety and security
WARNING
■When installing a child restraint sys- tem
For safety reasons, always install a child restraint system in a rear seat. In the event that the rear seat cannot be used,
the front seat can be used as long as the airbag manual on-off system is set to “OFF”.
If the airbag manual on-off system is left on, the strong impact of the airbag deployment (inflation) may cause serious
injury or even death.
■When a child restraint system is not installed on the front passenger seat
Ensure that the airbag manual on-off sys- tem is set to “ON”.If it is left off, the airbag may not deploy in
the event of an accident, which may result in serious injury or even death.
Riding with children
Observe the following precautions
when children are in the vehicle.
Use a child restraint system appro-
priate for the child, until the child
becomes large enough to properly
wear the vehicle’s seat belt.
 It is recommended that children
sit in the rear seats to avoid acci-
dental contact with the shift lever,
wiper switch, etc.
 Use the window lock switch to
avoid children operating the
power window accidentally.
( P.152)
 Do not let small children operate
equipment which may catch or
pinch body parts, such as the
power window, hood, trunk, seats
etc.
WARNING
■When children are in the vehicle
Never leave children unattended in the vehicle, and never allow children to have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral. There is
also a danger that children may injure themselves by playing with the windows or other features of the vehicle. In addi-
tion, heat build-up or extremely cold temperatures inside the vehicle can be fatal to children.

48
-$@-$I@0.@0.&@ &&

1-2. Child safety
Points to remember:P.48
Child restraint system: P.49
When using a child restraint sys-
tem: P.51
Child restraint system installation
method
• Fixed with a seat belt: P.54
• Fixed with an ISOFIX rigid
anchor: P.57
• Using an anchor bracket (for top
strap): P.60
 Prioritize and observe the warn-
ings, as well as the laws and regula-
tions for child restraint systems.
 Use a child restraint system until the
child becomes large enough to
properly wear the vehicle’s seat belt.
 Choose a child restraint system
appropriate to the age and size of
the child.
 Note that not all child restraint sys-
tems can fit in all vehicles. Before
using or purchasing a child restraint
system, check the compatibility of
the child restraint system with seat
positions.
Child restraint systems
Before installing a child restraint
system in the vehicle, there are pre-
cautions that need to be observed,
different types of child restraint sys-
tems, as well as installation meth-
ods, etc., written in this manual.
 Use a child restraint system when
riding with a small child that can-
not properly use a seat belt. For
the child’s safety, install the child
restraint system to a rear seat. Be
sure to follow the installation
method that is in the operation
manual enclosed with the
restraint system.
 The use of a Lexus genuine child
restraint system is recom-
mended, as it is safer to use in this
vehicle. Lexus genuine child
restraint systems are made specif-
ically for Lexus vehicles. They can
be purchased at any authorized
Lexus retailer or Lexus autho-
rized repairer, or any reliable
repairer.
Table of contents
Points to remember
WARNING
■When a child is riding
Observe the following precautions. Failure to do so may result in death or
serious injury.
●For effective protecti on in automobile accidents and sudden stops, a child must be properly restrained, using a
seat belt or child restraint system which is correctly installed. For installa-tion details, refer to the operation man-
ual enclosed with the child restraint system. General installation instruction
is provided in this manual.

49
1
-$@-$I@0.@0.&@ &&

1-2. Child safety
For safety and security
Install the available child restraint sys-
tem in vehicle upon confirming the fol-
lowing items.
■Standards for child restraint sys-
tems
Use a child restraint system that con-
forms to ECE R44*1.
The following approval mark is dis-
played on child restraint systems which
are conformed.
Check for an approval mark attached
to the child restraint system.
Example of the displayed regulation
number
ECE R44 approval mark*2
The weight range of the child who is
applicable for an ECE R44 approval
mark is indicated.
*1: ECE R44 is a U.N. regulation for child
restraint systems.
*2: The displayed mark may differ depend-
ing on the product.
WARNING
●Lexus strongly urges the use of a proper child restraint system that con-forms to the weight and size of the
child, installed on the rear seat. According to accident statistics, the child is safer when properly restrained
in the rear seat than in the front seat.
●Holding a child in your or someone else’s arms is not a substitute for a child restraint system. In an accident, the
child can be crushed against the wind- shield or between the holder and the interior of the vehicle.
■Handling the child restraint system
If the child restraint system is not prop- erly fixed in place, the child or other pas-
sengers may be seriously injured or even killed in the event of sudden braking, sud- den swerving, or an accident.
●If the vehicle were to receive a strong
impact from an accident, etc., it is pos- sible that the child restraint system has damage that is not readily visible. In
such cases, do not reuse the restraint system.
●Depending on the child restraint sys-tem, installation may be difficult or
impossible. In those cases, check whether the child restraint system is suitable for installment in the vehicle.
( P.54, 57) Be sure to install and observe the usage rules after carefully reading the child restraint system fixing
method in this manual, as well as the operation manual enclosed with the child restraint system.
●Keep the child restraint system prop-
erly secured on the seat even if it is not in use. Do not store the child restraint system unsecured in the passenger
compartment.
●If it is necessary to detach the child restraint system, remove it from the vehicle.
Child restraint system

50
-$@-$I@0.@0.&@ &&

1-2. Child safety

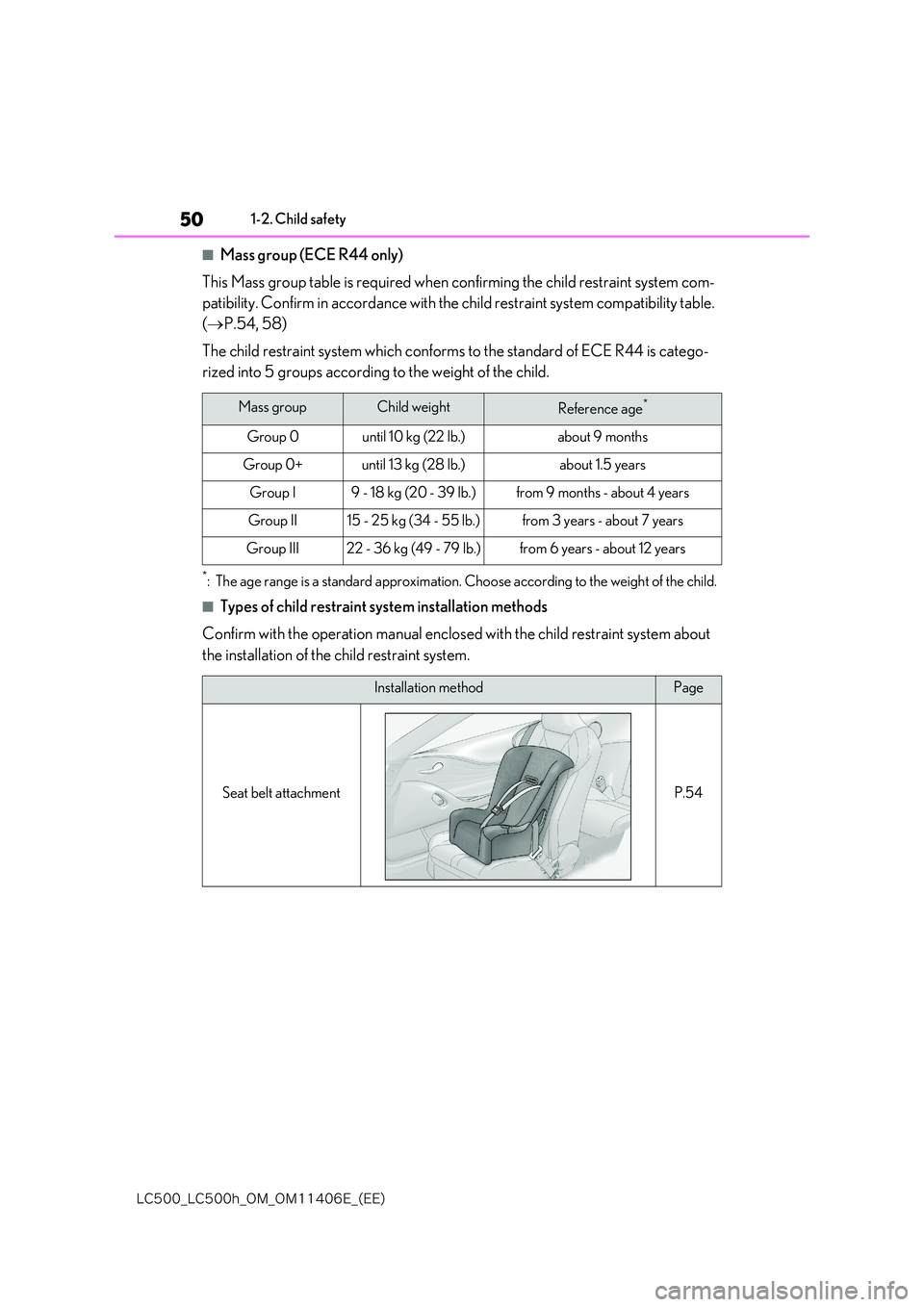

■Mass group (ECE R44 only)
This Mass group table is required when confirming the child restraint system com-
patibility. Confirm in accordance with the child restraint system compatibility table.
( P.54, 58)
The child restraint system which conforms to the standard of ECE R44 is catego-
rized into 5 groups according to the weight of the child.
*: The age range is a standard approximation. Choose according to the weight of the child.
■Types of child restraint system installation methods
Confirm with the operation manual enclosed with the child restraint system about
the installation of the child restraint system.
Mass groupChild weightReference age*
Group 0until 10 kg (22 lb.)about 9 months
Group 0+until 13 kg (28 lb.)about 1.5 years
Group I9 - 18 kg (20 - 39 lb.)from 9 months - about 4 years
Group II15 - 25 kg (34 - 55 lb.)from 3 years - about 7 years
Group III22 - 36 kg (49 - 79 lb.)from 6 years - about 12 years
Installation methodPage
Seat belt attachmentP.54
