Vehicle status information and indicators
Vehicle status information
and indicators
2-1. Instrument cluster
Warning lights and indicators . 82
Gauges and meters .................... 88
Multi-information display........... 92
Head-up display ........................... 99
Energy monitor/consumption
screen .......................................... 104

82
-$@-$I@0.@0.&@ &&

2-1. Instrument cluster
2-1.Instrument clus te r

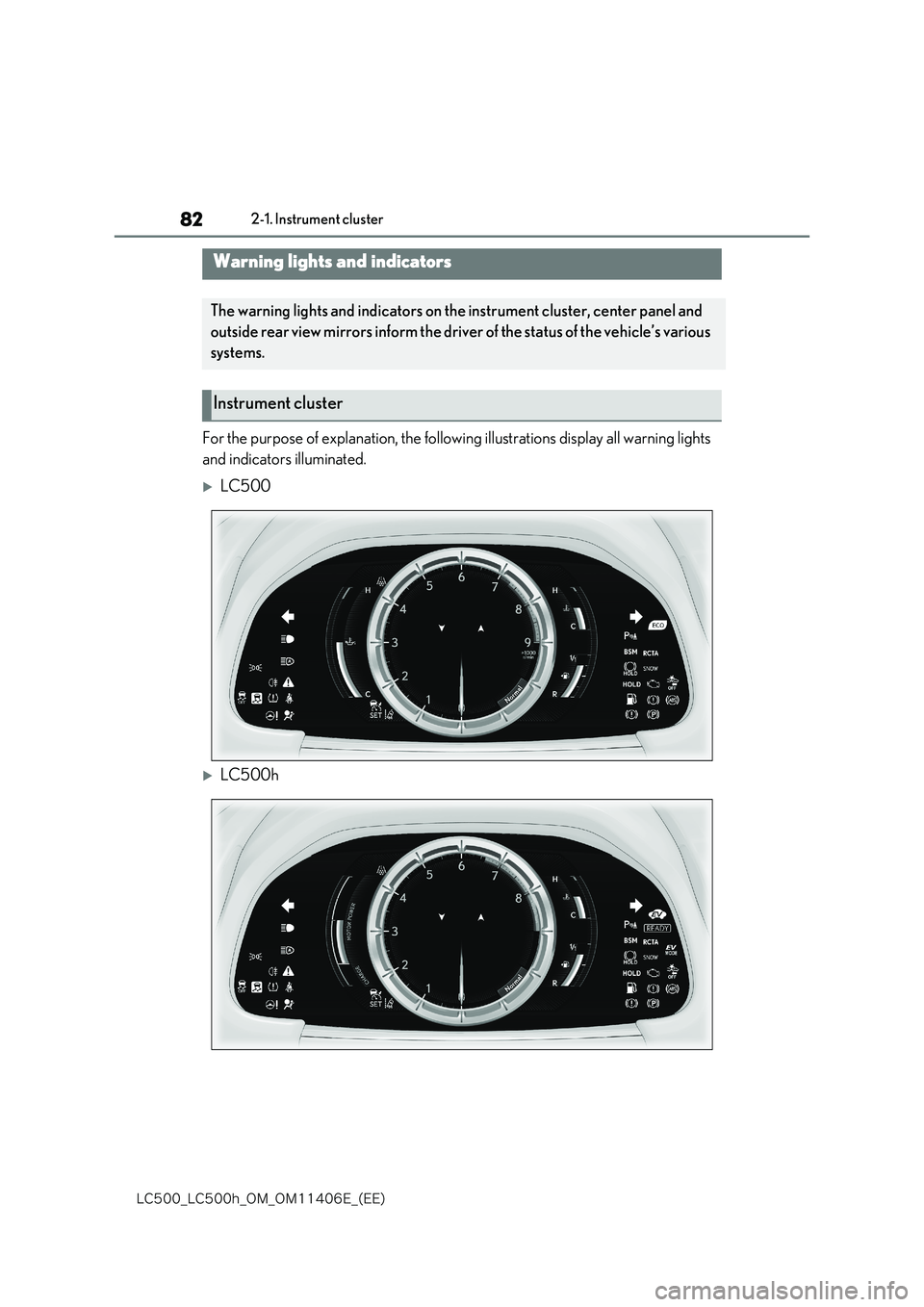

For the purpose of explanation, the following illustrations display all warning lights
and indicators illuminated.
LC500
LC500h
Warning lights and indicators
The warning lights and indicators on th e instrument cluster, center panel and
outside rear view mirrors inform the driver of the status of the vehicle’s various
systems.
Instrument cluster

83
2
-$@-$I@0.@0.&@ &&

2-1. Instrument cluster
Vehicle status information and indicators
Warning lights inform the driver of mal-
functions in the indicated vehicle sys-
tems.
*1: These lights turn on when the engine
switch is turned to
IGNITION ON mode to
indicate that a system check is being
performed. They will turn off after the
engine is started, or
after a few seconds. There may be a
malfunction in a syst em if a light does
not come on, or turn off. Have the vehi-
cle inspected by any authorized Lexus
retailer or Lexus authorized repairer, or
any reliable repairer.
*2: This light illuminates on the multi-infor-
mation display.
*3: The light flashes to indicate a malfunc-
tion.
*4: This light illuminates on the center
Warning lights
(red)
Brake system warning light*1
( P.368)
Charging system warning
light*2 ( P.368)
Low engine oil pressure
warning light*2 ( P.368)
Malfunction indicator lamp*1
( P.369)
SRS warning light*1
( P.369)
ABS warning light*1
( P.369)
(red)
Electric power steering sys-
tem warning light*1 ( P.370)
(yellow)
Electric power steering sys-
tem warning light*1 ( P.370)
PCS warning light*1, 3
( P.370)
(orange)
LKA indicator*2 (P.371)
Slip indicator*1 ( P.371)
Brake Override System
warning light*2
( P.372)/Drive-Start Con-
trol warning light*2 ( P.372)
Brake hold operated indica-
tor*1, 3 ( P.372)
Parking brake indicator*3
(P.372)
Brake pad wear warning
light*2 ( P.373)
(yellow)
Brake system warning light*1
(P.373)
Low fuel level warning light
( P.373)
Driver’s and front passen-
ger’s seat belt reminder light
( P.373)
Rear passengers’ seat belt
reminder lights*4 ( P.374)
Master warning light*1
( P.374)
Tire pressure warning light*1, 3
( P.374)
High coolant temperature
warning light*2 ( P.375)

84
-$@-$I@0.@0.&@ &&

2-1. Instrument cluster
panel.
The indicators inform the driver of the
operating state of the vehicle’s various
systems.
WARNING
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not come on
when you start the engine , this could mean that these systems are not available to help protect you in an
accident, which could result in death or serious injury. Have the vehicle inspected by any authorized Lexus retailer or Lexus
authorized repairer, or any reliable repairer immediately if this occurs.
Indicators
Turn signal indicator
( P.186)
Tail light indicator ( P.191)
Headlight high beam indica-
tor ( P.192)
(If equipped)
Automatic High Beam indica-
tor*1 ( P.193)
Rear fog light indicator
( P.196)
(If equipped)
Gear Shift Indicator*2
( P.178, 185)
Cruise control indicator*2
( P.229, 239)
(If equipped)
Dynamic radar cruise control
indicator*2 ( P.229)
Cruise control “SET” indica-
tor*2 ( P.229, 239)
(white)
LKA indicator*2 (P.218)
(green)
LKA indicator*2 (P.218)
(orange)
LKA indicator*2, 3 (P.218)
Lexus parking assist-sensor
indicator ( P.243)
Slip indicator*1, 3 ( P.263)
VSC OFF indicator*1
( P.263)
PCS warning light*1, 4
( P.212)
(If equipped)
BSM (Blind Spot Monitor)
outside rear view mirror indi-
cators*5, 6 ( P.248)
(If equipped)
BSM (Blind Spot Monitor)
indicator ( P.248)
(If equipped)
RCTA (Rear Crossing Traffic
Alert) indicator ( P.248)
Brake hold standby indica-
tor*1 ( P.189)
Brake hold operated indica-
tor*1 ( P.189)
Security indicator*7 ( P.70,
76)
Smart entry & start system
indicator*2 ( P.163)

85
2
-$@-$I@0.@0.&@ &&

2-1. Instrument cluster
Vehicle status information and indicators

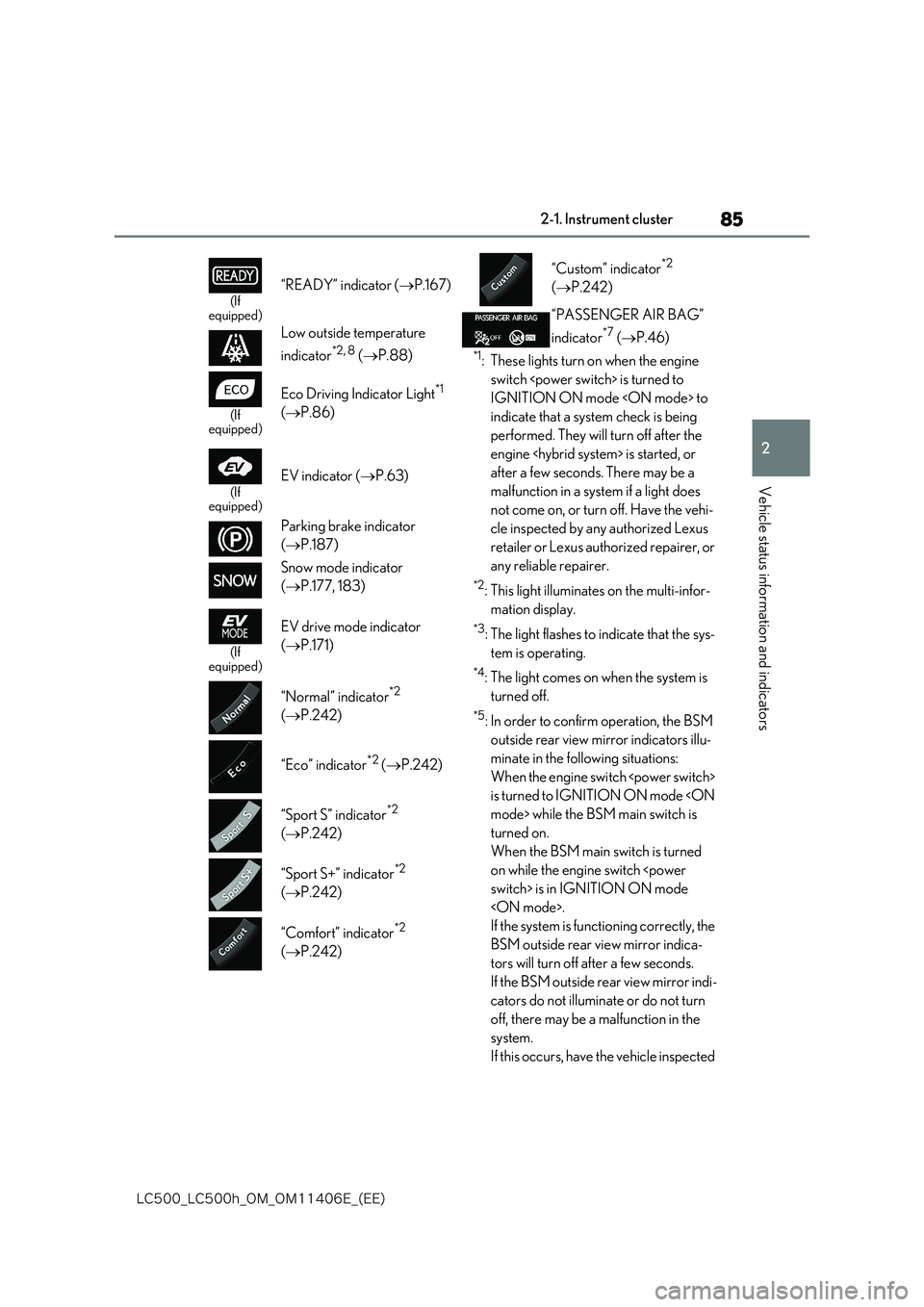

*1: These lights turn on when the engine
switch is turned to
IGNITION ON mode to
indicate that a system check is being
performed. They will turn off after the
engine is started, or
after a few seconds. There may be a
malfunction in a syst em if a light does
not come on, or turn off. Have the vehi-
cle inspected by any authorized Lexus
retailer or Lexus authorized repairer, or
any reliable repairer.
*2: This light illuminates on the multi-infor-
mation display.
*3: The light flashes to indicate that the sys-
tem is operating.
*4: The light comes on when the system is
turned off.
*5: In order to confirm operation, the BSM
outside rear view mirror indicators illu-
minate in the following situations:
When the engine switch
is turned to IGNITION ON mode mode> while the BSM main switch is
turned on.
When the BSM main switch is turned
on while the engine switch switch> is in IGNITION ON mode
.
If the system is func tioning correctly, the
BSM outside rear view mirror indica-
tors will turn off after a few seconds.
If the BSM outside rear view mirror indi-
cators do not illuminate or do not turn
off, there may be a malfunction in the
system.
If this occurs, have the vehicle inspected
(If equipped)
“READY” indicator ( P.167)
Low outside temperature
indicator*2, 8 ( P.88)
(If equipped)
Eco Driving Indicator Light*1
( P.86)
(If equipped)
EV indicator ( P.63)
Parking brake indicator
( P.187)
Snow mode indicator
( P.177, 183)
(If equipped)
EV drive mode indicator
( P.171)
“Normal” indicator*2
( P.242)
“Eco” indicator*2 ( P.242)
“Sport S” indicator*2
( P.242)
“Sport S+” indicator*2
( P.242)
“Comfort” indicator*2
( P.242)
“Custom” indicator*2
( P.242)
“PASSENGER AIR BAG”
indicator*7 ( P.46)

86
-$@-$I@0.@0.&@ &&

2-1. Instrument cluster
by any authorized Lexus retailer or
Lexus authorized repairer, or any reli-
able repairer.
*6: This light illuminates on the outside rear
view mirrors.
*7: This light illuminates on the center
panel.
*8: When the outside temperature is
approximately 3°C (37°F) or lower, the
indicator will flash for approximately 10
seconds, then stay on.
■Eco Driving Indicator (LC500)
Eco Driving Indicator Light
During Eco-friendly acceleration (Eco driv-
ing), the Eco Driving Indicator Light will
turn on. When the acceleration exceeds the
Zone of Eco driving, or when the vehicle is
stopped, the light turns off.
Eco Driving Indicator can be enabled on
the multi-information display. ( P.92)
Eco Driving Indicator Zone Display
Suggests the Zone of Eco driving with cur-
rent Eco driving ratio based on accelera-
tion.
Eco driving ratio based on acceleration
The part that exceeds the Zone of Eco driv-
ing illuminates in white.
Zone of Eco driving
Eco Driving Indicator will not operate under the following conditions:
●The shift position is in any position other than D.
●A paddle shift swit ch is operated.
●Eco Driving Indicator Light: Neither normal mode nor Eco drive mode is selected.
Eco Driving Indicator Zone Display: Eco drive mode is not selected.
●The vehicle speed is approximately 130 km/h (80 mph) or higher.
■Hybrid System Indicator (LC500h)
Charge area
Shows regeneration* status. Regenerated
energy will be used to charge the hybrid
battery (traction battery).
Hybrid Eco area
Shows that gasoline engine power is not
being used very often.
The gasoline engine will automatically stop
and restart under various conditions.
Eco area
A
B
C
D
A
B
C

87
2
-$@-$I@0.@0.&@ &&

2-1. Instrument cluster
Vehicle status information and indicators
Shows that the vehicle is being driven in an
Eco-friendly manner.
By keeping the indicator needle within Eco
area, more Eco-friendly driving can be
achieved.
Power area
Shows that an Eco-friendly driving range is
being exceeded (during full power driving
etc.)
In the following situation, the Hybrid System Indicator does not operate.
●The shift position is in other than D or M.
●The driving mode is other than Eco
mode.*: When used in this manual, “regeneration”
refers to the conversion of energy cre-
ated by the movement of the vehicle into
electrical energy.
■Motor power display (LC500h)
Motor power area
Shows that the power of the motor assists
the engine.
Charge area
Shows regeneration* status. Regenerated
energy will be used to charge the hybrid
battery (traction battery).
*: When used in this manual, “regeneration”
refers to the conversion of energy cre-
ated by the movement of the vehicle into
electrical energy.
D
A
B

88
-$@-$I@0.@0.&@ &&

2-1. Instrument cluster

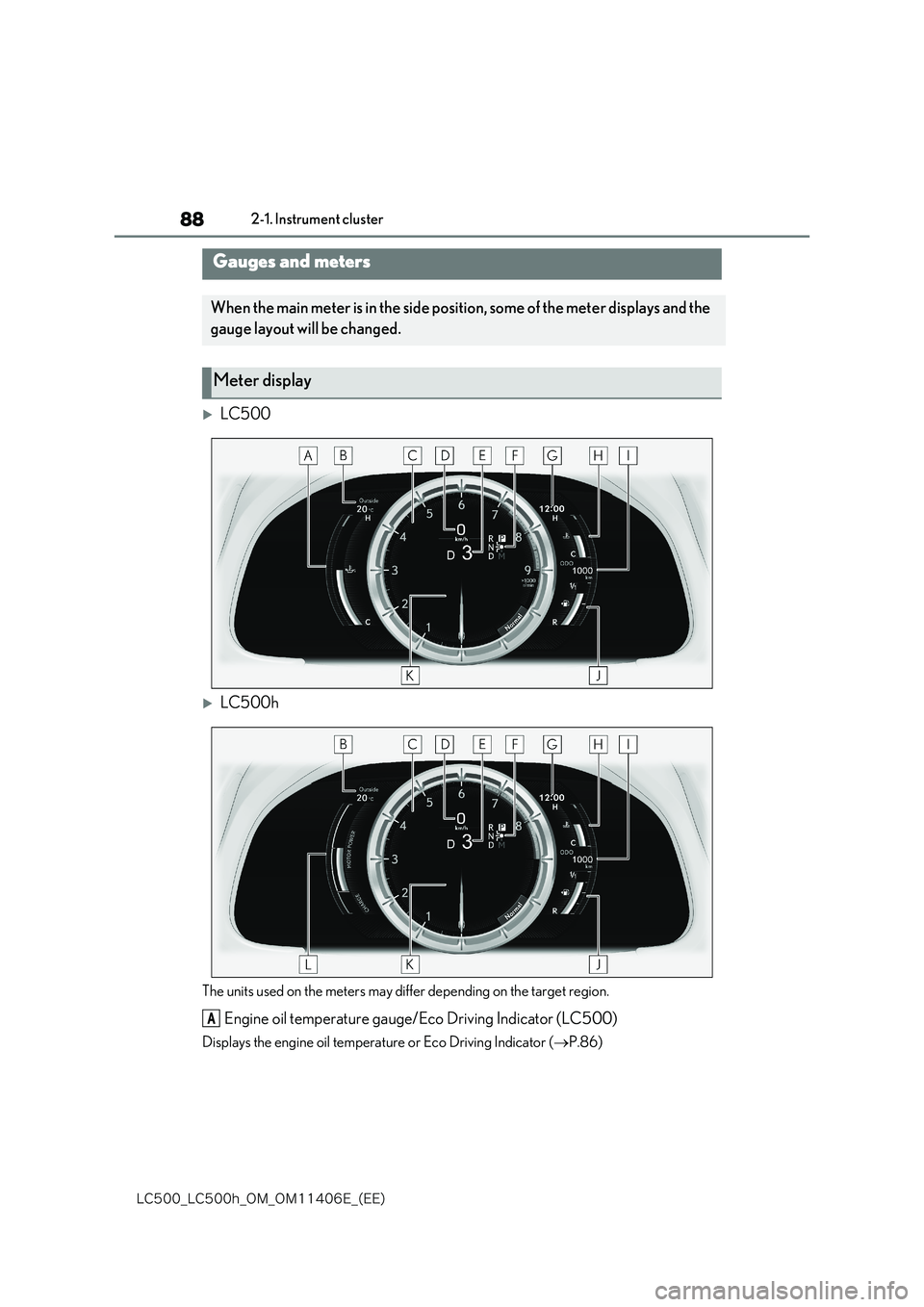

LC500
LC500h
The units used on the meters may differ depending on the target region.
Engine oil temperature gauge/Eco Driving Indicator (LC500)
Displays the engine oil temperature or Eco Driving Indicator (P.86)
Gauges and meters
When the main meter is in the side position, some of the meter displays and the
gauge layout will be changed.
Meter display
A

89
2
-$@-$I@0.@0.&@ &&

2-1. Instrument cluster
Vehicle status information and indicators

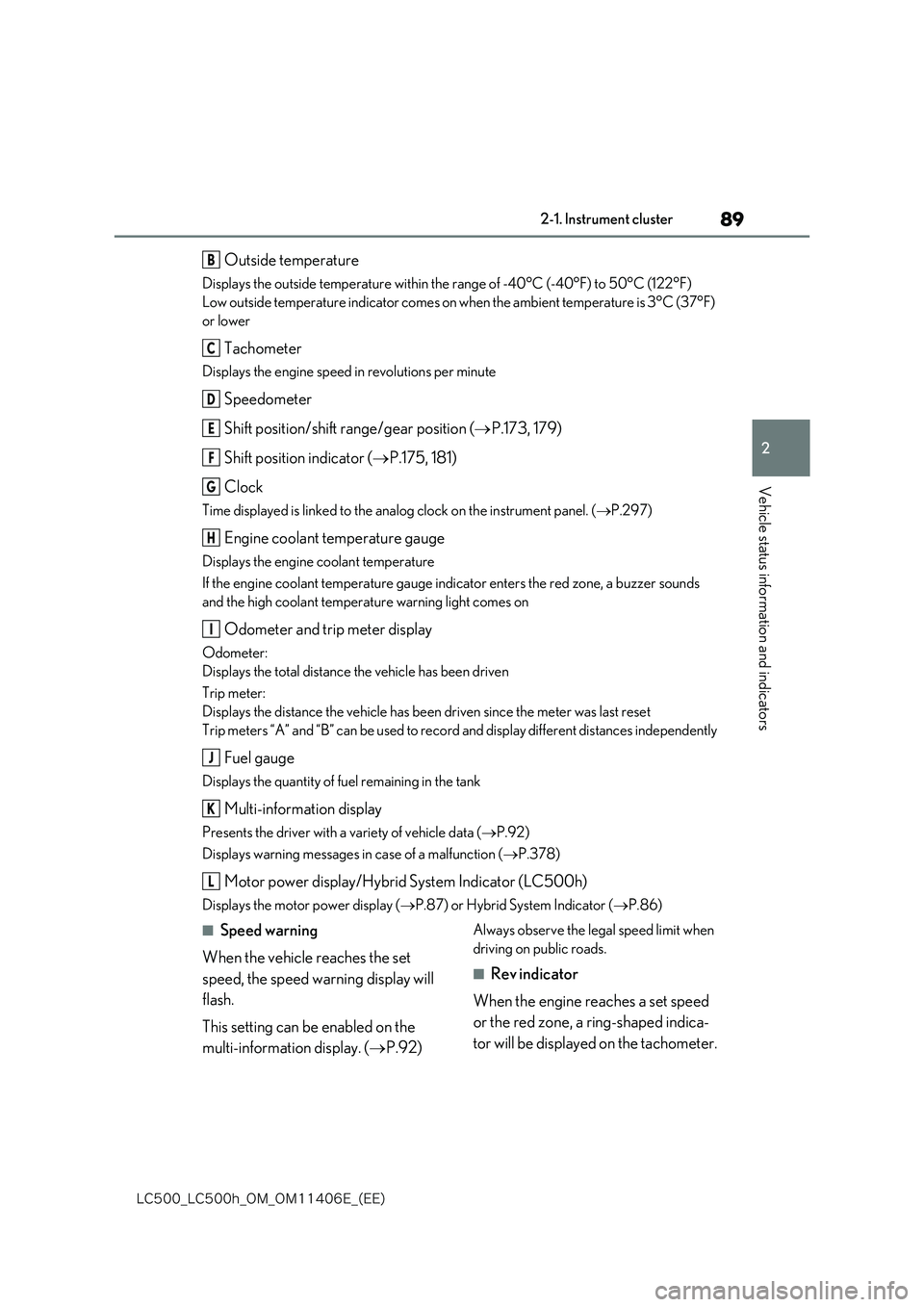

Outside temperature
Displays the outside temperature within the range of -40°C (-40°F) to 50°C (122°F)
Low outside temperature indicator comes on when the ambient temperature is 3°C (37°F)
or lower
Tachometer
Displays the engine speed in revolutions per minute
Speedometer
Shift position/shift range/gear position ( P.173, 179)
Shift position indicator ( P.175, 181)
Clock
Time displayed is linked to the analog clock on the instrument panel. (P.297)
Engine coolant temperature gauge
Displays the engine coolant temperature
If the engine coolant temperature gauge indi cator enters the red zone, a buzzer sounds
and the high coolant temperature warning light comes on
Odometer and trip meter display
Odometer:
Displays the total distance the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last reset
Trip meters “A” and “B” can be used to record and display different distances independently
Fuel gauge
Displays the quantity of fuel remaining in the tank
Multi-information display
Presents the driver with a variety of vehicle data (P.92)
Displays warning messages in case of a malfunction (P.378)
Motor power display/Hybrid System Indicator (LC500h)
Displays the motor power display (P.87) or Hybrid System Indicator (P.86)
■Speed warning
When the vehicle reaches the set
speed, the speed warning display will
flash.
This setting can be enabled on the
multi-information display. ( P.92)
Always observe the legal speed limit when
driving on public roads.

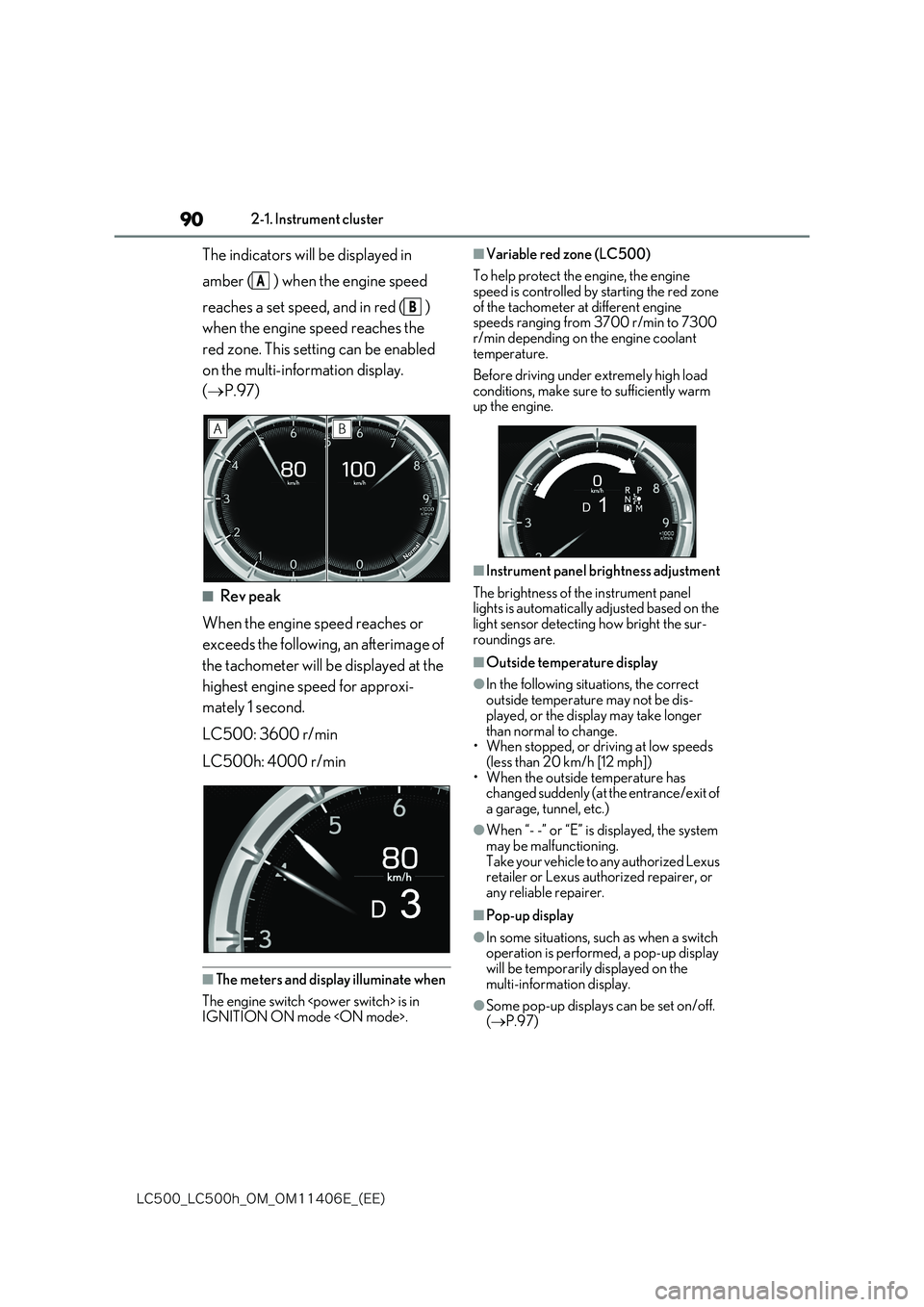

■Rev indicator
When the engine reaches a set speed
or the red zone, a ring-shaped indica-
tor will be displayed on the tachometer.
B
C
D
E
F
G
H
I
J
K
L

90
-$@-$I@0.@0.&@ &&

2-1. Instrument cluster
The indicators will be displayed in
amber ( ) when the engine speed
reaches a set speed, and in red ( )
when the engine speed reaches the
red zone. This setting can be enabled
on the multi-information display.
( P.97)
■Rev peak
When the engine speed reaches or
exceeds the following, an afterimage of
the tachometer will be displayed at the
highest engine speed for approxi-
mately 1 second.
LC500: 3600 r/min
LC500h: 4000 r/min
■The meters and display illuminate when
The engine switch

is in
IGNITION ON mode .
■Variable red zone (LC500)
To help protect the engine, the engine
speed is controlled by starting the red zone of the tachometer at different engine speeds ranging from 3700 r/min to 7300
r/min depending on the engine coolant temperature.
Before driving under extremely high load conditions, make sure to sufficiently warm up the engine.
■Instrument panel brightness adjustment
The brightness of the instrument panel lights is automatically adjusted based on the light sensor detecting how bright the sur-
roundings are.
■Outside temperature display
●In the following situations, the correct
outside temperature may not be dis- played, or the display may take longer
than normal to change. • When stopped, or driving at low speeds (less than 20 km/h [12 mph])
• When the outside temperature has changed suddenly (at the entrance/exit of a garage, tunnel, etc.)
●When “- -” or “E” is displayed, the system may be malfunctioning.
Take your vehicle to any authorized Lexus retailer or Lexus authorized repairer, or any reliable repairer.
■Pop-up display
●In some situations, such as when a switch operation is performed, a pop-up display
will be temporarily displayed on the multi-information display.
●Some pop-up displays can be set on/off. ( P.97)
A
B
