lexus LC500h 2018 Owner's Manual / LEXUS 2018 LC500, LC500H OWNER'S MANUAL QUICK GUIDE (OM11444U)
Manufacturer: LEXUS, Model Year: 2018, Model line: LC500h, Model: Lexus LC500h 2018Pages: 110, PDF Size: 2.04 MB
Page 101 of 110
101
LC500_LC500h_QG_OM11444U_(U)
■Door lock switches1
Locks both side doors
The indicator comes on.
2Unlocks both side doors
The indicator turns off.
■Inside door handles
Pull the inside door handle to unlock the
door.
The door lock indicator turns off.
The doors can be opened by pulling the
inside door handle even if the door lock
indicator illuminates.
Door Locks
The vehicle can be locked and unlocked usin g the entry function, wireless remote control
or door lock switches.
For details about the entry function or wire less remote control, refer to P.17, 18.
Unlocking and locking the doors from the inside
A
A
A
A
Page 102 of 110
102
LC500_LC500h_QG_OM11444U_(U)
Page 103 of 110
What to do if...
103
LC500_LC500h_QG_OM11444U_(U)

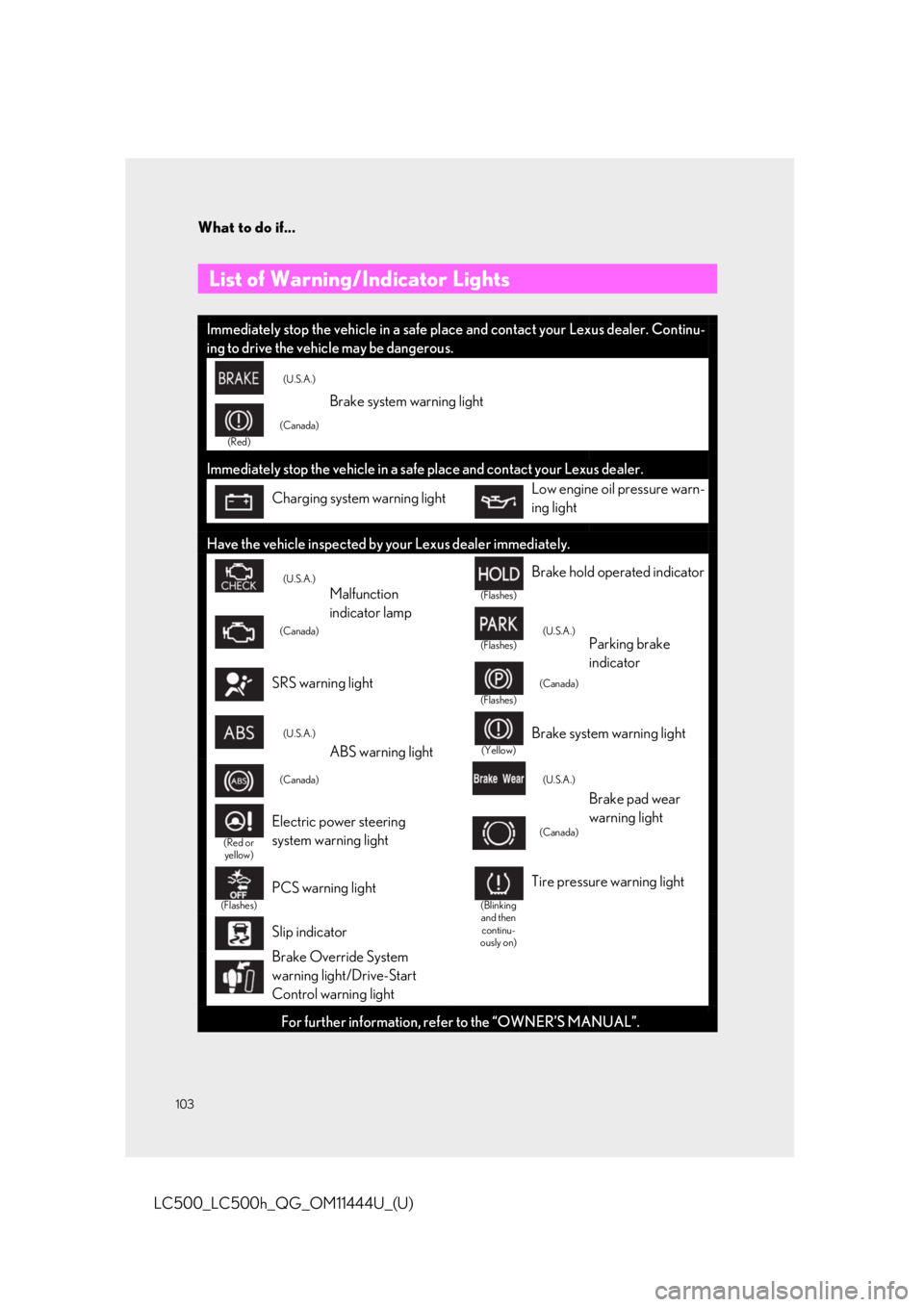

List of Warning/Indicator Lights
Immediately stop the vehicle in a safe pl ace and contact your Lexus dealer. Continu-
ing to drive the vehicle may be dangerous.
(U.S.A.)
Brake system warning light
(Red)
(Canada)
Immediately stop the vehicle in a safe place and contact your Lexus dealer.
Charging system warning lightLow engine oil pressure warn-
ing light
Have the vehicle inspected by your Lexus dealer immediately.
(U.S.A.)
Malfunction
indicator lamp(Flashes)
Brake hold operated indicator
(Canada)(Flashes)(U.S.A.)Parking brake
indicator
SRS warning light
(Flashes)
(Canada)
(U.S.A.)
ABS warning light(Yellow)
Brake system warning light
(Canada)(U.S.A.)
Brake pad wear
warning light
(Red or
yellow)
Electric power steering
system warning light(Canada)
(Flashes)
PCS warning light
(Blinking and then continu-
ously on)
Tire pressure warning light
Slip indicator
Brake Override System
warning light/Drive-Start
Control warning light
For further information, refe r to the “OWNER’S MANUAL”.
Page 104 of 110
104
What to do if...
LC500_LC500h_QG_OM11444U_(U)

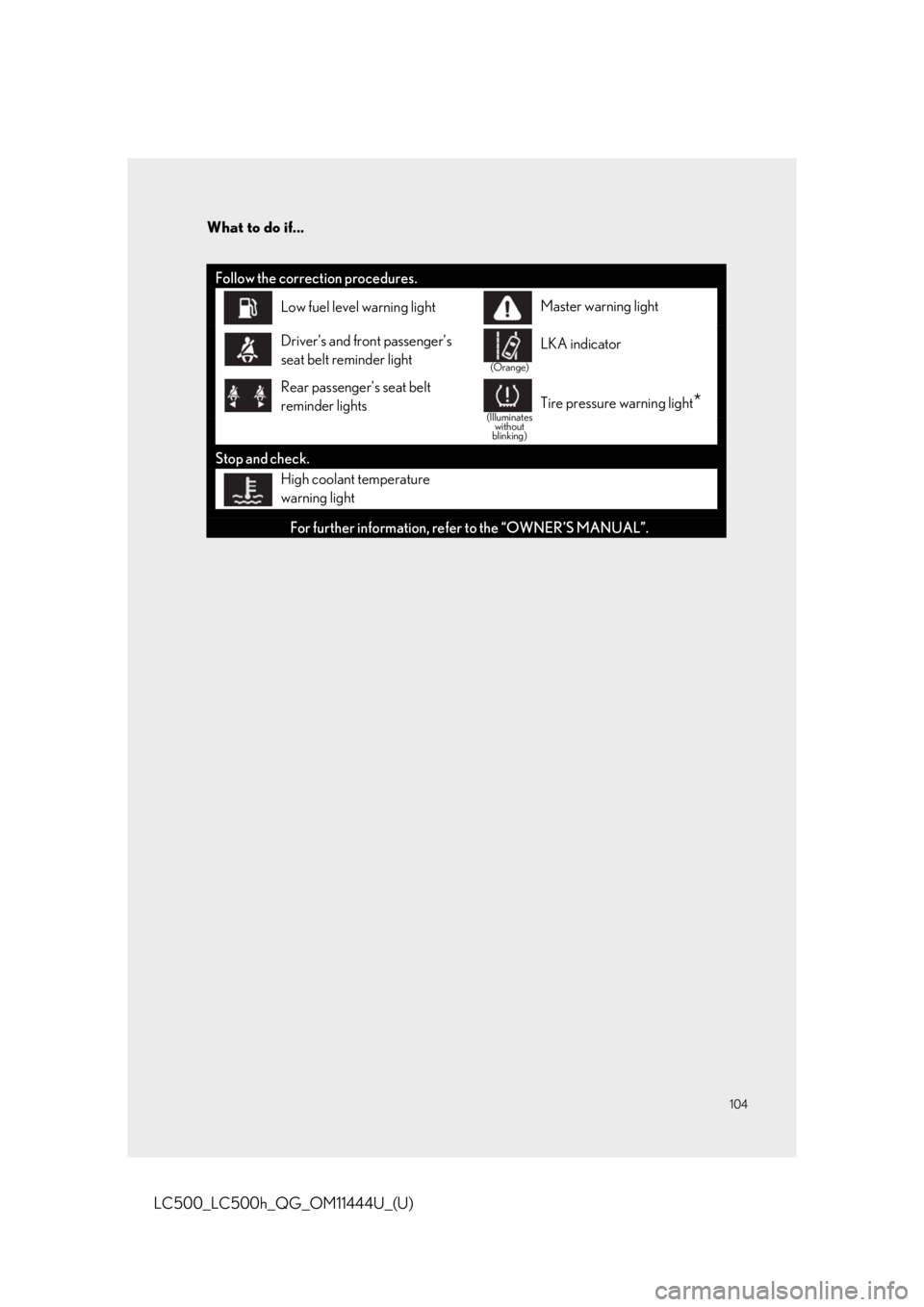

Follow the correction procedures.
Low fuel level warning lightMaster warning light
Driver’s and front passenger’s
seat belt reminder light
(Orange)
LKA indicator
Rear passenger’s seat belt
reminder lights
(Illuminates without
blinking)Tire pressure warning light*
Stop and check.
High coolant temperature
warning light
For further information, refe r to the “OWNER’S MANUAL”.
Page 105 of 110
What to do if...
105
LC500_LC500h_QG_OM11444U_(U)

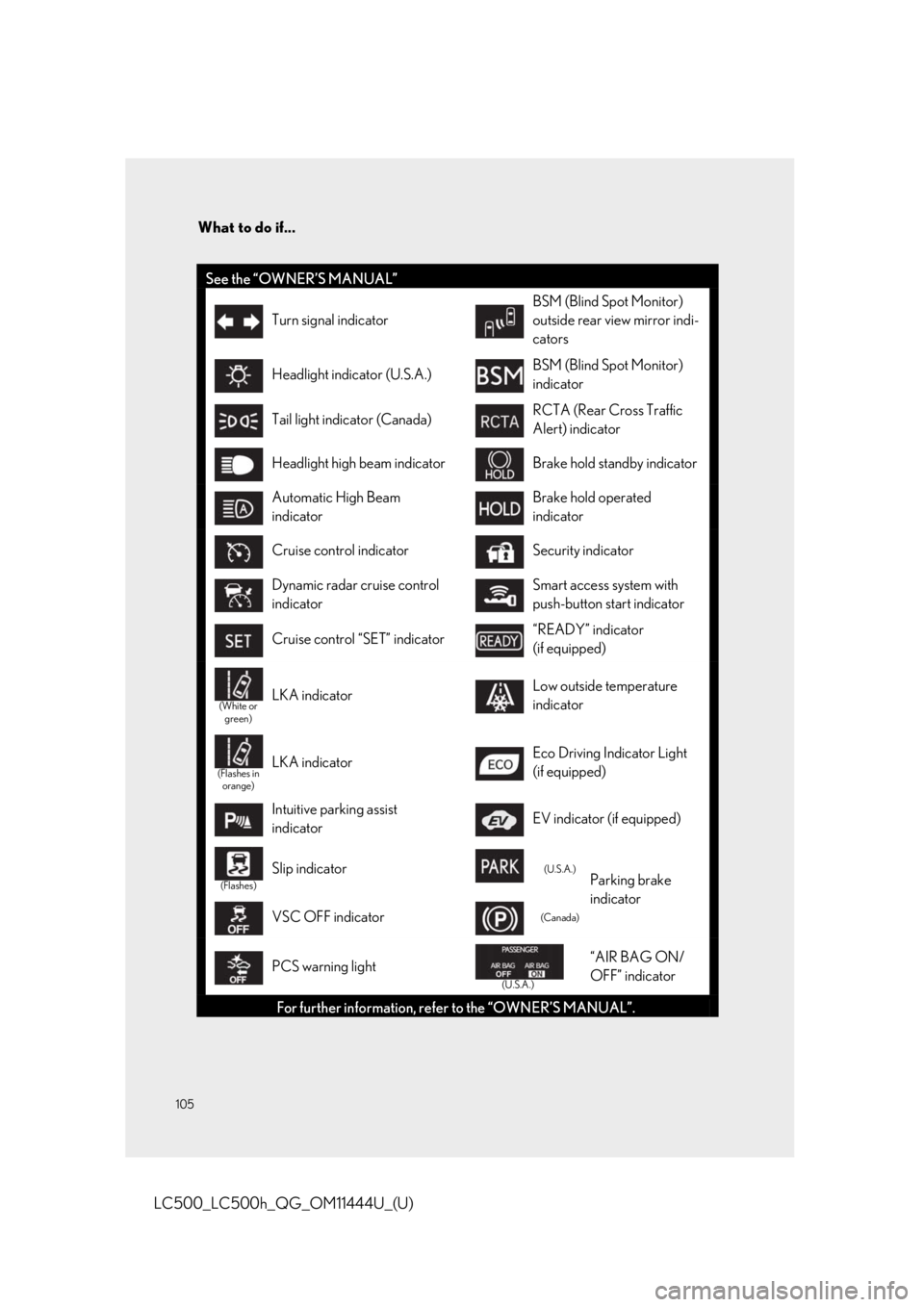

See the “OWNER’S MANUAL”
Turn signal indicator
BSM (Blind Spot Monitor)
outside rear view mirror indi-
cators
Headlight indicator (U.S.A.)BSM (Blind Spot Monitor)
indicator
Tail light indicator (Canada)RCTA (Rear Cross Traffic
Alert) indicator
Headlight high beam indicatorBrake hold standby indicator
Automatic High Beam
indicatorBrake hold operated
indicator
Cruise control indicatorSecurity indicator
Dynamic radar cruise control
indicatorSmart access system with
push-button start indicator
Cruise control “SET” indicator“READY” indicator
(if equipped)
(White or green)LKA indicatorLow outside temperature
indicator
(Flashes in orange)LKA indicatorEco Driving Indicator Light
(if equipped)
Intuitive parking assist
indicatorEV indicator (if equipped)
(Flashes)
Slip indicator(U.S.A.)Parking brake
indicator
VSC OFF indicator(Canada)
PCS warning light
(U.S.A.)
“AIR BAG ON/
OFF” indicator
For further information, refe r to the “OWNER’S MANUAL”.
Page 106 of 110
106
What to do if...
LC500_LC500h_QG_OM11444U_(U)

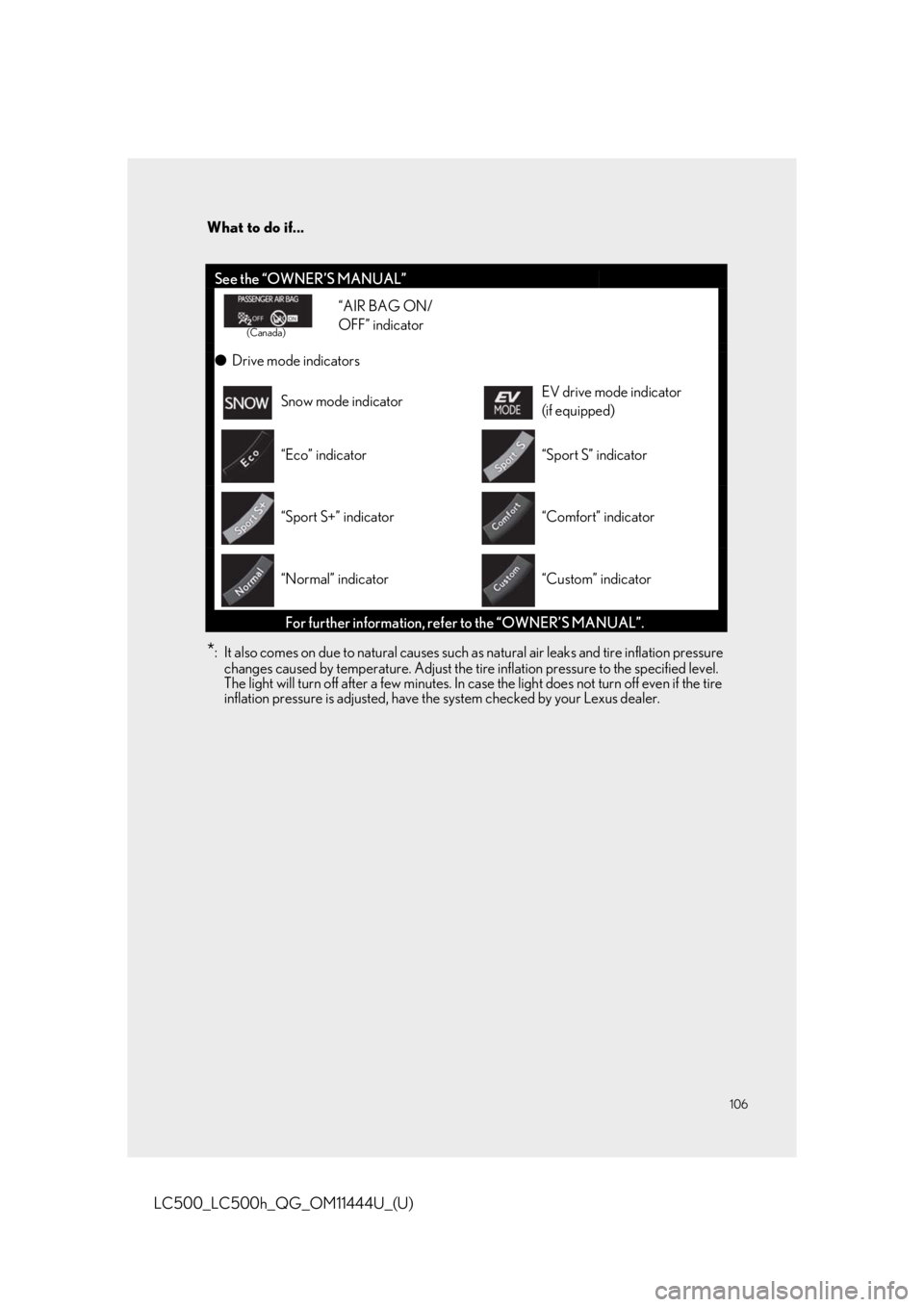

*: It also comes on due to natural causes such as natural air leaks and tire inflation pressure
changes caused by temperature. Adjust the tire inflation pressure to the specified level.
The light will turn off after a few minutes. In case the light does not turn off even if the tire
inflation pressure is adjusted, have th e system checked by your Lexus dealer.
See the “OWNER’S MANUAL”
(Canada)
“AIR BAG ON/
OFF” indicator
●Drive mode indicators
Snow mode indicatorEV drive mode indicator
(if equipped)
“Eco” indicator“Sport S” indicator
“Sport S+” indicator“Comfort” indicator
“Normal” indicator“Custom” indicator
For further information, refe r to the “OWNER’S MANUAL”.

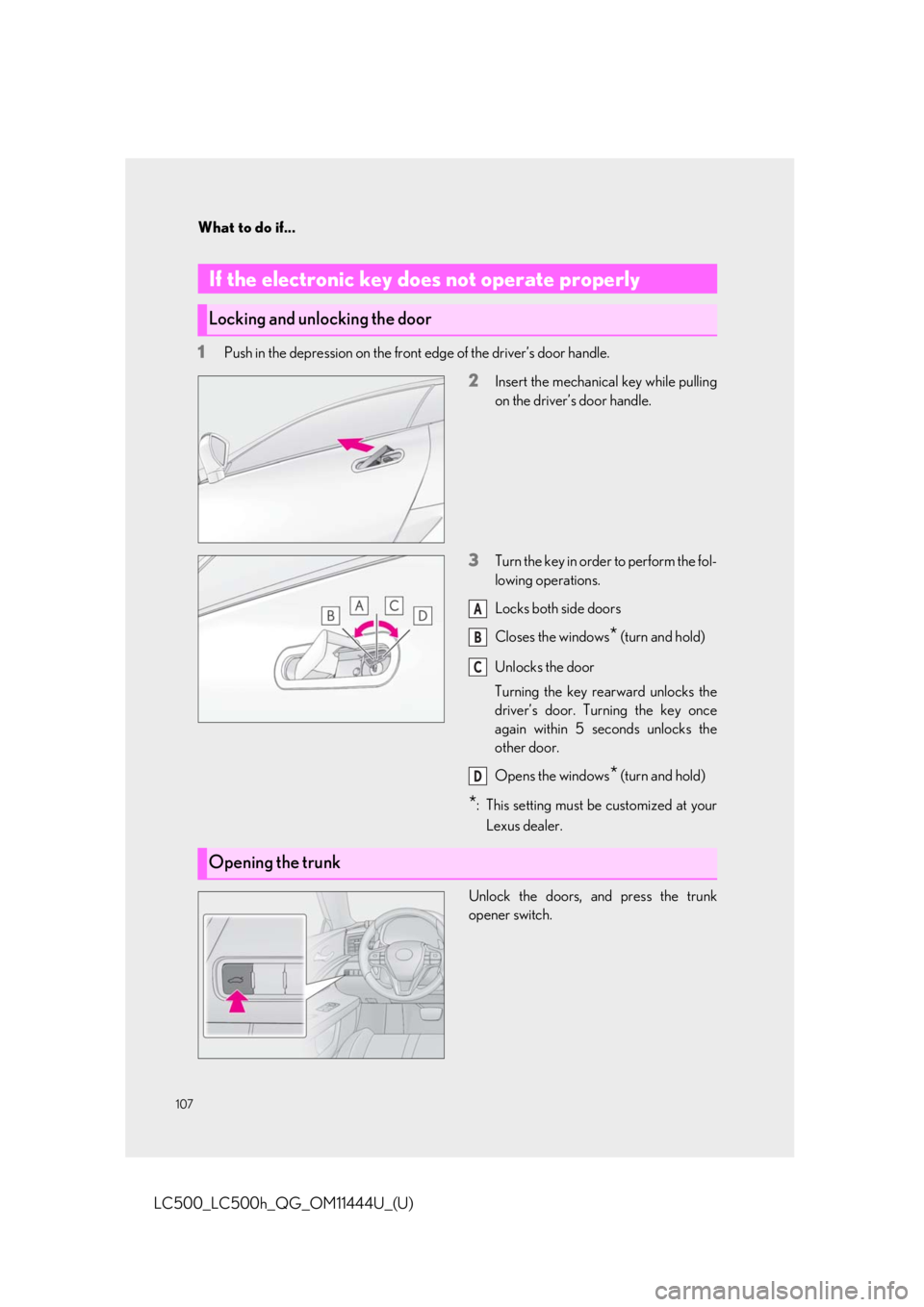

Page 107 of 110
What to do if...
107
LC500_LC500h_QG_OM11444U_(U)
1Push in the depression on the front edge of the driver’s door handle.
2Insert the mechanical key while pulling
on the driver’s door handle.
3Turn the key in order to perform the fol-
lowing operations.
Locks both side doors
Closes the windows
* (turn and hold)
Unlocks the door
Turning the key rear ward unlocks the
driver’s door. Turning the key once
again within 5 seconds unlocks the
other door.
Opens the windows
* (turn and hold)
*: This setting must be customized at your
Lexus dealer.
Unlock the doors, and press the trunk
opener switch.
If the electronic key does not operate properly
Locking and unlocking the door
A
B
C
D
Opening the trunk
Page 108 of 110
108
What to do if...
LC500_LC500h_QG_OM11444U_(U)
1Depress the brake pedal.
2Touch the Lexus emblem side of the
electronic key to the engine switch
When the electronic key is detected, a
buzzer sounds and the engine switch
ON mode
When the smart access system with
push-button start is deactivated in cus-
tomization setting, the engine switch
SORY mode.
3Firmly depress the brake pedal and check that is shown on the multi-informa-
tion display.
4Press the engine swit ch
In the event that the engine
dealer.

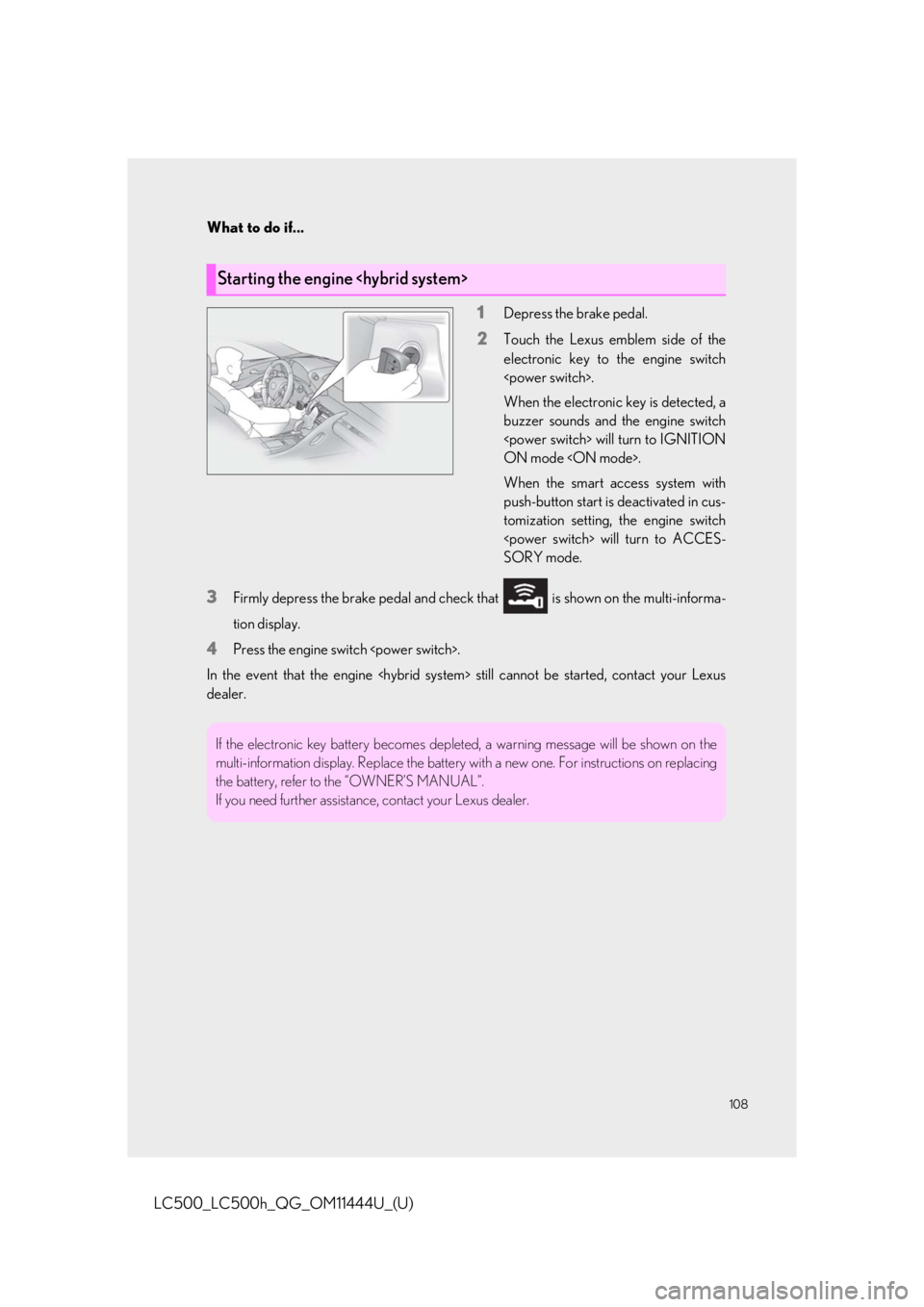

Starting the engine
If the electronic key battery becomes depleted, a warning message will be shown on the
multi-information display. Replace the battery wi th a new one. For instructions on replacing
the battery, refer to the “OWNER’S MANUAL”.
If you need further assistance , contact your Lexus dealer.
Page 109 of 110
What to do if...
109
LC500_LC500h_QG_OM11444U_(U)

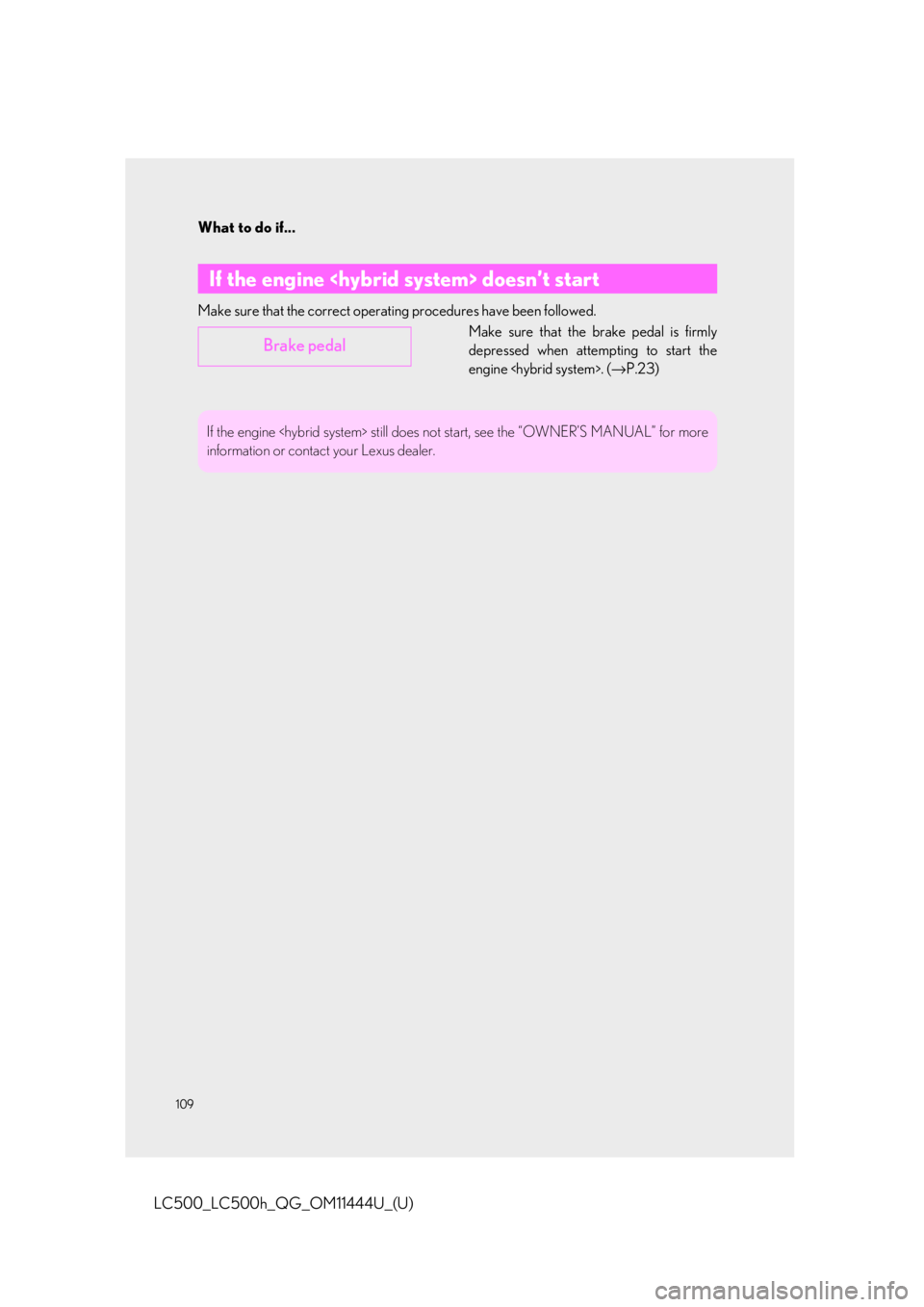

Make sure that the correct operating procedures have been followed.Make sure that the brake pedal is firmly
depressed when attempting to start the
engine
If the engine
Brake pedal
If the engine
information or contact your Lexus dealer.
Page 110 of 110
110
LC500_LC500h_QG_OM11444U_(U)

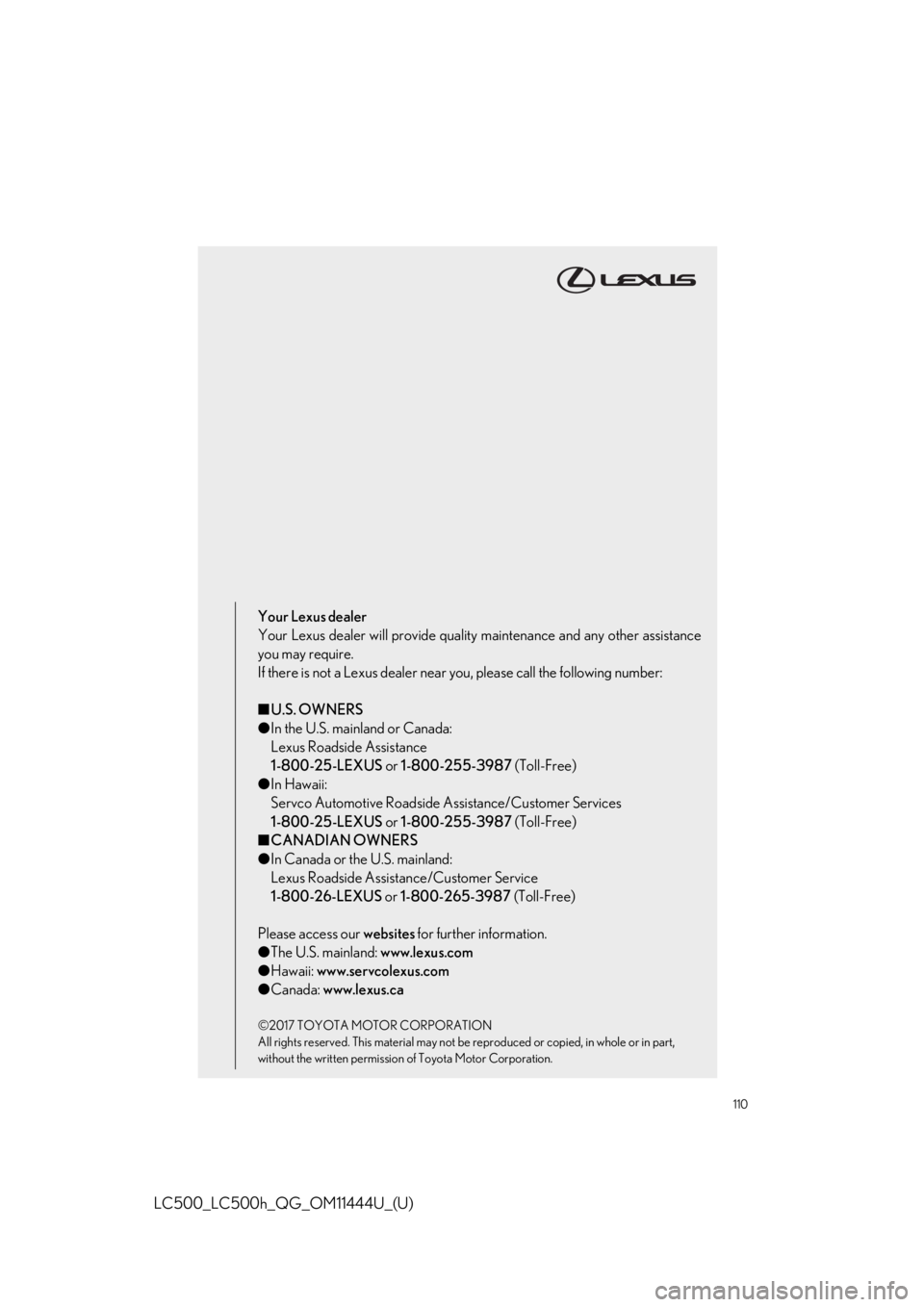

Your Lexus dealer
Your Lexus dealer will provide quality maintenance and any other assistance
you may require.
If there is not a Lexus dealer near you, please call the following number:
■ U.S. OWNERS
● In the U.S. mainland or Canada:
Lexus Roadside Assistance
1-800-25-LEXUS or 1-800-255-3987 (Toll-Free)
● In Hawaii:
Servco Automotive Roadside Assistance/Customer Services
1-800-25-LEXUS or 1-800-255-3987 (Toll-Free)
■ CANADIAN OWNERS
● In Canada or the U.S. mainland:
Lexus Roadside Assist ance/Customer Service
1-800-26-LEXUS or 1-800-265-3987 (Toll-Free)
Please access our websites for further information.
● The U.S. mainland: www.lexus.com
● Hawaii: www.servcolexus.com
● Canada: www.lexus.ca
©2017 TOYOTA MOTOR CORPORATION
All rights reserved. This material may not be reproduced or copied, in whole or in part,
without the written permission of Toyota Motor Corporation.
