lexus LC500h 2018 / LEXUS 2018 LC500, LC500H QUICK GUIDE (OM11444U) Manual Online

81
LC500_LC500h_QG_OM11444U_(U)
■Main control screen
Using the touchpad of the Remote Touch, select the button on the screen. to can be adjusted by perf orming the following operations.
Flick operation: Move the poin ter to the desired item and flick the touchpad up or down.
The item can be adjusted by one level.
Trace operation: After selecting the desired item, trace the pad surface.
The item can be adjusted by the amount that you trace.
Trace operation cannot be used while driving.
Sub menu
Selecting the sub menu item to switch
the main screen.
: Display the air conditioning con-
trol screen
: Display the heated steering
wheel/seat heater/seat ventilator con-
trol screen (if equipped)
: Display the Lexus Climate Con-
cierge control screen
: Display the option control
screen
Adjust the left-hand si de temperature setting
Adjust the fan speed setting
Select the air flow mode
: Air flows to the upper body
: Air flows to the upper body and feet
: Air flows to the feet
: Air flows to the feet and the windshield defogger operates
Air conditioning control screen
BE
A
B
C
D

82
LC500_LC500h_QG_OM11444U_(U)
Adjust the right-hand side temperature setting
Function on/off indicators
When the function is on, the indica tor illuminates on the control screen.
Sub function menu
When the sub function button on the Remote Touch is pressed, the following functions
can be switched on and off.
: Set Lexus Climate Concierge ( →P.79)
“AUTO”: Set automatic mode on/off ( →P.83)
“OFF”: Turn the fan off
“A/C”: Set cooling and dehumidification function
“DUAL”: Adjust the temperature for driver and passenger seats separately (“DUAL”
mode)
: Set eco air conditioning mode
■Option control screen
Select on the sub menu to di splay the option control screen.
The functions can be switched on and off.
When the function is on, the indicator illuminates on the screen.
Set Lexus Climate Concierge (→P.79)
Adjusting the temperature for driver
and passenger seats separately
(“DUAL” mode)
Set eco air conditioning mode
Air conditioning and heater output is
limited to prioritize fuel economy.
Cooling and dehumidification function
Prevent ice from building up on the windshield and wiper blades (Windshield wiper de-
icer) (if equipped)
Removing pollen from the air (Micro dust and pollen filter)
E
F
G
A
B
C
D
E
F

83
LC500_LC500h_QG_OM11444U_(U)
■Side display
Display the heated steering wheel/seat
heaters/seat ventilators control screen
(if equipped)
Adjust the left-hand side temperature
setting
Adjust the fan speed setting
Adjust the right-hand side temperature
setting
Set cooling and dehumidification function on/off
Adjust the temperature for the driver’s and front passenger’s seats separately (“DUAL”
mode)
Select the air flow mode
1Press the automatic mode switch or sele ct “AUTO” on the sub function menu.
( → P.80, 82)
2Press the outside/recirculated air mode switch to switch to automatic air intake mode.
The air conditioning system automatically switches between outside air and recircu-
lated air modes.
3Adjust the temperature setting.
4To stop the operation, press the off switch or select “OFF” on the sub function menu.
( → P.80, 82)
A
B
C
D
Using automatic mode
E
F
G

84
LC500_LC500h_QG_OM11444U_(U)
1Press the talk switch on the steering
wheel.
Voice guidance for the voice com-
mand system can be skipped by press-
ing the talk switch.
2Say the desired command.
●Common commands are displayed on the sc reen. Selecting a side menu function
button will show only commands for the function selected. Selecting the “More
Commands” button will bring up a list with more commands to view.
● Saying “Help” prompts voice guidance to offer examples of commands and opera-
tion methods.
Continue on to pages 85-90 for a detailed list of Voice Commands for the following cate-
gories:
Common . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.85
Top menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.85
Navi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.86
Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.87
Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.88
Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.88
Info . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.89
Apps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.89
Climate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.90
Voice Command System
Basic operation
NOTE: Wait for the confirmation beep before speaking a command.
■Important voice commands information and tips
• Voice commands can be used while driving.
• You must wait until after the beep to say a command.
• If you know what command to use, you can press the talk switch at any time to inter-
rupt the voice guidance.

85
LC500_LC500h_QG_OM11444U_(U)
■Common
■Top menu
*: Vehicle must be parked

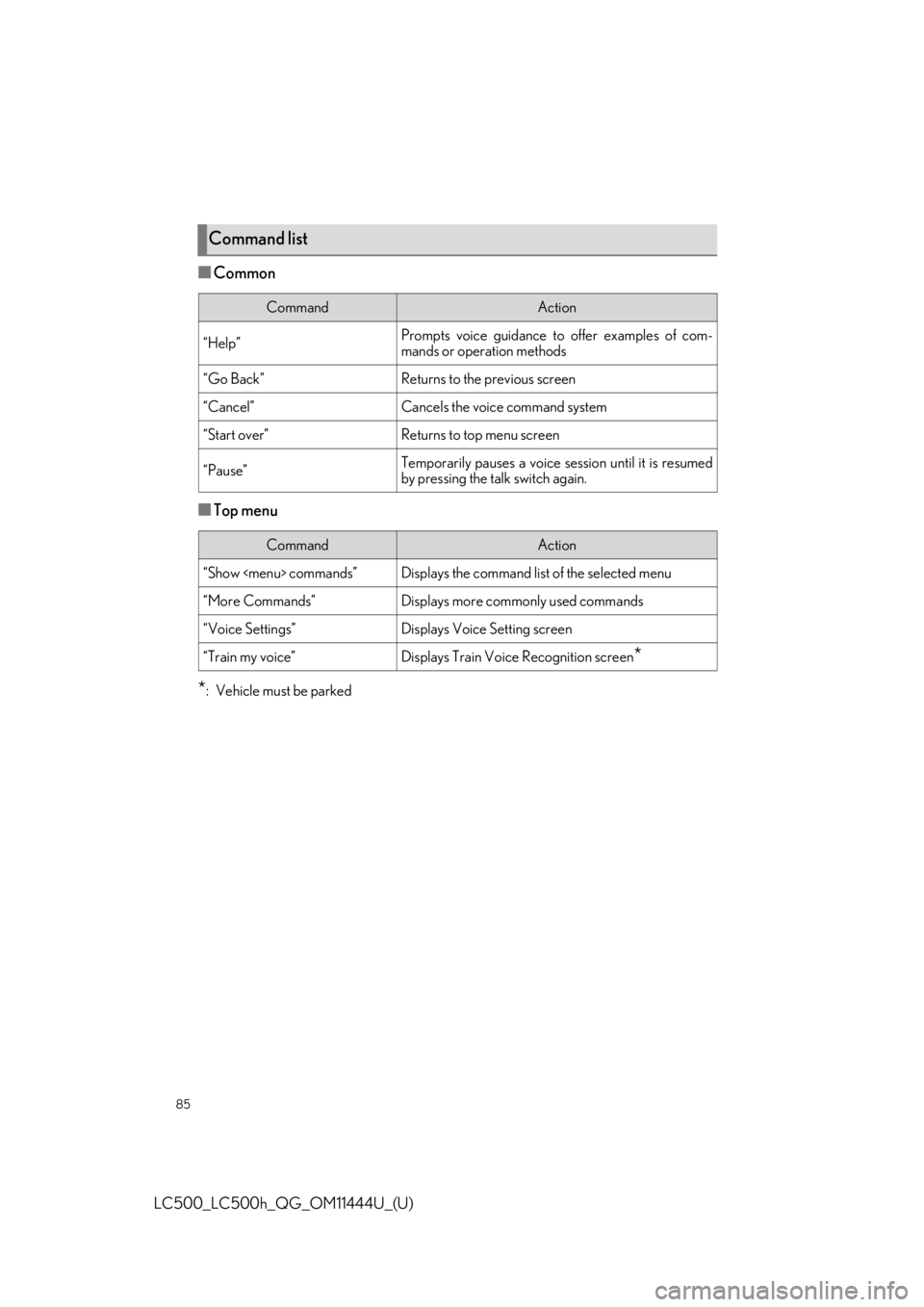

Command list
CommandAction
“Help”Prompts voice guidance to offer examples of com-
mands or operation methods
“Go Back”Returns to the previous screen
“Cancel”Cancels the voice command system
“Start over”Returns to top menu screen
“Pause”Temporarily pauses a voice session until it is resumed
by pressing the talk switch again.
CommandAction
“Show

86
LC500_LC500h_QG_OM11444U_(U)

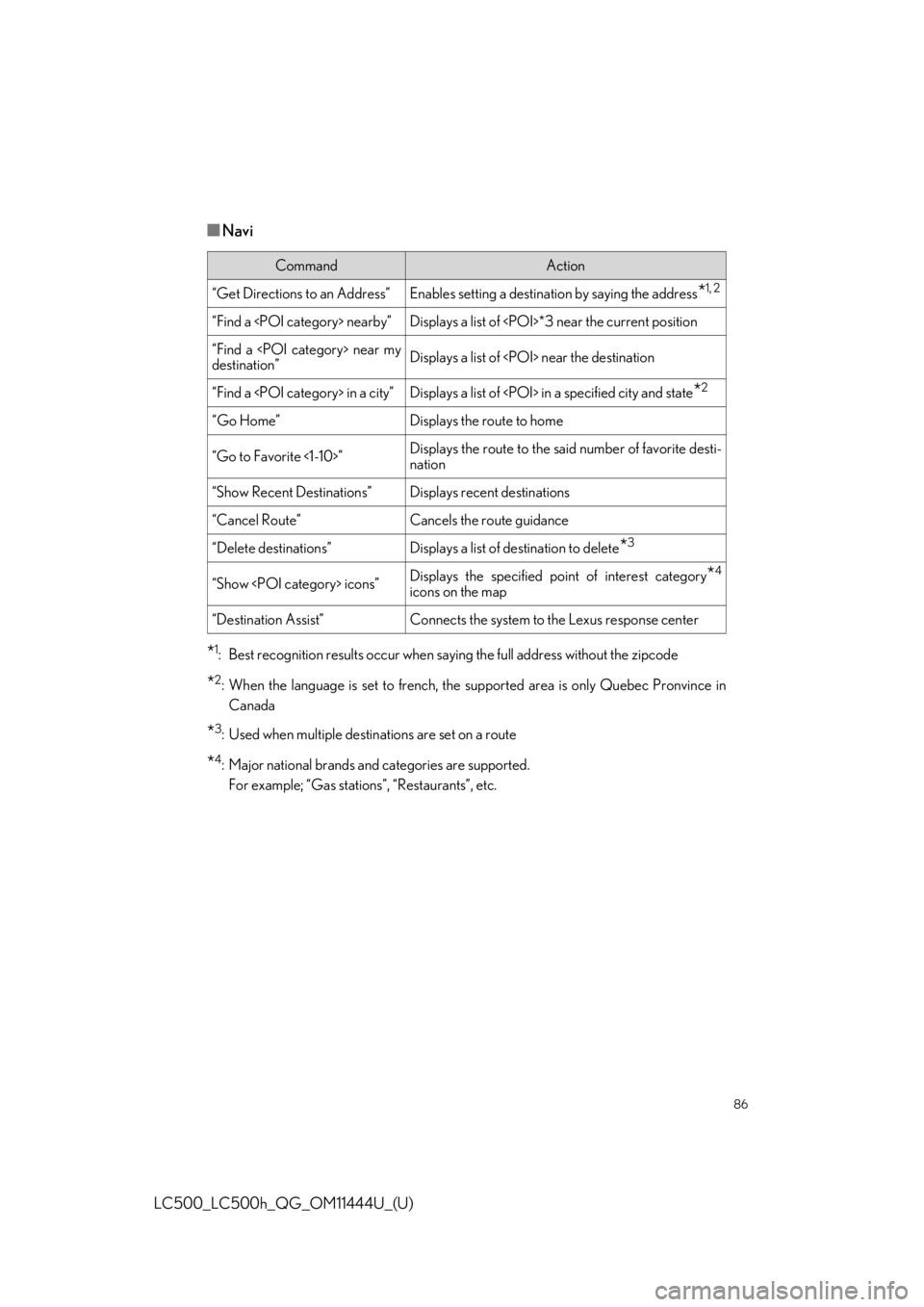

■Navi
*1: Best recognition results occur when saying the full address without the zipcode
*2: When the language is set to french, the supported area is only Quebec Pronvince in
Canada
*3: Used when multiple destin ations are set on a route
*4: Major national brands and categories are supported.
For example; “Gas stations”, “Restaurants”, etc.
CommandAction
“Get Directions to an Address”Enables setting a destination by saying the address*1, 2
“Find a nearby”Displays a list of *3 near the current position
“Find a near my
destination”Displays a list of near the destination
“Find a in a city”Displays a list of in a specified city and state*2
“Go Home”Displays the route to home
“Go to Favorite <1-10>”Displays the route to the said number of favorite desti-
nation
“Show Recent Destinations”Displays recent destinations
“Cancel Route”Cancels the route guidance
“Delete destinations”Displays a list of de stination to delete*3
“Show icons”Displays the specified po int of interest category*4
icons on the map
“Destination Assist”Connects the system to the Lexus response center

87
LC500_LC500h_QG_OM11444U_(U)

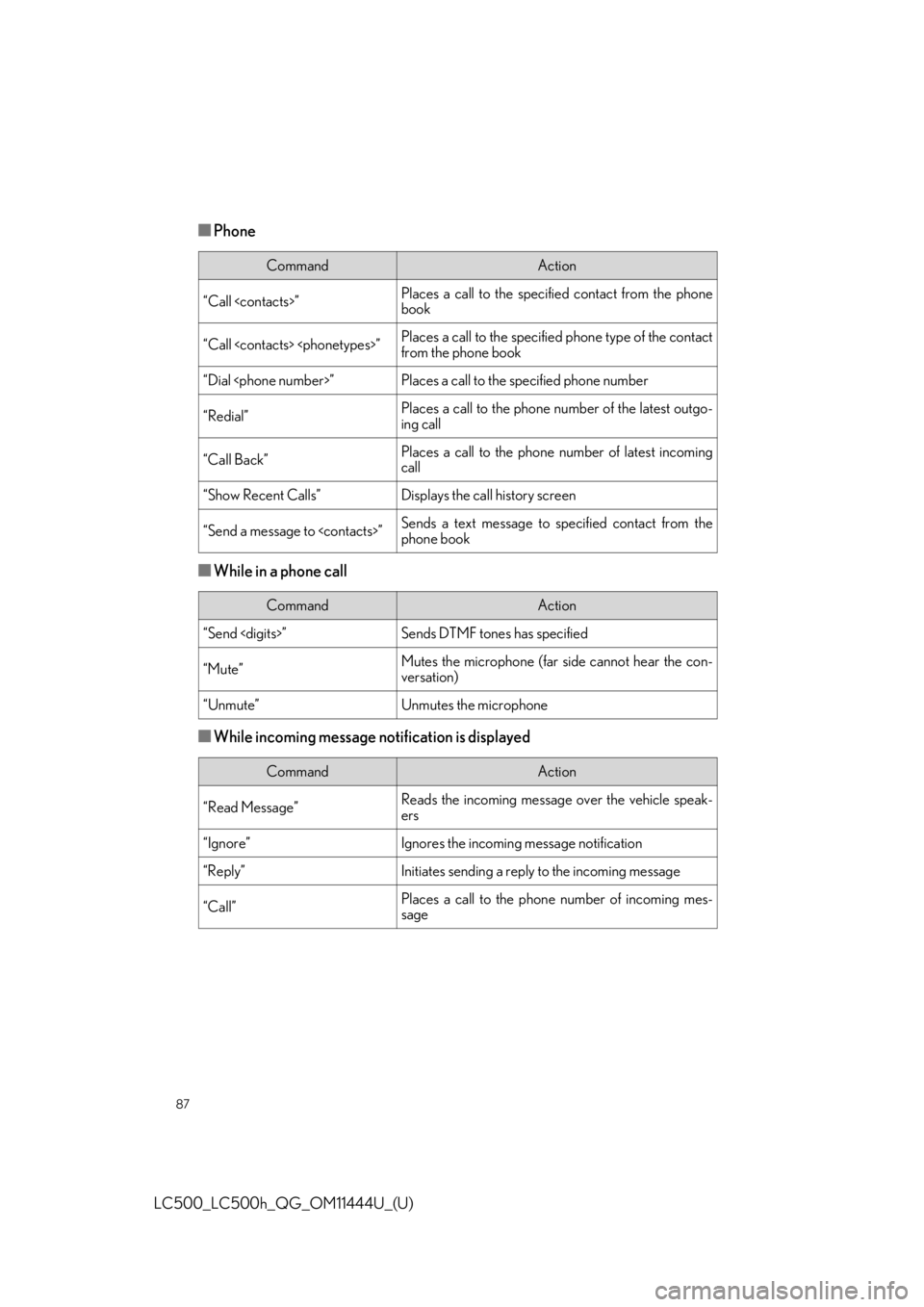

■Phone
■While in a phone call
■While incoming message notification is displayed
CommandAction
“Call ”Places a call to the specified contact from the phone
book
“Call ”Places a call to the specified phone type of the contact
from the phone book
“Dial ”Places a call to the specified phone number
“Redial”Places a call to the phone number of the latest outgo-
ing call
“Call Back”Places a call to the phone number of latest incoming
call
“Show Recent Calls”Displays the call history screen
“Send a message to ”Sends a text message to specified contact from the
phone book
CommandAction
“Send ”Sends DTMF tones has specified
“Mute”Mutes the microphone (far side cannot hear the con-
versation)
“Unmute”Unmutes the microphone
CommandAction
“Read Message”Reads the incoming message over the vehicle speak-
ers
“Ignore”Ignores the incoming message notification
“Reply”Initiates sending a reply to the incoming message
“Call”Places a call to the phone number of incoming mes-
sage

88
LC500_LC500h_QG_OM11444U_(U)

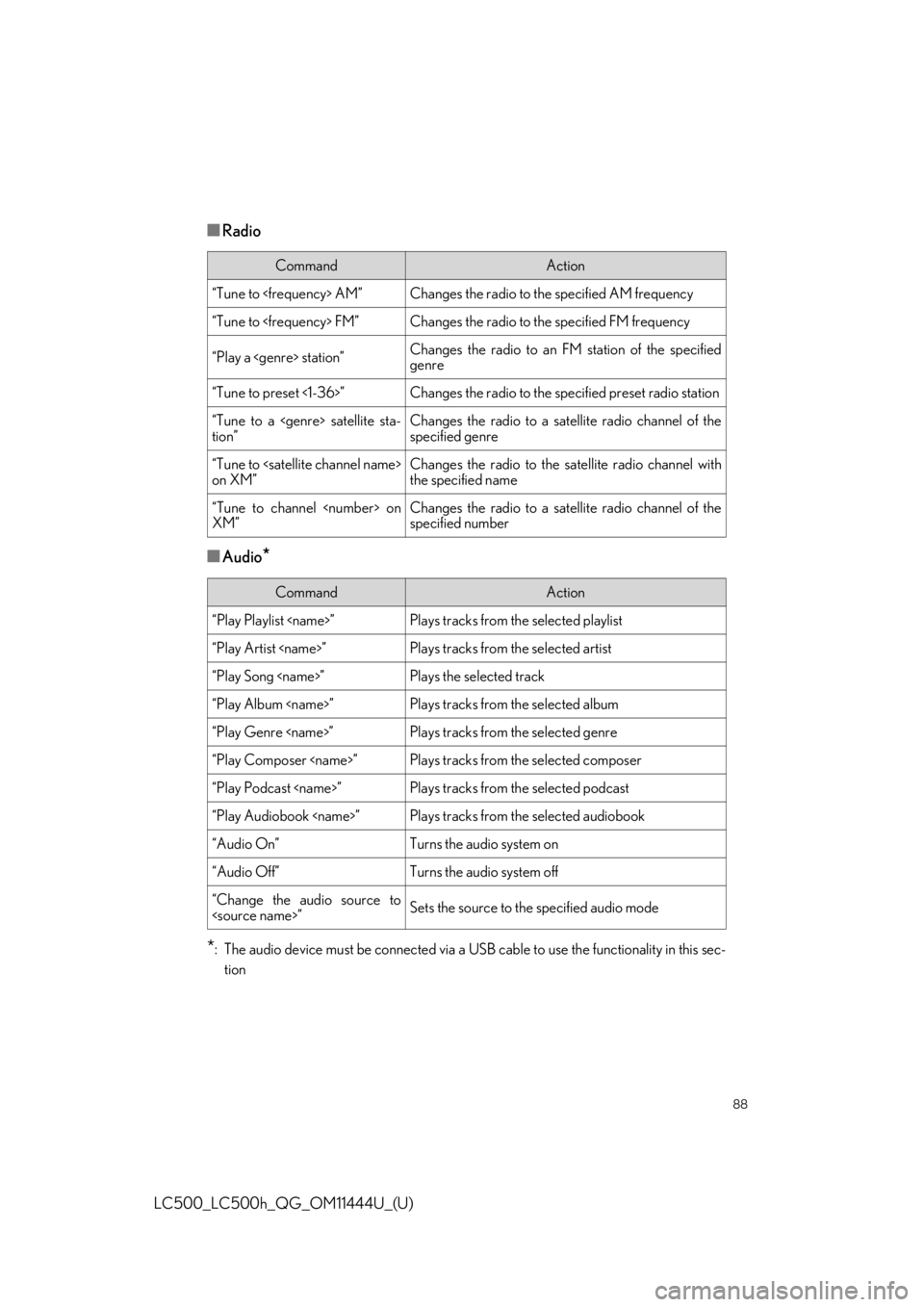

■Radio
■Audio*
*
: The audio device must be connected via a US B cable to use the functionality in this sec-
tion
CommandAction
“Tune to AM”Changes the radio to the specified AM frequency
“Tune to FM”Changes the radio to the specified FM frequency
“Play a station”Changes the radio to an FM station of the specified
genre
“Tune to preset <1-36>”Changes the radio to the specified preset radio station
“Tune to a satellite sta-
tion”Changes the radio to a satellite radio channel of the
specified genre
“Tune to
on XM”Changes the radio to the satellite radio channel with
the specified name
“Tune to channel on
XM”Changes the radio to a satellite radio channel of the
specified number
CommandAction
“Play Playlist ”Plays tracks from th e selected playlist
“Play Artist ”Plays tracks from the selected artist
“Play Song ”Plays the selected track
“Play Album ”Plays tracks from the selected album
“Play Genre ”Plays tracks from the selected genre
“Play Composer ”Plays tracks from the selected composer
“Play Podcast ”Plays tracks from the selected podcast
“Play Audiobook ”Plays tracks from the selected audiobook
“Audio On”Turns the audio system on
“Audio Off”Turns the audio system off
“Change the audio source to
”Sets the source to the specified audio mode

89
LC500_LC500h_QG_OM11444U_(U)

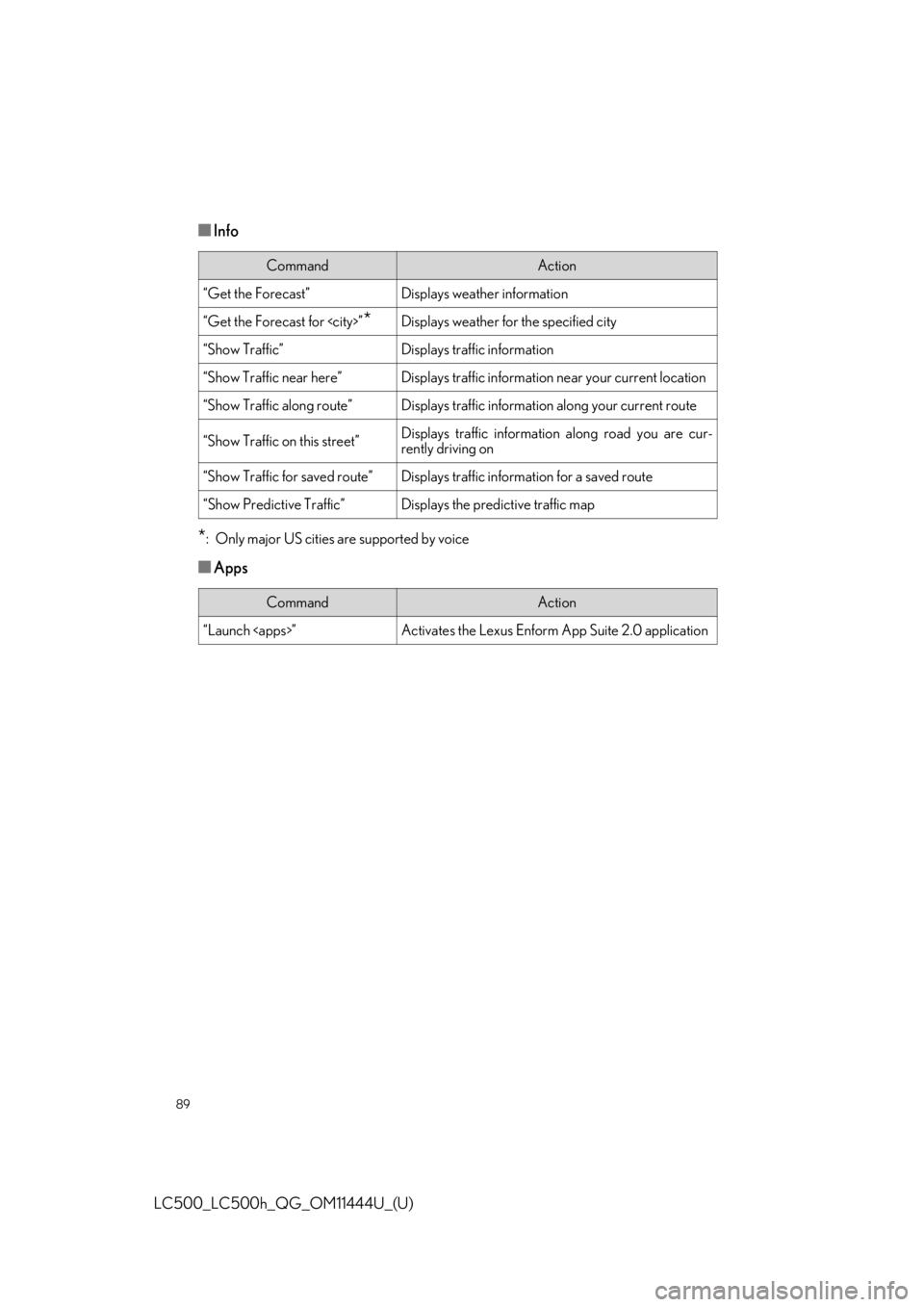

■Info
*: Only major US cities are supported by voice
■Apps
CommandAction
“Get the Forecast”Displays weather information
“Get the Forecast for ”*Displays weather for the specified city
“Show Traffic”Displays traffic information
“Show Traffic near here”Displays traffic information near your current location
“Show Traffic along route”Displays traffic information along your current route
“Show Traffic on this street”Displays traffic information along road you are cur-
rently driving on
“Show Traffic for saved route”Displays traffic information for a saved route
“Show Predictive Traffic”Displays the predictive traffic map
CommandAction
“Launch ”Activates the Lexus Enform App Suite 2.0 application

90
LC500_LC500h_QG_OM11444U_(U)

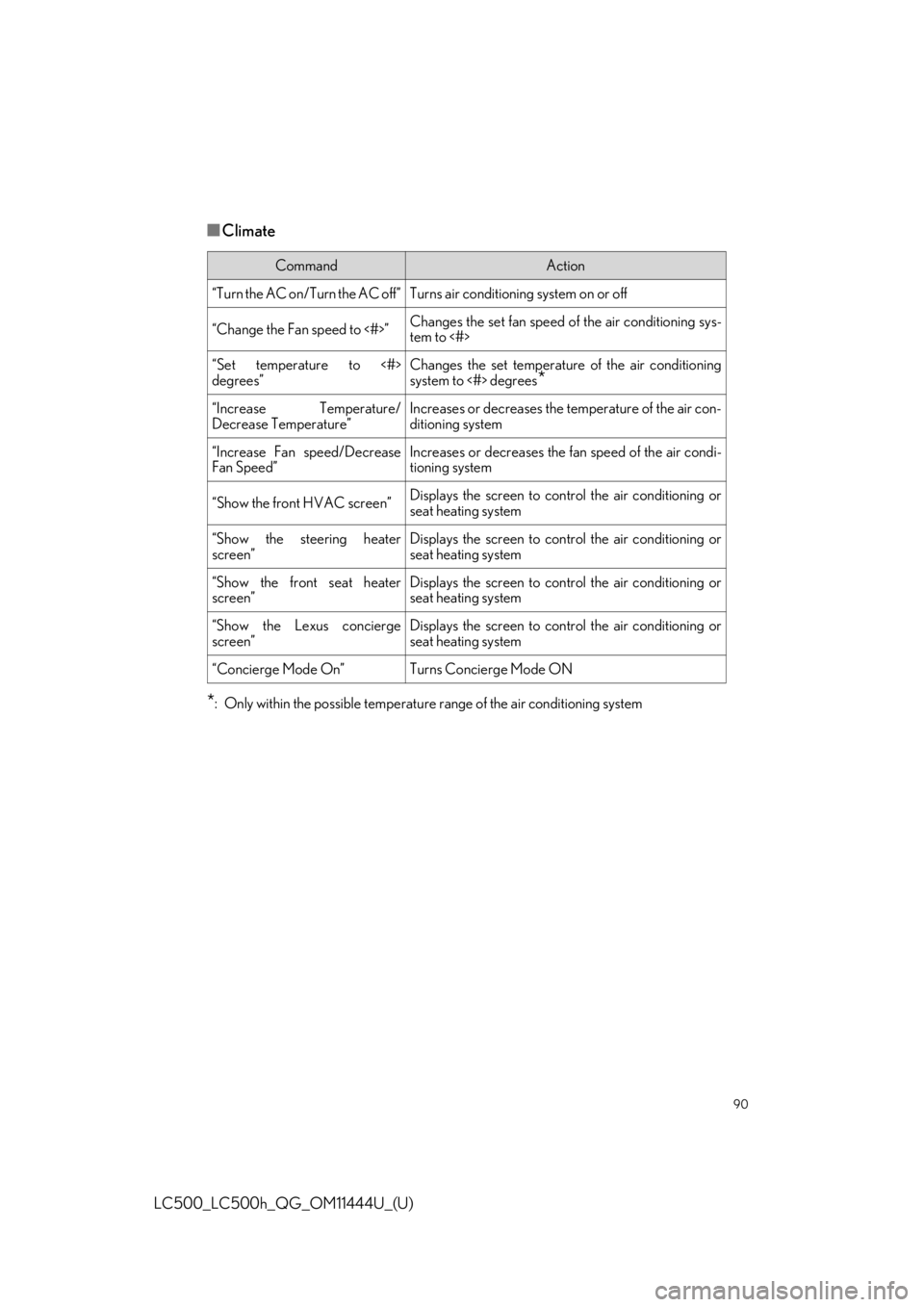

■Climate
*: Only within the possible temperature range of the air conditioning system
CommandAction
“Turn the AC on/Turn the AC off”Turns air conditioning system on or off
“Change the Fan speed to <#>”Changes the set fan speed of the air conditioning sys-
tem to <#>
“Set temperature to <#>
degrees”Changes the set temperature of the air conditioning
system to <#> degrees
*
“Increase Temperature/
Decrease Temperature”Increases or decreases the temperature of the air con-
ditioning system
“Increase Fan speed/Decrease
Fan Speed”Increases or decreases the fan speed of the air condi-
tioning system
“Show the front HVAC screen”Displays the screen to control the air conditioning or
seat heating system
“Show the steering heater
screen”Displays the screen to control the air conditioning or
seat heating system
“Show the front seat heater
screen”Displays the screen to control the air conditioning or
seat heating system
“Show the Lexus concierge
screen”Displays the screen to control the air conditioning or
seat heating system
“Concierge Mode On”Turns Concierge Mode ON
