PASSENGER SIDE JUNCTION BLOCK

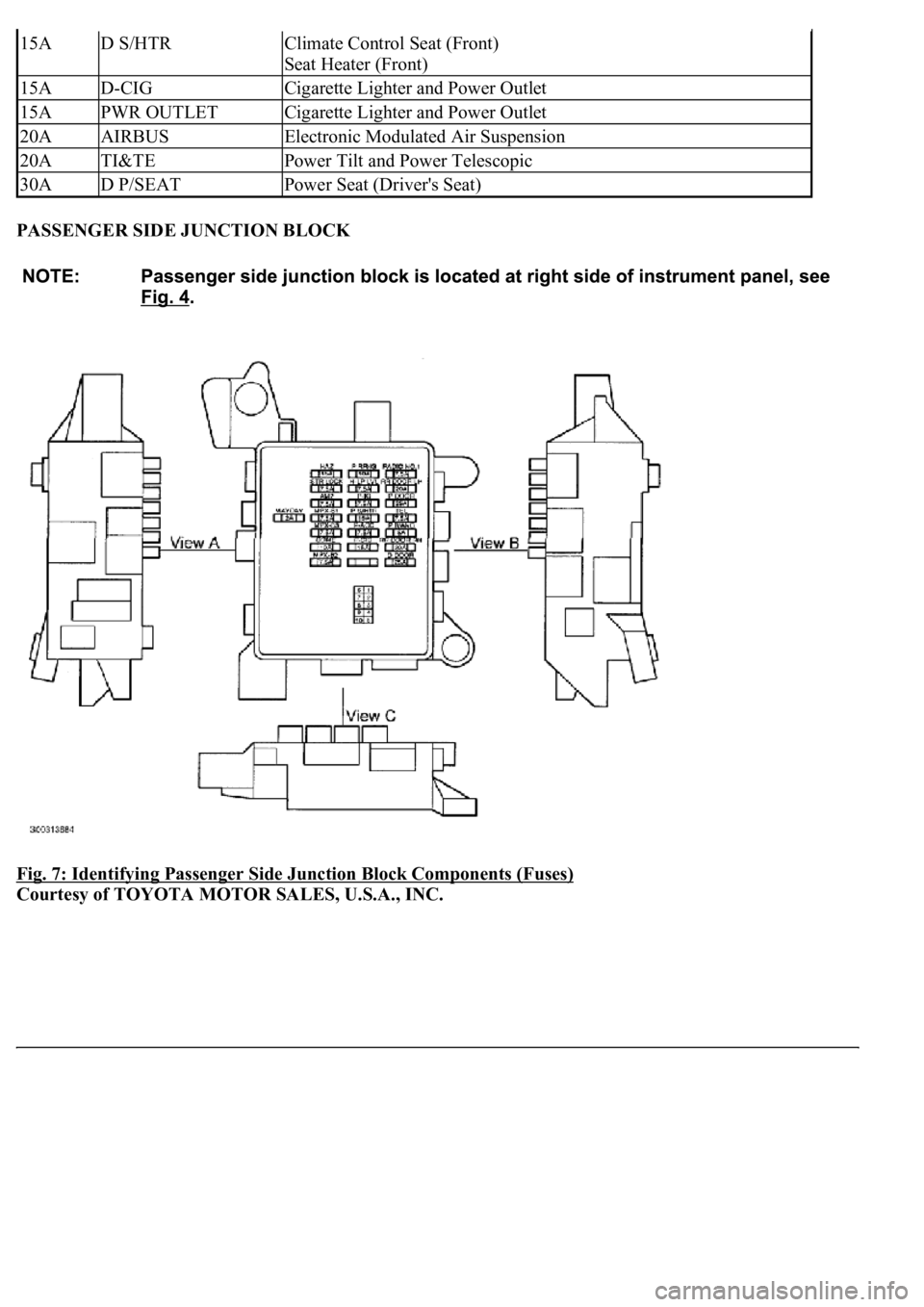

Fig. 7: Identifying Passenger Side Junction Block Components (Fuses)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
15AD S/HTRClimate Control Seat (Front)
Seat Heater (Front)
15AD-CIGCigarette Lighter and Power Outlet
15APWR OUTLETCigarette Lighter and Power Outlet
20AAIRBUSElectronic Modulated Air Suspension
20ATI&TEPower Tilt and Power Telescopic
30AD P/SEATPower Seat (Driver's Seat)

FuseSystem
5AP B/ANCMultiplex Communication System (BEAN - Instrument Panel Bus)
Power Shoulder Belt Anchorage
7.5AAM2Electronically Controlled Transmission and A/T Indicator
Engine Control
Engine Immobilizer System (w/ Smart Key System) and Steering Lock
System
Engine Immobilizer System (w/o Smart Key System)
SRS
Starting and Ignition
Steering Lock System
7.5AH-LP LVLAdaptive Front-Lighting System
7.5AMPX-B1Door Lock Control and Door Closer (w/ Smart Key System)
Door Lock Control and Door Closer (w/o Smart Key System)
Engine Immobilizer System (w/ Smart Key System) and Steering Lock
System
Engine Immobilizer System (w/o Smart Key System)
Key Reminder (w/ Smart Key System)
Mirror Heater
Multiplex Communication System (BEAN - Door Bus)
Power Seat (Driver's Seat)
Power Seat (Rear Passenger's Seat)
Power Shoulder Belt Anchorage
Power Window
Remote Control Mirror
Smart Key System, Theft Deterrent, , Door Lock Control, Door Closer
and Wireless Door Lock Control (w/ Smart Key System)
Theft Deterrent (w/ Smart Key System)
Theft Deterrent (w/o Smart Key System)
Vibration Seat
Wireless Door Lock Control (w/ Smart Key System)
Wireless Door Lock Control (w/o Smart Key System)

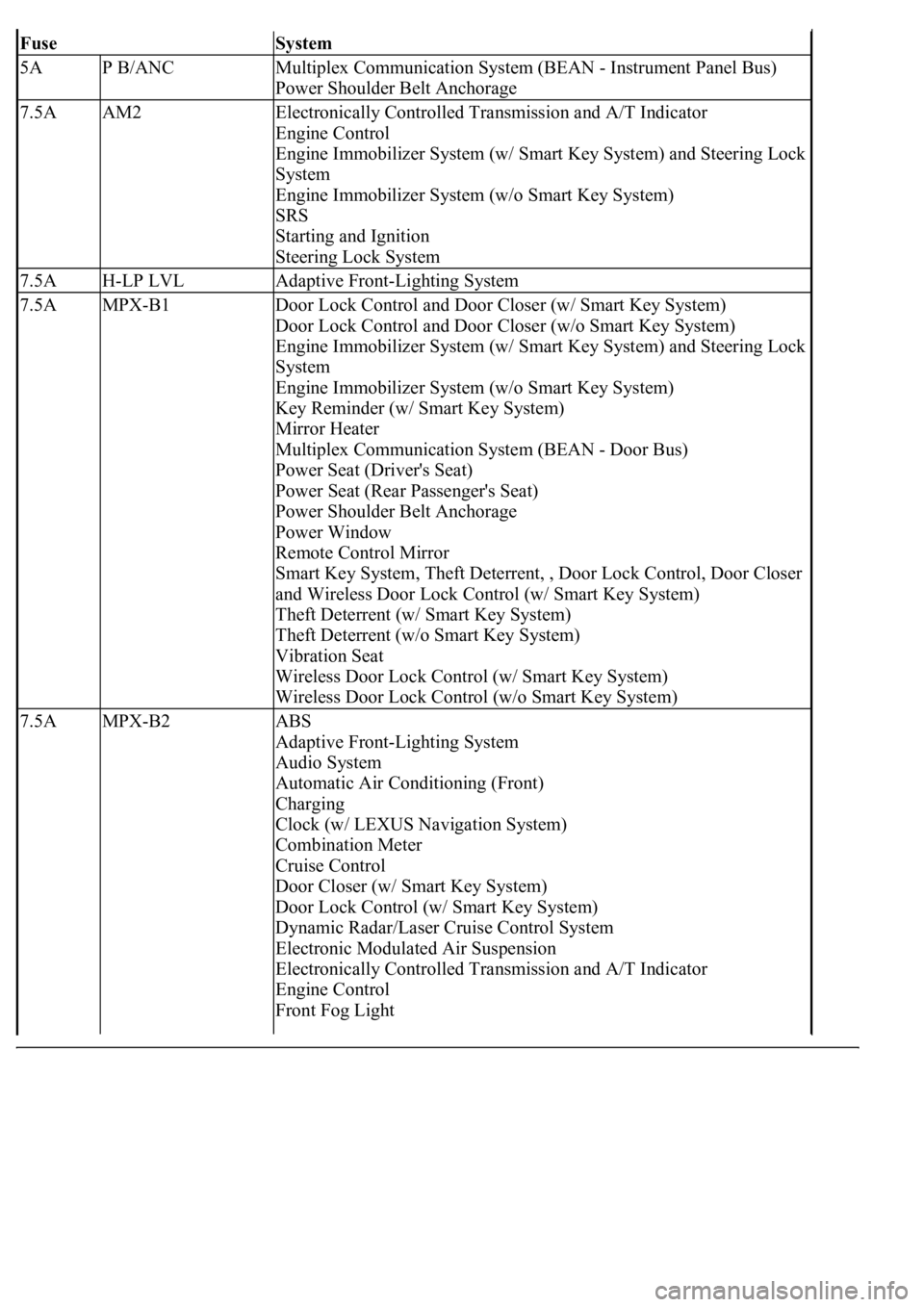

7.5AMPX-B2ABS
Adaptive Front-Lighting System
Audio System
Automatic Air Conditioning (Front)
Charging
Clock (w/ LEXUS Navigation System)
Combination Meter
Cruise Control
Door Closer (w/ Smart Key System)
Door Lock Control (w/ Smart Key System)
Dynamic Radar/Laser Cruise Control System
Electronic Modulated Air Suspension
Electronically Controlled Transmission and A/T Indicator
Engine Control
Front Fog Light

Automatic Air Conditioning (Front)
Clock (w/ LEXUS Navigation System
Clock (w/o LEXUS Navigation System)
LEXUS Navigation System
LEXUS Parking Assist (Rear View Monitor)
Rear Air Conditioning

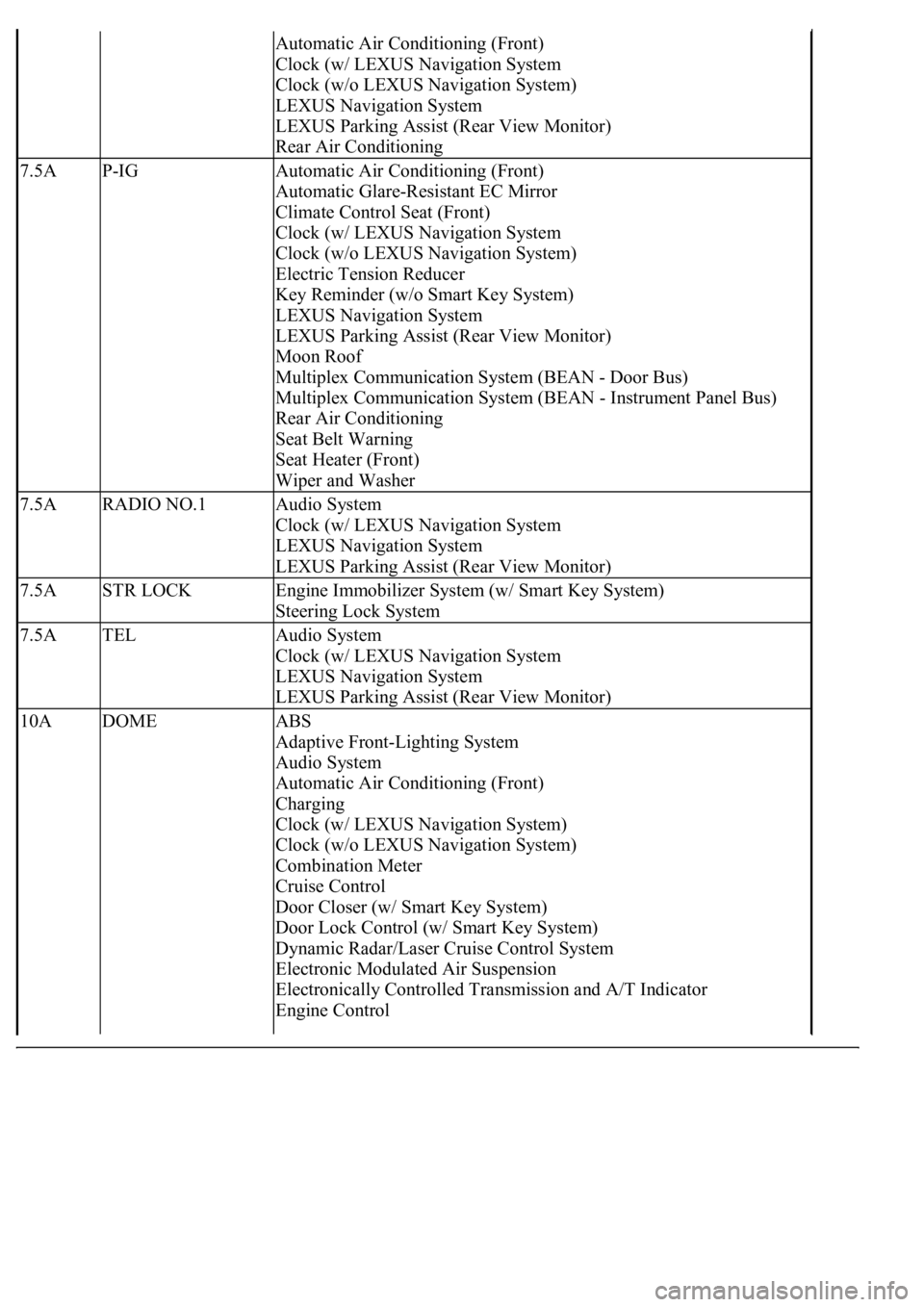

7.5AP-IGAutomatic Air Conditioning (Front)
Automatic Glare-Resistant EC Mirror
Climate Control Seat (Front)
Clock (w/ LEXUS Navigation System
Clock (w/o LEXUS Navigation System)
Electric Tension Reducer
Key Reminder (w/o Smart Key System)
LEXUS Navigation System
LEXUS Parking Assist (Rear View Monitor)
Moon Roof
Multiplex Communication System (BEAN - Door Bus)
Multiplex Communication System (BEAN - Instrument Panel Bus)
Rear Air Conditioning
Seat Belt Warning
Seat Heater (Front)
Wiper and Washer
7.5ARADIO NO.1Audio System
Clock (w/ LEXUS Navigation System
LEXUS Navigation System
LEXUS Parking Assist (Rear View Monitor)
7.5ASTR LOCKEngine Immobilizer System (w/ Smart Key System)
Steering Lock System
7.5ATELAudio System
Clock (w/ LEXUS Navigation System
LEXUS Navigation System
LEXUS Parking Assist (Rear View Monitor)
10ADOMEABS
Adaptive Front-Lighting System
Audio System
Automatic Air Conditioning (Front)
Charging
Clock (w/ LEXUS Navigation System)
Clock (w/o LEXUS Navigation System)
Combination Meter
Cruise Control
Door Closer (w/ Smart Key System)
Door Lock Control (w/ Smart Key System)
Dynamic Radar/Laser Cruise Control System
Electronic Modulated Air Suspension
Electronically Controlled Transmission and A/T Indicator
Engine Control
