LEXUS LS430 2003 Factory Repair Manual

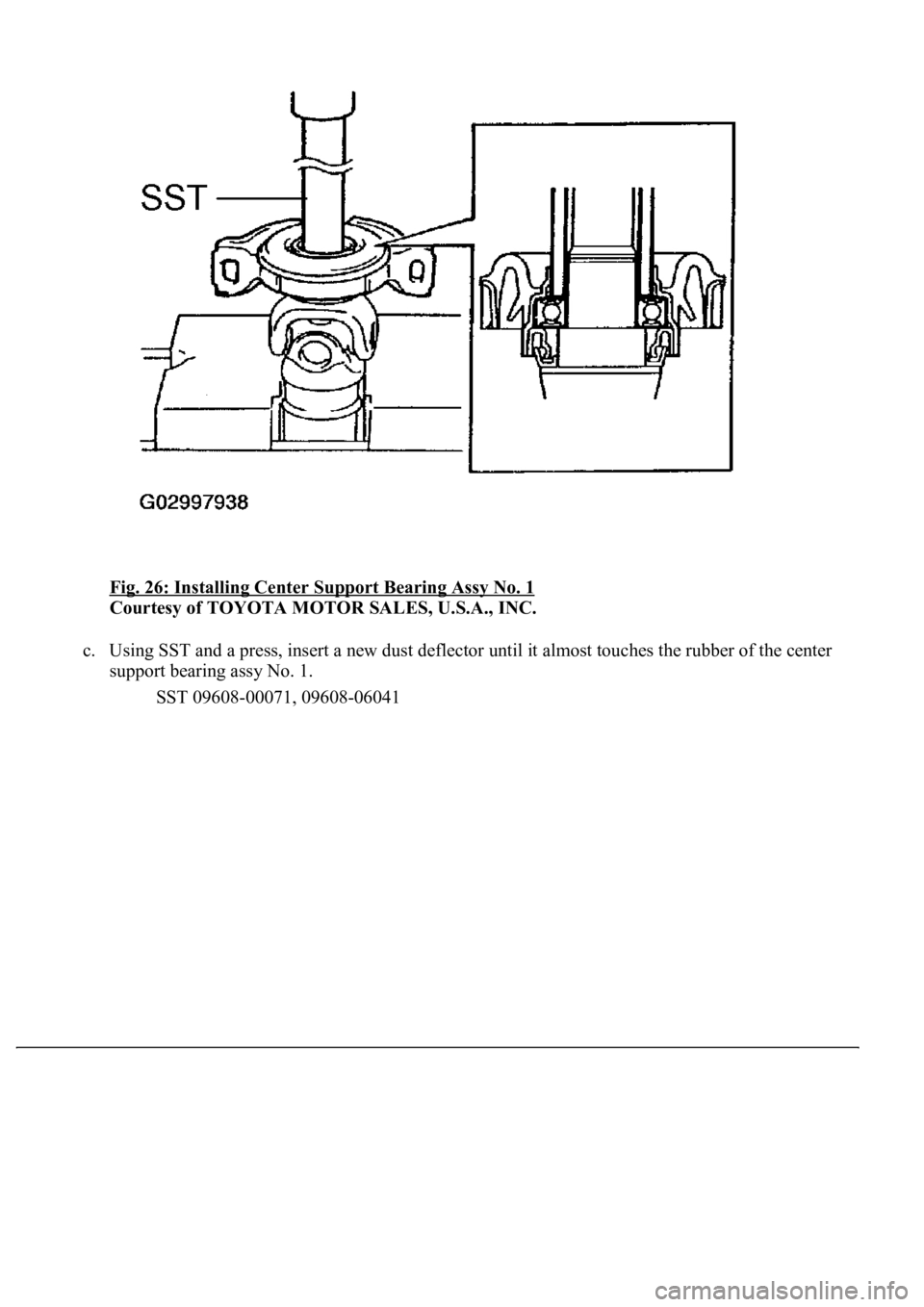

Fig. 26: Installing Center Support Bearing Assy No. 1
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
c. Using SST and a press, insert a new dust deflector until it almost touches the rubber of the center
support bearing assy No. 1.
SST 09608-00071, 09608-06041

Fig. 27: Installing Dust Deflector
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
d. Using SST and a press, install a new dust deflector No. 2.
SST 09330-50010

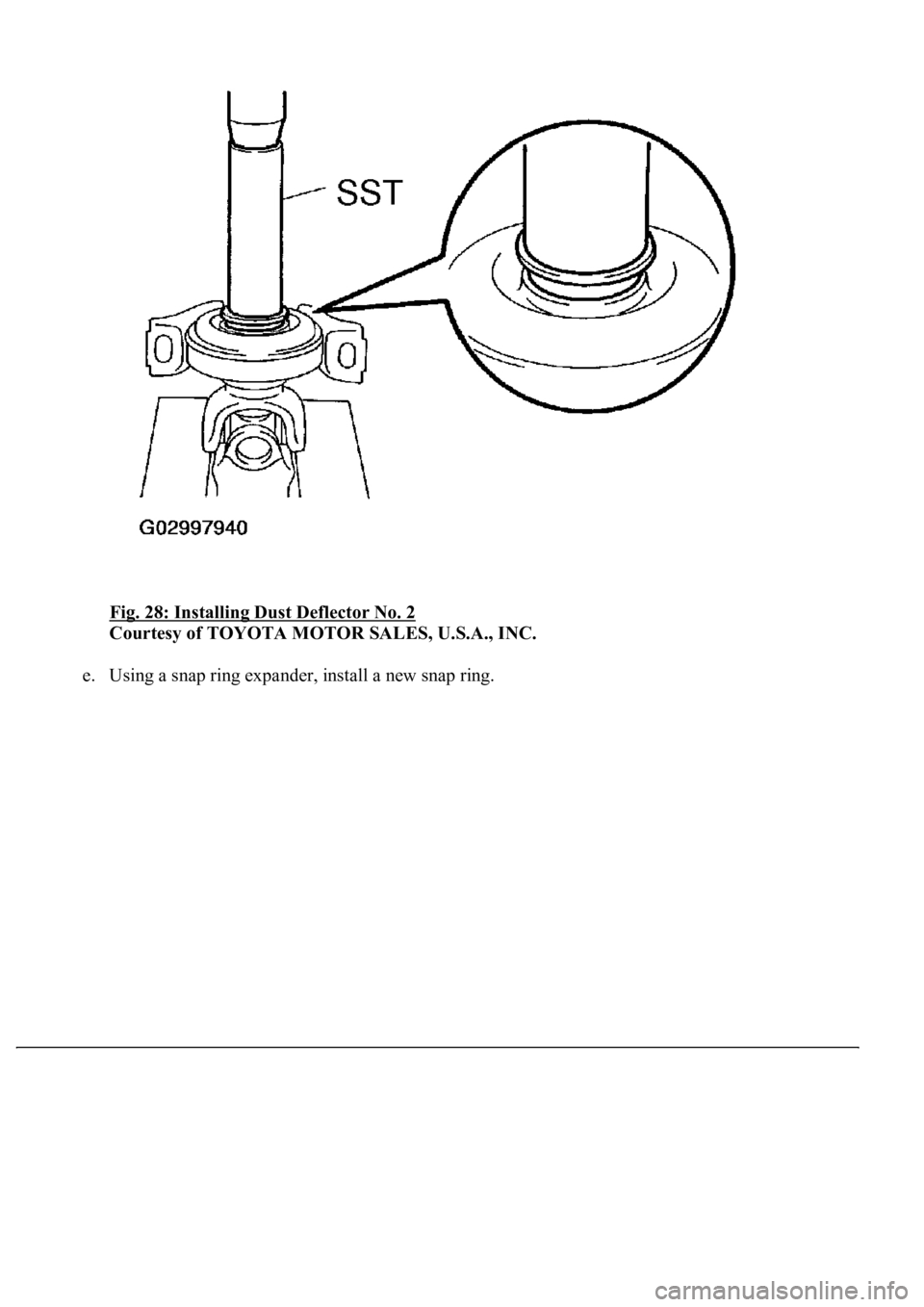

Fig. 28: Installing Dust Deflector No. 2
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
e. Using a snap ring expander, install a new snap ring.

Fig. 29: Installing Snap Ring
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
26.INSTALL PROPELLER INTERMEDIATE SHAFT ASSY
a. Install the dust boot.
b. Apply grease to the spline.
Grease:
Molybdenum disulfide lithium base, NLGI No. 2

Fig. 30: Wrapping Vinyl Tape Around Spline
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
c. Align the matchmarks and assemble the intermediate shaft and propeller shaft.
d. Cover the ad
justing nut with the dust boot.

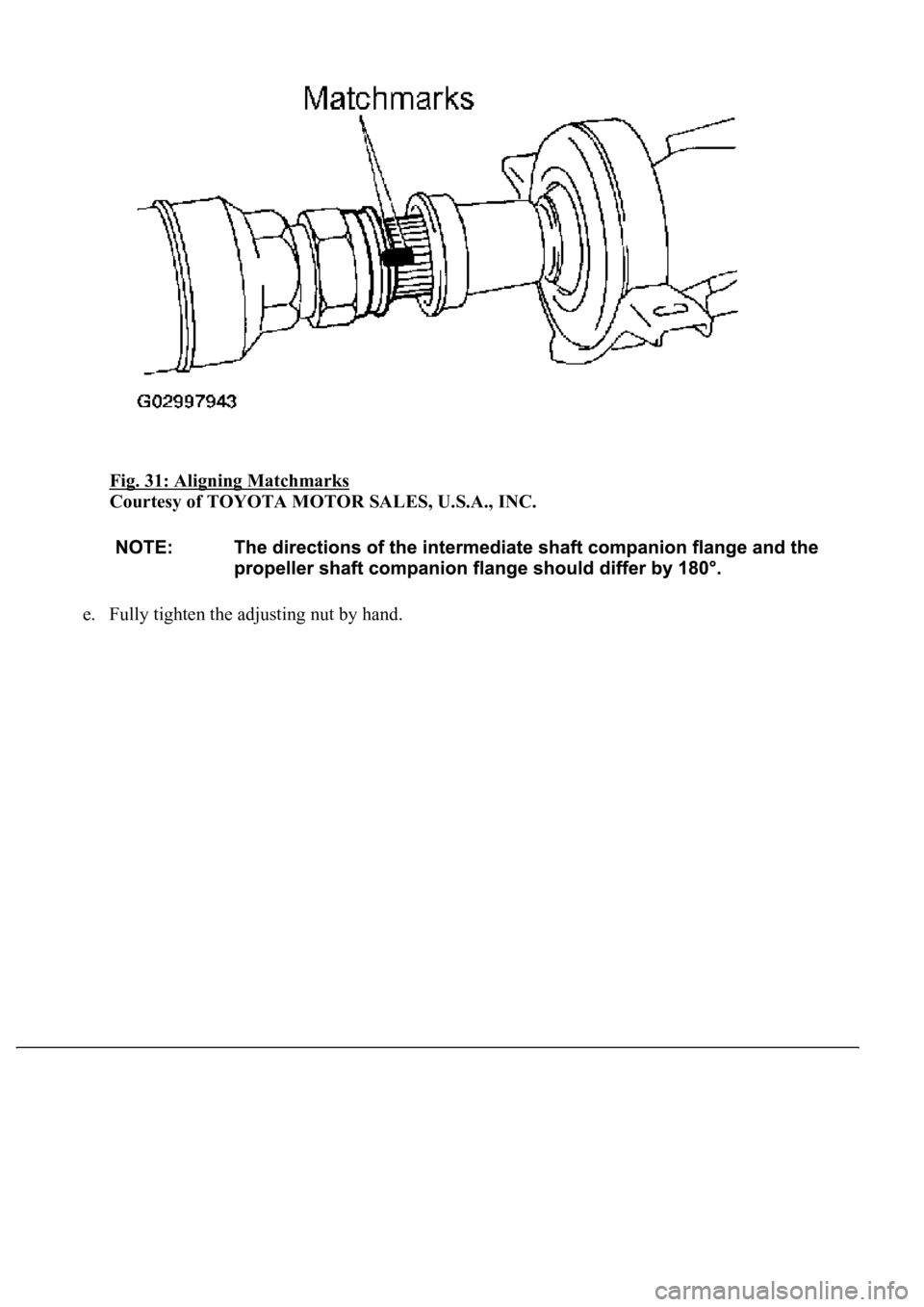

Fig. 31: Aligning Matchmarks
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
e. Fully tighten the adjusting nut by hand.

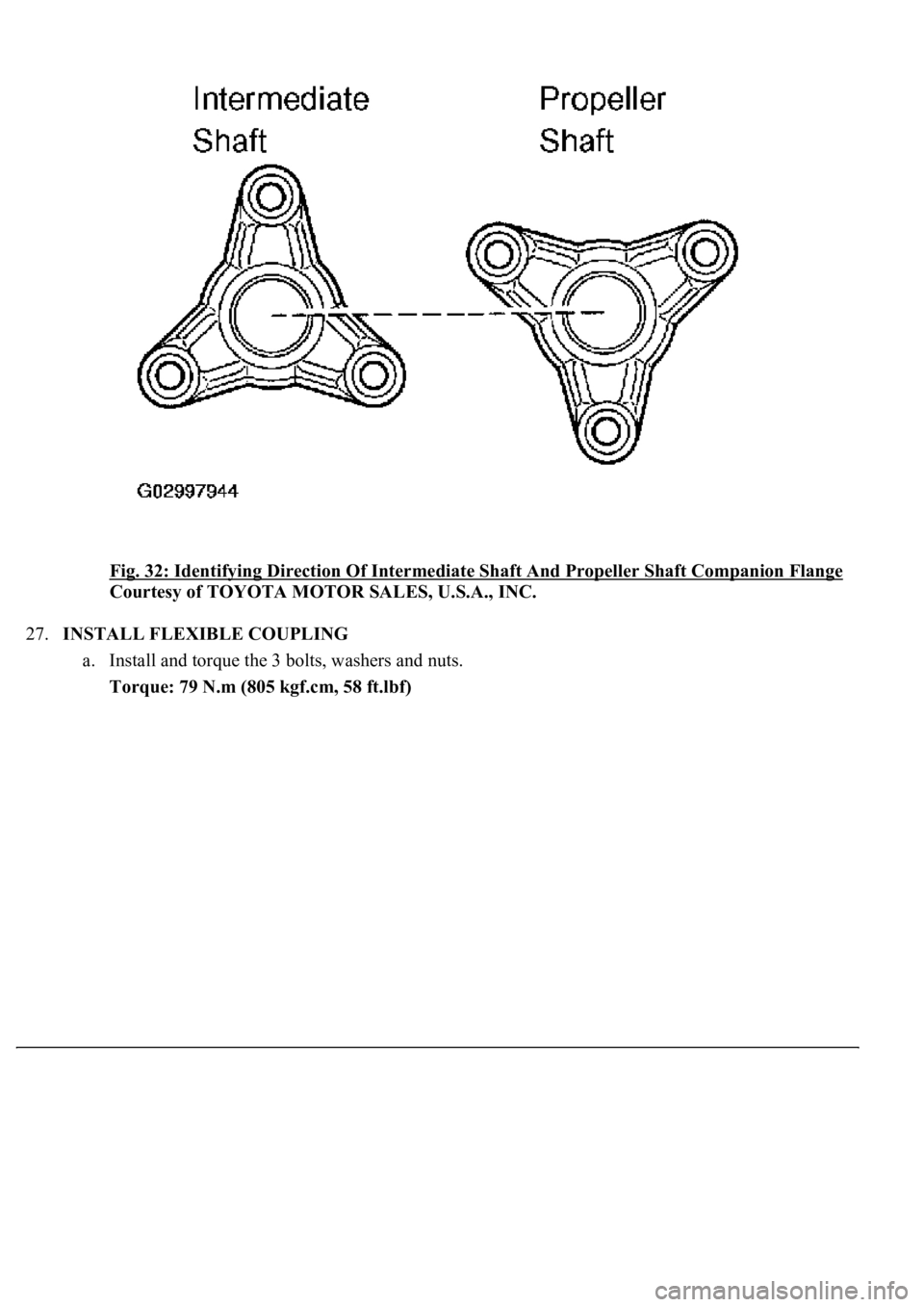

Fig. 32: Identifying Direction Of Intermediate Shaft And Propeller Shaft Companion Flange
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
27.INSTALL FLEXIBLE COUPLING
a. Install and torque the 3 bolts, washers and nuts.
Torque: 79 N.m (805 kgf.cm, 58 ft.lbf)

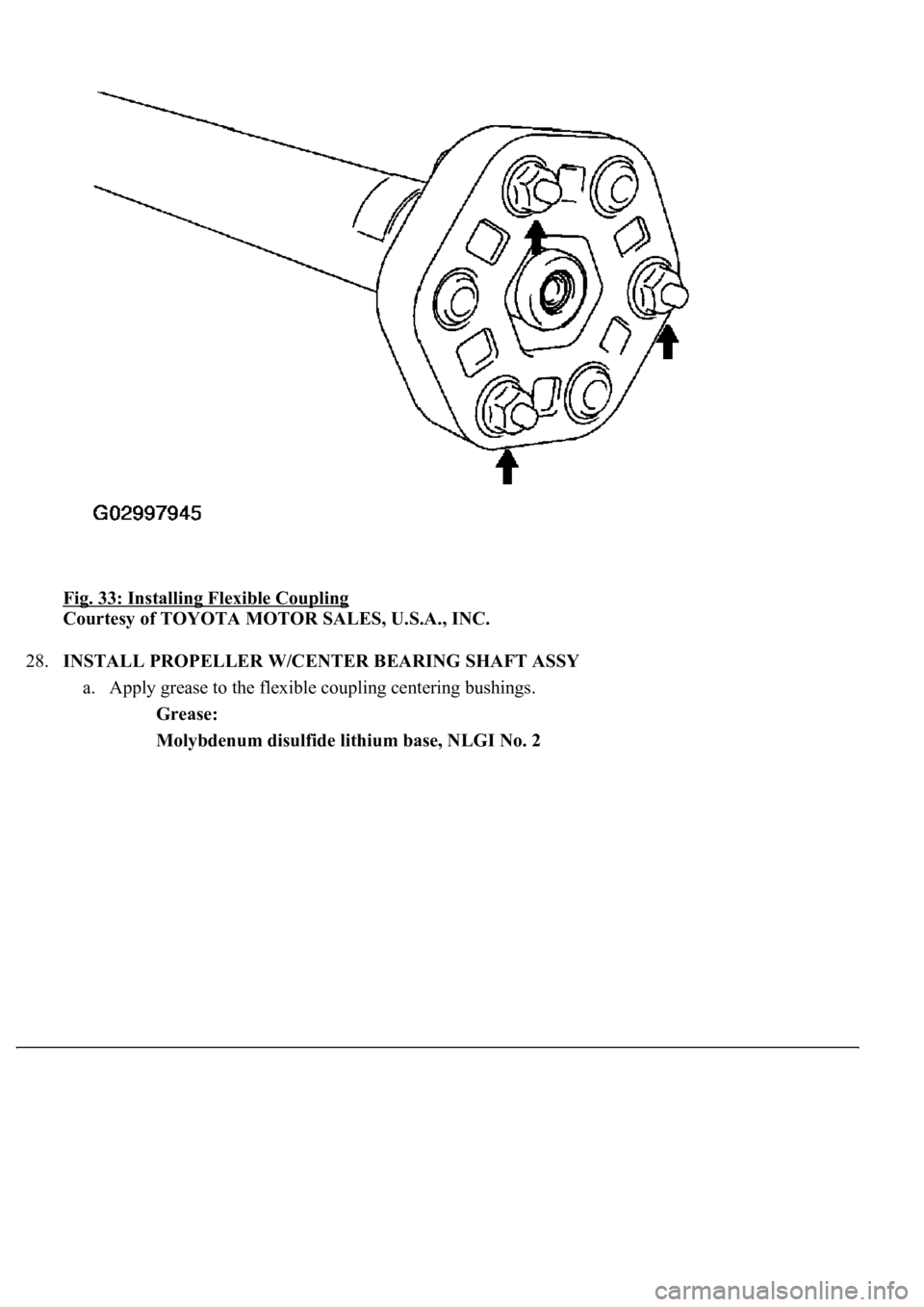

Fig. 33: Installing Flexible Coupling
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
28.INSTALL PROPELLER W/CENTER BEARING SHAFT ASSY
a. Apply grease to the flexible coupling centering bushings.
Grease:
Molybdenum disulfide lithium base, NLGI No. 2

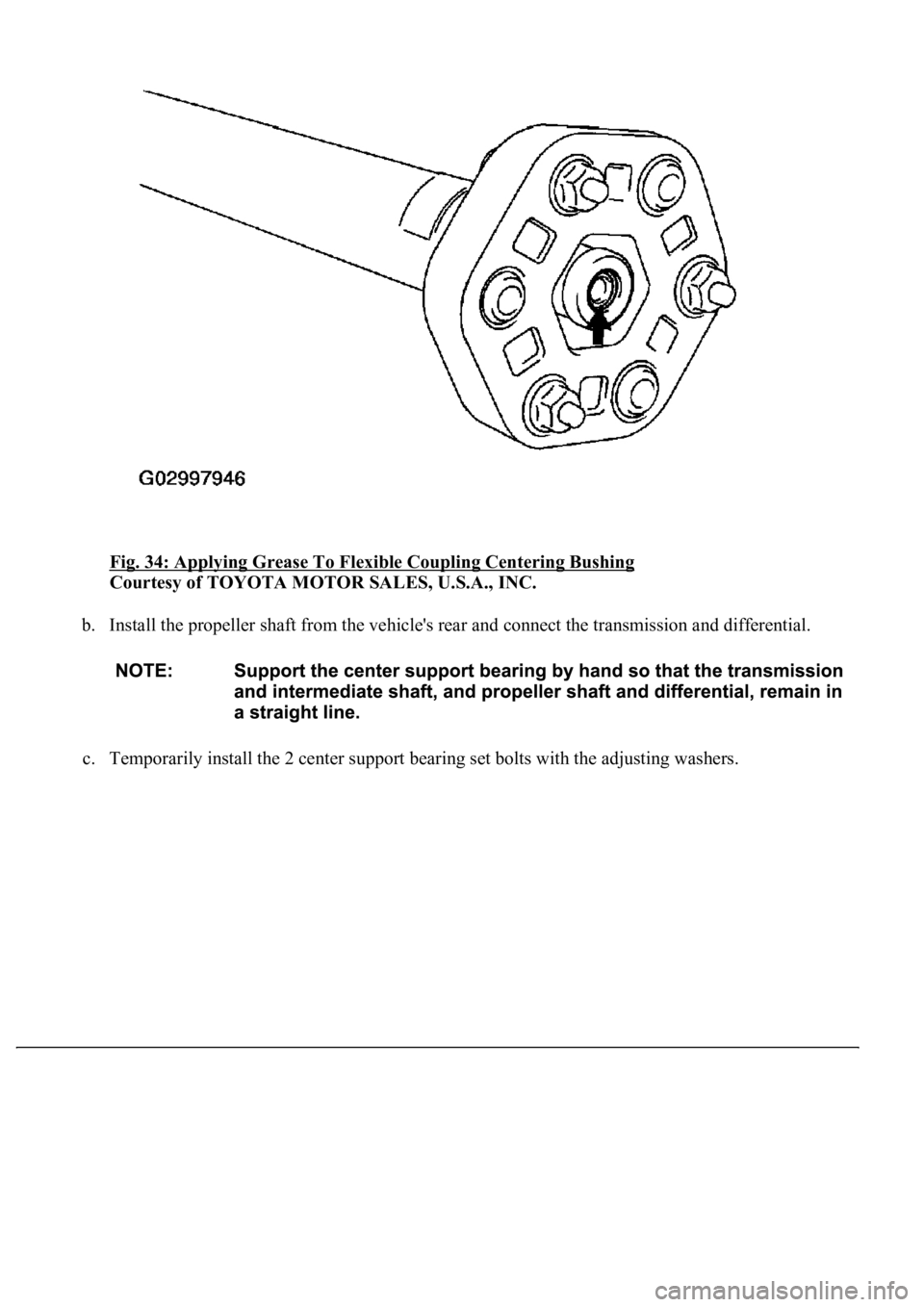

Fig. 34: Applying Grease To Flexible Coupling Centering Bushing
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Install the propeller shaft from the vehicle's rear and connect the transmission and differential.
c. Temporaril
y install the 2 center support bearing set bolts with the adjusting washers.

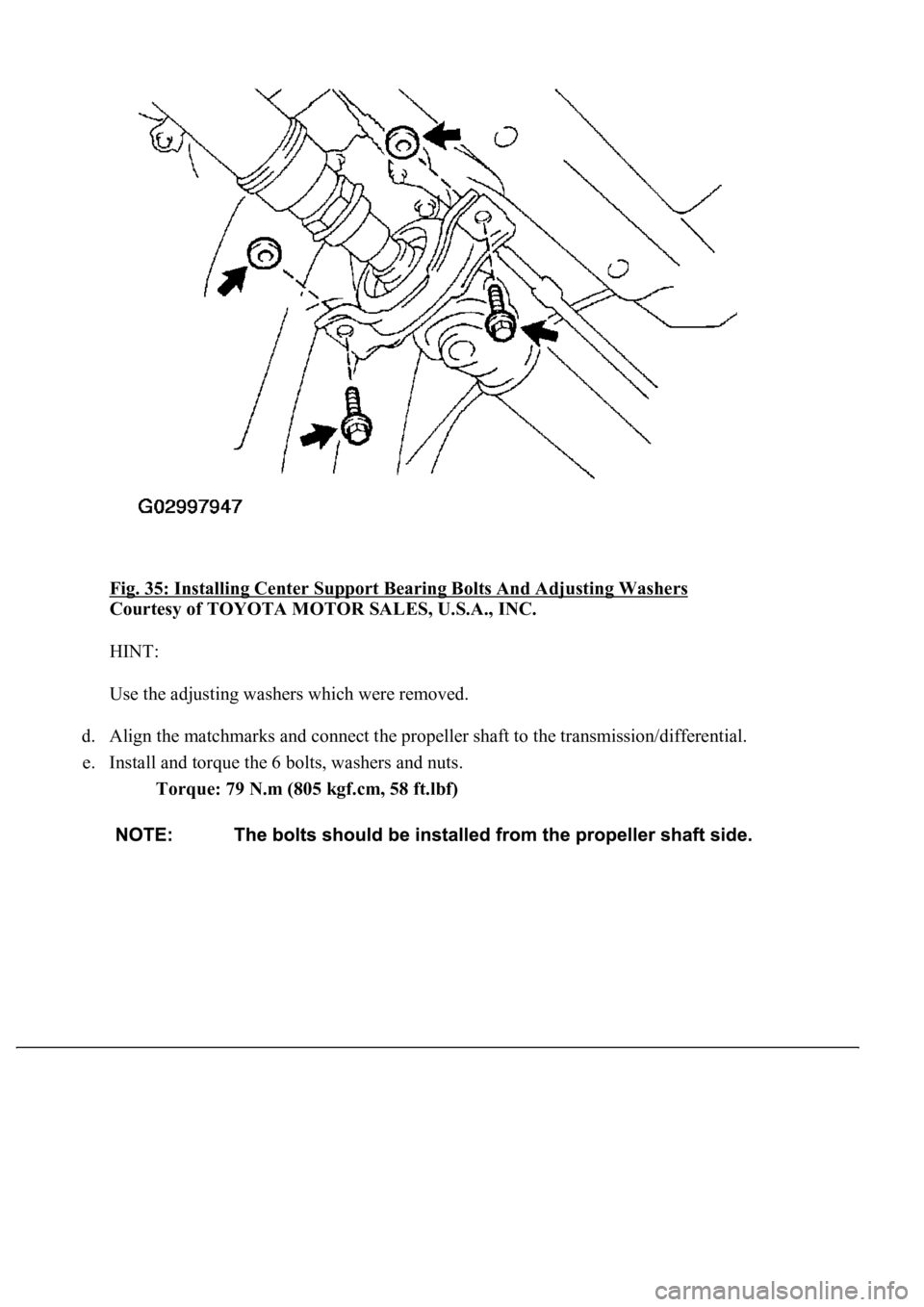

Fig. 35: Installing Center Support Bearing Bolts And Adjusting Washers
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
HINT:
Use the adjusting washers which were removed.
d. Align the matchmarks and connect the propeller shaft to the transmission/differential.
e. Install and torque the 6 bolts, washers and nuts.
Torque: 79 N.m (805 kgf.cm, 58 ft.lbf)
