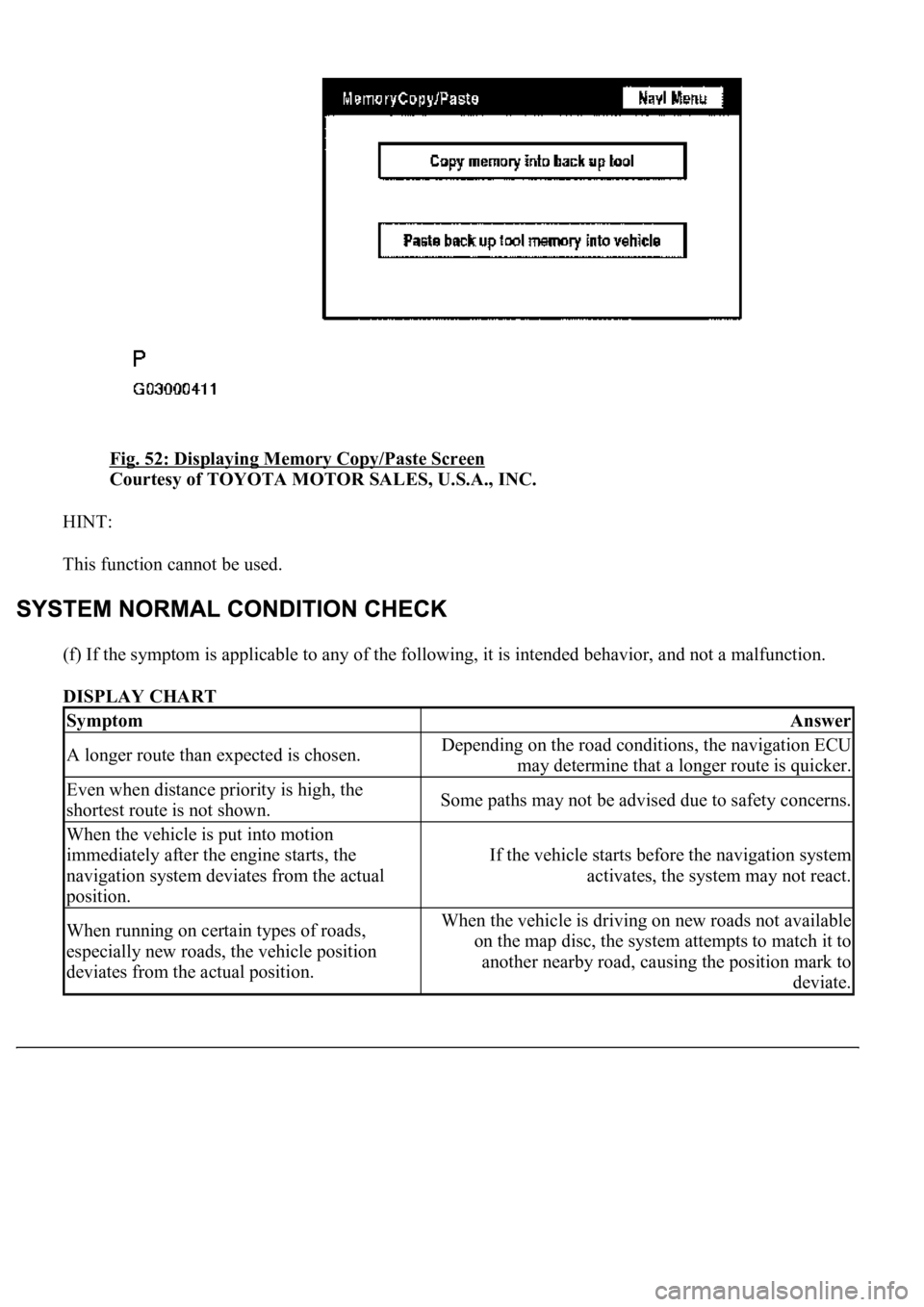

Fig. 52: Displaying Memory Copy/Paste Screen
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
HINT:
This function cannot be used.
(f) If the symptom is applicable to any of the following, it is intended behavior, and not a malfunction.
DISPLAY CHART
SymptomAnswer
A longer route than expected is chosen.Depending on the road conditions, the navigation ECU
may determine that a longer route is quicker.
Even when distance priority is high, the
shortest route is not shown.Some paths may not be advised due to safety concerns.
When the vehicle is put into motion
immediately after the engine starts, the
navigation system deviates from the actual
position.
If the vehicle starts before the navigation system
activates, the system may not react.
When running on certain types of roads,
especially new roads, the vehicle position
deviates from the actual position.When the vehicle is driving on new roads not available
on the map disc, the system attempts to match it to
another nearby road, causing the position mark to
deviate.

Fig. 53: Identifying System Normal Condition
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
(g) The following symptoms are not a malfunction, but are caused by errors inherent in the GPS, gyro
sensor, speed sensor, and navigation ECU.
1. The current position mark may be displayed on a nearby parallel road the vehicle actually runs on.

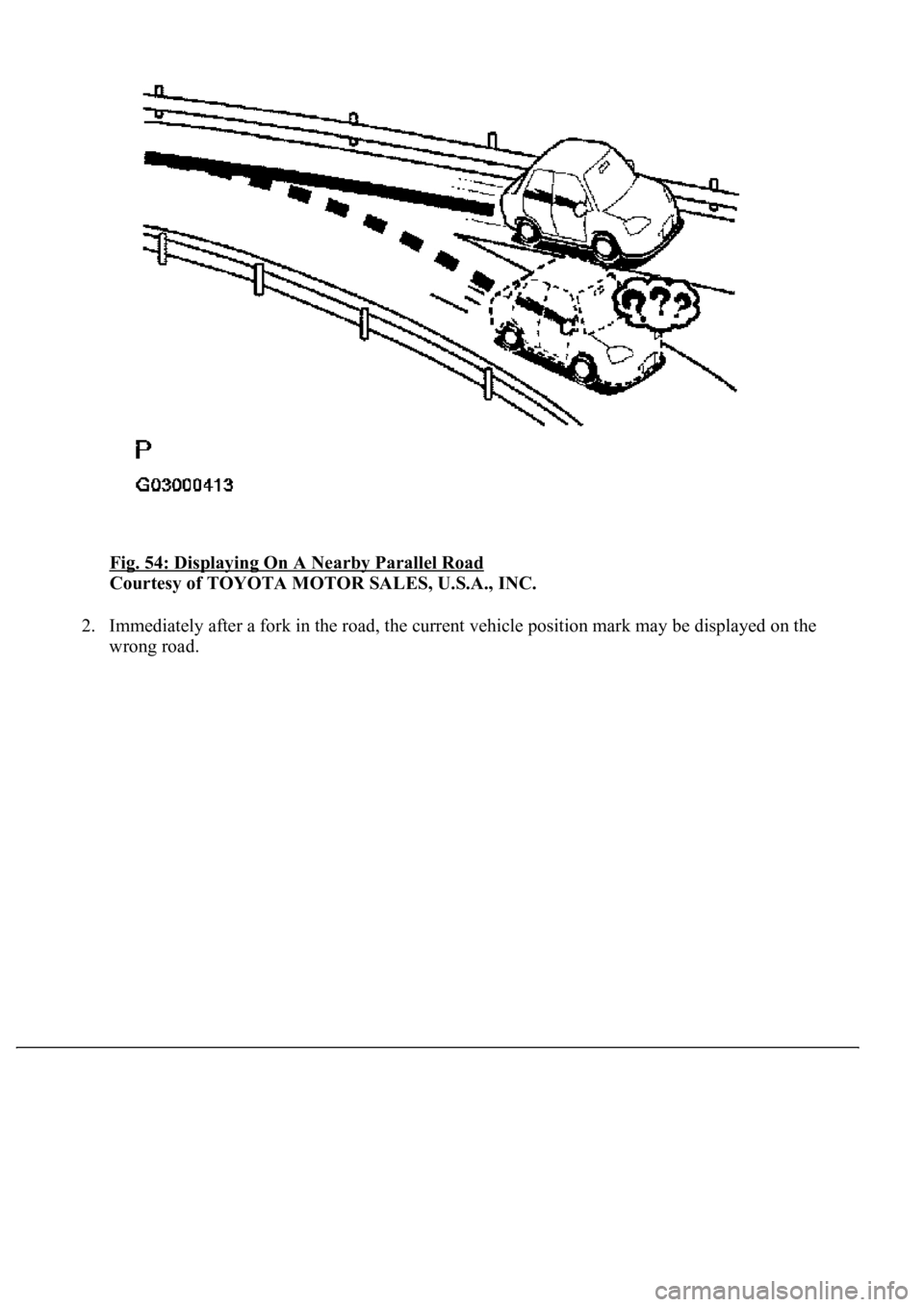

Fig. 54: Displaying On A Nearby Parallel Road
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
2. Immediately after a fork in the road, the current vehicle position mark may be displayed on the
wrong road.

Fig. 55: Displaying Current Vehicle Position
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
3. When the vehicle turns right or left at an intersection, the current vehicle position mark may be
displa
yed on a nearby parallel road.

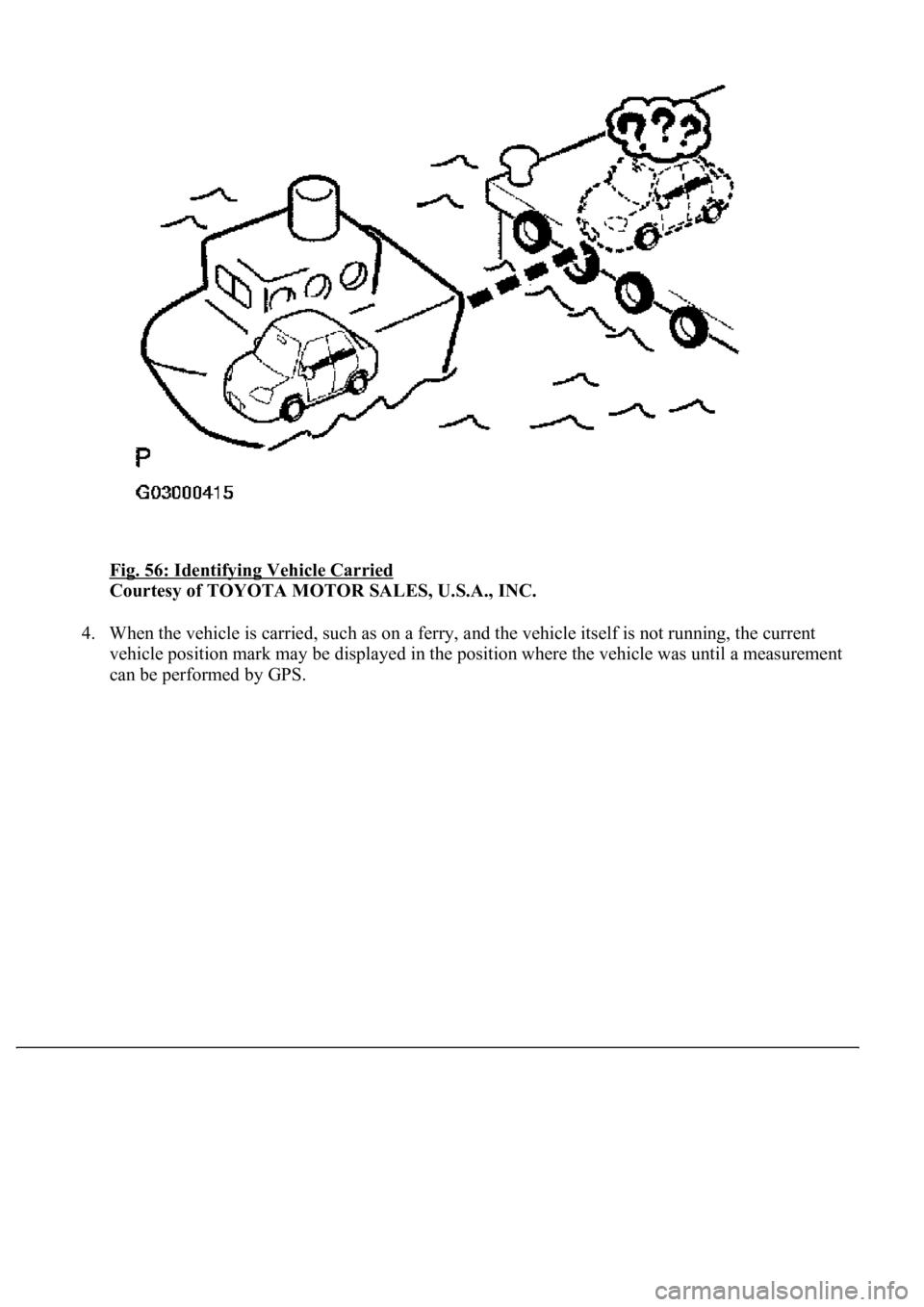

Fig. 56: Identifying Vehicle Carried
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
4. When the vehicle is carried, such as on a ferry, and the vehicle itself is not running, the current
vehicle position mark may be displayed in the position where the vehicle was until a measurement
can be performed b
y GPS.

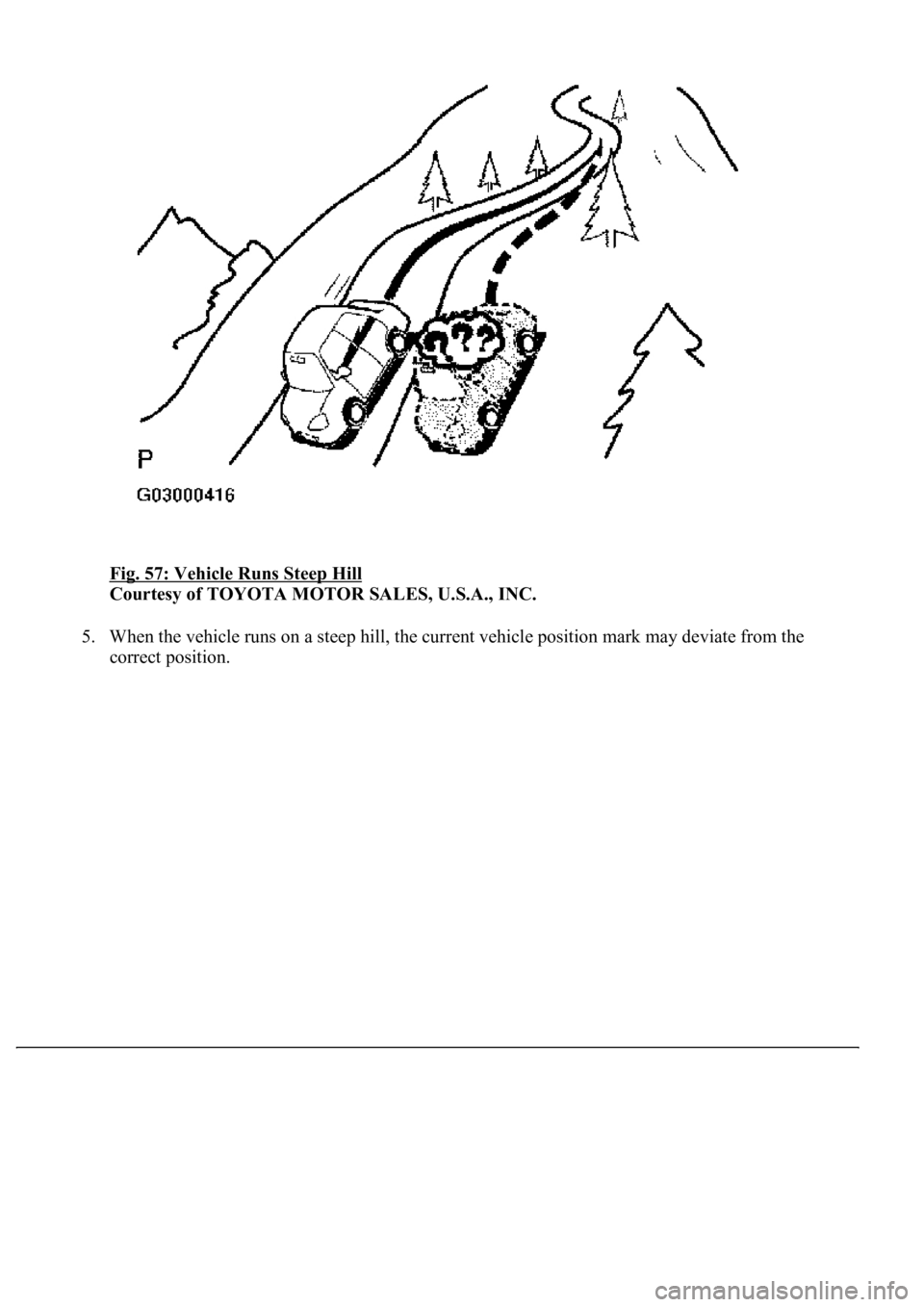

Fig. 57: Vehicle Runs Steep Hill
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
5. When the vehicle runs on a steep hill, the current vehicle position mark may deviate from the
correct position.

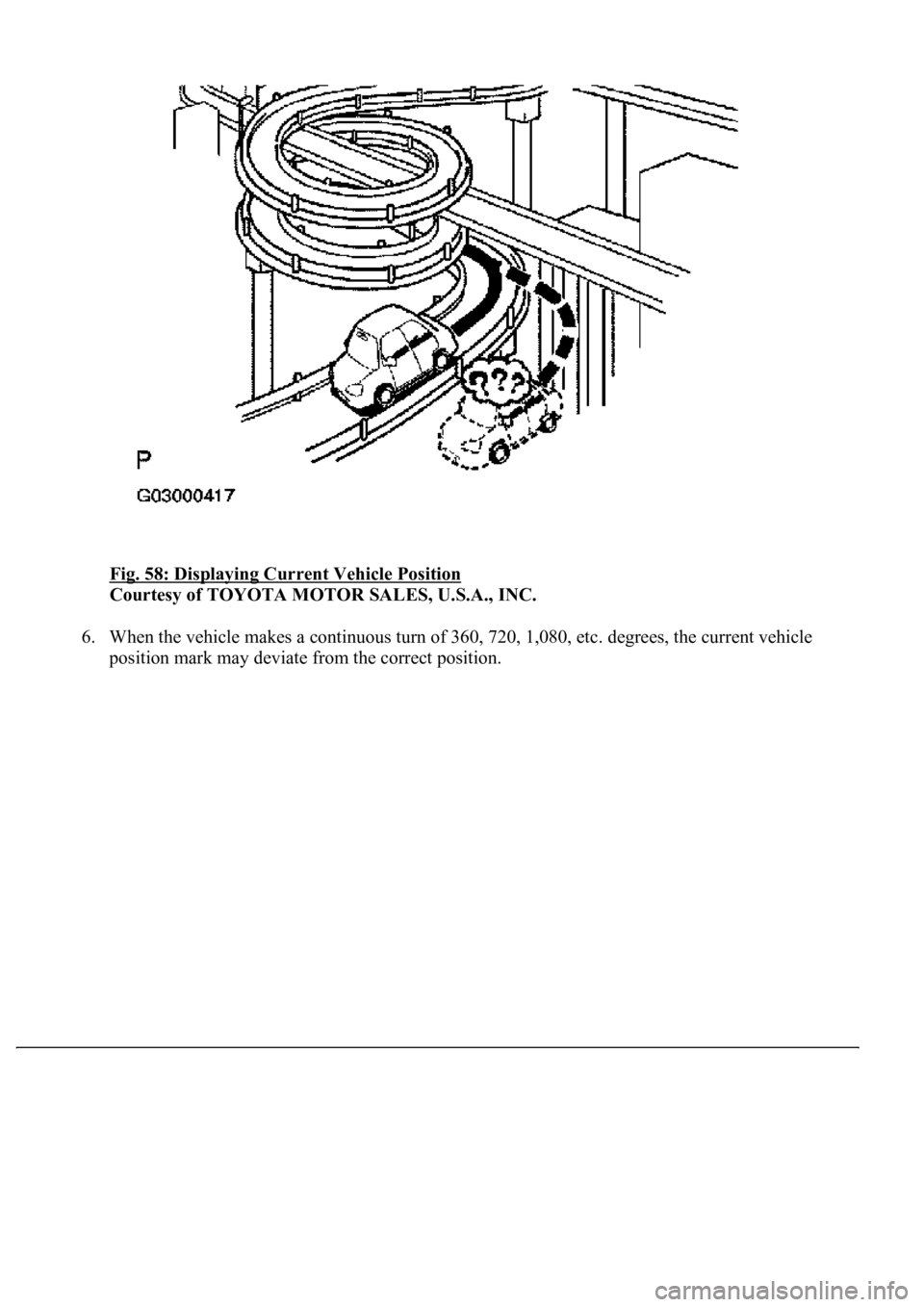

Fig. 58: Displaying Current Vehicle Position
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
6. When the vehicle makes a continuous turn of 360, 720, 1,080, etc. degrees, the current vehicle
position mark ma
y deviate from the correct position.

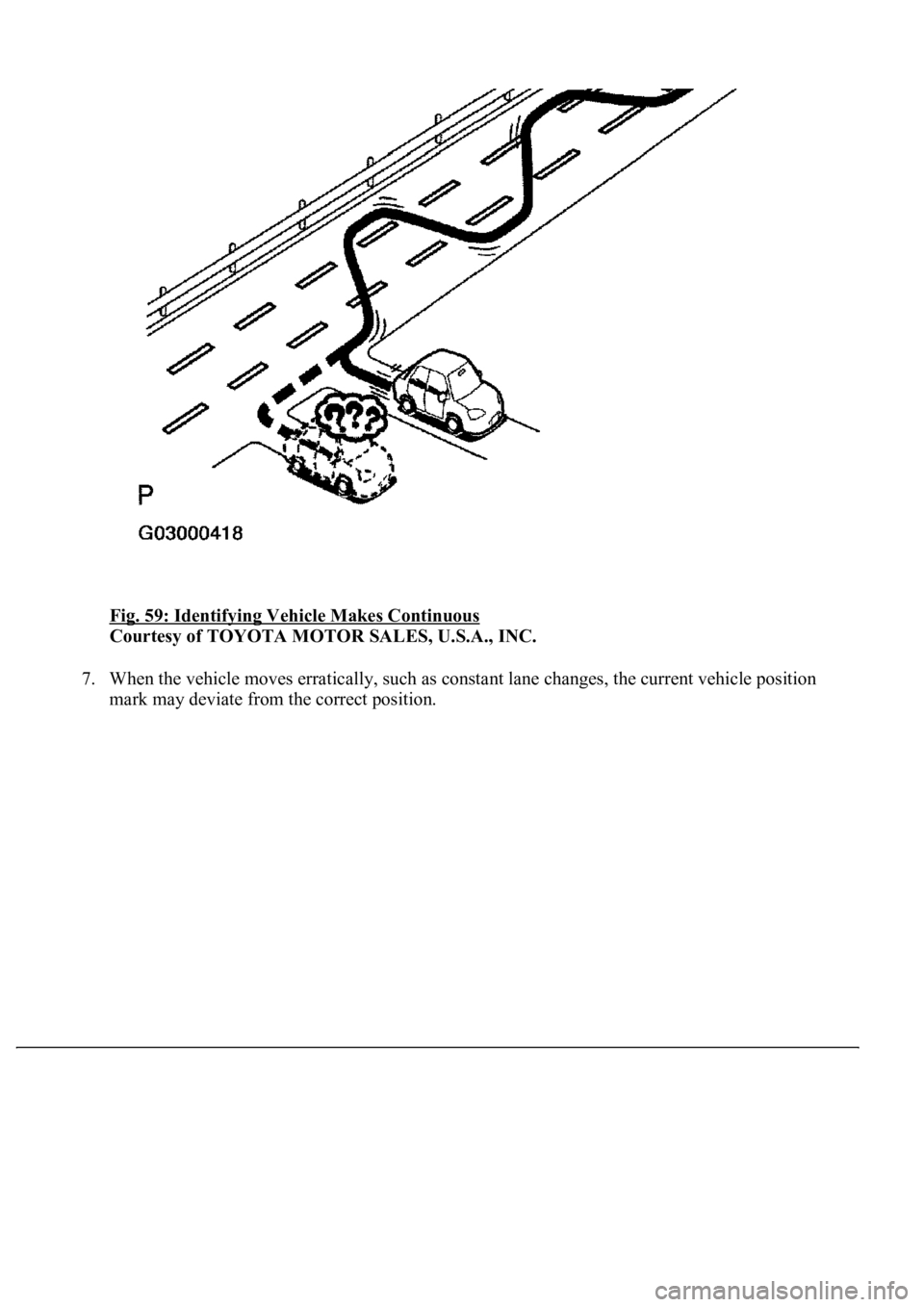

Fig. 59: Identifying Vehicle Makes Continuous
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
7. When the vehicle moves erratically, such as constant lane changes, the current vehicle position
mark may deviate from the correct position.

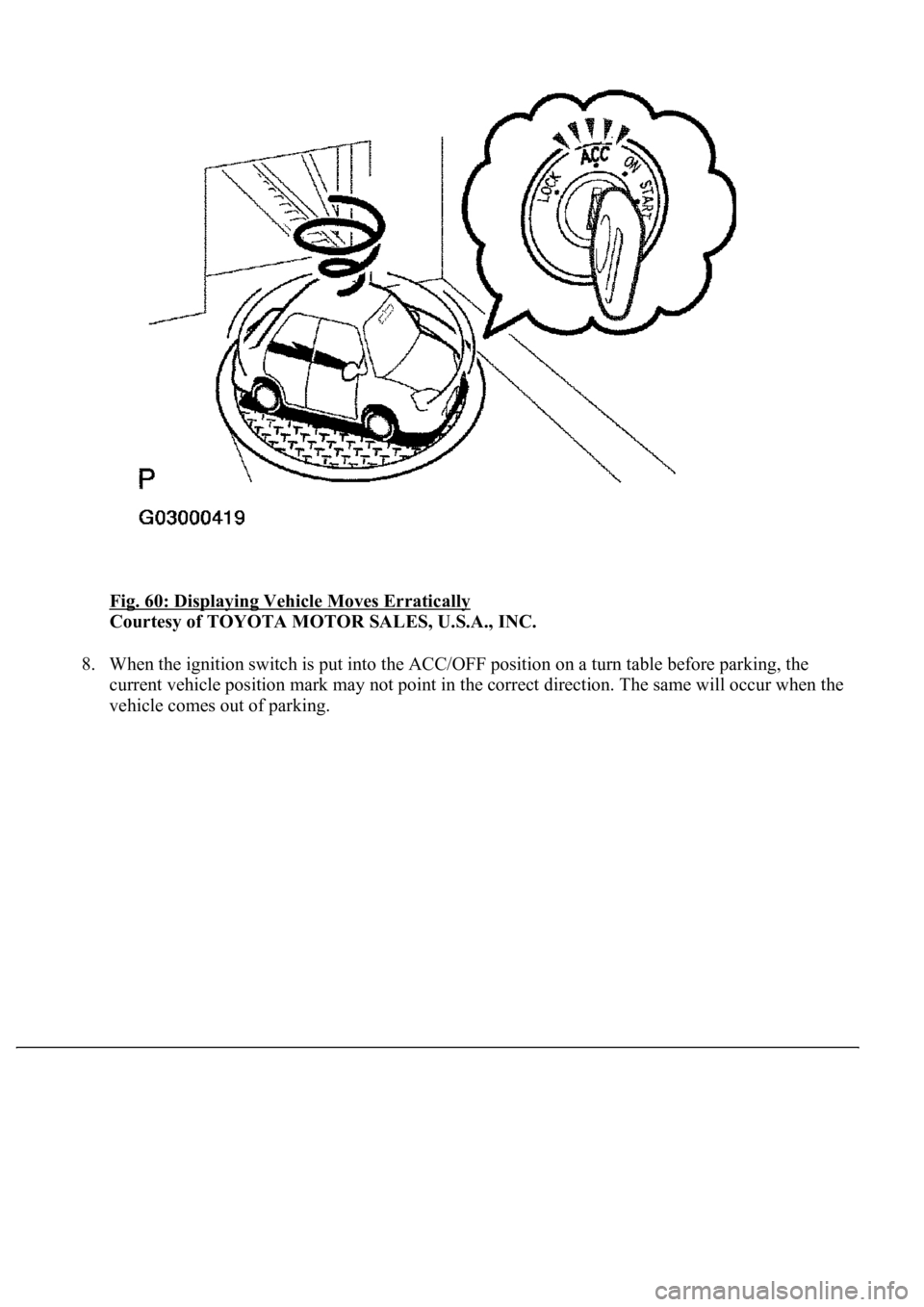

Fig. 60: Displaying Vehicle Moves Erratically
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
8. When the ignition switch is put into the ACC/OFF position on a turn table before parking, the
current vehicle position mark may not point in the correct direction. The same will occur when the
vehicle comes out of parkin
g.

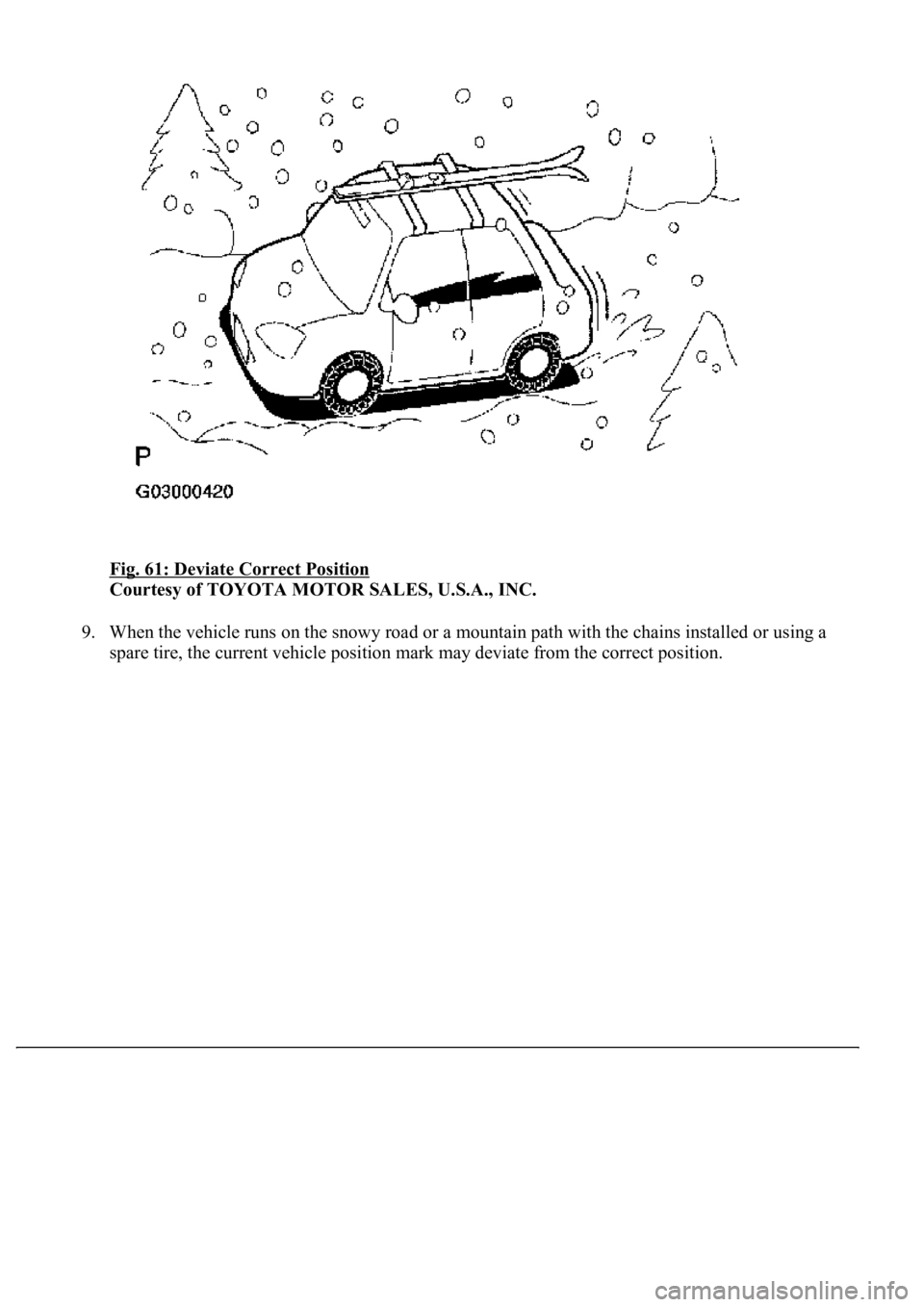

Fig. 61: Deviate Correct Position
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
9. When the vehicle runs on the snowy road or a mountain path with the chains installed or using a
spare tire, the current vehicle position mark ma
y deviate from the correct position.
