Page 771 of 4500

LEXUS LS430 2003  Factory Repair Manual Fig. 55: Stereo Component Amplifier Assy - Speaker Assy (Standard Model)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 772 of 4500

LEXUS LS430 2003  Factory Repair Manual Fig. 56: Identifying Wiring Harness Connector Front No.1
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 773 of 4500

LEXUS LS430 2003  Factory Repair Manual Fig. 57: Identifying Wiring Harness Connector Front No.2
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

Page 774 of 4500

LEXUS LS430 2003  Factory Repair Manual Fig. 58: Identifying Wiring Harness Connector Rear No.2
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
OK: Go to next step
2.INSPECT FRONT NO.1 SPEAKER ASSY
a. Resistance check.
1. Measure the res

Page 775 of 4500

LEXUS LS430 2003  Factory Repair Manual NG: REPLACE FRONT NO.1 SPEAKER ASSY (SEE REPLACEMENT )
OK: Go to next step
3.INSPECT FRONT NO.2 SPEAKER ASSY
a. Check that malfunction disappears when another speaker in a good condition is insta

Page 776 of 4500

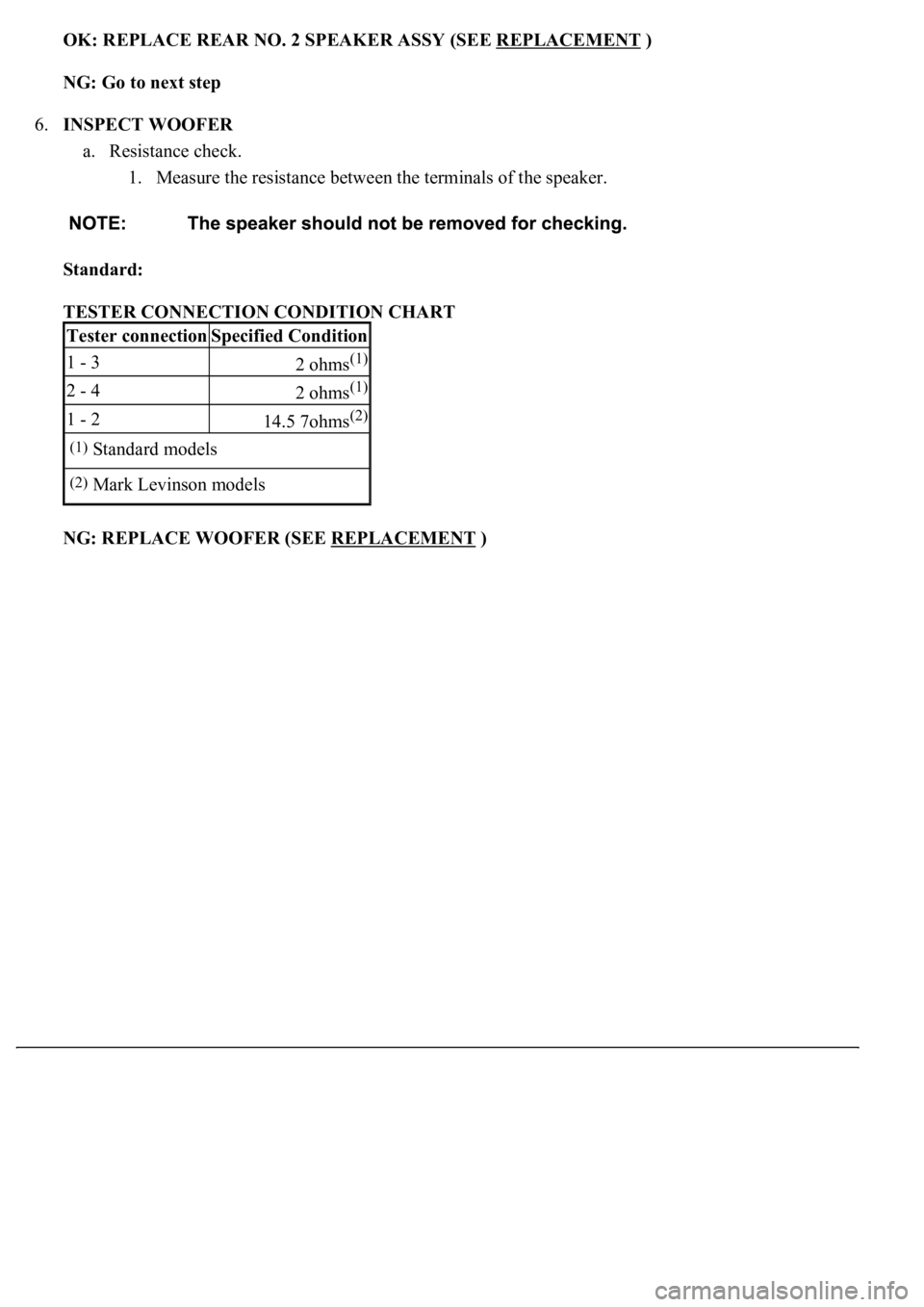

LEXUS LS430 2003  Factory Repair Manual OK: REPLACE REAR NO. 2 SPEAKER ASSY (SEE REPLACEMENT )
NG: Go to next step
6.INSPECT WOOFER
a. Resistance check.
1. Measure the resistance between the terminals of the speaker.
Standard:
TES

Page 777 of 4500

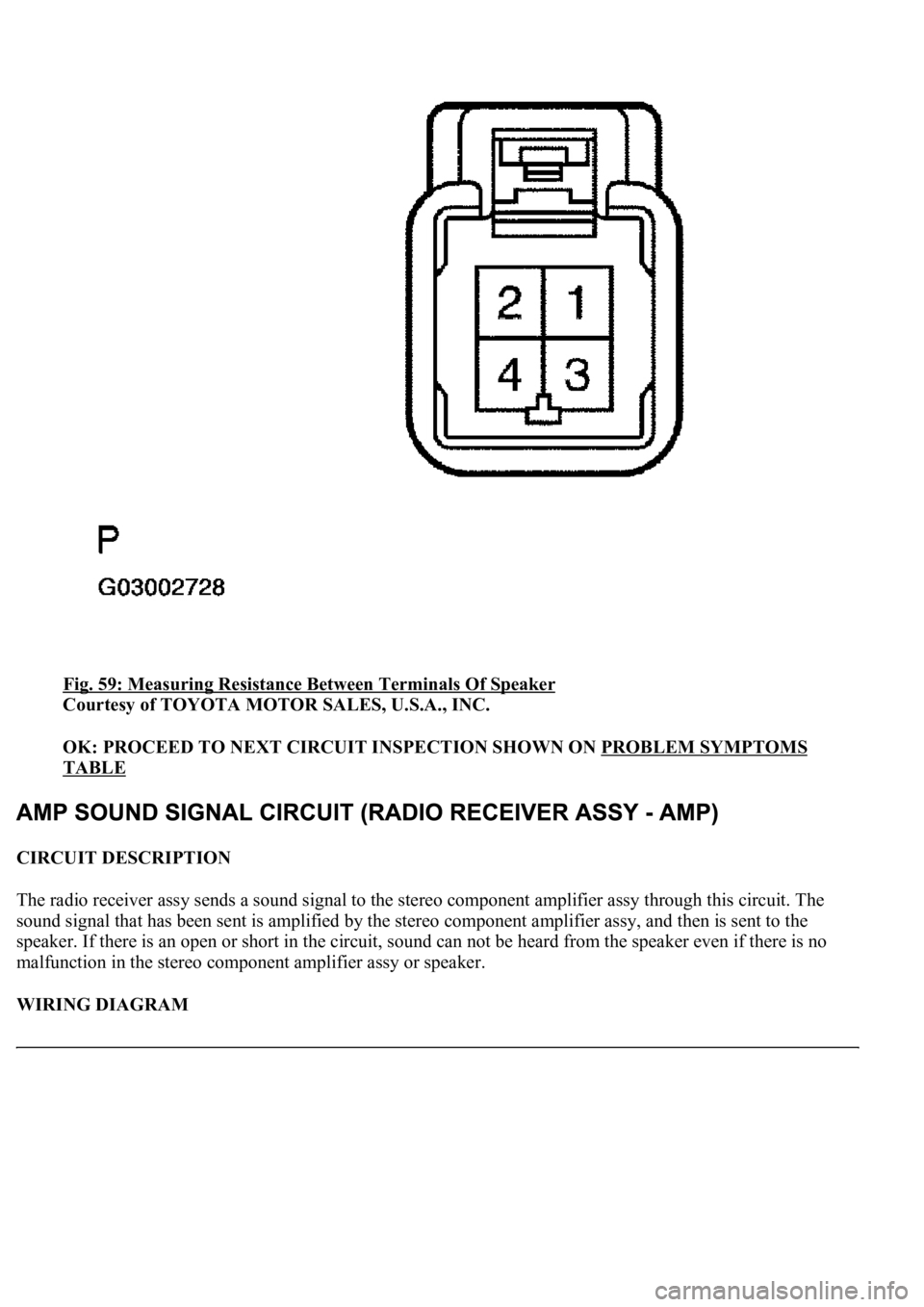

LEXUS LS430 2003  Factory Repair Manual Fig. 59: Measuring Resistance Between Terminals Of Speaker
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS
TABLE
CIRCUIT DESCRIPTION

Page 778 of 4500

LEXUS LS430 2003  Factory Repair Manual Fig. 60: Identifying Radio Receiver Assy - Amp Wiring Diagram
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
INSPECTION PROCEDURE
1.CHECK HARNESS AND CONNECTOR (RADIO RECEIVER ASSY - STEREO COMPONENT

Page 779 of 4500

LEXUS LS430 2003  Factory Repair Manual Fig. 61: Identifying Radio Receiver Assy - Stereo Component Amplifier Assy Connector
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Page 780 of 4500

LEXUS LS430 2003  Factory Repair Manual Fig. 62: Radio Component Amplifier Assy
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
