Page 761 of 4500

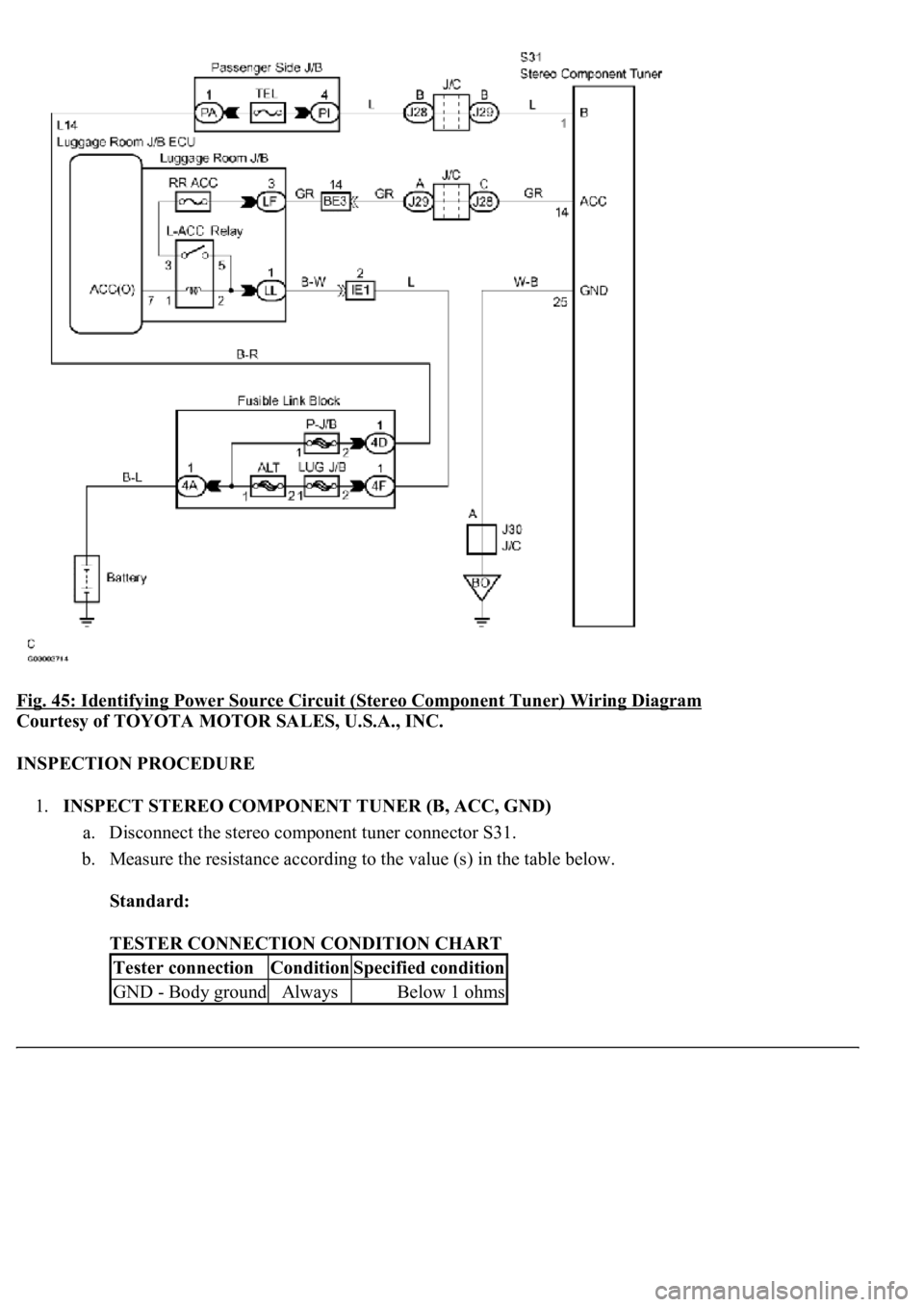

LEXUS LS430 2003  Factory Repair Manual Fig. 45: Identifying Power Source Circuit (Stereo Component Tuner) Wiring Diagram
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
INSPECTION PROCEDURE
1.INSPECT STEREO COMPONENT TUNER (B, ACC, GND)
a

Page 762 of 4500

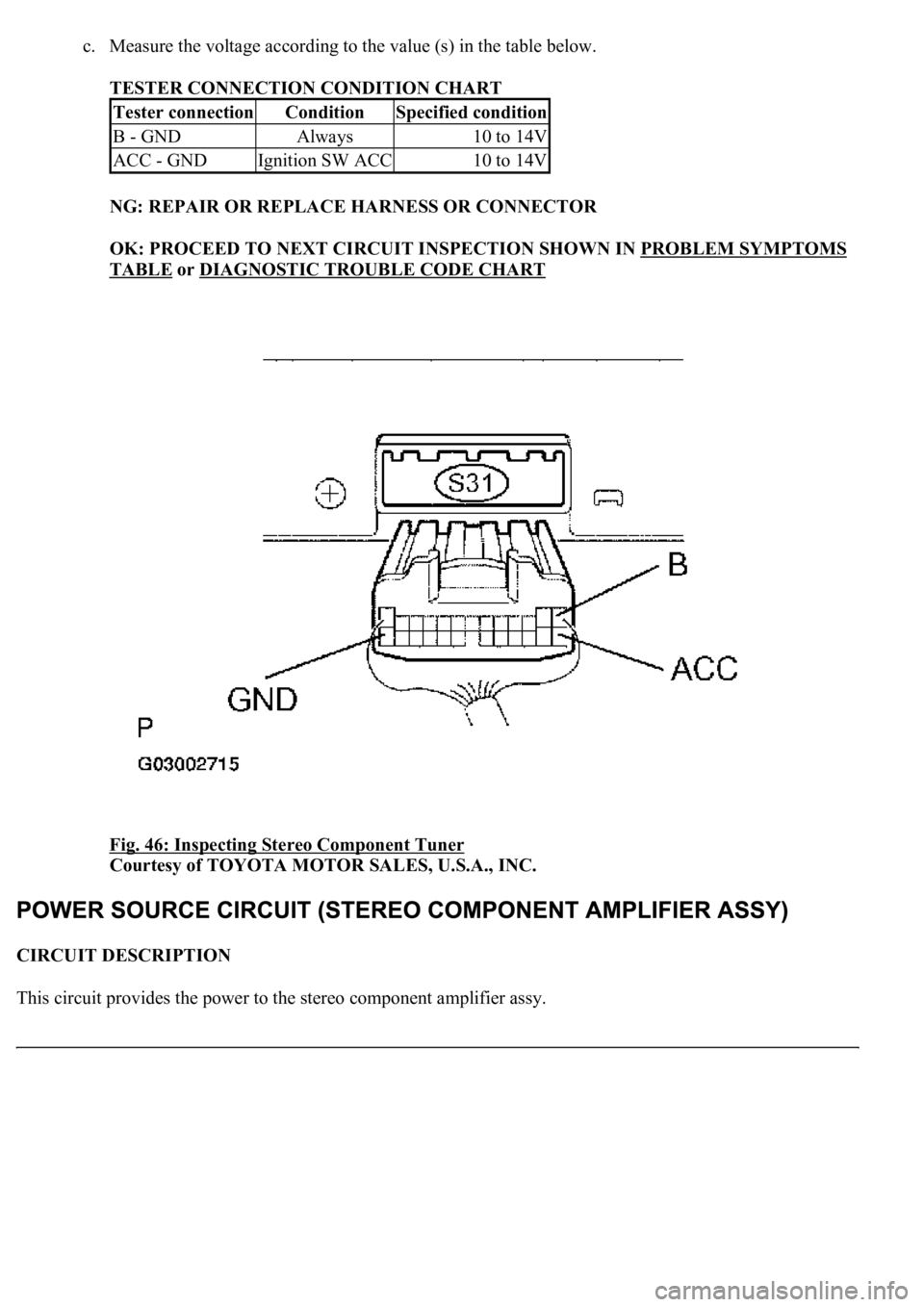

LEXUS LS430 2003  Factory Repair Manual c. Measure the voltage according to the value (s) in the table below.
TESTER CONNECTION CONDITION CHART
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN P

Page 763 of 4500

LEXUS LS430 2003  Factory Repair Manual WIRING DIAGRAM
Fig. 47: Stereo Component Amplifier Assy Wiring Diagram

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
INSPECTION PROCEDURE
1.INSPECT STEREO COMPONENT AMPLIFIER ASSY (+B, +B2, ACC, G

Page 764 of 4500

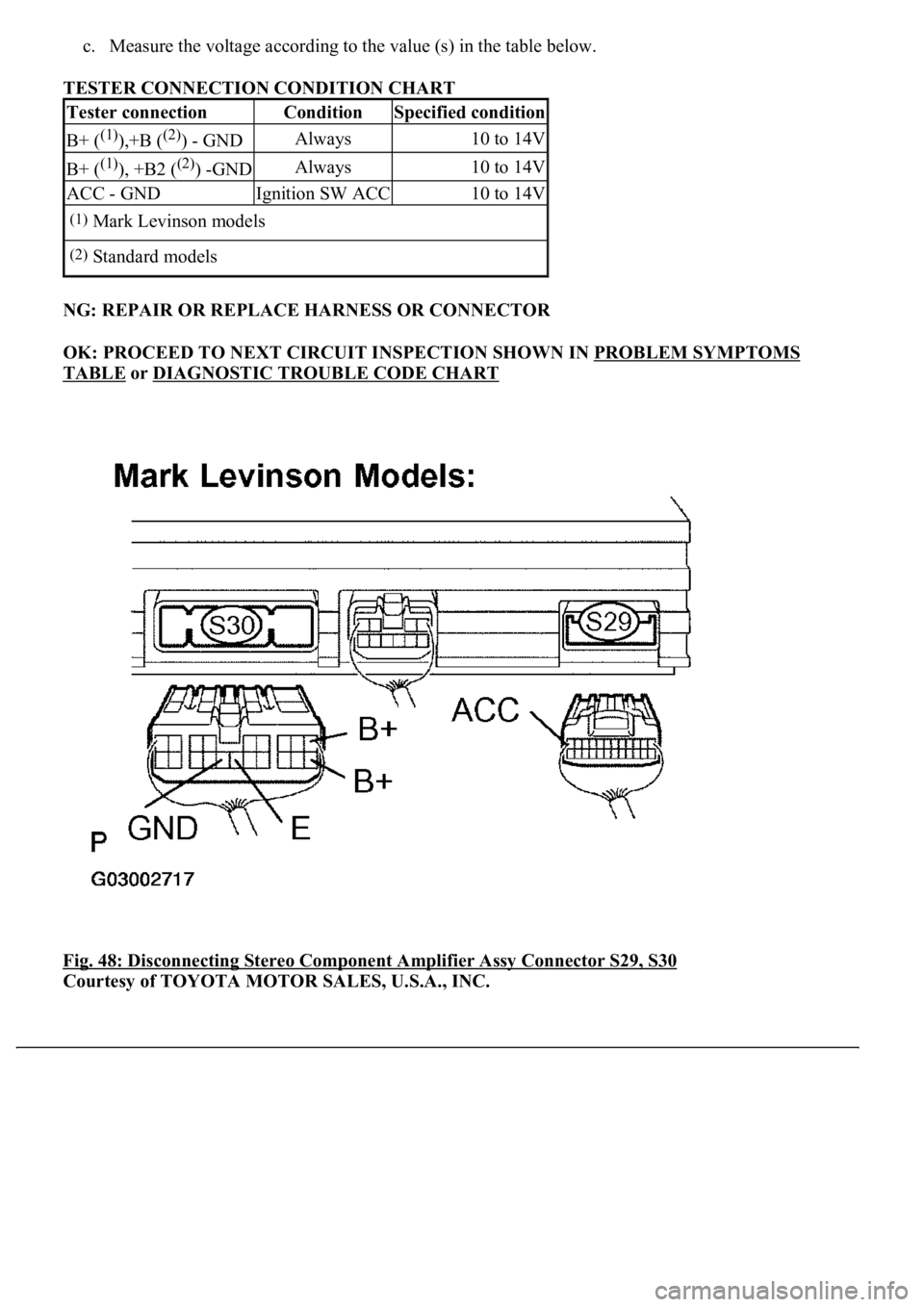

LEXUS LS430 2003  Factory Repair Manual c. Measure the voltage according to the value (s) in the table below.
TESTER CONNECTION CONDITION CHART
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN

Page 765 of 4500

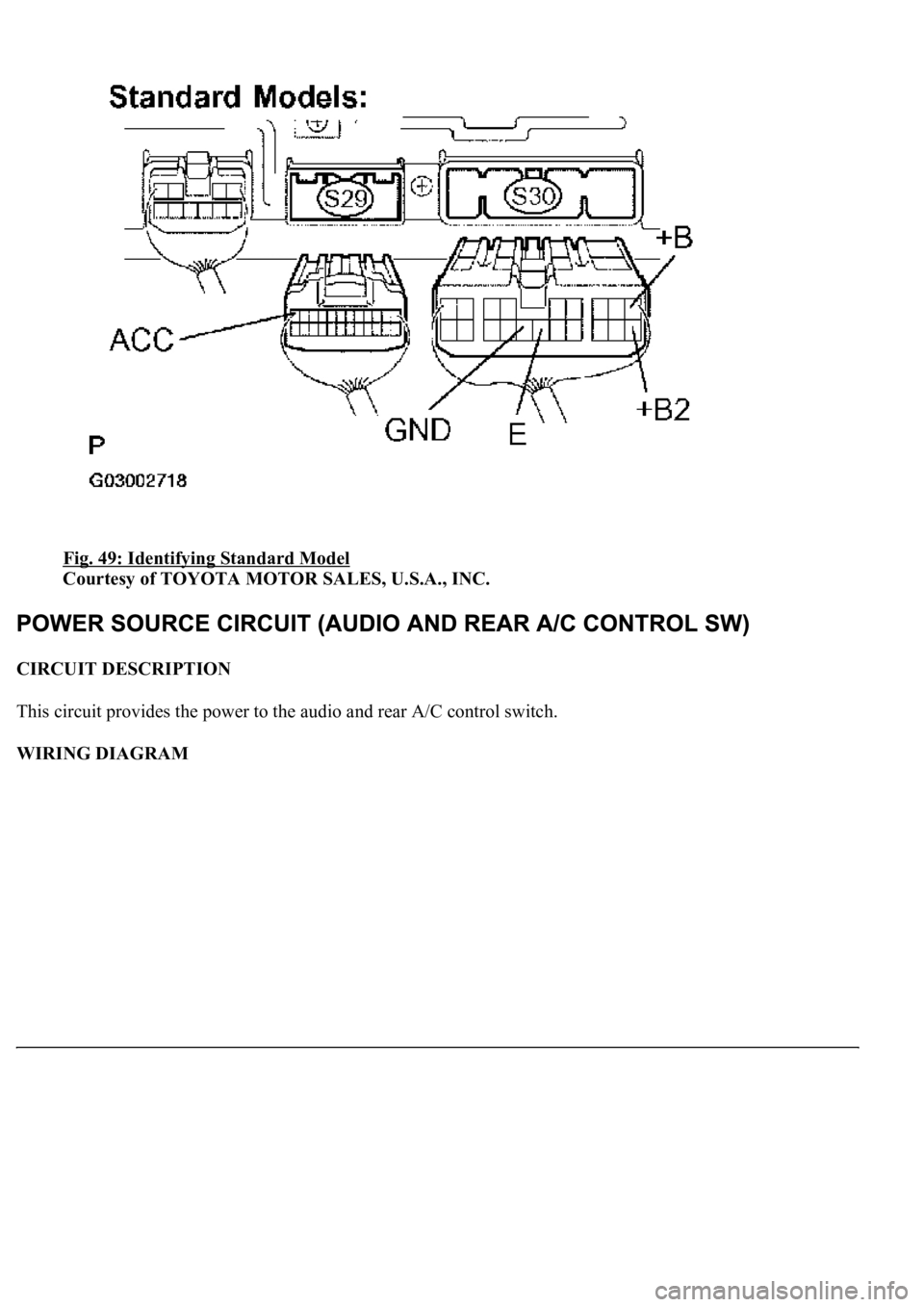

LEXUS LS430 2003  Factory Repair Manual Fig. 49: Identifying Standard Model
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
CIRCUIT DESCRIPTION
This circuit provides the power to the audio and rear A/C control switch.
WIRING DIAGRAM

Page 766 of 4500

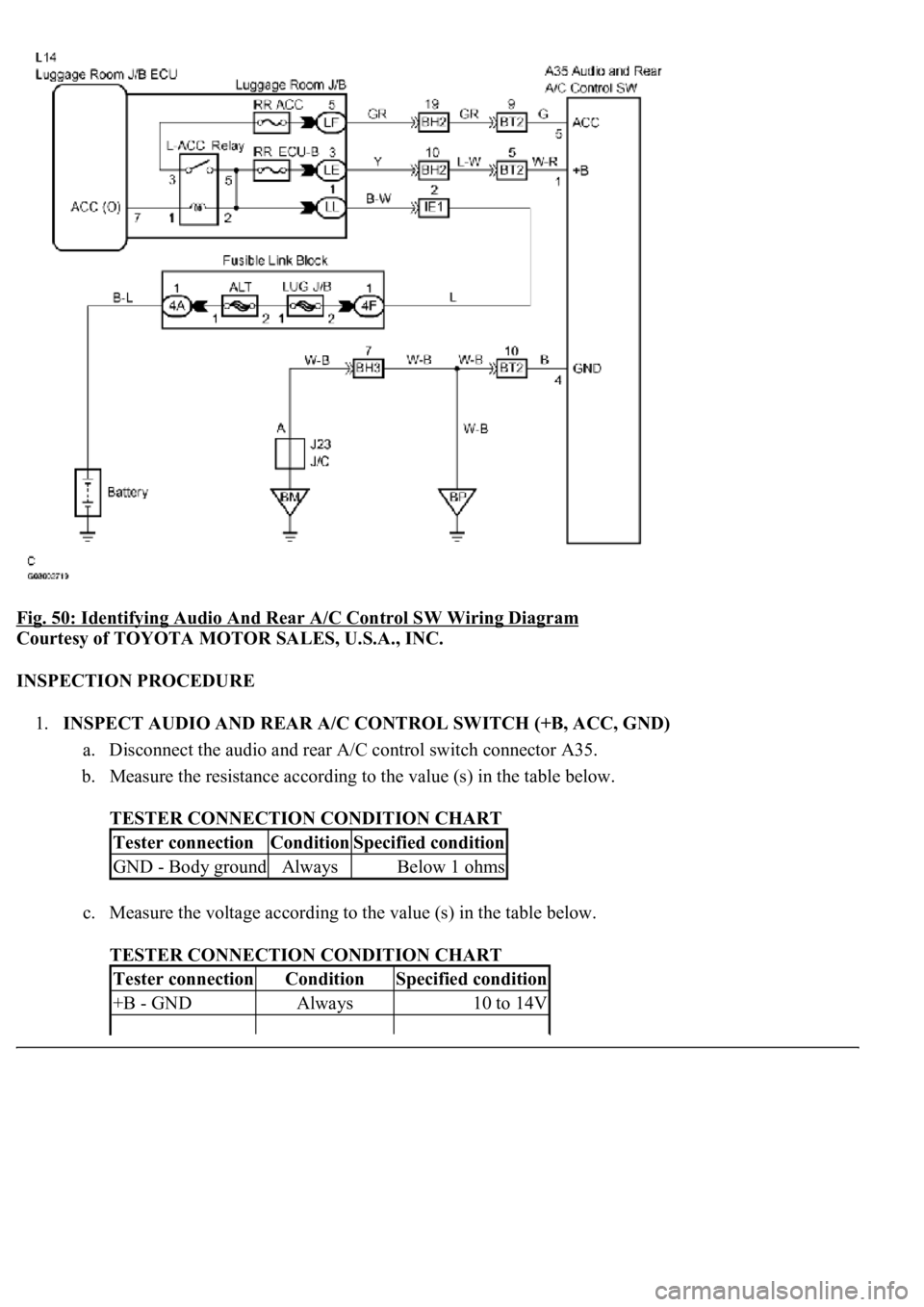

LEXUS LS430 2003  Factory Repair Manual Fig. 50: Identifying Audio And Rear A/C Control SW Wiring Diagram
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
INSPECTION PROCEDURE
1.INSPECT AUDIO AND REAR A/C CONTROL SWITCH (+B, ACC, GND)
a. Di

Page 767 of 4500

LEXUS LS430 2003  Factory Repair Manual NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS
TABLE or DIAGNOSTIC TROUBLE CODE CHART

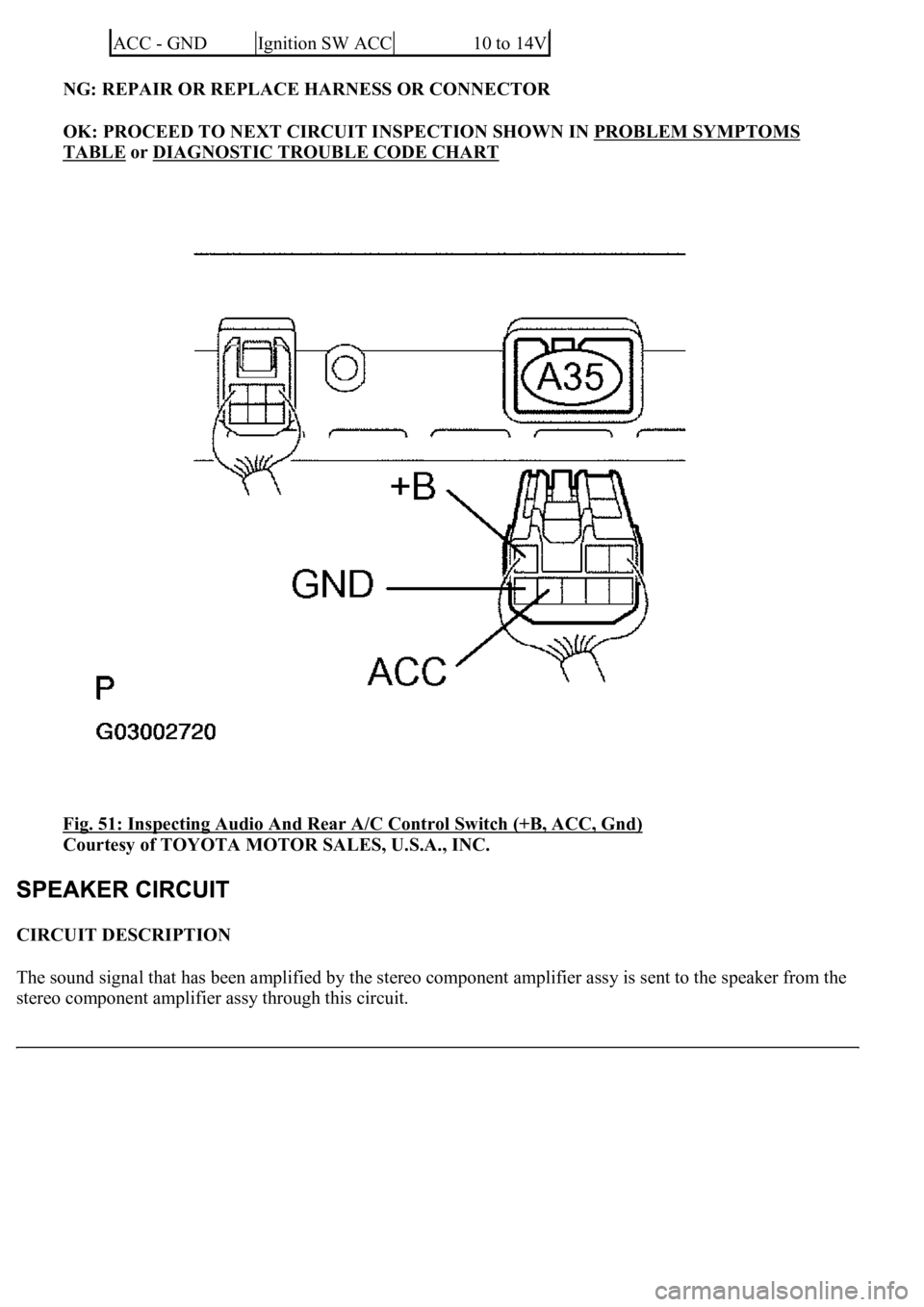

Fig. 51: Inspecting Audio And Rear A/C Control S

Page 768 of 4500

LEXUS LS430 2003  Factory Repair Manual If there is a short in this circuit, the stereo component amplifier assy detects it and stops output to the speakers.
Thus sound can not be heard from the speaker even if there is no malfunction in th

Page 769 of 4500

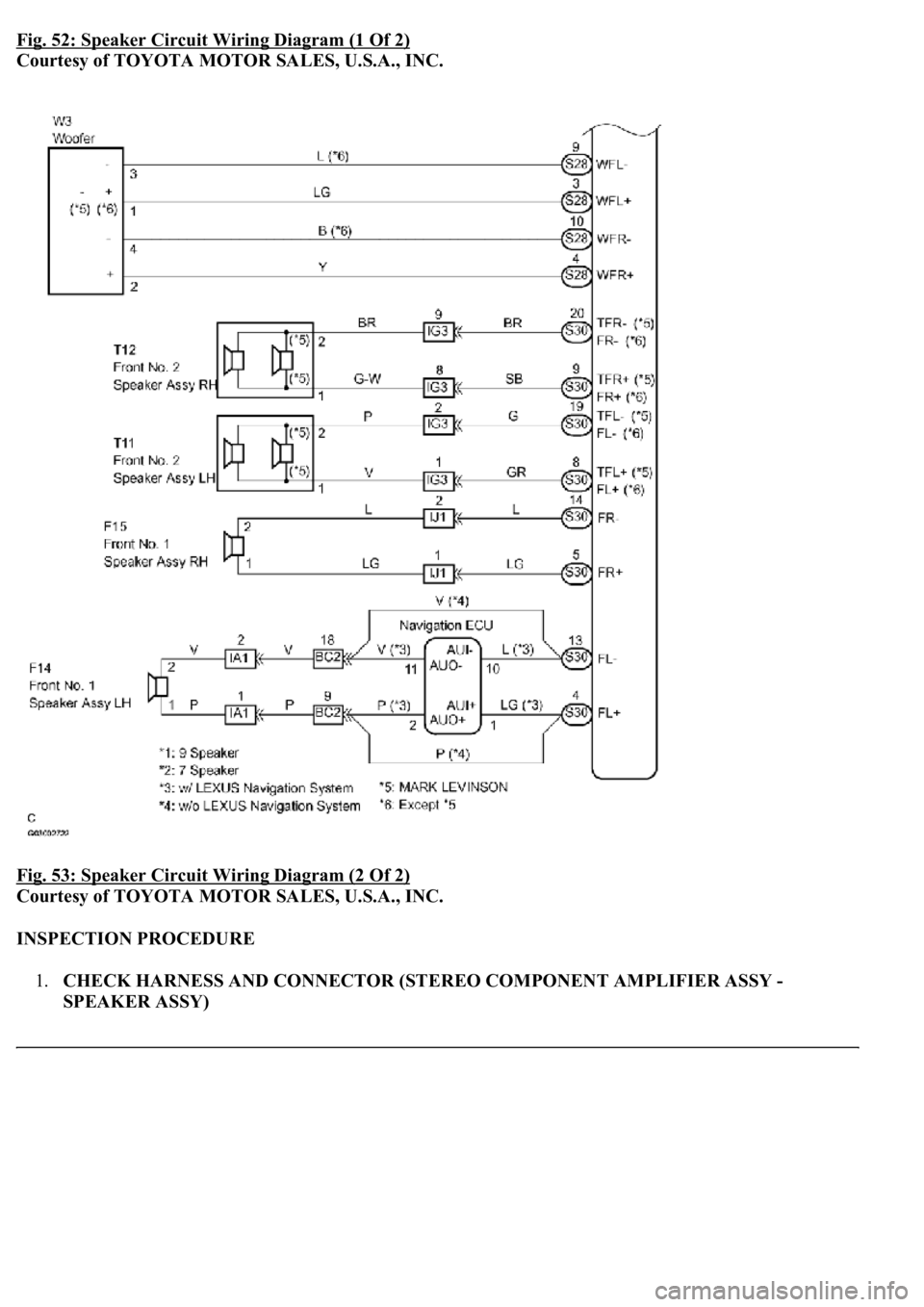

LEXUS LS430 2003  Factory Repair Manual Fig. 52: Speaker Circuit Wiring Diagram (1 Of 2)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Fig. 53: Speaker Circuit Wiring Diagram (2 Of 2)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
INSPECTI

Page 770 of 4500

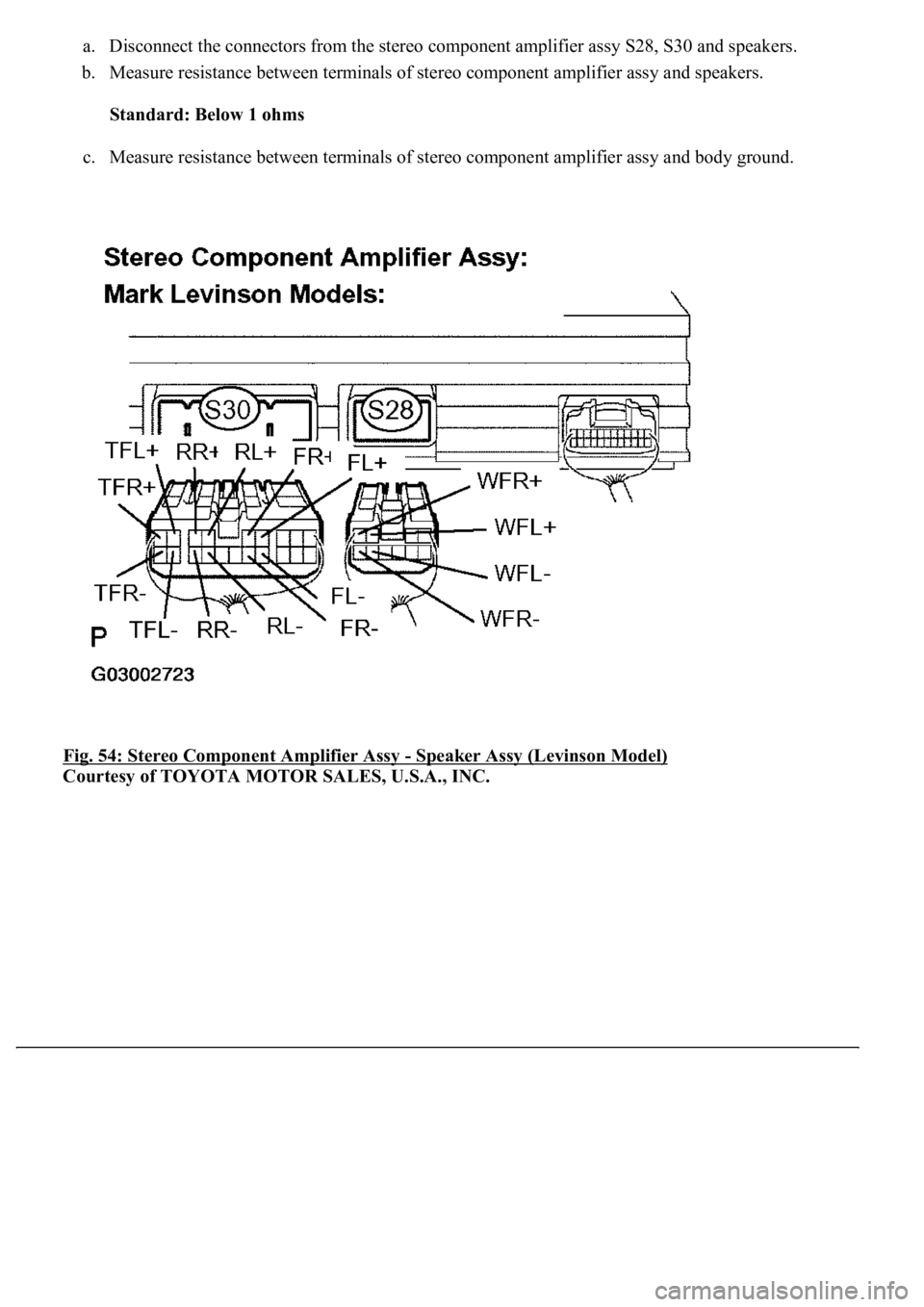

LEXUS LS430 2003  Factory Repair Manual a. Disconnect the connectors from the stereo component amplifier assy S28, S30 and speakers.
b. Measure resistance between terminals of stereo component amplifier assy and speakers.
Standard: Below
