LEXUS LS460L 2016 Owners Manual

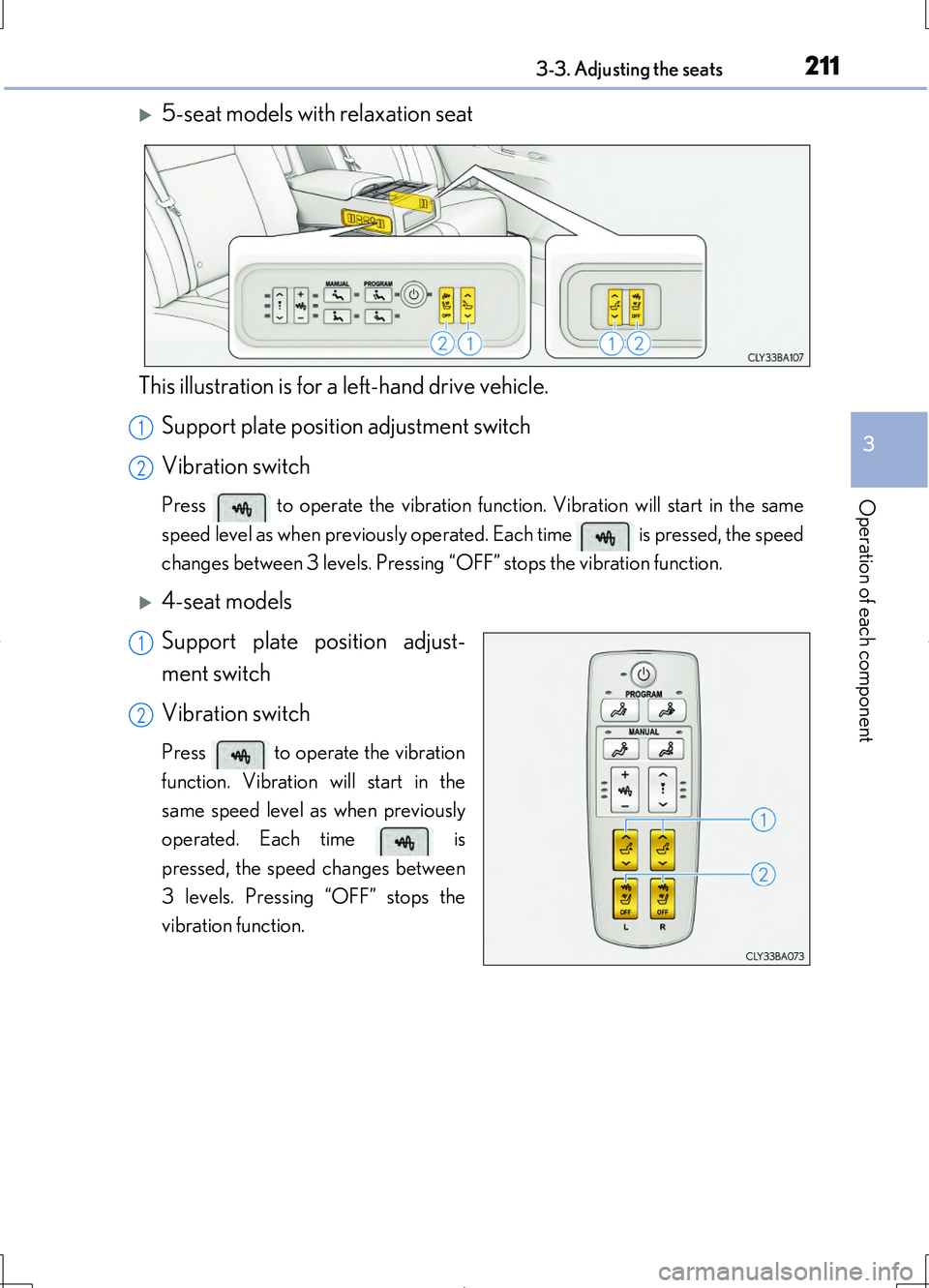

2113-3. Adjusting the seats
3
Operation of each component
LS460/LS460L_GE (OM50G06E)
5-seat models with relaxation seat
This illustration is for a left-hand drive vehicle. Support plate position adjustment switch
Vibration switch
Press to operate the vibration function. Vibration will start in the same
speed level as when previously operated. Each time is pressed, the speed
changes between 3 levels. Pressing “OFF” stops the vibration function.
4-seat models
Support plate position adjust-
ment switch
Vibration switch
Press to operate the vibration
function. Vibration will start in the
same speed level as when previously
operated. Each time is
pressed, the speed changes between
3 levels. Pressing “OFF” stops the
vibration function.
1
2
1
2

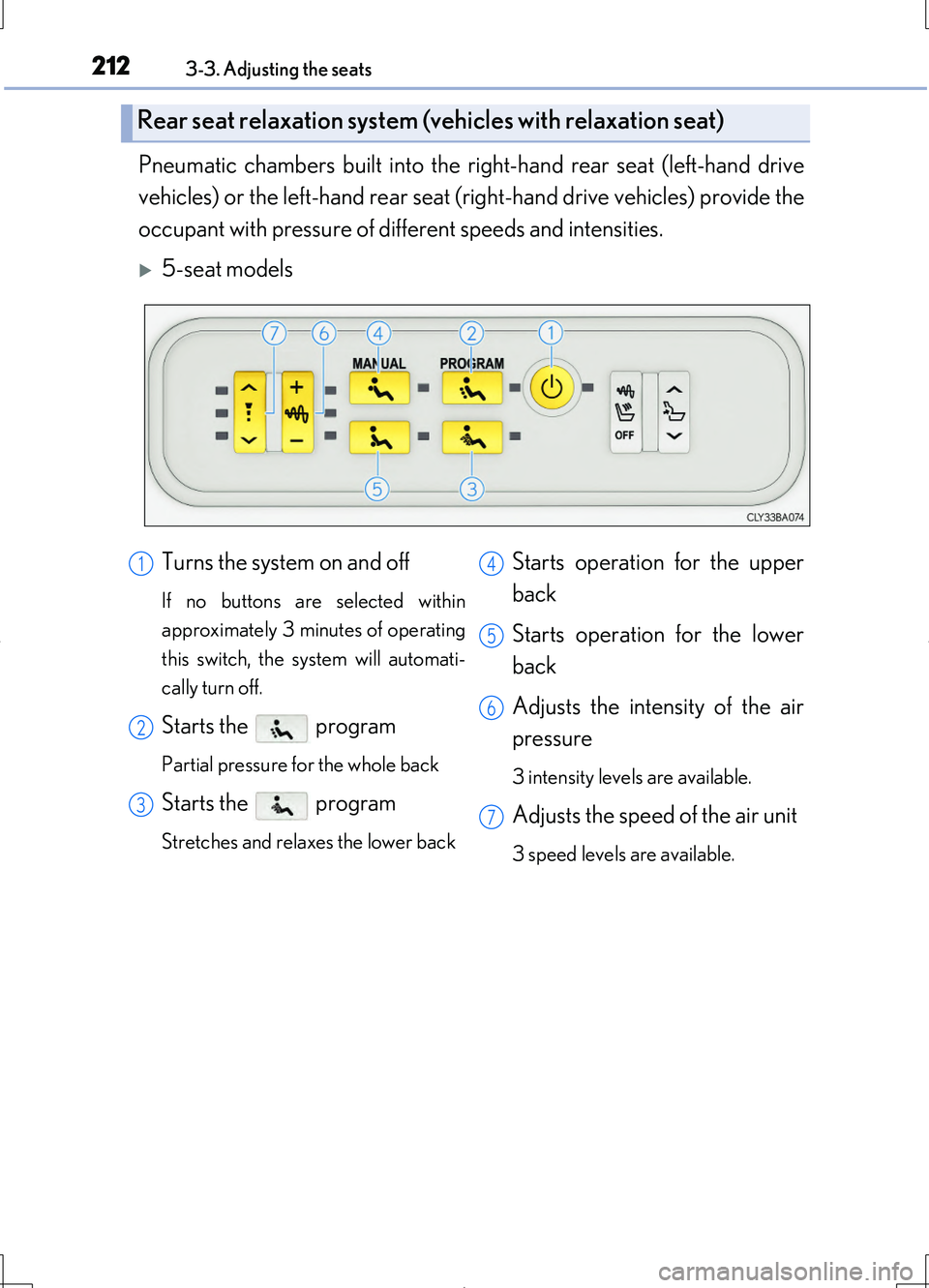

2123-3. Adjusting the seats
LS460/LS460L_GE (OM50G06E)
Pneumatic chambers built into the right-hand rear seat (left-hand drive
vehicles) or the left-hand rear seat (right-hand drive vehicles) provide the
occupant with pressure of different speeds and intensities.
5-seat models
Rear seat relaxation system (vehicles with relaxation seat)
Turns the system on and off
If no buttons are selected within
approximately 3 minutes of operating
this switch, the system will automati-
cally turn off.
Starts the program
Partial pressure for the whole back
Starts the program
Stretches and relaxes the lower back
Starts operation for the upper
back
Starts operation for the lower
back
Adjusts the intensity of the air
pressure
3 intensity levels are available.
Adjusts the speed of the air unit
3 speed levels are available.
1
2
3
4
5
6
7

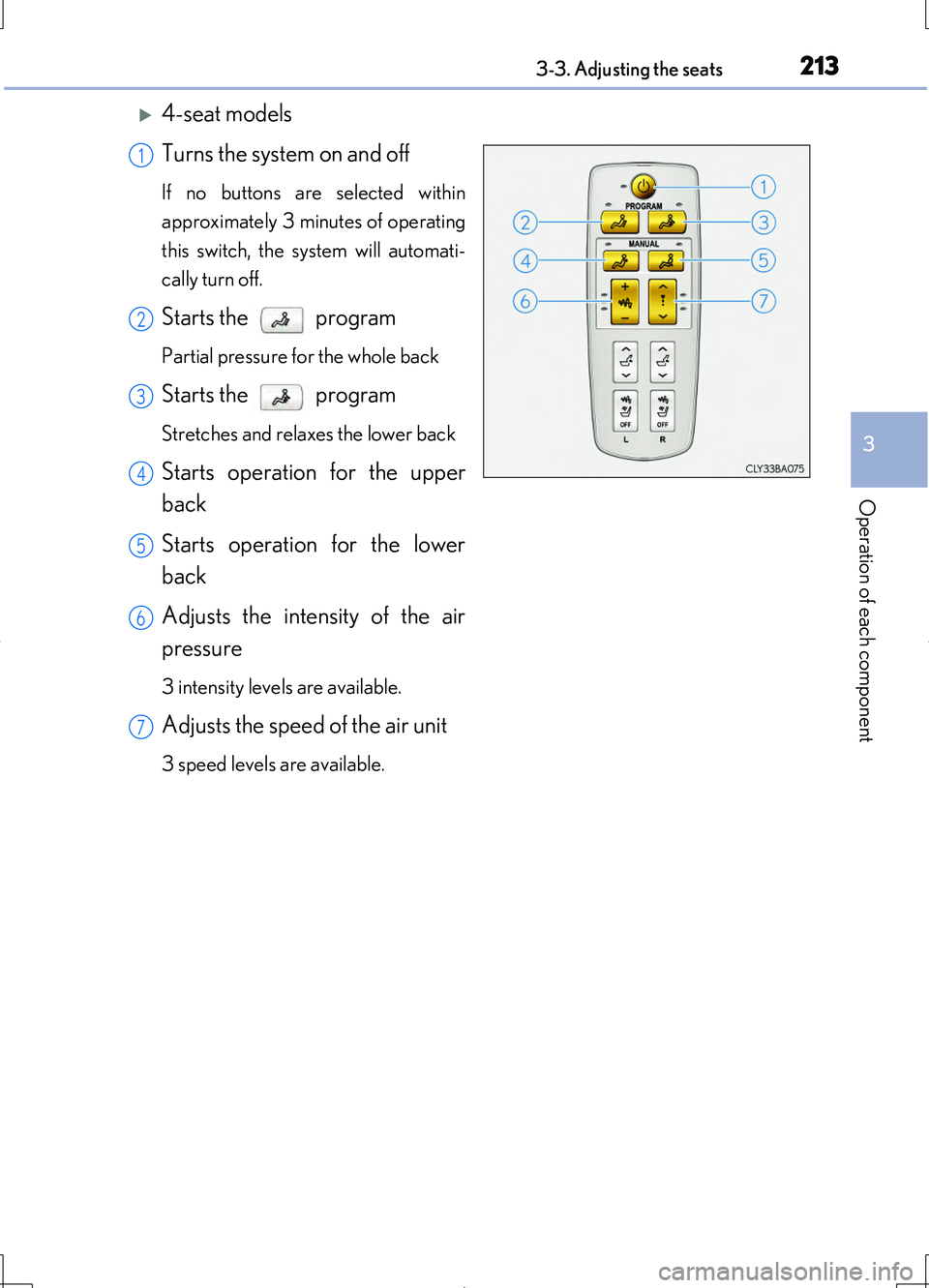

2133-3. Adjusting the seats
3
Operation of each component
LS460/LS460L_GE (OM50G06E)
4-seat models
Turns the system on and off
If no buttons are selected within
approximately 3 minutes of operating
this switch, the system will automati-
cally turn off.
Starts the program
Partial pressure for the whole back
Starts the program
Stretches and relaxes the lower back
Starts operation for the upper
back
Starts operation for the lower
back
Adjusts the intensity of the air
pressure
3 intensity levels are available.
Adjusts the speed of the air unit
3 speed levels are available.
1
2
3
4
5
6
7

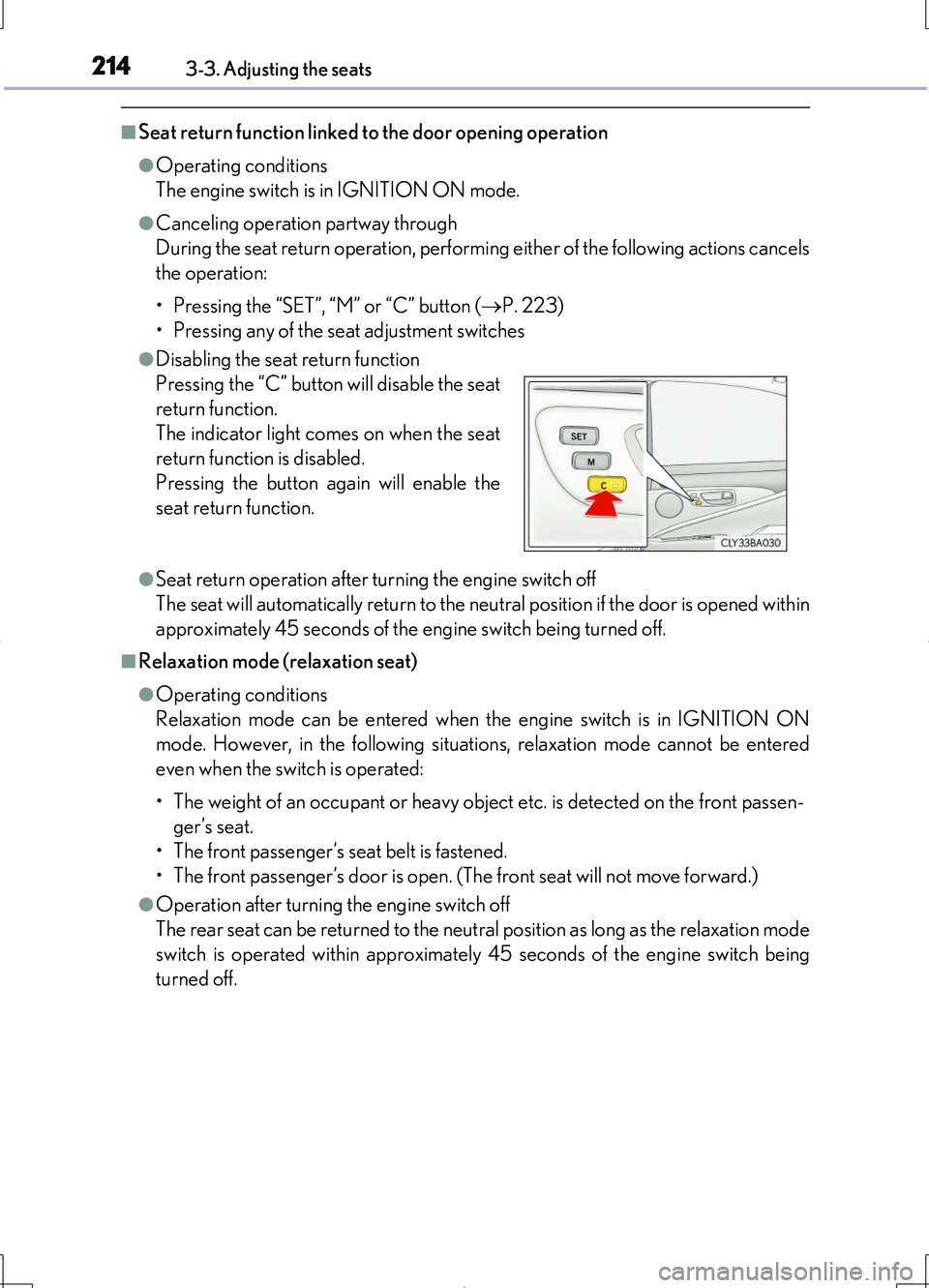

2143-3. Adjusting the seats
LS460/LS460L_GE (OM50G06E)
■Seat return function linked to the door opening operation
●Operating conditions
The engine switch is in IGNITION ON mode.
●Canceling operation partway through
During the seat return operation, performing either of the following actions cancels
the operation:
• Pressing the “SET”, “M” or “C” button ( P. 223)
• Pressing any of the seat adjustment switches
●Disabling the seat return function
●Seat return operation after turning the engine switch off
The seat will automatically return to the neutral position if the door is opened within
approximately 45 seconds of the engine switch being turned off.
■Relaxation mode (relaxation seat)
●Operating conditions
Relaxation mode can be entered when the engine switch is in IGNITION ON
mode. However, in the following situations, relaxation mode cannot be entered
even when the switch is operated:
• The weight of an occupant or heavy obje ct etc. is detected on the front passen-
ger’s seat.
• The front passenger’s seat belt is fastened.
• The front passenger’s door is open. (T he front seat will not move forward.)
●Operation after turning the engine switch off
The rear seat can be returned to the neutral position as long as the relaxation mode
switch is operated within approximately 45 seconds of the engine switch being
turned off.
Pressing the “C” button will disable the seat
return function.
The indicator light comes on when the seat
return function is disabled.
Pressing the button again will enable the
seat return function.

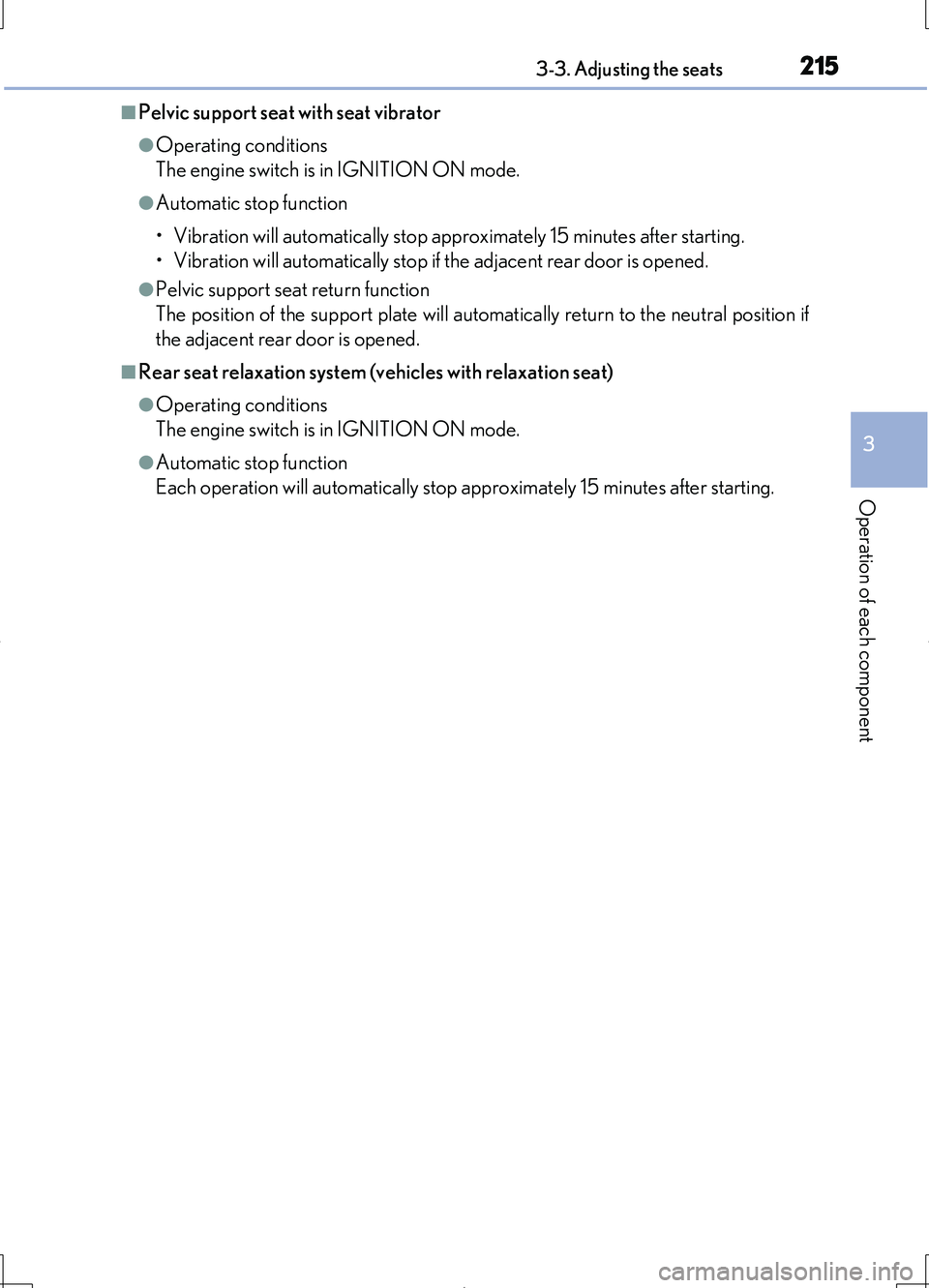

2153-3. Adjusting the seats
3
Operation of each component
LS460/LS460L_GE (OM50G06E)
■Pelvic support seat with seat vibrator
●Operating conditions
The engine switch is in IGNITION ON mode.
●Automatic stop function
• Vibration will automatically stop approximately 15 minutes after starting.
• Vibration will automatically stop if the adjacent rear door is opened.
●Pelvic support seat return function
The position of the support plate will automatically return to the neutral position if
the adjacent rear door is opened.
■Rear seat relaxation system (vehicles with relaxation seat)
●Operating conditions
The engine switch is in IGNITION ON mode.
●Automatic stop function
Each operation will automatically stop approximately 15 minutes after starting.

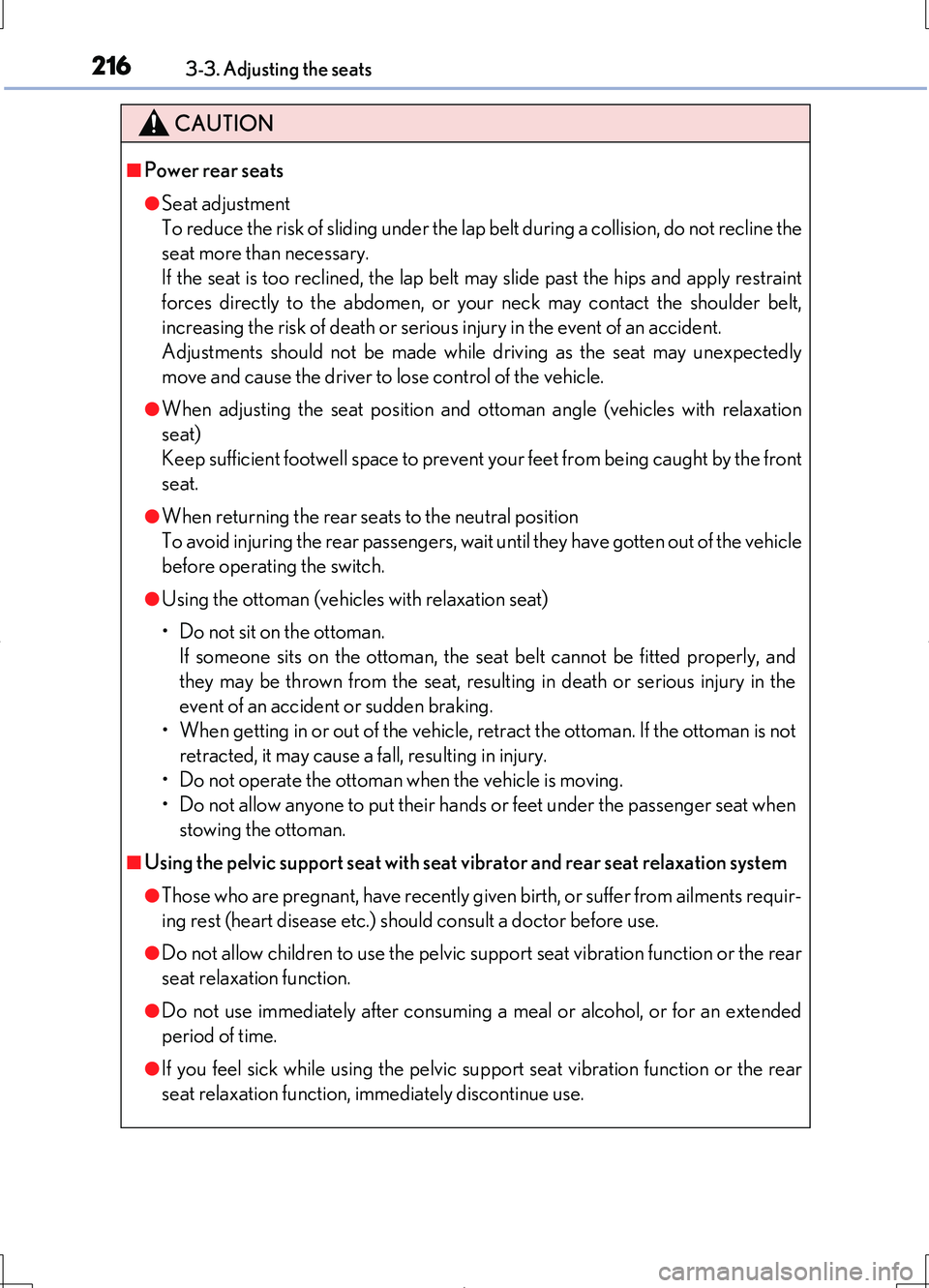

2163-3. Adjusting the seats
LS460/LS460L_GE (OM50G06E)
CAUTION
■Power rear seats
●Seat adjustment
To reduce the risk of sliding under the lap belt during a collision, do not recline the
seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply restraint
forces directly to the abdomen, or yo ur neck may contact the shoulder belt,
increasing the risk of death or serious injury in the event of an accident.
Adjustments should not be made while driving as the seat may unexpectedly
move and cause the driver to lose control of the vehicle.
●When adjusting the seat position and ottoman angle (vehicles with relaxation
seat)
Keep sufficient footwell space to prevent your feet from being caught by the front
seat.
●When returning the rear seats to the neutral position
To avoid injuring the rear passengers, wait until they have gotten out of the vehicle
before operating the switch.
●Using the ottoman (vehicles with relaxation seat)
• Do not sit on the ottoman.
If someone sits on the ottoman, the seat belt cannot be fitted properly, and
they may be thrown from the seat, resulting in death or serious injury in the
event of an accident or sudden braking.
• When getting in or out of the vehicle, retract the ottoman. If the ottoman is not
retracted, it may cause a fall, resulting in injury.
• Do not operate the ottoman when the vehicle is moving.
• Do not allow anyone to put their hands or feet under the passenger seat when
stowing the ottoman.
■Using the pelvic support seat with seat vibrator and rear seat relaxation system
●Those who are pregnant, have recently given birth, or suffer from ailments requir-
ing rest (heart disease etc.) should consult a doctor before use.
●Do not allow children to use the pelvic support seat vibration function or the rear
seat relaxation function.
●Do not use immediately after consuming a meal or alcohol, or for an extended
period of time.
●If you feel sick while using the pelvic support seat vibration function or the rear
seat relaxation function, immediately discontinue use.

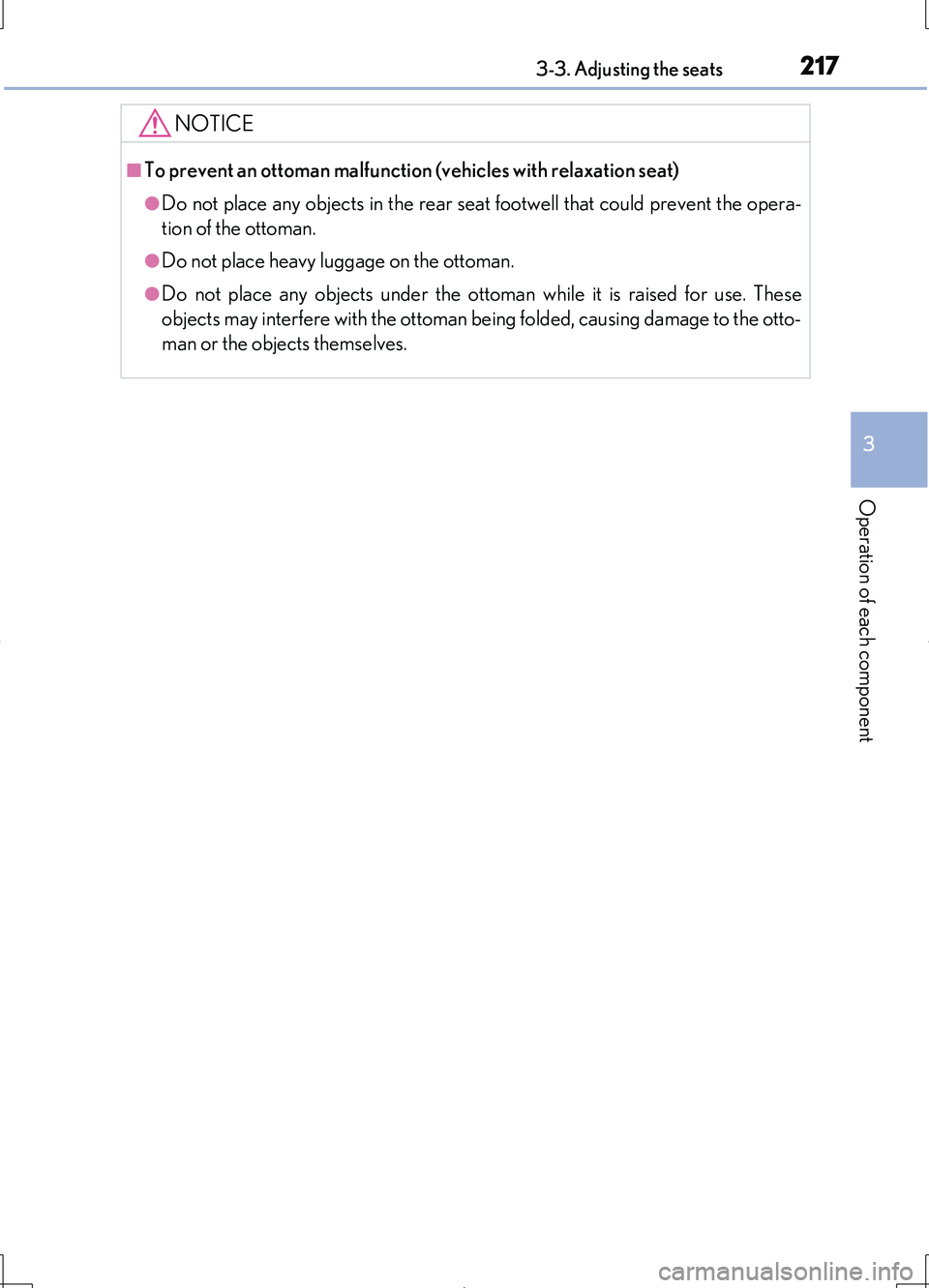

2173-3. Adjusting the seats
3
Operation of each component
LS460/LS460L_GE (OM50G06E)
NOTICE
■To prevent an ottoman malfunction (vehicles with relaxation seat)
●Do not place any objects in the rear seat footwell that could prevent the opera-
tion of the ottoman.
●Do not place heavy luggage on the ottoman.
●Do not place any objects under the ottoman while it is raised for use. These
objects may interfere with the ottoman being folded, causing damage to the otto-
man or the objects themselves.

2183-3. Adjusting the seats
LS460/LS460L_GE (OM50G06E)
Your preferred driving position (the position of the driver’s seat, steering
wheel, outside rear view mirrors and he ight of seat belt shoulder anchor)
can be recorded and recalled by pressing a switch.
Three different driving positions can be recorded into memory.
■Recording procedure
Check that the shift lever is in P.
Turn the engine switch to IGNITION ON mode.
Adjust the driver’s seat, steering wheel, outside rear view mirrors and
seat belt shoulder anchor height to the desired positions.
Press the “SET” switch, then
within 3 seconds press switch
“1”, “2” or “3” until the buzzer
sounds.
If the selected switch has already
been preset, the previously
recorded position will be overwrit-
ten.
To record the position of the front passenger’s seat, adjust the front pas-
senger’s seat to the desired posi tion and perform step using the
switches on the front passenger’s side.
Driving position memory
This feature automatically adjusts the front seats, steering wheel, out-
side rear view mirrors and height of seat belt shoulder anchor to suit
your preferences.
Driving position memory
1
2
3
4
4

2193-3. Adjusting the seats
3
Operation of each component
LS460/LS460L_GE (OM50G06E)
■Recall procedure
Check that the shift lever is in P.
Turn the engine switch to IGNITION ON mode.
Press one of the switches for
the driving position you want
to recall until the buzzer
sounds.
■When you want to stop the position recall operation part-way through
Perform any of the following operations:
●Press the “SET” switch.
●Press switch “1”, “2” or “3”.
●Operate any of the seat adjustment switches (only cancels seat position recall).
●Operate the tilt and telescopic steering control switch (only cancels steering wheel
position recall).
●Operate the seat belt shoulder anchor height adjusting switch (only cancels height
of seat belt shoulder anchor recall).
■Front passenger’s seat position recall limitations
Vehicles with front passenger ottoman:
The memorized position will only be recalled if the front passenger ottoman is in a
position higher than the memorized position. It will not move in an upward direction.
Vehicles with relaxation seat:
When retractable table (4-seat models) or ottoman is used, rearward memories
cannot be recalled.
■Automatic front passenger ottoman adjustment (if equipped)
While the memorized position is being recalled, if it appears that the front edge of
the cushion will make contact with the area surrounding the instrument panel, the
front passenger ottoman will be automatically stowed.
1
2
3

2203-3. Adjusting the seats
LS460/LS460L_GE (OM50G06E)
■Operating the driving position memory after turning the engine switch off
Driver’s seat:
Recorded driving positions (except the steering wheel position) can be recalled up
to 180 seconds after the driver’s door is opened and up to 60 seconds after it is
closed again.
Front passenger’s seat:
Recorded seat positions can be recalled up to 180 seconds after the front passen-
ger’s door is opened.
■In order to correctly use the driving position memory function
If a seat position is already in the furthest possible position and the seat is operated in
the same direction, the recorded position may be slightly different when it is recalled.
Each electronic key (including a card key) can be registered to recall your
preferred driving position.
■Registering procedure
Record your driving position to switch “1”, “2” or “3” before performing
the following:
Using the wireless remote control
Turn the engine switch off and close the driver’s door.
While pressing the desired
switch (“1”, “2” or “3”), press on the wireless remote
control until the buzzer
sounds.
To prevent unintended triggering of the alarm, open and close a door
once after a driving position has been recorded. (If a door is not
opened within 30 seconds after
is pressed, the doors will be
locked again and the alarm will automatically be set.)
In case that the alarm is triggered, immediately stop the alarm.
(  P. 113)
Memory recall function (driver’s side only)
1
2
