LEXUS LS460L 2016 Owners Manual

2013-3. Adjusting the seats
3
Operation of each component
LS460/LS460L_GE (OM50G06E)
The seat and steering wheel are automatically adjusted to allow the driver
or front passenger to enter and exit the vehicle easily.
■Driver’s seat
When all of the following have
been performed, the driver’s seat
and steering wheel are automati-
cally adjusted to a position that
allows driver to enter and exit the
vehicle easily.
• The shift lever has been shifted
to P.
• The engine switch has been
turned off.
• The driver’s seat belt has been
unfastened.
When any of the following has been performed, the driver’s seat and
steering wheel automatically return to their original positions.
• The engine switch has been turned to ACCESSORY mode.
• The driver’s seat belt has been fastened.
■Front passenger’s seat
If the front passenger’s door is opened while the vehicle is stopped, the
adjusted lumbar/pelvic support ( if equipped), ottoman (if equipped),
etc. will return to its original position.
Power easy access system

2023-3. Adjusting the seats
LS460/LS460L_GE (OM50G06E)

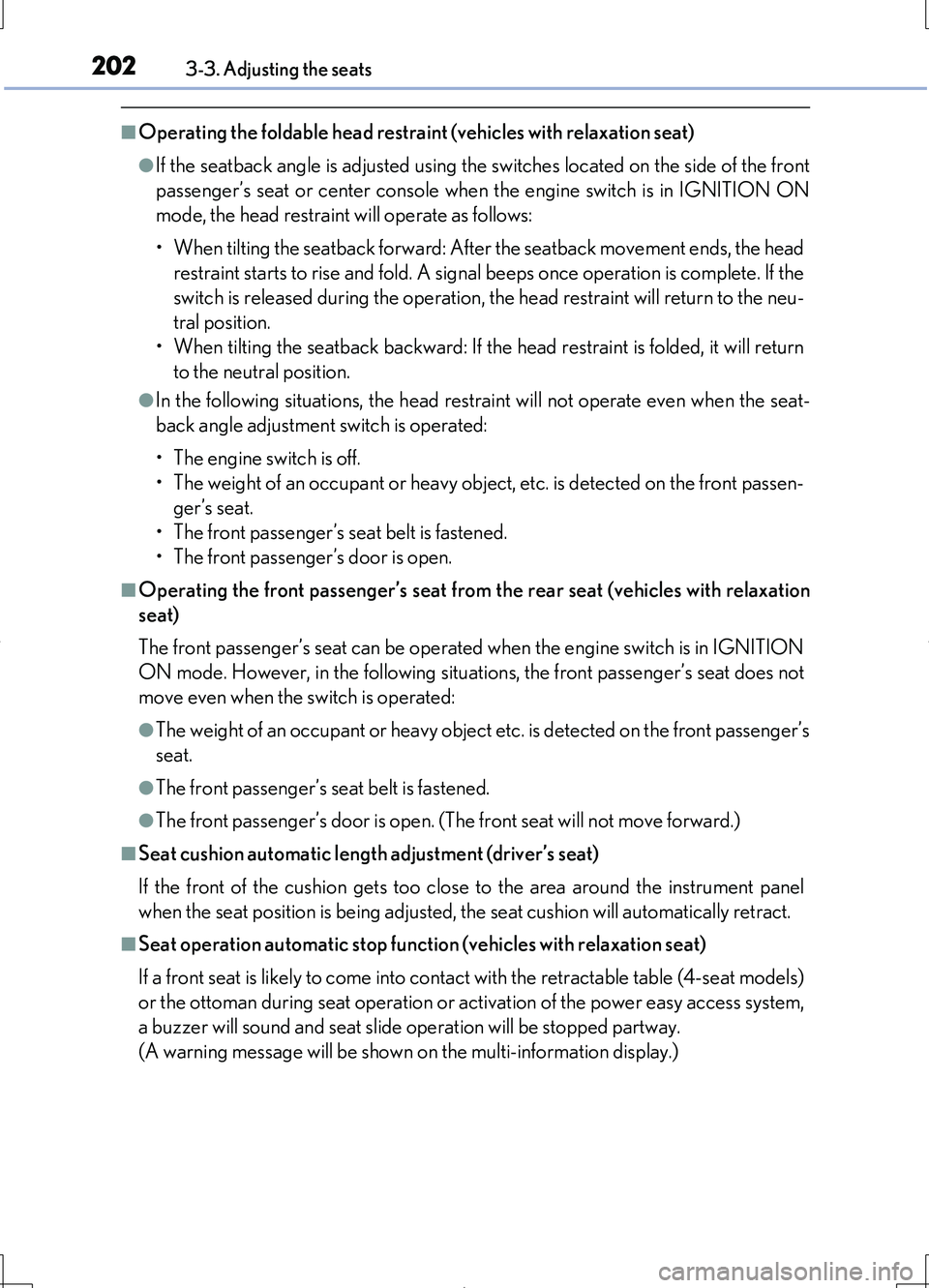

■Operating the foldable head restraint (vehicles with relaxation seat)
●If the seatback angle is adjusted using the switches located on the side of the front
passenger’s seat or center console when the engine switch is in IGNITION ON
mode, the head restraint will operate as follows:
• When tilting the seatback forward: After the seatback movement ends, the head
restraint starts to rise and fold. A signal beeps once operation is complete. If the
switch is released during the operation, the head restraint will return to the neu-
tral position.
• When tilting the seatback backward: If the head restraint is folded, it will return
to the neutral position.
●In the following situations, the head restraint will not operate even when the seat-
back angle adjustment switch is operated:
• The engine switch is off.
• The weight of an occupant or heavy object, etc. is detected on the front passen-
ger’s seat.
• The front passenger’s seat belt is fastened.
• The front passenger’s door is open.
■Operating the front passenger’s seat from the rear seat (vehicles with relaxation
seat)
The front passenger’s seat can be operated when the engine switch is in IGNITION
ON mode. However, in the following situations, the front passenger’s seat does not
move even when the switch is operated:
●The weight of an occupant or heavy object etc. is detected on the front passenger’s
seat.
●The front passenger’s seat belt is fastened.
●The front passenger’s door is open. (The front seat will not move forward.)
■Seat cushion automatic length adjustment (driver’s seat)
If the front of the cushion gets too close to the area around the instrument panel
when the seat position is being adjusted, the seat cushion will automatically retract.
■Seat operation automatic stop function (vehicles with relaxation seat)
If a front seat is likely to come into contact with the retractable table (4-seat models)
or the ottoman during seat operation or activation of the power easy access system,
a buzzer will sound and seat slide operation will be stopped partway.
(A warning message will be shown on the multi-information display.)

2033-3. Adjusting the seats
3
Operation of each component
LS460/LS460L_GE (OM50G06E)

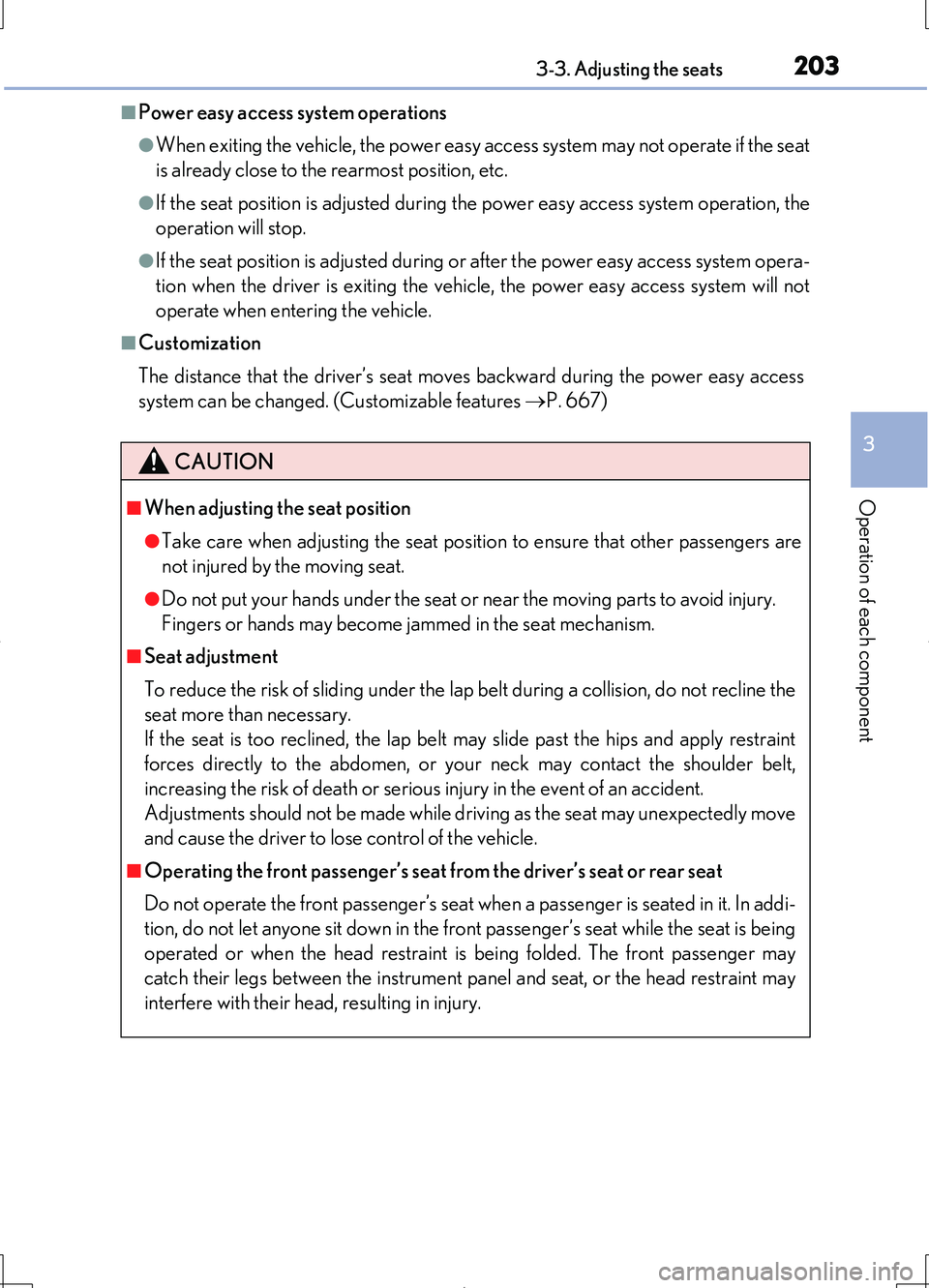

■Power easy access system operations
●When exiting the vehicle, the power easy access system may not operate if the seat
is already close to the rearmost position, etc.
●If the seat position is adjusted during the power easy access system operation, the
operation will stop.
●If the seat position is adjusted during or after the power easy access system opera-
tion when the driver is exiting the vehicle, the power easy access system will not
operate when entering the vehicle.
■Customization
The distance that the driver’s seat moves backward during the power easy access
system can be changed. (Customizable features P. 667)
CAUTION
■When adjusting the seat position
●Take care when adjusting the seat position to ensure that other passengers are
not injured by the moving seat.
●Do not put your hands under the seat or near the moving parts to avoid injury.
Fingers or hands may become jammed in the seat mechanism.
■Seat adjustment
To reduce the risk of sliding under the lap belt during a collision, do not recline the
seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply restraint
forces directly to the abdomen, or your neck may contact the shoulder belt,
increasing the risk of death or serious injury in the event of an accident.
Adjustments should not be made while driving as the seat may unexpectedly move
and cause the driver to lose control of the vehicle.
■Operating the front passenger’s seat from the driver’s seat or rear seat
Do not operate the front passenger’s seat when a passenger is seated in it. In addi-
tion, do not let anyone sit down in the front passenger’s seat while the seat is being
operated or when the head restraint is being folded. The front passenger may
catch their legs between the instrument panel and seat, or the head restraint may
interfere with their head, resulting in injury.

2043-3. Adjusting the seats
LS460/LS460L_GE (OM50G06E)

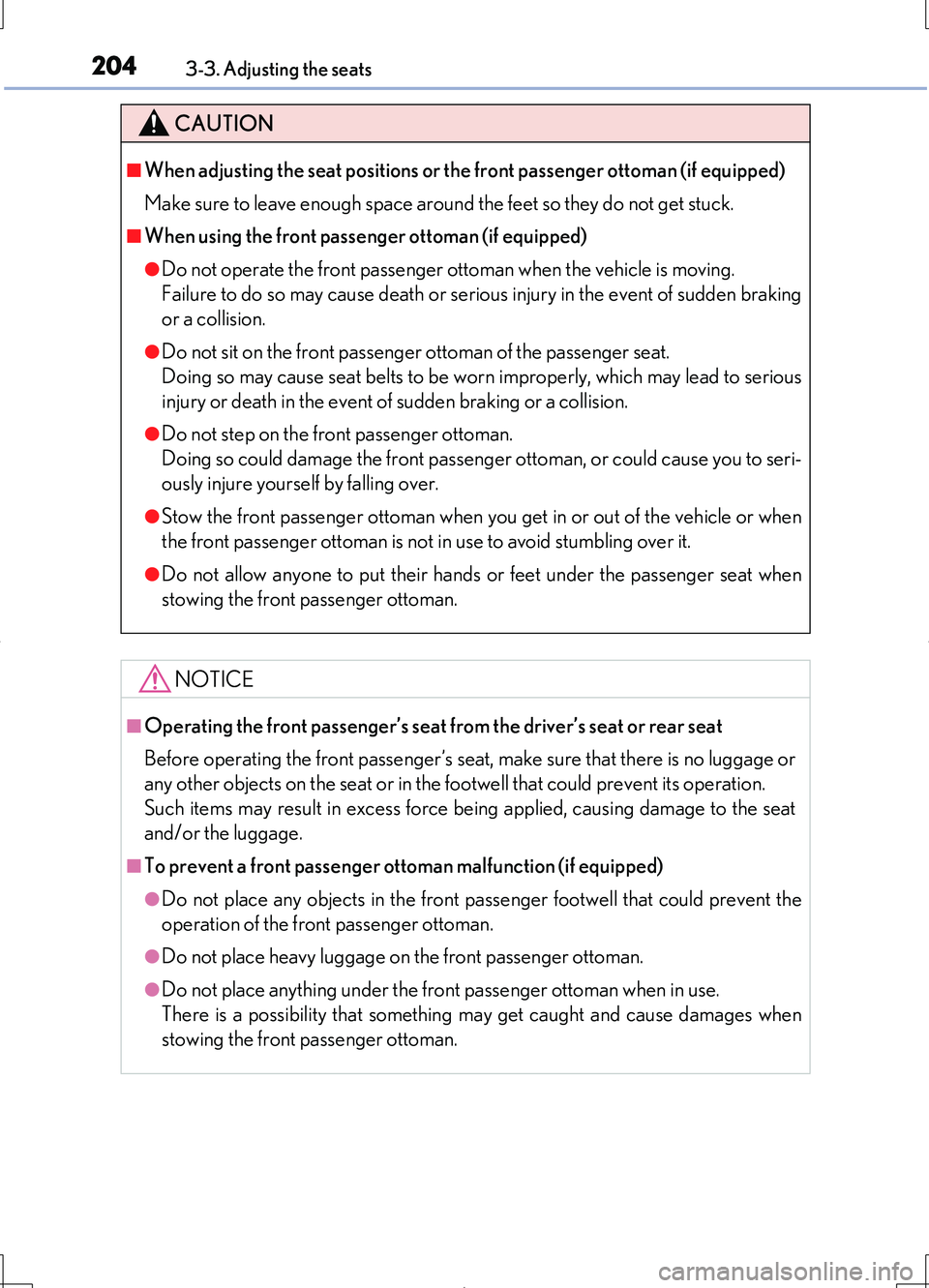

CAUTION
■When adjusting the seat positions or the front passenger ottoman (if equipped)
Make sure to leave enough space around the feet so they do not get stuck.
■When using the front passenger ottoman (if equipped)
●Do not operate the front passenger ottoman when the vehicle is moving.
Failure to do so may cause death or serious injury in the event of sudden braking
or a collision.
●Do not sit on the front passenge r ottoman of the passenger seat.
Doing so may cause seat belts to be worn improperly, which may lead to serious
injury or death in the event of sudden braking or a collision.
●Do not step on the front passenger ottoman.
Doing so could damage the front passenge r ottoman, or could cause you to seri-
ously injure yourself by falling over.
●Stow the front passenger ottoman when yo u get in or out of the vehicle or when
the front passenger ottoman is not in use to avoid stumbling over it.
●Do not allow anyone to put their hands or feet under the passenger seat when
stowing the front passenger ottoman.
NOTICE
■Operating the front passenger’s seat from the driver’s seat or rear seat
Before operating the front passenger’s seat, make sure that there is no luggage or
any other objects on the seat or in the footwell that could prevent its operation.
Such items may result in excess force being applied, causing damage to the seat
and/or the luggage.
■To prevent a front passenger ottoman malfunction (if equipped)
●Do not place any objects in the front passenger footwell that could prevent the
operation of the front passenger ottoman.
●Do not place heavy luggage on the front passenger ottoman.
●Do not place anything under the front passenger ottoman when in use.
There is a possibility that something may get caught and cause damages when
stowing the front passenger ottoman.

2053-3. Adjusting the seats
3
Operation of each component
LS460/LS460L_GE (OM50G06E)

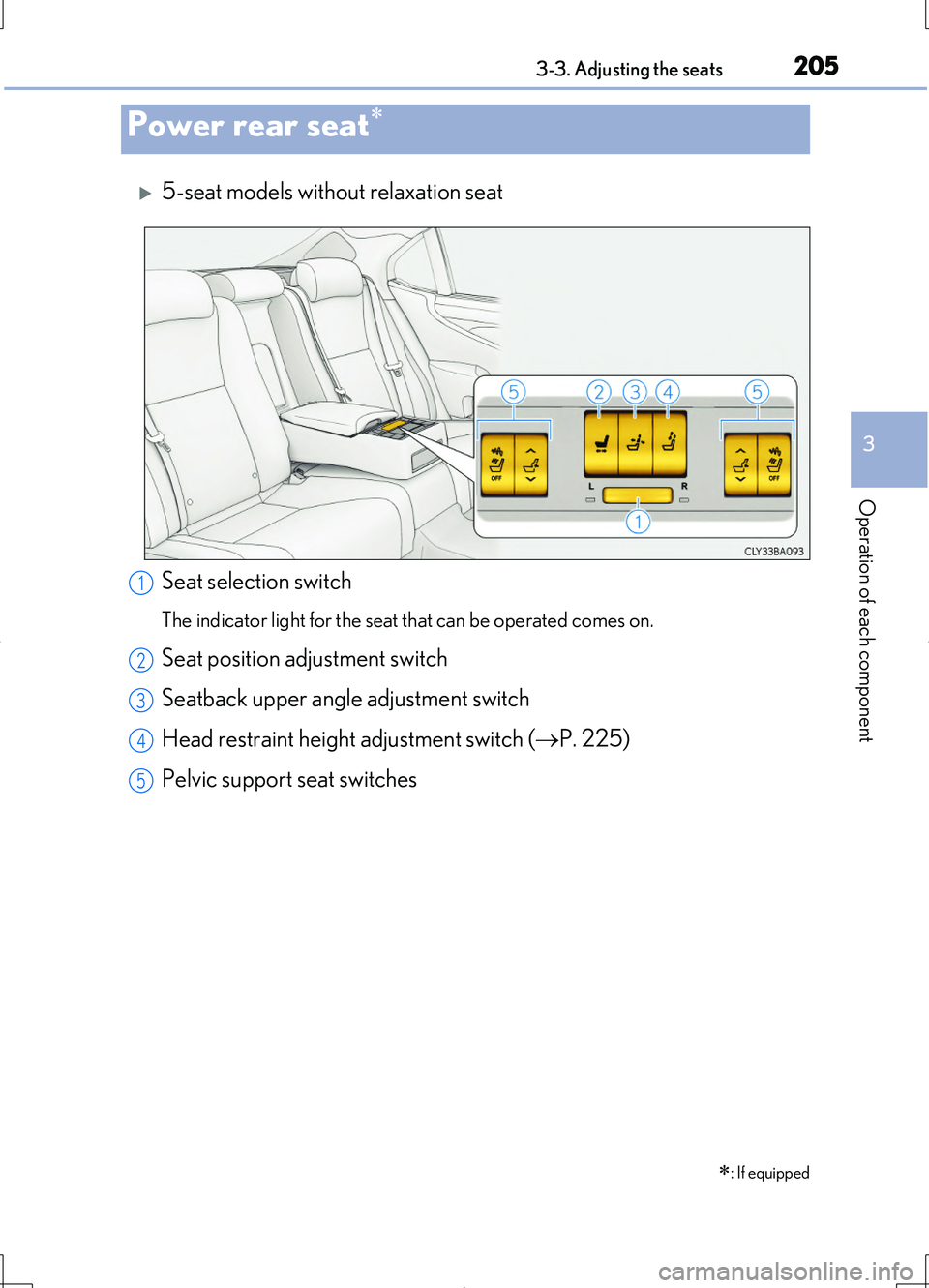

5-seat models without relaxation seat
Power rear seat
Seat selection switch
The indicator light for the seat that can be operated comes on.
Seat position adjustment switch
Seatback upper angle adjustment switch
Head restraint height adjustment switch ( P. 225)
Pelvic support seat switches
1
2
3
4
5
: If equipped

2063-3. Adjusting the seats
LS460/LS460L_GE (OM50G06E)

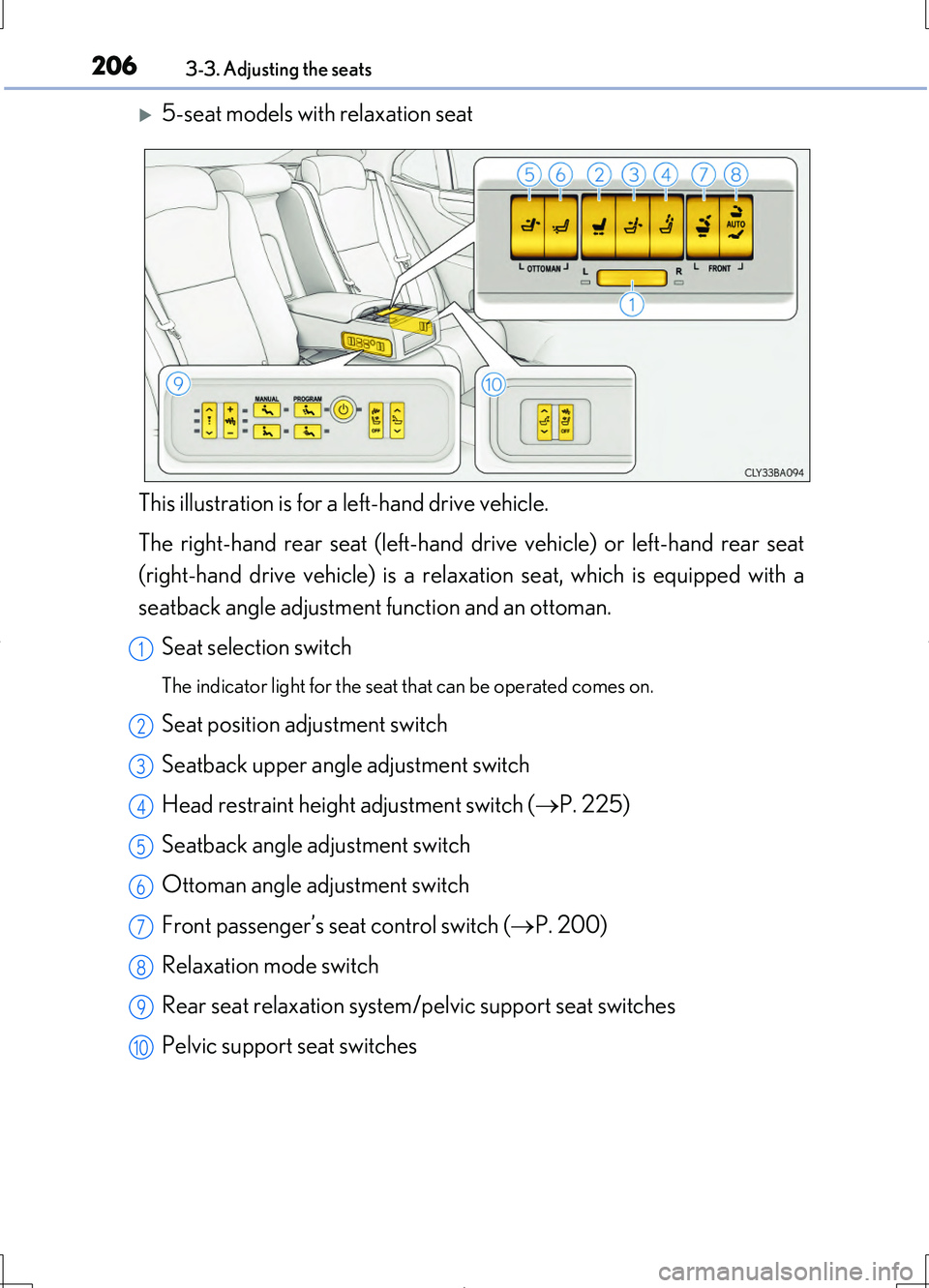

5-seat models with relaxation seat
This illustration is for a left-hand drive vehicle.
The right-hand rear seat (left-hand drive vehicle) or left-hand rear seat
(right-hand drive vehicle) is a relaxation seat, which is equipped with a
seatback angle adjustment function and an ottoman.
Seat selection switch
The indicator light for the seat that can be operated comes on.
Seat position adjustment switch
Seatback upper angle adjustment switch
Head restraint height adjustment switch ( P. 225)
Seatback angle adjustment switch
Ottoman angle adjustment switch
Front passenger’s seat control switch ( P. 200)
Relaxation mode switch
Rear seat relaxation system/pelvic support seat switches
Pelvic support seat switches
1
2
3
4
5
6
7
8
59
510

2073-3. Adjusting the seats
3
Operation of each component
LS460/LS460L_GE (OM50G06E)

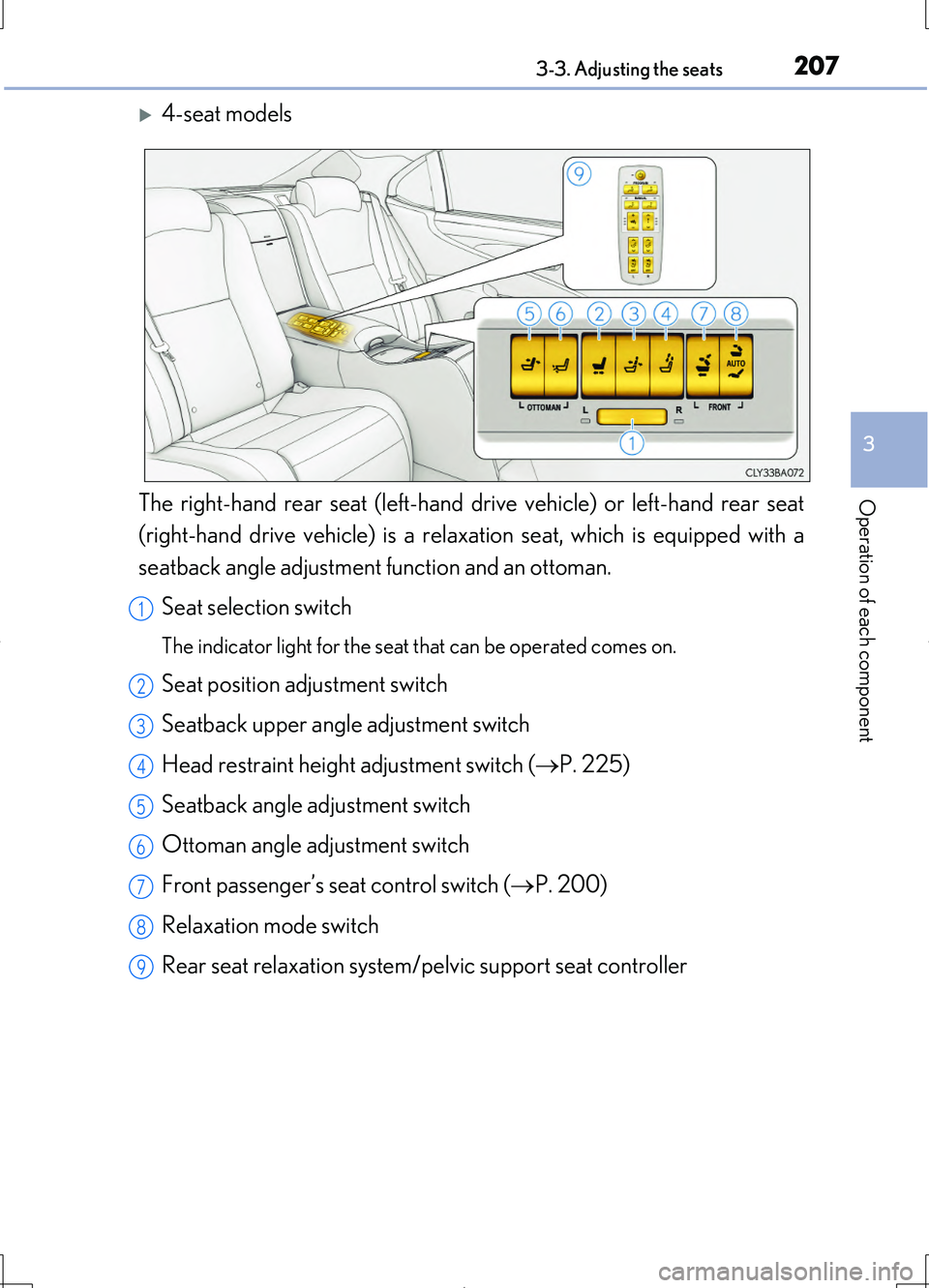

4-seat models
The right-hand rear seat (left-hand drive vehicle) or left-hand rear seat
(right-hand drive vehicle) is a relaxation seat, which is equipped with a
seatback angle adjustment function and an ottoman.
Seat selection switch
The indicator light for the seat that can be operated comes on.
Seat position adjustment switch
Seatback upper angle adjustment switch
Head restraint height adjustment switch ( P. 225)
Seatback angle adjustment switch
Ottoman angle adjustment switch
Front passenger’s seat control switch ( P. 200)
Relaxation mode switch
Rear seat relaxation system/pelvic support seat controller
1
2
3
4
5
6
7
8
59

2083-3. Adjusting the seats
LS460/LS460L_GE (OM50G06E)

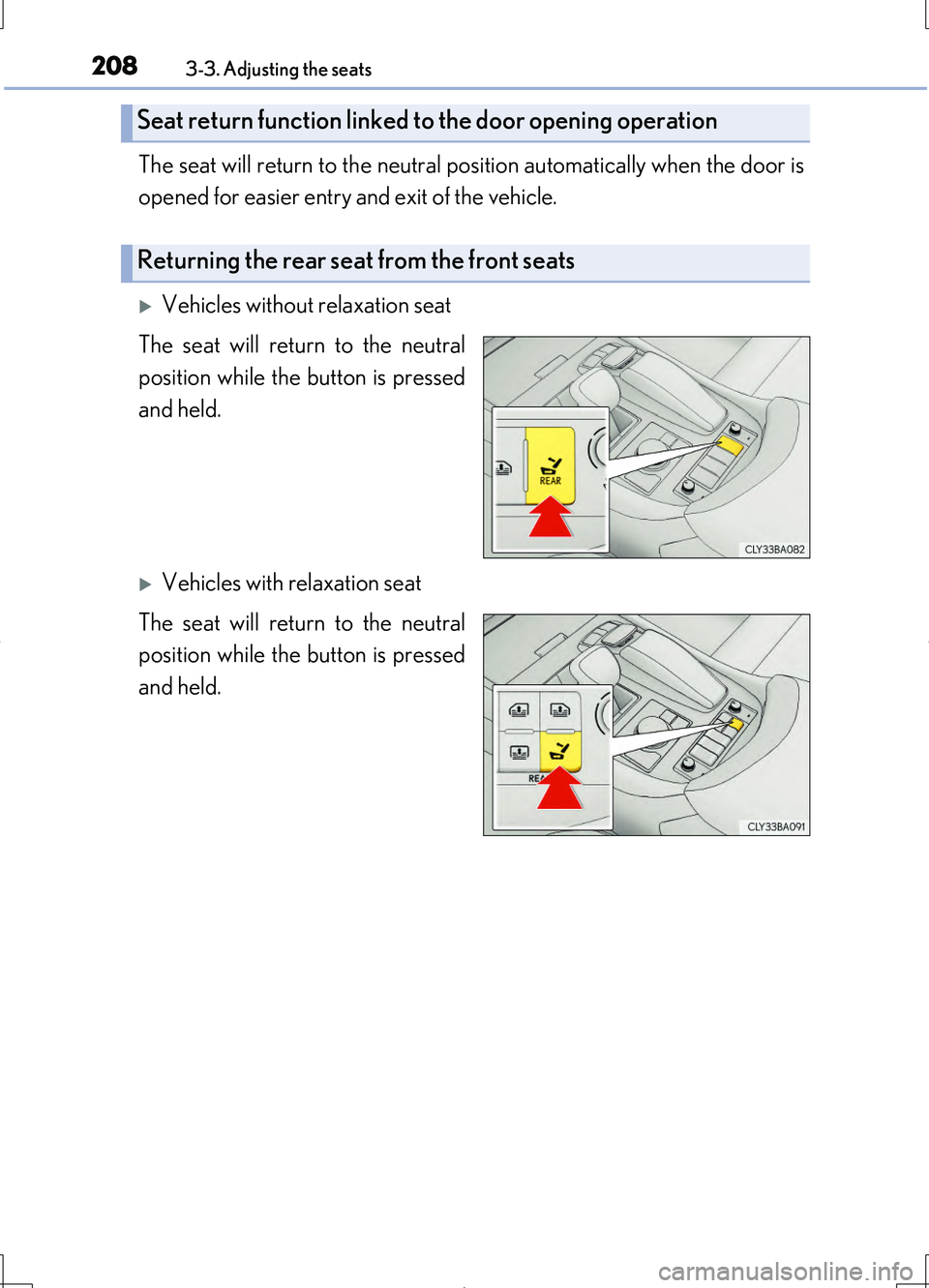

The seat will return to the neutral position automatically when the door is
opened for easier entry and exit of the vehicle.
Vehicles without relaxation seat
The seat will return to the neutral
position while the button is pressed
and held.
Vehicles with relaxation seat
The seat will return to the neutral
position while the button is pressed
and held.
Seat return function linked to the door opening operation
Returning the rear seat from the front seats

2093-3. Adjusting the seats
3
Operation of each component
LS460/LS460L_GE (OM50G06E)

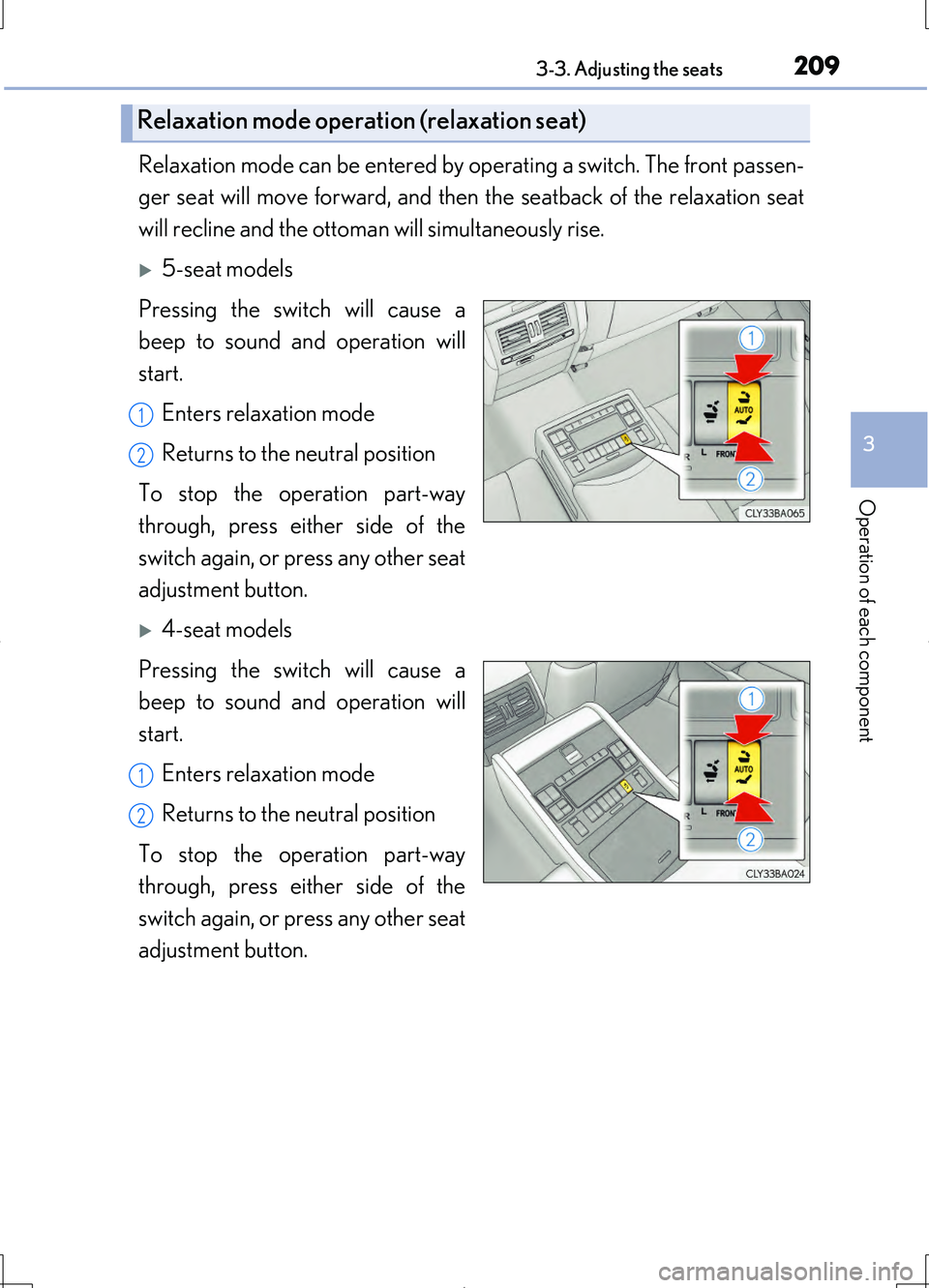

Relaxation mode can be entered by operating a switch. The front passen-
ger seat will move forward, and then the seatback of the relaxation seat
will recline and the ottoman will simultaneously rise.
5-seat models
Pressing the switch will cause a
beep to sound and operation will
start.
Enters relaxation mode
Returns to the neutral position
To stop the operation part-way
through, press either side of the
switch again, or press any other seat
adjustment button.
4-seat models
Pressing the switch will cause a
beep to sound and operation will
start.
Enters relaxation mode
Returns to the neutral position
To stop the operation part-way
through, press either side of the
switch again, or press any other seat
adjustment button.
Relaxation mode operation (relaxation seat)
1
2
1
2

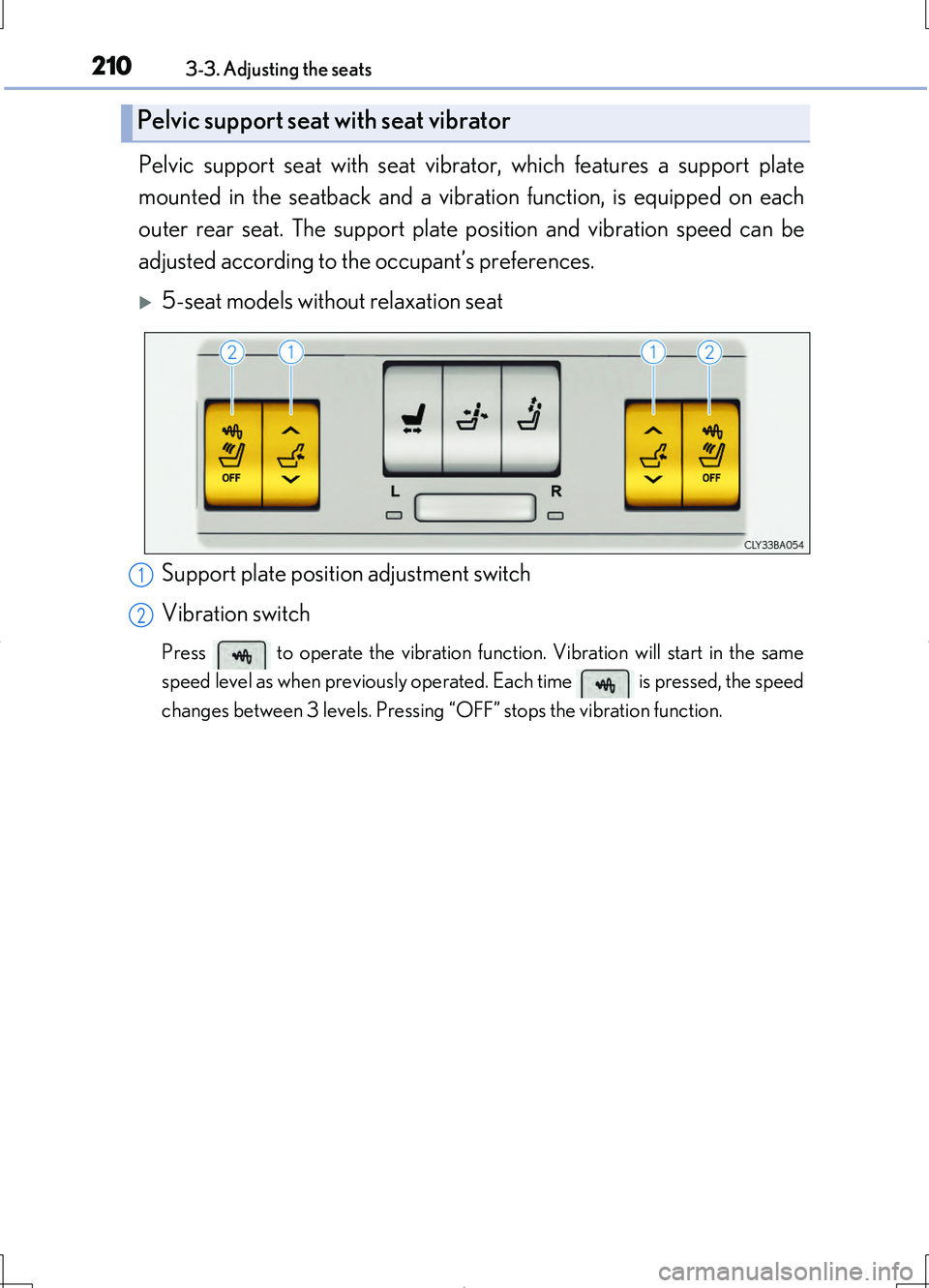

2103-3. Adjusting the seats
LS460/LS460L_GE (OM50G06E)
Pelvic support seat with seat vibrator, which features a support plate
mounted in the seatback and a vibration function, is equipped on each
outer rear seat. The support plate position and vibration speed can be
adjusted according to the occupant’s preferences.
5-seat models without relaxation seat
Support plate position adjustment switch
Vibration switch
Press to operate the vibration function. Vibration will start in the same
speed level as when previously operated. Each time is pressed, the speed
changes between 3 levels. Pressing “OFF” stops the vibration function.
Pelvic support seat with seat vibrator
1
2
