LEXUS LS500H 2022 Manual PDF

70
LS500h_QG_U
■Option control screen
Select on the sub menu to display the option control screen.
The functions can be switched on and off.
When the function is on, the in dicator illuminates on the screen.
Vehicles with DUAL-ZONE climate con-
trol 
Vehicles with 4-ZONE climate control
Set Lexus Climate Concierge ( P.67)
Adjusting the temperature for driver and
passenger seats se parately (“DUAL”
mode)
Set eco air conditioning mode
Cooling and dehumidification function
Select front seat concentrated airflow
mode (S-FLOW)
Prevent ice from building up on the
windshield and wiper blades (Wind-
shield wiper de-icer) (if equipped)
Removing pollen from the air (Micro
dust and pollen filter) Set Lexus Climate Concierge (
P.67)
Adjust the temperature for driver, pas-
senger and rear seats separately (“4-
ZONE” mode)
Set eco air conditioning mode
Cooling and dehumidification function
Select front seat concentrated airflow
mode (S-FLOW)
Prevent ice from building up on the
windshield and wiper blades (Wind-
shield wiper de-icer) (if equipped)
Removing pollen from the air (Micro
dust and pollen filter)
A
B
C
D
E
F
G
A
B
C
D
E
F
G

71
LS500h_QG_U
■Side display
1
Press the automatic mode switch.
2Press the outside/recirculated air mode switch to switch to automatic air intake mode.
3Adjust the temperature setting.
4To stop the operation, press the off switch.

Vehicles with DUAL-ZONE climate con-
trol 
Vehicles with 4-ZONE climate control
Display the front seat heaters/front seat
ventilators control screen
Adjust the fan speed setting
Select the air flow mode
Set cooling and dehumidification func-
tion on/off
Select front seat concentrated airflow
mode (S-FLOW)
Adjusting the temperature for driver and
passenger seats separately (“DUAL”
mode)
Set Lexus Climate Concierge ( P.67)Display the front seat heaters/front
seat ventilators
control screen
Select the left side seat air flow mode
Adjust the fan speed setting
Select the right side seat air flow mode
Set cooling and dehumidification func-
tion on/off
Select front seat concentrated airflow
mode (S-FLOW)
Adjust the temperature for driver, pas-
senger and rear seats separately (“4-
ZONE” mode)
Set Lexus Climate Concierge (P.67)
Using automatic mode
A
B
C
D
E
F
G
A
B
C
D
E
F
G
H

72
LS500h_QG_U
■Center Display
Press the “MENU” button on the Remote Touch to display the main menu and move the cur-
sor to to display the climate control shortcut buttons. Then, select to display the
rear air conditioning control screen.
Adjust the left side rear seat tempera-
ture setting
Select the left side rear seat air flow
mode
Adjust the rear seats fan speed setting
Select the right side rear seat air flow
mode
Adjust the right side rear seat tempera-
ture setting
Functions on/off
 Center Display
1Select “REAR AUTO” on the rear air conditioning control screen.
2To stop the operation, select “REAR Off” on the rear air conditioning control screen.
Rear Automatic Air Conditioning System (if
equipped)
The air outlets and fan speed are automatically adjusted according to the temperature
setting.
The rear air conditioning system can be operated using the Center Display and Rear
Multi Operation Panel.
Rear air conditioning control screen
A
B
C
D
E
F
Using automatic mode

73
LS500h_QG_U
1Press the talk switch on the steering
wheel.
Voice guidance for the voice com-
mand system can be skipped by press-
ing the talk switch.
2If “Getting Started with Voice” screen is displayed, select “OK” or press the talk switch.
3After hearing a beep, sa y a supported command.
● To display sample commands of the desire d function, say the desired function or
select the desired function button. To display more commands, select “More Com-
mands”.
● Selecting “Help” or saying “Help” prom pts the voice command system to offer
examples of commands and operation methods.
Voice Command System
Basic operation
NOTE: Wait for the confirmation beep before speaking a command.

74
LS500h_QG_U

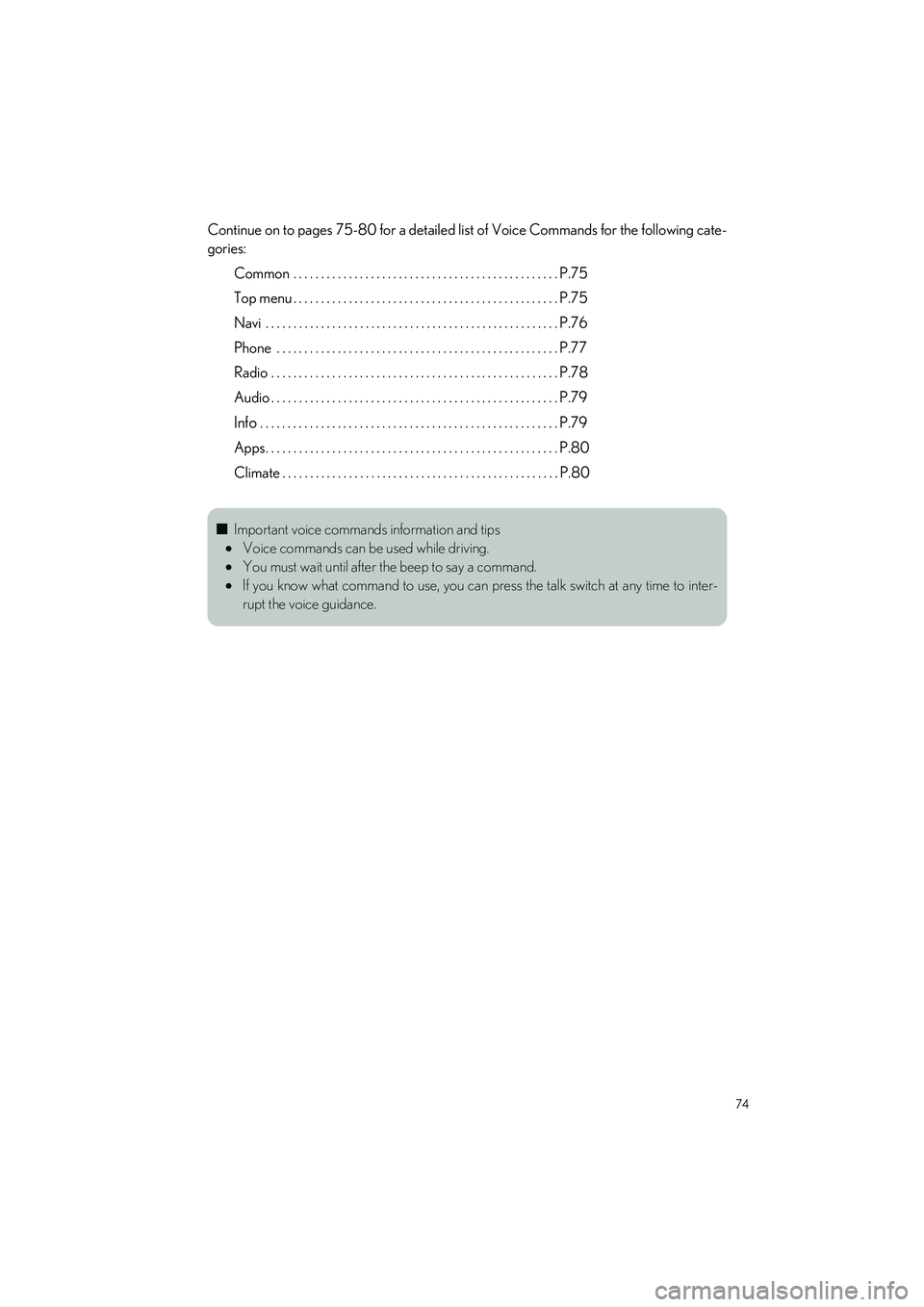

Continue on to pages 75-80 for a detailed list of Voice Commands for the following cate-
gories:
Common . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.75
Top menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.75
Navi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.76
Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.77
Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.78
Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.79
Info . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.79
Apps. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.80
Climate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.80
■ Important voice commands information and tips
 Voice commands can be used while driving.
 You must wait until after the beep to say a command.
 If you know what command to use, you can press the talk switch at any time to inter-
rupt the voice guidance.

75
LS500h_QG_U
■Common
■Top menu
*: Vehicle must be parked
Command list
CommandAction
“Help”Displays examples of some of the available commands
“Go Back”Returns to the previous screen
“Cancel”Cancels the voice command system
“Start over”Returns to top menu screen
“Pause”Temporarily pauses a voice session until it is resumed
by pressing the talk switch again.
CommandAction
“Show command examples for

76
LS500h_QG_U
■Navigation*1
*1: With navigation function
*2: English and French only
*3: Best recognition results occur when saying the full address without the zipcode
*4: When the language is set to French, the supported area is only Quebec Province in
Canada
*5: For example; “Gas stations”, “Restaurants”, etc.
*6: Major national brands are always supporte d. Local brands are also supported with a
subscription to the Lexus Enform. Co ntact your Lexus dealer for details.
*7: Used when multiple destinations are set on a route
CommandAction
“Get directions to street, city, state>”
*2Enables setting a destination by saying the address*3, 4
“Find a name>”Displays a list of near
the current position
“Find a near my destina-
tion”Displays a list of near the destination
“Find a in a
city”*2Displays a list of in a specified city and state*4
“Go Home”Displays the route to home
“Go to Favorite <1-10>”Sets the location registered to the corresponding
favorite number as the destination
“Show Recent Destinations”
Displays recent destinations. Selecting a number from
the list will start navigation to the selected recent desti-
nation.
“Cancel Route”Cancels the route guidance
“Delete destinations”Displays a list of de stination to delete*7
“Show icons”Displays the specified po int of interest category*5
icons on the map
“Destination Assist”Connects the system to the Lexus response center

77
LS500h_QG_U
■Phone
*: If the system does not recognize the name of a contact, create a voice tag. The name of acontact can also be recognized by adding a voice tag.
■While in a phone call
CommandAction
“Call ”*Places a call to the specified contact from the phone
book
“Call ”*Places a call to the specified phone type of the contact
from the phone book
“Dial ”Places a call to the specified phone number
“Redial”Places a call to the phone number of the latest outgo-
ing call
“Call Back”Places a call to the phone number of latest incoming
call
“Show Recent Calls”Displays the call history screen
“Send a message to ”Sends a text message to sp ecified contact from the
phone book
CommandAction
“Send ”Sends DTMF tone s has specified
“Mute”Mutes the microphone (far side cannot hear the con-
versation)
“Unmute”Unmutes the microphone

78
LS500h_QG_U
■While incoming message notification is displayed*
*
: Full screen message notifi cation must be turned on within the phone settings
■Radio
*1: A station list must be built first using the radio screen
*2: Requires a satellite radio subscription
CommandAction
“Read Message”Reads the incoming message over the vehicle speak-
ers
“Ignore”Ignores the incoming message notification
“Reply”Initiates sending a reply to the incoming message
“Call”Places a call to the phone number of incoming mes-
sage
CommandAction
“Tune to AM”Changes the radio to the specified AM frequency
“Tune to FM”Changes the radio to the specified FM frequency
“Play a station”Changes the radio to an FM station of the specified
genre
*1
“Tune to preset <1-36>”Changes the radio to the specified preset radio station
“Tune to a satellite sta-
tion”Changes the radio to a satellite radio channel of the
specified genre
*2
“Tune to name>”Changes the radio to the satellite radio channel with
the specified name*2
“Tune to channel on
XM”Changes the radio to a satellite radio channel of the
specified number
*2

79
LS500h_QG_U
■Audio*
*
: The audio device must be connected via a US B cable to use the functionality in this sec-
tion
■Info*1
*1: With navigation function
*2: Only major US cities are supported by voice
CommandAction
“Play Playlist ”Plays tracks from the selected playlist
“Play Artist ”Plays tracks from the selected artist
“Play Song ”Plays the selected track
“Play Album ”Plays tracks from the selected album
“Play Genre ”Plays tracks from the selected genre
“Play Composer ”Plays tracks from the selected composer
“Play Podcast ”Plays tracks from the selected podcast
“Play Audiobook ”Plays tracks from the selected audiobook
“Audio On”Turns the audio/visual system on
“Audio Off”Turns the audio/visual system off
“Change the audio source to
”Sets the source to the specified audio mode
CommandAction
“Get the Forecast”Displays weather information
“Get the Forecast for ”*2Displays weather for the specified city
“Show Traffic”Displays traffic information
“Show Traffic near here”Displays traffic information near your current location
“Get traffic along my route”Displays traffic information along your current route
“Show Traffic on this street”Displays traffic information along road you are cur-
rently driving on
“Show Traffic for saved route”Displays traffic information for a saved route
“Show Predictive Traffic”Displays the predictive traffic map
