LEXUS LS600H 2017 Owners Manual

2714-3. Operating the lights and wipers
4
Driving
LS600h/LS600hL_EE(OM50G20E)
AFS (Adaptive Front-lighting System) secures excellent visibility at inter-
sections and on curves by automatically adjusting the direction of the light
axis of the headlights according to vehicle speed and the degree of the
tire’s angle as controlled by steering input.
AFS operates at speeds of 10 km/h (6 mph) or higher.
■Daytime running light system
To make your vehicle more visible to othe r drivers during daytime driving, the day-
time running lights turn on automatically whenever the hybrid system is started and
the parking brake is released with the headlight switch off or in the position. (Illu-
minate brighter than the front position lights.)
Daytime running lights are not designed for use at night.
■Headlight control sensor
■Automatic light off system
●When the light switch is in or : The headlights turn off automatically if the
power switch is turned to ACCESSORY mode or turned off.
●When the light switch is in : The headlights and all lights turn off automatically if
the power switch is turned to ACCESSORY mode or turned off.
To turn the lights on again, turn the po wer switch to ON mode, or turn the light
switch off once and then back to or .
■Light reminder buzzer
A buzzer sounds when the power switch is turned off or turned to ACCESSORY
mode and the driver’s door is opened while the lights are turned on.
AFS (Adaptive Front-lighting System)
The sensor may not function properly if an
object is placed on the sensor, or anything
that blocks the sensor is affixed to the wind-
shield.
Doing so interferes with the sensor detecting
the level of ambient light and may cause the
automatic headlight system to malfunction.

2724-3. Operating the lights and wipers
LS600h/LS600hL_EE(OM50G20E)
■Automatic headlight leveling system
The level of the headlights is automatically adjusted according to the number of pas-
sengers and the loading condition of the vehicle to ensure that the headlights do not
interfere with other road users.
■Battery-saving function
In the following conditions, the remaining lights will go off automatically after 20
minutes in order to prevent the vehicle battery from being discharged:
●The headlights and/or tail lights are on.
●The power switch is turned to ACCESSORY mode or turned off.
●The light switch is in or .
This function will be canceled in any of the following situations:
●When the power switch is turned to ON mode.
●When the light switch is operated.
●When the door or trunk is opened or closed.
■Customization
Settings (e.g. light sensor sensitivity) can be changed.
(Customizable features P. 634)
NOTICE
■To prevent 12-volt battery discharge
Do not leave the lights on longer than necessary when the hybrid system is off.

2734-3. Operating the lights and wipers
4
Driving
LS600h/LS600hL_EE(OM50G20E)
When variable shade beam is on,
the illumination of the area sur-
rounding oncoming vehicles and
preceding vehicles is partially
shielded while all other areas con-
tinue to be illuminated in high beam.
This enables forward lighting to be
optimized without blinding sur-
rounding traffic.
If oncoming or preceding vehicles
change position, the shielded area
changes and adapts to the vehicle’s
position.
AHS (Adaptive High-beam System)
The Adaptive High-beam System uses an in-vehicle camera sensor to
assess the brightness of streetlights , the lights of oncoming and preced-
ing vehicles, etc., and automatically turns high beam and variable shade
beam on or off as necessary.

2744-3. Operating the lights and wipers
LS600h/LS600hL_EE(OM50G20E)
Push the lever away from you
with the headlight switch in
or position.
Press the Adaptive High-beam
System switch.
The Adaptive High-beam System indi-
cator will come on when the head-
lights are turned on automatically to
indicate that the system is active.
Activating the Adaptive High-beam System
1
2

2754-3. Operating the lights and wipers
4
Driving
LS600h/LS600hL_EE(OM50G20E)

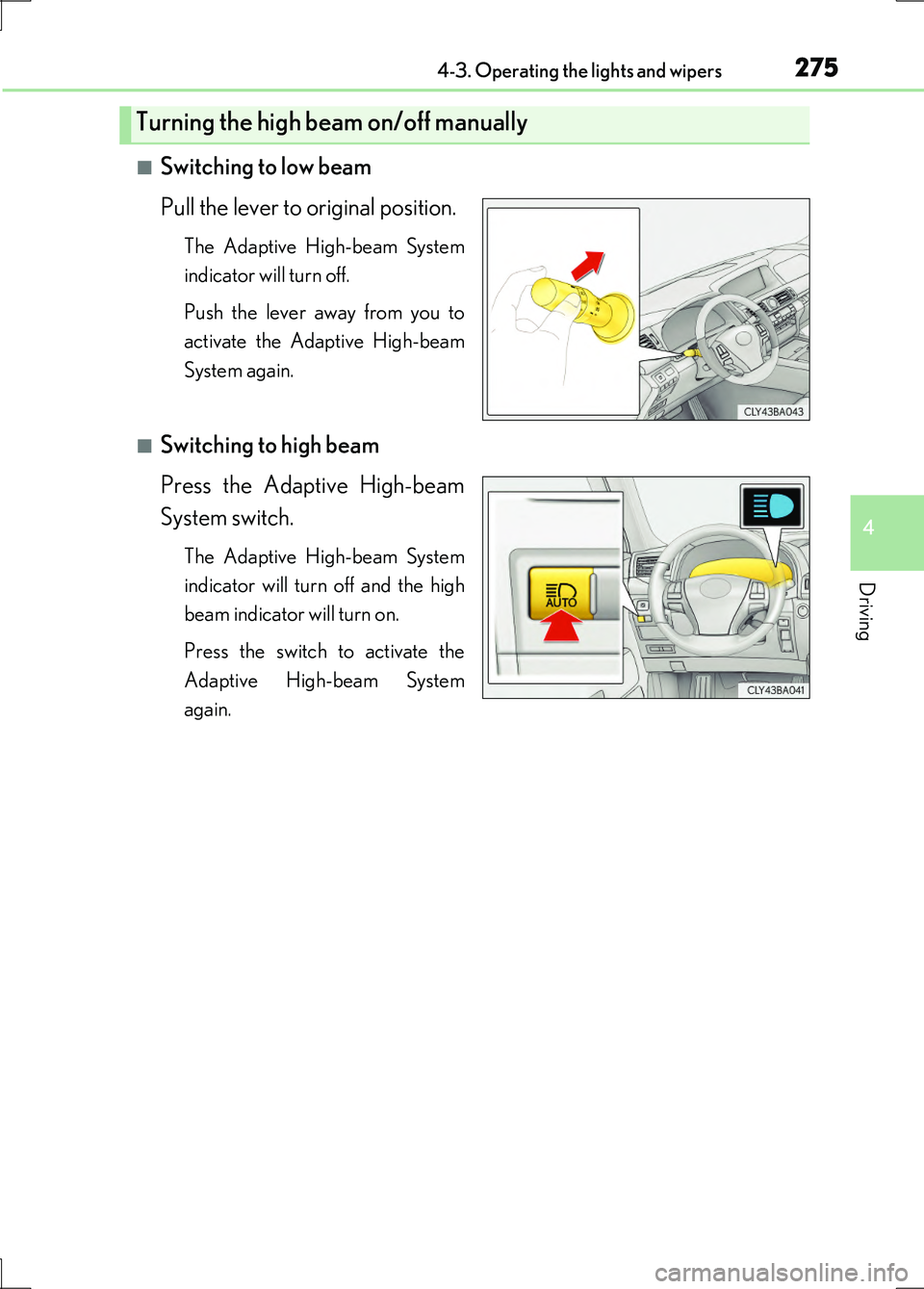

■Switching to low beam
Pull the lever to original position.
The Adaptive High-beam System
indicator will turn off.
Push the lever away from you to
activate the Adaptive High-beam
System again.
■Switching to high beam
Press the Adaptive High-beam
System switch.
The Adaptive High-beam System
indicator will turn off and the high
beam indicator will turn on.
Press the switch to activate the
Adaptive High-beam System
again.
Turning the high beam on/off manually

2764-3. Operating the lights and wipers
LS600h/LS600hL_EE(OM50G20E)

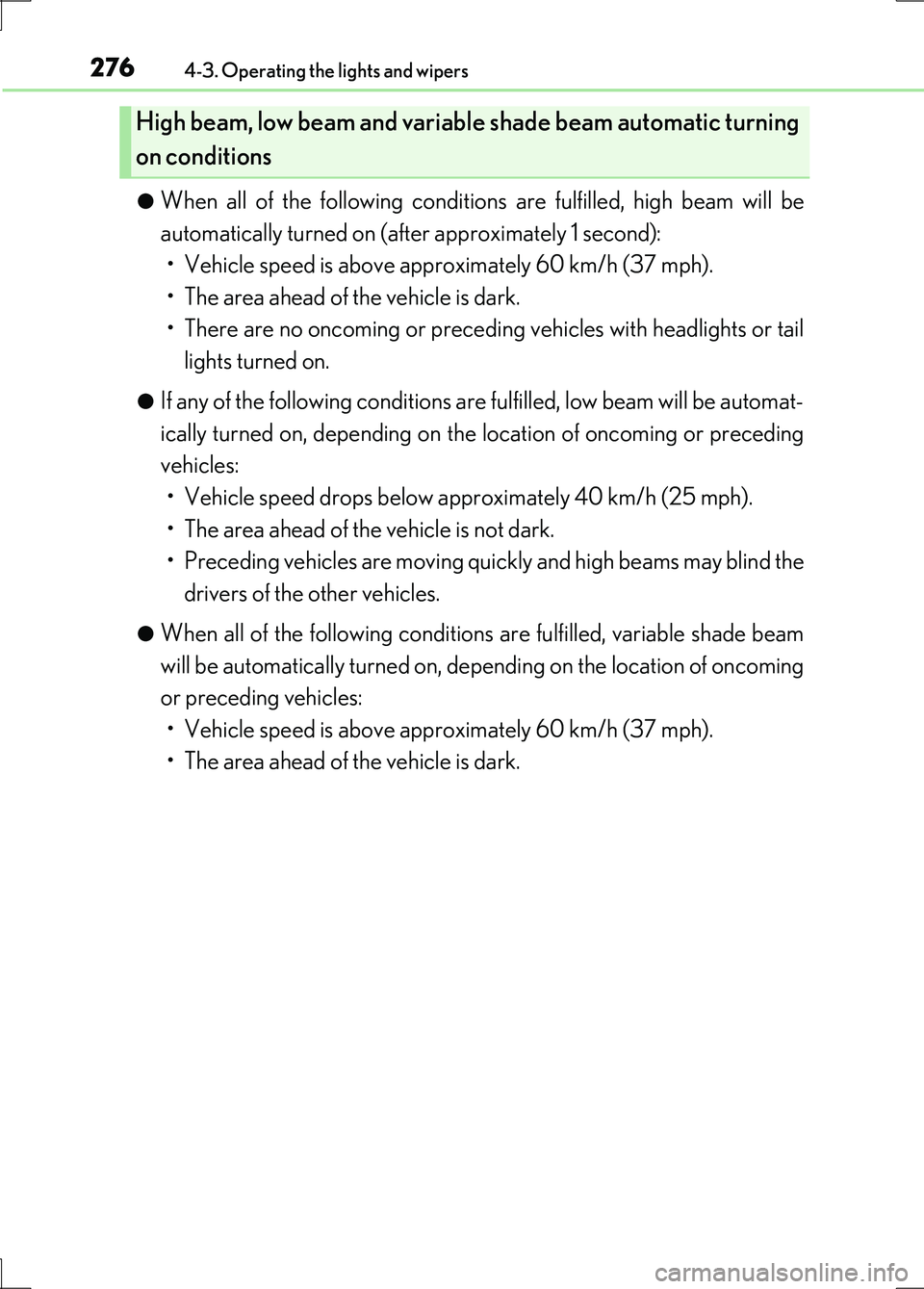

●When all of the following conditions are fulfilled, high beam will be
automatically turned on (after approximately 1 second):
• Vehicle speed is above approximately 60 km/h (37 mph).
• The area ahead of the vehicle is dark.
• There are no oncoming or precedin g vehicles with headlights or tail
lights turned on.
●If any of the following conditions are fulfilled, low beam will be automat-
ically turned on, depending on the location of oncoming or preceding
vehicles:
• Vehicle speed drops below approximately 40 km/h (25 mph).
• The area ahead of the vehicle is not dark.
• Preceding vehicles are moving qu ickly and high beams may blind the
drivers of the other vehicles.
●When all of the following conditions are fulfilled, variable shade beam
will be automatically turned on, depending on the location of oncoming
or preceding vehicles:
• Vehicle speed is above approximately 60 km/h (37 mph).
• The area ahead of the vehicle is dark.
High beam, low beam and variable shade beam automatic turning
on conditions

2774-3. Operating the lights and wipers
4
Driving
LS600h/LS600hL_EE(OM50G20E)
■The Adaptive High-beam System can be operated when
The power switch is in ON mode.
■Camera sensor detection information
●High beam may not be automatically turned off or changed to variable shade beam
in the following situations:
• When oncoming vehicles suddenly appear from a curve
• When the vehicle is cut in front of by another
• When oncoming or preceding vehicles are hidden from sight due to repeated
curves, road dividers or roadside trees
●High beam may be turned off or variable shade beam may be changed to if an
oncoming vehicle that is using fog lights without using the headlights is detected.
●House lights, street lights, red traffic signals, and illuminated billboards or signs may
cause the high beam to turn off or variable shade beam to be changed to and may
change the area that is shielded.
●The following factors may affect the amount of time taken to turn high beam on or
off, or the speed by which the shielded areas change:
• The brightness of headlights, fog lights, and tail lights of oncoming and preced-
ing vehicles
• The movement and direction of oncoming and preceding vehicles
• When a oncoming or preceding vehicle only has operational lights on one side
• When a oncoming or preceding vehicle is a two-wheeled vehicle
• The condition of the road (gradient, curve, condition of the road surface etc.)
• The number of passengers and amount of luggage
●High beam and variable shade beam may be turned on or off when unexpected by
the driver.
●Small vehicles, such as bicycles, may not be detected.

2784-3. Operating the lights and wipers
LS600h/LS600hL_EE(OM50G20E)
●In the situations below, the system may not be able to correctly detect the sur-
rounding brightness levels, and may flash or expose oncoming or preceding vehi-
cles to the high beam or may continue using the low beam. Therefore, in these
situations you should consider turning the high beams on or off manually rather
than relying on the Adaptive High-beam System.
• In bad weather (rain, snow, fog, sandstorms etc.)
• The windshield is obscured by fog, mist, ice, dirt etc.
• The windshield is cracked or damaged.
• The inside rear view mirror or camera sensor is deformed or dirty.
• The camera sensor temperature is extremely high.
• Surrounding brightness levels are equal to those of headlights, tail lights or fog
lights.
• Vehicles ahead have headlights that are either switched off, dirty, are changing
color, or have are not aimed properly.
• When driving through an area of intermittently changing brightness and dark-
ness.
• When frequently and repeatedly driving ascending/descending roads, or roads
with rough, bumpy or uneven surfaces (such as stone-paved roads, gravel tracks
etc.).
• When frequently and repeatedly taking curves or driving on a winding road.
• There is a highly reflective object ahead of the vehicle, such as a sign or a mirror.
• The back of a vehicle ahead is highly reflective, such as a container on a truck.
• The vehicle’s headlights are damaged or dirty.
• The vehicle is listing or tilting, due to a flat tire, a trailer being towed etc.
■Turning the high beam on during Adaptive High-beam System operation (vehicles
without near-infrared ray transmitters)
When the vehicle is traveling at a high speed, the system will turn on the inner high
beam together with the outer high beam.
■Customization
The variable shade beam can be turned off. (Customizable features P. 634)

2794-3. Operating the lights and wipers
4
Driving
LS600h/LS600hL_EE(OM50G20E)
CAUTION
■Limitations of the Adaptive High-beam System
Do not rely on the Adaptive High-beam System. Always drive safely, taking care to
observe your surroundings and turn the high beam on or off manually if necessary.
NOTICE
■Notes when using the Adaptive High-beam System
●Do not touch the camera sensor.
●Do not subject the inside rear view mirror or the camera sensor to a strong
impact.
●Do not disassemble the camera sensor.
●Do not spill liquid onto the inside rear view mirror or the camera sensor.
●Do not apply window tinting or stickers to the camera sensor or the area of wind-
shield near the camera sensor.
●Do not place items on the dashboard. There is a possibility that the camera sensor
will mistake items reflected in the windshield for streetlights, the headlights of
other vehicles, etc.
●Do not install a parking tag or any other accessories near or around the inside
rear view mirror and the camera sensor.
●Do not overload the vehicle.
●Do not modify the vehicle.
●If the windshield needs to be replaced, contact any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
Observe the following to ensure that the
Adaptive High-beam System functions cor-
rectly.

2804-3. Operating the lights and wipers
LS600h/LS600hL_EE(OM50G20E)

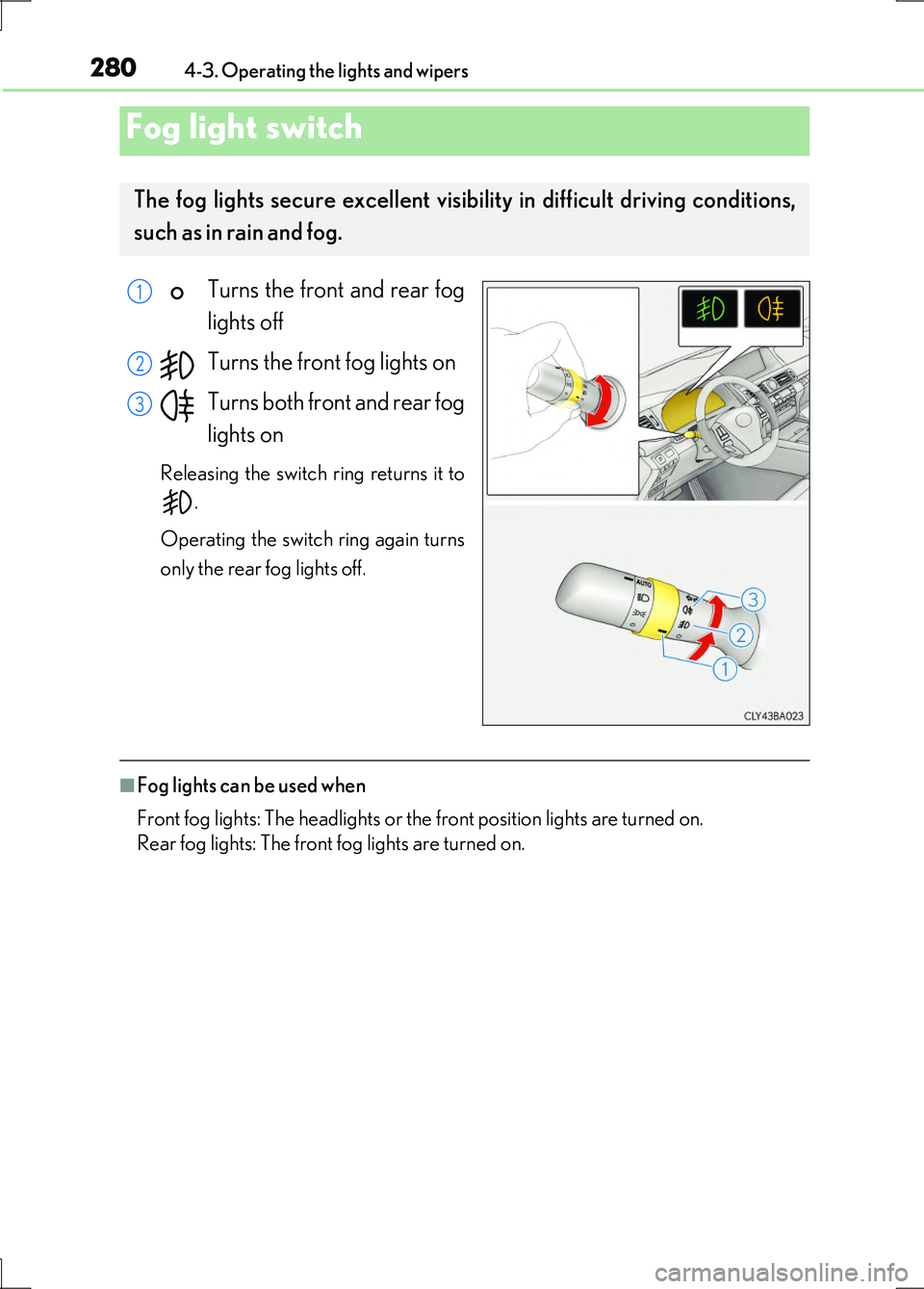

Turns the front and rear fog
lights off
Turns the front fog lights on
Turns both front and rear fog
lights on
Releasing the switch ring returns it to
.
Operating the switch ring again turns
only the rear fog lights off.
■Fog lights can be used when
Front fog lights: The headlights or the front position lights are turned on.
Rear fog lights: The front fog lights are turned on.
Fog light switch
The fog lights secure excellent visibi lity in difficult driving conditions,
such as in rain and fog.
1
2
3
