LEXUS LX570 2015 Owners Manual

6313-5. Using the hands-free system (for cellular phone)
3
Interior features
LX570_OM_OM60L96U_(U) ■ Dialing from the phonebook
You can dial a number from the pho nebook data im ported from your
cellular phone. The system has on e phonebook for each phone. Up to
1000 entries may be stored in each phonebook. (  P. 650)
Display the “Phone” screen. (  P. 625)
Touch “Contacts” on the “Phone” screen.
Choose the desired data to call
from the list.
Choose the number and then
touch or press on the
steering wheel.STEP 1
STEP 2
STEP 3
STEP 4

6323-5. Using the hands-free sy stem (for cellular phone)
LX570_OM_OM60L96U_(U) ■ When the phonebook is empty
If your cellular phone is neith er PBAP nor OPP compatible, the
phonebook cannot be transferred.
Display the “Phone” screen. (  P. 625)
Touch “Contacts” on the “Phone” screen.
PBAP compatible models
Touch “Yes”.
PBAP incompatible but OPP compatible models
Touch “Transfer”.STEP 1
STEP 2
STEP 3
STEP 3

6333-5. Using the hands-free system (for cellular phone)
3
Interior features

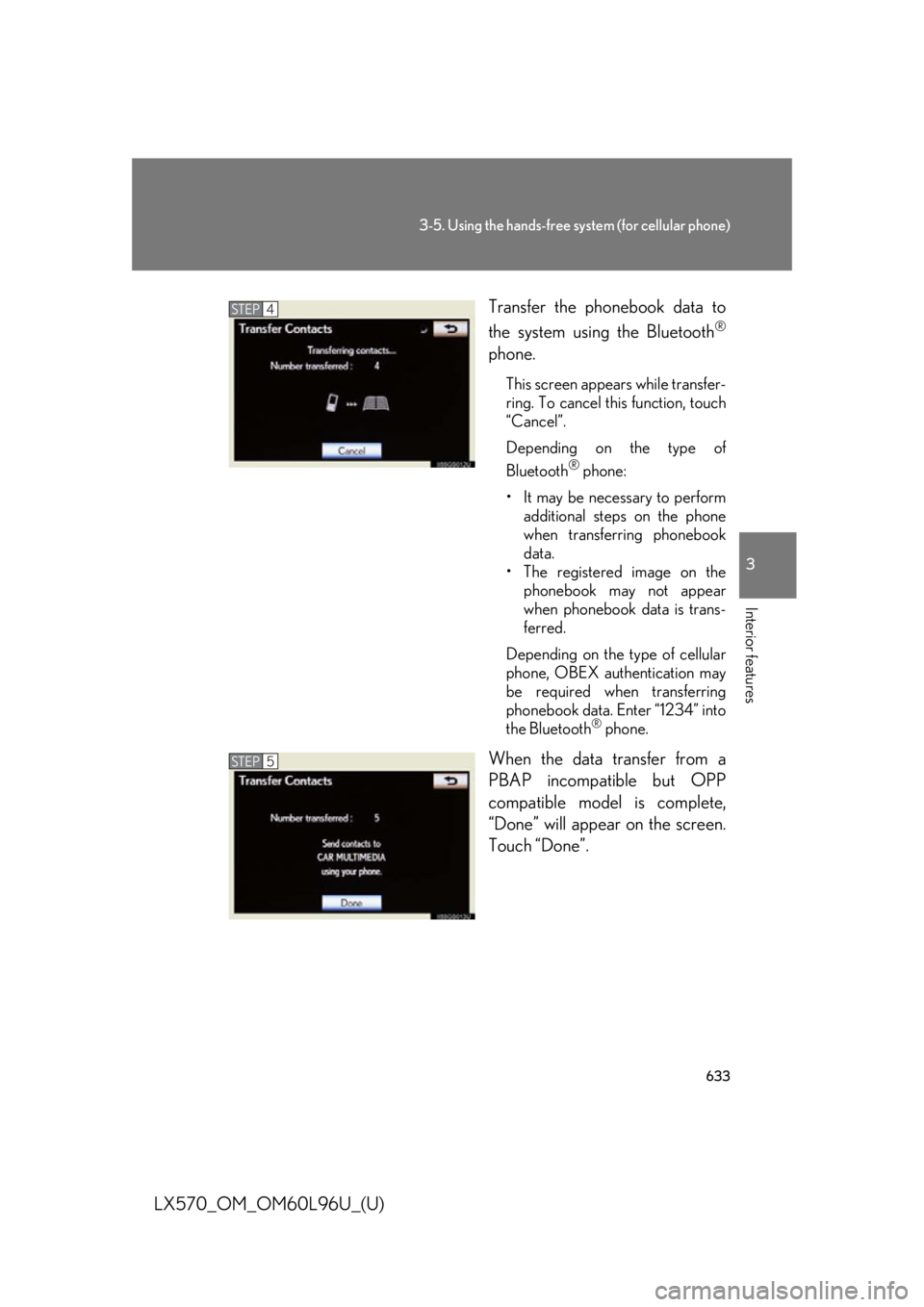

LX570_OM_OM60L96U_(U) Transfer the phonebook data to
the system using the Bluetooth ®
phone. This screen appears while transfer-
ring. To cancel this function, touch
“Cancel”.
Depending on the type of
Bluetooth ®
phone:
• It may be necessary to perform
additional steps on the phone
when transferring phonebook
data.
• The registered image on the
phonebook may not appear
when phonebook data is trans-
ferred.
Depending on the type of cellular
phone, OBEX authentication may
be required when transferring
phonebook data. Enter “1234” into
the Bluetooth ®
phone.
When the data transfer from a
PBAP incompatible but OPP
compatible model is complete,
“Done” will appear on the screen.
Touch “Done”.STEP 4
STEP 5

6343-5. Using the hands-free sy stem (for cellular phone)
LX570_OM_OM60L96U_(U) ■ Calling using speed dial
You can make a call using numbers registered from the phonebook.
(  P. 650)
Display the “Phone” screen. (  P. 625)
Touch “Speed Dials” on the “Phone” screen.
Touch the desired tab and choose
the desired number to make a call.
■ Dialing from history
You can call using the call histor y which has the 4 functions below.
“All”: all the numbers below which were memorized
“Missed”: calls which you missed
“Incoming”: calls which you received
“Outgoing”: numbers which you called
You can call using the 25 most rec ently called numb ers shown by “All”
tab while driving.
Display the “Phone” screen. (  P. 625)
Touch “Call History” on the “Phone” screen. STEP 1
STEP 2
STEP 3
STEP 1
STEP 2

6353-5. Using the hands-free system (for cellular phone)
3
Interior features

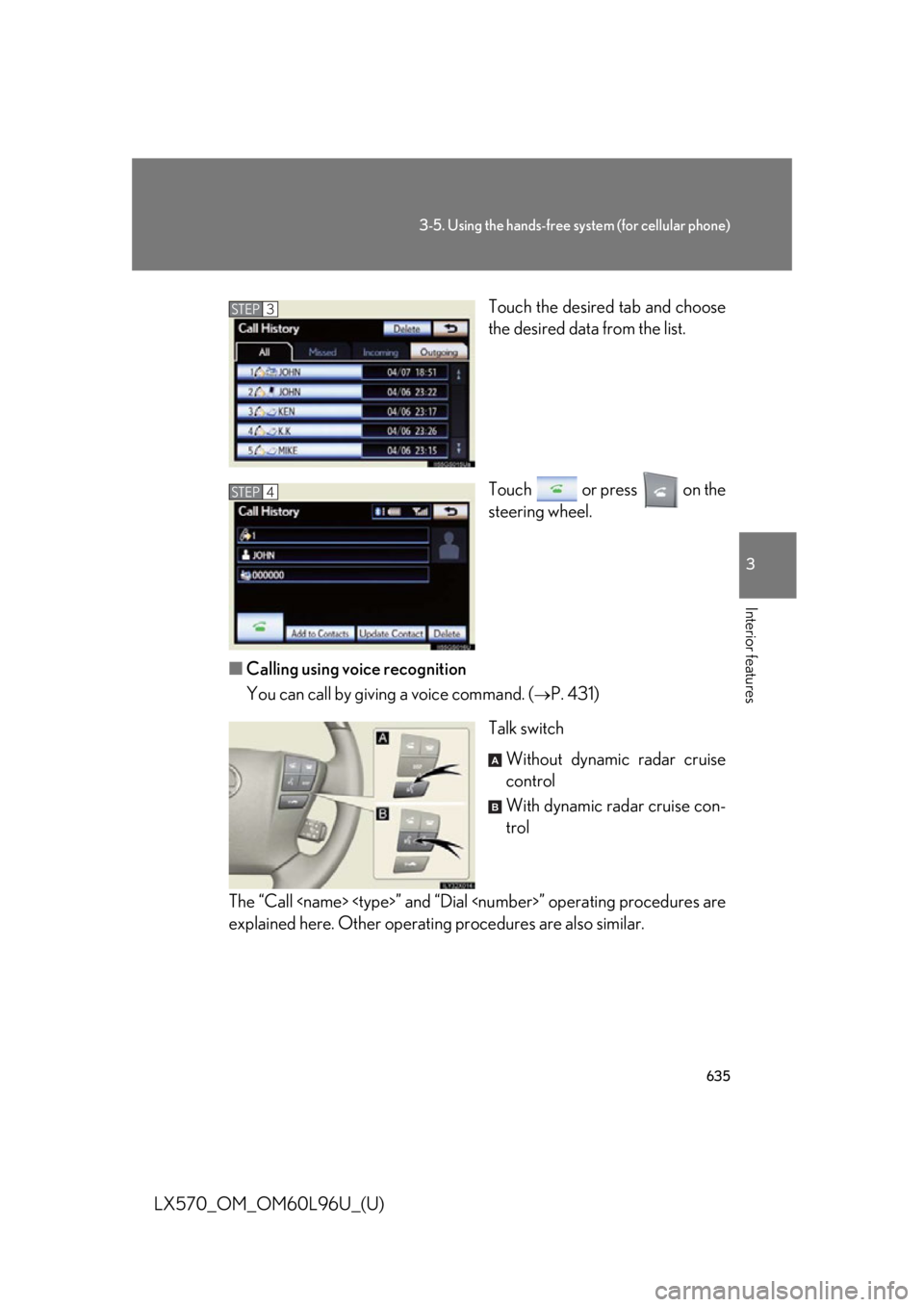

LX570_OM_OM60L96U_(U) Touch the desired tab and choose
the desired data from the list.
Touch or press on the
steering wheel.
■ Calling using voice recognition
You can call by giving a voice command. ( 
P. 431)
Talk switch
Without dynamic radar cruise
control
With dynamic radar cruise con-
trol
The “Call ” and “Dial ” operating procedures are
explained here. Other operating procedures are also similar. STEP 3
STEP 4
A
B

6363-5. Using the hands-free sy stem (for cellular phone)

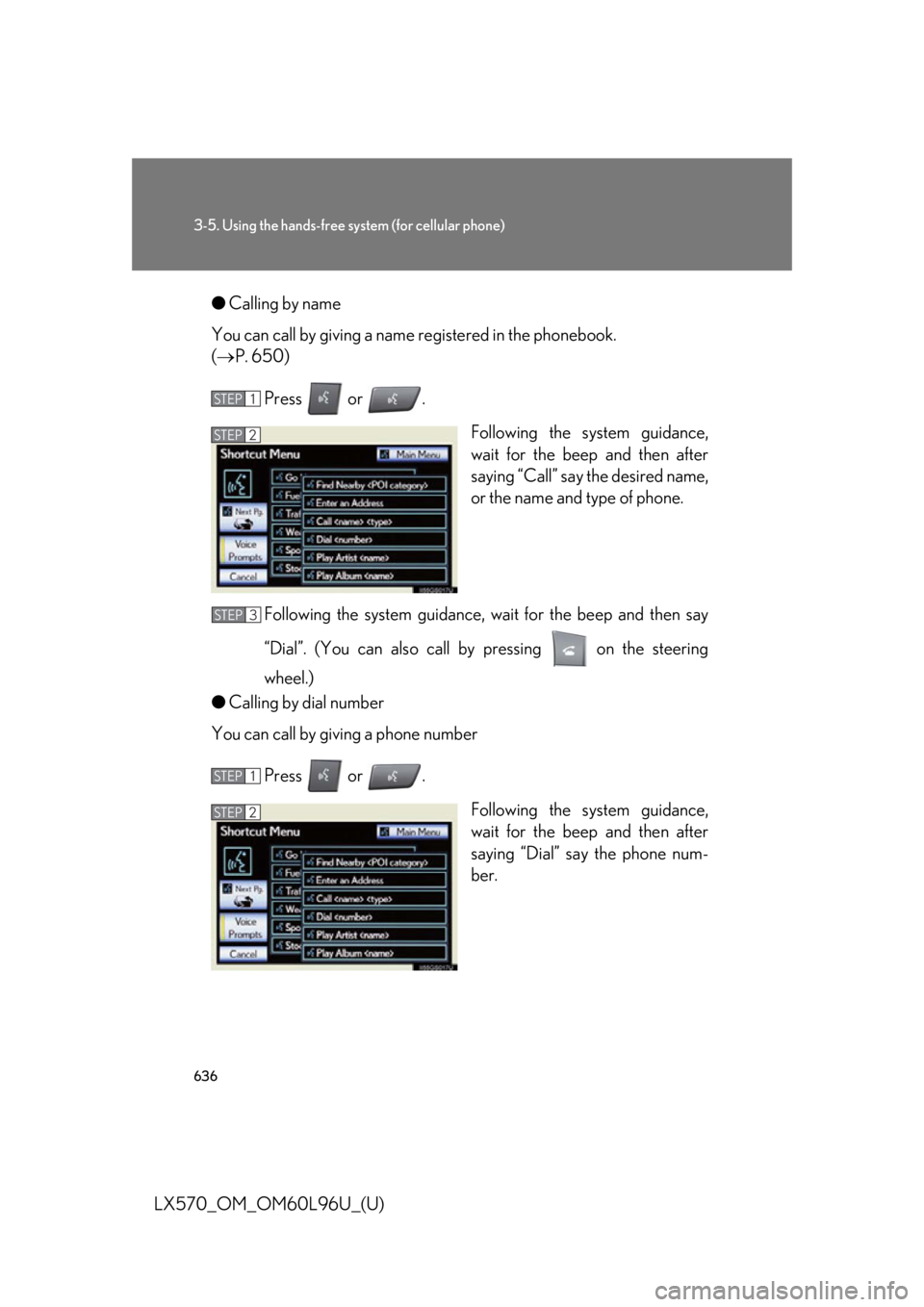

LX570_OM_OM60L96U_(U) ● Calling by name
You can call by giving a name registered in the phonebook.
(  P. 650)
Press or .
Following the system guidance,
wait for the beep and then after
saying “Call” say the desired name,
or the name and type of phone.
Following the system guidance, wa it for the beep and then say
“Dial”. (You can also call by pressing on the steering
wheel.)
● Calling by dial number
You can call by giving a phone number
Press or .
Following the system guidance,
wait for the beep and then after
saying “Dial” sa y the phone num-
ber.STEP 1
STEP 2
STEP 3
STEP 1
STEP 2

6373-5. Using the hands-free system (for cellular phone)
3
Interior features
LX570_OM_OM60L96U_(U) Following the system guidance, wa it for the beep and then say
“Dial”. (You can also call by pressing on the steering
wheel.) STEP 3

6383-5. Using the hands-free sy stem (for cellular phone)
LX570_OM_OM60L96U_(U) ■ Calling using SMS/MMS message
You can call using the SMS (Sho rt Message Service)/MMS (Multime-
dia Messaging Service) message sender’s phone number.
Display the “Phone” screen. (  P. 625)
Touch “Messages”. When “Message Transfer” is set to
“Off”, a confirmation screen will be
displayed. Touch “Yes”.
Touch the “SMS/MMS” tab and th en touch the desired received
message from the list. The tab display may vary depending on the type of cellular phone.
Touch or press on the steering wheel.
■ Calling using POI
You can make a call using a Point Of Interest. STEP 1
STEP 2
STEP 3
STEP 4

6393-5. Using the hands-free system (for cellular phone)
3
Interior features
LX570_OM_OM60L96U_(U) ■
Call history list ●
If you make a call to or receive a call from a number registered in the phone
book, the name is displayed in the call history. ●
If you make multiple calls to the same number, only the last call made is dis-
played in the call history. ●
Number-withheld calls are also memorized in the system.■
When driving
The functions “Dialing”, “Dialing from the phonebook”, and “Dialing from history”
(except for call using the 25 most recently called numbers shown by “All” tab) are
unavailable. ■
When calling by registered name in the phonebook ●
When “Call ” on the “S hortcut Menu” screen is dimmed, the
phonebook’s voice command recognition cannot be used. Check the Blue-
tooth ®
connection and if the contacts have been transferred to the system.●
Short or abbreviated names in the phonebook may not be recognized. Change
names in the phonebook to full names. ●
Sometimes a voice recognition result co nfirmation screen will be displayed.
After confirming the result, say “Yes” or “No”. ●
When the system recognizes multiple names from the phonebook, a name can-
didate list will be displayed on the screen. If the desired name is not displayed on
the top of the screen, say the number of the name from the candidate list (num-
ber 1 and number 2) to select a name from the candidate list. ●
When a contact has multiple phone numbers registered in the phonebook, a
candidate list will be displayed. If the desired phone number is not displayed on
the top of the screen, say the number of the desired phone number from the
candidate list (number 1 and number 2) to select a phone number from the can-
didate list.

6403-5. Using the hands-free sy stem (for cellular phone)
LX570_OM_OM60L96U_(U) ■
When calling by phone number ●
Say the phone number one digit at a time . For example, if the phone number is
2345678, say “two three fo ur five six seven eight”.●
The system can recognize the following types of phone numbers:
• 3 digit numbers (911, 411, 611)
• 7 digit numbers (Local phone numbers)
• 10 digit numbers (Area code + Local phone number)
• 11 digit phone numbers (1 + Area code + Local phone number) ●
As the system cannot recognize additional numbers, say the complete number
without stopping. ●
When the system recognizes multiple phone numbers, a phone number candi-
date list will be displayed on the screen. If the desired phone number is not dis-
played on the top of the screen, say the number of the desired phone number
from the candidate list (number 1 and numb er 2) to select a phone number from
the candidate list■
International calls
To dial a phone number that is not a 3, 7, 10 or 11 digit number, for example an inter-
national number, use “International Call”.
Press or on the steering wheel to display the “Shortcut
Menu” screen and saying “Mai n menu” or touch “Main Menu”.
Say “Use a phone”.
Say “International call”.
Up to 24 digits can be recognized when using the international call function. The
number can also be divided into multiple groups and recognized.
You may not be able to make international calls, depending on the cellular phone in
use. STEP 1
STEP 2
STEP 3
