LEXUS LX570 2015 Owners Manual

7293-8. Other interior features
3
Interior features
LX570_OM_OM60L96U_(U) Safety Connect LED light Indicators
When the “ENGIN E START STOP” switch is turned to IGNITION ON
mode, the red indicator light comes on for 2 seconds then turns off.
Afterward, the green indicator light co mes on, indicating that the service
is active.
The following indicator light patter ns indicate specific system usage con-
ditions:
● Green indicator light on = Active service
● Green indicator light flashing = Safety Connect call in process
● Red indicator light (except at vehicle start-up) = System malfunction
(contact your Lexus dealer)
● No indicator light (off) = Safety Connect service not active
Safety Connect services
■ Automatic Collision Notification
In case of either airbag deployment or severe rear-end collision, the
system is designed to automatical ly call the response center. The
responding agent receives the vehicle’s location and attempts to
speak with the vehicle occupants to assess the level of emergency. If
the occupants are unable to co mmunicate, the agent automatically
treats the call as an emergency, co ntacts the nearest emergency ser-
vices provider to describe the situa tion, and requests that assistance
be sent to the location.

7303-8. Other interior features
LX570_OM_OM60L96U_(U) ■ Stolen Vehicle Location
If your vehicle is stolen , Safety Connect can work with local authorities
to assist them in locating and recovering the vehicle. After filing a
police report, call the Safety Co nnect response center at 1-800-25-
LEXUS (1-800-255-3987) and follow the prompts for Safety Con-
nect to initiate this service.
In addition to assisting law enforcemen t with recovery of a stolen vehi-
cle, Safety-Connect-equipped vehicl e location data may, under cer-
tain circumstances, be shared with third parties to locate your vehicle.
Further information is available at Lexus.com.
■ Emergency Assistance Button (“SOS”)
In the event of an emergency on the road, push the “SOS” button to
reach the Safety Connect response center. The answering agent will
determine your vehi cle’s location, assess the emergency, and dispatch
the necessary assistance required. If you accidentally press the “SOS” button, tell the response-center agent
that you are not experiencing an emergency.
■ Enhanced Roadside Assistance
Enhanced Roadside A ssistance adds GPS data to the already
included warranty-based Le xus roadside service.
Subscribers can press the “SOS” button to reach a Safety Connect
response-center agent, who can help with a wide range of needs, such
as: towing, flat tire, fuel delivery, etc. For a desc ription of the Roadside
Assistance services and their limitations, please see the Safety Con-
nect Terms and Conditions, whic h are available at Lexus.com.

7313-8. Other interior features
3
Interior features
LX570_OM_OM60L96U_(U) Safety information for Safety Connect
Important! Read this information before using Safety Connect.
■ Exposure to radio frequency signals
The Safety Connect sy stem installed in your vehicle is a low-power
radio transmitter and receiver. It recei ves and also sends out radio fre-
quency (RF) signals.
In August 1996, the Federal Communications Commission (FCC)
adopted RF exposure guid elines with safety levels for mobile wireless
phones. Those guidelines are consis tent with the safety standards pre-
viously set by the foll owing U.S. and internat ional standards bodies.
● ANSI (American National Stan dards Institute) C95.1 [1992]
● NCRP (National Council on Radiation Protection and Measure-
ment) Report 86 [1986]
● ICNIRP (International Commission on Non-Ionizing Radiation Pro-
tection) [1996]
Those standards were based on comprehensive and periodic evalua-
tions of the relevant scientific li terature. Over 120 scientists, engi-
neers, and physicians from univer sities, and government health
agencies and industries reviewed the available body of research to
develop the ANSI Standard (C95.1).
The design of Safety Connect complies with the FCC guidelines in
addition to those standards.

7323-8. Other interior features
LX570_OM_OM60L96U_(U) ■
Certification for Lexus Enform with Safety Connect
FCC ID: O6Y-CDMRF101
FCC ID: XOECDMRF101B
FCC ID: N7NGTM2
FCC WARNING:
This equipment complies with FCC radiation exposure limits set forth for an uncon-
trolled environment and meets the FCC ra dio frequency (RF) Exposure Guidelines
in Supplement C to OET65. This equi pment should be installed and operated
keeping the radiator at least 20cm or mo re away from person’s body (excluding
extremities: hands, wrists, feet and ankles).

Maintenance and care
4
733
LX570_OM_OM60L96U_(U) 4-1. Maintenance and care
Cleaning and protecting
the vehicle exterior ............ 734
Cleaning and protecting
the vehicle interior ............. 737
4-2. Maintenance
Maintenance
requirements ....................... 740
General maintenance.......... 743
Emission inspection and
maintenance (I/M)
programs ............................... 746
4-3. Do-it-yourself maintenance
Do-it-yourself service
precautions ............................ 747
Hood .......................................... 750
Engine compartment ............ 751
Tires ............................................ 766
Tire inflation pressure .......... 775
Wheels ....................................... 779
Air conditioning filter ............ 781
Electronic key battery ......... 784
Checking and
replacing fuses..................... 786
Light bulbs ................................ 803

734
LX570_OM_OM60L96U_(U) 4-1. Maintenance and care
Cleaning and protecting the vehicle exterior
■
Automatic car washes ●
Fold the mirrors back be fore washing the vehicle.●
Brushes used in automatic car washes may scratch the vehicle surface and
harm your vehicle’s paint. ●
Rear spoiler may not be washable in some automatic car washes. There may
also be an increased risk of damage to vehicle.■
High pressure car washes ●
Do not allow the nozzles of the car wash to come within close proximity of the
windows. ●
Before car wash, check that the fuel filler door on your vehicle is closed prop-
erly.Perform the following to protect the ve hicle and maintain it in prime condi-
tion.
● Working from top to bottom, lib erally apply water to the vehicle
body, wheel wells and underside of the vehicle to remove any dirt
and dust.
Wash the vehicle body using a sponge or soft cloth, such as a
chamois.
● For hard-to-remove marks, use car wash soap and rinse thor-
oughly with water.
● Wipe away any water.
● Wax the vehicle when the wa terproof coating deteriorates.If water does not bead on a clean surface, apply wax when the vehicle
body is cool.

7354-1. Maintenance and care
4
Maintenance and care
LX570_OM_OM60L96U_(U) ■
Aluminum wheels ●
Remove any dirt immediately by using a neutral detergent. Do not use hard
brushes or abrasive cleaners. Do not us e strong or harsh chemical cleaners.
Use the same mild detergent an d wax as used on the paint.●
Do not use detergent on the wheels when they are hot, for example after driving
for long distance in the hot weather. ●
Wash detergent from the wheels immediately after use.■
Bumpers and side moldings
Do not scrub with abrasive cleaners.
CAUTION■
When cleaning the windshield
●
When the upper part of the windshield where the raindrop sensor is located is
touched by hand ●
When a wet rag or similar is he ld close to the raindrop sensor●
If something bumps against the windshield ●
If you directly touch the raindrop sensor body or if something bumps into the
raindrop sensor■
Caution about the exhaust pipe
Exhaust gasses cause the exhaus t pipe to become quite hot.
When washing the vehicle, be careful not to touch the pipe until it has cooled suffi-
ciently, as touching a hot exhaust pipe can cause burns. Set the wiper switch to off.
If the wiper switch is in “AUTO”, the wipers
may operate unexpectedly in the following
situations, and may result in hands being
caught or other serious injuries and cause
damage to the wiper blades.OFF

7364-1. Maintenance and care
LX570_OM_OM60L96U_(U) NOTICE■
To prevent deterioration and corrosion on the body and components (aluminum
wheels etc.) ●
Wash the vehicle immediately in the following cases:
• After driving near the sea coast
• After driving on salted roads
• If coal tar or tree sap is present on the paint surface
• If dead insects, insect droppings or bird droppings are present on the paint
surface
• After driving in an area contaminated with soot, oily smok e, mine dust, iron
powder or chemical substances
• If the vehicle becomes heavily soiled with dust or mud
• If liquids such as benzene and gasoline are spilled on the paint surface ●
If the paint is chipped or scratched, have it repaired immediately. ●
To prevent the wheels from corroding, remove any dirt and store in a place with
low humidity when storing the wheels.■
Cleaning the exterior lights ●
Wash carefully. Do not use organic substances or scrub with a hard brush.
This may damage the surfaces of the lights. ●
Do not apply wax on the surfaces of the lights.
Wax may cause damage to the lenses.■
When using an automatic car wash
Turn off the wiper switch.
If the wiper switch is in “AUTO”, the wipers may operate and the wiper blades may
be damaged.

7374-1. Maintenance and care
4
Maintenance and care

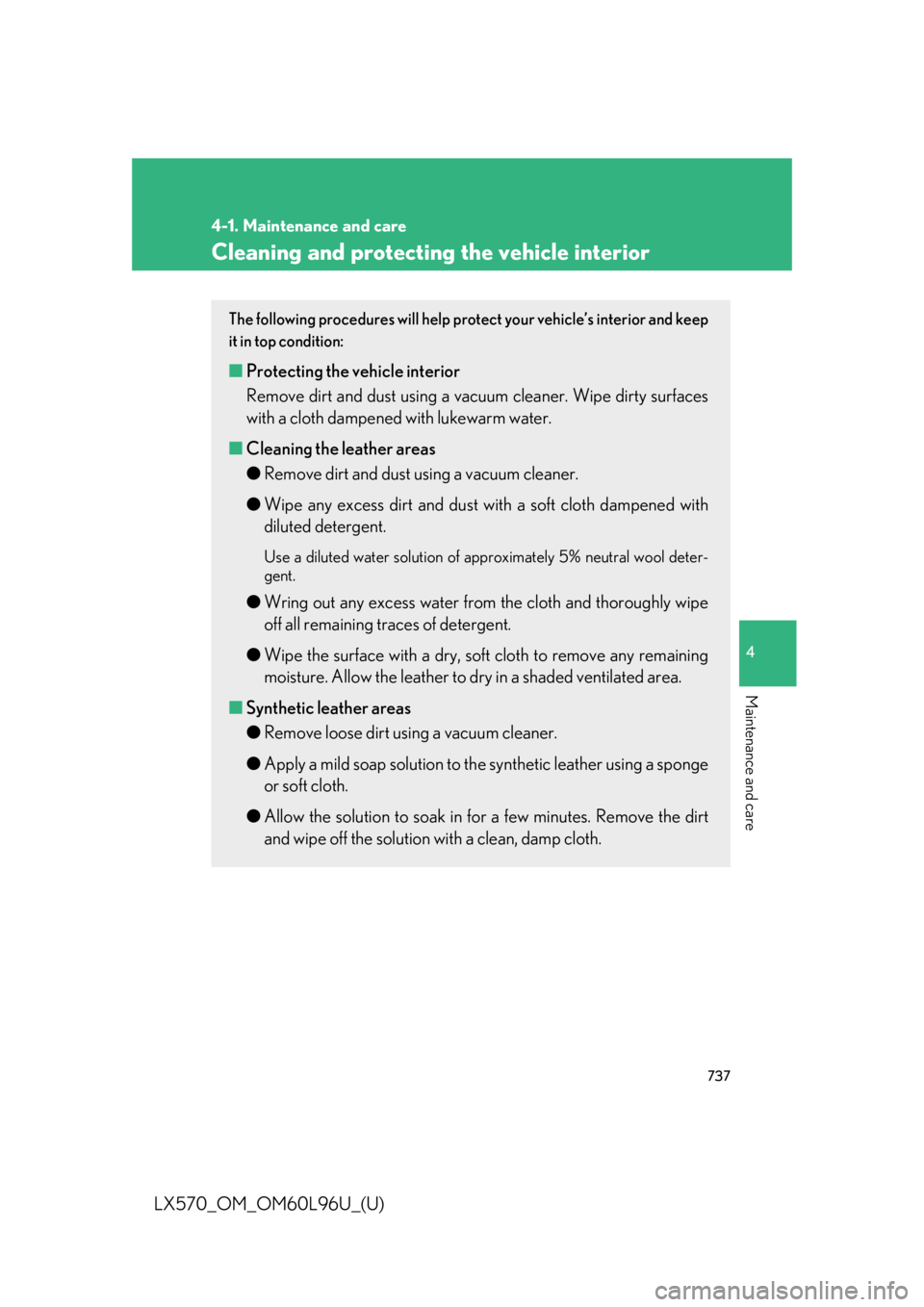

LX570_OM_OM60L96U_(U) Cleaning and protecting the vehicle interior The following procedures will help protect your vehicle’s interior and keep
it in top condition:
■ Protecting the vehicle interior
Remove dirt and dust using a vacu um cleaner. Wipe dirty surfaces
with a cloth dampened with lukewarm water.
■ Cleaning the leather areas
● Remove dirt and dust using a vacuum cleaner.
● Wipe any excess dirt and dust wi th a soft cloth dampened with
diluted detergent. Use a diluted water solution of approximately 5% neutral wool deter-
gent.
● Wring out any excess water from the cloth and thoroughly wipe
off all remaining traces of detergent.
● Wipe the surface with a dry, soft cloth to remove any remaining
moisture. Allow the leather to dr y in a shaded ventilated area.
■ Synthetic leather areas
● Remove loose dirt using a vacuum cleaner.
● Apply a mild soap solution to th e synthetic leather using a sponge
or soft cloth.
● Allow the solution to soak in fo r a few minutes. Remove the dirt
and wipe off the solution with a clean, damp cloth.

7384-1. Maintenance and care
LX570_OM_OM60L96U_(U) ■
Caring for leather areas
Lexus recommends cleaning the interior of the vehicle at least twice a year to main-
tain the quality of the vehicle’s interior. ■
Shampooing the carpets
There are several commercial foaming-type cleaners available. Use a sponge or
brush to apply the foam. Rub in overlapping circles. Do not apply water. Excellent
results are obtained by keeping the carpet as dry as possible.■
Seat belts
Clean with mild soap and lukewarm water using a cloth or sponge. Also check the
belts periodically for excessive wear, fraying or cuts.
CAUTION■
Water in the vehicle ●
Do not splash or spill liquid in the vehicle.
Doing so may cause electrical components etc. to malfunction or catch fire. ●
Do not get any of the SRS components or wiring in the vehicle interior wet.
(  P. 128)
Electrical malfunction may cause the airbag s to deploy or not function properly,
resulting in death or serious injury.■
Cleaning the interior (especially instrument panel)
Do not use polish wax or polish cleaner. The instrument panel may reflect off the
windshield, obstructing the driver’s view and leading to an accident, resulting in
death or serious injury.
