Interior features
LX570_OM_OM60L96U_(U) 3-8. Other interior features

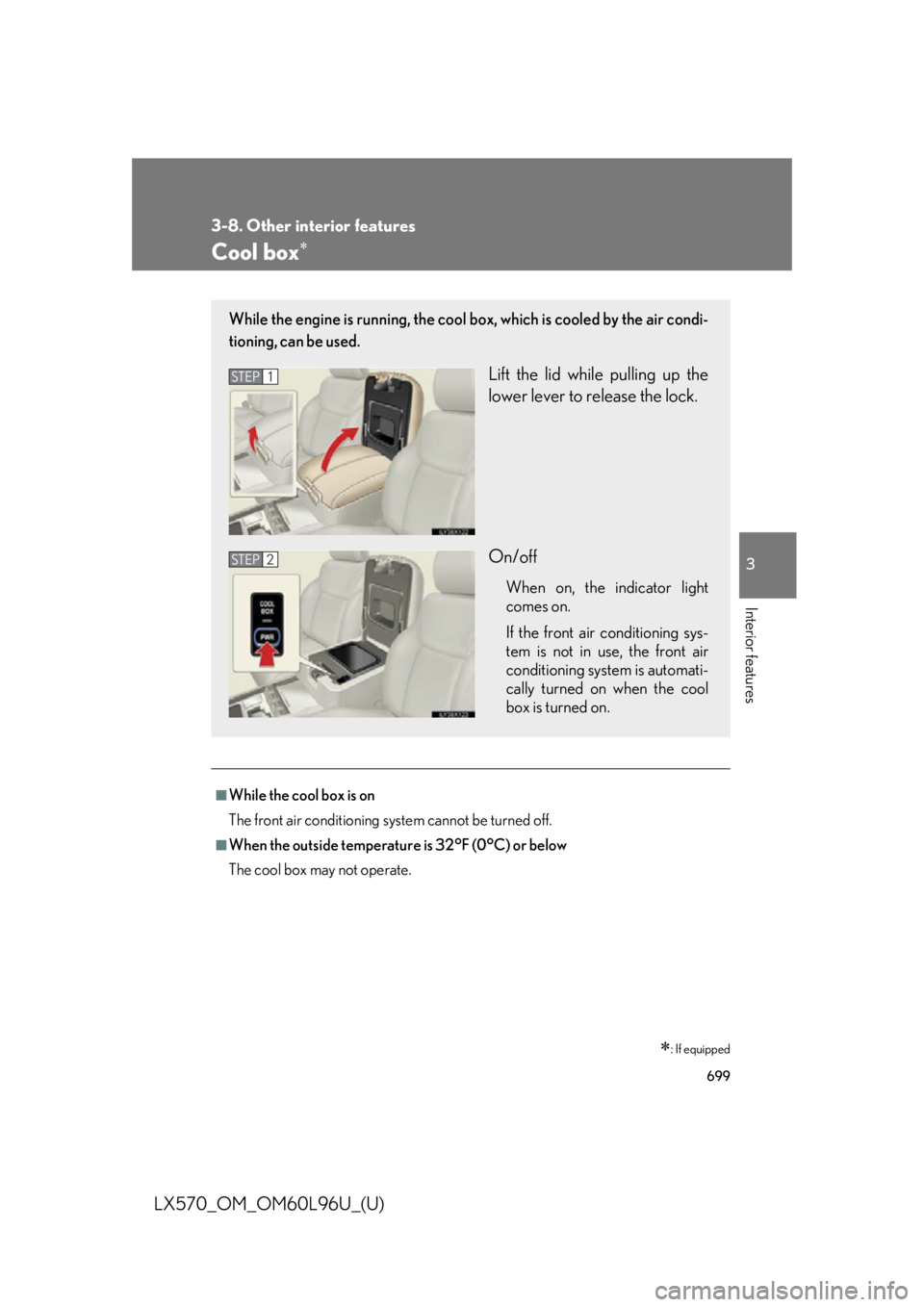

Cool box 
 : If equipped■
While the cool box is on
The front air conditioning system cannot be turned off. ■
When the outside temperature is 32°F (0°C) or below
The cool box may not operate.While the engine is running, the cool bo x, which is cooled by the air condi-
tioning, can be used.
Lift the lid while pulling up the
lower lever to release the lock.
On/off When on, the indicator light
comes on.
If the front air conditioning sys-
tem is not in use, the front air
conditioning system is automati-
cally turned on when the cool
box is turned on.STEP 1
STEP 2

7003-8. Other interior features
LX570_OM_OM60L96U_(U) CAUTION■
While driving
Keep the cool box closed.
Injuries may result in the event of sudden braking, sudden swerving or an accident.
NOTICE■
To prevent battery discharge
Do not leave the cool box on longer than necessary when the engine is stopped.

7013-8. Other interior features
3
Interior features

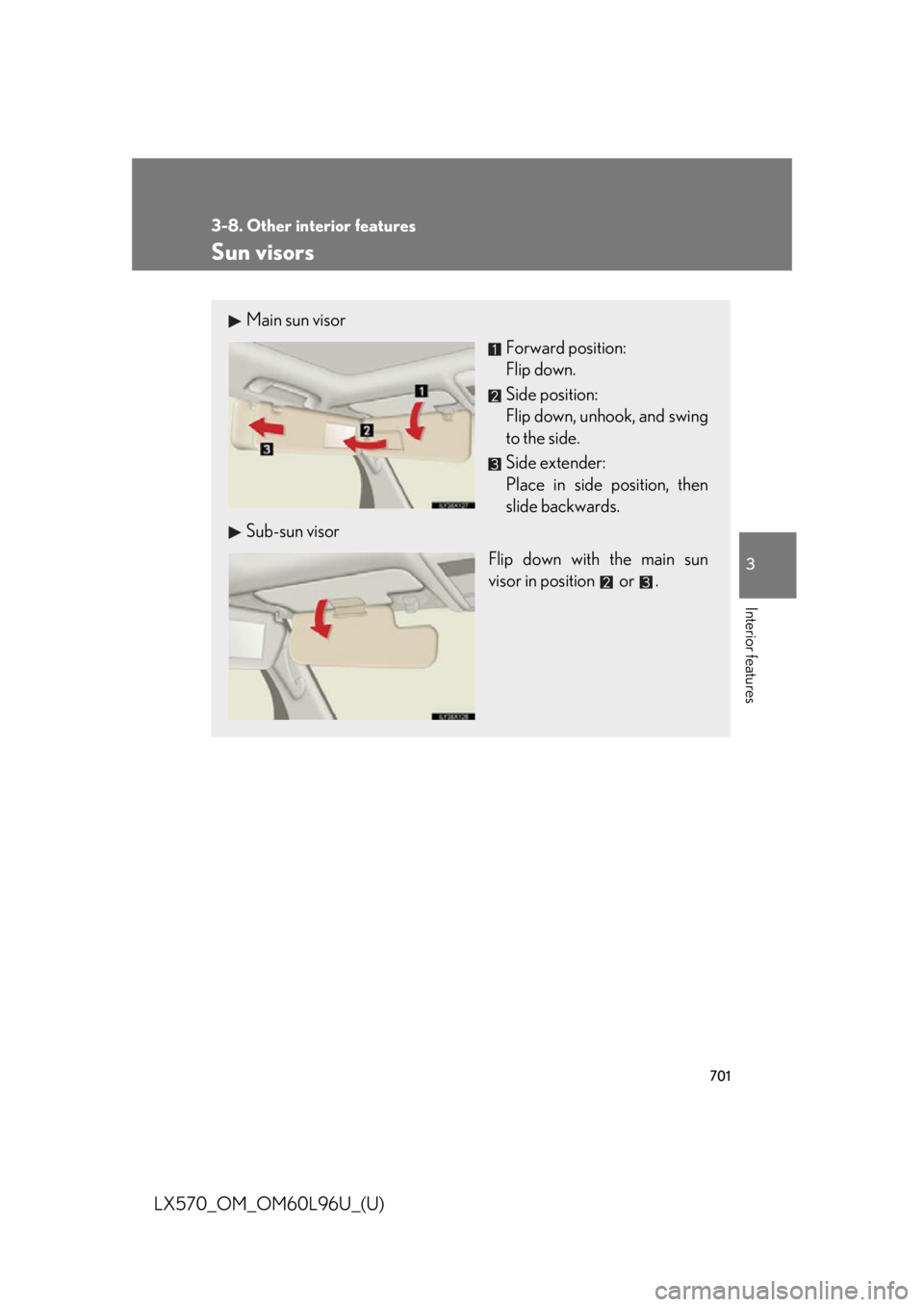

LX570_OM_OM60L96U_(U) Sun visors Main sun visor
Forward position:
Flip down.
Side position:
Flip down, unhook, and swing
to the side.
Side extender:
Place in side position, then
slide backwards.
Sub-sun visor
Flip down with the main sun
visor in position or .

7023-8. Other interior features
LX570_OM_OM60L96U_(U) Vanity mirrors
NOTICE■
To prevent battery discharge
Do not leave the vanity lights on for extended periods while the engine is off. Slide the cover. The light turns on when the
cover is opened.

7033-8. Other interior features
3
Interior features
LX570_OM_OM60L96U_(U) Ashtrays
CAUTION■
When not in use
Keep the ashtray closed.
Injuries may result in the event of sudden braking, sudden swerving or an accident.■
To prevent fire ●
Fully extinguish matches and cigarettes before putting them in the ashtray, then
make sure the ashtray is fully closed. ●
Do not place paper or any other type of flammable object in the ashtray.Front
Push the front part of the lid to
open. Push the lid again to
close. To remove, pull the ashtray
upwards.
Rear
Pull the ashtray lid to open. To remove, pull the ashtray
upwards.

7043-8. Other interior features
LX570_OM_OM60L96U_(U) Cigarette lighter ■
The cigarette lighter can be used when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON
mode.
CAUTION■
To avoid burns or fires ●
Do not touch the metal parts of the cigarette lighter. ●
Do not hold the cigarette lighter down. It could overheat and cause a fire. ●
Do not insert anything other than the cigarette lighter into the outlet. Push the front part of the lid to
open, and push the cigarette
lighter down. The cigarette lighter will pop up
when it is ready for use.

7053-8. Other interior features
3
Interior features

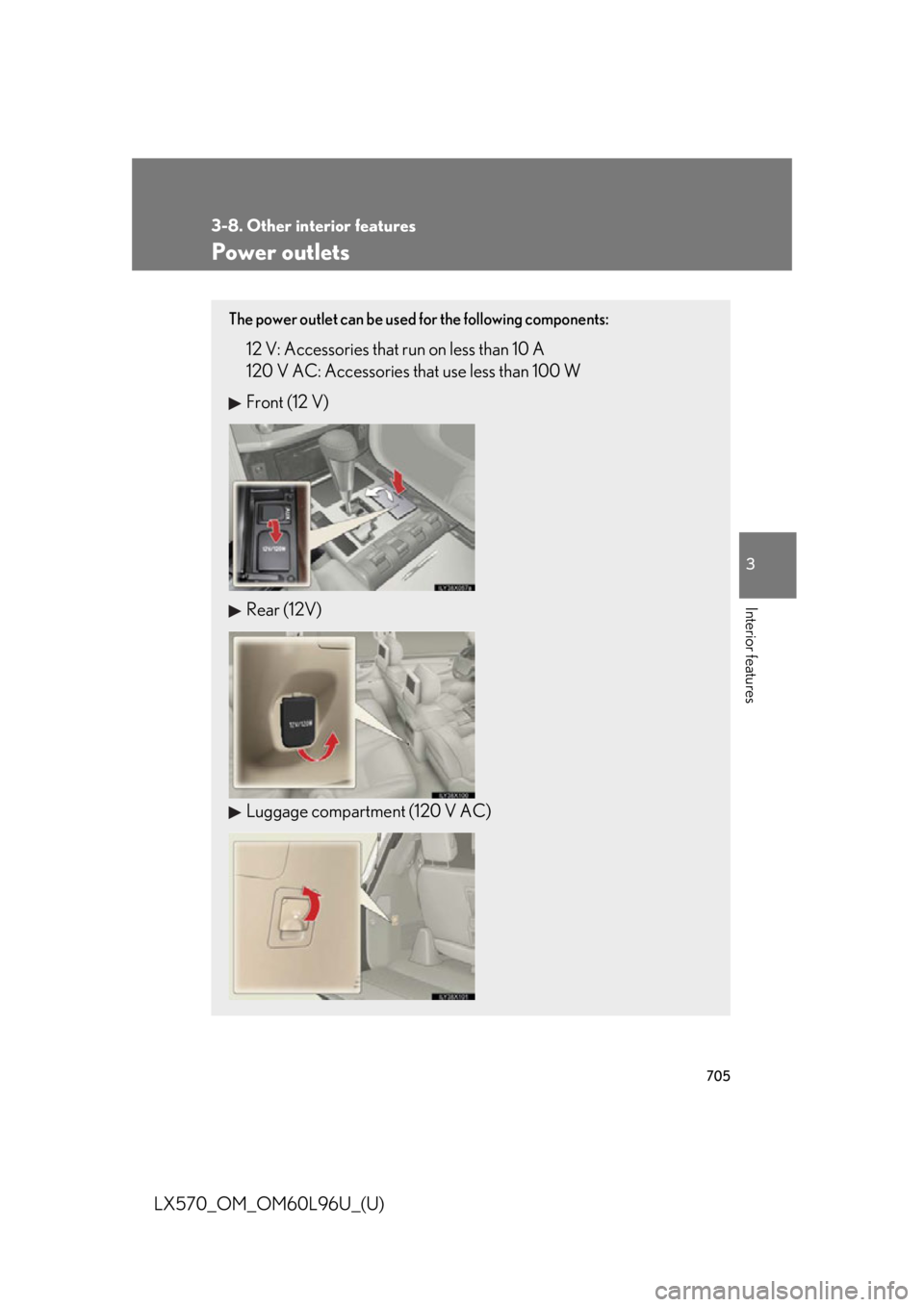

LX570_OM_OM60L96U_(U) Power outlets The power outlet can be used for the following components:
12 V: Accessories that run on less than 10 A
120 V AC: Accessories that use less than 100 W
Front (12 V)
Rear (12V)
Luggage compartment (120 V AC)

7063-8. Other interior features
LX570_OM_OM60L96U_(U) ■
The power outlet can be used when
12 V
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON
mode.
120 V AC
The “ENGINE START STOP” switch is in IGNITION ON mode.
NOTICE■
To avoid damaging the power outlet
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter th e power outlet may ca use a short circuit.■
To prevent the fuse from being blown
12 V
Do not use an accessory that uses more than 12 V 10 A.
120 V AC
Do not use a 120 V AC appliance that requires more than 100 W.
If a 120 V AC appliance that consumes more than 100 W is used, the protection
circuit will cut the power supply.■
To prevent the battery from being discharged
Do not use the power outlet longer than necessary when the engine is not running. ■
Appliances that may not operate properly (120 V AC)
The following 120 V AC appliances may not operate properly even if their power
consumption is under 100 W: ●
Appliances with high initial peak wattage ●
Measuring devices that process precise data ●
Other appliances that require an extremely stable power supply

7073-8. Other interior features
3
Interior features
LX570_OM_OM60L96U_(U) Heated steering wheel 
 : If equipped■
The heated steering wheel can be used when
The “ENGINE START STOP” switch is in IGNITION ON mode. ■
Timer
The heated steering wheel will automatically turn off after about 30 minutes. ■
If the indicator light flashes
Press the switch to turn the heated steering wheel off and then press the switch
again. If the indicator light still flashes, a malfunction may be occurring. Turn the
heated steering wheel off and have the vehicle inspected by your Lexus dealer.The heated steering wheel can be used to heat the leather portion of the
steering wheel.
On/Off The indicator light comes on
when the heater is operating.

7083-8. Other interior features
LX570_OM_OM60L96U_(U) CAUTION■
Burns ●
Only appropriately qualified and capable non-impaired persons should operate
the vehicle. However, care should be taken to prevent injury if anyone in the fol-
lowing categories comes into contact with the steering wheel when the heated
steering wheel is on:
• Babies, small children, the elderly, the sick and the disabled
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping drugs,
cold remedies, etc.)●
Do not use the heated steering wheel more than necessary. Doing so may cause
minor burns or overheating.
NOTICE■
To prevent battery discharge
Turn the switch off when the engine is not running.
