display LEXUS LX570 2016 Owners Manual

332
LX570_OM_OM60N01U_(U) 4-5. Using the driving support systems■
Under vehicle terrain view & dual side view ●
The screen can be displayed when the shift lever is in D or N. ●
While the under vehicle terrain view is displayed, if the vehicle speed reaches or
exceeds approximately 3 mph (5 km/h), the screen automatically returns to the front
view display. ●
In the following situations, the under vehicle terrain view selection switch cannot be
operated.
• The vehicle is not completely stopped
• After the engine starts, a fixed distance or more has not been driven
• After the four-wheel drive control switch is shifted to L4, a fixed distance or more
has not been driven ●
In the following situations, the system may no t operate normally, or it may not be possi-
ble to switch to the under vehicle terrain view.
• The road is covered with snow
• It is nighttime and the road has no illumination
• Dirt or foreign matter is adhering to the camera lens
• There is water in front of the vehicl e ( a r i v e r, p u d d l e , s e a w a t e r, e t c . )
WA R N I N G ■
Guide lines
The tire position indicator lines and vehicle position indicator lines may differ from
actual vehicle positions depending on the number of passengers, cargo weight, road
grade, road surface conditions, brightness of the surrounding environment, etc. Always
drive the vehicle while confirming the safety of your surroundings. ■
Under vehicle terrain view display
The image displayed is one that was previously taken at a point approximately 10 ft.
(3 m) behind the current vehicle position. In cases such as when ob jects move after the
image is taken, the image displayed on the screen may differ from the actual state.

LX570_OM_OM60N01U_(U) 3334-5. Using the driving support systems
4
Driving ■

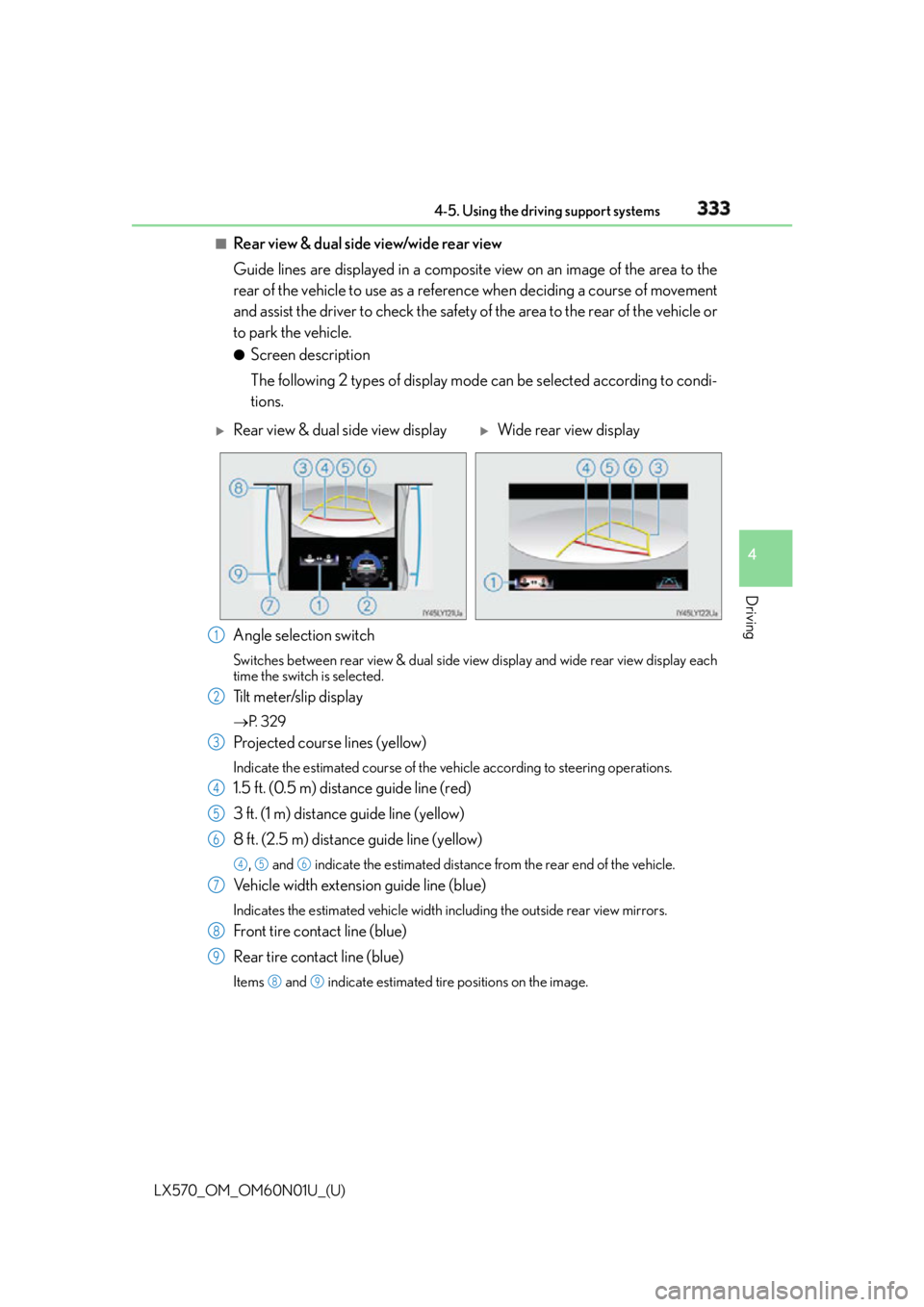

Rear view & dual side view/wide rear view
Guide lines are displayed in a composite view on an image of the area to the
rear of the vehicle to use as a reference when deciding a course of movement
and assist the driver to check the safety of the area to the rear of the vehicle or
to park the vehicle. ●
Screen description
The following 2 types of display mode can be selected according to condi-
tions.
Angle selection switch Switches between rear view & dual side vi ew display and wide rear view display each
time the switch is selected.
Tilt meter/slip display  P. 3 2 9
Projected course lines (yellow) Indicate the estimated course of the vehicle according to steering operations.
1.5 ft. (0.5 m) distance guide line (red)
3 ft. (1 m) distance guide line (yellow)
8 ft. (2.5 m) distance guide line (yellow) , and indicate the estimated distance from the rear end of the vehicle.
Vehicle width extension guide line (blue) Indicates the estimated vehicle width including the outside rear view mirrors.
Front tire contact line (blue)
Rear tire contact line (blue) Items and indicate estimated tire positions on the image. 
Rear view & dual side view display 
Wide rear view display
1
2
3
4
5
6 4 5 6
7
8
9 8 9

334
LX570_OM_OM60N01U_(U) 4-5. Using the driving support systems■
Rear view & dual side view/wide rear view
The screen can be displayed when the shift lever is in R. ■
Guide lines
If the back door is not closed , guide lines will not be displaye d. If the guide lines do not
display even when the back door is closed , have the vehicle inspected at your Lexus
dealer.
WA R N I N G ■
Guide lines
The tire position indicator lines and vehicle position indicator lines may differ from
actual vehicle positions depending on the number of passengers, cargo weight, road
grade, road surface conditions, brightness of the surrounding environment, etc. Always
drive the vehicle while confirming the safety of your surroundings.

LX570_OM_OM60N01U_(U) 3354-5. Using the driving support systems
4
Driving ■

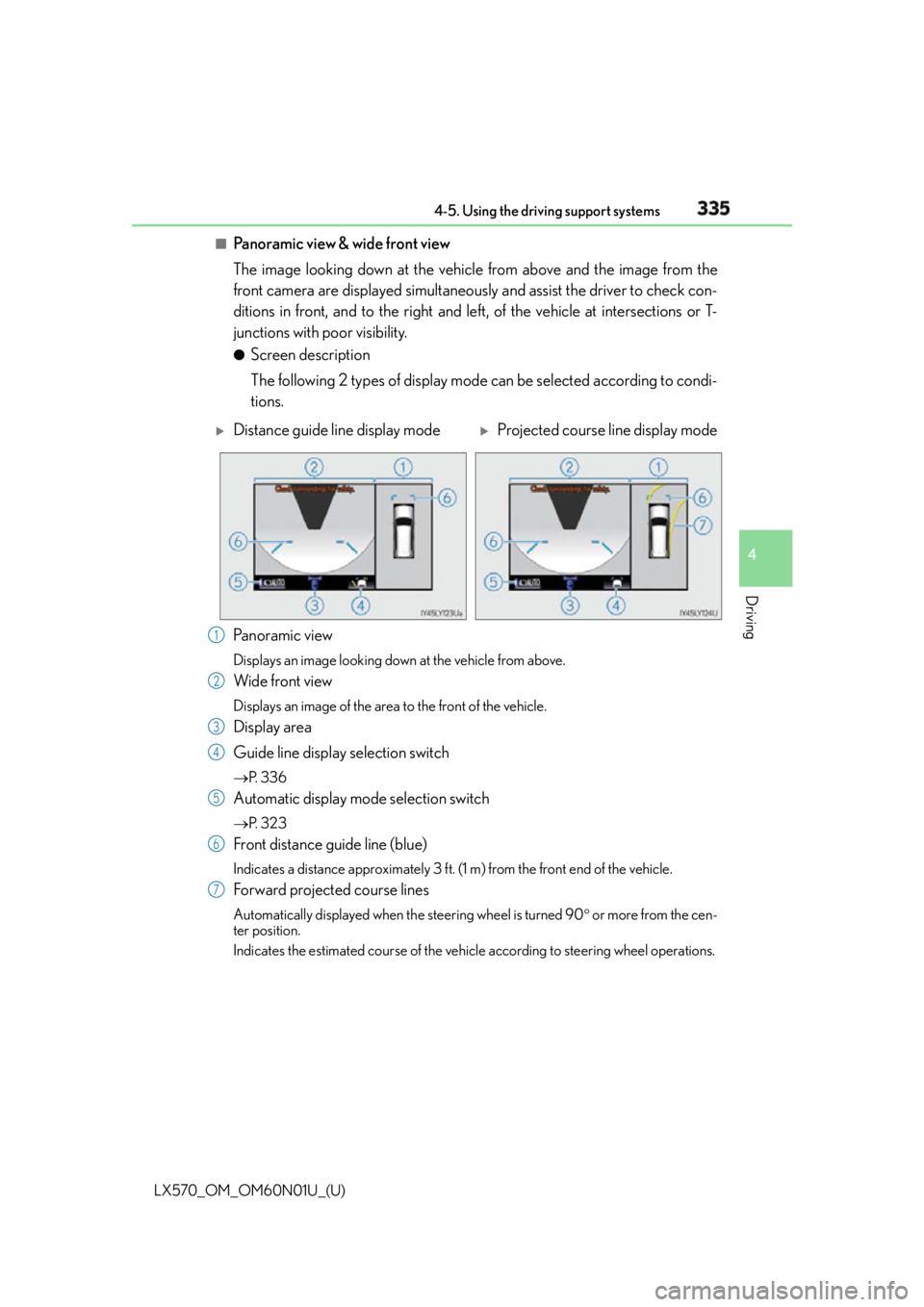

Panoramic view & wide front view
The image looking down at the vehicle from above and the image from the
front camera are displayed simultaneously and assist the driver to check con-
ditions in front, and to the right and le ft, of the vehicle at intersections or T-
junctions with poor visibility. ●
Screen description
The following 2 types of display mode can be selected according to condi-
tions.
Pa n o r a m i c v i ew Displays an image looking down at the vehicle from above.
Wide front view Displays an image of the area to the front of the vehicle.
Display area
Guide line display selection switch  P. 3 3 6
Automatic display mode selection switch  P. 3 2 3
Front distance guide line (blue) Indicates a distance approximately 3 ft. (1 m) from the front end of the vehicle.
Forward projected course lines Automatically displayed when th e steering wheel is turned 90  or more from the cen-
ter position.
Indicates the estimated course of the vehicl e according to steering wheel operations.
Distance guide line display mode 
Projected course line display mode
1
2
3
4
5
6
7

336
LX570_OM_OM60N01U_(U) 4-5. Using the driving support systems●
Switching to automatic display mode
 P. 3 2 3●
Switching guide line display modes
The mode switches and the switch display changes each time the guide line
display selection switch is selected. ■
Panoramic view & wide front view
The screen can be displayed when the shift lever is in P, D or N.Selected mode Distance guide line display
mode Projected course line display
mode
Switch display
WA R N I N G ■
Guide lines
The tire position indicator lines and vehicle position indicator lines may differ from
actual vehicle positions depending on the number of passengers, cargo weight, road
grade, road surface conditions, brightness of the surrounding environment, etc. Always
drive the vehicle while confirming the safety of your surroundings.

LX570_OM_OM60N01U_(U) 3374-5. Using the driving support systems
4
Driving ■
Dual side view
The image from the both side cameras is displayed and assists the driver to
check conditions on the sides of the vehi cle or to confirm the safety of narrow
roads. ●
Screen description
Side view (left front side)
Side view (right front side)
Display area
Vehicle width lines (blue) Indicate the estimated vehicle
width including the outside rear
view mirrors.
Front distance guide line (red) Indicates a distance approximately 1.6 ft. (0.5 m) from the front end of the vehi-
cle.
Front tire contact line (blue) Indicates the estimated front tire position on the image.
Automatic display mode selection switch  P. 3 2 3 1
2
3
4
5
6
7

LX570_OM_OM60N01U_(U) 3394-5. Using the driving support systems
4
Driving ■
Dual side view ●
The screen can be displayed when the shift lever is in P, D or N. ●
When the outside rear view mirrors are retracted, the displayed area changes (the area
on the screen that is not masked in black). (  P. 3 4 6 )
WA R N I N G ■
Guide lines
The tire position indicator lines and vehicle position indicator lines may differ from
actual vehicle positions depending on the number of passengers, cargo weight, road
grade, road surface conditions, brightness of the surrounding environment, etc. Always
drive the vehicle while confirming the safety of your surroundings.

340
LX570_OM_OM60N01U_(U) 4-5. Using the driving support systems■
Panoramic view & rear view/wide rear view
• Panoramic view & rear view:
The image looking down at the vehicle from above and the image from the
rear camera are displayed simultaneously and assist the driver to check the
safety of the area when parking.
• Wide rear view:
The image from the rear camera is displayed in a range of approximately
180  and assists the driver to check the safety of the area when backing up.●
Screen description
Guide line selection switch  P. 3 3 6
Angle mode selection switch Switches between the panoramic view & rear view and wide rear view display each
time the switch is selected.
Panoramic view & rear view
Rear view Switches the screen to wide rear vi ew display when you touch the display.
Wide rear view Switches the screen to the panoramic & rear view display when the display is touched. 
Panoramic view & rear view 
Wide rear view
1
2
3
4
5

LX570_OM_OM60N01U_(U) 3414-5. Using the driving support systems
4
Driving ●
Switching modes
The display mode switches and the icon display changes each time the
guide line display selection switch is selected.
• Projected course line display mode:
Projected course lines that change according to steering wheel opera-
tions are displayed.
• Parking assist guide line display mode:
Inverted steering wheel operations (p arking assist guide line) are dis-
played. Use this mode if you are used to how the vehicle handles (if you
can park without needing the course line display).
• Distance guide line display mode:
Only distance guide lines are displa yed. Use this mode when guide lines
are not needed. ●
Guide lines
The panoramic view & rear view screen is explained here as an example. Selected mode Projected course
line display mode Parking assist guide
line display mode Distance guide line
display mode
Icon display

Projected course line display mode 
Parking assist guide line display
mode

342
LX570_OM_OM60N01U_(U) 4-5. Using the driving support systems
Front distance guide line (blue) Indicates a distance approximately 3 ft. (1 m) from the front end of the vehicle.
Rear vehicle width extension guide lines Indicate the estimated course of the vehicle when backing up straight.
• The displayed width is wider than the actual vehicle width.
• In projected course line display mode, this item overlaps the projected course lines
when going straight.
Side projected course line (yellow) Indicates the projected reverse course calculated by the angle of the steering wheel.
The projected reverse course line on the outs ide of the turn is displayed according to
the direction of the steering wheel.
Rear distance guide line Indicates the estimated distance from the end of the rear bumper (at the center). (Red
line: approximately 1.5 ft. [0.5 m] away. Yellow line: approximately 3 ft. [1 m] away.)
In projected course line display mode, the re ar distance guide line changes according
to steering wheel operations.
Projected reverse course (yellow) Changes according to steering wheel operations and indicates the estimated course
of the vehicle.
Rear distance guide line (blue) Indicates a distance approximately 1.5 ft. (0.5 m) from the end of the rear bumper (at
the center).
Parking assist guide line (blue) Indicates the estimated tire course of the tightest possible turn in reverse.
Intuitive parking assist When the intuitive parking assist is on, an icon will be displayed when an obstacle is
detected. (Refer to P. 289 for informat ion about the intuitive parking assist.)
Vehicle center line (blue) Indicates the estimated vehicle center on the ground. 
Distance guide line display mode
1
2
3
4
5
6
7
8
9
