display LEXUS LX570 2016 Owners Manual

LX570_OM_OM60N01U_(U) 3594-5. Using the driving support systems
4
Driving ●
Projected course lines
Projected course lines are displayed under the assumption that the vehicle
is on a flat road surface. Therefore, the position of three-dimensional
objects higher than the road surface (such as a vehicle bumper) cannot be
determined. Even if it seems that an obstacle is outside of the projected
course lines and a collision will not occur according to the screen, an
obstacle may actually be in the vehicle course, resulting in a collision.
Projected course lines
Three-dimensional objects in high positions (such as walls with protrusions
or the loading areas of trucks) may not be displayed on the screen. Con-
firm the safety of your surroundings directly.
Protrusion of a wall 1
1

360
LX570_OM_OM60N01U_(U) 4-5. Using the driving support systems■
Differences between the rear view or wide rear view and actual roads
The guide lines on the screen are intended for flat surfaces (such as the road).
Be aware of the following points when three-dimensional objects with protru-
sions (obstacles such as the cargo bed of a truck) are nearby. ●
Projected course lines
Guide lines are displayed in reference to a level road surface and cannot
be used to determine the location of three-dimensional objects. Confirm
the safety of your surroundings directly. Even if it seems that the cargo bed
of a truck is outside the projected co urse lines and a collision will not occur
according to the screen, it may actually be in the vehicle course, resulting in
a collision.
Projected course lines 1

LX570_OM_OM60N01U_(U) 3614-5. Using the driving support systems
4
Driving ■
Differences between the panoramic view, rear view and wide rear view and
actual roads ●
Distance guide lines
Guide lines are displayed in referenc e to the road surface and cannot be
used to determine the distance of three-dimensional objects from the vehi-
cle. Confirm the safety of your surr oundings directly. On the screen, it
appears that a truck is parking at po int according to the distance guide
lines. However, in reality if you back up to point , you will hit the truck.
On the screen, it appears that is closest and is farthest away. How-
ever, in reality, the distance to and is same, and is farther than
and .
●
Under vehicle terrain view
The tire position indicator lines and vehicle position indicator lines may dif-
fer from actual vehicle positions depe nding on the number of passengers,
weight of the load, road grade, road surface conditions, brightness of the
surrounding environment, etc. Always drive the vehicle while directly con-
firming the safety of your surroundings. 2
1
1 3
1 3 2 1
3

362
LX570_OM_OM60N01U_(U) 4-5. Using the driving support systems■
Using under vehicle terrain view ●
The images displayed were previously taken approximately 10 ft. (3 m) behind the cur-
rent vehicle position.
Therefore, actual conditions may differ from those shown on the screen in the following
situations.
• An obstacle has appeared after the image was taken
• Loose material like sand or snow has crumbled or shifted
• An obstacle has moved
• There is a puddle, tract of mud, etc., within the display range
• The vehicle slips ●
In the following situations, actual tire po sitions and vehicle position may differ from
those indicated by the tire position indicator lines and vehicle position indicator lines.
• Tires have been replaced
• Optional equipment has been installed
WA R N I N G ■
Guide lines
The displayed guide lines are composed with the image that was previously taken and
may differ from the actual state.
Always drive the vehicle while confirming your surroundings.

364
LX570_OM_OM60N01U_(U) 4-5. Using the driving support systems
 The projected course lines move even thou gh the steering wheel is straight (vehi-
cle width extension guide lines and pr ojected course lines are not aligned)
There is a malfunction in the signals being
output by the steering sensor Have the vehicle inspected by your Lexus
dealer.
 Guide lines are not displayed
The back door is open Close the back door.
If this does not resolve the symptom, have
the vehicle inspected by your Lexus
dealer.
 “!” is displayed
The battery is disconnected and recon-
nected Turn the steering whee l fully to right and
left.
If this does not resolve the symptom, have
the vehicle inspected by your Lexus
dealer.
There is a malfunction in the Multi-terrain
Monitor Have the vehicle inspected by your Lexus
dealer.
NOTICE ■
How to use the camera ●
The Multi-terrain Monitor system may not operate properly in the following cases.
• If the front or the rear of the vehicle or the outside rear view mirror has been hit,
the camera’s position and mounting angle may have changed.
• As the camera has a water proof construction, do not detach, disassemble or
modify it. This may cause incorrect operation.
• Do not strongly rub the camera lens. If th e camera lens is scratched, it cannot
transmit a clear image.
• Do not allow organic solvent, car wax, window cleaner or glass coat to adhere to
the camera. If this happens, wipe it off as soon as possible.
• If the temperature changes rapidly, such as when hot water is poured on the vehi-
cle in cold weather, the system may not operate normally.
• When washing the vehicle, do not apply intensive bursts of water to the camera or
camera area. Doing so may result in the camera malfunctioning.
• When the camera is used under fluorescen t lights, sodium light or mercury light
etc., the lights and the illuminate d areas may appear to flicker.
• The camera can be damaged by flying rocks and other debris. ●
Do not expose the camera to strong impact as this could cause a malfunction. If this
happens, have the vehicle inspected by your Lexus dealer as soon as possible. Likely cause Solution

366
LX570_OM_OM60N01U_(U) 4-5. Using the driving support systems
Multi-information display Turning the BSM function/RCTA function on/off. (  P. 3 6 7 )
Outside rear view mirror indicators BSM function:
When a vehicle is detected in a blind sp ot of the outside rear view mirrors or
approaching rapidly from behind into a blind spot, the outside rear view mirror indica-
tor on the detected side will illuminate. If the turn signal lever is operated toward the
detected side, the outside rear vi ew mirror indicator will flash.
RCTA function:
When a vehicle approaching from the right or left at the rear of the vehicle is
detected, both outside rear vi ew mirror indicators will flash.
“BSM” indicator/“RCTA” indicator When the BSM function/RCTA function is turned on, the indicator illuminates
Monitor screen display (RCTA function only) If a vehicle approaching from the right or left at the rear of the vehicle is detected, the
RCTA icon (  P. 374) for the detected side will be displayed on the monitor screen.
This illustration shows an example of a vehi cle approaching from the left at the rear of
the vehicle.
RCTA buzzer (RCTA function only) If a vehicle approaching from the right or left at the rear of the vehicle is detected, a
buzzer will sound. The buzzer also sounds for approximately 1 second immediately
after the BSM function is operated to turn the system on. 1
2
3
4
5

LX570_OM_OM60N01U_(U) 3674-5. Using the driving support systems
4
Driving Press or of the meter control switches, select .
Press or of the meter control switches, select “BSM”, and then press
.
Press or of the meter control switches, select “BSM” or “RCTA”, and
then press . ■
Outside rear view mirror indicator visibility
In strong sunlight, the outside rear view mirror indicator may be difficult to see.■
Hearing RCTA buzzer
The RCTA buzzer may be difficult to hear ov er loud noises, such as if the audio system
volume is high. ■
When “Blind Spot Monitor Unavailable” is shown on the multi-information display
Water, snow, mud, etc., may be built up in the vicinity of the sensor area of bumper. (  P. 3 6 8 )
Removing the water, snow, mud, etc., from the vicinity of the sensor area bumper should
return it to normal.
Also, the sensor may not function normally wh en used in extremely hot or cold weather. ■
When “Blind Spot Monitor System Malfunctio n” is shown on the multi-information dis-
play
There may be a sensor malfunction or volta ge abnormality. Have the vehicle inspected at
your Lexus dealer. ■
Certification for the Blind Spot Monitor 
For vehicles sold in the U.S.A., Hawaii , Guam, Puerto Rico and American Samoa

For vehicles sold in CanadaTurning the BSM function/RCTA function on/off 1
2
3

374
LX570_OM_OM60N01U_(U) 4-5. Using the driving support systems■

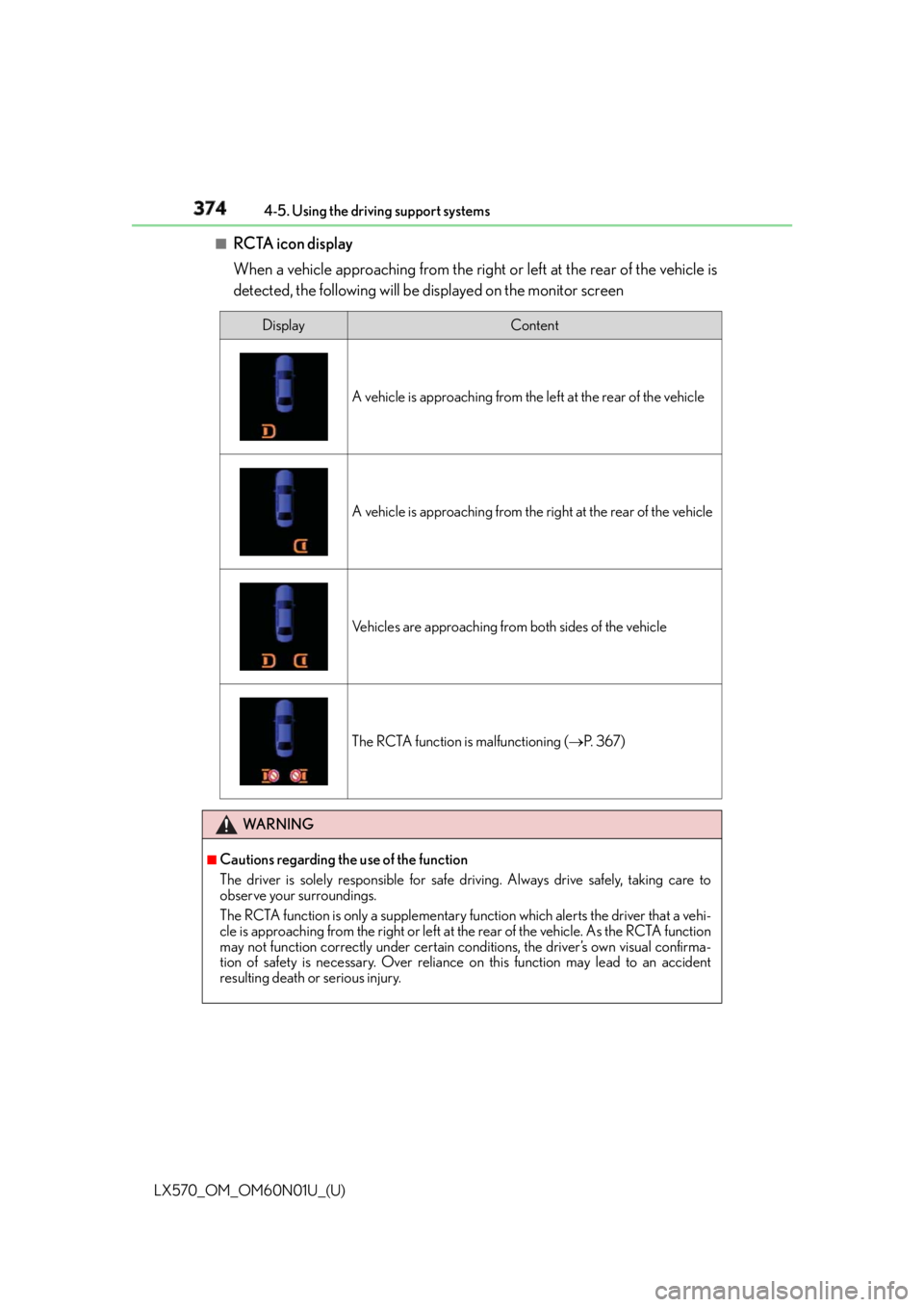

RCTA icon display
When a vehicle approaching from the right or left at the rear of the vehicle is
detected, the following will be displayed on the monitor screen Display Content
A vehicle is approaching from the left at the rear of the vehicle
A vehicle is approaching from the right at the rear of the vehicle
Vehicles are approaching from both sides of the vehicle
The RCTA function is malfunctioning (  P. 3 6 7 )
WA R N I N G ■
Cautions regarding the use of the function
The driver is solely responsible for safe driving. Always drive safely, taking care to
observe your surroundings.
The RCTA function is only a supplementary fu nction which alerts the driver that a vehi-
cle is approaching from the right or left at the rear of the vehicle. As the RCTA function
may not function correctly under certain conditions, the driver’s own visual confirma-
tion of safety is necessary. Over reliance on this function may lead to an accident
resulting death or serious injury.

380
LX570_OM_OM60N01U_(U) 4-5. Using the driving support systems
The slip indicator light flashes to indi-
cate that the VSC/Trailer Sway Con-
trol/Active TRAC/hill-start assist
control systems have been engaged. The stop lights and high mounted stop-
light turn on when the hill-start assist
control system or Trailer Sway Control is
operating.
If the vehicle gets stuck in fresh snow or mud, Active TRAC system reduce
power from the engine to the wheels. You may need to turn the system off to
enable you to rock the vehicle in order to free it.
Quickly push and release the button to
turn off Active TRAC. The TRAC OFF indicator will come on.
Push the button again to turn the system
back on.
■
Turning off Active TRAC, VSC and Trailer Sway Control
Push and hold the button for more than 3 seconds while the vehicle is stopped to turn off
Active TRAC, VSC and Trailer Sway Control
The VSC OFF indicator light and TRAC OFF indicator will come on.
*Push the button again to turn the system back on.
* : On vehicles with pre-collision system, pre-collision brake assist and pre-collision brak-
ing will also be disabled. The PCS warning light will come on and the message will be
shown on the multi-information display. (  P. 2 5 0 )■
Automatic reactivation of Active TRAC, VSC and Trailer Sway Control
Turning the engine switch off after turning off the Active TRAC and VSC systems will
automatically re-enable them.When the VSC/Trailer Sway Control/Active TRAC/hill-start assist
control systems are operating
Disabling the Active TRAC system

393
LX570_OM_OM60N01U_(U) 5Interior features5-1. Remote Touch screen
Remote Touch/12.3-inch
display ..........................................394
5-2. Lexus Climate Concierge
Lexus Climate Concierge ..... 400
5-3. Using the air conditioning
system and defogger
Front automatic air
conditioning system ................ 401
Rear air conditioning
system ........................................... 412
Heated steering wheel/seat
heaters/seat ventilators.......... 415 5-4. Using the interior lights
Interior lights list .......................... 419
• Interior lights .......................... 420
• Personal lights .........................421
5-5. Using the storage features
List of storage features ............ 422
• Glove box ............................... 423
• Console box........................... 423
• Overhead console .............. 424
• Cup holders ........................... 425
• Bottle holders ........................ 426
• Card holder............................ 426
• Auxiliary boxes ......................427
Luggage compartment
features........................................ 429
5-6. Using the other interior
features
Other interior features ............. 431
• Cool box ................................... 431
• Sun visors ................................ 432
• Vanity mirrors ........................ 432
• Clock ........................................ 433
• Power outlets ......................... 434
• Wireless charger.................. 436
• Armrest .................................... 443
• Rear door sunshades ......... 444
• Coat hooks ............................. 444
• Assist grips.............................. 445
Garage door opener................ 446
LEXUS Enform Safety
Connect ........................................451
