LEXUS LX570 2016 Owners Manual

431
LX570_OM_OM60N01U_(U) 5-6. Using the other interior features
5
Interior features
Other interior features While the engine is running, the cool box, which is cooled by the air conditioning,
can be used.
Press the button to open the lid.
Tu r n s t h e c o o l b o x o n /o f f When on, the indicator light comes on.
■
While the cool box is on
The front air conditioning system cannot be turned off. ■
When the outside temperature is 32  F (0  C) or below
The cool box may not operate.Cool box (if equipped) 1
2
WA R N I N G
Keep the cool box closed while driving.
Injuries may result in the event of sudden braking, sudden swerving or an accident.
NOTICE
To prevent battery discharge, do not leave the cool box on longer than necessary when
the engine is not running.

432
LX570_OM_OM60N01U_(U) 5-6. Using the other interior features 
Main sun visor
To set the visor in the forward posi-
tion, flip it down.
To set the visor in the side position,
flip down, unhook, and swing it to the
side.
To use the side extender, place the
visor in the side position, then slide it
backward. 
Sub sun visor
Flip down with the main sun visor in
position or .
Slide the cover to open. The light turns on when the cover is
opened.
If the vanity lights remain on when the engine switch is turned off, the lights will go off
automatically after 20 minutes.Sun visors 1
2
3
2 3
Vanity mirrors
NOTICE
To prevent battery discharge, do not leave the vanity lights on for extended periods
when the engine is not running.

LX570_OM_OM60N01U_(U) 4335-6. Using the other interior features
5
Interior features The GPS clock’s time is automatically
adjusted by utilizing GPS time informa-
tion. For details, refer to “NAVIGA-
TION SYSTEM OWNER’S
MANUAL”.Clock

434
LX570_OM_OM60N01U_(U) 5-6. Using the other interior features
The power outlet can be used for the following components:
12 V DC: Accessories that run on less than 10 A
120 V AC: Accessories that use less than 100 W ■
Center of console 
Front (12 V DC)
Press the lid to open.

Rear (12 V DC)Power outlets

LX570_OM_OM60N01U_(U) 4355-6. Using the other interior features
5
Interior features ■
Luggage compartment (120 V AC) ■
The power outlet can be used when
12 V DC: The engine switch is in ACCESSORY or IGNITION ON mode.
120 V AC: The engine switch is in IGNITION ON mode.
NOTICE ■
To avoid damaging the power outlet
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter th e power outlet may cause a short circuit.■
To prevent the fuse from being blown
12 V DC: Do not use an accessory that uses more than 12 V 10 A.
120 V AC: Do not use a 120 V AC appliance that requires more than 100 W.
If a 120 V AC appliance that consumes more than 100 W is used, the protection circuit
will cut the power supply. ■
To prevent the battery from being discharged
Do not use the power outlet longer than necessary when the engine is not running.■
Appliances that may not operate properly (120 V AC)
The following 120 V AC appliances may not operate properly even if their power con-
sumption is under 100 W: ●
Appliances with high initial peak wattage ●
Measuring devices that process precise data ●
Other appliances that require an extremely stable power supply

436
LX570_OM_OM60N01U_(U) 5-6. Using the other interior features
A portable device can be charged by ju st placing Qi standard wireless charge
compatible portable devices according to the Wireless Power Consortium, such
as smart phones and mobile batteries, etc., on the charge area.
This function cannot be used with port able devices that are larger than the
charging area. Also, depending on the portable device, it may not operate as
normal. Please read the operation manual for portable devices to be used. ■
The “Qi” symbol
The “Qi” symbol is a trademark of the Wireless Power Consortium. ■
Name for all parts
Power supply switch
Operation indicator light
Charge areaWireless charger (if equipped)
1
2
3

LX570_OM_OM60N01U_(U) 4375-6. Using the other interior features
5
Interior features ■
Using the wireless charger
Press the lid to open.
Press the power supply switch of
the wireless charger. Switches on and off with each press
of the power supply switch.
When turned on, the operation indi-
cator light (green) comes on.
Even with the engine off, the on/off
state of the power supply switch is
memorized.
Place the charging side of the
portable device down. When charging, the operation indi-
cator light (orange) comes on.
If charging is not occurring, try plac-
ing the portable device as close to
the center of the charging area as
possible.
When charging is complete, the
operation indicator light (green)
comes on.●
Recharging function
• When charging is complete and after a fixed time in the charge suspen-
sion state, charging restarts.
• When the portable device is moved, charging is stopped for a moment
and then it restarts. 1
2
3

438
LX570_OM_OM60N01U_(U) 5-6. Using the other interior features■
Lighting conditions of operation indicator light
* : Depending on the portable device, there are cases where the operation indicator
light will continue being lit up orange even after the charging is complete.●
When the operation indicator light flashes
When an error occurs, the operation in dicator light flashes an orange color.
Handle the error based on the following table.
■
The wireless charger can be operated when
The engine switch is in ACCESSORY or IGNITION ON mode. ■
Usable portable devices
Qi standard wireless charge standard can be used on compatible devices.
However, not all Qi standard devi ces and compatibility are guaranteed.
Starting with mobile phones and smart phones , it is aimed for low power electrically sup-
plied portable devices of no more than 5W.Operation indicator light Conditions
Tu r n i n g o f f When the Wireless charger power supply is off
Green (comes on) On Standby (charging possible state)
When charging is complete
*Orange (comes on) When placing the portable device on the charging
area (detecting the portable device)
Charging
Operation indicator light Suspected causes Handling method
Flashing repeatedly once
every second (Orange) Vehicle to charger commu-
nication failure. Contact your Lexus dealer.
Repeatedly flashes
3 times continuously
(Orange) A foreign substance is
between the portable device
and charge area. Remove the foreign sub-
stance from between por-
table device and the
charge area.
The portable device is out of
sync due to the device being
shifted from its position. Place the portable device
near the center of the
charge area.
Repeatedly flashes
4 times continuously
(Orange) Te m p e r a t u r e r i s i n g w i t h i n
the wireless charger. Stop charging at once and
start charging again after
for a while.

LX570_OM_OM60N01U_(U) 4395-6. Using the other interior features
5
Interior features ■
When covers and accessories are attached to portable devices
Do not charge in situations where cover an d accessories not able to handle Qi are
attached to the portable devi ce. Depending on the type of cover and accessory, it may
not be possible to charge. When charging is not performed even with the portable
device placed on the charge area, remove the cover and accessories. ■
While charging, noise enters the AM radio
Turn off the wireless charger and confirm th at the noise has decreased. If the noise
decreases, continuously pushing the power supply switch of the wireless charger for 2
seconds, the frequency of the charger can be changed and the noise can be reduced.
Also, on that occasion, the operation indicator light will flash orange 2 times. ■
Important points of the wireless charger ●
If the electronic key cannot be detected within the vehicle interior, charging cannot be
done. When the door is opened and closed , charging may be temporarily suspended.●
When charging, the wireless charging device and portable device will get warmer,
however this is not a malfunction.
When a portable device gets warm while charging, charging may stop due to the pro-
tection function on the portable device side . In this case, when the temperature of the
portable device drops significantly, charge again. ■
Operation sounds
When the power supply is turned on, while se arching for the portable device a sound will
be produced, however this is not a malfunction. ■

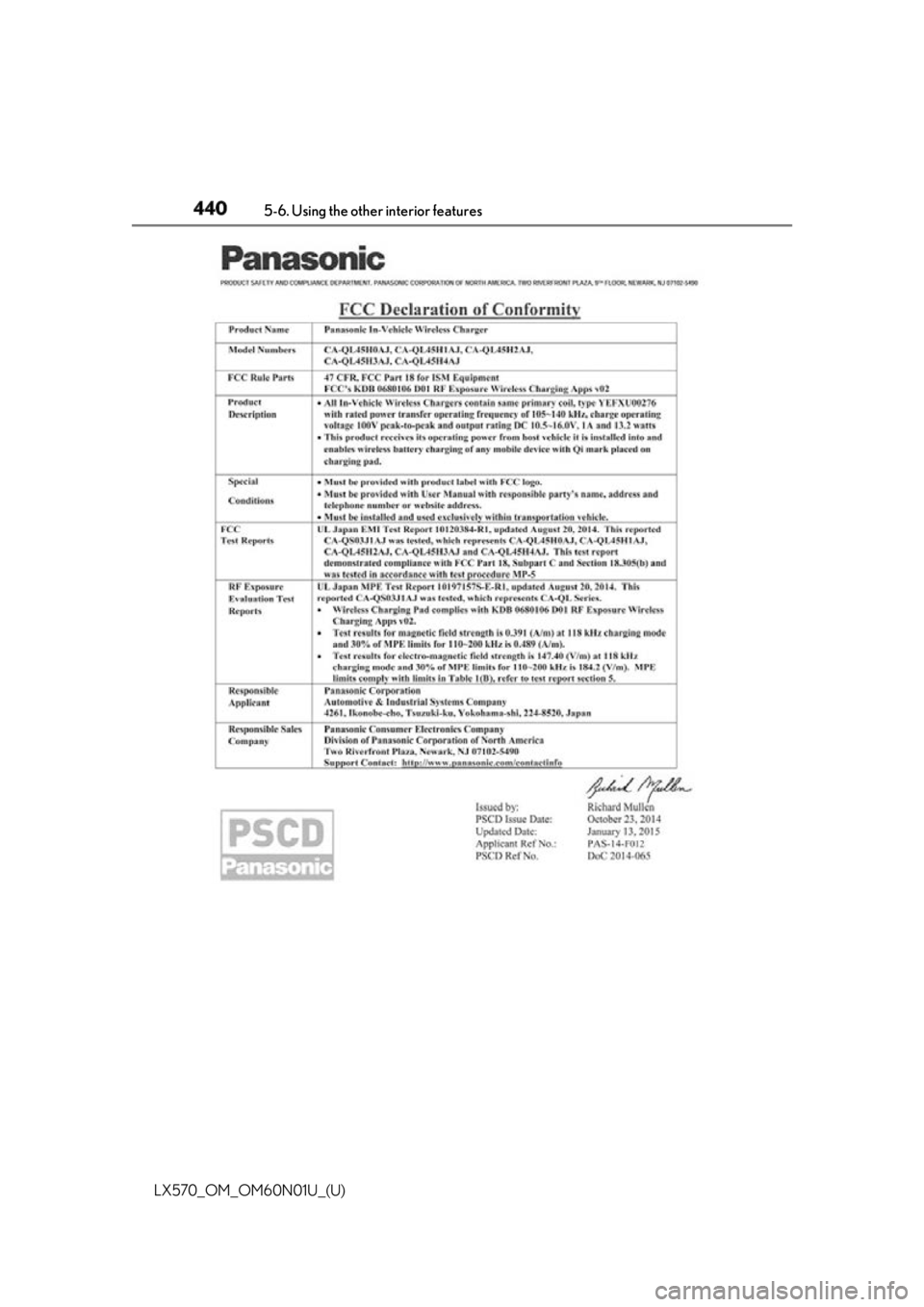

Certification for the wireless charger

440
