LEXUS NX300h 2015 Owners Manual

4215-12. Other function
5
Lexus Display Audio system
NX300h_U_OM78007U ■
USB memory functions
 P. 3 7 8 ■
USB memory ●
Compatible devices
USB memory device that can be used for JPEG display. ●
Compatible device formats
The following device format can be used:
• USB communication format: USB2.0 FS (480 Mbps)
• File system format: FAT16/32 (Windows)
• Correspondence class: Mass storage class ●
JPEG file compatibility
• Compatible image size: Maximum 10MB
• Compatible pixel size: Maximum 10,000,000 pixels
NOTICE ■
To prevent damage to the USB memory device or its terminals
 P. 3 8 0

422 5-12. Other function
NX300h_U_OM78007UWeather information Go to “Weather”: “MENU” button  “Info”  “Weather”
Select the desired city/location.
Current location of your car
Select of the recently checked loca-
tion list Select the desired location on the
recently checked location list.
Select of the National City list. Select the region on the region list and
then select the city on the National City
list.
Select of the local location list Select the location on th e local location list.
Select the time
Display the current weather infor-
mation.
Display the 3 days weather informa-
tion. You can display detail of a week, move
the controller right and then select the
desired week.
Display the 6/12 hour weather information.Weather information for the selected city is displayed.
Available when in weather supported HD Radio coverage area
How to check the weather information 1
2
1
2
3
4
3
1
2
3

4235-12. Other function
5
Lexus Display Audio system
NX300h_U_OM78007UVoice command system Press the talk switch. To cancel the voice command system,
press and hold the talk switch.
After a beep sounds, say the desired
command. On the list screen, you can select the
desired command.
■
Menu screen
To display the menu screen, move
the controller to the left.
Offer examples of commands
and operation methods
Adjust the settings for voice guid-
ance volume and voice recogni-
tion prompts. (“Hints” screen)
(  P. 3 5 1 )
Start over voice recognition (except “Hints” screen)
Cancel voice recognition ■
Microphone
 P. 3 9 3 ■
When using the microphone ●
It is unnecessary to speak directly into the microphone when giving a command.●
Wait for the confirmation beep before speaking a command.The voice command system enables the audio and hands-free systems to be
operated using voice commands.
Operations of the voice command system can be performed by selecting the
menu corresponding to each function on the right part of the screen. Even if
any menu is selected, commands displayed on all menus can be operated.
Using the voice command system 1
2
1
2
3
4

424 5-12. Other function
NX300h_U_OM78007U ●
Voice commands may not be recognized if:
• Spoken too quickly.
• Spoken at a low or high volume.
• The roof or windows are open.
• Passengers are talking while voice commands are spoken.
• The air conditioning speed is set high.
• The air conditioning vents are turned towards the microphone. ●
In the following conditions, the system ma y not recognize the command properly and
using voice commands may not be possible:
• The command is incorrect or unclear. No te that certain words, accents or speech
patterns may be difficult for the system to recognize.
• There is excessive background noise, such as wind noise. ■
When searching for a track ●
A USB memory or iPod must be connected to enable track searching and playback.
(  P. 3 4 5 ) ●
When a USB memory or iPod is connected, recognition data is created so tracks can
be searched using voice commands. ●
Recognition data is updated un der the following conditions:
• When the USB memory or iPod data has changed.
• When the voice recognition language is changed. (  P. 3 4 8 )●
While the recognition data is being created or being updated, a track search cannot be
performed using a voice command. ■
The Gracenote ®
media database
 P. 3 7 1
Due to natural language speech recognitio n technology, this system enables rec-
ognition of a command when spoken naturally. However, the system cannot rec-
ognize every variation of each command.
In some situations, it is possible to omit the command for the procedure and
directly state the desired operation.
This function is available in English, Spanish and French.Casual speech recognition

4255-12. Other function
5
Lexus Display Audio system
NX300h_U_OM78007U ■

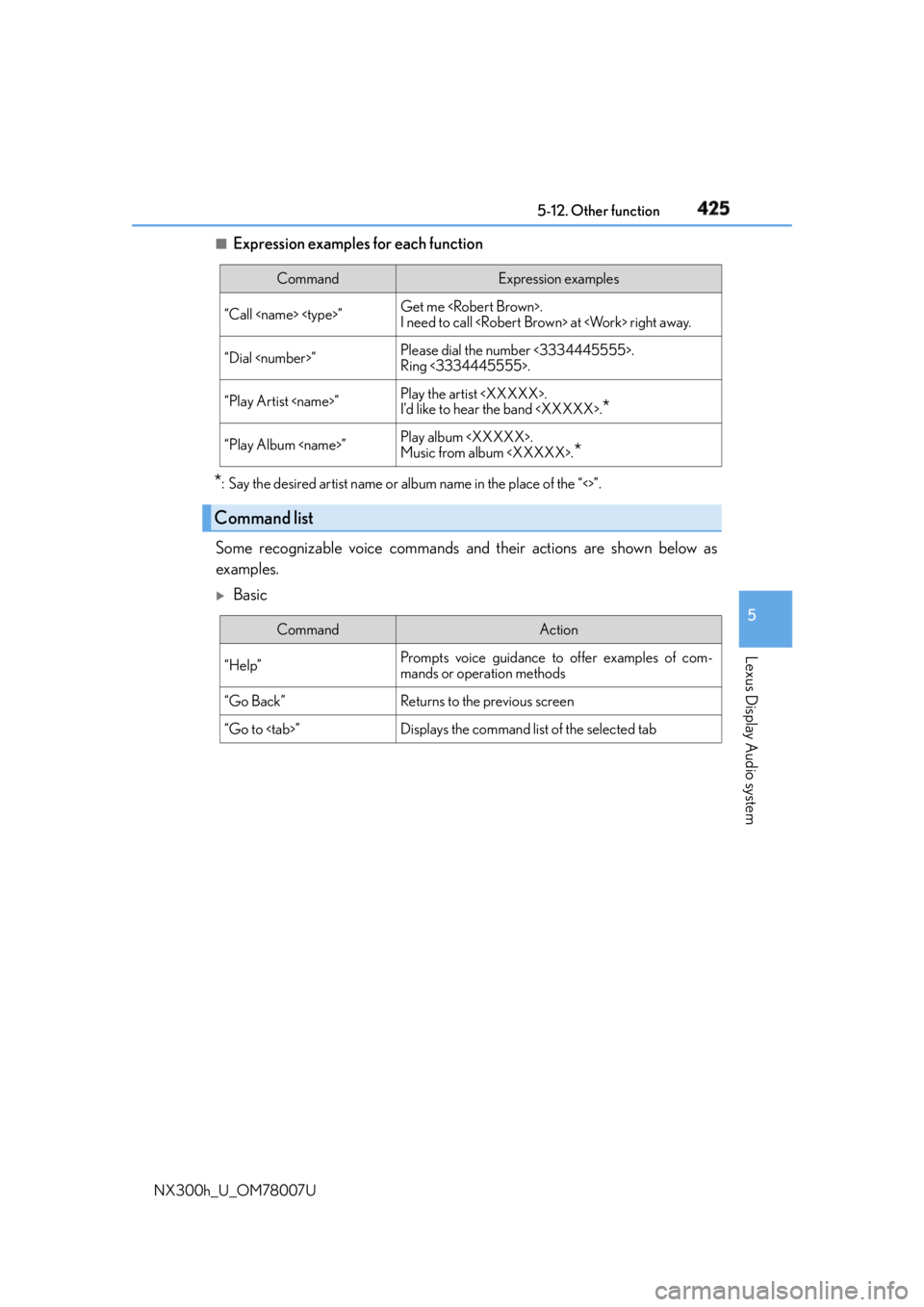

Expression examples for each function
* : Say the desired artist name or al bum name in the place of the “<>”.
Some recognizable voice commands an d their actions are shown below as
examples. 
Basic Command Expression examples
“Call ” Get me .
I need to call at right away.
“Dial ” Please dial the number <3334445555>.
Ring <3334445555>.
“Play Artist ” Play the artist .
I’d like to hear the band .
*“Play Album ” Play album .
Music from album .
*
Command list Command Action
“Help” Prompts voice guidance to offer examples of com-
mands or operation methods
“Go Back” Returns to the previous screen
“Go to ” Displays the command list of the selected tab

426 5-12. Other function
NX300h_U_OM78007U 

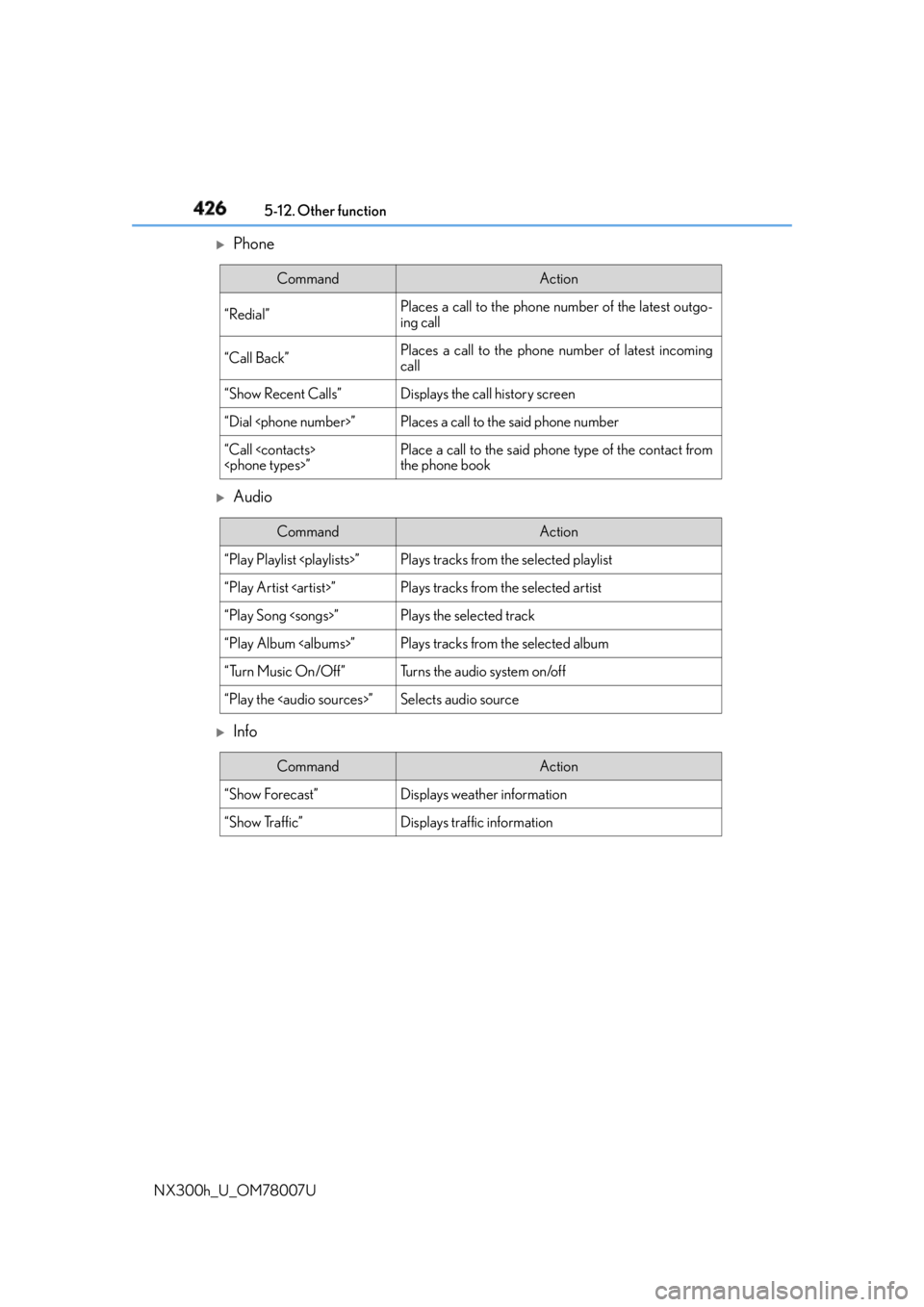

Phone 
Audio 
Info Command Action
“Redial” Places a call to the phone nu mber of the latest outgo-
ing call
“Call Back” Places a call to the phone number of latest incoming
call
“Show Recent Calls” Displays the call history screen
“Dial ” Places a call to the said phone number
“Call
” Place a call to the said phone type of the contact from
the phone book
Command Action
“Play Playlist ” Plays tracks from the selected playlist
“Play Artist ” Plays tracks from the selected artist
“Play Song ” Plays the selected track
“Play Album ” Plays tracks from the selected album
“Turn Music On/Off” Turns the audio system on/off
“Play the

4275-12. Other function
5
Lexus Display Audio system
NX300h_U_OM78007ULEXUS Enform Remote 
After you sign the Telematics Subscription Service Agreement, download the
Lexus Enform Remote app from your cellular phone’s app store, and register
within the app (or enroll and complete registration at the dealer), you can begin
using these services. (  P. 4 7 7 )
A variety of subscription terms are available. Contact your Lexus dealer, or call 1-
800-25-LEXUS (1-800-255-3987) fo r further subscription details.
 : If equippedLexus Enform Remote is a cellular phone application that lets you view and
remotely control certain aspects of your vehicle.
For details about the functions and serv ices of this application, refer to
http://www.lexus.com/enform/
.
Function of the Lexus Enform Remote is achieved by using an embedded cel-
lular device in the vehicle (D CM: Data Communication Module).
Subscription

428 5-12. Other function
NX300h_U_OM78007U ■
Availability of service
Lexus Enform Remote is available in the cont iguous United States, Washington D.C. and
Alaska. ■
Lexus Enform Remote Information ●
Lexus Enform Remote should only be used by authorized users. ●
Laws in some communities may require that the vehicle be within view of the user when
operating Lexus Enform Remote.
In some states, use of Lexus Enform Remote may violate state or local laws. Before
using Lexus Enform Remote, check your state and local laws. ●
Any malfunction of the Lexus should be repaired by your Lexus dealer.●
Lexus Enform Remote is designed to work at temperatures above -22  F (-30  C). This
specification is related to the Lexus Enform Remote operation, but is dependent on the
vehicle’s operating temperature range which may be different. ●
Content is subject to change without notice. ●
Some features of the Lexus Enform Remote may not be available on some models.●
Additional information can be found at www.lexus.com/enform/ .●
Availability of functions of the Lexus Enform service is dependent on network reception
level. ■
Safety information for Lexus Enform Remote
Refer to safety information for Safety Connect:  P. 4 8 1

429
6Interior features
NX300h_U_OM78007U 6-1. Using the air conditioning
system and defogger
Automatic air conditioning
system ......................................... 430
Heated steering wheel/
seat heaters/
seat ventilators......................... 440
6-2. Using the interior lights
Interior lights list..........................443
• Front interior light ................444
• Personal lights........................444
• Rear interior light ................. 445 6-3. Using the storage features
List of storage features ............ 446
• Glove box ............................... 447
• Console box........................... 447
•Cup holders/
bottle holders.........................448
• Sunglass holder .................... 449
Luggage compartment
features........................................ 450
6-4. Other interior features
Other interior features ............ 455
• Sun visors ................................ 455
• Vanity mirrors ........................ 455
• Clock ........................................ 456
• Power outlet (12 VDC)...... 456
• Power outlet (120 VAC) ... 457
• Wireless charger .................. 458
• Armrest .................................... 465
• Assist grips.............................. 465
• Coat hooks ............................. 466
Garage door opener................ 467
Compass ........................................473
Safety Connect ............................477

430 6-1. Using the air conditioning system and defogger
NX300h_U_OM78007UAutomatic air conditioning system Air outlets and fan speed are automatica lly adjusted according to the temper-
ature setting.
Vehicles with a Lexus Display Audio sy stem: Press the “MENU” button on the
Lexus Display Audio controller, then select “Climate” to display the air condi-
tioning control screen.
For details on the Lexus Display Audio controller, refer to “Lexus Display
Audio controller” on P. 338.
Vehicles with a navigati on system: Press the “MENU” button on the Remote
Touch, then select “Climate” to display the air conditioning control screen.
For details on the Remote Touch, refer to the “NAVIGATION SYSTEM
OWNER’S MANUAL”.
