LEXUS NX300h 2018 Owners Manual

2915-5. Using the other interior features
LEXUS NX300h Owners Manu-
al_USA_OM78212U 5
Interior features ■
Name for all parts
Power supply switch
Operation indicator light
Charge area ■
Using the wireless charger
1 Open the console box. ( → P.282)
2 Press the power supply switch of
the wireless charger.Switches on and off with each press of the
power supply switch.
When turned on, the operation indicator
light (green) comes on.
Even with the hybrid system off, the on/off
state of the power supp ly switch is memo-
rized. 3 Place the charging side of the por-
table device down. When charging, the operation indicator
light (orange) comes on.
If charging is not occurring, try placing the
portable device as close to the center of
the charging area as possible.
When charging is complete, the operation
indicator light (green) comes on.
 Recharging function
• When charging is complete and
after a fixed time in the charge sus-
pension state, ch arging restarts.
• When the portable device is moved,
charging is stopped for a moment
and then it restarts.A
B
C

292 5-5. Using the other interior features
LEXUS NX300h Owners Manu-
al_USA_OM78212U ■
Lighting conditions of operation
indicator light
*
: Depending on the portable device, there
are cases where the operation indicator
light will continue being lit up orange
even after the char ging is complete.
 When the operation indicator light
flashes When an error occurs , the operation indi-
cator light flashes an orange color. Handle
the error based on the following tables.
• Flashing repeatedly once every second
(Orange)
• Repeatedly flashes 3 times continuously
(Orange) • Repeatedly flashes 4 times continuously
(Orange)
■
The wireless charger can be operated
when
The power switch is in ACCESSORY or
ON mode. ■
Usable portable devices ●
Qi standard wireless charge standard
can be used on compatible devices.
However, not all Qi standard devices and
compatibility ar e guaranteed.●
Starting with mobile phones and smart
phones, it is aimed for low power electri-
cally supplied portable devices of no
more than 5W.
■
When covers and accessories are
attached to po rtable devices
Do not charge in situations where cover
and accessories not able to handle Qi are
attached to the portable device. Depending
on the type of cover and accessory, it may
not be possible to charge. When charging is
not performed even with the portable
device placed on the charge area, remove
the cover and accessories.Operation
indicator
light Conditions
Turning off When the Wireless charger
power supply is off
Green
(comes on) On Standby (charging pos-
sible state)
When charging is complete *
Orange
(comes on) When placing the portable
device on the charging area
(detecting the portable
device)
Charging
Suspected causes Handling method
Vehicle to charger
communication fail-
ure. Contact your Lexus
dealer. Suspected causes Handling method
A foreign substance
is between the por-
table device and
charge area. Remove the foreign
substance from
between portable
device and the
charge area.
The portable device
is out of sync due to
the device being
shifted from the cen-
ter of the charge
area. Place the portable
device near the cen-
ter of the charge
area.
Suspected causes Handling method
Temperature rising
within the wireless
charger. Stop charging at
once and start
charging again after
for a while.

2935-5. Using the other interior features
LEXUS NX300h Owners Manu-
al_USA_OM78212U 5
Interior features ■
While charging, noise enters the AM
radio
Turn off the wireless charger and confirm
that the noise has decreased. If the noise
decreases, continuously pushing the power
supply switch of the wireless charger for 2
seconds, the frequency of the charger can
be changed and the noise can be reduced.
Also, on that occasion, the operation indi-
cator light will flash orange 2 times. ■
Important points of the wireless charger●
If the electronic key cannot be detected
within the vehicle interior, charging can-
not be done. When the door is opened
and closed, charging may be temporarily
suspended.●
When charging, the wireless charging
device and portable device will get
warmer, however this is not a malfunction.
When a portable device gets warm while
charging, charging may stop due to the protection function on the portable
device side. In this case, when the tem-
perature of the port able device drops
significantly, charge again. ■
Operation sounds
When the power supply is turned on, while
searching for the portable device a sound
will be produced, however this is not a mal-
function. ■

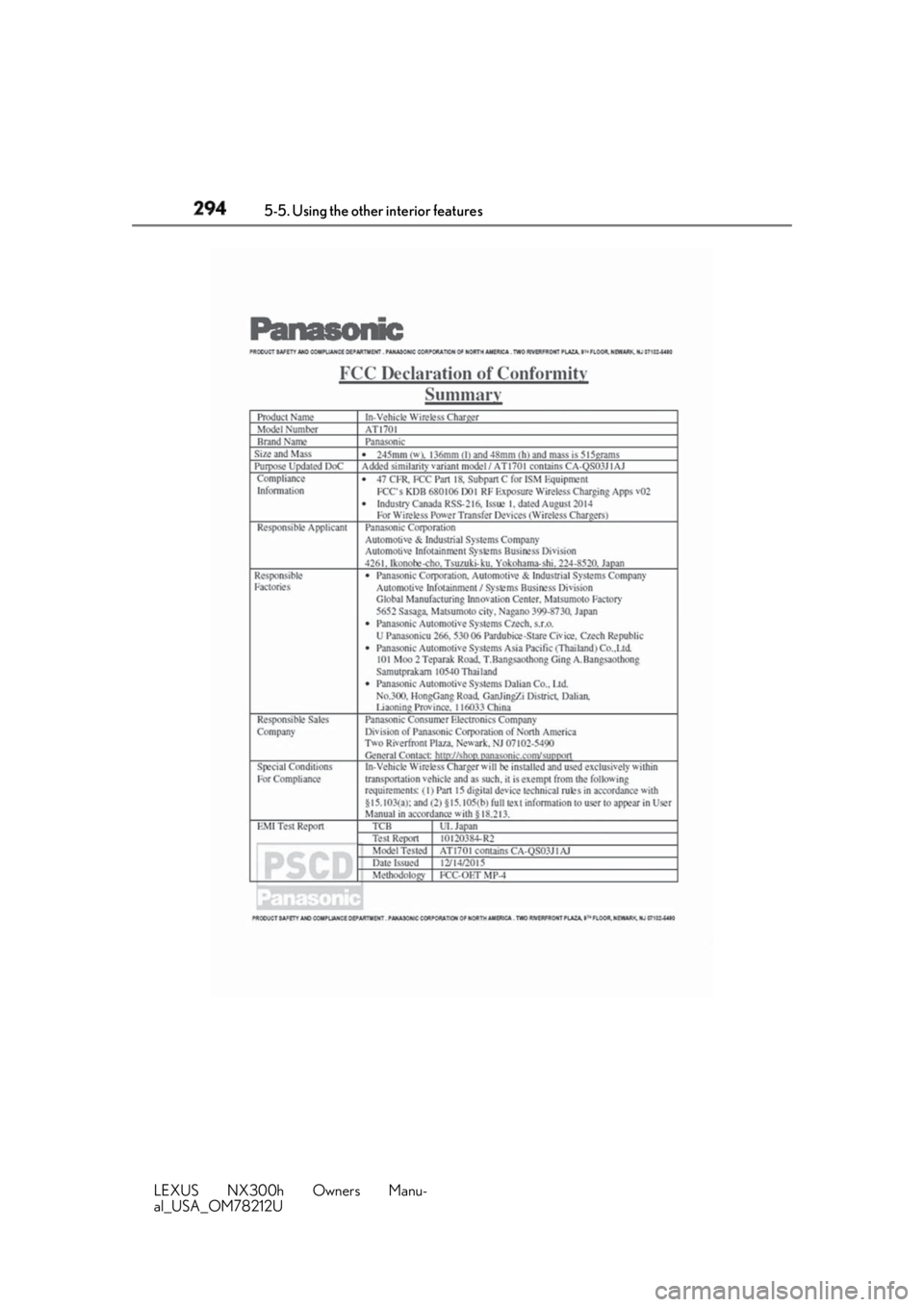

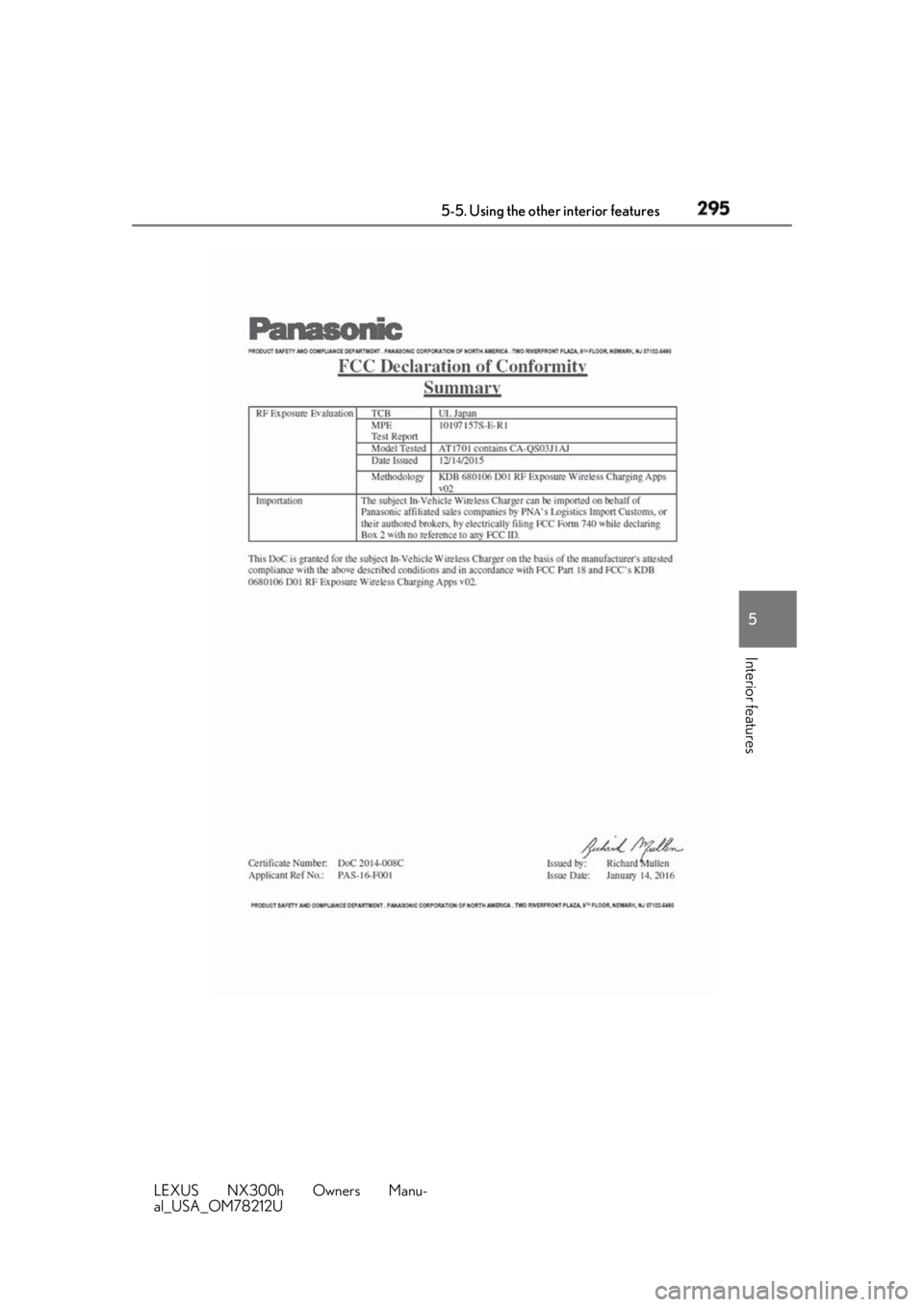

Certification for the wireless charger
FCC Note: This equipment has been tested
and found to comply with Part 18 of the
FCC Rules. These limits are designed to
provide reasonable protection against
harmful interference in a residential installa-
tion.
FCC Caution: Any changes or modifica-
tions not expressly approved by the party
responsible for compliance could void the
user’s authority to operate this equipment.

294 5-5. Using the other interior features
LEXUS NX300h Owners Manu-
al_USA_OM78212U

2955-5. Using the other interior features
LEXUS NX300h Owners Manu-
al_USA_OM78212U 5
Interior features

296 5-5. Using the other interior features
LEXUS NX300h Owners Manu-
al_USA_OM78212U WARNING■
Caution while driving
When charging a portable device, for
safety reasons, the driver should not
operate the main the part of the portable
device while driving. ■
Caution regarding interference with
electronic devices
People with implantable cardiac pace-
makers, cardiac resy nchronization ther-
apy-pacemakers or implantable
cardioverter defibrillators, as well as any
other electrical medical device, should
consult their physician about the usage of
the wireless charger.
The operations of the wireless charger
may have an affect on medical devices. ■
To prevent damage or burns
Observe the following precautions.
Failure to do so may result in a possibility
of equipment failure and damage, catch
fire, burns due to overheat. ●
Do not insert any metallic objects
between the charging area and the
portable device while charging●
Do not attach stickers, metallic
objects, etc., to the charger area or
portable device
●
Do not cover with cloth, etc., and
charge
●
Do not charge portable devices other
than designated
●
Do not attempt to dismantle for disas-
sembly or modifications
●
Do not hit or apply a strong force
NOTICE
■
Conditions in which the function may
not operate correctly
In the following conditions, it may not
operate correctly
●
The portable device is fully charged ●
There is foreign matter between the
charge area and portable device ●
The temperature of the portable
device gets higher from charging ●
The charging surface of the portable
device is facing up ●
The placement of the portable device
is out of alignmen t with the charge
area ●
Near a TV tower, electric power plant,
gas station, radio stat ion, large display,
airport or other fac ility that generates
strong radio waves or electrical noise ●
When the electronic key is in contact
with, or is covered by the following
metallic objects
• Cards to which aluminum foil is
attached
• Cigarette boxes that have aluminum
foil inside
• Metallic wallets or bags
•Coins
• Hand warmers made of metal
• Media such as CDs and DVDs ●
When other wireless keys (that emit
radio waves) are being used nearby
In addition, excluding the above-men-
tioned, when the charger does not per-
form normally or the operation display
lamp is flashing continuously, it is consid-
ered that the wirele ss charger is malfunc-
tioning. Contact your Lexus dealer.
■
To prevent failure or damage to data
●
Do not bring magnetic cards, such as
credit cards, or magnetic recording
media, etc., close to the charger while
charging, otherwise, data may disap-
pear under the in fluence of magne-
tism. Also, do not bring precision
instruments such as wrist watches, etc.,
close to the charger, as such objects
may break.

2975-5. Using the other interior features
LEXUS NX300h Owners Manu-
al_USA_OM78212U 5
Interior features Fold down the armrest for use.
An assist grip installed on the ceiling
can be used to support your body
while sitting on the seat. NOTICE●
Do not leave portab le devices in the
cabin. The temperature inside the
cabin may become high, when under
the sun, and cause damage to the
device.■
To prevent 12-volt battery discharge
When the hybrid system is stopped, do
not use the wireless charger for a long
time.
Armrest
NOTICE■
To prevent damage to the armrest
Do not apply too much load on the arm-
rest.
Assist grips WARNING■
Assist grips
Do not use the assist grip when getting in
or out of the vehicle or rising from your
seat.
NOTICE■
To prevent damage to the assist grip
Do not hang any heavy object or put a
heavy load on the assist grip.

298 5-5. Using the other interior features
LEXUS NX300h Owners Manu-
al_USA_OM78212U *
:If equipped
The HomeLink ®
wireless control sys-
tem in your vehicle has 3 buttons which
can be programmed to operate 3 dif-
ferent devices. Refer to the program-
ming methods on the following pages
to determine the method which is
appropriate for the device. HomeLink ®
indicator light
Garage door operation indicators
Buttons ■
Codes stored in the HomeLink ®
mem-
ory ●
The registered codes are not erased even
if the battery cable is disconnected.●
If learning failed when registering a dif-
ferent code to a HomeLink ®
button that
already has a code registered to it, the
already registered code will not be
erased.■
Certification for the garage door opener 
For vehicles sold in the U.S.A.Garage door opener *
The garage door opener can be
programmed using the Home-
Link ®
to operate garage doors,
gates, entry doors, door locks,
home lighting systems, security sys-
tems, and other devices.
System components A
B
C

2995-5. Using the other interior features
LEXUS NX300h Owners Manu-
al_USA_OM78212U 5
Interior features 
For vehicles sold in Canada
■
When support is necessary
Visit on the web at www.homelink.com/
lexus or call 1-800-355-3515. ■
Before programming the Home-
Link ®
 During programming, it is possible
that garage doors, gates, or other
devices may operate. For this rea-
son, make sure that people and
objects are clear of the garage door
or other devices to prevent injury or
other potential harm.
 It is recommended that a new bat-
tery be placed in the remote control
transmitter for more accurate pro-
gramming.
 Garage door opener motors manu-
factured after 1995 may be
equipped with rolling code protec-
tion. If this is the case, you may need
a stepladder or other sturdy, safe
device to reach the “learn” or
“smart” button on the garage door
opener motor. ■
Programming the HomeLink ®
Steps 1 through 3 must be performed WARNING■
When programming a garage door or
other remote control device
The garage door or other device may
operate, so ensure people and objects
are out of danger to prevent potential
harm. ■
Conforming to federal safety stan-
dards
Do not use the HomeLink ®
compatible
transceiver with any garage door opener
or device that lacks safety stop and
reverse features as required by federal
safety standards.
This includes any garage door that can-
not detect an interfering object. A door
or device without these features
increases the risk of death or serious
injury.
■
When operating or programming
HomeLink ®
Never allow a child to operate or play
with the HomeLink ®
buttons. Programming the HomeLink ®

300 5-5. Using the other interior features
LEXUS NX300h Owners Manu-
al_USA_OM78212U within 60 seconds, otherwise the indi-
cator light will stop flashing and pro-
gramming will not be able to be
completed.
1 Press and release the HomeLink ®

button you want to program and
check that the HomeLink ®
indica-
tor light flashes orange.
2 Point the remote control transmit-
ter for the device at the rear view
mirror, 1 to 3 in. (25 to 75 mm)
from the HomeLink ®
buttons.Keep the HomeLink ®
indicator light in
view while programming.
3 Program a device.

Programming a device other than
an entry gate (for U.S.A. owners) Press and hold the remote control trans-
mitter button until the HomeLink ®
indica-
tor light changes from slowly flashing
orange to rapidly flashing green (rolling
code) or continuously lit green (fixed
code), then release the button. 
Programming an entry gate (for
U.S.A. owners)/Programming a
device in the Canadian market Press and release the remote control trans-
mitter button at 2 second intervals, repeat-
edly, until the HomeLink ®
indicator light
changes from slowly flashing orange to
rapidly flashing green (rolling code) or
continuously lit green (fixed code).
4 Test the HomeLink ®
operation by
pressing the newly programmed
button and observing the indicator
light:
 Indicator light illuminates: Program-
ming of a fixed code device has
completed. The garage door or
other device should operate when a
HomeLink ®
button is pressed and
released.
 Indicator light flashes rapidly: The
garage door opener motor or other
device is equipped with a rolling
code. To complete programming,
firmly press and hold the Home-
Link ®
button for 2 seconds then
release it.
 If the garage door or other device
does not operate, proceed to “Pro-
gramming a rolling code system”.
