Maintenance and care Luggage compartment Items Check points
12-volt battery Check the connections.
( → P.333)
Vehicle interior Items Check points
Accelerator
pedal • The accelerator pedal
should move smoothly
(without uneven pedal
effort or catching).
Brake pedal • Does the brake pedal
move smoothly?
• Does the brake pedal
have appropriate clear-
ance from the floor?
• Does the brake pedal
have the correct amount
of free play?
Brakes •The vehicle should not
pull to one side when the
brakes are applied.
• The brakes should work
effectively.
• The brake pedal should
not feel spongy.
• The brake pedal should
not get too close to the
floor when the brakes
are applied.
Head
restraints • Do the head restraints
move smoothly and lock
securely?
Hybrid trans-
mission “Park”
mechanism • When parked on a slope
and the shift lever is in P,
is the vehicle securely
stopped? Indicators/
buzzers • Do the indicators and
buzzers function prop-
erly?
Lights • Do all the lights come
on?
Parking brake • Does the parking brake
switch operate nor-
mally?
• When parked on a slope
and the parking brake is
on, is the vehicle
securely stopped?
Seat belts • Do the seat belts oper-
ate smoothly?
• The seat belts should not
be damaged.
Seats • Do the seat controls
operate properly?
Steering
wheel • Does the steering wheel
rotate smoothly?
• Does the steering wheel
have the correct amount
of free play?
• There should not be any
strange sounds coming
from the steering wheel.
Vehicle exterior Items Check points
Doors • Do the doors operate
smoothly?
Engine hood • Does the engine hood
lock system work prop-
erly?Items Check points

322 6-2. Maintenance
LEXUS NX300h Owners Manu-
al_USA_OM78212U The OBD system determines that a
problem exists somewhere in the emis-
sion control system. Your vehicle may
not pass the I/M test and may need to
be repaired. Contact your Lexus
dealer to service the vehicle.
 When the 12-volt battery is discon-
nected or discharged
Readiness codes that are set during
ordinary driving are erased.
Also, depending on your driving
habits, the readiness codes may not
be completely set.
 When the fuel tank cap is loose
The malfunction indicator lamp
comes on indicating a temporary
malfunction and your vehicle may
not pass the I/M test.Fluid leaks • There should not be any
signs of fluid leakage
after the vehicle has
been parked.
Tires • Is the tire inflation pres-
sure correct?
• The tires should not be
damaged or excessively
worn.
• Have the tires been
rotated according to the
maintenance schedule?
• The wheel nuts should
not be loose.
Windshield
wipers/
rear window
wiper •The wiper blades should
not show any signs of
cracking, splitting, wear,
contamination or defor-
mation.
•The wiper blades should
clear the windshield/
rear window without
streaking or skipping.Items Check points
Emission inspection and
maintenance (I/M) pro-
grams Some states have vehicle emission
inspection programs which include
OBD (On Board Diagnostics)
checks. The OBD system monitors
the operation of the emission con-
trol system.
If the malfunction indicator lamp
comes on
Your vehicle may not pass the I/
M test in the following situations:

3236-2. Maintenance
LEXUS NX300h Owners Manu-
al_USA_OM78212U 6
Maintenance and care The error code in the OBD system will
not be cleared unless the vehicle is
driven 40 or more times.
Contact your Lexus dealer to prepare
the vehicle for re-testing.When the malfunction indicator
lamp still remains on after sev-
eral driving trips
If your vehicle does not pass the
I/M test

324 6-3. Do-it-yourself maintenance
LEXUS NX300h Owners Manu-
al_USA_OM78212U 6-3.Do-it-yourself maintenance
Do-it-yourself service pre-
cautions If you perform maintenance by
yourself, be sure to follow the cor-
rect procedure as given in these
sections.
Maintenance Items Parts and tools
12-volt Bat-
tery condition
( → P.333) •Grease
•Conventional wrench
(for terminal clamp
bolts)
Brake fluid
level
( → P.332) • FMVSS No.116 DOT 3
or SAE J1703 brake
fluid
• Rag or paper towel
• Funnel (used only for
adding brake fluid)
Engine/power
control unit
coolant level
( → P.330) • “Toyota Super Long Life
Coolant” or a similar
high quality ethylene gly-
col-based non-silicate,
non-amine, non-nitrite
and non-borate coolant
with long-life hybrid
organic acid technology
For the U.S.A.:
“Toyota Super Long Life
Coolant” is pre-mixed
with 50% coolant and
50% deionized water.
For Canada:
“Toyota Super Long Life
Coolant” is pre-mixed
with 55% coolant and
45% deionized water.
• Funnel (used only for
adding coolant) Engine oil
level
( → P.328) •“Toyota Genuine Motor
Oil” or equivalent
• Rag or paper towel
• Funnel (used only for
adding engine oil)
Fuses
( → P.349) • Fuse with same amper-
age rating as original
Light bulbs
( → P.353) •Bulb with same number
and wattage rating as
original
Headlight aim • Phillips-head screw-
driver
Radiator and
condenser
( → P.331) —
Tire inflation
pressure
( → P.343) • Tire pressure gauge
• Compressed air source
Washer fluid
( → P.332) • Water or washer fluid
containing antifreeze
(for winter use)
• Funnel (used only for
adding water or washer
fluid)
WARNING
The engine compartment contains many
mechanisms and fluids that may move
suddenly, become hot, or become elec-
trically energized. To avoid death or seri-
ous injury, observe the following
precautions.
■
When working on the engine com-
partment
●
Make sure that the indicator on the
power switch and the “READY” indi-
cator are both off.
●
Keep hands, clothing and tools away
from the moving fan and engine drive
belt. Items Parts and tools

3256-3. Do-it-yourself maintenance
LEXUS NX300h Owners Manu-
al_USA_OM78212U 6
Maintenance and care 1 Pull the hood lock release lever. The hood will pop up slightly.
2 Pull up the auxiliary catch lever and
lift the hood.WARNING●
Be careful not to touch the engine,
power control unit, radiator, exhaust
manifold, etc. right after driving as they
may be hot. Oil and other fluids may
also be hot.●
Do not leave anything that may burn
easily, such as paper and rags, in the
engine compartment.●
Do not smoke, cause sparks or expose
an open flame to fuel. Fuel fumes are
flammable.■
When working near the electric cool-
ing fans or radiator grille
Be sure the power switch is off.
With power switch in ON mode, the
electric cooling fans may automatically
start to run if the air conditioning is on
and/or the coolant temperature is high.
( → P.331)■
Safety glasses
Wear safety glasses to prevent flying or
falling material, fluid spray, etc. from get-
ting in your eyes.
NOTICE■
If you remove the air cleaner filter
Driving with the air cleaner filter
removed may cause excessive engine
wear due to dirt in the air. Hood
Opening the hood
WARNING
■
Pre-driving check
Check that the hood is fully closed and
locked.
If the hood is not locked properly, it may
open while the vehicle is in motion and
cause an accident, which may result in
death or serious injury.

326 6-3. Do-it-yourself maintenance
LEXUS NX300h Owners Manu-
al_USA_OM78212U ■
Front ■
Rear
1 Remove the cover.
Remove the bolt
Remove the cover
2 Raising your vehicle with a floor

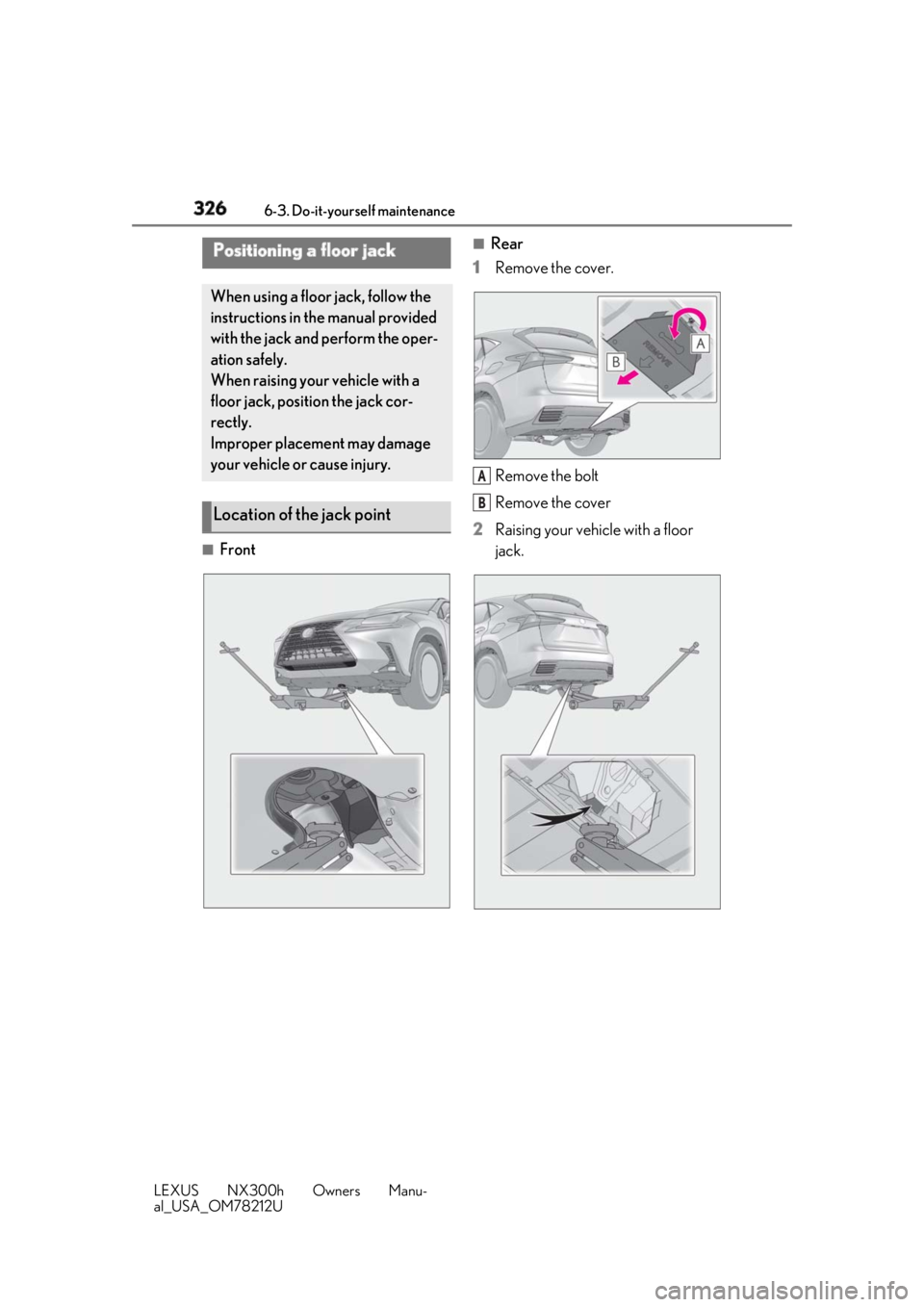

jack.Positioning a floor jack When using a floor jack, follow the
instructions in the manual provided
with the jack and perform the oper-
ation safely.
When raising your vehicle with a
floor jack, position the jack cor-
rectly.
Improper placement may damage
your vehicle or cause injury.
Location of the jack point A
B

3276-3. Do-it-yourself maintenance
LEXUS NX300h Owners Manu-
al_USA_OM78212U 6
Maintenance and care
Fuse box ( → P.349)
Engine coolant reservoir ( → P.330)
Engine oil filler cap ( → P.329)
Power control unit coolant reservoir ( → P.331)
Brake fluid reservoir ( → P.332)
Radiator ( → P.331)
Condenser ( → P.331)
Electric cooling fans
Engine oil level dipstick ( → P.328)
Washer fluid tank ( → P.332)■
12-volt battery
→ P.333Engine compartment
Components
A
B
C
D
E
F
G
H
I
J

328 6-3. Do-it-yourself maintenance
LEXUS NX300h Owners Manu-
al_USA_OM78212U ■
Removing the engine compart-
ment cover
■
Installing the clips
1 Insert
2 Press With the engine at operating tempera-
ture and turned off, check the oil level
on the dipstick. ■
Checking the engine oil
1 Park the vehicle on level ground.
After warming up the hybrid sys-
tem, and turning off the engine, wait
more than 5 minutes for the oil to
drain back into the bottom of the
engine.
2 Holding a rag under the end, pull
the dipstick out.
3 Wipe the dipstick clean.
4 Reinsert the dipstick fully with its
protruding areas ( in the illustra-
tion) pointing towards engine.Engine compartment cover
NOTICE
■
After installing an engine compart-
ment cover
Make sure that the cover is securely
installed in its original position. Checking and adding the engine
oil
A

3296-3. Do-it-yourself maintenance
LEXUS NX300h Owners Manu-
al_USA_OM78212U 6
Maintenance and care 5 Holding a rag under the end, pull
the dipstick out and check the oil
level.
Low
Normal
Excessive
Measuring side
6 Wipe the dipstick and reinsert it
fully. ■
Checking the oil type and prepar-
ing the items needed
Make sure to check the oil type and
prepare the items needed before add-
ing oil.
 Engine oil selection → P.402
 Oil quantity (Low Full) 1.6 qt. (1.5 L, 1.3 Imp.qt.)
 Items Clean funnel
■
Adding engine oil
If the oil level is below or near the low
level mark, add engine oil of the same
type as that already in the engine. 1 Remove the oil filler cap by turning
it counterclockwise.
2 Add engine oil slowly, checking the
dipstick.
3 Install the oil filler cap by turning it
clockwise. ■
Engine oil consumption
A certain amount of engine oil will be con-
sumed while driving. In the following situa-
tions, oil consumption may increase, and
engine oil may need to be refilled in
between oil maintenance intervals. ●
When the engine is new, for example
directly after purchasing the vehicle or
after replacing the engine ●
If low quality oil or oil of an inappropriate
viscosity is used ●
When driving at high engine speeds or
with a heavy load, when towing, or when
driving while accelera ting or decelerat-
ing frequently ●
When leaving the engine idling for a long
time, or when driving frequently through
heavy traffic
■
After changing the engine oil
The engine oil maintenance data should be
reset. Perform the fo llowing procedures:
1 Press or of the meter control
switches and select .A
B
C
D

330 6-3. Do-it-yourself maintenance
LEXUS NX300h Owners Manu-
al_USA_OM78212U 2 Press or of the meter control
switches, sele ct the “Vehicle Settings”
and then press .
3 Press or of the meter control
switch, select the “Oil Maintenance”
and then press and hold .
4 Select the “Yes” and push .
“The Data Has Been Reset” is displayed
on the multi-information display.

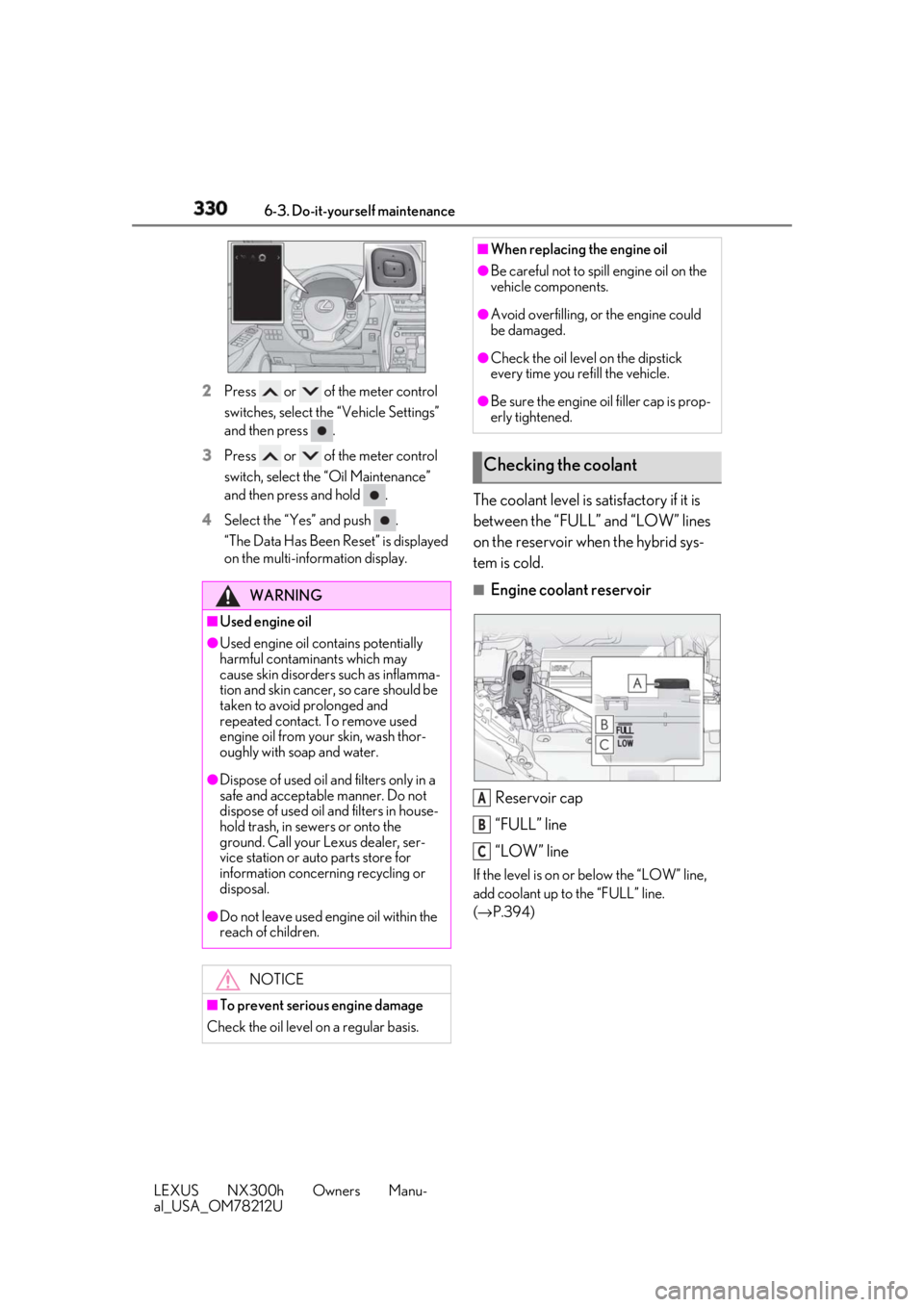

The coolant level is satisfactory if it is
between the “FULL” and “LOW” lines
on the reservoir when the hybrid sys-
tem is cold. ■
Engine coolant reservoir
Reservoir cap
“FULL” line
“LOW” line If the level is on or below the “LOW” line,
add coolant up to the “FULL” line.
( → P.394)WARNING■
Used engine oil●
Used engine oil contains potentially
harmful contaminants which may
cause skin disorders such as inflamma-
tion and skin cancer, so care should be
taken to avoid prolonged and
repeated contact. To remove used
engine oil from your skin, wash thor-
oughly with soap and water.
●
Dispose of used oil and filters only in a
safe and acceptable manner. Do not
dispose of used oil and filters in house-
hold trash, in sewers or onto the
ground. Call your Lexus dealer, ser-
vice station or auto parts store for
information concerning recycling or
disposal.
●
Do not leave used engine oil within the
reach of children.
NOTICE
■
To prevent serious engine damage
Check the oil level on a regular basis. ■
When replacing the engine oil ●
Be careful not to spill engine oil on the
vehicle components. ●
Avoid overfilling, or the engine could
be damaged. ●
Check the oil level on the dipstick
every time you re fill the vehicle.●
Be sure the engine o il filler cap is prop-
erly tightened.
Checking the coolant
A
B
C
