LEXUS RC350 2023 User Guide

10
RC350 AWD_RC350_RC300 AWD_RC300_QG_(U)

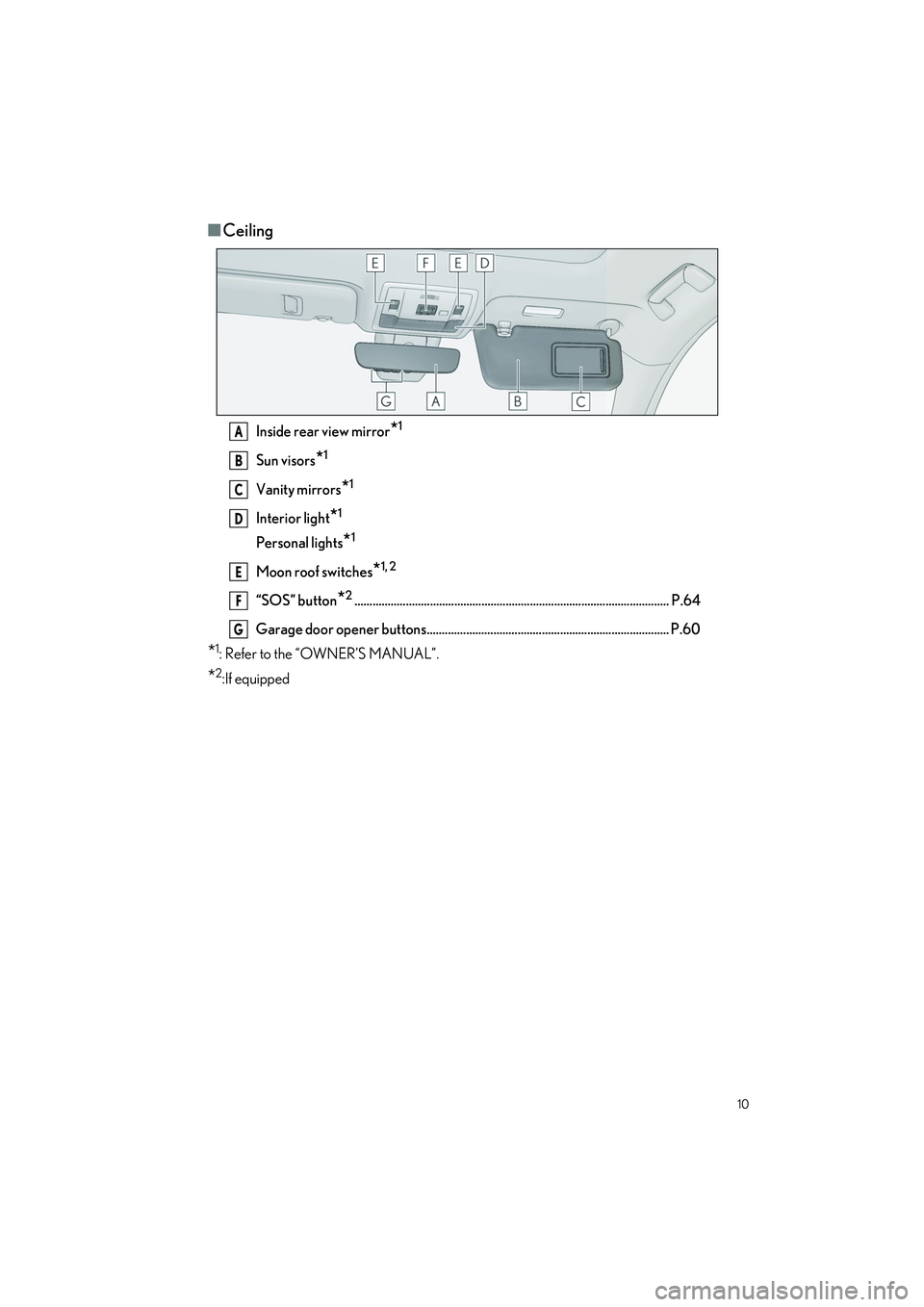

■Ceiling
Inside rear view mirror*1
Sun visors*1
Vanity mirrors*1
Interior light*1
Personal lights*1
Moon roof switches*1, 2
“SOS” button*2........................................................................................................ P.64
Garage door opener buttons................................................................................ P.60
*1: Refer to the “OWNER’S MANUAL”.
*2:If equipped
A
B
C
D
E
F
G

11
RC350 AWD_RC350_RC300 AWD_RC300_QG_(U)

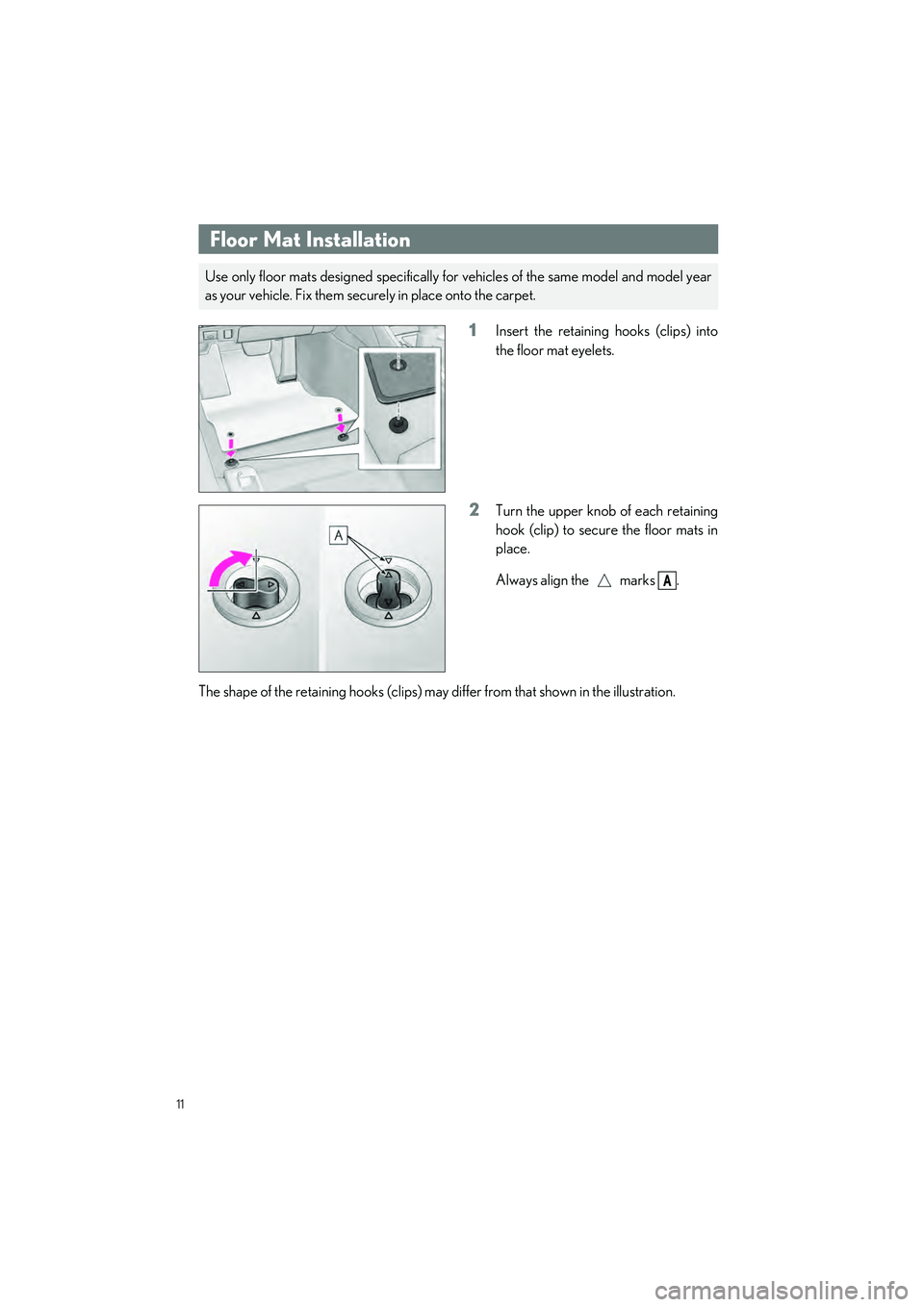

Floor Mat Installation
1Insert the retaining hooks (clips) into
the floor mat eyelets.
2Turn the upper knob of each retaining
hook (clip) to secure the floor mats in
place.
Always align the marks .
The shape of the retaining hooks (clips) may di ffer from that shown in the illustration.
Floor Mat Installation
Use only floor mats designed specifically for vehicles of the same model and model year
as your vehicle. Fix them securely in place onto the carpet.
A

12
RC350 AWD_RC350_RC300 AWD_RC300_QG_(U)

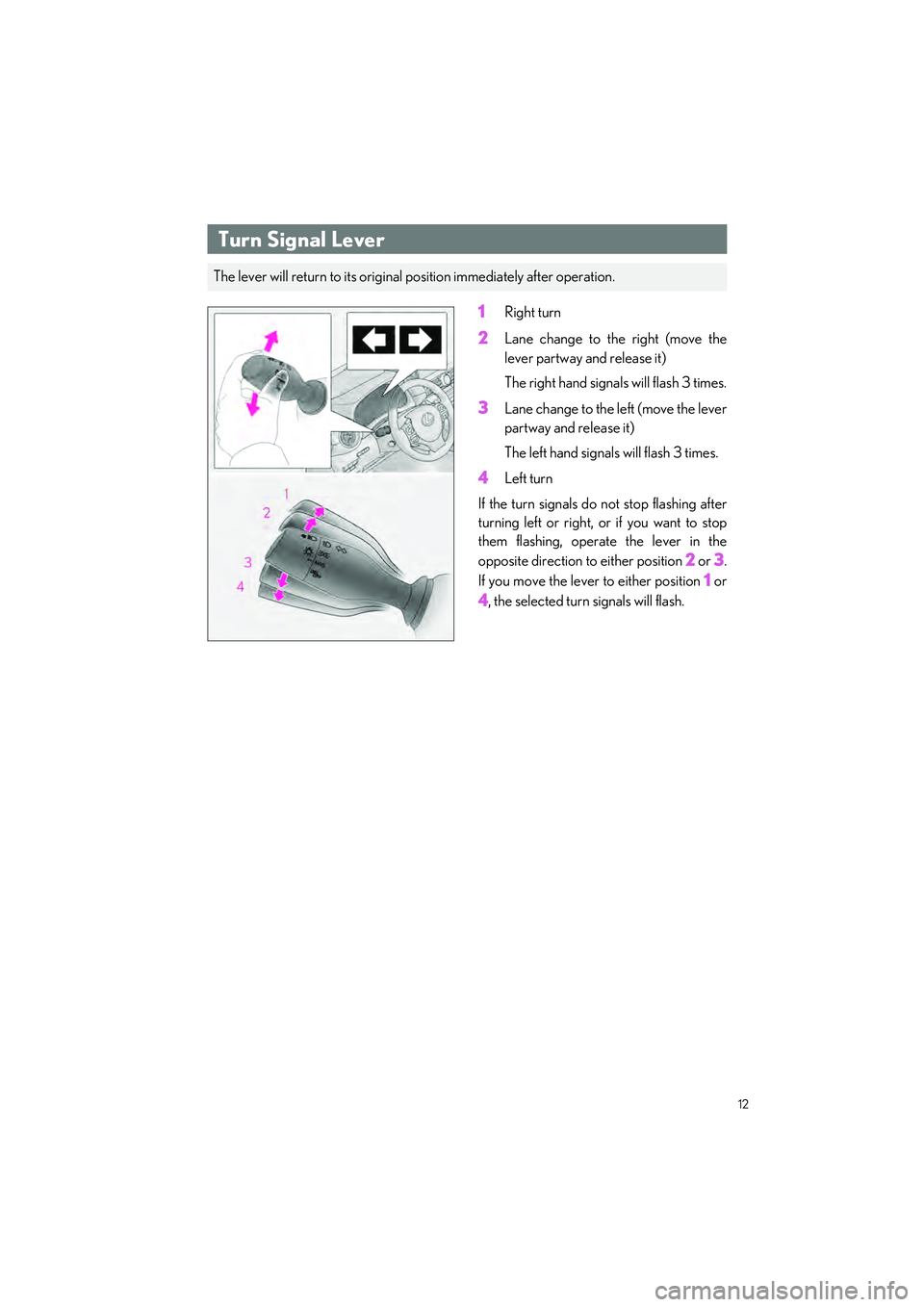

When Driving
1Right turn
2Lane change to the right (move the
lever partway and release it)
The right hand signals will flash 3 times.
3Lane change to the left (move the lever
partway and release it)
The left hand signals will flash 3 times.
4Left turn
If the turn signals do not stop flashing after
turning left or right, or if you want to stop
them flashing, operate the lever in the
opposite direction to either position
2 or 3.
If you move the lever to either position
1 or
4, the selected turn signals will flash.
Turn Signal Lever
The lever will return to its original position immediately after operation.

13
RC350 AWD_RC350_RC300 AWD_RC300_QG_(U)
Multi-information Display
The multi-information display presents the driver with a variety of vehicle data.
Displays and menu icons
Except F SPORT models F SPORT models (mai n meter in center
position)
 F SPORT models (main meter moved to
the right)

14
RC350 AWD_RC350_RC300 AWD_RC300_QG_(U)
■Menu icons
Select an item/change pages
Press: Enter/Set
Press and hold: Reset
Return to the previous screen
Pressing and holding the switch will
display the first screen of the selected
menu icon.
 Except F SPORT models
Press: Display the top screen
Press and hold: Register current screen as the top screen
Call sending/receiving and history display
Linked with the hands-free system, sending or receiving call is displayed. For details
regarding the hands-free system, refer to “NAVIGATION AND MULTIMEDIA SYS-
TEM OWNER’S MANUAL”.
 F SPORT models
Move the main meter
Call sending/receiving and history display
Linked with the hands-free system, sending or receiving call is displayed. For details
regarding the hands-free system, refer to “NAVIGATION AND MULTIMEDIA SYS-
TEM OWNER’S MANUAL”.
Drive information
Navigation system-linked display (if equipped)
Audio system-linked display
Driving assist system information
Warning message display
Settings display
If a problem is detected in any of the vehicl e’s systems, a warning message is shown on the
multi-information display.
Changing the meter display
A
B
C
D
E
D
E

15
RC350 AWD_RC350_RC300 AWD_RC300_QG_(U)

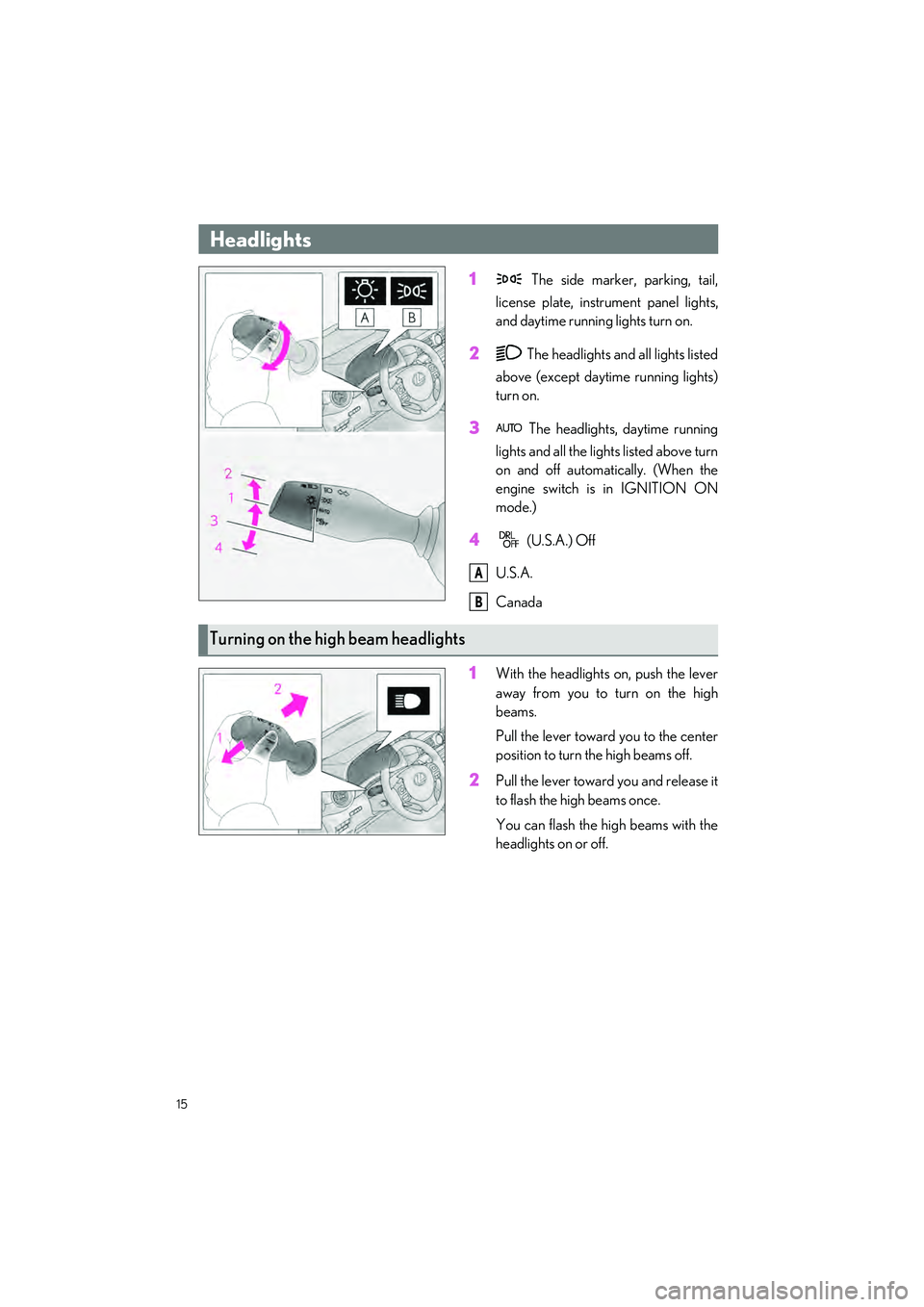

1 The side marker, parking, tail,
license plate, inst rument panel lights,
and daytime running lights turn on.
2 The headlights and all lights listed
above (except daytime running lights)
turn on.
3 The headlights, daytime running
lights and all the lights listed above turn
on and off automatically. (When the
engine switch is in IGNITION ON
mode.)
4 (U.S.A.) Off
U.S.A.
Canada
1With the headlights on, push the lever
away from you to turn on the high
beams.
Pull the lever toward you to the center
position to turn the high beams off.
2Pull the lever toward you and release it
to flash the high beams once.
You can flash the high beams with the
headlights on or off.
Headlights
A
B
Turning on the high beam headlights

16
RC350 AWD_RC350_RC300 AWD_RC300_QG_(U)

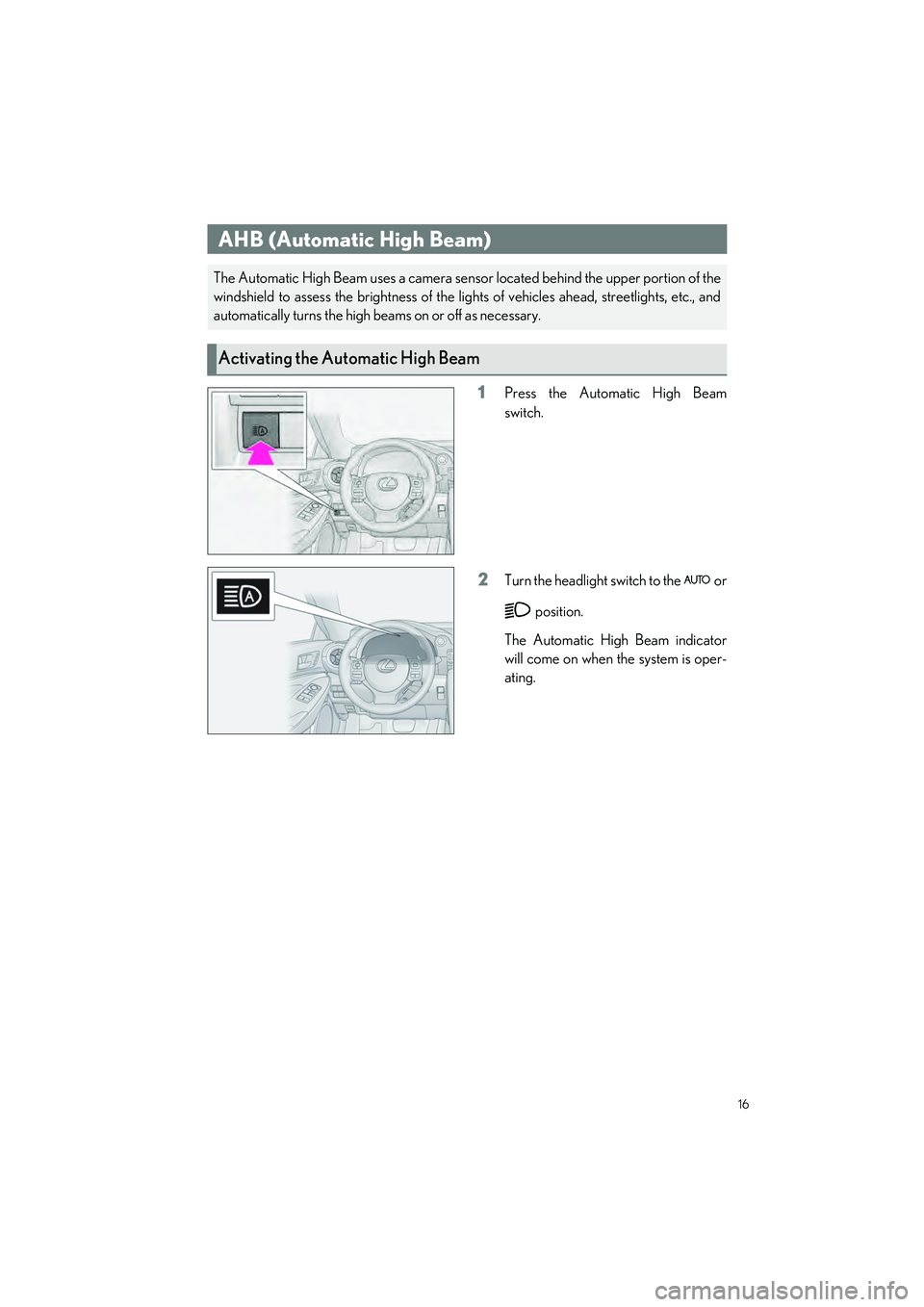

1Press the Automatic High Beam
switch.
2Turn the headlight switch to the or position.
The Automatic High Beam indicator
will come on when the system is oper-
ating.
AHB (Automatic High Beam)
The Automatic High Beam uses a camera sensor located behind the upper portion of the
windshield to assess the brightness of the lights of vehicles ahead, streetlights, etc., and
automatically turns the high beams on or off as necessary.
Activating the Automatic High Beam

17
RC350 AWD_RC350_RC300 AWD_RC300_QG_(U)

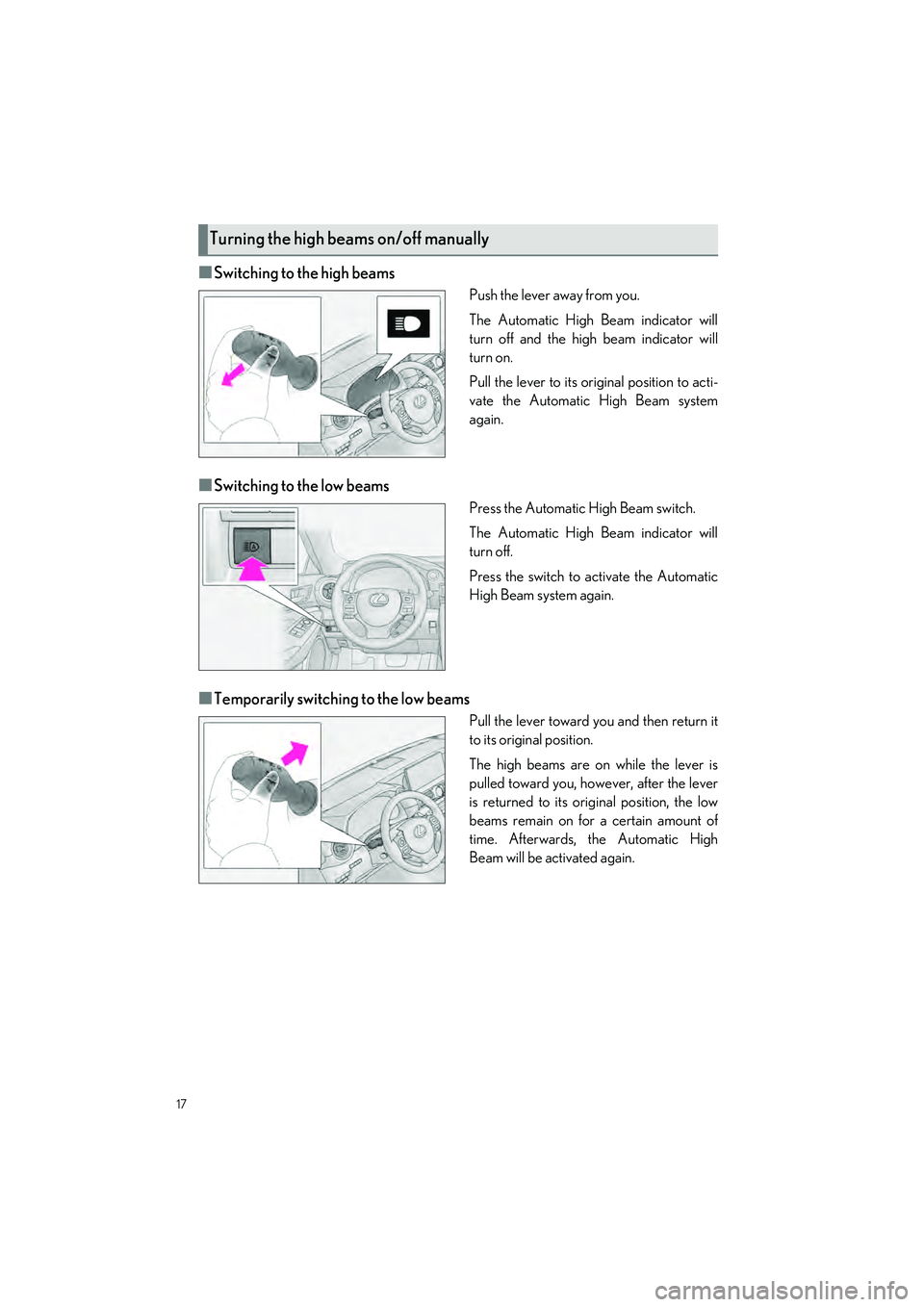

■Switching to the high beams
Push the lever away from you.
The Automatic High Beam indicator will
turn off and the high beam indicator will
turn on.
Pull the lever to its original position to acti-
vate the Automatic High Beam system
again.
■Switching to the low beams
Press the Automatic High Beam switch.
The Automatic High Beam indicator will
turn off.
Press the switch to activate the Automatic
High Beam system again.
■Temporarily switching to the low beams
Pull the lever toward you and then return it
to its original position.
The high beams are on while the lever is
pulled toward you, however, after the lever
is returned to its orig inal position, the low
beams remain on for a certain amount of
time. Afterwards, the Automatic High
Beam will be activated again.
Turning the high beams on/off manually

18
RC350 AWD_RC350_RC300 AWD_RC300_QG_(U)

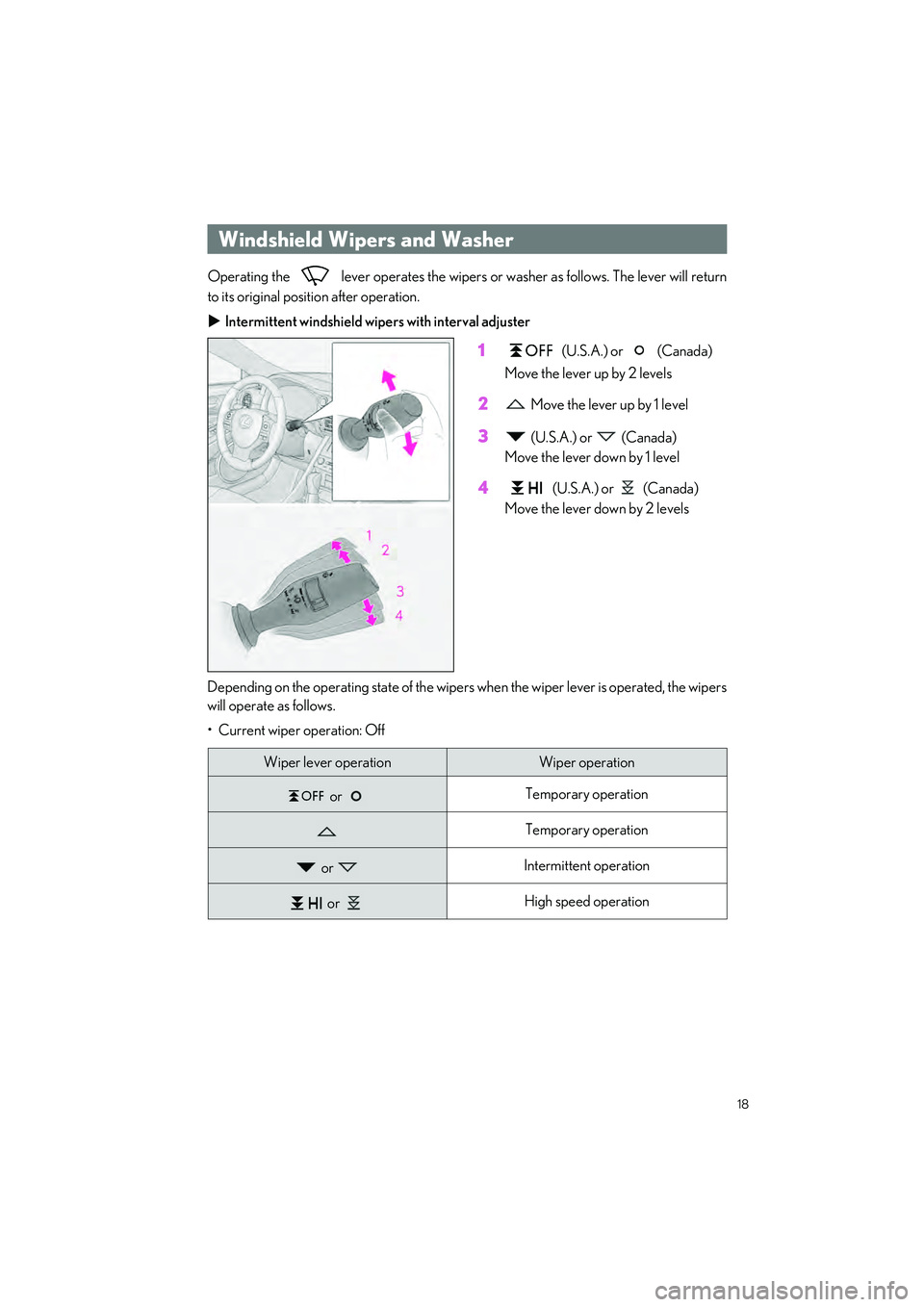

Operating the lever operates the wipers or washer as follows. The lever will return
to its original position after operation.
 Intermittent windshield wipe rs with interval adjuster
1 (U.S.A.) or (Canada)
Move the lever up by 2 levels
2 Move the lever up by 1 level
3 (U.S.A.) or (Canada)
Move the lever down by 1 level
4 (U.S.A.) or (Canada)
Move the lever down by 2 levels
Depending on the operating state of the wipers when the wiper lever is operated, the wipers
will operate as follows.
• Current wiper operation: Off
Windshield Wipe rs and Washer
Wiper lever operationWiper operation
or Temporary operation
Temporary operation
or Intermittent operation
or High speed operation

19
RC350 AWD_RC350_RC300 AWD_RC300_QG_(U)

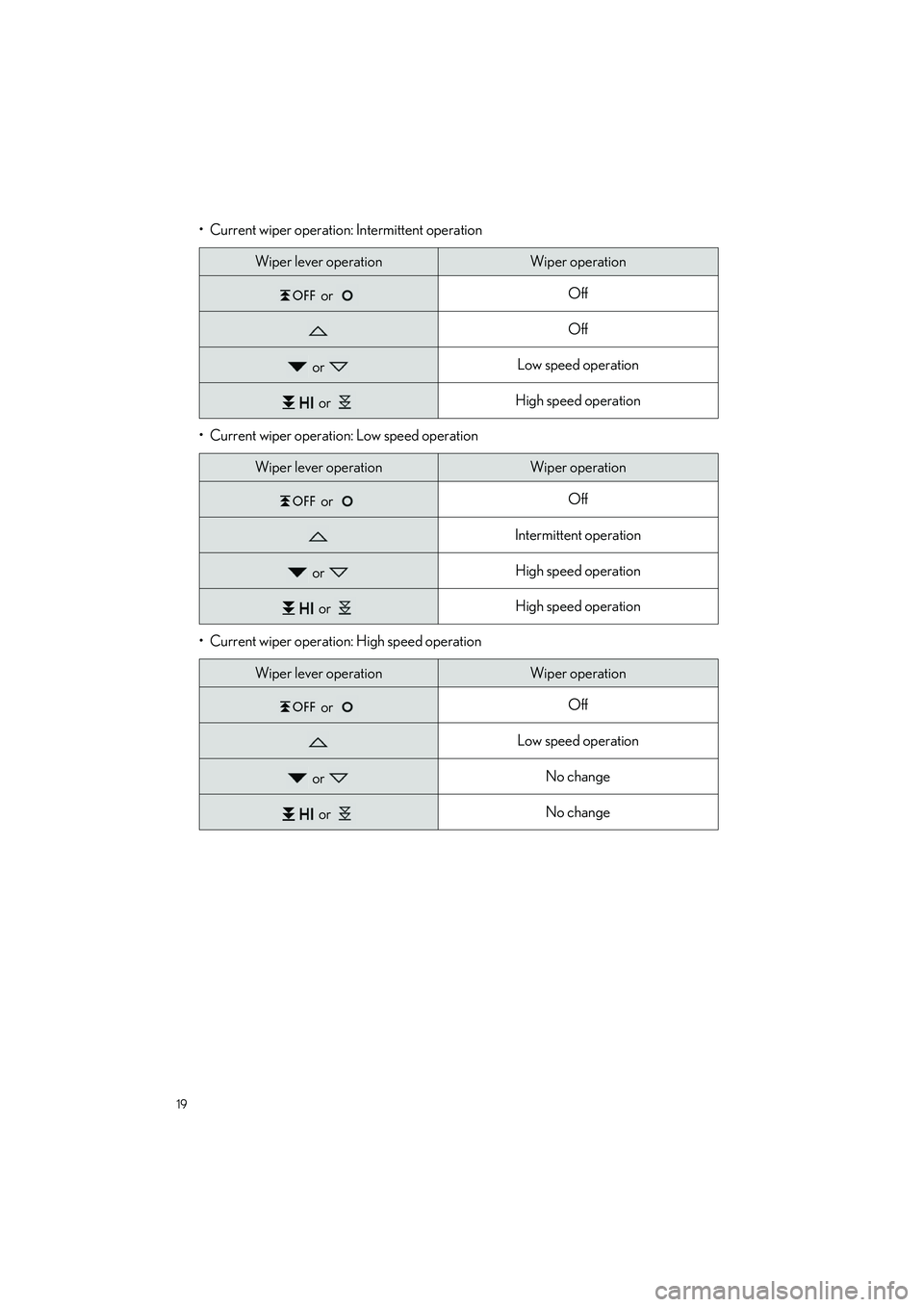

• Current wiper operation: Intermittent operation
• Current wiper operatio n: Low speed operation
• Current wiper operation: High speed operation
Wiper lever operationWiper operation
or Off
Off
or Low speed operation
or High speed operation
Wiper lever operationWiper operation
or Off
Intermittent operation
or High speed operation
or High speed operation
Wiper lever operationWiper operation
or Off
Low speed operation
or No change
or No change
