611-2. Child safety
1
For safety and security
RX350/RX200t_EE_OM48F32E

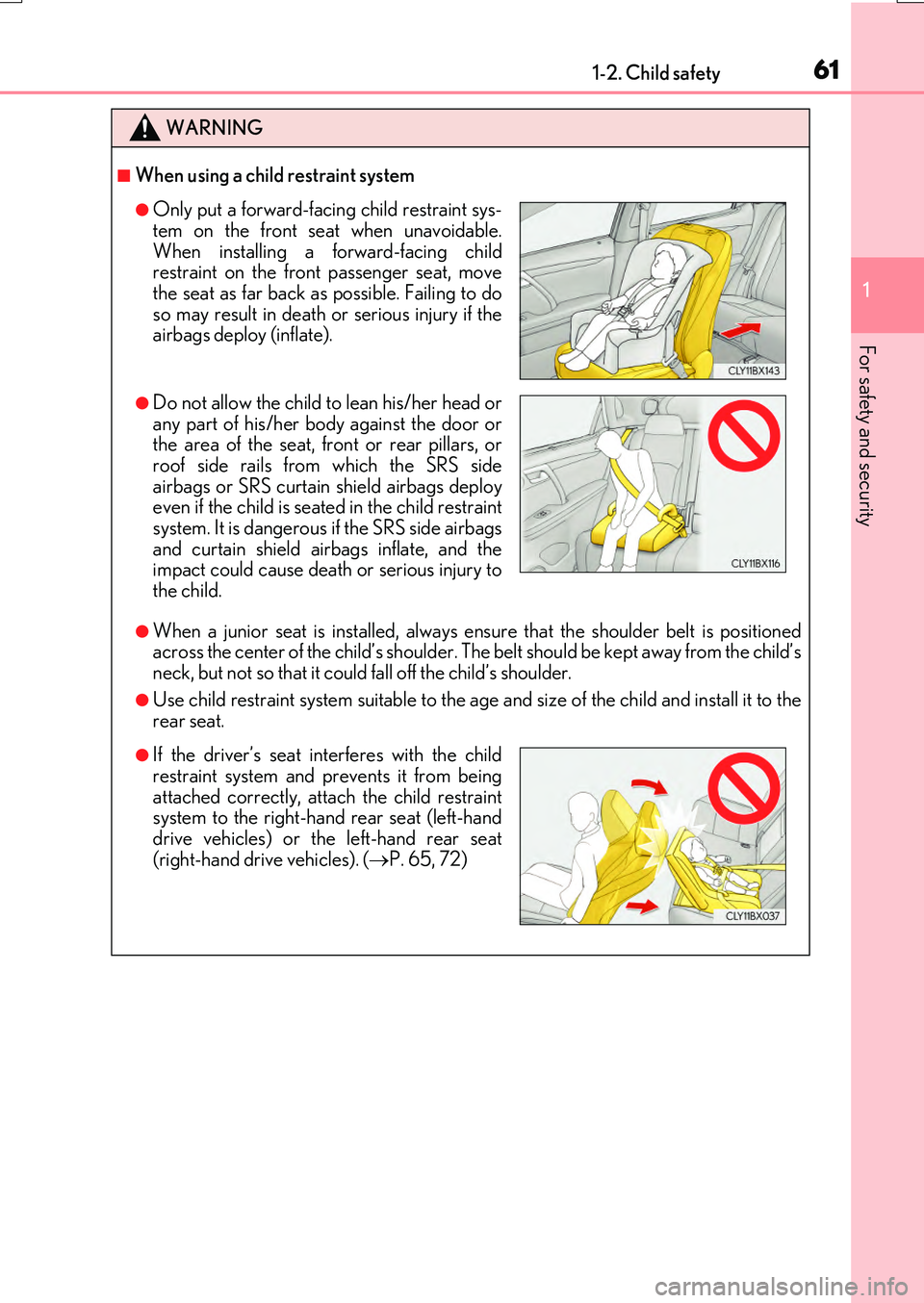

WARNING
■When using a child restraint system
●When a junior seat is installed, always ensure that the shoulder belt is positioned across the center of the child’s shoulder. Th e belt should be kept away from the child’s
neck, but not so that it could fall off the child’s shoulder.
●Use child restraint system suitable to the age and size of the child and install it to the rear seat.
●Only put a forward-facing child restraint sys-
tem on the front seat when unavoidable. When installing a forward-facing childrestraint on the front passenger seat, move
the seat as far back as possible. Failing to do so may result in death or serious injury if theairbags deploy (inflate).
●Do not allow the child to lean his/her head orany part of his/her body against the door orthe area of the seat, front or rear pillars, or
roof side rails from which the SRS side airbags or SRS curtain shield airbags deployeven if the child is seat ed in the child restraint
system. It is dangerous if the SRS side airbags and curtain shield airbags inflate, and theimpact could cause death or serious injury to
the child.
●If the driver’s seat interferes with the childrestraint system and prevents it from being
attached correctly, attach the child restraint system to the right-hand rear seat (left-handdrive vehicles) or the left-hand rear seat
(right-hand drive vehicles). ( P. 65, 72)

621-2. Child safety
RX350/RX200t_EE_OM48F32E

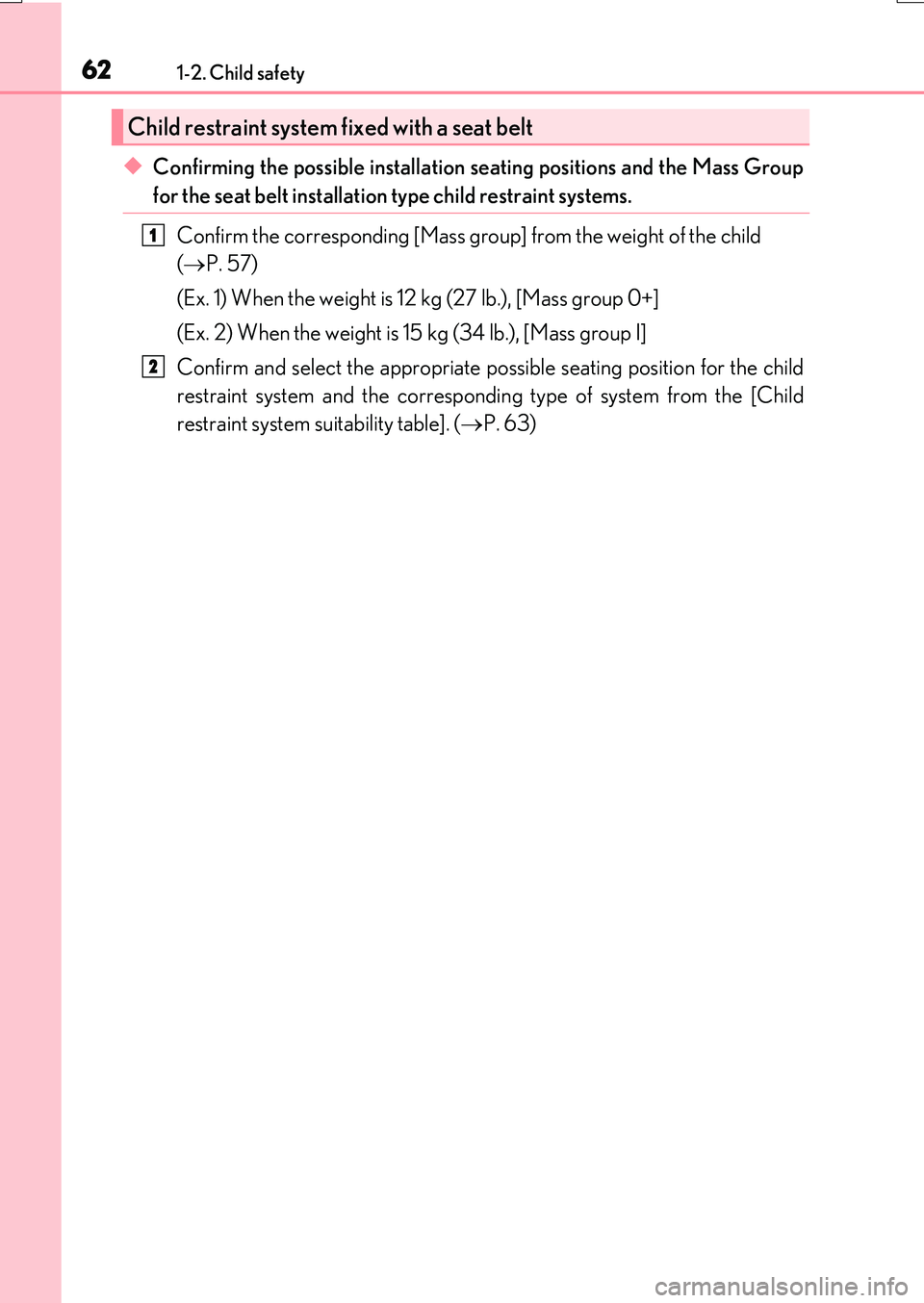

◆Confirming the possible installation seating positions and the Mass Group
for the seat belt installation type child restraint systems.
Confirm the corresponding [Mass group] from the weight of the child
( P. 57)
(Ex. 1) When the weight is 12 kg (27 lb.), [Mass group 0+]
(Ex. 2) When the weight is 15 kg (34 lb.), [Mass group I]
Confirm and select the appropriate possible seating position for the child
restraint system and the corresponding type of system from the [Child
restraint system suitability table]. ( P. 63)
Child restraint system fixed with a seat belt
1
2

631-2. Child safety
1
For safety and security
RX350/RX200t_EE_OM48F32E

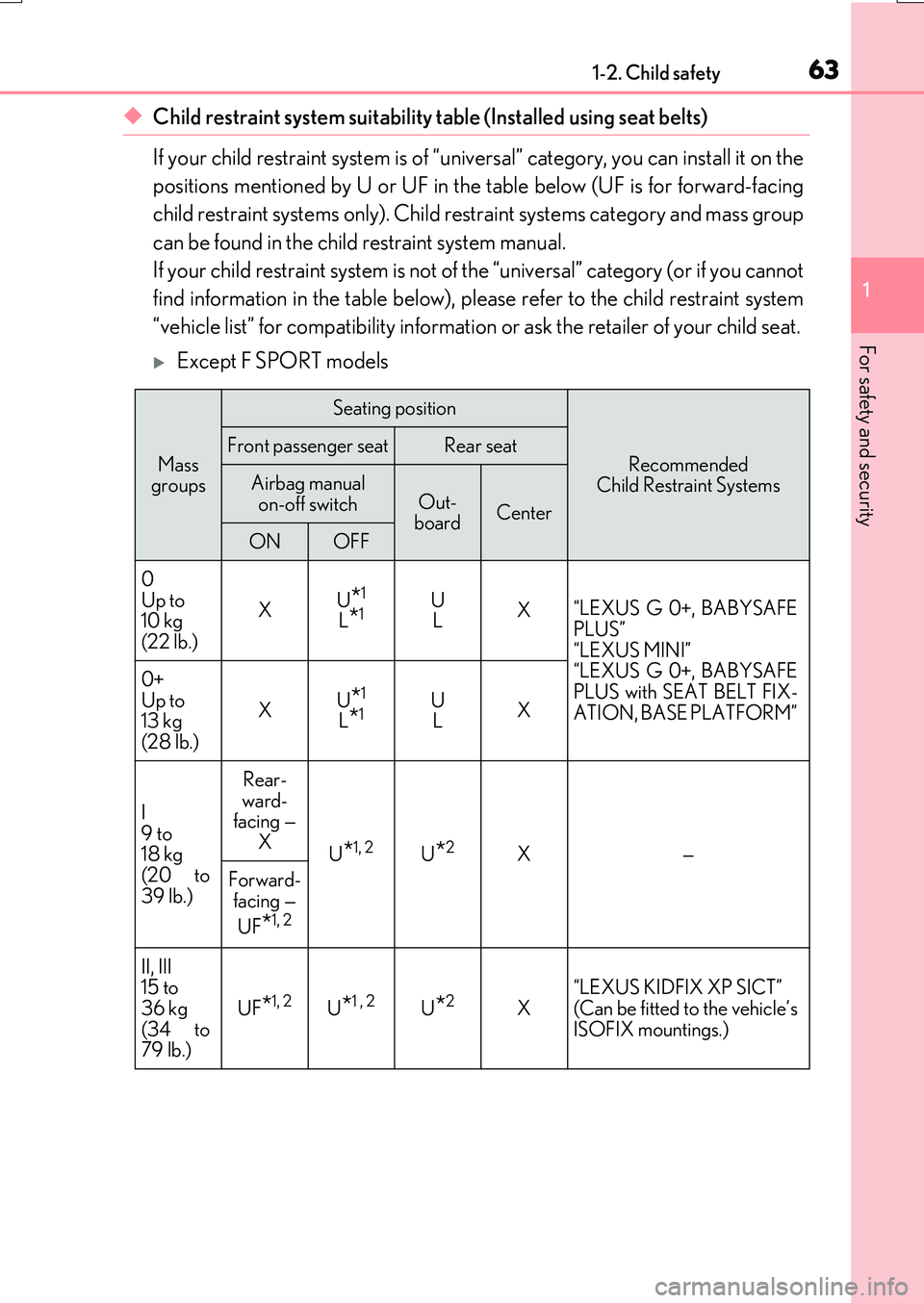

◆Child restraint system suitability table (Installed using seat belts)
If your child restraint system is of “universal” category, you can install it on the
positions mentioned by U or UF in the table below (UF is for forward-facing
child restraint systems only). Child re straint systems category and mass group
can be found in the child restraint system manual.
If your child restraint system is not of the “universal” category (or if you cannot
find information in the table below), please refer to the child restraint system
“vehicle list” for compatibility information or ask the retailer of your child seat.
Except F SPORT models
Mass groups
Seating position
Recommended Child Restraint Systems
Front passenger seatRear seat
Airbag manual on-off switchOut-boardCenter
ONOFF
0
Up to 10 kg (22 lb.)
X U*1 L*1UL X “LEXUS G 0+, BABYSAFE PLUS”
“LEXUS MINI” “LEXUS G 0+, BABYSAFEPLUS with SEAT BELT FIX-
ATION, BASE PLATFORM”
0+
Up to 13 kg (28 lb.)
X U*1 L*1UL X
I
9 to 18 kg (20 to
39 lb.)
Rear-
ward- facing — X U*1, 2U*2X—
Forward-
facing —
UF*1, 2
II, III 15 to 36 kg
(34 to 79 lb.)
UF*1, 2U*1 , 2U*2X “LEXUS KIDFIX XP SICT” (Can be fitted to the vehicle’s
ISOFIX mountings.)

641-2. Child safety
RX350/RX200t_EE_OM48F32E

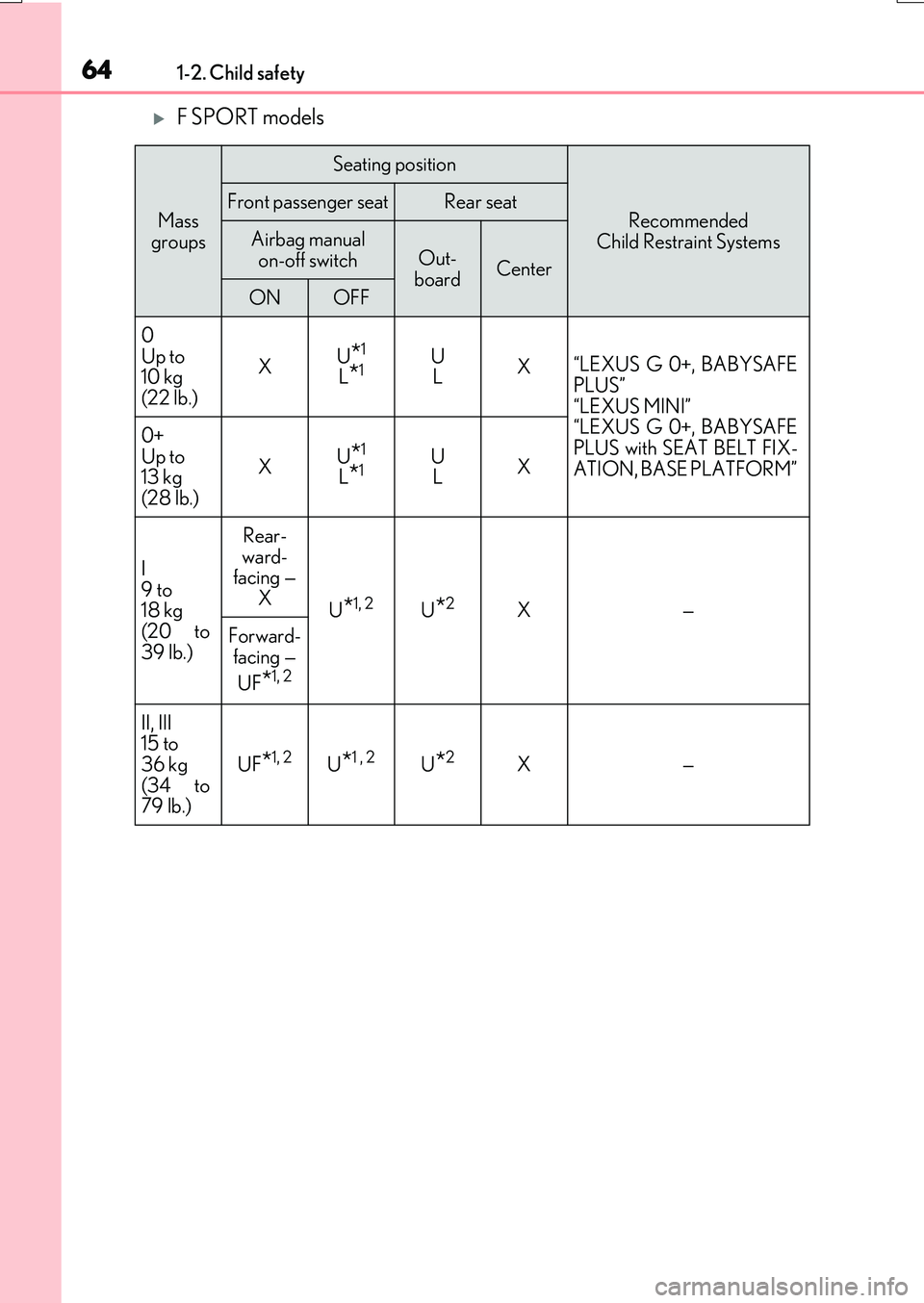

F SPORT models
Mass
groups
Seating position
Recommended
Child Restraint Systems
Front passenger seatRear seat
Airbag manual
on-off switchOut-
boardCenter
ONOFF
0 Up to 10 kg
(22 lb.)
X U*1 L*1UL X “LEXUS G 0+, BABYSAFE
PLUS” “LEXUS MINI”“LEXUS G 0+, BABYSAFE
PLUS with SEAT BELT FIX- ATION, BASE PLATFORM”
0+ Up to 13 kg
(28 lb.)
X U*1 L*1UL X
I 9 to 18 kg
(20 to 39 lb.)
Rear- ward-facing —
X U*1, 2U*2X—
Forward- facing —
UF*1, 2
II, III 15 to
36 kg (34 to79 lb.)
UF*1, 2U*1 , 2U*2X—

651-2. Child safety
1
For safety and security
RX350/RX200t_EE_OM48F32E

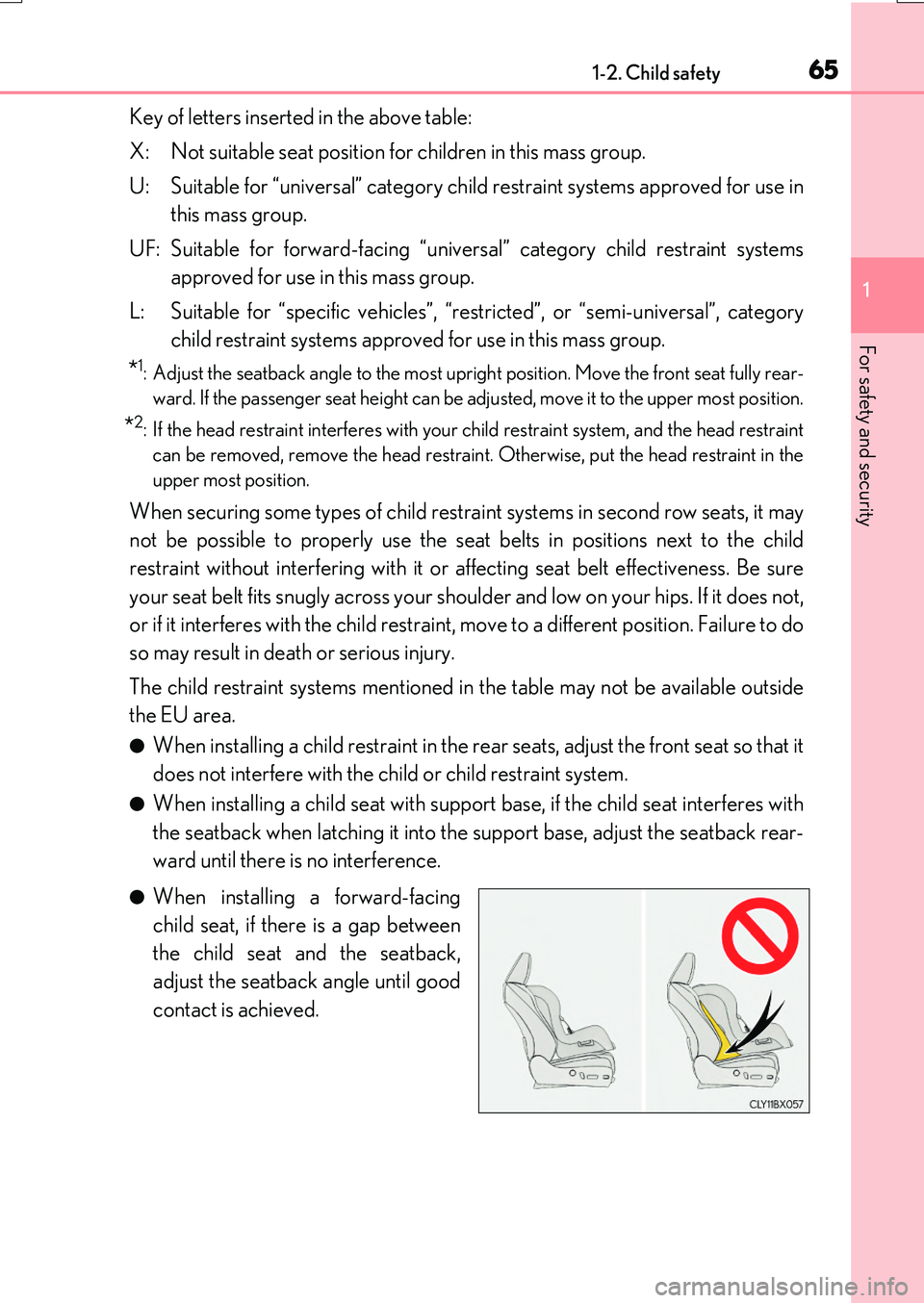

Key of letters inserted in the above table:
X: Not suitable seat position for children in this mass group.
U: Suitable for “universal” category child restraint systems approved for use in
this mass group.
UF: Suitable for forward-facing “universal” category child restraint systems
approved for use in this mass group.
L: Suitable for “specific vehicles”, “restricted”, or “semi-universal”, category
child restraint system s approved for use in this mass group.
*1: Adjust the seatback angle to the most upright position. Move the front seat fully rear-
ward. If the passenger seat height can be adjusted, move it to the upper most position.
*2: If the head restraint interferes with your child restraint system, and the head restraint
can be removed, remove the head restraint. Otherwise, put the head restraint in the
upper most position.
When securing some types of child restrain t systems in second row seats, it may
not be possible to properly use the seat belts in positions next to the child
restraint without interfering with it or affecting seat belt effectiveness. Be sure
your seat belt fits snugly across your shoulder and low on your hips. If it does not,
or if it interferes with the child restraint, move to a different position. Failure to do
so may result in death or serious injury.
The child restraint systems mentioned in the table may not be available outside
the EU area.
●When installing a child restraint in the rear seats, adjust the front seat so that it
does not interfere with the child or child restraint system.
●When installing a child seat with support base, if the child seat interferes with
the seatback when latching it into the support base, adjust the seatback rear-
ward until there is no interference.
●When installing a forward-facing
child seat, if there is a gap between
the child seat and the seatback,
adjust the seatback angle until good
contact is achieved.

661-2. Child safety
RX350/RX200t_EE_OM48F32E

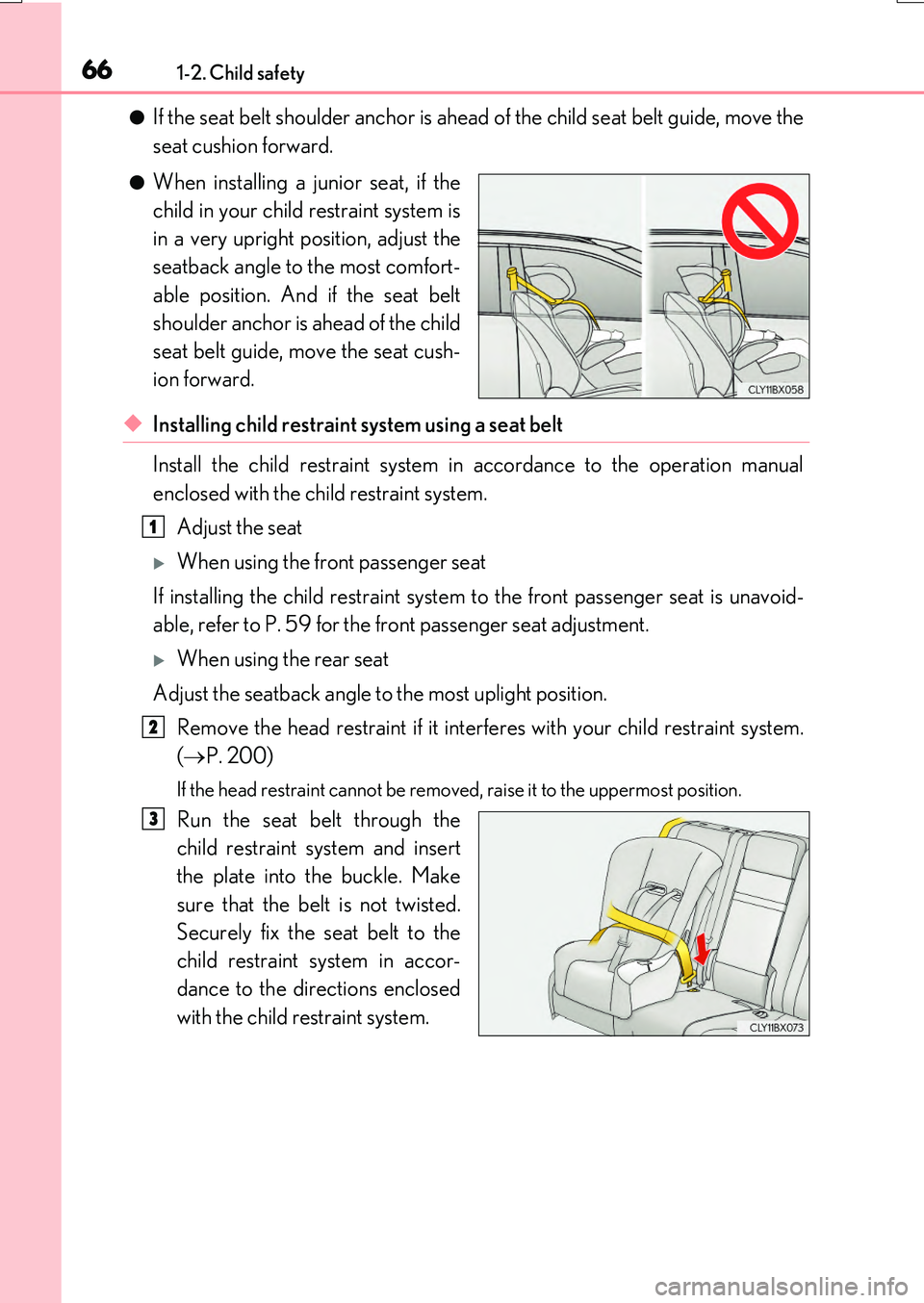

●If the seat belt shoulder anchor is ahead of the child seat belt guide, move the
seat cushion forward.
●When installing a junior seat, if the
child in your child restraint system is
in a very upright position, adjust the
seatback angle to the most comfort-
able position. And if the seat belt
shoulder anchor is ahead of the child
seat belt guide, move the seat cush-
ion forward.
◆Installing child restraint system using a seat belt
Install the child restraint system in accordance to the operation manual
enclosed with the child restraint system.
Adjust the seat
When using the front passenger seat
If installing the child restraint system to the front passenger seat is unavoid-
able, refer to P. 59 for the front passenger seat adjustment.
When using the rear seat
Adjust the seatback angle to the most uplight position.
Remove the head restraint if it interferes with your child restraint system.
( P. 200)
If the head restraint cannot be removed, raise it to the uppermost position.
Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
Securely fix the seat belt to the
child restraint system in accor-
dance to the directions enclosed
with the child restraint system.
1
2
3

671-2. Child safety
1
For safety and security
RX350/RX200t_EE_OM48F32E

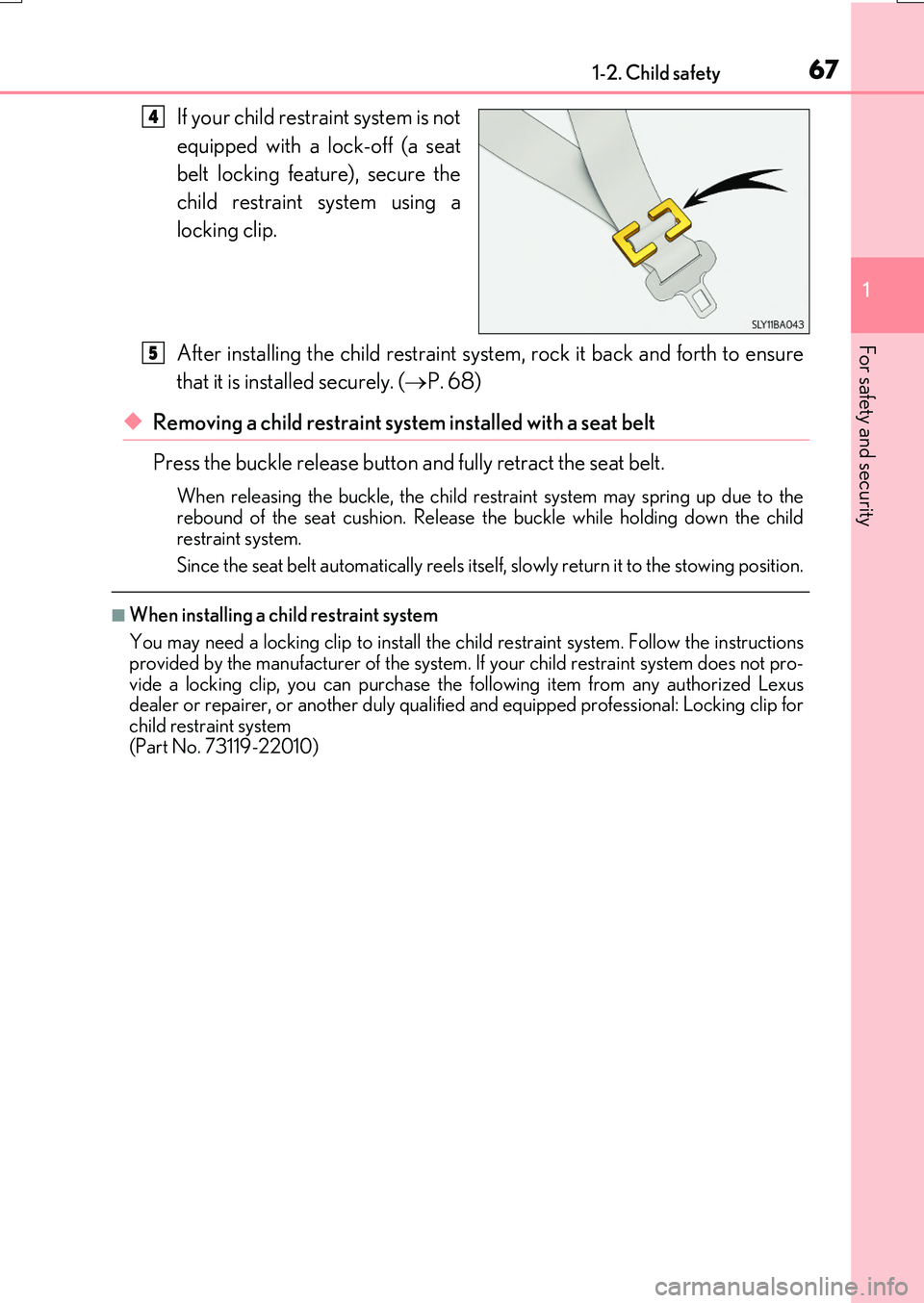

If your child restraint system is not
equipped with a lock-off (a seat
belt locking feature), secure the
child restraint system using a
locking clip.
After installing the child restraint system, rock it back and forth to ensure
that it is installed securely. ( P. 68)
◆Removing a child restraint system installed with a seat belt
Press the buckle release button and fully retract the seat belt.
When releasing the bu ckle, the child restraint system may spring up due to the rebound of the seat cushion. Release the buckle while holding down the child
restraint system.
Since the seat belt automatically reels itself , slowly return it to the stowing position.
■When installing a child restraint system
You may need a locking clip to install the child restraint system. Follow the instructions provided by the manufacturer of the system. If your child restraint system does not pro-
vide a locking clip, you can purchase the following item from any authorized Lexus dealer or repairer, or another duly qualified and equipped professional: Locking clip forchild restraint system
(Part No. 73119-22010)
4
5

681-2. Child safety
RX350/RX200t_EE_OM48F32E

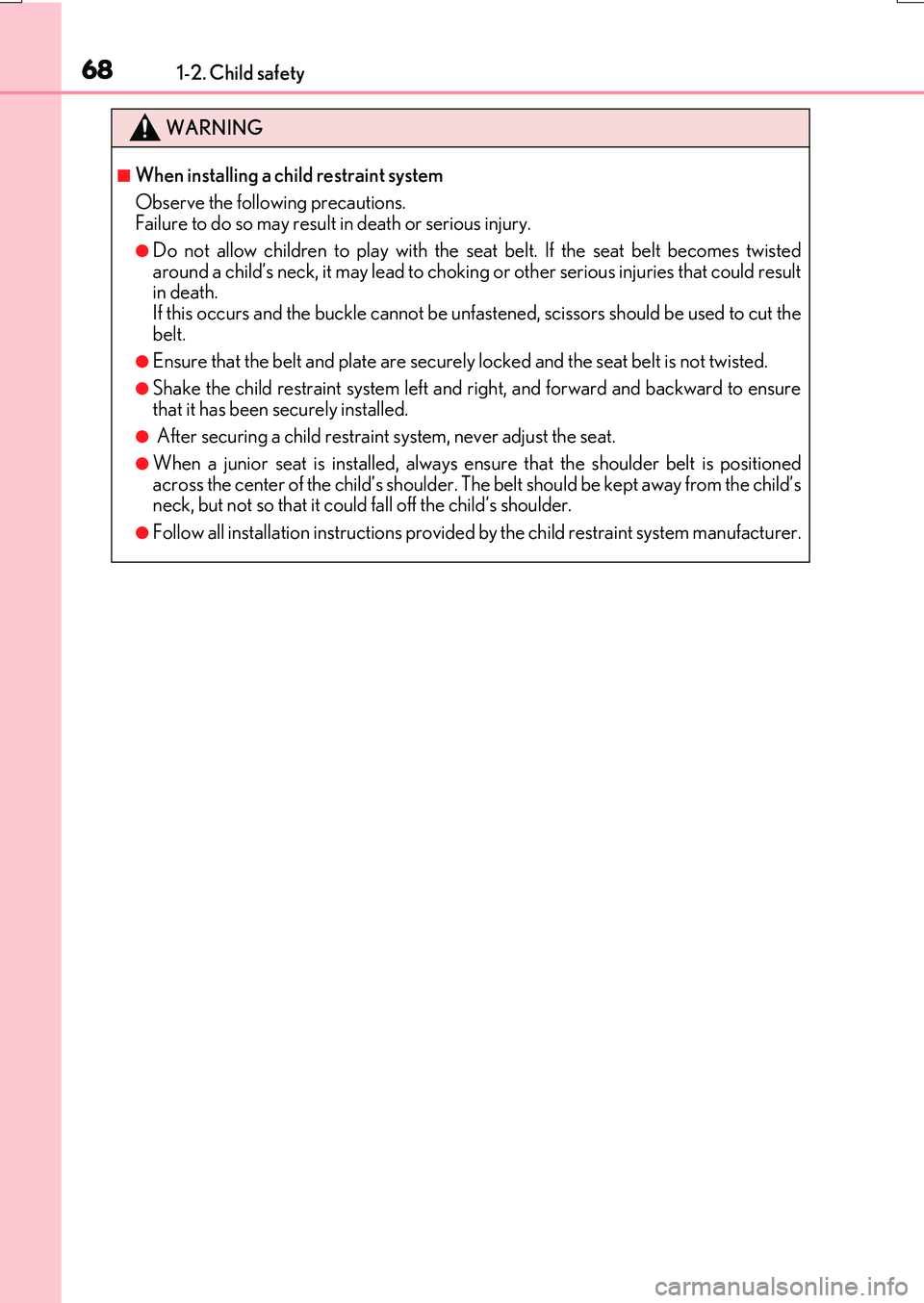

WARNING
■When installing a child restraint system
Observe the following precautions. Failure to do so may result in death or serious injury.
●Do not allow children to play with the seat belt. If the seat belt becomes twistedaround a child’s neck, it may lead to choking or other serious injuries that could resultin death.
If this occurs and the buckle cannot be unfastened, scissors should be used to cut the belt.
●Ensure that the belt and plate are securely locked and the seat belt is not twisted.
●Shake the child restraint system left and right, and forward and backward to ensure that it has been securely installed.
● After securing a child restrain t system, never adjust the seat.
●When a junior seat is installed, always ensure that the shoulder belt is positioned across the center of the child’s shoulder. Th e belt should be kept away from the child’s neck, but not so that it could fall off the child’s shoulder.
●Follow all installation instructions provided by the child restraint system manufacturer.

691-2. Child safety
1
For safety and security
RX350/RX200t_EE_OM48F32E
■ISOFIX rigid anchors (ISOFIX child restraint system)
Lower anchors are provided for the
outboard rear seats. (Tags displaying
the location of the anchors are
attached to the seats.)
■Confirming the Mass group and Size class for ECE R44 ISOFIX corre-
sponding child restraint systems
Confirm the corresponding [Mass group] from the weight of the child
( P. 57)
(Ex. 1) When the weight is 12 kg (27 lb.), [Mass group 0+]
(Ex. 2) When the weight is 15 kg (34 lb.), [Mass group I]
Confirming Size class
Select the Size class corresponding to [Mass group] confirmed in step
from the [Child restraint system suitability table] ( P. 70)*.
(Ex. 1) When [Mass group 0+], the corresponding size class is [C], [D], [E].
(Ex. 2) When [Mass group I], the corresponding size class is [A], [B], [B1],
[C], [D].
*: However, listings that are marked with [X] cannot be selected, despite having the
corresponding size class in the suitability table of the [Seating position]. Also,
select the product designated by [Rec ommended Child Restraint Systems] (P.
70), if the listing is marked with [IL].
Child restraint system fixed with an ISOFIX rigid anchor
1
2
1

701-2. Child safety
RX350/RX200t_EE_OM48F32E

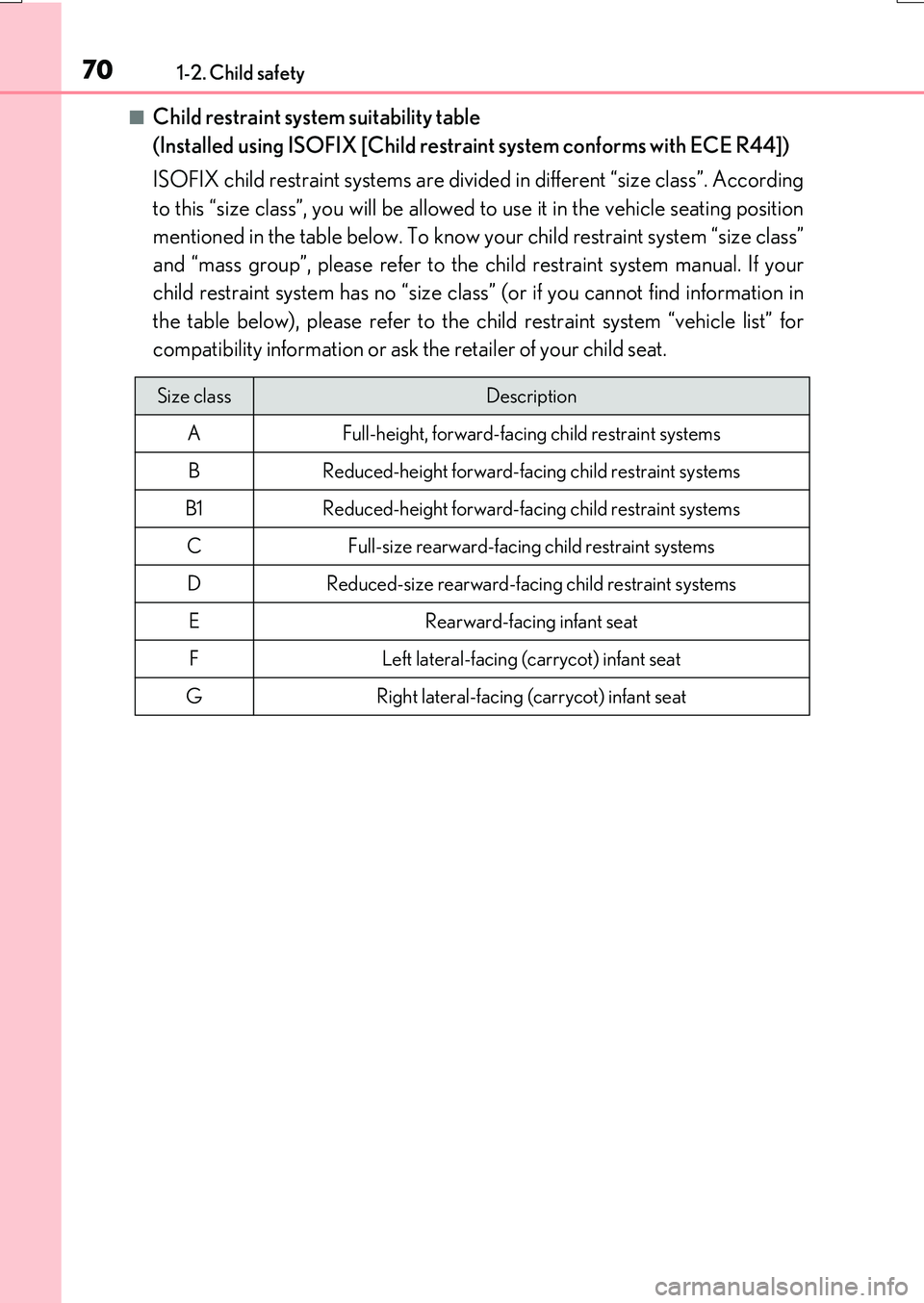

■Child restraint system suitability table
(Installed using ISOFIX [Child restraint system conforms with ECE R44])
ISOFIX child restraint systems are divided in different “size class”. According
to this “size class”, you will be allowed to use it in the vehicle seating position
mentioned in the table below. To know your child restraint system “size class”
and “mass group”, please refer to the child restraint system manual. If your
child restraint system has no “size class” (or if you cannot find information in
the table below), please refer to the child restraint system “vehicle list” for
compatibility information or ask the retailer of your child seat.
Size classDescription
A Full-height, forward-facing child restraint systems
B Reduced-height forward-facing child restraint systems
B1 Reduced-height forward-facing child restraint systems
C Full-size rearward-facing child restraint systems
D Reduced-size rearward-facin g child restraint systems
E Rearward-facing infant seat
F Left lateral-facing (carrycot) infant seat
G Right lateral-facing (carrycot) infant seat
