LEXUS RX270 2014 Owners Manual

361
3-2. Using the audio system
3
Interior features
RX350/270_EE

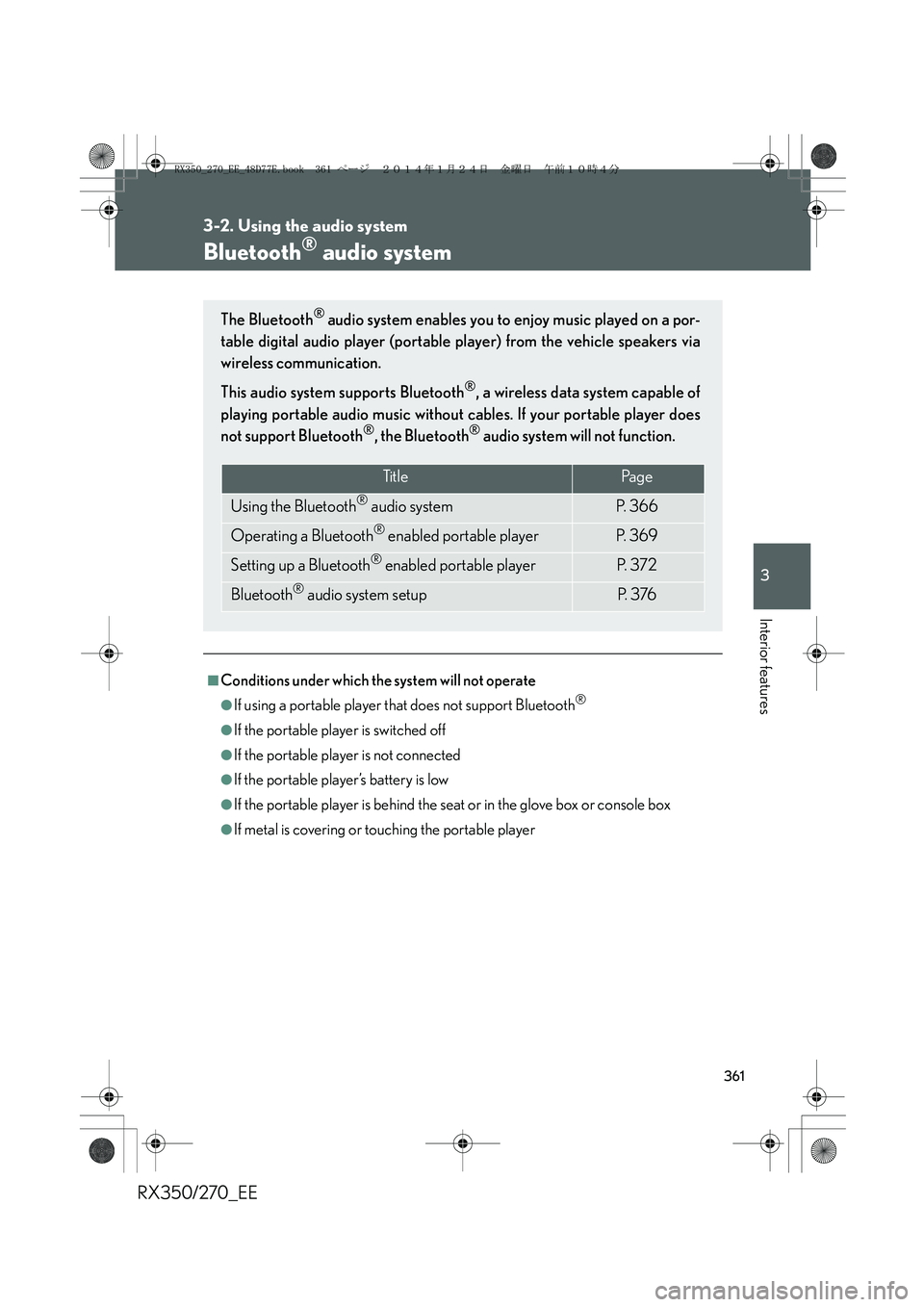

Bluetooth® audio system
■Conditions under which the system will not operate
●If using a portable player that does not support Bluetooth®
●If the portable player is switched off
●If the portable player is not connected
●If the portable player’s battery is low
●If the portable player is behind the seat or in the glove box or console box
●If metal is covering or touching the portable player
The Bluetooth® audio system enables you to enjoy music played on a por-
table digital audio player (portable player) from the vehicle speakers via
wireless communication.
This audio system supports Bluetooth
®, a wireless data system capable of
playing portable audio music without cables. If your portable player does
not support Bluetooth
®, the Bluetooth® audio system will not function.
Ti t l ePa g e
Using the Bluetooth® audio systemP. 3 6 6
Operating a Bluetooth® enabled portable playerP. 3 6 9
Setting up a Bluetooth® enabled portable playerP. 3 7 2
Bluetooth® audio system setupP. 3 76
RX350_270_EE_48D77E.book 361 ページ ２０１４年１月２４日　金曜日　午前１０時４分

362
3-2. Using the audio system
RX350/270_EE

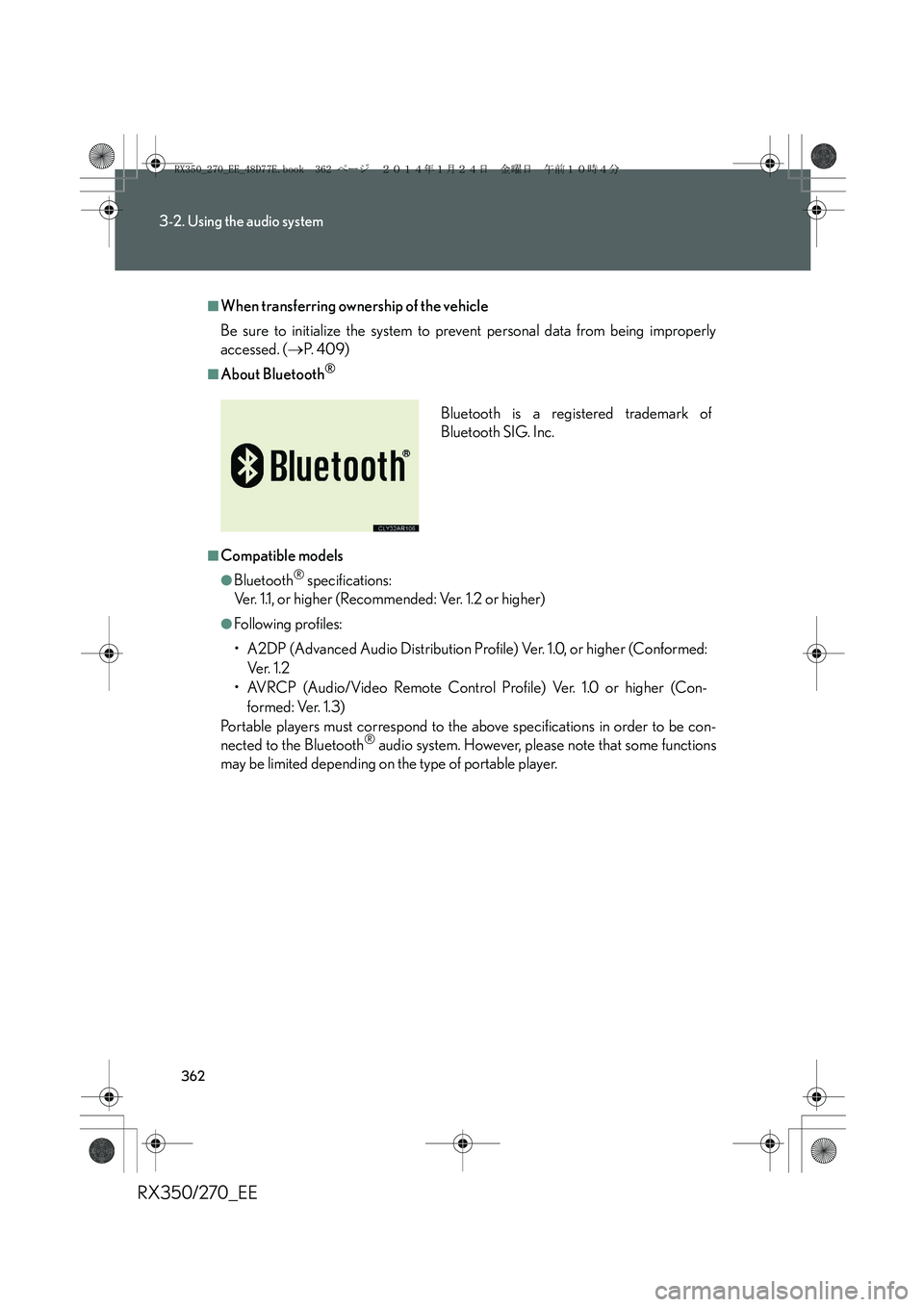

■When transferring ownership of the vehicle
Be sure to initialize the system to prevent personal data from being improperly
accessed. (→P. 4 0 9 )
■About Bluetooth®
■Compatible models
●Bluetooth® specifications:
Ver. 1.1, or higher (Recommended: Ver. 1.2 or higher)
●Following profiles:
• A2DP (Advanced Audio Distribution Profile) Ver. 1.0, or higher (Conformed:
Ve r. 1 . 2
• AVRCP (Audio/Video Remote Control Profile) Ver. 1.0 or higher (Con-
formed: Ver. 1.3)
Portable players must correspond to the above specifications in order to be con-
nected to the Bluetooth
® audio system. However, please note that some functions
may be limited depending on the type of portable player.Bluetooth is a registered trademark of
Bluetooth SIG. Inc.
RX350_270_EE_48D77E.book 362 ページ ２０１４年１月２４日　金曜日　午前１０時４分

363
3-2. Using the audio system
3
Interior features
RX350/270_EE

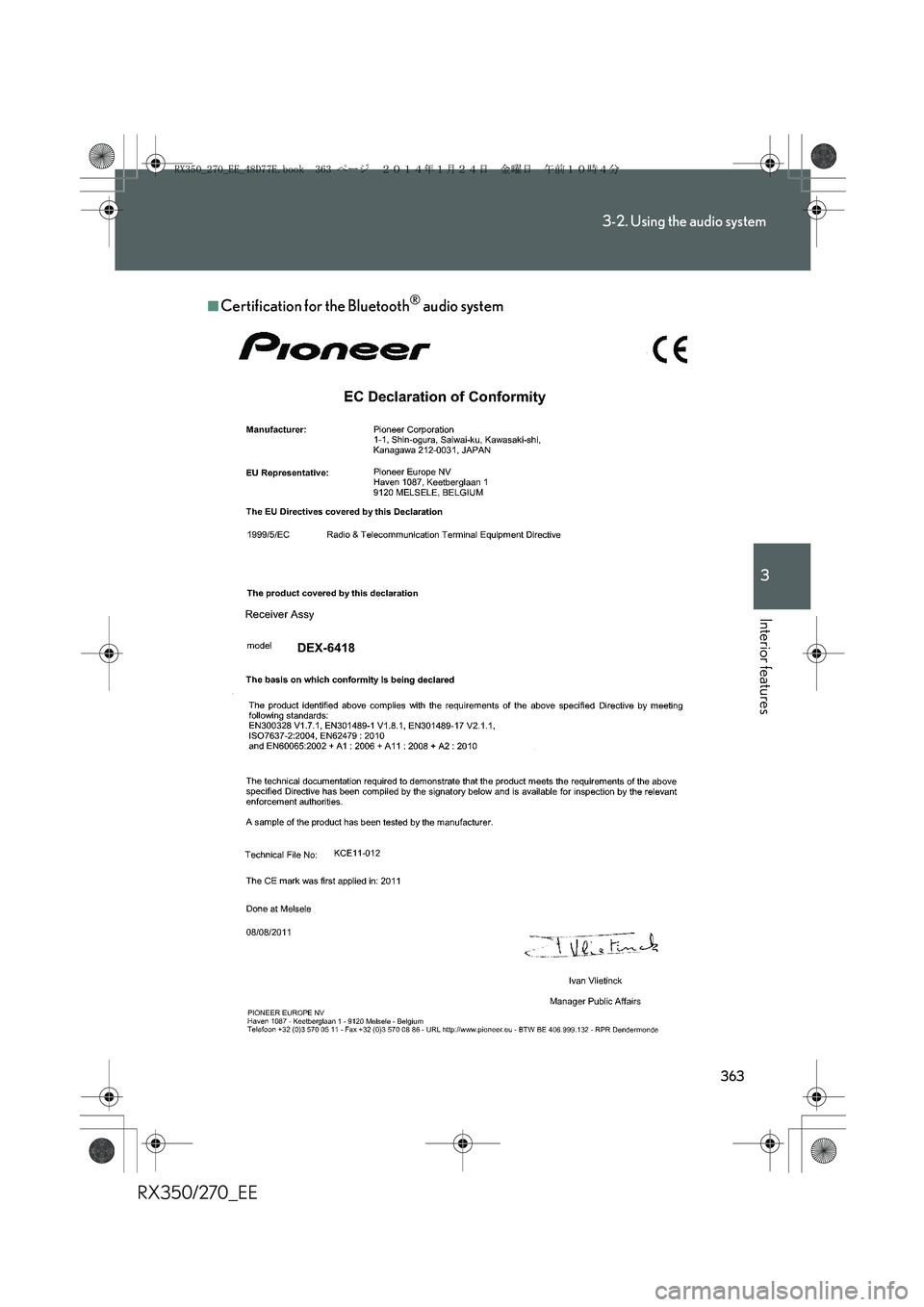

■Certification for the Bluetooth® audio system
RX350_270_EE_48D77E.book 363 ページ ２０１４年１月２４日　金曜日　午前１０時４分

364
3-2. Using the audio system
RX350/270_EE

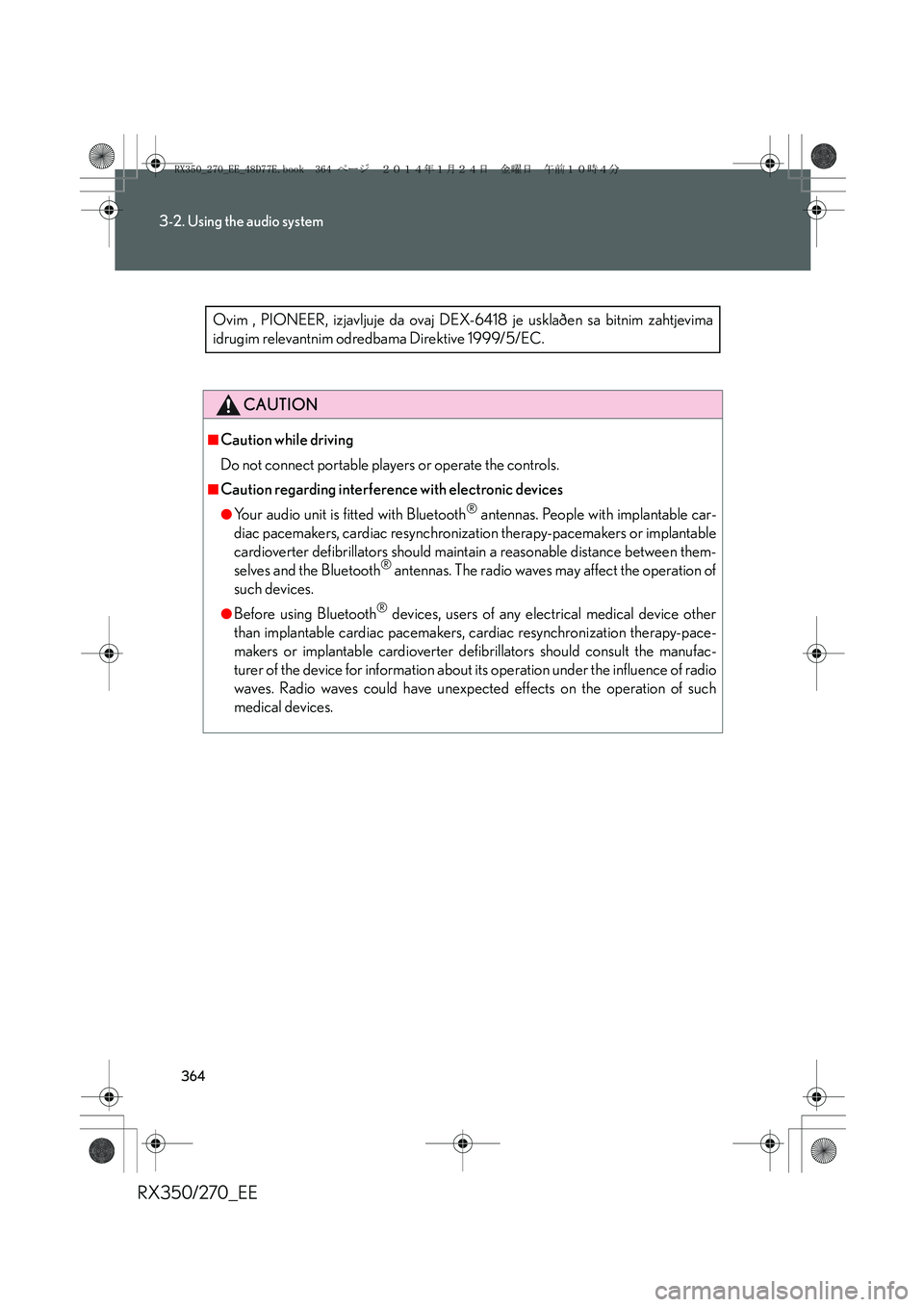

CAUTION
■Caution while driving
Do not connect portable players or operate the controls.
■Caution regarding interference with electronic devices
●Your audio unit is fitted with Bluetooth® antennas. People with implantable car-
diac pacemakers, cardiac resynchronization therapy-pacemakers or implantable
cardioverter defibrillators should maintain a reasonable distance between them-
selves and the Bluetooth
® antennas. The radio waves may affect the operation of
such devices.
●Before using Bluetooth® devices, users of any electrical medical device other
than implantable cardiac pacemakers, cardiac resynchronization therapy-pace-
makers or implantable cardioverter defibrillators should consult the manufac-
turer of the device for information about its operation under the influence of radio
waves. Radio waves could have unexpected effects on the operation of such
medical devices.
12

Ovim , PIONEER, izjavljuje da ovaj DEX-6418 je usklaÿen sa bitnim zahtjevima idrugim relevantnim
odredbama Direktive 1999/5/EC. Ovim , PIONEER, izjavljuje da ovaj DEX-6418 je usklaðen sa bitnim zahtjevima
idrugim relevantnim odredbama Direktive 1999/5/EC.
RX350_270_EE_48D77E.book 364 ページ ２０１４年１月２４日　金曜日　午前１０時４分

365
3-2. Using the audio system
3
Interior features
RX350/270_EE
NOTICE
■To prevent damage to portable players
Do not leave portable players in the vehicle. The temperature inside the vehicle
may become high, resulting in damage to the player.
RX350_270_EE_48D77E.book 365 ページ ２０１４年１月２４日　金曜日　午前１０時４分

366
3-2. Using the audio system
RX350/270_EE

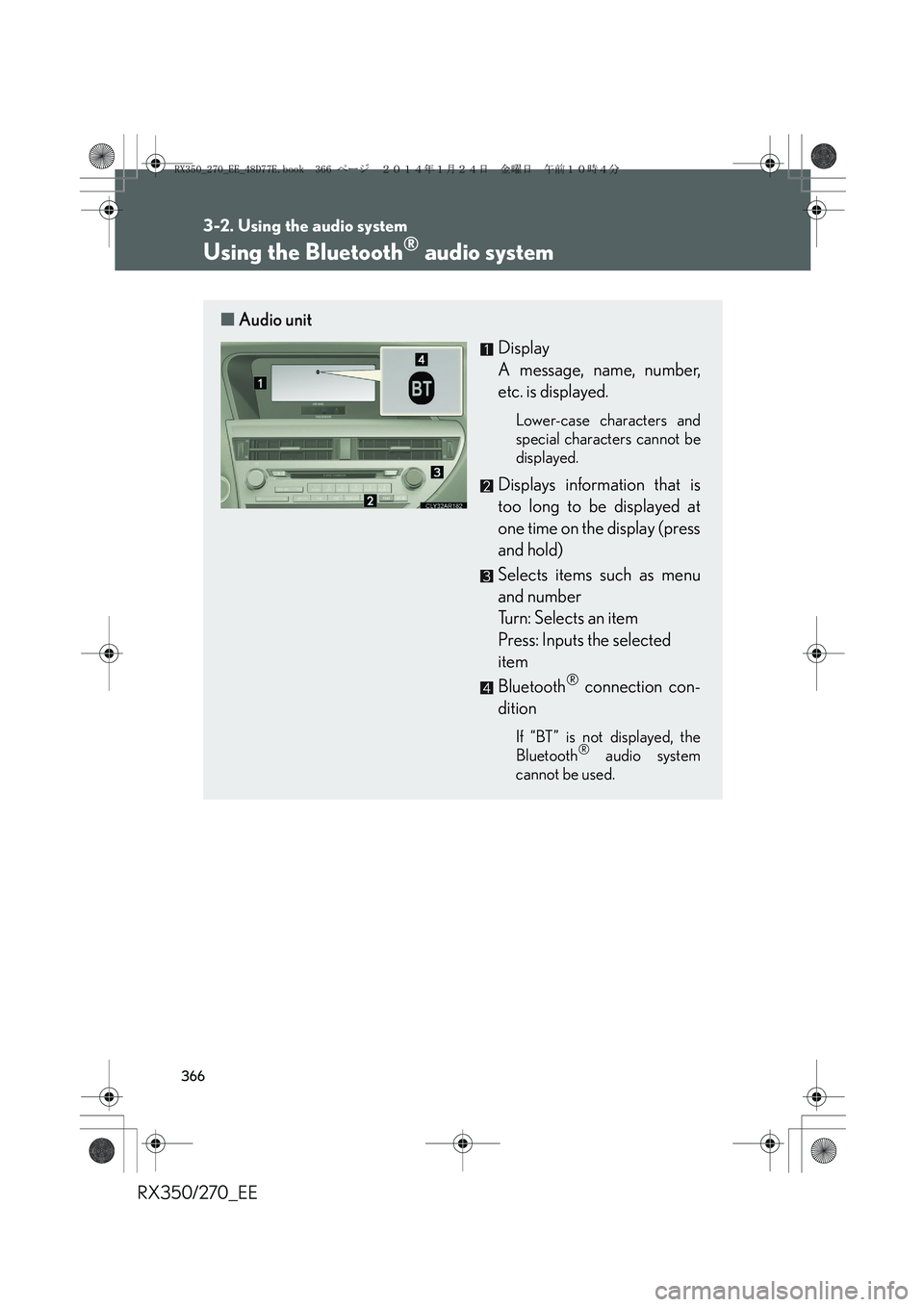

Using the Bluetooth® audio system
■Audio unit
Display
A message, name, number,
etc. is displayed.
Lower-case characters and
special characters cannot be
displayed.
Displays information that is
too long to be displayed at
one time on the display (press
and hold)
Selects items such as menu
and number
Turn: Selects an item
Press: Inputs the selected
item
Bluetooth
® connection con-
dition
If “BT” is not displayed, the
Bluetooth® audio system
cannot be used.
RX350_270_EE_48D77E.book 366 ページ ２０１４年１月２４日　金曜日　午前１０時４分

367
3-2. Using the audio system
3
Interior features
RX350/270_EE

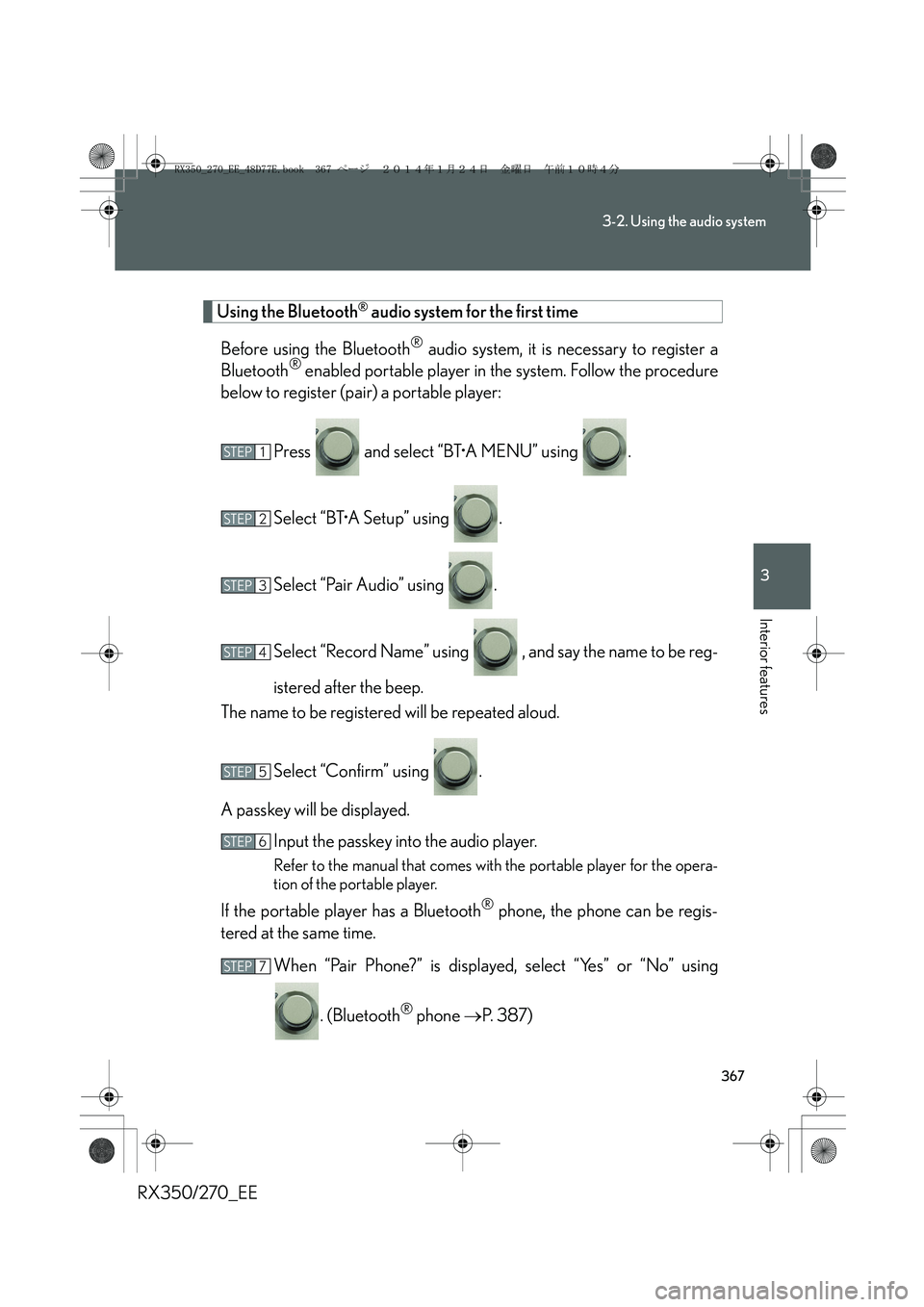

Using the Bluetooth® audio system for the first time
Before using the Bluetooth
® audio system, it is necessary to register a
Bluetooth® enabled portable player in the system. Follow the procedure
below to register (pair) a portable player:
Press and select “BT•A MENU” using .
Select “BT•A Setup” using .
Select “Pair Audio” using .
Select “Record Name” using , and say the name to be reg-
istered after the beep.
The name to be registered will be repeated aloud.
Select “Confirm” using .
A passkey will be displayed.
Input the passkey into the audio player.
Refer to the manual that comes with the portable player for the opera-
tion of the portable player.
If the portable player has a Bluetooth® phone, the phone can be regis-
tered at the same time.
When “Pair Phone?” is displayed, select “Yes” or “No” using
. (Bluetooth
® phone →P. 387)
STEP1
STEP2
STEP3
STEP4
STEP5
STEP6
STEP7
RX350_270_EE_48D77E.book 367 ページ ２０１４年１月２４日　金曜日　午前１０時４分

368
3-2. Using the audio system
RX350/270_EE

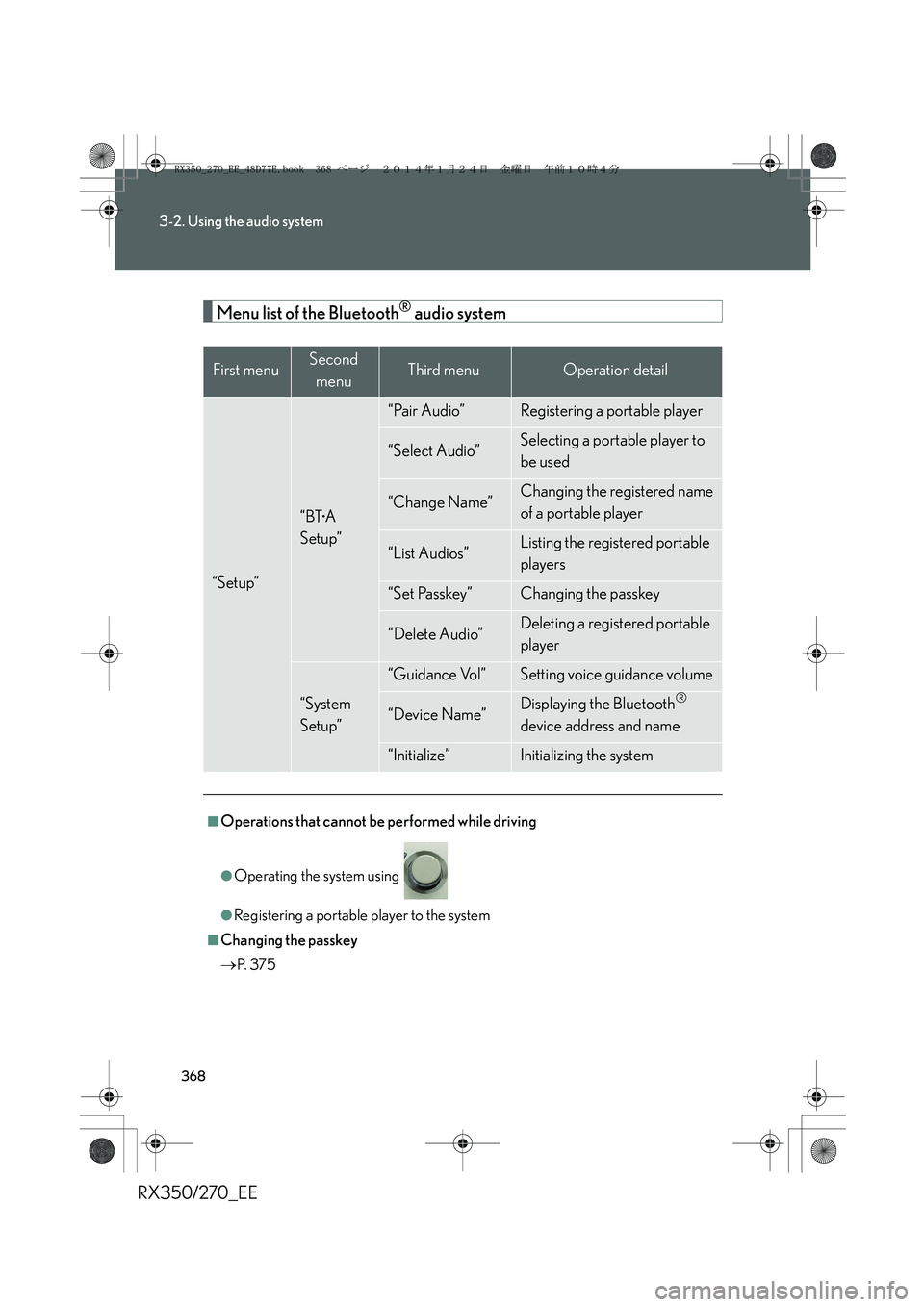

Menu list of the Bluetooth® audio system
First menuSecond
menuThird menuOperation detail
“Setup”
“BT•A
Setup”
“Pair Audio”Registering a portable player
“Select Audio”Selecting a portable player to
be used
“Change Name”Changing the registered name
of a portable player
“List Audios”Listing the registered portable
players
“Set Passkey”Changing the passkey
“Delete Audio”Deleting a registered portable
player
“System
Setup”
“Guidance Vol”Setting voice guidance volume
“Device Name”Displaying the Bluetooth®
device address and name
“Initialize”Initializing the system
■Operations that cannot be performed while driving
●Operating the system using
●Registering a portable player to the system
■Changing the passkey
→P. 3 7 5
RX350_270_EE_48D77E.book 368 ページ ２０１４年１月２４日　金曜日　午前１０時４分

369
3-2. Using the audio system
3
Interior features
RX350/270_EE

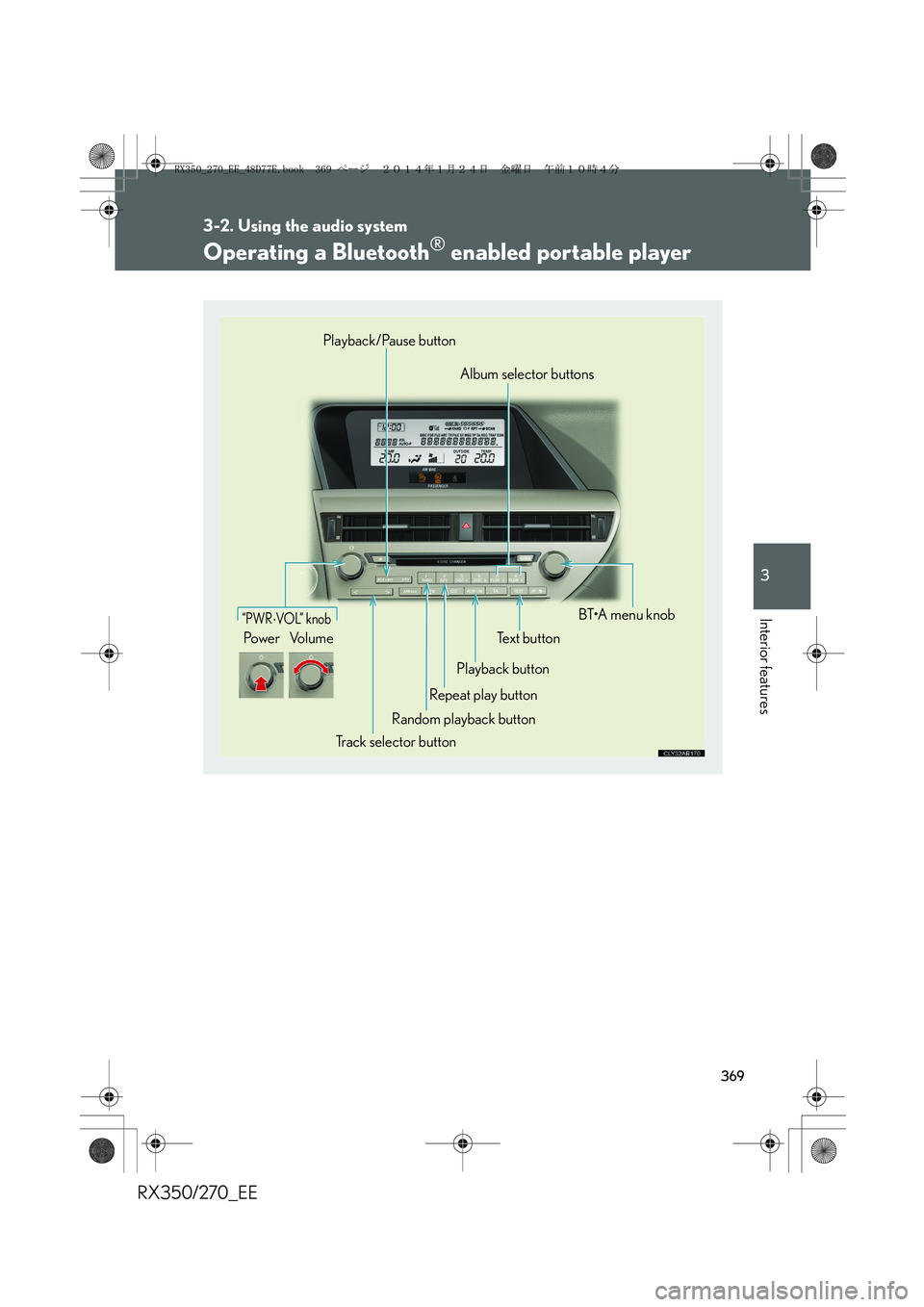

Operating a Bluetooth® enabled portable player
“PWR⋅VO L” k no b
Po w e r Vo l u m eText button
Playback button
Repeat play button
Random playback button
Track selector buttonBT•A menu knob Album selector buttons Playback/Pause button
RX350_270_EE_48D77E.book 369 ページ ２０１４年１月２４日　金曜日　午前１０時４分

370
3-2. Using the audio system
RX350/270_EE

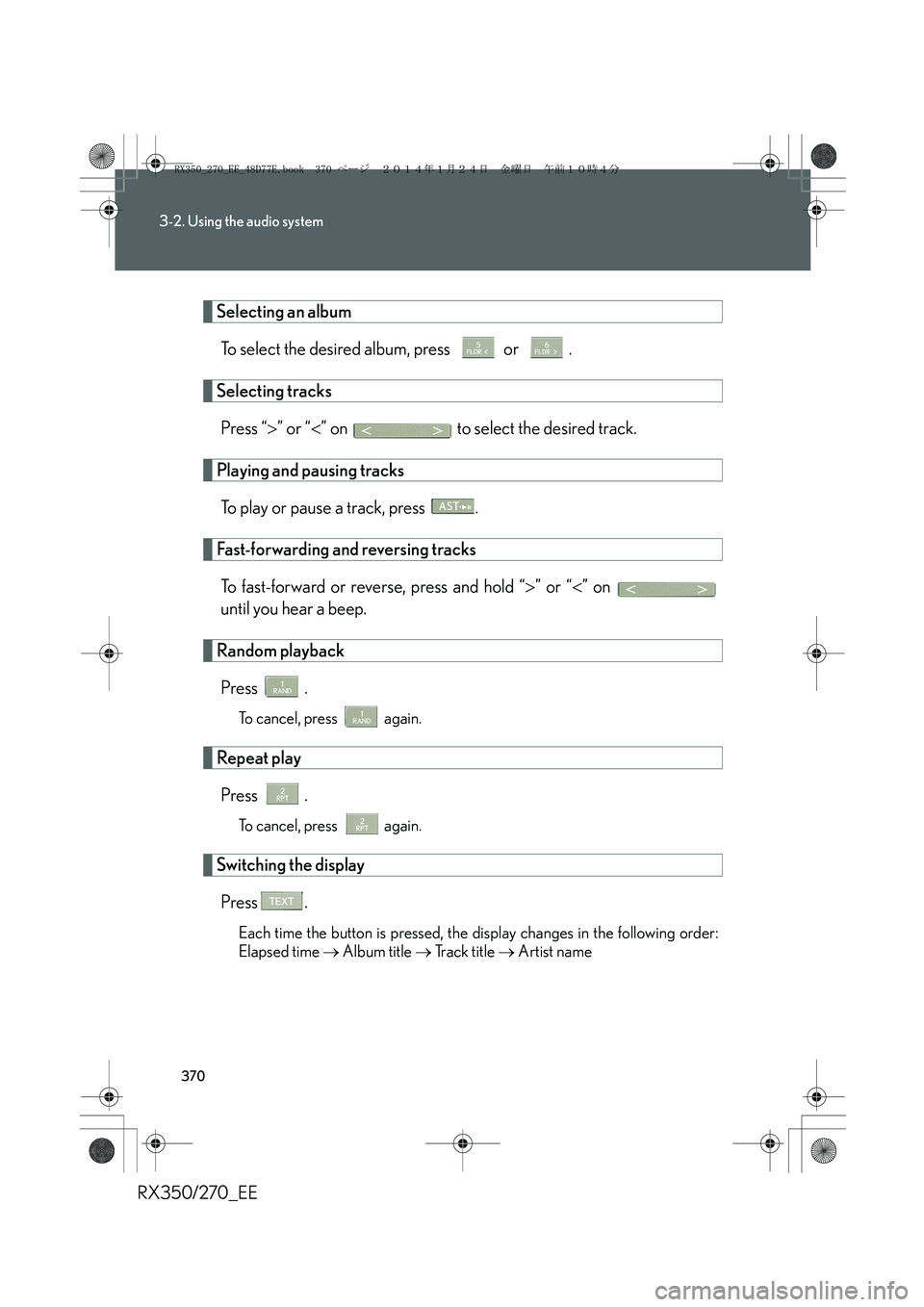

Selecting an album
To select the desired album, press or .
Selecting tracks
Press “>” or “<” on to select the desired track.
Playing and pausing tracks
To play or pause a track, press .
Fast-forwarding and reversing tracks
To fast-forward or reverse, press and hold “>” or “<” on
until you hear a beep.
Random playback
Press .
To cancel, press again.
Repeat play
Press .
To cancel, press again.
Switching the display
Press .
Each time the button is pressed, the display changes in the following order:
Elapsed time → Album title → Track title → Artist name
