LEXUS RX270 2014 Owners Manual

511
4-3. Do-it-yourself maintenance
4
Maintenance and care
RX350/270_EE
*1:RX270
*2:RX350
45TOW IN G30 ATr a i l e r l i g h t s
46FILTER10 A
47IG1 MAIN30 AECU-IG1 NO. 6, BK/UP LP, ECU-
IG1 NO. 5, ECU-IG1 NO. 4
48H-LP RH HI15 ARight-hand headlight (high beam)
49H-LP LH HI15 ALeft-hand headlight (high beam)
50BIXENON10 A
51H-LP RH LO15 ARight-hand headlight (low beam),
manual headlight leveling system
52H-LP LH LO15 ALeft-hand headlight (low beam)
53HORN10 AHorn
54
EFI MAIN
NO. 2
*120 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
A/F*2
55S-HORN7. 5 AS-HORN
FuseAmpereCircuit
RX350_270_EE_48D77E.book 511 ページ ２０１４年１月２４日　金曜日　午前１０時４分

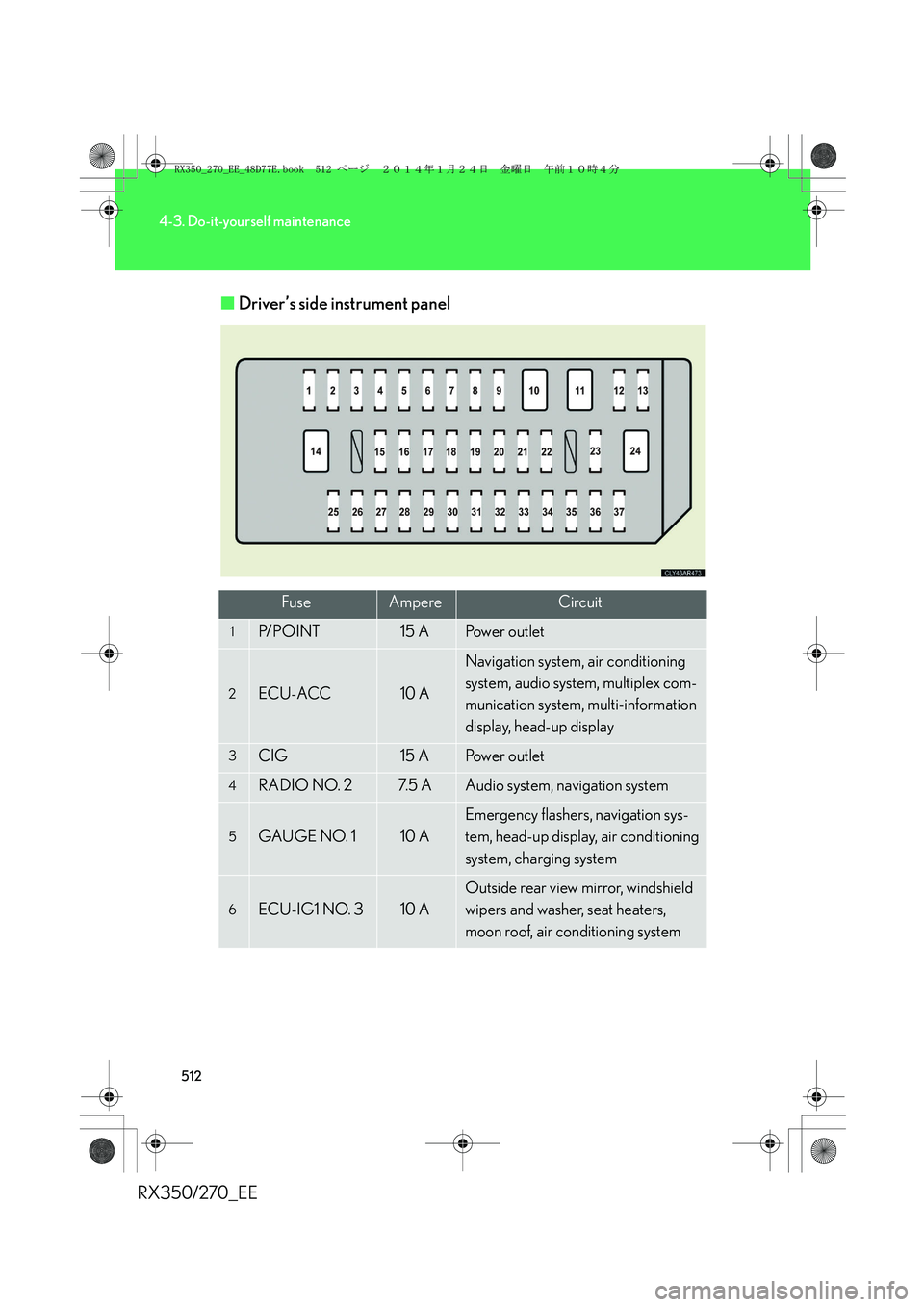

512
4-3. Do-it-yourself maintenance
RX350/270_EE■Driver’s side instrument panel
FuseAmpereCircuit
1P/ P O I N T15 APow e r o u t l e t
2ECU-ACC10 A
Navigation system, air conditioning
system, audio system, multiplex com-
munication system, multi-information
display, head-up display
3CIG15 APow e r o u t l e t
4RADIO NO. 27. 5 AAudio system, navigation system
5GAUGE NO. 110 A
Emergency flashers, navigation sys-
tem, head-up display, air conditioning
system, charging system
6ECU-IG1 NO. 310 A
Outside rear view mirror, windshield
wipers and washer, seat heaters,
moon roof, air conditioning system
RX350_270_EE_48D77E.book 512 ページ ２０１４年１月２４日　金曜日　午前１０時４分

513
4-3. Do-it-yourself maintenance
4
Maintenance and care
RX350/270_EE
7ECU-IG1 NO. 110 A
Multiplex communication system,
steering sensor, shift lock control sys-
tem, tilt and telescopic steering, auto-
matic transmission system, power
back door, pre-crash safety system,
vehicle stability control system, tire
pressure warning system
8S/ROOF30 AMoon roof
9FUEL OPN7. 5 AFuel filler door opener
10PSB30 APre-crash seat belt
11TI & TE30 ATilt and telescopic steering system
12DR LOCK10 ADR LOCK
13FR FOG7. 5 AFront fog lights
14P- S E AT L H30 APower seat (left-side)
154WD7. 5 AAW D s y s t e m
16INVERTER20 A
17RR FOG7. 5 ARear fog lights
18D/L ALT B25 A
Multiplex communication system,
power door lock system, power back
door
19EPS10 AElectric power steering system
20ECU-IG1 NO. 210 ALexus parking assist-sensor, AWD
system, pre-crash seat belt
FuseAmpereCircuit
RX350_270_EE_48D77E.book 513 ページ ２０１４年１月２４日　金曜日　午前１０時４分

514
4-3. Do-it-yourself maintenance
RX350/270_EE
21PA N E L10 A
Switch illumination, navigation system,
electronically modulated air suspen-
sion, automatic transmission system,
audio system, multi-information dis-
play, air conditioning system, multiplex
communication system
22TA I L10 A
Front position lights, tail lights, license
plate lights, front fog lights, towing
converter, rear fog lights
23AIR SUS20 AElectronically modulated air suspen-
sion
24P- S E AT R H30 APower seat right side
25OBD7. 5 AOn-Board diagnosis
26FR DOOR25 AFront power window (right-side), out-
side rear view mirror
27RR DOOR25 ARear power window (right-side)
28FL DOOR25 AFront power window (left-side), out-
side rear view mirror
29RL DOOR25 ARear power window (left-side)
30FR WASH25 AWindshield wipers and washer
31RR WIP15 AWindshield wipers and washer
32RR WASH20 AWindshield wipers and washer
33FR WIP30 AWindshield wipers and washer
34ECU IG210 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem, SRS airbag system, stop lights,
electronic controlled transmission,
steering lock system
FuseAmpereCircuit
RX350_270_EE_48D77E.book 514 ページ ２０１４年１月２４日　金曜日　午前１０時４分

515
4-3. Do-it-yourself maintenance
4
Maintenance and care
RX350/270_EE
35GAUGE NO. 27. 5 AGauge and meters
36RH S-HTR15 ASeat heater (right-side)
37LH S-HTR15 ASeat heater (left-side)
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. (→P. 5 1 6 )
●If the replaced fuse blows again, have the vehicle inspected by any authorized
Lexus dealer or repairer, or another duly qualified and equipped professional.
■If there is an overload in the circuit
The fuses are designed to blow, protecting the wiring harness from damage.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than indicated, or use any other
object in place of a fuse.
●Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
●Do not modify the fuse or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by any authorized
Lexus dealer or repairer, or another duly qualified and equipped professional as
soon as possible.
FuseAmpereCircuit
RX350_270_EE_48D77E.book 515 ページ ２０１４年１月２４日　金曜日　午前１０時４分

516
4-3. Do-it-yourself maintenance
RX350/270_EE
Light bulbs
You may replace the following bulbs by yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb replacement
seems difficult to perform, contact any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
For more information about replacing other light bulbs, contact any autho-
rized Lexus dealer or repairer, or another duly qualified and equipped pro-
fessional.
■Preparing for light bulb replacement
Check the wattage of the light bulb to be replaced. (→P. 6 1 9 )
■Removing the engine compartment covers
→P. 4 7 0
■Turning off the power back door main switch (if equipped).
→P. 6 2
■Front bulb locations
Vehicles with halogen headlights
Headlight high beam Headlight low beam
Front turn signal light
Front fog light
RX350_270_EE_48D77E.book 516 ページ ２０１４年１月２４日　金曜日　午前１０時４分

517
4-3. Do-it-yourself maintenance
4
Maintenance and care
RX350/270_EE
Vehicles with discharge headlights
■Rear bulb locations
Front turn signal lightFront fog lightHeadlight high beam
Rear turn signal light Back-up light
Rear fog lightTail light
Tail light
RX350_270_EE_48D77E.book 517 ページ ２０１４年１月２４日　金曜日　午前１０時４分

518
4-3. Do-it-yourself maintenance
RX350/270_EE
Replacing light bulbs
■Headlight high beams
Right side:
Open the cap.
Move the washer fluid filler
opening to allow easy access to
the light bulbs.
Unplug the connector while
depressing the lock release.
Turn the bulb base counterclock-
wise.
STEP1
STEP2
STEP3
RX350_270_EE_48D77E.book 518 ページ ２０１４年１月２４日　金曜日　午前１０時４分

519
4-3. Do-it-yourself maintenance
4
Maintenance and care
RX350/270_EEReplace the light bulb, and install
the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb base.
Connect the connector.
Shake the bulb base gently to
check that it is not loose, turn the
headlight high beams on once and
visually confirm that no light is leak-
ing through the mounting.
When replacing the right side bulb, install by conducting
with the directions reversed.
STEP4
STEP5
STEP5STEP6STEP5STEP1
RX350_270_EE_48D77E.book 519 ページ ２０１４年１月２４日　金曜日　午前１０時４分

520
4-3. Do-it-yourself maintenance
RX350/270_EE■Halogen headlight low beams (if equipped)
Turn the bulb base counterclock-
wise.
Unplug the connector while
depressing the lock release.
Replace the light bulb, and install
the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb base.
Shake the bulb base gently to
check that it is not loose, turn the
headlight low beams on once and
visually confirm that no light is leak-
ing through the mounting.
STEP1
STEP2
STEP3
STEP4
RX350_270_EE_48D77E.book 520 ページ ２０１４年１月２４日　金曜日　午前１０時４分
