5-1. Essential information
When trouble arises
RX350/270_EE

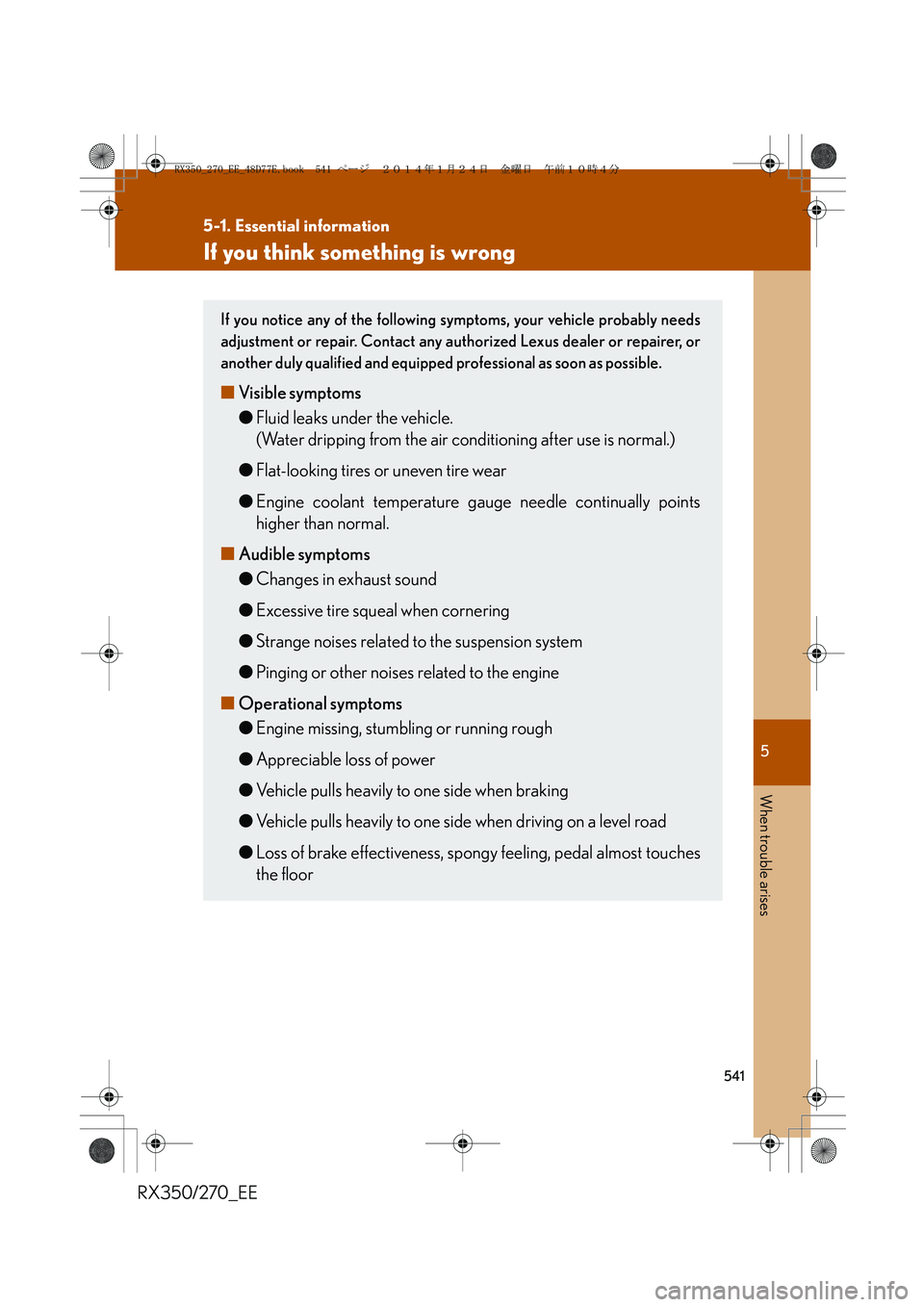

If you think something is wrong
If you notice any of the following symptoms, your vehicle probably needs
adjustment or repair. Contact any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional as soon as possible.
■Visible symptoms
●Fluid leaks under the vehicle.
(Water dripping from the air conditioning after use is normal.)
●Flat-looking tires or uneven tire wear
●Engine coolant temperature gauge needle continually points
higher than normal.
■Audible symptoms
●Changes in exhaust sound
●Excessive tire squeal when cornering
●Strange noises related to the suspension system
●Pinging or other noises related to the engine
■Operational symptoms
●Engine missing, stumbling or running rough
●Appreciable loss of power
●Vehicle pulls heavily to one side when braking
●Vehicle pulls heavily to one side when driving on a level road
●Loss of brake effectiveness, spongy feeling, pedal almost touches
the floor
RX350_270_EE_48D77E.book 541 ページ ２０１４年１月２４日　金曜日　午前１０時４分

542
5-1. Essential information
RX350/270_EE

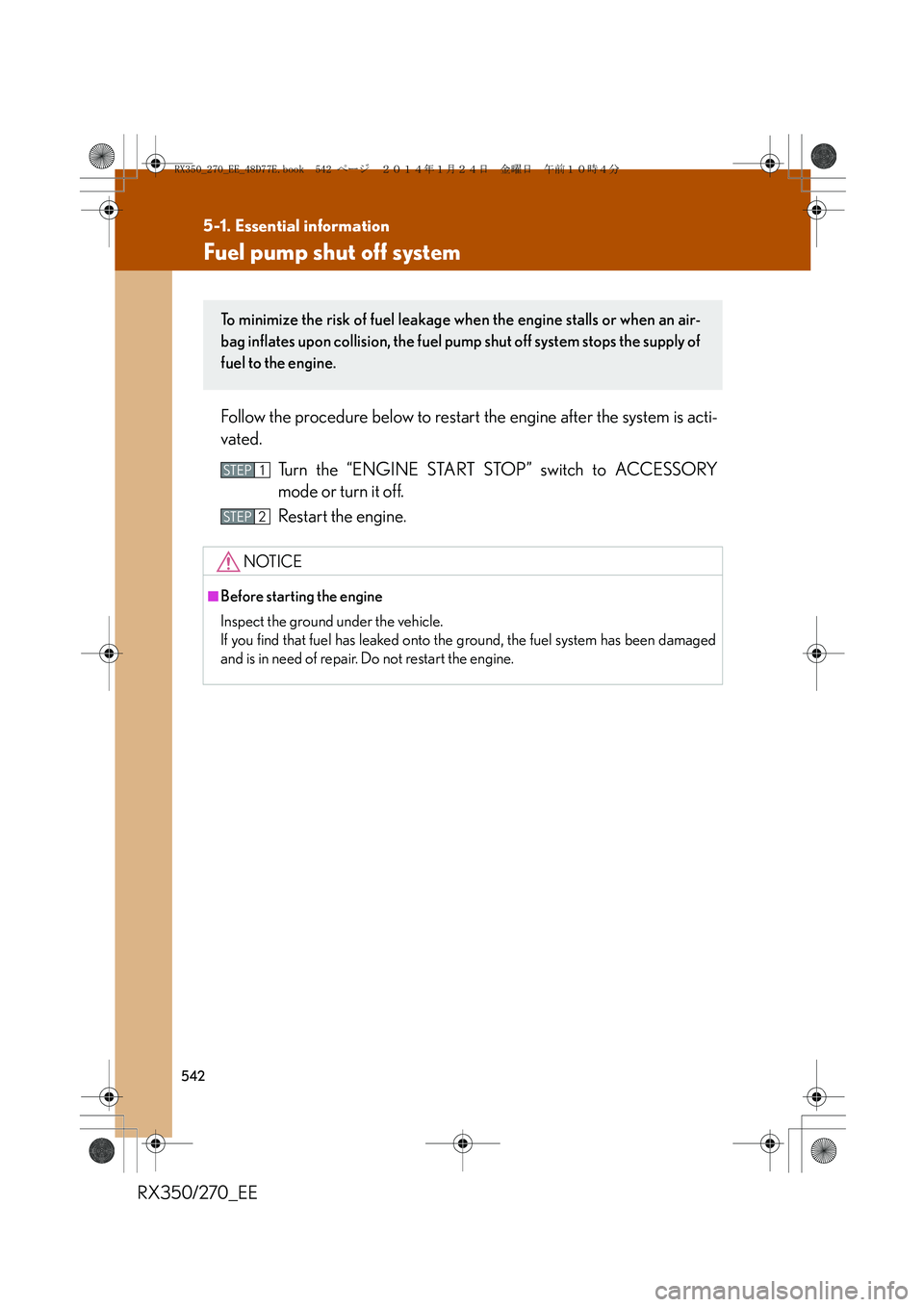

Fuel pump shut off system
Follow the procedure below to restart the engine after the system is acti-
vated.
Turn the “ENGINE START STOP” switch to ACCESSORY
mode or turn it off.
Restart the engine.
NOTICE
■Before starting the engine
Inspect the ground under the vehicle.
If you find that fuel has leaked onto the ground, the fuel system has been damaged
and is in need of repair. Do not restart the engine.
To minimize the risk of fuel leakage when the engine stalls or when an air-
bag inflates upon collision, the fuel pump shut off system stops the supply of
fuel to the engine.
STEP1
STEP2
RX350_270_EE_48D77E.book 542 ページ ２０１４年１月２４日　金曜日　午前１０時４分

5
543
When trouble arises
RX350/270_EE
5-2. Steps to take in an emergency

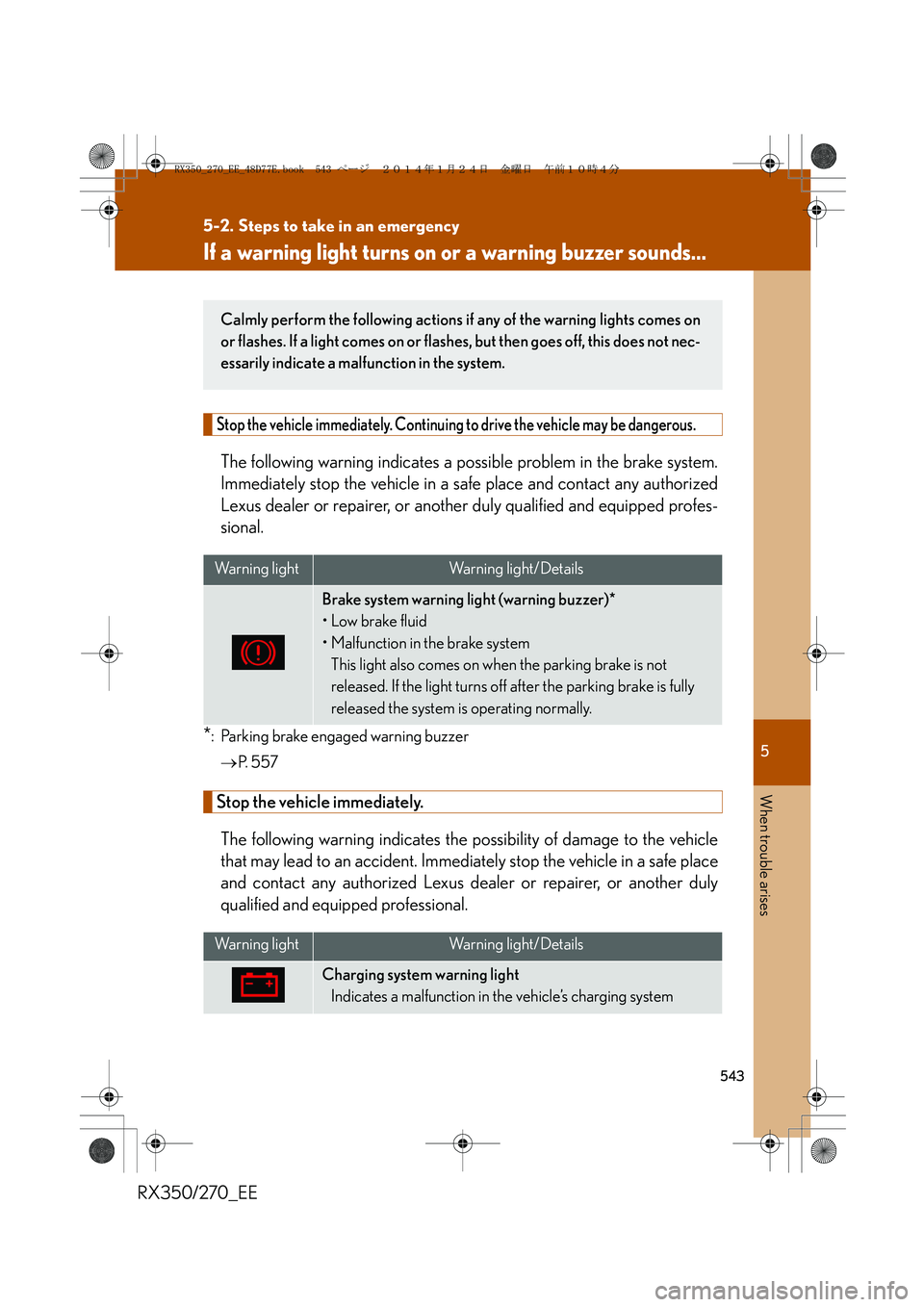

If a warning light turns on or a warning buzzer sounds...
Stop the vehicle immediately. Continuing to drive the vehicle may be dangerous.
The following warning indicates a possible problem in the brake system.
Immediately stop the vehicle in a safe place and contact any authorized
Lexus dealer or repairer, or another duly qualified and equipped profes-
sional.
*: Parking brake engaged warning buzzer
→P. 557
Stop the vehicle immediately.
The following warning indicates the possibility of damage to the vehicle
that may lead to an accident. Immediately stop the vehicle in a safe place
and contact any authorized Lexus dealer or repairer, or another duly
qualified and equipped professional.
Warning lightWarning light/Details
Brake system warning light (warning buzzer)*
•Low brake fluid
• Malfunction in the brake system
This light also comes on when the parking brake is not
released. If the light turns off after the parking brake is fully
released the system is operating normally.
Warning lightWarning light/Details
Charging system warning light
Indicates a malfunction in the vehicle’s charging system
Calmly perform the following actions if any of the warning lights comes on
or flashes. If a light comes on or flashes, but then goes off, this does not nec-
essarily indicate a malfunction in the system.
RX350_270_EE_48D77E.book 543 ページ ２０１４年１月２４日　金曜日　午前１０時４分

544
5-2. Steps to take in an emergency
RX350/270_EE

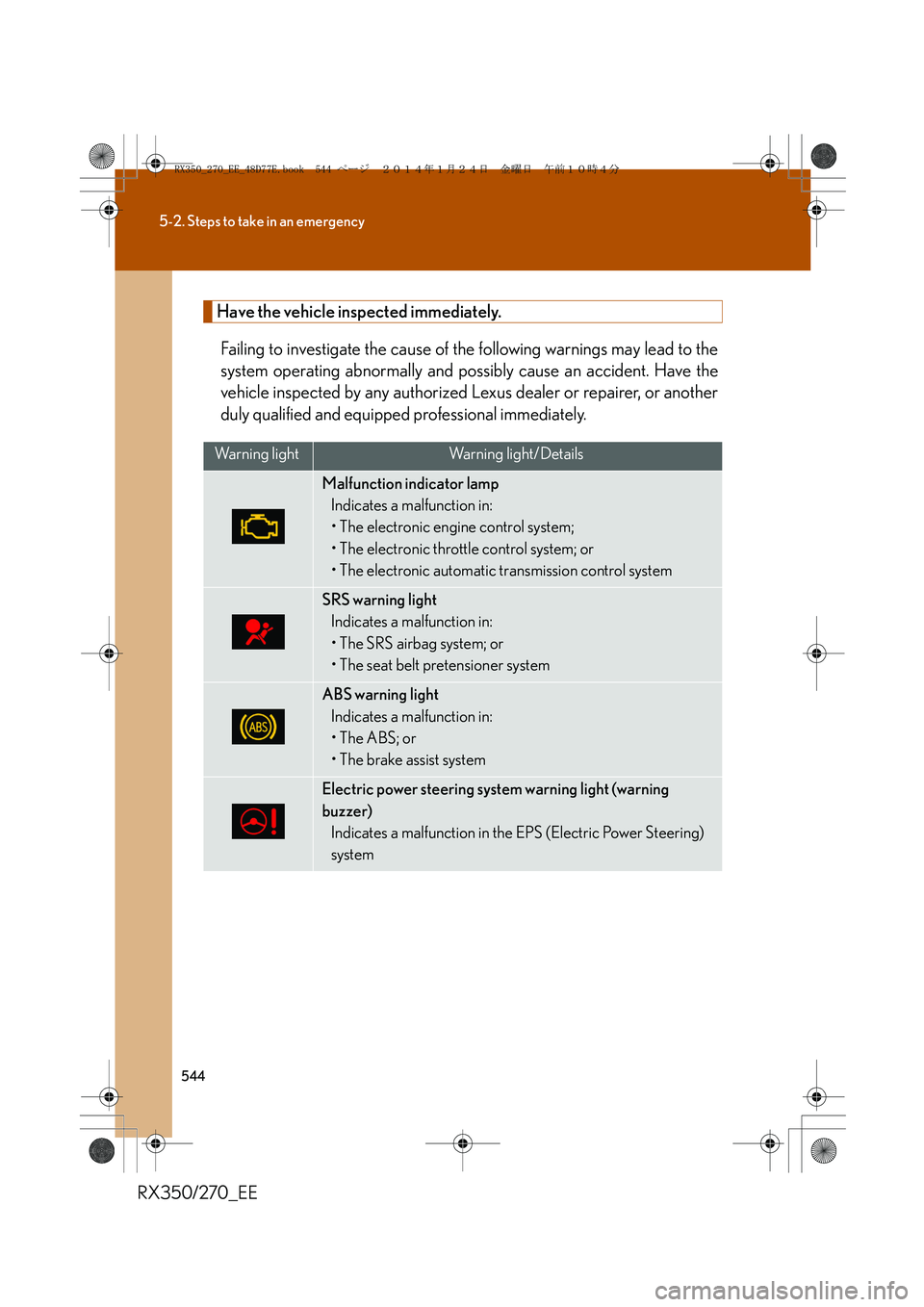

Have the vehicle inspected immediately.
Failing to investigate the cause of the following warnings may lead to the
system operating abnormally and possibly cause an accident. Have the
vehicle inspected by any authorized Lexus dealer or repairer, or another
duly qualified and equipped professional immediately.
Warning lightWarning light/Details
Malfunction indicator lamp
Indicates a malfunction in:
• The electronic engine control system;
• The electronic throttle control system; or
• The electronic automatic transmission control system
SRS warning light
Indicates a malfunction in:
• The SRS airbag system; or
• The seat belt pretensioner system
ABS warning light
Indicates a malfunction in:
•The ABS; or
• The brake assist system
Electric power steering system warning light (warning
buzzer)
Indicates a malfunction in the EPS (Electric Power Steering)
system
RX350_270_EE_48D77E.book 544 ページ ２０１４年１月２４日　金曜日　午前１０時４分

5

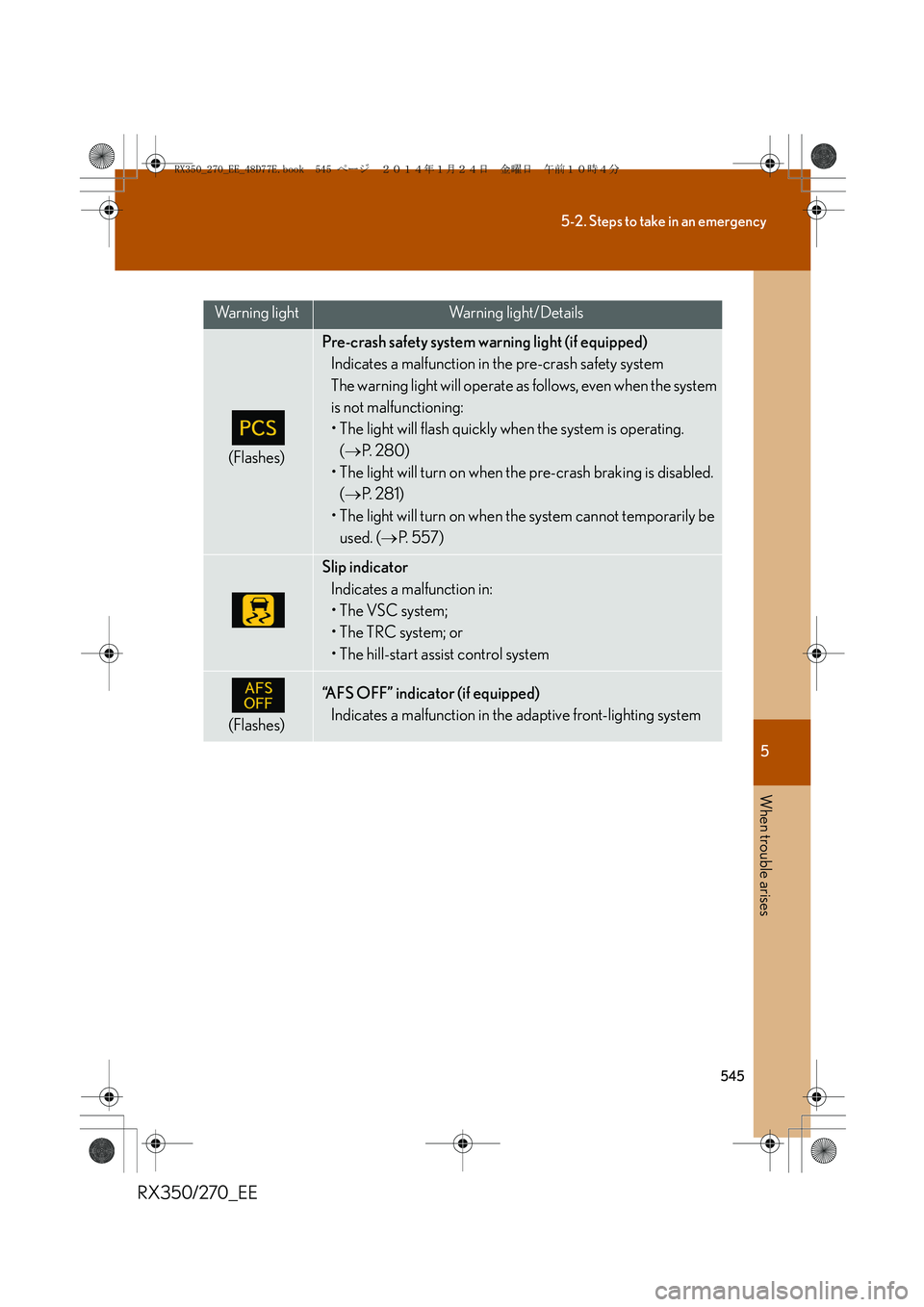

545
5-2. Steps to take in an emergency
When trouble arises
RX350/270_EE
Warning lightWarning light/Details
(Flashes)
Pre-crash safety system warning light (if equipped)
Indicates a malfunction in the pre-crash safety system
The warning light will operate as follows, even when the system
is not malfunctioning:
• The light will flash quickly when the system is operating.
(→P. 2 8 0 )
• The light will turn on when the pre-crash braking is disabled.
(→P. 2 8 1 )
• The light will turn on when the system cannot temporarily be
used. (→P. 557)
Slip indicator
Indicates a malfunction in:
• The VSC system;
• The TRC system; or
• The hill-start assist control system
(Flashes)
“AFS OFF” indicator (if equipped)
Indicates a malfunction in the adaptive front-lighting system
RX350_270_EE_48D77E.book 545 ページ ２０１４年１月２４日　金曜日　午前１０時４分

546
5-2. Steps to take in an emergency
RX350/270_EE

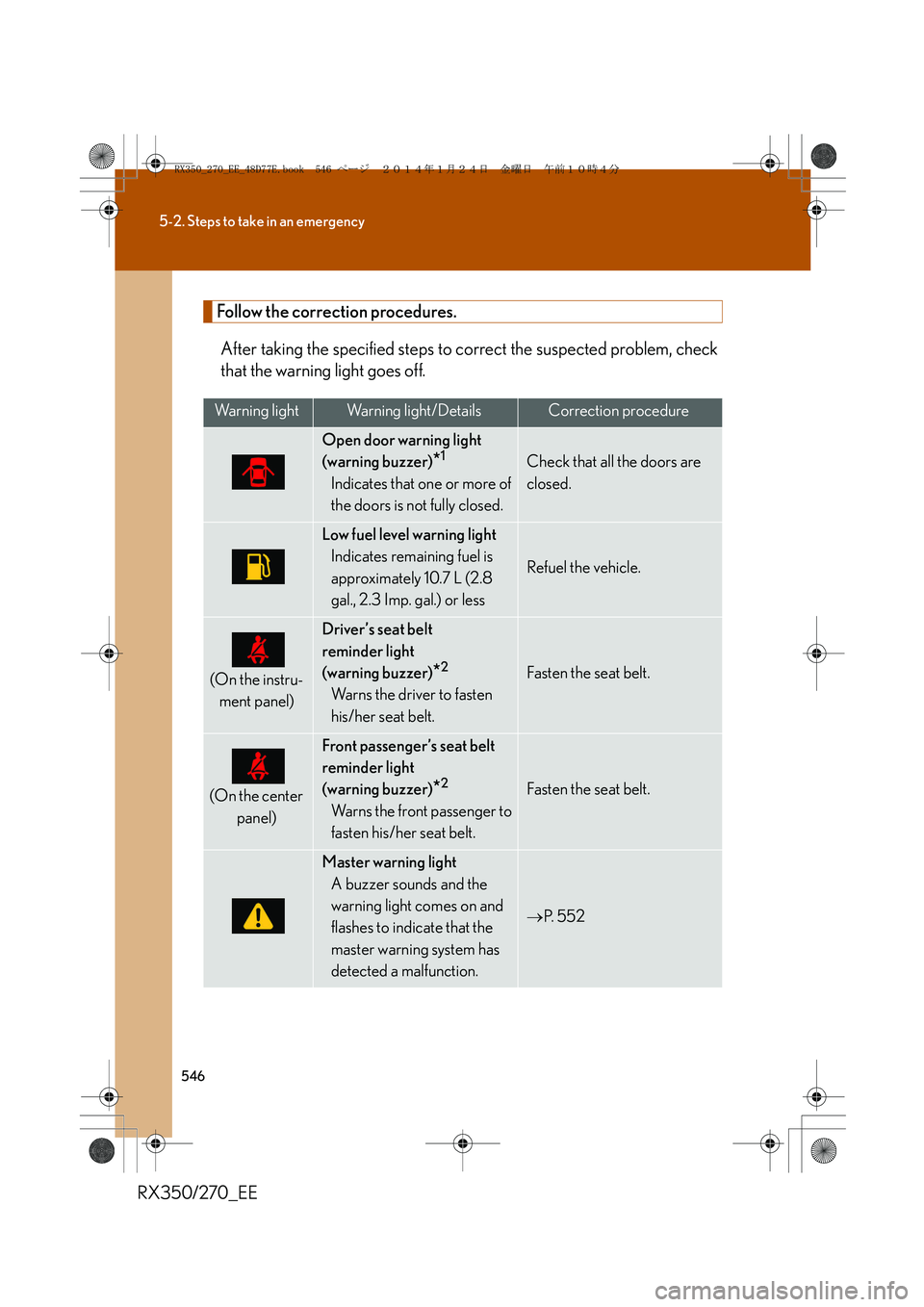

Follow the correction procedures.
After taking the specified steps to correct the suspected problem, check
that the warning light goes off.
Warning lightWarning light/DetailsCorrection procedure
Open door warning light
(warning buzzer)
*1
Indicates that one or more of
the doors is not fully closed.
Check that all the doors are
closed.
Low fuel level warning light
Indicates remaining fuel is
approximately 10.7 L (2.8
gal., 2.3 Imp. gal.) or less
Refuel the vehicle.
(On the instru-
ment panel)
Driver’s seat belt
reminder light
(warning buzzer)
*2
Warns the driver to fasten
his/her seat belt.
Fasten the seat belt.
(On the center
panel)
Front passenger’s seat belt
reminder light
(warning buzzer)
*2
Warns the front passenger to
fasten his/her seat belt.
Fasten the seat belt.
Master warning light
A buzzer sounds and the
warning light comes on and
flashes to indicate that the
master warning system has
detected a malfunction.
→P. 552
RX350_270_EE_48D77E.book 546 ページ ２０１４年１月２４日　金曜日　午前１０時４分

5
547
5-2. Steps to take in an emergency
When trouble arises
RX350/270_EE

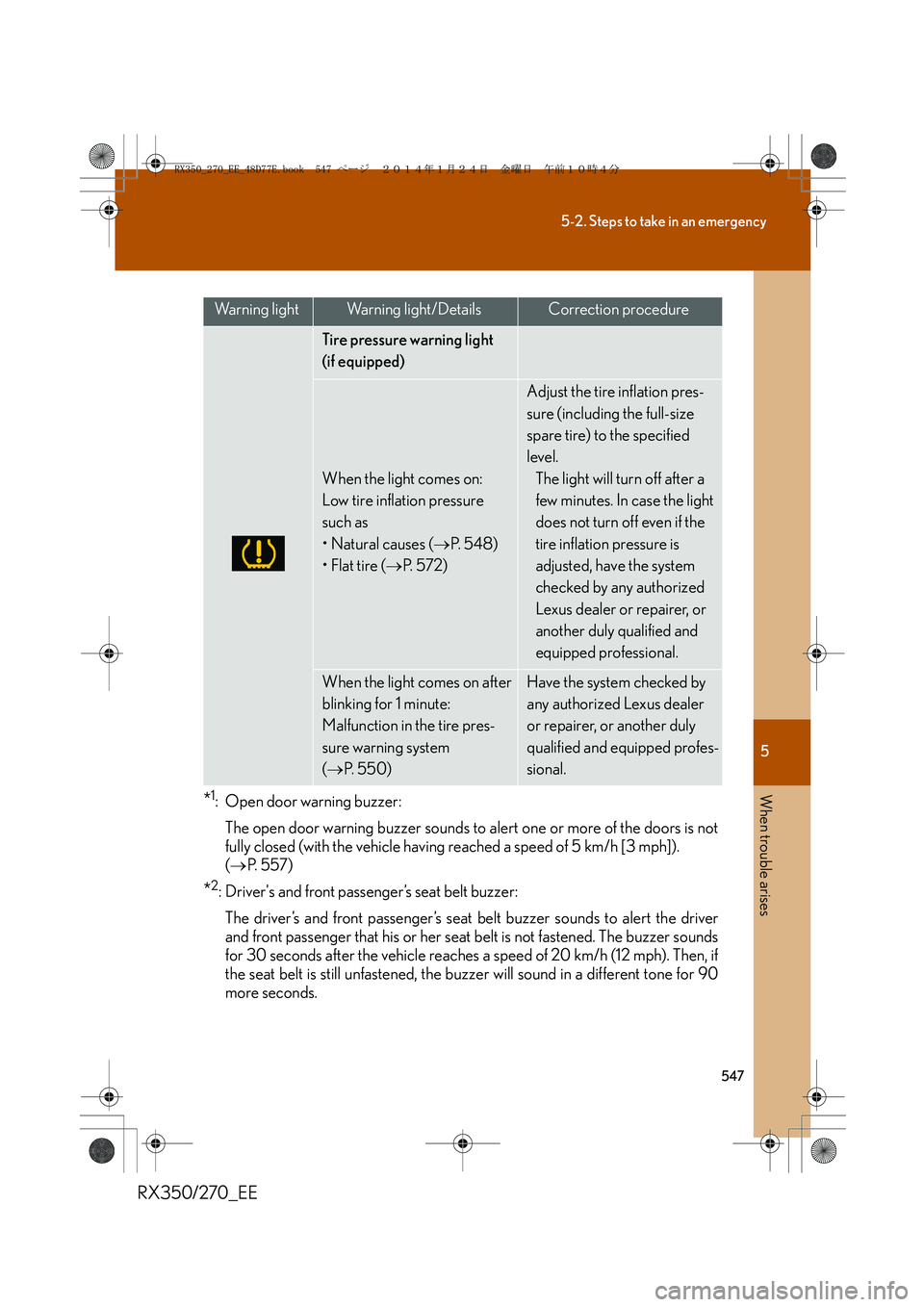

*1: Open door warning buzzer:
The open door warning buzzer sounds to alert one or more of the doors is not
fully closed (with the vehicle having reached a speed of 5 km/h [3 mph]).
(→P. 5 5 7 )
*2: Driver's and front passenger’s seat belt buzzer:
The driver’s and front passenger’s seat belt buzzer sounds to alert the driver
and front passenger that his or her seat belt is not fastened. The buzzer sounds
for 30 seconds after the vehicle reaches a speed of 20 km/h (12 mph). Then, if
the seat belt is still unfastened, the buzzer will sound in a different tone for 90
more seconds.
Tire pressure warning light
(if equipped)
When the light comes on:
Low tire inflation pressure
such as
• Natural causes (→P. 5 4 8 )
•Flat tire (→P. 5 7 2 )
Adjust the tire inflation pres-
sure (including the full-size
spare tire) to the specified
level.
The light will turn off after a
few minutes. In case the light
does not turn off even if the
tire inflation pressure is
adjusted, have the system
checked by any authorized
Lexus dealer or repairer, or
another duly qualified and
equipped professional.
When the light comes on after
blinking for 1 minute:
Malfunction in the tire pres-
sure warning system
(→P. 5 5 0 )Have the system checked by
any authorized Lexus dealer
or repairer, or another duly
qualified and equipped profes-
sional.
Warning lightWarning light/DetailsCorrection procedure
RX350_270_EE_48D77E.book 547 ページ ２０１４年１月２４日　金曜日　午前１０時４分

548
5-2. Steps to take in an emergency
RX350/270_EE
■If the malfunction indicator lamp comes on while driving
For some models, the malfunction indicator lamp will come on if the fuel tank
becomes completely empty. If the fuel tank is empty, refuel the vehicle immediately.
The malfunction indicator lamp will go off after several trips.
If the malfunction indicator lamp does not go off, contact any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional as soon as
possible.
■Front passenger detection sensor, passenger seat belt reminder and warning
buzzer
●If luggage is placed on the front passenger seat, the front passenger detection
sensor may cause the warning light to flash and the warning buzzer to sound
even if a passenger is not sitting in the seat.
●If a cushion is placed on the seat, the sensor may not detect a passenger, and the
warning light may not operate properly.
■Electric power steering system warning light (warning buzzer)
When the battery charge becomes insufficient or the voltage temporarily drops,
the electric power steering system warning light may come on and the warning
buzzer may sound.
■When the tire pressure warning light comes on
Check the tire inflation pressure and adjust to the appropriate level. Pushing the tire
pressure warning reset switch will not turn off the tire pressure warning light.
■The tire pressure warning light may come on due to natural causes
The tire pressure warning light may come on due to natural causes such as natural
air leaks and tire inflation pressure changes caused by temperature. In this case,
adjusting the tire inflation pressure will turn off the warning light (after a few min-
utes).
RX350_270_EE_48D77E.book 548 ページ ２０１４年１月２４日　金曜日　午前１０時４分

5
549
5-2. Steps to take in an emergency
When trouble arises
RX350/270_EE

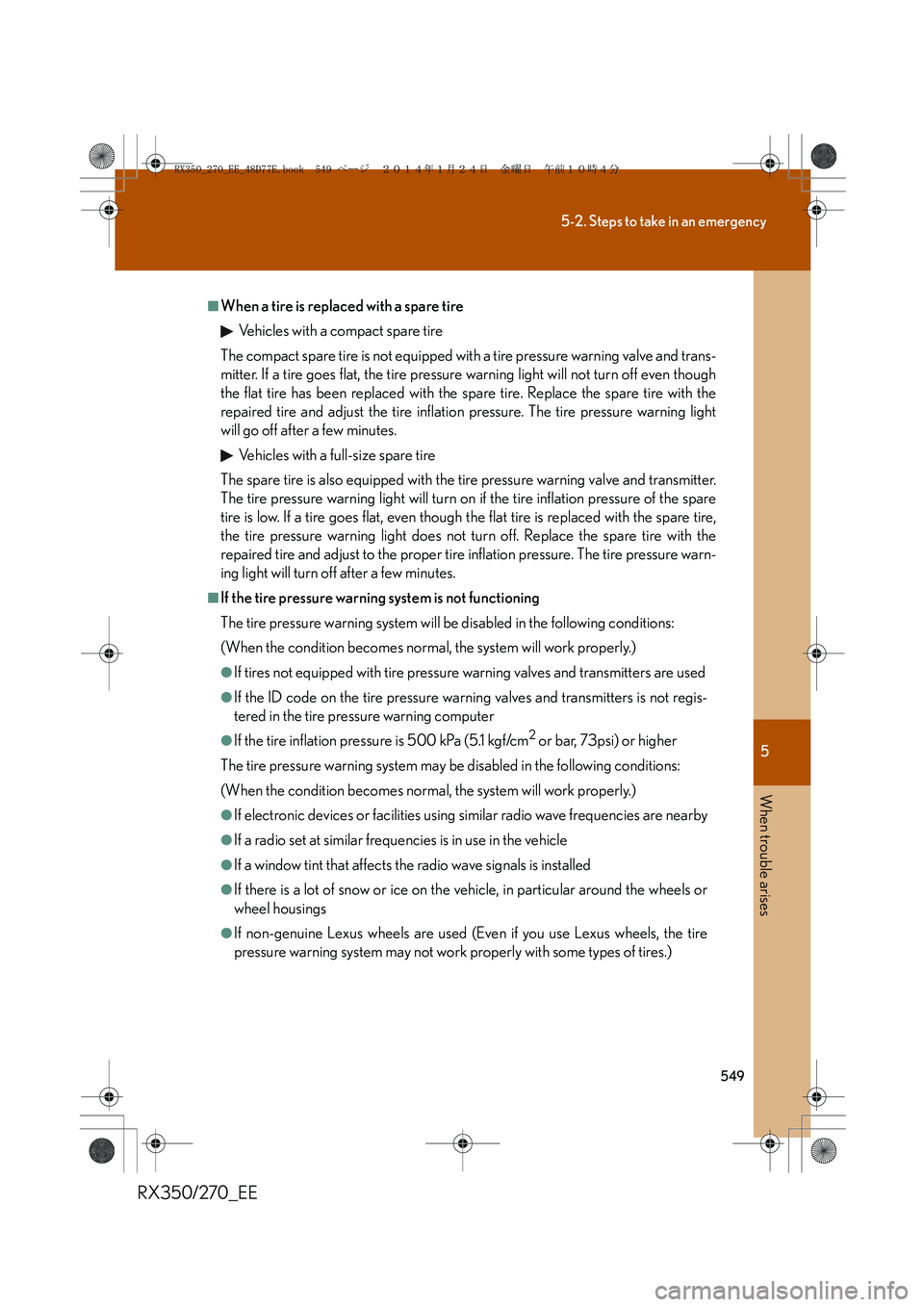

■When a tire is replaced with a spare tire
Vehicles with a compact spare tire
The compact spare tire is not equipped with a tire pressure warning valve and trans-
mitter. If a tire goes flat, the tire pressure warning light will not turn off even though
the flat tire has been replaced with the spare tire. Replace the spare tire with the
repaired tire and adjust the tire inflation pressure. The tire pressure warning light
will go off after a few minutes.
Vehicles with a full-size spare tire
The spare tire is also equipped with the tire pressure warning valve and transmitter.
The tire pressure warning light will turn on if the tire inflation pressure of the spare
tire is low. If a tire goes flat, even though the flat tire is replaced with the spare tire,
the tire pressure warning light does not turn off. Replace the spare tire with the
repaired tire and adjust to the proper tire inflation pressure. The tire pressure warn-
ing light will turn off after a few minutes.
■If the tire pressure warning system is not functioning
The tire pressure warning system will be disabled in the following conditions:
(When the condition becomes normal, the system will work properly.)
●If tires not equipped with tire pressure warning valves and transmitters are used
●If the ID code on the tire pressure warning valves and transmitters is not regis-
tered in the tire pressure warning computer
●If the tire inflation pressure is 500 kPa (5.1 kgf/cm2 or bar, 73psi) or higher
The tire pressure warning system may be disabled in the following conditions:
(When the condition becomes normal, the system will work properly.)
●If electronic devices or facilities using similar radio wave frequencies are nearby
●If a radio set at similar frequencies is in use in the vehicle
●If a window tint that affects the radio wave signals is installed
●If there is a lot of snow or ice on the vehicle, in particular around the wheels or
wheel housings
●If non-genuine Lexus wheels are used (Even if you use Lexus wheels, the tire
pressure warning system may not work properly with some types of tires.)
RX350_270_EE_48D77E.book 549 ページ ２０１４年１月２４日　金曜日　午前１０時４分

550

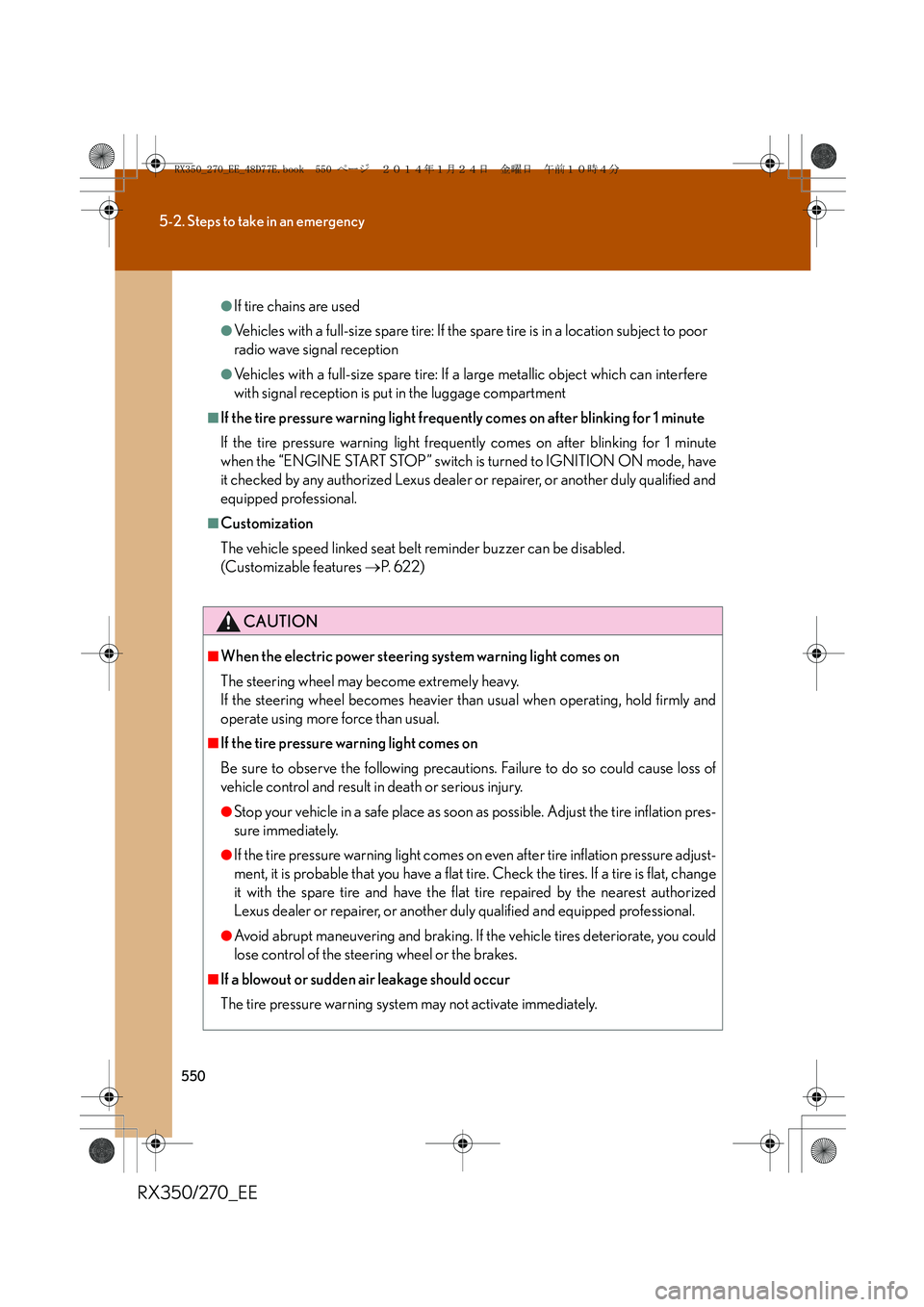

5-2. Steps to take in an emergency
RX350/270_EE
●If tire chains are used
●Vehicles with a full-size spare tire: If the spare tire is in a location subject to poor
radio wave signal reception
●Vehicles with a full-size spare tire: If a large metallic object which can interfere
with signal reception is put in the luggage compartment
■If the tire pressure warning light frequently comes on after blinking for 1 minute
If the tire pressure warning light frequently comes on after blinking for 1 minute
when the “ENGINE START STOP” switch is turned to IGNITION ON mode, have
it checked by any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional.
■Customization
The vehicle speed linked seat belt reminder buzzer can be disabled.
(Customizable features →P. 6 2 2 )
CAUTION
■When the electric power steering system warning light comes on
The steering wheel may become extremely heavy.
If the steering wheel becomes heavier than usual when operating, hold firmly and
operate using more force than usual.
■If the tire pressure warning light comes on
Be sure to observe the following precautions. Failure to do so could cause loss of
vehicle control and result in death or serious injury.
●Stop your vehicle in a safe place as soon as possible. Adjust the tire inflation pres-
sure immediately.
●If the tire pressure warning light comes on even after tire inflation pressure adjust-
ment, it is probable that you have a flat tire. Check the tires. If a tire is flat, change
it with the spare tire and have the flat tire repaired by the nearest authorized
Lexus dealer or repairer, or another duly qualified and equipped professional.
●Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you could
lose control of the steering wheel or the brakes.
■If a blowout or sudden air leakage should occur
The tire pressure warning system may not activate immediately.
RX350_270_EE_48D77E.book 550 ページ ２０１４年１月２４日　金曜日　午前１０時４分
