LEXUS RX270 2014 Owners Manual

5
571

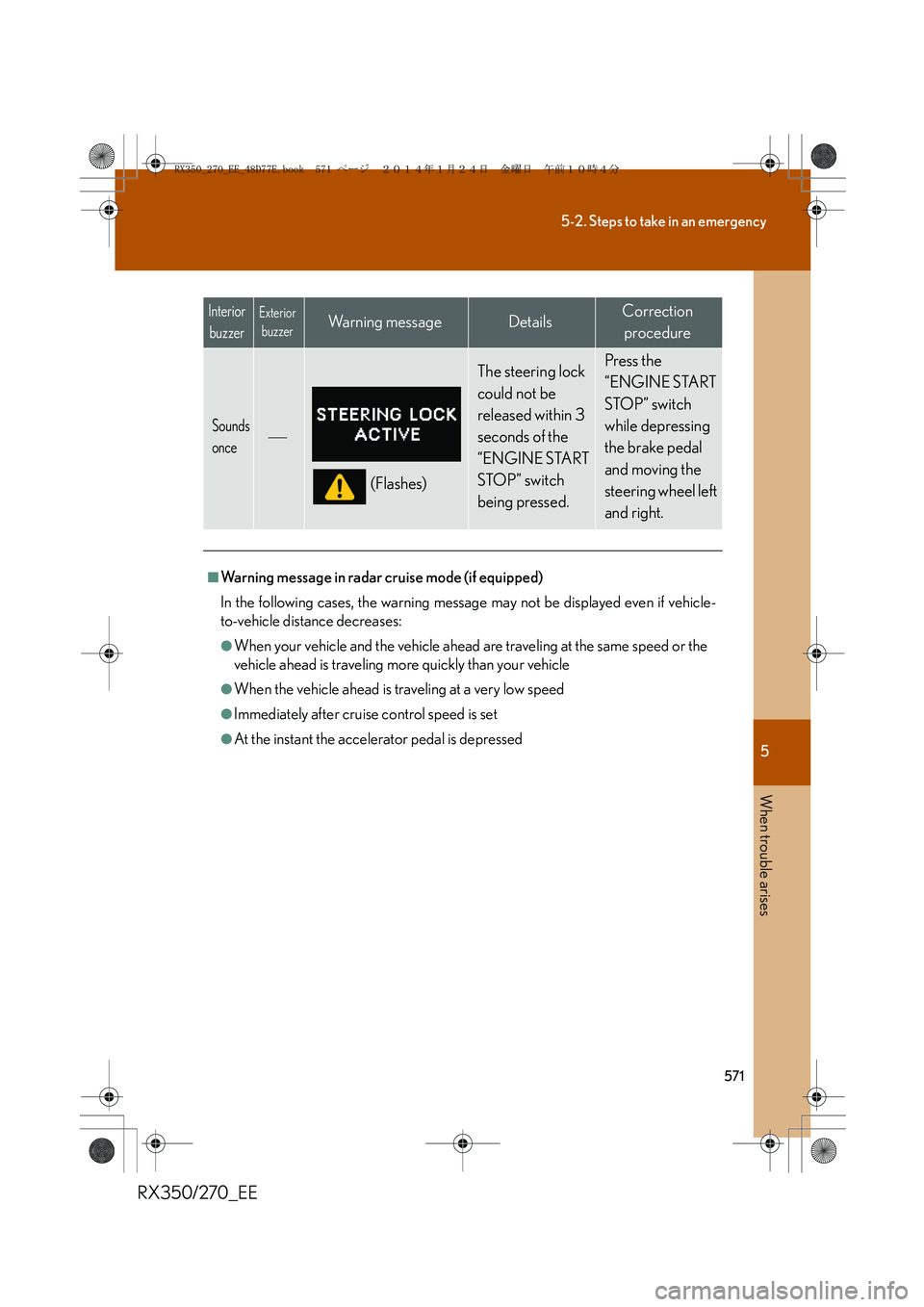

5-2. Steps to take in an emergency
When trouble arises
RX350/270_EE
Sounds
once
(Flashes)
The steering lock
could not be
released within 3
seconds of the
“ENGINE START
STOP” switch
being pressed. Press the
“ENGINE START
STOP” switch
while depressing
the brake pedal
and moving the
steering wheel left
and right.
■Warning message in radar cruise mode (if equipped)
In the following cases, the warning message may not be displayed even if vehicle-
to-vehicle distance decreases:
●When your vehicle and the vehicle ahead are traveling at the same speed or the
vehicle ahead is traveling more quickly than your vehicle
●When the vehicle ahead is traveling at a very low speed
●Immediately after cruise control speed is set
●At the instant the accelerator pedal is depressed
Interior
buzzerExterior
buzzerWa r n i n g m e s s a g eDetailsCorrection
procedure
RX350_270_EE_48D77E.book 571 ページ ２０１４年１月２４日　金曜日　午前１０時４分

572
5-2. Steps to take in an emergency
RX350/270_EE

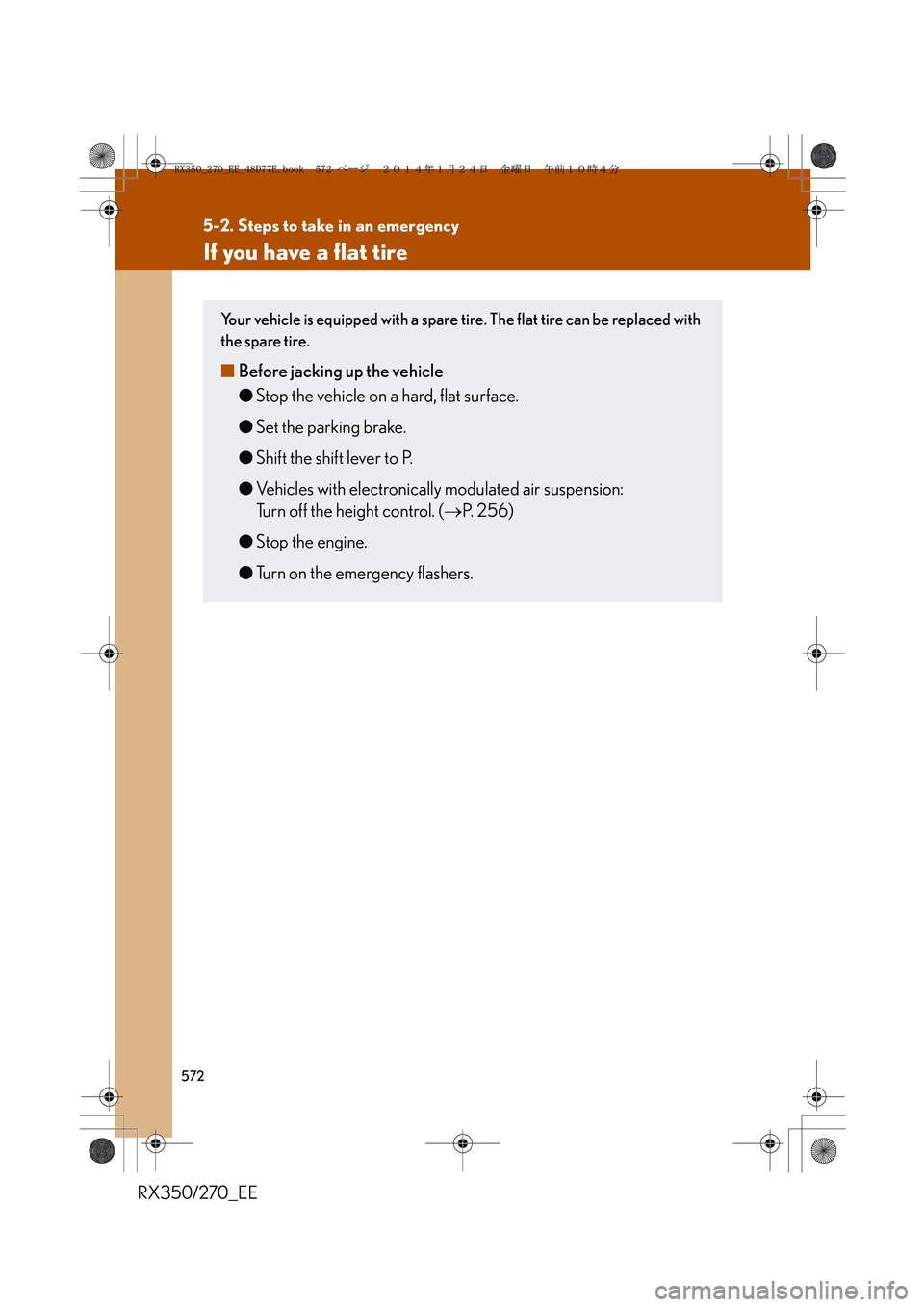

If you have a flat tire
Your vehicle is equipped with a spare tire. The flat tire can be replaced with
the spare tire.
■Before jacking up the vehicle
●Stop the vehicle on a hard, flat surface.
●Set the parking brake.
●Shift the shift lever to P.
●Vehicles with electronically modulated air suspension:
Turn off the height control. (→P. 2 5 6 )
●Stop the engine.
●Turn on the emergency flashers.
RX350_270_EE_48D77E.book 572 ページ ２０１４年１月２４日　金曜日　午前１０時４分

5
573
5-2. Steps to take in an emergency
When trouble arises
RX350/270_EE

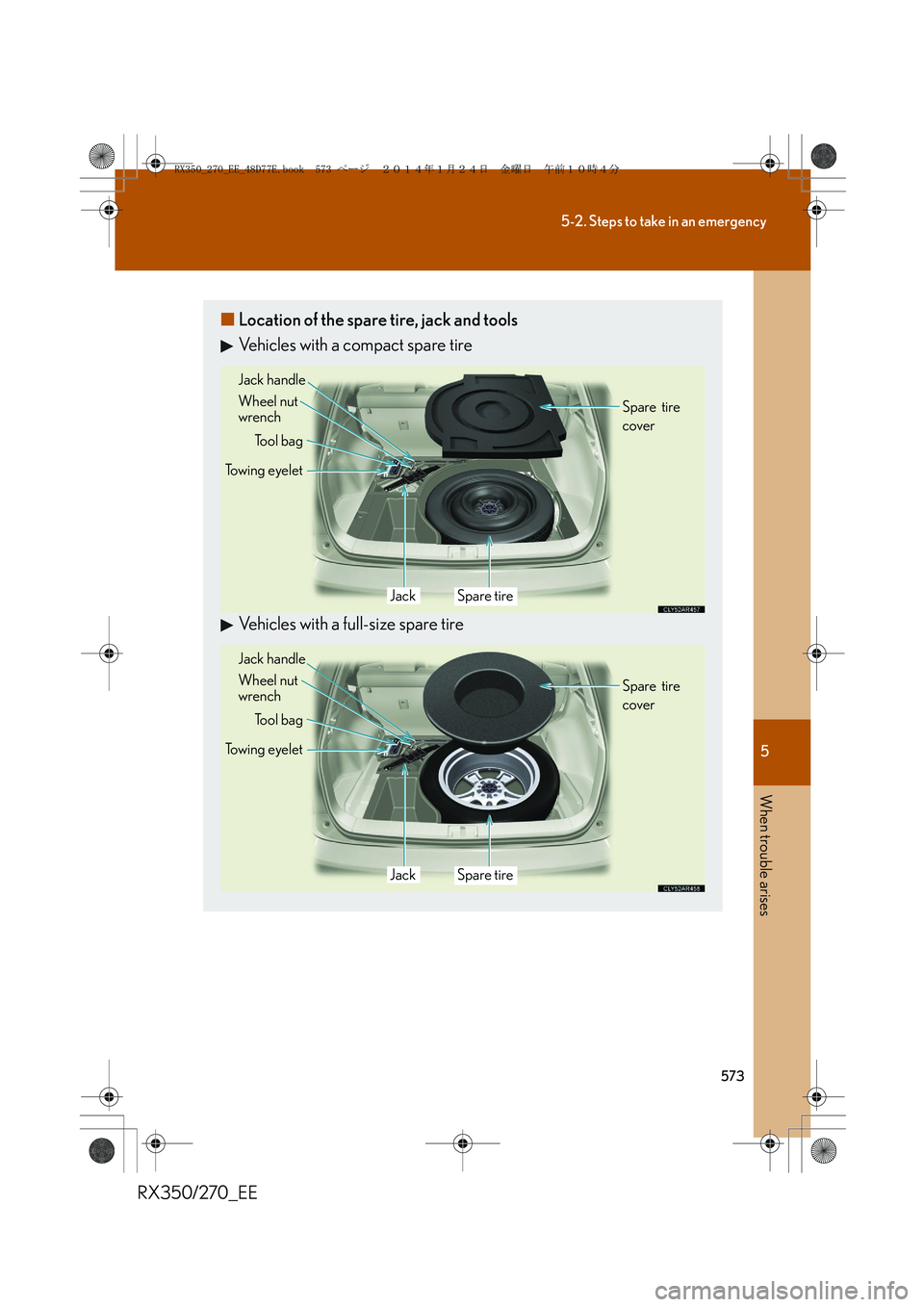

■Location of the spare tire, jack and tools
Vehicles with a compact spare tire
Vehicles with a full-size spare tire
Towing eyelet
Tool bag
Jack handle
Wheel nut
wrench
JackSpare tireSpare tire
cover
Towing eyelet
Tool bag
JackSpare tire Jack handle
Wheel nut
wrenchSpare tire
cover
RX350_270_EE_48D77E.book 573 ページ ２０１４年１月２４日　金曜日　午前１０時４分

574
5-2. Steps to take in an emergency
RX350/270_EE

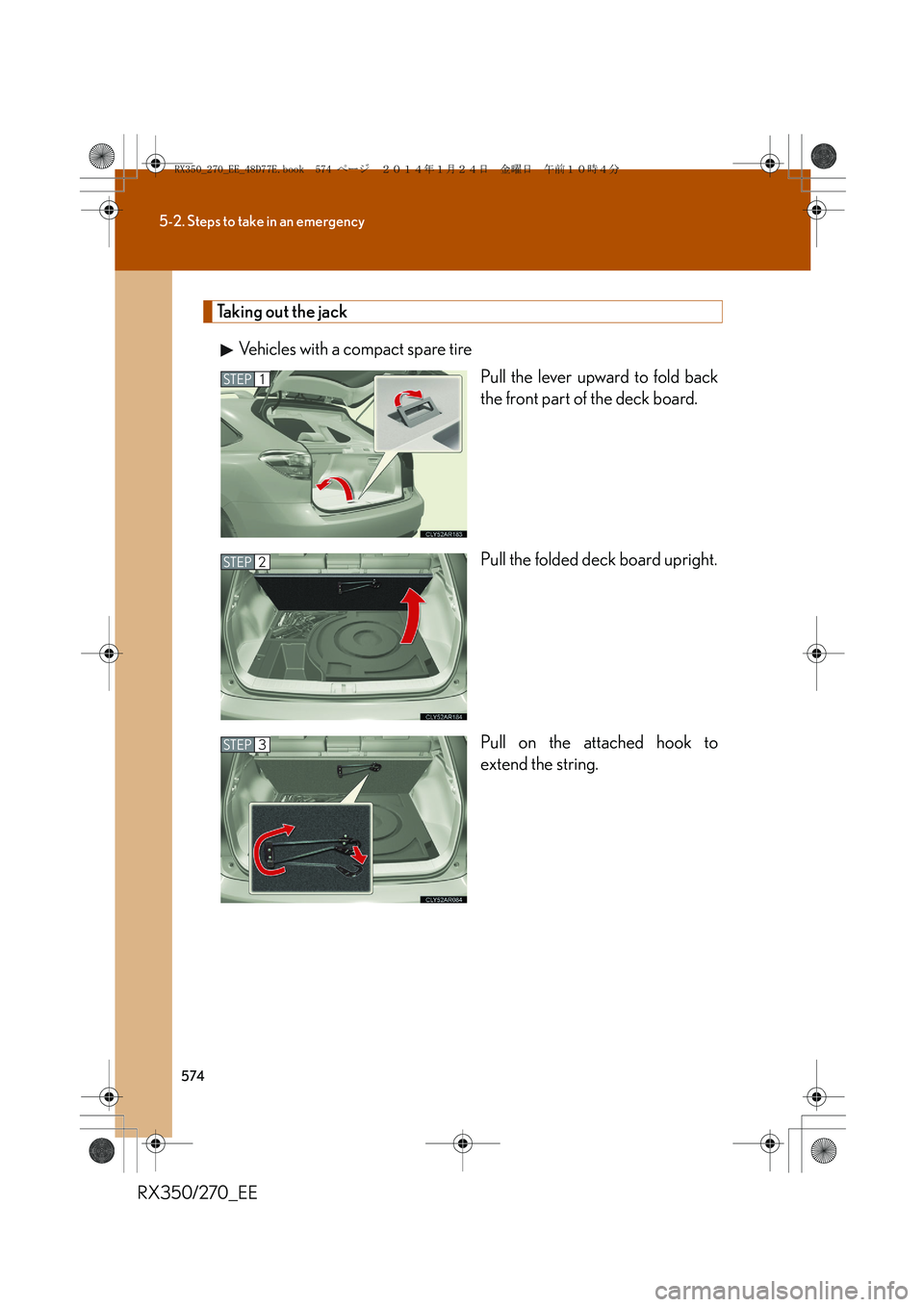

Taking out the jack
Vehicles with a compact spare tire
Pull the lever upward to fold back
the front part of the deck board.
Pull the folded deck board upright.
Pull on the attached hook to
extend the string.
STEP1
STEP2
STEP3
RX350_270_EE_48D77E.book 574 ページ ２０１４年１月２４日　金曜日　午前１０時４分

5
575
5-2. Steps to take in an emergency
When trouble arises

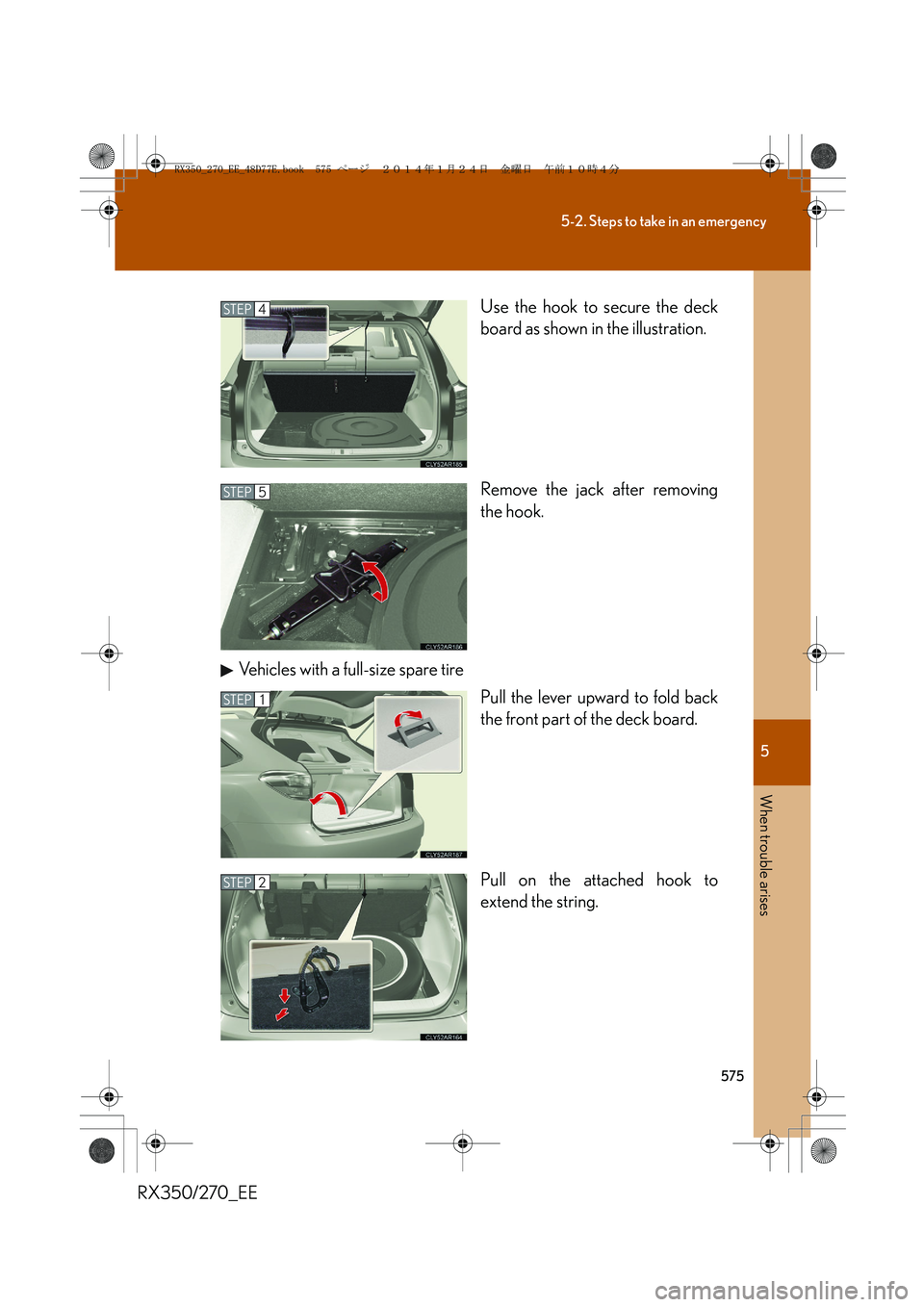

RX350/270_EEUse the hook to secure the deck
board as shown in the illustration.
Remove the jack after removing
the hook.
Vehicles with a full-size spare tire
Pull the lever upward to fold back
the front part of the deck board.
Pull on the attached hook to
extend the string.
STEP4
STEP5
STEP1
STEP2
RX350_270_EE_48D77E.book 575 ページ ２０１４年１月２４日　金曜日　午前１０時４分

576
5-2. Steps to take in an emergency

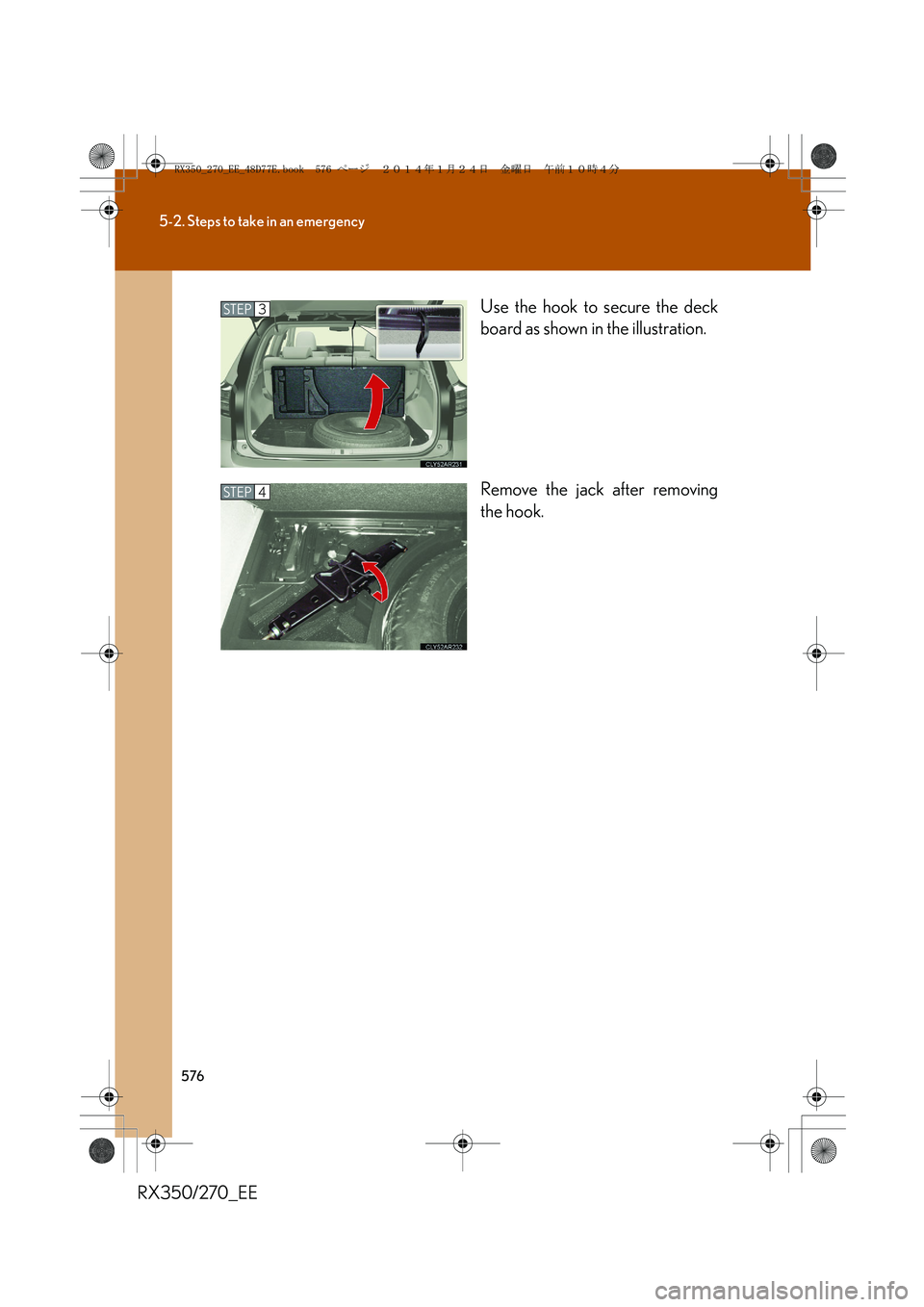

RX350/270_EEUse the hook to secure the deck
board as shown in the illustration.
Remove the jack after removing
the hook.
STEP3
STEP4
RX350_270_EE_48D77E.book 576 ページ ２０１４年１月２４日　金曜日　午前１０時４分

5
577
5-2. Steps to take in an emergency
When trouble arises
RX350/270_EE

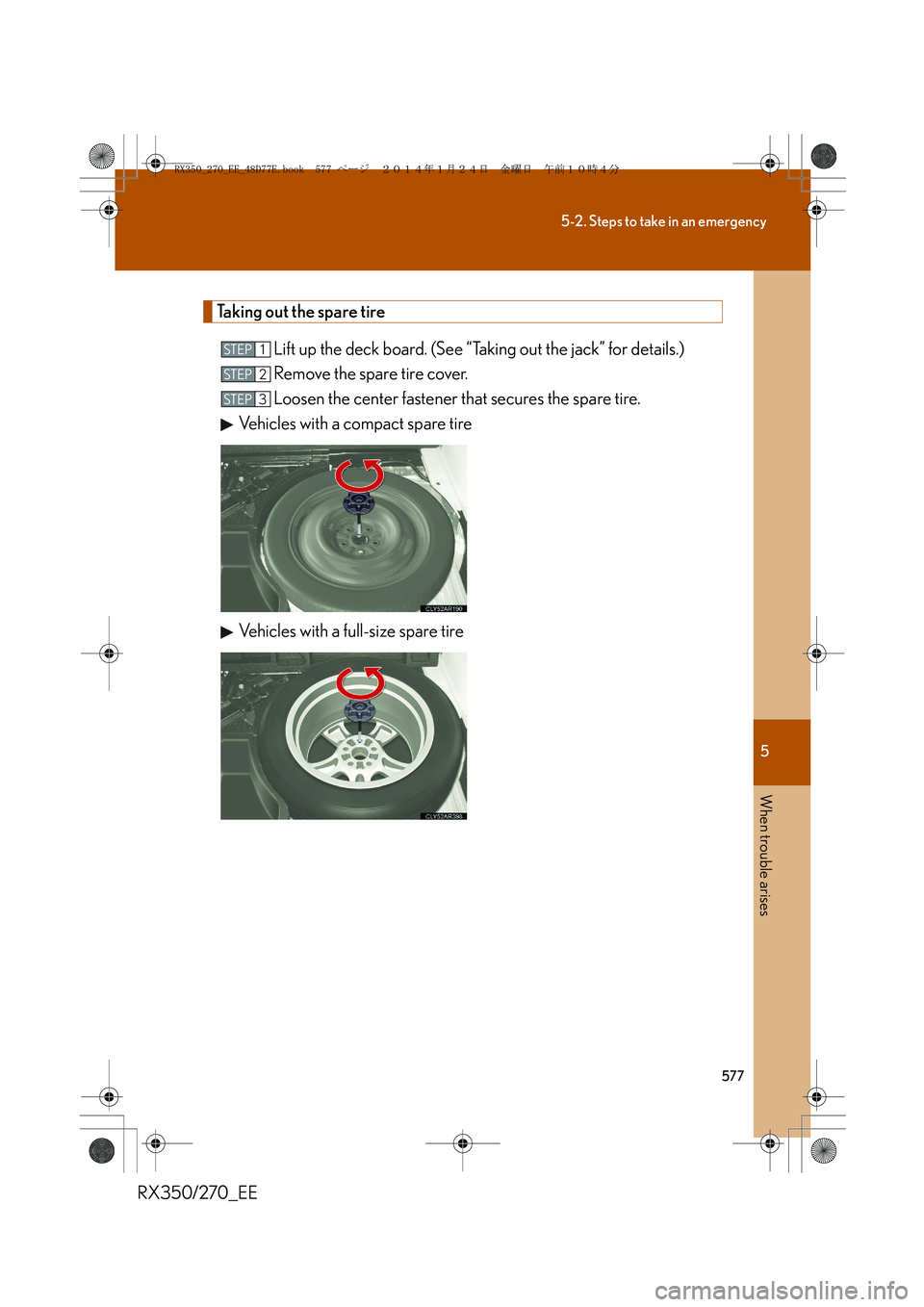

Taking out the spare tire
Lift up the deck board. (See “Taking out the jack” for details.)
Remove the spare tire cover.
Loosen the center fastener that secures the spare tire.
Vehicles with a compact spare tire
Vehicles with a full-size spare tire
STEP1
STEP2
STEP3
RX350_270_EE_48D77E.book 577 ページ ２０１４年１月２４日　金曜日　午前１０時４分

578
5-2. Steps to take in an emergency
RX350/270_EE

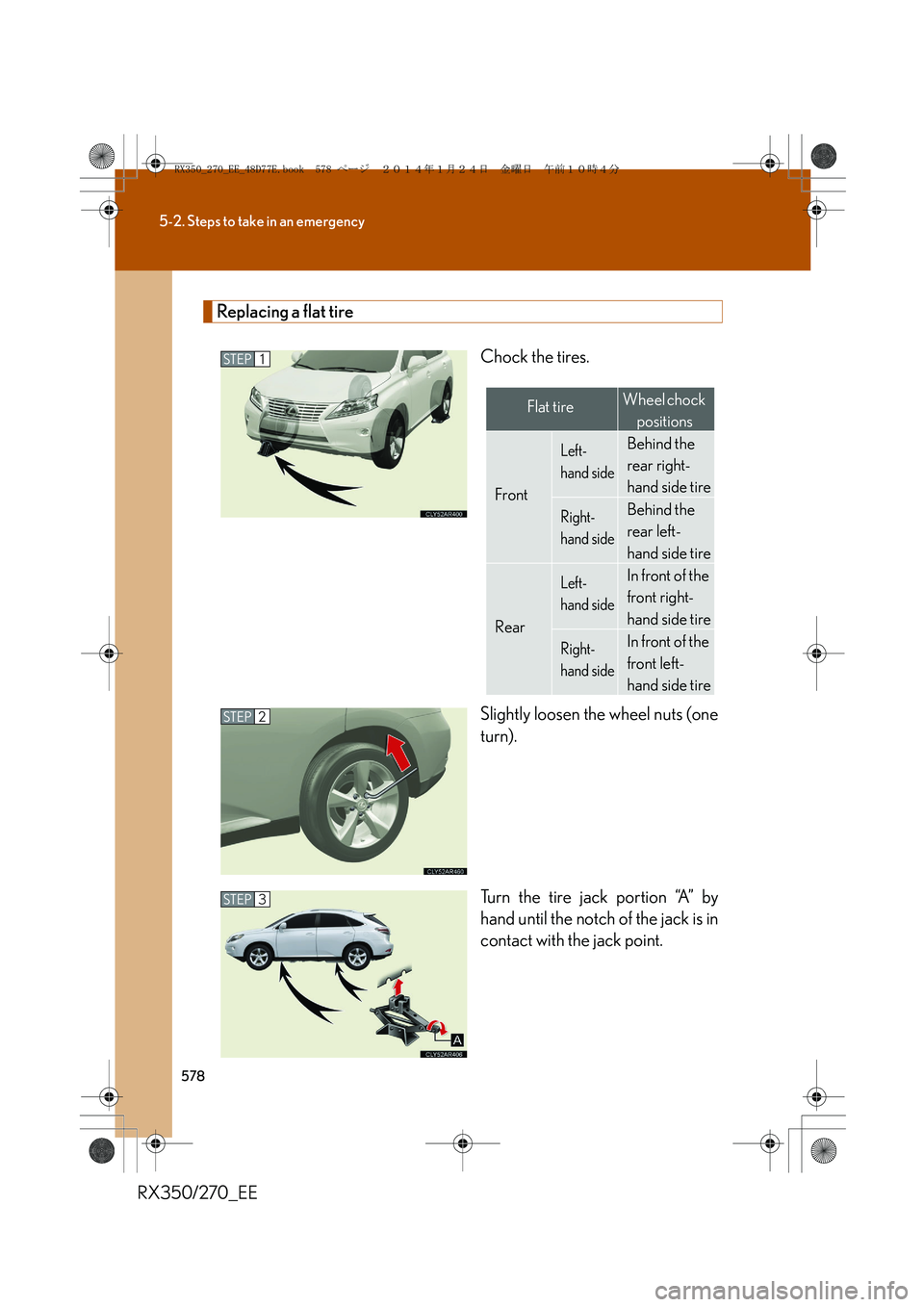

Replacing a flat tire
Chock the tires.
Slightly loosen the wheel nuts (one
turn).
Turn the tire jack portion “A” by
hand until the notch of the jack is in
contact with the jack point.
STEP1
Flat tireWheel chock
positions
Front
Left-
hand sideBehind the
rear right-
hand side tire
Right-
hand sideBehind the
rear left-
hand side tire
Rear
Left-
hand sideIn front of the
front right-
hand side tire
Right-
hand sideIn front of the
front left-
hand side tire
STEP2
STEP3
RX350_270_EE_48D77E.book 578 ページ ２０１４年１月２４日　金曜日　午前１０時４分

5
579
5-2. Steps to take in an emergency
When trouble arises

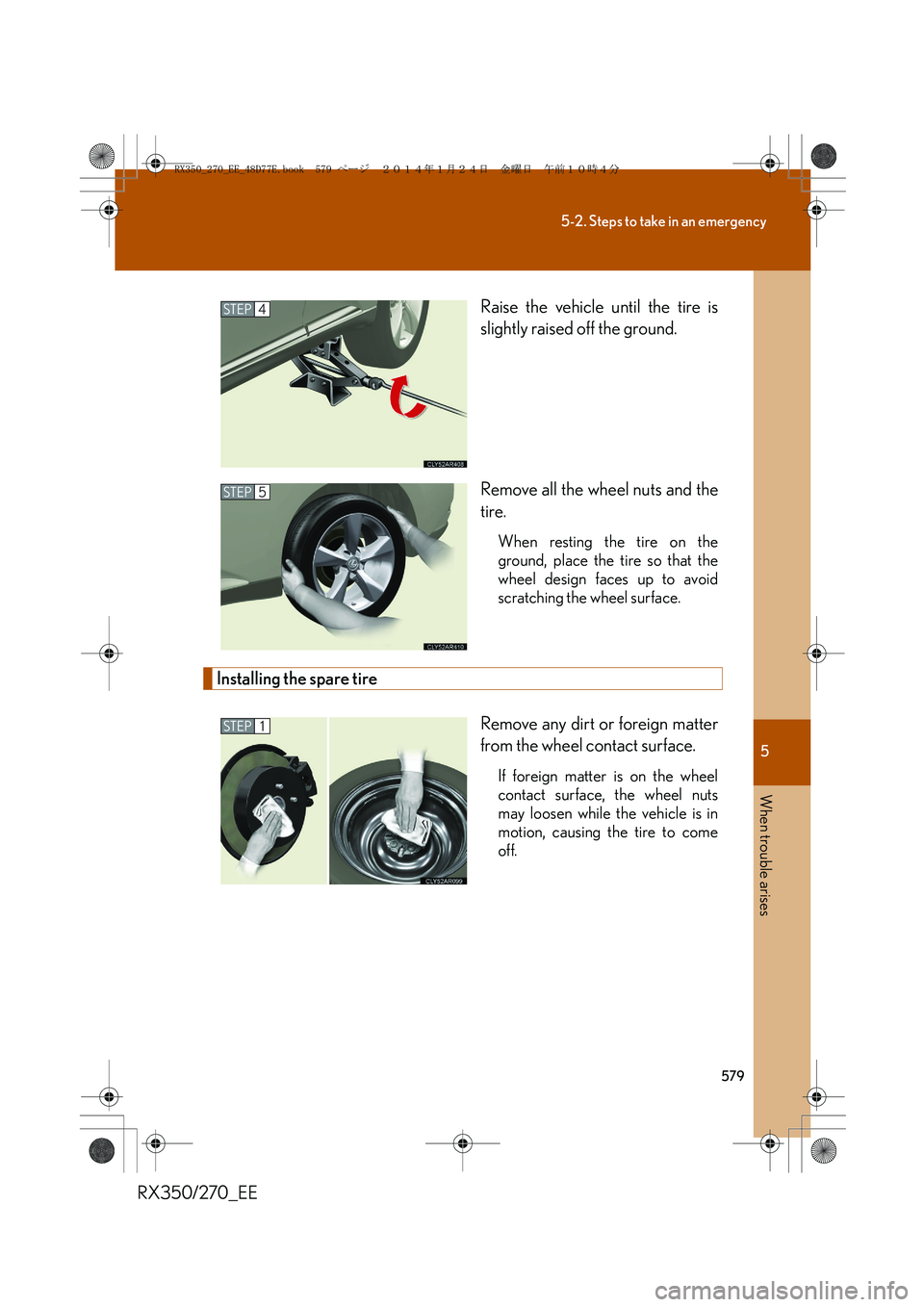

RX350/270_EERaise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and the
tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
Installing the spare tire
Remove any dirt or foreign matter
from the wheel contact surface.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is in
motion, causing the tire to come
off.
STEP4
STEP5
STEP1
RX350_270_EE_48D77E.book 579 ページ ２０１４年１月２４日　金曜日　午前１０時４分

580
5-2. Steps to take in an emergency

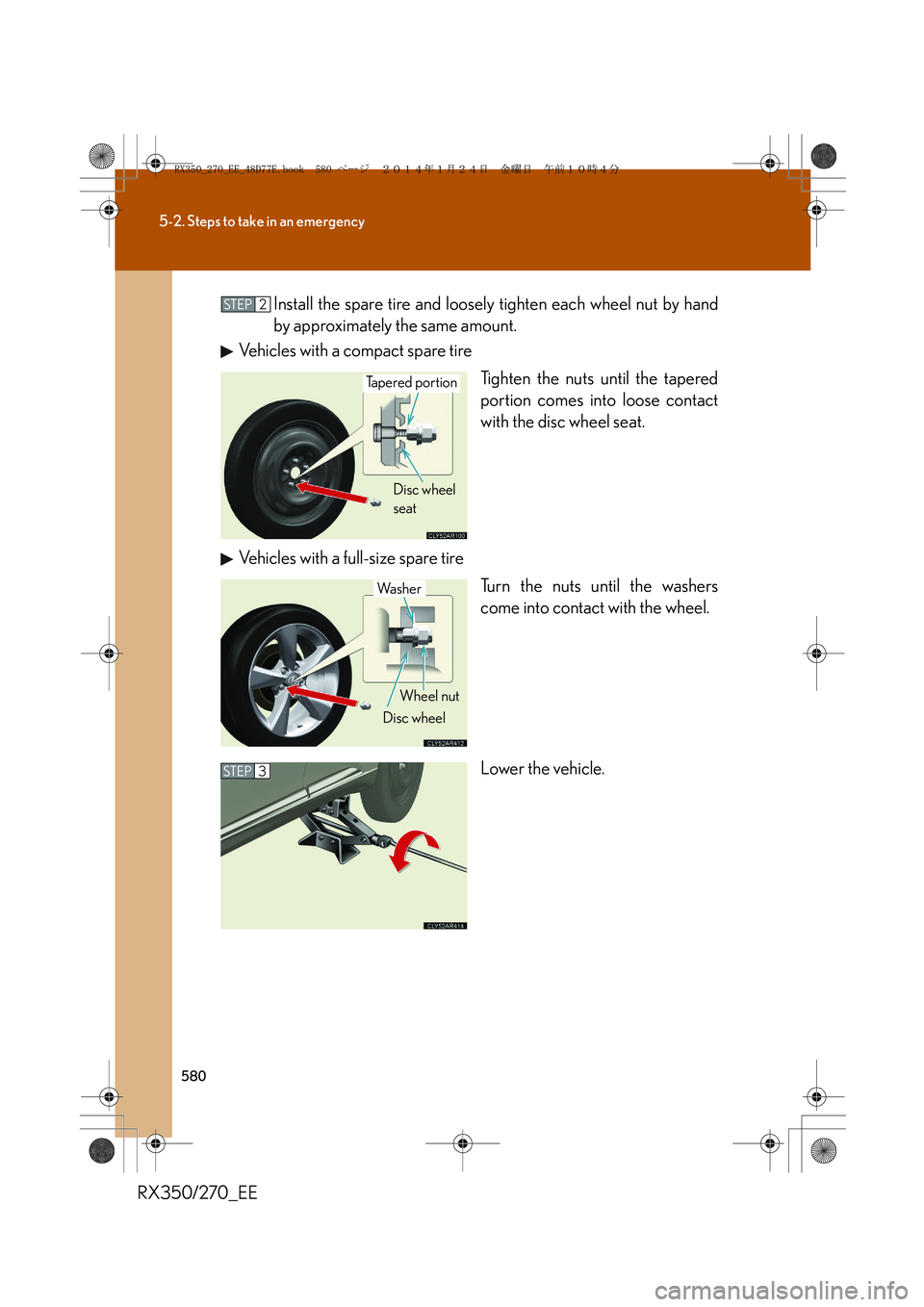

RX350/270_EEInstall the spare tire and loosely tighten each wheel nut by hand
by approximately the same amount.
Vehicles with a compact spare tire
Tighten the nuts until the tapered
portion comes into loose contact
with the disc wheel seat.
Vehicles with a full-size spare tire
Turn the nuts until the washers
come into contact with the wheel.
Lower the vehicle.
STEP2
Disc wheel
seat
Tapered portion
Wheel nut
Disc wheel
Wa s h e r
STEP3
RX350_270_EE_48D77E.book 580 ページ ２０１４年１月２４日　金曜日　午前１０時４分
